BIOSTAR BIWCL-PAT: Wildcat Lake SBC for Windows 11 IoT With Dual 2.5GbE and 5G

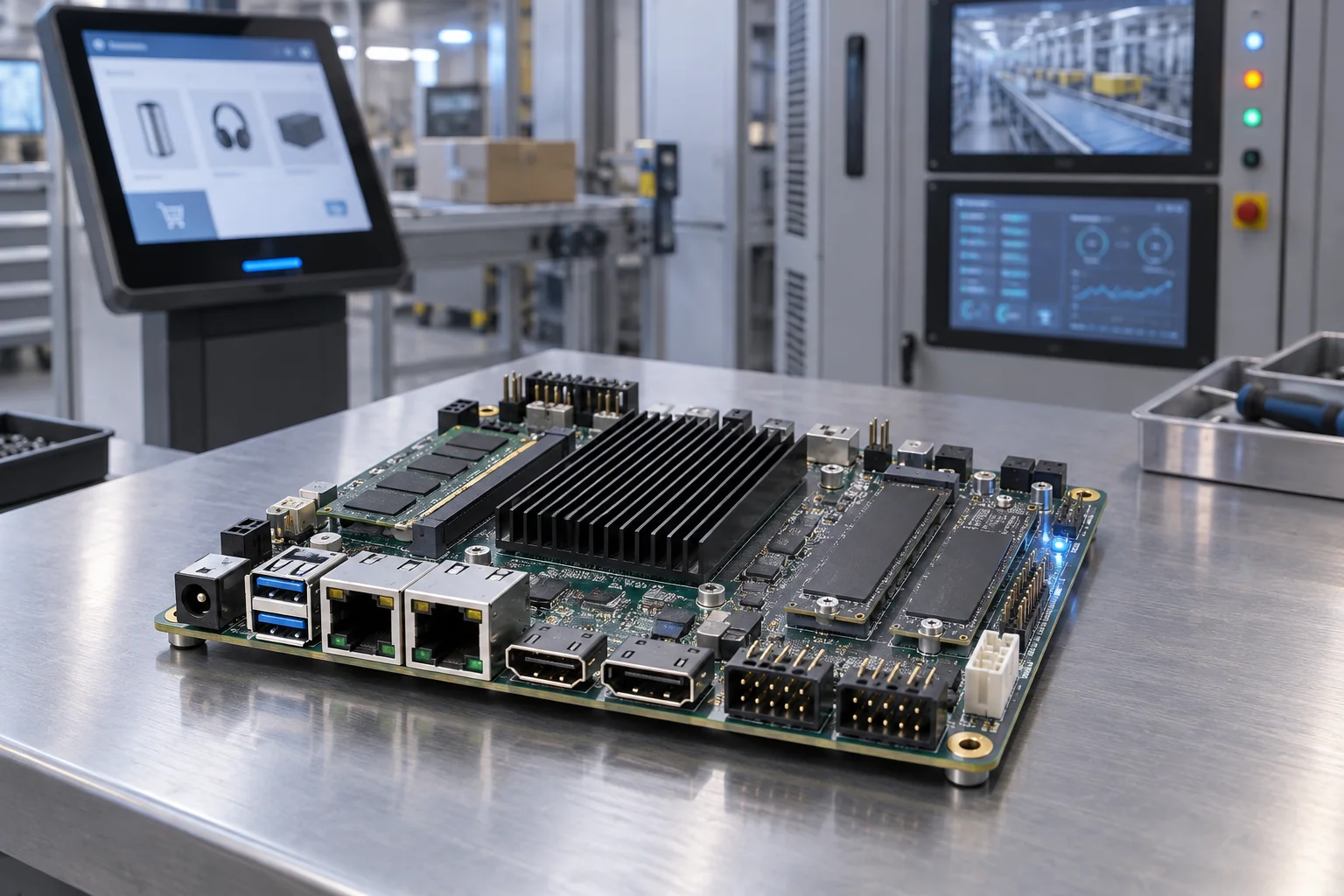

On October 13, 2026, hardware manufacturer BIOSTAR formally introduced the BIWCL-PAT, a compact 3.5-inch single-board computer (SBC) industrial motherboard built around Intel’s Core Series 3 (Wildcat Lake) processor family. Following an earlier appearance at Computex 2026 reported by Notebookcheck, BIOSTAR has now laid out the full specification sheet for system integrators and enterprise hardware planners. Measuring just 148 × 102 mm—roughly the footprint of a standard postcard—this tiny board packs support for up to 64 GB of DDR5 memory, three independent displays, three specialized M.2 expansion slots, dual 2.5 Gigabit Ethernet, and legacy serial I/O, all officially validated for Windows 11 IoT Enterprise 24H2.

Here is a comprehensive breakdown of what the BIOSTAR BIWCL-PAT brings to the embedded and edge computing table, how Intel's Wildcat Lake silicon fits into the picture, and what enterprise IT administrators need to consider before deploying it in the field.

Under the Hood: Intel Wildcat Lake and Memory Architecture​

At the heart of the BIWCL-PAT is Intel’s Core Series 3 processor platform, codenamed Wildcat Lake. In the broader arc of Intel’s low-power embedded and mobile roadmaps—where efficiency-focused chips like Alder Lake-N and Twin Lake have previously held court —Wildcat Lake steps in to serve compact, power-conscious form factors.

According to BIOSTAR’s official specifications, the BIWCL-PAT supports processor configurations scaling from Intel Core 3 up to Intel Core 7. Reporting from Notebookcheck provides further granularity on the silicon range, noting that supported Core 3xx configurations span from the Core 3 304 to the Core 7 360. Per Notebookcheck's breakdown, these processors operate at a 15 W base power rating and feature a hybrid core architecture of up to six CPU cores, split between two performance cores (P-cores) and four low-power efficiency cores (LP E-cores).

Why does that specific core configuration matter to an industrial architect? In embedded edge workloads—such as running a localized human-machine interface (HMI) while simultaneously polling sensors and encrypting telemetry for cloud upload—having two P-cores helps ensure that UI responsiveness and bursty Windows tasks don't stutter, while the four low-power efficiency cores handle background threads within a tight thermal envelope.

To keep those cores fed, BIOSTAR equipped the board with a single DDR5-6400 SO-DIMM slot capable of accepting up to 64 GB of RAM.

• The Good: Being able to drop a single 64 GB DDR5-6400 module onto a 148 × 102 mm board gives developers a generous memory ceiling for local data caching, containerized edge applications, or heavy multitasking.
• The Catch: Because there is only one SO-DIMM slot, memory runs in a single-channel configuration. For industrial automation, digital signage, and POS databases, single-channel DDR5 at 6400 MT/s provides plenty of bandwidth, though integrators shouldn't expect the dual-channel memory throughput required by heavier graphical 3D workloads.

Triple Independent Displays: Bridging Modern 4K and Embedded Panels​

One of the standout capabilities of the BIWCL-PAT is its ability to drive three independent displays simultaneously without requiring discrete graphics hardware. Better still, BIOSTAR chose a mix of display interfaces that reflects how commercial equipment is actually built:

• 1× HDMI 2.1: Supports resolutions up to 4K at 60 Hz.
• 1× DisplayPort 1.4: Supports resolutions up to 4K at 60 Hz.
• 1× LVDS Interface: Supports internal embedded flat panels at resolutions up to 1920 × 1200.

In a standard consumer PC, an internal LVDS (Low-Voltage Differential Signaling) header would be practically useless. In an industrial or retail environment, it is gold. If you are building a self-service kiosk or a smart checkout terminal, you can wire the internal primary touch panel directly to the board's LVDS interface, use the DisplayPort connection to run a secondary customer-facing promotional screen, and still have an HDMI 2.1 port left over to drive an overhead status monitor in crisp 4K. Similarly, on a factory floor, an operator can dedicate separate displays to control interfaces, live equipment telemetry, and overarching operational status.

Purpose-Built Expansion: The Three-Slot M.2 Strategy​

Space on a 3.5-inch SBC is famously scarce. Rather than giving up board real estate to a full-size PCIe slot that most compact enclosures couldn't fit anyway, BIOSTAR divided the board's internal expansion across three dedicated M.2 slots, each keyed for a specific job:

1. Storage (M.2 Key-M): Supports 2242 or 2280 NVMe SSDs operating over a PCIe 4.0 x2 interface. While consumer desktop boards usually allocate four PCIe lanes (x4) to NVMe storage, a PCIe 4.0 x2 connection still delivers sequential bandwidth miles ahead of legacy SATA storage, keeping boot times fast and local database queries snappy.
2. Cellular Connectivity (M.2 Key-B): Accommodates 3042 or 3052 4G/5G cellular modules utilizing PCIe 4.0 x1 and USB 3.2 signaling, backed by an onboard SIM card slot. For remote AIoT gateways, mobile fleet terminals, or pop-up retail kiosks where pulling Ethernet cable isn't feasible, native 4G/5G cellular readiness with an integrated SIM holder removes the need for external USB cellular dongles.
3. Local Wireless (M.2 Key-E): Accepts standard 2230 Wi-Fi and Bluetooth modules for local wireless networking and peripheral pairing.

By separating storage, cellular, and Wi-Fi/Bluetooth onto their own dedicated slots, system builders never have to play the frustrating game of sacrificing local NVMe storage just to install a 5G modem.

Industrial I/O and Dual 2.5GbE Networking​

Ask any veteran OT (Operational Technology) engineer what makes or breaks an industrial PC, and they won't ask about benchmark scores—they will ask how many COM ports and network interfaces it has. Equipment on factory floors—from programmable logic controllers (PLCs) to industrial scales and barcode scanners—still relies heavily on serial communication.

BIOSTAR clearly understood the assignment. Alongside modern high-speed connections, the BIWCL-PAT provides a rich set of legacy and industrial headers:

• Wired Networking: Dual 2.5GbE LAN ports driven by Intel I226-LM and Intel I226-V controllers.
• USB Connectivity: Two USB 3.2 Gen2 ports and four USB 2.0 connections.
• Serial Interfaces: Two RS232/422/485 ports plus two additional RS232 interfaces (four serial connections total).
• Hardware Control: One 8-bit digital I/O (DIO) header for triggering relays, reading switches, or interfacing with external alarms.

The inclusion of both an Intel I226-LM and an Intel I226-V 2.5GbE controller is a particularly thoughtful touch for enterprise deployments. In typical industrial architectures, having two physical NICs allows engineers to air-gap or segment traffic: one port can connect directly to a closed local equipment subnet (such as a camera array or PLC network), while the second port handles upstream communication with the corporate intranet or cloud infrastructure.

BIOSTAR BIWCL-PAT Technical Specifications Summary​

For system integrators and hardware architects comparing form factors, here is the complete verified specification profile of the BIWCL-PAT based on BIOSTAR's official release and Notebookcheck's platform reporting:

Windows 11 IoT Enterprise 24H2 Readiness and Environmental Envelope​

From a software and lifecycle perspective, BIOSTAR officially validates the BIWCL-PAT for Windows 11 IoT Enterprise 24H2 or later, alongside Ubuntu 24.04. To back up Windows 11’s strict security baseline, the motherboard includes onboard TPM 2.0 for hardware-rooted encryption, BitLocker drive protection, and secure device attestation.

For Windows administrators managing fleets of unattended kiosks or factory terminals, explicit validation for Windows 11 IoT Enterprise 24H2 is a major plus. The 24H2 release represents a critical milestone for enterprise LTSC (Long-Term Servicing Channel) deployments, offering the lockdown features—such as Unified Write Filter (UWF), Shell Launcher, and Assigned Access—that prevent a stray user or sudden power outage from corrupting an embedded OS image.

On the electrical and mechanical front, the board accepts a wide-range 9–24 V DC power input and is rated for an operating temperature range of 0°C to 60°C.

Practical Deployment Checklist for System Integrators​

While the specification sheet is undeniably versatile, hardware engineers should keep several practical boundaries in mind when planning a build around the BIWCL-PAT:

1. Thermal Boundaries (0°C to 60°C): A 0°C to 60°C operating window is well-suited for indoor factory floors, warehouses, retail environments, and climate-controlled enclosures. However, it is not an extended-temperature industrial rating (which typically reaches -20°C or -40°C on the low end and 70°C+ on the high end). If you are deploying an outdoor ticketing kiosk in a Minnesota winter or an unventilated roadside cabinet in Arizona, you will need active enclosure climate control.
2. Power Budgeting Beyond Base TDP: While Notebookcheck notes a 15 W base power rating for the Wildcat Lake processors, integrators selecting a 9–24 V DC power supply must account for peak turbo power draw, up to 64 GB of DDR5 memory, an NVMe SSD, a 5G cellular modem under active transmission, and multiple powered USB peripherals. Always consult BIOSTAR’s complete electrical manual before sizing your DC power brick or DIN-rail supply.
3. Internal Header vs. Rear Coastline Layout: Because the announcement groups external ports and internal pin headers in its total interface count (such as four USB 2.0 connections and four serial interfaces), chassis designers should review the official board mechanical layout from BIOSTAR to confirm which connectors sit on the rear edge and which require internal breakout cables.

Pricing, Availability, and the Bigger Picture​

As is standard practice in the B2B industrial motherboard space, BIOSTAR has not announced retail unit pricing or a fixed commercial street date for the BIWCL-PAT, as procurement generally happens through industrial distribution channels and direct integrator quotes. However, the company is actively pushing its Wildcat Lake and EdgeComp portfolio across major industry trade events, including scheduled showcases at AIoT Taiwan 2026.

Ultimately, the BIOSTAR BIWCL-PAT highlights why Intel’s Wildcat Lake (Core Series 3) platform is worth watching closely. Not every computing problem calls for a massive workstation or a power-hungry server rack. By combining a 15 W hybrid architecture with up to 64 GB of DDR5 RAM, native 5G and NVMe M.2 expansion, dual Intel 2.5GbE NICs, and four serial ports on a board you can hold in one hand, BIOSTAR has delivered a tightly integrated Swiss Army knife for Windows 11 IoT Enterprise deployments at the edge.
