For years, chipmakers and PC builders have tossed around phrases like "6 cores, 12 threads" or "16 cores, 32 threads" as if threads and cores are interchangeable commodities. They are not. A recent hardware explainer from BGR by Jules Wang revisits the fundamentals of CPU cores, threads, and simultaneous multithreading (SMT), tracing how modern silicon keeps itself busy when software hits a bottleneck. Understanding where physical silicon ends and logical scheduling begins is one of the easiest ways to avoid overpaying for your next PC build or misconfiguring a virtual machine.
Physical Cores vs. Software Threads vs. Logical Processors
Part of the confusion in PC hardware comes from the fact that the word "thread" does double duty in computing. Depending on whether you are talking to a software engineer or reading a processor spec sheet, it means two subtly different things.
- Physical CPU Cores: A core is actual, physical hardware etched onto the silicon die. Each core is an independent processing unit capable of fetching, decoding, and executing instructions. If your CPU has six physical cores, it has six separate hardware engines capable of doing real work at the exact same moment.
- Software Threads: When you launch an application in Windows, the operating system creates a process. That program can split its workload into multiple smaller sequences of instructions called software threads. A modern web browser, video editor, or game engine might spawn dozens or even hundreds of software threads to handle user input, audio, networking, and rendering independently.
- Hardware Threads (Logical Processors): When a CPU spec sheet advertises "12 threads" on a 6-core processor, it is not saying your PC can only run 12 software threads in total. Instead, it means the processor uses simultaneous multithreading (SMT) to expose two hardware execution contexts—which Windows calls "logical processors"—per physical core.
Without SMT, a single physical core handles one instruction stream at a time. If you have six single-threaded cores, the processor can execute six hardware threads simultaneously. Why doesn't the system freeze when Windows has 3,000 software threads open in the background? Because the operating system scheduler slices time into tiny fractions of a second, rapidly swapping software threads onto and off of your available cores.
Section Summary:
- Cores are physical execution units on the CPU chip.
- Software threads are streams of instructions created by programs.
- Hardware threads (logical processors) are the scheduling slots the CPU presents to the operating system.

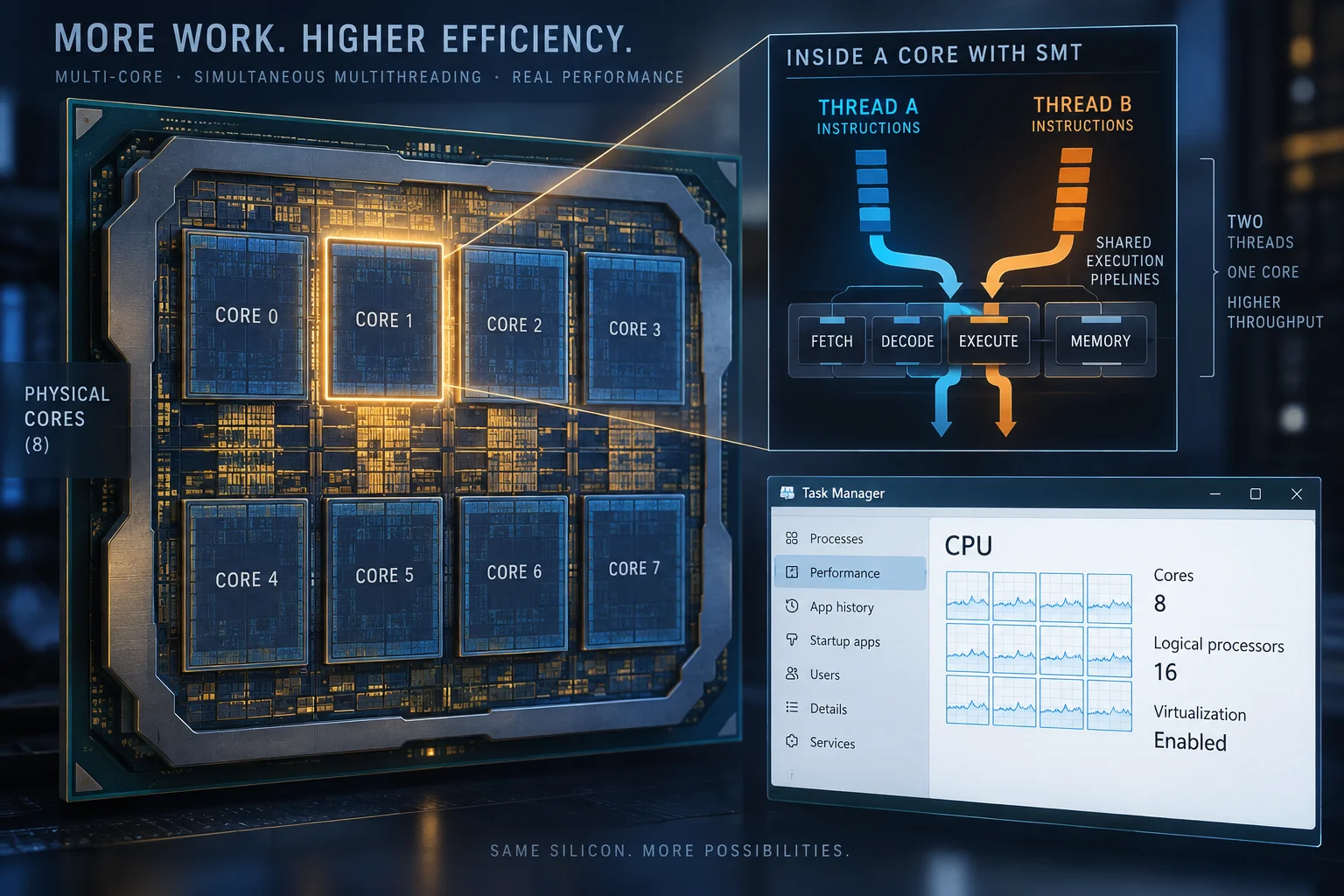

How Simultaneous Multithreading (SMT) Actually Works
If a physical core is already running instructions at billions of cycles per second, why would it ever need a second thread? Because software is messy and memory is slow.
As BGR points out, threads frequently run into conditional contingencies—moments where a thread cannot proceed until another calculation finishes or until data arrives from system RAM. In CPU architecture, these delays create stalls or idle execution resources. If a core is waiting on a memory fetch, parts of its internal execution engine are essentially twiddling their thumbs.
BGR offers a relatable fast-food analogy: imagine a kitchen worker who puts a sandwich into the oven and, rather than staring at the heating element for 30 seconds, turns around to pour a cup of coffee for the same order. One worker overlaps two tasks during dead time to finish the overall job faster.
In silicon, simultaneous multithreading accomplishes this by duplicating certain parts of the core—such as register files and architectural state—while forcing both threads to share the core's actual execution engines and caches. According to Intel's support documentation for Xeon processors, enabling Hyper-Threading (Intel's proprietary name for two-way SMT) lets a single physical core handle two execution contexts at once, typically increasing CPU utilization and throughput by roughly 10% to 30% when one thread is waiting on data or I/O operations.
What SMT does not do is magically create a second physical core. If two threads simultaneously demand the exact same heavy floating-point calculation unit inside the same physical core, they have to share it. That is why a 6-core, 12-thread CPU will never match the raw parallel muscle of a true 12-core processor.
| Component / Term | Hardware or Software? | What It Represents | How Windows Task Manager Sees It |
|---|---|---|---|
| Physical Core | Hardware | An independent processing unit on the CPU die | Listed under Cores |
| Hardware Thread (SMT / HT) | Hardware Context | Duplicated state on a core allowing two instruction streams to share execution resources | Listed under Logical processors |
| Software Thread | Software | A stream of instructions generated by a running program | Counted in the Threads readout (often thousands system-wide) |
| vCPU (Virtual CPU) | Virtualized Resource | A time-sliced CPU allocation given to a Virtual Machine (often mapped to 1 logical processor) | Seen inside the guest VM as a virtual processor |
Section Summary:
- SMT duplicates small portions of a core's state so two threads can share one physical core's execution hardware.
- According to Intel documentation, Hyper-Threading can boost utilization by 10% to 30% in compatible workloads, but it does not double physical processing power.
A Reality Check on Early Multithreading History
When tracing the lineage of multithreading, it is easy for modern terminology to get tangled up with mid-century mainframe history. BGR attributes the earliest active practice of simultaneous multithreaded computing to the 1950 Standards Eastern Automatic Computer (SEAC) at the U.S. National Bureau of Standards, and notes that MIT Lincoln Laboratory's 1956 TX-2 computer could operate on up to 32 threads.
For hardware historians and architecture purists, those milestones require an important technical distinction:
- SEAC (1950): According to the National Institute of Standards and Technology (NIST), the Standards Electronic (or Eastern) Automatic Computer began useful computation in May 1950 and is recognized as the first fully operational stored-program electronic computer built in the United States. While SEAC was a monumental leap forward because it held modifiable programs in internal memory and pioneered early image and symbolic processing, official NIST historical records do not establish it as a simultaneous multithreading processor in the modern sense.
- MIT Lincoln Lab TX-2 (1956): The TX-2 really did feature a remarkable 32-way architecture, though it operated differently than a modern SMT desktop chip. Rather than running 32 simultaneous threads inside a modern superscalar core, the TX-2 used "multi-sequence operation"—maintaining 32 hardware program counters (instruction sequences) with fixed priorities to rapidly switch context for I/O handling and interrupts without traditional software overhead.
Modern simultaneous multithreading—where multiple threads issue instructions into the shared execution pipelines of a single superscalar core during the same clock cycle—arrived decades later before hitting mainstream Windows desktops in the early 2000s.
Section Summary:
- Mid-century pioneers like the 1950 SEAC and 1956 TX-2 laid vital groundwork in stored-program computing and hardware multi-sequence switching, though modern superscalar SMT is a much later architectural evolution.
Intel vs. AMD: Why Chipmakers Are Rethinking Threads
For over twenty years, the trajectory of consumer CPUs seemed settled: add more cores, and put two threads on every core. Now, the two giants of the x86 Windows ecosystem have diverged sharply on how they treat multithreading.
Intel's Pivot Away from Hyper-Threading
As BGR notes, Intel brought Hyper-Threading to consumers with the Pentium 4 in 2002 and made it a staple across most of its Core lineup starting in 2008. However, as transistor shrinks pushed manufacturing from 14-nanometer nodes in 2016 down toward 2-nanometer-class processes in 2026, Intel changed its strategy.
Once Intel adopted a hybrid architecture combining big Performance-cores (P-cores) with compact Efficient-cores (E-cores), the die-space and power overhead required to maintain Hyper-Threading became harder to justify. Beginning in 2024, Intel dropped Hyper-Threading from its client Core processors, banking on the idea that packing in dedicated, power-efficient physical cores delivers better performance per watt and smaller die footprints than squeezing two threads onto a single P-core. BGR adds that Intel has hinted the feature could still return around 2028 for server-level processors, where massive I/O concurrency remains king.
AMD's Road from CMT to Ryzen SMT
AMD took the opposite journey. In 2011, with its Bulldozer architecture, AMD experimented with Cluster Multithreading (CMT). CMT tried to save die space and power by grouping two integer clusters into a "module" that shared a single front-end and floating-point unit. In practice, CMT struggled to match the single-threaded responsiveness or efficiency of Intel's Hyper-Threading.
In 2017, AMD abandoned CMT entirely when it launched the first generation of Ryzen processors, adopting a conventional 2-way SMT design. That design has worked so well for multi-core productivity and gaming that AMD has kept SMT as a cornerstone of its Ryzen desktop and Threadripper workstation lines ever since.
Section Summary:
- Intel introduced desktop Hyper-Threading in 2002 but began removing it from client Core CPUs in 2024 to save power and die space.
- AMD dropped its experimental 2011 Cluster Multithreading (CMT) in 2017 in favor of traditional SMT across its Ryzen lineup.
What This Means for Windows Users, Gamers, and IT Admins
Why should you care whether your Windows 11 rig gets its thread count from physical cores or SMT? Because different workloads respond very differently to shared silicon.
- PC Gaming: As Intel's gaming documentation explains, older game engines relied heavily on single-threaded performance and high clock speeds on one or two cores. Modern engines like Unreal Engine divide draw calls, physics, and asset streaming across multiple cores. Even so, games are latency-sensitive. Six or eight fast physical cores will almost always outperform four physical cores running eight threads, because two demanding game threads sharing one physical core can fight over cache and execution units.
- Content Creation and Rendering: Video encoding, 3D rendering (like Blender), and large code compilations are "embarrassingly parallel." They spawn enough independent threads to saturate every nook and cranny of a CPU. Here, SMT shines—giving you that extra 15% to 25% throughput boost for free while physical cores wait on memory fetches.
- Virtualization and Enterprise IT (Hyper-V, VMware, Cloud): If you manage virtual machines on Intel Xeon or AMD EPYC servers, Intel's support guidance makes a critical point about vCPUs (Virtual CPUs). In most hypervisors, 1 vCPU maps to 1 logical processor (one hyperthread), not one dedicated physical core. An 8-core Xeon with Hyper-Threading exposes 16 logical processors and can allocate 16 vCPUs. If an administrator mistakes 16 vCPUs for 16 physical cores and loads the server with heavy, continuous mathematical workloads, those virtual machines will compete for the same 8 physical engines.
How to Check Your Core and Thread Count in Windows
If you want to see exactly what hardware you are working with right now, it takes ten seconds:
- Press Ctrl + Shift + Esc to open Task Manager.
- Click the Performance tab on the left sidebar and select CPU.
- Right-click the utilization graph and select Change graph to > Logical processors to see each hardware thread your OS can schedule work on.
- Look below the graph at Cores (your actual physical silicon units) and Logical processors (your total hardware threads, including SMT/Hyper-Threading).
- If you ever need to test how a legacy game or specialized workload behaves without SMT, Intel notes that Hyper-Threading (or SMT on AMD motherboards) can be toggled on or off directly inside your PC's UEFI/BIOS settings.
When you are shopping for a processor, always treat physical cores and per-core architectural speed as your baseline measurement. Simultaneous multithreading is a clever, proven way to squeeze extra mileage out of idle silicon—just remember that a virtual coffee pourer is no substitute for hiring another cook in the kitchen.
