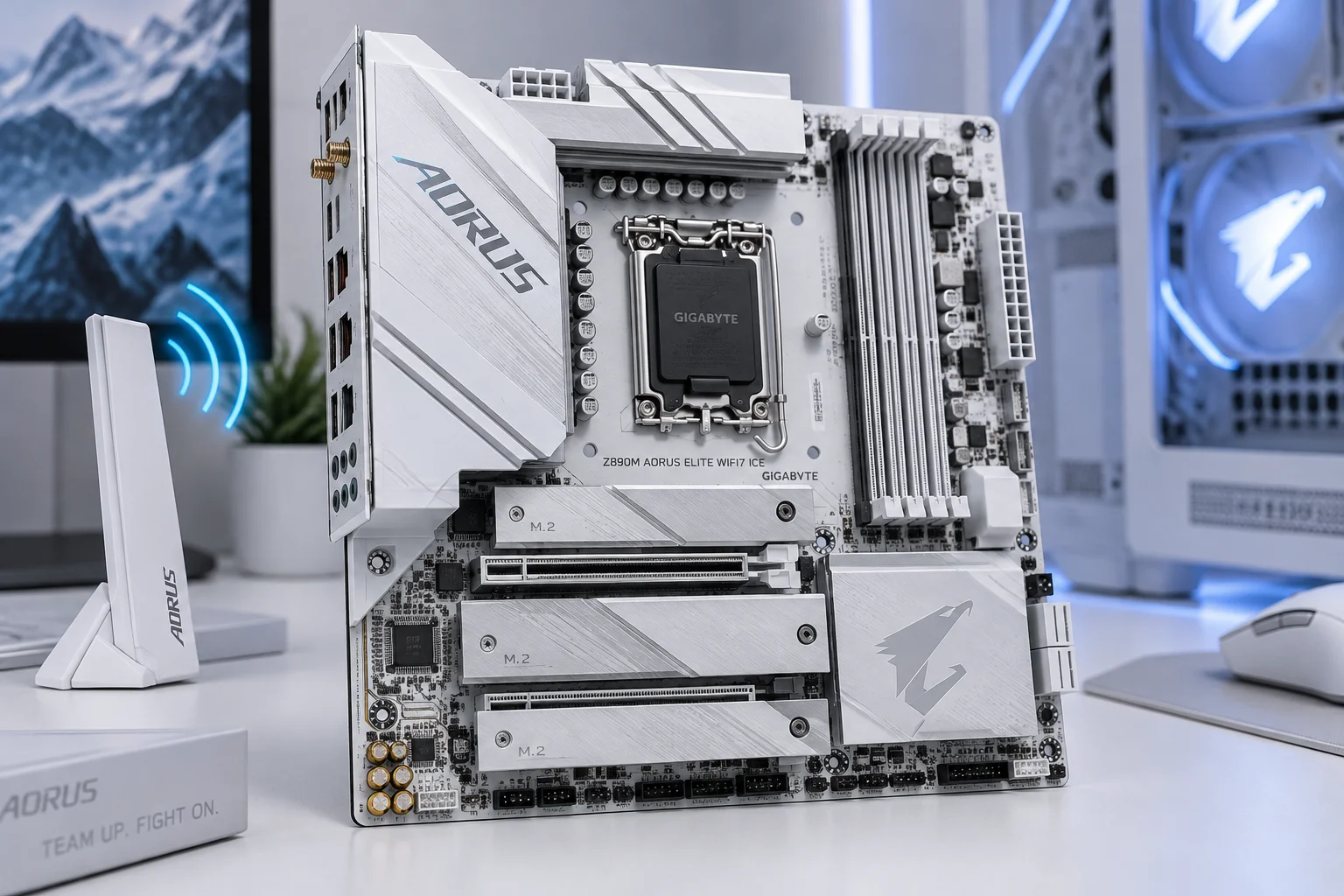

A white Gigabyte AORUS motherboard is displayed upright beside a matching Wi-Fi antenna in a tech showroom.
Gigabyte's Z890M Aorus Elite WiFi7 Ice is a white Micro ATX board for Intel's LGA 1851 socket. Tom's Hardware reviewed it and concluded that it is one of the better-looking boards in its class. Amazon listed it at $209.99 at the time of the review. The review rounds that to $209. Retail prices move, so treat that as a snapshot rather than today's price.

A white Gigabyte AORUS motherboard is displayed upright beside a matching Wi-Fi antenna in a tech showroom. The short version​

Tom's Hardware found performance to be average. The board did well in some tests and came in slightly below average in others. Gaming was a strength, with good results in 3DMark and in real games. The review text available to me has no numeric benchmark results, so I can't offer a comparison against specific rival boards.

The selling points are the looks, the heatsink coverage, three M.2 sockets and ten rear USB ports. The drawbacks are a single rear Type-C port, the basic audio codec and Wi-Fi 7 limited to 160 MHz channels.

Platform and what's on the board​

  • Socket and chipset: LGA 1851 with the Intel Z890 chipset, in the Micro ATX form factor. Micro Center's listing gives the board's dimensions as 244 mm by 244 mm.
  • CPU support: Gigabyte's product page says the board supports Intel Core Ultra processors (Series 2). Tom's Hardware describes it as optimized for the Core Ultra 200S Plus processors. Check Gigabyte's CPU support list and your BIOS version before buying for a specific chip.
  • Memory: There are four DDR5 slots, with capacity up to 256 GB. The headline rating is DDR5-9200 MT/s, but that is an overclock figure, not a guarantee.
  • Expansion: The primary slot is a reinforced PCIe 5.0 x16 that connects to the CPU. A second full-length slot runs at PCIe 4.0 x4 through the chipset.
  • Storage: Three M.2 sockets and four SATA ports, with RAID 0/1/5/10 listed for both NVMe and SATA.
  • Networking: Realtek 2.5 GbE and Wi-Fi 7 with Bluetooth 5.4.
  • Rear I/O: Nine USB ports in total, plus a DisplayPort 2.1 output and optical S/PDIF.

Memory: a useful reality check​

The memory results are the most useful practical finding in the review. Tom's Hardware reported that its fastest kit, rated DDR5-8800, did not work properly on this board. A DDR5-8200 kit ran fine. The reviewer's advice is to stick to the memory QVL.

This does not mean the board can't run fast memory. It shows that an advertised overclock ceiling depends on the specific kit, the CPU's memory controller and the BIOS. One review sample with one failed kit is not a verdict on every kit. It is a good reason to check the compatibility list before paying extra for an exotic kit. The Amazon listing for the board also advertises DDR5 up to 8800 MHz (OC), a lower figure than the 9200 MT/s on the spec sheet. Retail listings and spec sheets don't always agree, so check the exact kit against the QVL.

Storage and expansion​

Both the review and Gigabyte describe three M.2 sockets, with one of them PCIe 5.0 x4. The spec table lists one PCIe 5.0 x4 socket for drives up to 80 mm, one PCIe 4.0 x4 socket up to 80 mm, and one PCIe 4.0 x4 socket up to 110 mm. The review's introduction says "2x PCIe 5.0", which contradicts both its own spec table and Gigabyte's "1x PCIe 5.0 x4" description. I'd trust the table and the verdict's "1x PCIe 5.0 x4". Plan around a single Gen 5 drive.

The top socket sits under a large heatsink that Tom's Hardware says made good contact. The other two sit under a plate-style heatsink. Both heatsinks use Gigabyte's tool-free EZ-Latch retention, and the review describes the M.2 mounting as screwless.

The lower PCIe slot has a practical catch. Tom's Hardware warns that a big graphics card can cover it. If you want a capture card or extra network card in that slot, check the clearance first.

Power delivery​

The review describes a 15-phase design with 12 phases for Vcore. It uses two 8-pin CPU connectors, although only one is required. The controller is an onsemi NCP81537 in a teamed configuration, feeding 60 A DrMOS stages. Tom's Hardware puts the total at 720 A. It calls the design capable but not robust.

The reviewer says the board can handle the Core Ultra 7 270K Plus, Core Ultra 5 250K Plus and Core Ultra 9 285K. He is wary of heavy overclocking on the 285K or 270K Plus, and he advises airflow across the VRM heatsink under sustained load. That is sensible advice for a compact board. A Micro ATX case with weak airflow and a power-hungry flagship chip is where this board is most likely to struggle. For a mid-range Core Ultra 5 or 7 build, the power stage looks like a better fit.

Gigabyte markets the same VRM as "12+1+2", which adds the auxiliary phases to the Vcore count.

Connectivity and quirks​

  • USB4, not Thunderbolt: The single rear Type-C port is USB4 at 40 Gbps with DisplayPort output. Tom's Hardware stresses that it is not Thunderbolt 4. That matters if you own Thunderbolt docks or devices. The board does have two Thunderbolt headers for an add-in card.
  • One Type-C port: If you plan on many Type-C peripherals, this is the review's main complaint about the rear panel.
  • Front HDMI: An HDMI header, driven by an ASMedia chip, lets you attach a small status display inside the case. Gigabyte calls this feature Sensor Panel Link.
  • Wi-Fi: The review's spec table lists a MediaTek MT7925 module. Gigabyte's page says that module is on PCB revision 1.0 and a Realtek Wi-Fi 7 RTL8922AE is on revision 1.1. Gigabyte lists Wi-Fi 7 with Bluetooth 5.4 and 160 MHz support. If the wireless chip matters to you, check the revision on the box or the board.
  • Audio: The Realtek ALC897 codec is the basic option. Tom's Hardware says it is fine for most users, except for people making music or who care about onboard audio quality. Optical S/PDIF is there for those who want it.
  • Fans and lighting: Six 4-pin fan headers, each rated for up to 2 A / 24 W. There are three ARGB headers and one 4-pin RGB header, plus two onboard lighting zones. Fan and RGB control run through Gigabyte Control Center.
  • Troubleshooting: Four Q-LEDs show where POST fails, and the board has power, reset and Q-Flash Plus buttons. Q-Flash Plus is Gigabyte's BIOS-flashing feature.

Who should buy it​

This board suits builders who want a white, tidy Micro ATX system on LGA 1851. It also suits anyone who wants three M.2 slots and USB4 without paying for a full ATX board. The box is basic, with two white SATA cables and a spare M.2 thermal pad, which Tom's Hardware calls typical for the price.

I'd be more cautious if you:

  • need Thunderbolt 4 rather than USB4,
  • plan to overclock a Core Ultra 9 hard,
  • want onboard audio better than the ALC897,
  • need more than one rear Type-C port, or
  • have a large graphics card and want the second PCIe slot.

The $209.99 price should be checked against current listings. A reviewer's "average performance" is not a reason to avoid a board, since a motherboard mostly needs to stay out of the way. The looks and the heatsink coverage are what you are paying for here.


Correction (October 23, 2026): the original text said nine rear USB ports; Gigabyte's specification lists ten rear USB connectors on this board.
