Getting PC fan orientation right is one of the highest-return, zero-dollar optimizations you can make on a desktop rig. Yet between unlabelled fan frames, reversible fan blades, tower air coolers, and top-panel radiator mounts, figuring out which way the wind blows isn't always obvious at a glance. As Obaid Ur Rehman at BGR points out, misdirected fans don't just fail to cool your hardware; they actively disrupt internal airflow and trap warm air inside the chassis. Let’s break down the mechanics of case airflow, how to read any fan's orientation in seconds, and where the conventional rules of thumb bend.

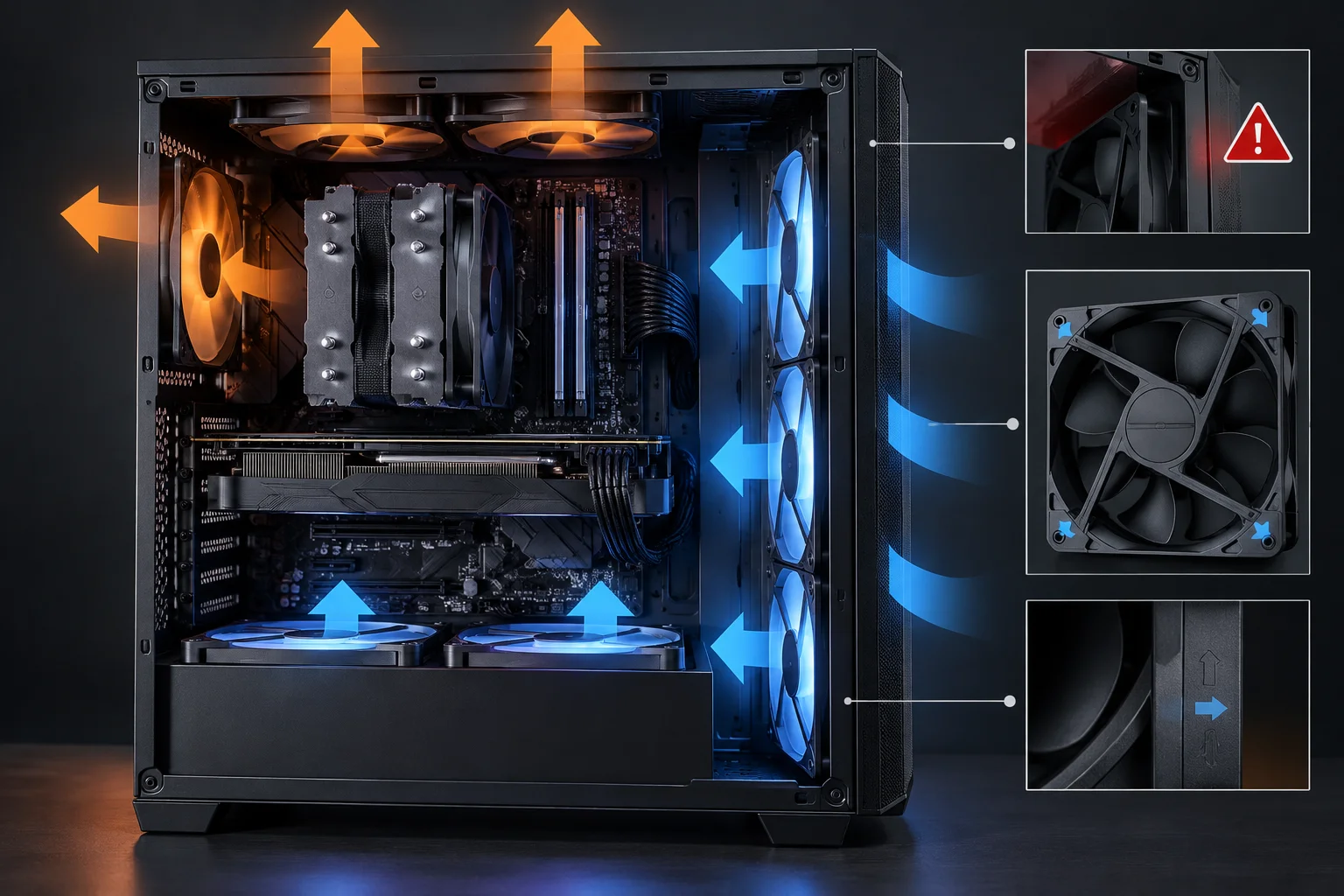

The Baseline Airflow Map: Front-to-Back, Bottom-to-Top
If you are building inside a traditional mid-tower or full-tower chassis, your goal is a smooth, continuous wind tunnel rather than pockets of competing turbulence. Hardware guides from Corsair, PCWorld, and How-To Geek all converge on the same foundational geometry: pull cool ambient air in from the front (and bottom, if your chassis has bottom mounts) and push warm air out through the rear and top.
- Front Fans (Intake): Positioned to draw fresh room air across your storage drives, motherboard, and directly toward the CPU and GPU.
- Bottom Fans (Intake): Where the case layout permits, bottom intakes push cool air straight up into the intake fans of a horizontally mounted graphics card.
- Rear Fan (Exhaust): Sits directly behind the CPU socket area to immediately eject the heat coming off your processor cooler and motherboard VRMs.
- Top Fans (Exhaust): Help vent rising warm air out of the upper chamber of the chassis.
For a typical air-cooled build, BGR suggests a common five-fan starting point: three front intakes paired with one rear exhaust and one top exhaust. However, you do not need five fans to keep a PC cool—a balanced four-fan setup (three intakes and one rear exhaust) or even a classic three-fan arrangement can perform admirably when the airflow path is unobstructed.
The Top-Front Exhaust Trap on Air-Cooled Builds
One of the easiest mistakes to make when populating every fan mount on your case happens on the top panel. If you are using a traditional tower-style CPU air cooler along with front intake fans and a rear exhaust, putting an exhaust fan in the top-front slot (immediately above the front intakes, ahead of the CPU tower) can actually work against you.
Why? Because that top-front exhaust fan sits directly in the path of the fresh, cool air entering from the top-front intake. Instead of letting that cool air travel across the RAM and through the fins of your CPU tower cooler, a top-front exhaust can siphon the fresh air straight out the roof of the PC before it ever reaches a hot component.
If you are running an air cooler and want to add a single top exhaust fan, mount it in the top-rear position—above or slightly behind the CPU cooler—so it collects heat after the air has passed through the heatsink. This isn't an absolute law for every chassis or liquid-cooling setup, where top-panel radiators change the equation, but for standard air-cooled towers, favoring the top-rear slot avoids short-circuiting your intake stream.
How to Tell Which Way a PC Fan Blows
Before you tighten four self-tapping screws into a fan frame, you need to know which face pulls air in and which face pushes air out. There are three reliable ways to check:
- Check the Frame for Directional Arrows: Many manufacturers mold two small, intersecting arrows into the plastic side housing of the fan. As Corsair’s builder documentation notes, the arrow pointing along the length of the frame indicates the direction the fan blades spin, while the arrow pointing across the depth of the frame shows the direction the air travels. For an intake fan, that airflow arrow must point into the PC case; for an exhaust fan, it must point toward the outside of the case.
- Look for the Motor Support Struts (The "Open" vs. "Caged" Side): Not every fan includes stamped arrows. On a standard axial PC fan, flip it over and look at both faces. One side features an open hub (usually sporting the cleaner brand logo sticker), while the back side has three or four plastic support struts—often called the stator vanes or motor cage—stretching from the outer frame to the central motor hub. On a conventional fan, air enters the open side and exits through the side with the plastic support struts.
- To set a standard fan as Intake: Face the support struts toward the inside of the case (and the open logo side facing the outside panel/filter).
- To set a standard fan as Exhaust: Face the support struts toward the outside of the case (so you see the clean, open side when looking inside your PC).
- For Tower Air Coolers: Unless you are using an unconventional setup, the open blade side of the CPU cooler fan typically faces the front of the case to grab incoming cool air, while the support-strut side presses against or faces the rear exhaust.
- The Reversible-Blade Exception: A critical caveat for modern aesthetics-focused builds is the rise of reverse-blade fans. As Thermaltake notes in its chassis airflow support documentation, standard visual rules—where seeing the front logo means exhaust and seeing the rear support struts means intake—do not apply to models like its SWAFAN series, which use swappable, reversible fan blades so builders can get intake airflow without looking at the ugly plastic support struts inside a glass case. If you buy reverse-blade fans, ignore the strut rule of thumb and check the blade curvature, frame arrows, or manual.
| Fan Role | Frame Arrow Direction | Support-Strut Side (Standard Fans) | Typical Mounting Locations |
|---|---|---|---|
| Intake (Pulls cool air in) | Points into the case | Faces the interior of the PC | Front panel, bottom panel |
| Exhaust (Pushes warm air out) | Points out of the case | Faces the exterior of the PC | Rear panel, top-rear panel |
Positive, Negative, and Neutral Case Pressure
Once your fans are pointing the right way, the balance between total intake airflow and total exhaust airflow determines your case's internal air pressure:
- Positive Pressure (More Intake than Exhaust): When your intake fans push more air into the chassis than your exhaust fans actively pull out, excess air naturally escapes through unfiltered PCIe slot covers and chassis seams. Because air only enters the PC through your dedicated intake fans—which are normally covered by removable mesh dust filters—positive pressure helps minimize internal dust buildup over time. In BGR's example using a four-fan darkFlash DK352 setup (three intakes and one exhaust), the positive-pressure layout kept gaming temperatures on that specific system around 62°C on the CPU and 76°C on the GPU.
- Negative Pressure (More Exhaust than Intake): When exhaust fans pull out more air than intakes supply, the case creates a slight vacuum that draws replacement air in through every tiny, unfiltered gap around expansion slots, I/O shields, and side panels. While it evacuates hot air aggressively, it also pulls room dust into those crevices.
- Neutral Pressure (Balanced Intake and Exhaust): Intake and exhaust airflow are roughly equal, striking a middle ground between heat evacuation and dust control.
Keep in mind that fan count alone does not dictate pressure; fan RPM curves, radiator fin density, and restrictive front panels or dust filters all change how much air each fan actually moves. If you want a quick, informal visual check of how your current fan curves behave at idle or under load, BGR suggests holding a small strip of tissue paper near an open, unfiltered vent hole away from the fans themselves. If the tissue is nudged outward, your case is running positive pressure; if it gets drawn inward against the chassis, you have negative pressure; if it hangs mostly still, you are near neutral.
Section Summary & Quick Checklist:
- Keep your primary airflow path consistent: cool air enters from the front/bottom and exits out the back/top.
- On tower air-cooled rigs, prefer a top-rear exhaust over a top-front exhaust so you don't rob your CPU cooler of fresh front intake air.
- Verify orientation using the stamped frame arrows first; on conventional non-reversible fans, air always blows out of the side with the plastic motor support struts.
- Aim for slight positive or neutral pressure with filtered intakes if keeping dust out of your heatsinks is as important to you as raw thermal numbers.
