A BSOD of course!

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by harbinger66, Jan 24, 2011.

  1. harbinger66

    harbinger66 New Member

    Joined:
    Jan 24, 2011
    Messages:
    4
    Likes Received:
    0
    Thanks for the help in advance. Got this particular BSOD while I was playing an online game. I JUST reinstalled W7 fresh again, because I'm pretty sure my HDD was dying, despite it being new. This install is on an older HDD. But really i'm not positive what the problem was... So i'm pretty suspicious of MB. Anyhow, here is what I got.

    memory_corruption ?


    Attached Files:

    #1 harbinger66, Jan 24, 2011
    Last edited: Jan 24, 2011
  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

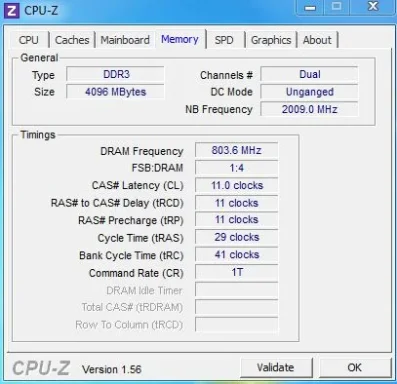

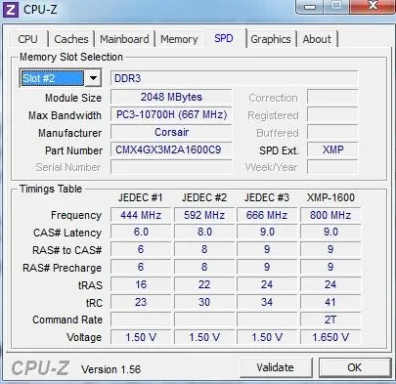

    The timings are set wrong - ensure they are on "Auto" in the bios.



    ~~~~~~~~~~

    If crashes persist after you set the RAM right, replace Avast with MSE:

    avast! Uninstall Utility

    https://www.microsoft.com/security_essentials/





    Crash Dumps:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\011611-26332-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0xfffff800`02a1a000 PsLoadedModuleList = 0xfffff800`02c57e50
    Debug session time: Sun Jan 16 20:49:42.505 2011 (UTC - 5:00)
    System Uptime: 0 days 1:18:32.801
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ........................
    Loading User Symbols
    Loading unloaded module list
    .......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 50, {fffff68080076770, 0, fffff80002a9e2e2, 5}


    Could not read faulting driver name
    Probably caused by : memory_corruption ( nt!MiAgeWorkingSet+1c2 )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    PAGE_FAULT_IN_NONPAGED_AREA (50)
    Invalid system memory was referenced.  This cannot be protected by try-except,
    it must be protected by a Probe.  Typically the address is just plain bad or it
    is pointing at freed memory.
    Arguments:
    Arg1: fffff68080076770, memory referenced.
    Arg2: 0000000000000000, value 0 = read operation, 1 = write operation.
    Arg3: fffff80002a9e2e2, If non-zero, the instruction address which referenced the bad memory
    	address.
    Arg4: 0000000000000005, (reserved)

    Debugging Details:
    ------------------


    Could not read faulting driver name

    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff80002cc20e0
     fffff68080076770

    FAULTING_IP:
    nt!MiAgeWorkingSet+1c2
    fffff800`02a9e2e2 488b19          mov     rbx,qword ptr [rcx]

    MM_INTERNAL_CODE:  5

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x50

    PROCESS_NAME:  Vindictus.exe

    CURRENT_IRQL:  0

    TRAP_FRAME:  fffff880031167a0 -- (.trap 0xfffff880031167a0)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000007ffffffff8 rbx=0000000000000000 rcx=fffff68080076770
    rdx=0000000000000001 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002a9e2e2 rsp=fffff88003116930 rbp=0000000080076770
     r8=0000000000000001  r9=fffffa8006ec3af8 r10=0000000000000005
    r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei ng nz na pe cy
    nt!MiAgeWorkingSet+0x1c2:
    fffff800`02a9e2e2 488b19          mov     rbx,qword ptr [rcx] ds:fa6a:fffff680`80076770=????????????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002b098c1 to fffff80002a8a740

    STACK_TEXT:
    fffff880`03116638 fffff800`02b098c1 : 00000000`00000050 fffff680`80076770 00000000`00000000 fffff880`031167a0 : nt!KeBugCheckEx
    fffff880`03116640 fffff800`02a8882e : 00000000`00000000 00000980`00000000 00000000`00001000 fffff800`02bbebfe : nt! ?? ::FNODOBFM::`string'+0x40e8b
    fffff880`031167a0 fffff800`02a9e2e2 : 00000003`00000000 83700000`cf0fe82d 00000000`00000000 00000000`00017837 : nt!KiPageFault+0x16e
    fffff880`03116930 fffff800`02b0ca5e : fffffa80`06ec3af8 fffff880`00000001 00000000`00000001 fffff880`03116bb0 : nt!MiAgeWorkingSet+0x1c2
    fffff880`03116ae0 fffff800`02a9eee2 : 00000000`00000c5c 00000000`00000000 fffffa80`00000000 00000000`00000006 : nt! ?? ::FNODOBFM::`string'+0x496d6
    fffff880`03116b80 fffff800`02a9f173 : 00000000`00000008 fffff880`03116c10 00000000`00000001 fffffa80`00000000 : nt!MmWorkingSetManager+0x6e
    fffff880`03116bd0 fffff800`02d2ec06 : fffffa80`03a04680 00000000`00000080 fffffa80`039e2040 00000000`00000001 : nt!KeBalanceSetManager+0x1c3
    fffff880`03116d40 fffff800`02a68c26 : fffff880`02d63180 fffffa80`03a04680 fffff880`02d6dfc0 85119485`33665533 : nt!PspSystemThreadStartup+0x5a
    fffff880`03116d80 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KxStartSystemThread+0x16


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!MiAgeWorkingSet+1c2
    fffff800`02a9e2e2 488b19          mov     rbx,qword ptr [rcx]

    SYMBOL_STACK_INDEX:  3

    SYMBOL_NAME:  nt!MiAgeWorkingSet+1c2

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c1c44a9

    IMAGE_NAME:  memory_corruption

    FAILURE_BUCKET_ID:  X64_0x50_nt!MiAgeWorkingSet+1c2

    BUCKET_ID:  X64_0x50_nt!MiAgeWorkingSet+1c2

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start             end                 module name
    fffff880`03f39000 fffff880`03f77000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00f51000 fffff880`00fa8000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02a00000 fffff880`02a8a000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03fdd000 fffff880`03ff3000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`03f1b000 fffff880`03f30000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00dbf000 fffff880`00dca000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`05cba000 fffff880`05cc3000   aswFsBlk aswFsBlk.SYS Thu Jan 13 03:37:10 2011 (4D2EB9B6)
    fffff880`05c80000 fffff880`05cba000   aswMonFlt aswMonFlt.sys Thu Jan 13 03:37:21 2011 (4D2EB9C1)
    fffff880`02a8a000 fffff880`02a94000   aswRdr   aswRdr.SYS   Thu Jan 13 03:37:32 2011 (4D2EB9CC)
    fffff880`03daa000 fffff880`03df3000   aswSP    aswSP.SYS    Thu Jan 13 03:41:42 2011 (4D2EBAC6)
    fffff880`02b7d000 fffff880`02b8d000   aswTdi   aswTdi.SYS   Thu Jan 13 03:40:19 2011 (4D2EBA73)
    fffff880`083e6000 fffff880`083f1000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00d81000 fffff880`00d8a000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00d8a000 fffff880`00db4000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`013f6000 fffff880`013fe000   AtiPcie  AtiPcie.sys  Tue May 05 11:00:22 2009 (4A005486)
    fffff880`02ad1000 fffff880`02ad8000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03ca1000 fffff880`03cb2000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`06b87000 fffff880`06ba5000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`00640000 fffff960`00667000   cdd      cdd.dll      unavailable (00000000)
    fffff880`02a9e000 fffff880`02ac8000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00ca7000 fffff880`00d67000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`00dca000 fffff880`00dfa000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00c49000 fffff880`00ca7000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`010f9000 fffff880`0116c000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`03fcd000 fffff880`03fdd000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`05c27000 fffff880`05c35000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03c00000 fffff880`03c83000   csc      csc.sys      Mon Jul 13 19:24:26 2009 (4A5BC22A)
    fffff880`03c83000 fffff880`03ca1000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`03d9b000 fffff880`03daa000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`013e0000 fffff880`013f6000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`05f83000 fffff880`05fa5000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`05c41000 fffff880`05c4a000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05c35000 fffff880`05c41000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05c4a000 fffff880`05c5d000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`05c0d000 fffff880`05c19000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`03e00000 fffff880`03ef4000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
    fffff880`1497e000 fffff880`149c4000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
    fffff880`149e8000 fffff880`149f5000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`01087000 fffff880`0109b000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`0436d000 fffff880`04378000   flpydisk flpydisk.sys Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`0103b000 fffff880`01087000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`013d6000 fffff880`013e0000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`01000000 fffff880`0103a000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`0148b000 fffff880`014d5000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff800`02ff6000 fffff800`0303f000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`149c4000 fffff880`149e8000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`05fd6000 fffff880`05fef000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`05fef000 fffff880`05ff7080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`05fc8000 fffff880`05fd6000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`06abf000 fffff880`06b87000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`015f6000 fffff880`015ff000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`03fa0000 fffff880`03fbe000   i8042prt i8042prt.sys Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`03fbe000 fffff880`03fcd000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff800`00bd0000 fffff800`00bda000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`042be000 fffff880`04301000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`013ab000 fffff880`013c5000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`05fa5000 fffff880`05faa200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`0438d000 fffff880`043a2000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05c5d000 fffff880`05c80000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c28000 fffff880`00c35000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`05c19000 fffff880`05c27000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`042ad000 fffff880`042bc000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05c00000 fffff880`05c0d000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00d67000 fffff880`00d81000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`06ba5000 fffff880`06bbd000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06bbd000 fffff880`06bea000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`06a00000 fffff880`06a4e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`06a4e000 fffff880`06a71000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`00db4000 fffff880`00dbf000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`02b36000 fffff880`02b41000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fb1000 fffff880`00fbb000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`0109b000 fffff880`010f9000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`03d90000 fffff880`03d9b000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`015e4000 fffff880`015f6000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014ea000 fffff880`015dc000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03ff3000 fffff880`03fff000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`0421d000 fffff880`0424c000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04378000 fffff880`0438d000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`03cd8000 fffff880`03ce7000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02b8d000 fffff880`02bd2000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Thu Apr 08 22:43:59 2010 (4BBE946F)
    fffff880`02b41000 fffff880`02b52000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`03d84000 fffff880`03d90000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02a1a000 fffff800`02ff6000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff880`01208000 fffff880`013ab000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`02ac8000 fffff880`02ad1000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`1497c000 fffff880`1497d180   nvBridge nvBridge.kmd Fri Jul 09 17:07:54 2010 (4C378FAA)
    fffff880`13cea000 fffff880`1497be00   nvlddmkm nvlddmkm.sys Fri Jul 09 17:15:58 2010 (4C37918E)
    fffff880`03cb2000 fffff880`03cd8000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`03f83000 fffff880`03fa0000   parport  parport.sys  Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`00e00000 fffff880`00e15000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00fbb000 fffff880`00fee000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00e86000 fffff880`00e8d000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00e8d000 fffff880`00e9d000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013c5000 fffff880`013d6000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`08062000 fffff880`08108000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`05f46000 fffff880`05f83000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c35000 fffff880`00c49000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`02bdb000 fffff880`02bff000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`0424c000 fffff880`04267000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`04267000 fffff880`04288000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`04288000 fffff880`042a2000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`03d33000 fffff880`03d84000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`042a2000 fffff880`042ad000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
    fffff880`02b1b000 fffff880`02b24000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b24000 fffff880`02b2d000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b2d000 fffff880`02b36000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`011b8000 fffff880`011f2000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`043a2000 fffff880`043ba000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`13c00000 fffff880`13c66000   Rt64win7 Rt64win7.sys Thu Nov 11 01:35:36 2010 (4CDB8EB8)
    fffff880`05cf2000 fffff880`05f45700   RTKVHD64 RTKVHD64.sys Wed Jul 28 06:01:36 2010 (4C500000)
    fffff880`08108000 fffff880`08113000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`03f77000 fffff880`03f83000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`03ce7000 fffff880`03d04000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`015dc000 fffff880`015e4000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08375000 fffff880`083e6000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`082df000 fffff880`08375000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`08152000 fffff880`081b9000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`08113000 fffff880`08140000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`042bc000 fffff880`042bd480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01602000 fffff880`017ff000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`08140000 fffff880`08152000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`02b70000 fffff880`02b7d000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`02b52000 fffff880`02b70000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`03d1f000 fffff880`03d33000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00530000 fffff960`0053a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03ef5000 fffff880`03f1b000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`04301000 fffff880`04313000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`05fc6000 fffff880`05fc7f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`13cd3000 fffff880`13ce4000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`13cc7000 fffff880`13cd3000   usbfilter usbfilter.sys Fri Apr 03 07:39:51 2009 (49D5F587)
    fffff880`04313000 fffff880`0436d000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`13c66000 fffff880`13c71000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`13c71000 fffff880`13cc7000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`05fab000 fffff880`05fc6000   USBSTOR  USBSTOR.SYS  Mon Jul 13 20:06:34 2009 (4A5BCC0A)
    fffff880`00fee000 fffff880`00ffb000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`02ad8000 fffff880`02ae6000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`02ae6000 fffff880`02b0b000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`014d5000 fffff880`014e5000   vmstorfl vmstorfl.sys Mon Jul 13 19:42:54 2009 (4A5BC67E)
    fffff880`00e15000 fffff880`00e2a000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e2a000 fffff880`00e86000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`0116c000 fffff880`011b8000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`03d04000 fffff880`03d1f000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`02b0b000 fffff880`02b1b000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e9e000 fffff880`00f42000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f42000 fffff880`00f51000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02bd2000 fffff880`02bdb000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00020000 fffff960`00330000   win32k   win32k.sys   unavailable (00000000)
    fffff880`03f30000 fffff880`03f39000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00fa8000 fffff880`00fb1000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`05cc3000 fffff880`05ce4000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)

    Unloaded modules:
    fffff880`083f1000 fffff880`083fd000   hiber_atapor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`08200000 fffff880`08209000   hiber_atapi.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`08209000 fffff880`0821c000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`011f2000 fffff880`01200000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`00c00000 fffff880`00c0c000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`00c0c000 fffff880`00c15000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`00c15000 fffff880`00c28000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  3. harbinger66

    harbinger66 New Member

    Joined:
    Jan 24, 2011
    Messages:
    4
    Likes Received:
    0
    I'm trying it now. I forgot that my MB sets the timings wrong with this Ram for some reason. Hopefully this does the trick.

    That did it! Thanks a bunch!

    #3 harbinger66, Jan 24, 2011
    Last edited: Jan 24, 2011

Share This Page

Loading...
