All Kinds Of Various BSOD's Please Help

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by ryyiyi, Jan 9, 2011.

  1. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    Well I have tried everything I know, thats why I am here is for you help of what are causing all these Blue Screens with various errors. Some times it won't even boot into windows or safe mode, and other times it will get into them but crash soon after. I have ran the built in memory test in windows, I have even tried each memory stick one at at time. I use hard disk sentinal and it doest report any harddrive problems. I don't know if in the logs it will show but it might have my onboard nvidia video device disabled, I did try that too. All of this started after I put in a pci-e ati video card, but since then i have formatted and reloaded windows and I still have the problem so I don't know what is going on. Every time I try to uninstall the nvidia video drivers from control panel it will give me a bsod 0x0000004a which probably isn't in the logs because I already had the logs made before this happened.I then ran driver sweeper and ccleaner to remove it and then it started up in regular mode and stayed on for the longest it had in a long time, then i got this bsod error 0x000000d1 then it mentioned ataport.sys, which also probably isn't in the logs but if you need them I will redo my logs if I can get my computer to stay on long enough. Hope we can get this figured out, I've been trying to figure this out for about 2 weeks. I am using Windows 7 Ultimate x64 and my mainboard is the Biostar MCP6P M2+ Ver. 6.x and I'm using on board video.


    Attached Files:

  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

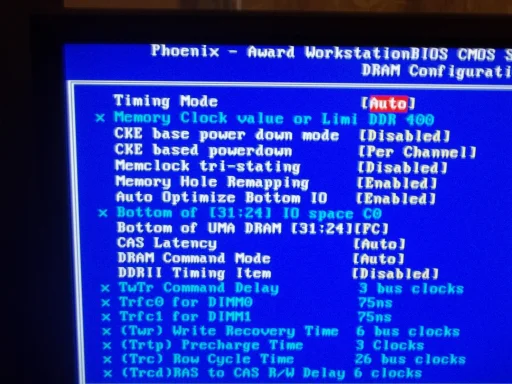

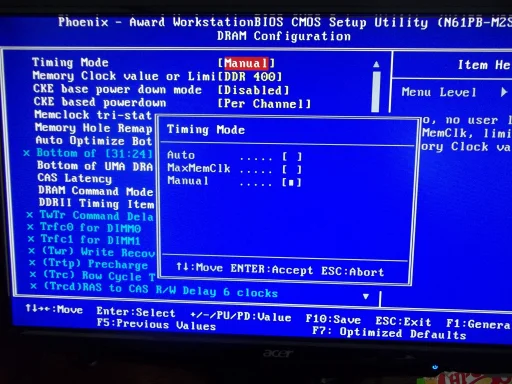

    The memory timings are set right 5-5-5-15-20. However, the frequency is not. It is running at 200 Mhz while it should at 333 Mhz. In the bios, set all the DRAM options "Auto".

    PC-5300

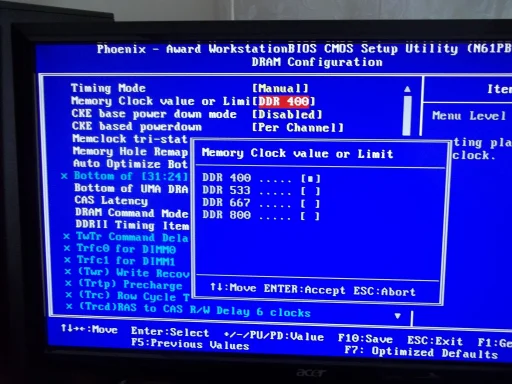

    Frequency: 333 Mhz <- Auto
    Timings: 5-5-5-15-20 <- Auto

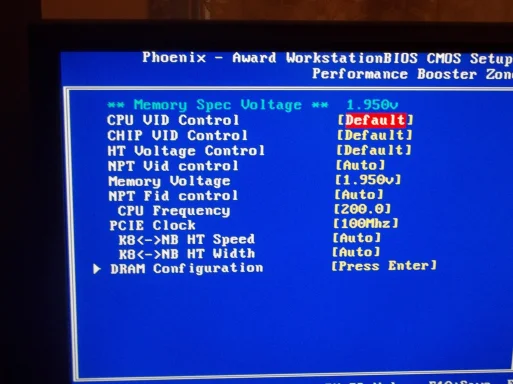

    Voltage: 1.8v <- Auto


    ~~~~~~~~~~~~

    Code:
    [B]IRQL_NOT_LESS_OR_EQUAL (a)
    Probably caused by : ataport.SYS
    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff80002cb50e0 0000000000000008
    [/B]

    Update or rename it to .old in C:\Windows\system32\drivers:

    Code:
    [B]BS_I2cIo.sys Mon Dec 11 02:48:39 2006
    BIOSTAR[/B]


    Update VirtualClone by Elaborate Bytes AG:


    Code:
    [B]VClone.sys   Sun Aug 09 17:25:45 2009[/B]
    [B]ElbyCDIO.sys Thu Dec 17 17:25:16 2009[/B]





    ~~~~~~~~~


    If the crashes persist despite all the attempted fixes, uninstall Avast and replace it with MSE:

    avast! Uninstall Utility

    www.microsoft.com/security_essentials/







    Crash Dumps:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\010611-32682-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (2 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0xfffff800`02a0d000 PsLoadedModuleList = 0xfffff800`02c4ae50
    Debug session time: Thu Jan  6 17:39:59.623 2011 (UTC - 5:00)
    System Uptime: 0 days 0:01:20.776
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ...
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck A, {8, 2, 0, fffff80002a59d29}

    Probably caused by : ataport.SYS ( ataport!IdeCompleteScsiIrp+62 )

    Followup: MachineOwner
    ---------

    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 0000000000000008, memory referenced
    Arg2: 0000000000000002, IRQL
    Arg3: 0000000000000000, bitfield :
        bit 0 : value 0 = read operation, 1 = write operation
        bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: fffff80002a59d29, address which referenced memory

    Debugging Details:
    ------------------


    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff80002cb50e0
     0000000000000008

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!KiInsertQueueApc+1e9
    fffff800`02a59d29 488b5108        mov     rdx,qword ptr [rcx+8]

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  System

    TRAP_FRAME:  fffff88002f1b650 -- (.trap 0xfffff88002f1b650)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000000 rbx=0000000000000000 rcx=0000000000000000
    rdx=fffffa80041b9508 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002a59d29 rsp=fffff88002f1b7e0 rbp=fffff880009e7180
     r8=0000000000000000  r9=0000000000000000 r10=0000000000000000
    r11=0000000000000002 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl zr na po nc
    nt!KiInsertQueueApc+0x1e9:
    fffff800`02a59d29 488b5108        mov     rdx,qword ptr [rcx+8] ds:0003:00000000`00000008=????????????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002a7cca9 to fffff80002a7d740

    STACK_TEXT:
    fffff880`02f1b508 fffff800`02a7cca9 : 00000000`0000000a 00000000`00000008 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
    fffff880`02f1b510 fffff800`02a7b920 : 00000000`00000001 fffffa80`046233e0 fffffa80`022ae6a8 fffff880`00ff6656 : nt!KiBugCheckDispatch+0x69
    fffff880`02f1b650 fffff800`02a59d29 : fffffa80`03229010 fffff880`0196b947 00000000`00000000 00000000`00000001 : nt!KiPageFault+0x260
    fffff880`02f1b7e0 fffff800`02a5cfec : fffffa80`046233e0 00000000`00000002 00000000`00000000 fffffa80`041b9508 : nt!KiInsertQueueApc+0x1e9
    fffff880`02f1b810 fffff800`02a8055b : 00000000`00000000 00000000`a000000c 00000000`00000000 00000000`00000000 : nt!KeInsertQueueApc+0x80
    fffff880`02f1b870 fffff880`00c0941a : 00000000`00000200 00000000`00000001 fffffa80`0384f010 00000000`00000000 : nt!IopfCompleteRequest+0xbdb
    fffff880`02f1b950 fffff880`00c09242 : fffffa80`0384f010 fffff880`00c0bb3b fffffa80`037ec6f0 fffffa80`024261b0 : ataport!IdeCompleteScsiIrp+0x62
    fffff880`02f1b980 fffff880`00c03e32 : 00000000`00000000 00000000`00000000 fffffa80`022ae500 fffffa80`024261b0 : ataport!IdeCommonCrbCompletion+0x5a
    fffff880`02f1b9b0 fffff880`00c0c7ed : fffffa80`022ad1a0 fffffa80`0384f010 00000000`00000000 fffffa80`0384f010 : ataport!IdeTranslateCompletedRequest+0x236
    fffff880`02f1bae0 fffff880`00c0c0ec : fffffa80`022ad1a0 00000000`00000000 fffffa80`022ad1a0 00000000`00000000 : ataport!IdeProcessCompletedRequests+0x4d5
    fffff880`02f1bc10 fffff800`02a88bfc : fffff880`009e7180 00000000`78be278c fffffa80`022ad050 fffffa80`022ad118 : ataport!IdePortCompletionDpc+0x1a8
    fffff880`02f1bcd0 fffff800`02a85eea : fffff880`009e7180 fffff880`009f1f40 00000000`00000000 fffff880`00c0bf44 : nt!KiRetireDpcList+0x1bc
    fffff880`02f1bd80 00000000`00000000 : fffff880`02f1c000 fffff880`02f16000 fffff880`02f1bd40 00000000`00000000 : nt!KiIdleLoop+0x5a


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    ataport!IdeCompleteScsiIrp+62
    fffff880`00c0941a 8bc3            mov     eax,ebx

    SYMBOL_STACK_INDEX:  6

    SYMBOL_NAME:  ataport!IdeCompleteScsiIrp+62

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: ataport

    IMAGE_NAME:  ataport.SYS

    DEBUG_FLR_IMAGE_TIMESTAMP:  4a5bc118

    FAILURE_BUCKET_ID:  X64_0xA_ataport!IdeCompleteScsiIrp+62

    BUCKET_ID:  X64_0xA_ataport!IdeCompleteScsiIrp+62

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start             end                 module name
    fffff880`00edb000 fffff880`00f32000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02c71000 fffff880`02cfb000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03db1000 fffff880`03dc7000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`03ba7000 fffff880`03bbe000   amdk8    amdk8.sys    Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`010e2000 fffff880`010ed000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`02241000 fffff880`0224a000   aswFsBlk aswFsBlk.SYS Fri Dec 31 14:56:29 2010 (4D1E356D)
    fffff880`02207000 fffff880`02241000   aswMonFlt aswMonFlt.sys Fri Dec 31 14:56:39 2010 (4D1E3577)
    fffff880`02cfb000 fffff880`02d05000   aswRdr   aswRdr.SYS   Fri Dec 31 14:56:51 2010 (4D1E3583)
    fffff880`03b38000 fffff880`03b81000   aswSP    aswSP.SYS    Fri Dec 31 15:00:41 2010 (4D1E3669)
    fffff880`018b5000 fffff880`018c5000   aswTdi   aswTdi.SYS   Fri Dec 31 14:59:26 2010 (4D1E361E)
    fffff880`00ff5000 fffff880`00ffe000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00c00000 fffff880`00c2a000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`00fa3000 fffff880`00faf000   BATTC    BATTC.SYS    Mon Jul 13 19:31:01 2009 (4A5BC3B5)
    fffff880`01809000 fffff880`01810000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03b27000 fffff880`03b38000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`03b1c000 fffff880`03b27000   BS_I2cIo BS_I2cIo.sys Mon Dec 11 02:48:39 2006 (457D0D57)
    fffff880`019d0000 fffff880`019fa000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00cdd000 fffff880`00d9d000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`0196a000 fffff880`0199a000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00c7f000 fffff880`00cdd000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`01000000 fffff880`01073000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`00f9a000 fffff880`00fa3000   compbatt compbatt.sys Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`03da1000 fffff880`03db1000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`03fca000 fffff880`03fd8000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03a7b000 fffff880`03afe000   csc      csc.sys      Mon Jul 13 19:24:26 2009 (4A5BC22A)
    fffff880`03afe000 fffff880`03b1c000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02ddf000 fffff880`02dee000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`01954000 fffff880`0196a000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`03fa2000 fffff880`03fc4000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`03fe4000 fffff880`03fed000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`03fd8000 fffff880`03fe4000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`03fed000 fffff880`04000000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`03e00000 fffff880`03e0c000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff960`005b0000 fffff960`005ce000   dxg      dxg.sys      unavailable (00000000)
    fffff880`02dd4000 fffff880`02ddf000   ElbyCDIO ElbyCDIO.sys Thu Dec 17 17:25:16 2009 (4B2AAFCC)
    fffff880`03bbe000 fffff880`03bcb000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`01139000 fffff880`0114d000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`010ed000 fffff880`01139000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff960`00810000 fffff960`00819000   framebuf framebuf.dll unavailable (00000000)
    fffff880`013ed000 fffff880`013f7000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`0191a000 fffff880`01954000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`0142b000 fffff880`01475000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`03d94000 fffff880`03da1000   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:17:04 2009 (4A1151C0)
    fffff800`02fe9000 fffff800`03032000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`03d1b000 fffff880`03d3f000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`03f09000 fffff880`03f65000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`01911000 fffff880`0191a000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`03a00000 fffff880`03a1e000   i8042prt i8042prt.sys Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`03a2d000 fffff880`03a3c000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff800`00baf000 fffff800`00bb2000   kdcom    kdcom.dll    Tue Nov 30 09:40:39 2010 (4CF50CE7)
    fffff880`03e45000 fffff880`03e88000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`013c2000 fffff880`013dc000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01400000 fffff880`0142b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`03fc4000 fffff880`03fc9200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`0226b000 fffff880`02280000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`03e0c000 fffff880`03e2f000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c5e000 fffff880`00c6b000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`03a1e000 fffff880`03a2d000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`00fdb000 fffff880`00ff5000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`0186e000 fffff880`01879000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00f3b000 fffff880`00f45000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`0114d000 fffff880`011ab000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`02c5d000 fffff880`02c68000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`018ff000 fffff880`01911000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014a6000 fffff880`01598000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03deb000 fffff880`03df7000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`03c00000 fffff880`03c2f000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`03ef4000 fffff880`03f09000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02d79000 fffff880`02d88000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d05000 fffff880`02d4a000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`01598000 fffff880`015f8000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`01879000 fffff880`0188a000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02c51000 fffff880`02c5d000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02a0d000 fffff800`02fe9000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff880`0121f000 fffff880`013c2000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`01800000 fffff880`01809000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`03d3f000 fffff880`03d93080   nvmf6264 nvmf6264.sys Thu Aug 12 07:46:06 2010 (4C63DEFE)
    fffff880`00c2a000 fffff880`00c55000   nvstor   nvstor.sys   Wed May 20 02:45:37 2009 (4A13A711)
    fffff880`02d53000 fffff880`02d79000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`03bd7000 fffff880`03bf4000   parport  parport.sys  Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`00f85000 fffff880`00f9a000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00f45000 fffff880`00f78000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00fc4000 fffff880`00fcb000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00fcb000 fffff880`00fdb000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013dc000 fffff880`013ed000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`03f65000 fffff880`03fa2000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c6b000 fffff880`00c7f000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`03dc7000 fffff880`03deb000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`03c2f000 fffff880`03c4a000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`03c4a000 fffff880`03c6b000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`03c6b000 fffff880`03c85000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02c00000 fffff880`02c51000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`03c85000 fffff880`03c90000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
    fffff880`01853000 fffff880`0185c000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`0185c000 fffff880`01865000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`01865000 fffff880`0186e000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`018c5000 fffff880`018ff000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`02280000 fffff880`02298000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`03a47000 fffff880`03a76000   SCSIPORT SCSIPORT.SYS Mon Jul 13 20:01:04 2009 (4A5BCAC0)
    fffff880`03bcb000 fffff880`03bd7000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02d88000 fffff880`02da5000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`01485000 fffff880`0148d000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`01080000 fffff880`010e2000   storport storport.sys Mon Jul 13 20:01:18 2009 (4A5BCACE)
    fffff880`03c9f000 fffff880`03ca0480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`018a8000 fffff880`018b5000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`0188a000 fffff880`018a8000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02dc0000 fffff880`02dd4000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00670000 fffff960`0067a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03b81000 fffff880`03ba7000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`03e88000 fffff880`03e9a000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`03d0a000 fffff880`03d1b000   usbehci  usbehci.sys  Sat Oct 24 00:27:33 2009 (4AE28235)
    fffff880`03e9a000 fffff880`03ef4000   usbhub   usbhub.sys   Sat Oct 24 00:28:24 2009 (4AE28268)
    fffff880`03a3c000 fffff880`03a47000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`03cb4000 fffff880`03d0a000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`03c90000 fffff880`03c9f000   VClone   VClone.sys   Sun Aug 09 17:25:45 2009 (4A7F3ED9)
    fffff880`00f78000 fffff880`00f85000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`01810000 fffff880`0181e000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`0181e000 fffff880`01843000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`01475000 fffff880`01485000   vmstorfl vmstorfl.sys Mon Jul 13 19:42:54 2009 (4A5BC67E)
    fffff880`00faf000 fffff880`00fc4000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00d9d000 fffff880`00df9000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`011ab000 fffff880`011f7000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02da5000 fffff880`02dc0000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`01843000 fffff880`01853000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e28000 fffff880`00ecc000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00ecc000 fffff880`00edb000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02d4a000 fffff880`02d53000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00090000 fffff960`003a0000   win32k   win32k.sys   unavailable (00000000)
    fffff880`00f32000 fffff880`00f3b000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`0224a000 fffff880`0226b000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)

    Unloaded modules:
    fffff880`0199a000 fffff880`019a8000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`019a8000 fffff880`019b4000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`019b4000 fffff880`019bd000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`019bd000 fffff880`019d0000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  3. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    just curious but is there anyway to get screenshots of the bios, i know how to do it within windows but not in the bios. Like a lot of those things you mentioned don't have the auto option and like on the voltage it is set on the lowest setting 1.95v. I have uninstalled avast and virtual clone and named BS_I2cIo.sys to .old, will keep you updated. Let me know about any other options,thanks for your help.

  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    With a camera.


    They do unless you got some exclusive motherboard. "Auto" will adjust them to the right settings.

  5. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    ok i will take some pictures, and yeah knew auto would probably do that but, I don't know what everything is under that performance boost section and i don't want to ruin anything so I will post pictures and hopefully you can help me out.

  6. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    ok I am getting ready to upload my pictures from my bios, check them out and let me know,thanks alot


    Attached Files:

  7. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Change them to "Auto":

    1. Memory Voltage
    2. Memory Clock - I don't see this option in your bios though, there is one in blue but that's not an option.


    [​IMG]

  8. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    i don't know what to do since there aren't any options for changing them to auto, I don't even think there is an option to change it manually.

  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321


    You can compare your current frequency with the official specs and you'll notice the difference.

    "Load setup defaults" or "optimized defaults' or to that meaning is what you should look for in the bios.

    If Ram is not working right and there is no way to fix it -- that's the problem.


    ~~~~~~~~


    If there is really no way to set 333 Mhz, then I would change the timings to 3-3-3-9 for your current 200 Mhz. Change the timings only. Then reattach your new 'memory' and 'spd'.

  10. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    yeah its not that i don't think you are right, you know its just that i don't have the option to change it to what it should be. This computer ran good for atleast 2 years I don't know why all this started now. Wish I could have seen the settings before I updated the bios but I don't think that should have changed it, and it was giving me problems before the bios update thats why I did the update. I just haven't messed with all these kinds of setting with the memory because I don't know what everything in there means. I have loaded the Optimized defaults and this is what it loads, the only thing I have to change is the floppy because I don't have one in the system.

  11. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
  12. chocolatelover

    chocolatelover New Member

    Joined:
    Jan 11, 2011
    Messages:
    10
    Likes Received:
    0
    Hi guys,

    I am having really annoying issues with my windows 7. BSOD appears when we go to run a program called RMS and as this is in a business it is causing huge hassle. I am attaching the mini screen dumps I cant even view these so i was wondering if someone could even give me a read out of whats in the screen dump i might be able to figure out exactly what is going on. Any help offer is much appreciated, many thanks


    Attached Files:

  13. Elmer

    Elmer Extraordinary Member

    Joined:
    Mar 5, 2010
    Messages:
    3,873
    Likes Received:
    284
    Hi Chocolatelover,
    Please start your own thread as although cases may appear similar, they are all different (bit like people really!!).

  14. chocolatelover

    chocolatelover New Member

    Joined:
    Jan 11, 2011
    Messages:
    10
    Likes Received:
    0
    thanks :) will do. I dont use forums a whole lot but will get better

  15. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    here's my options, please let me know what I need to do or if you need something more.thanks.


    Attached Files:

  16. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
  17. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    well i'm having the same problems I began with, I haven't changed those settings in the bios because I'm not 100 percent sure where to enter them. Earlier you said "If there is really no way to set 333 Mhz, then I would change the timings to 3-3-3-9 for your current 200 Mhz. Change the timings only. Then reattach your new 'memory' and 'spd'." I attached those last pictures hoping maybe it would help you to let me know where to enter the stuff. I did get the manual and it didn't go into much detail, like I'm not sure how to enter 3-3-3-9. Sorry for all the trouble I just don't know much about all these settings, never overclocked or anything so not very familiar with all the stuff.

  18. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Ok,

    1. Timing Mode --> Auto
    2. Memory Clock Value or Limit --> 667 (DDR 333 Mhz x 2)


    After you adjust the settings, attach the CPU-Z tabs.

  19. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0
    I'm trying to get the cpu-z tabs but unable to get regular mode of windows to stay on long enough to get it started and in safe mode it gives me an error and basically just shows the cpu tab. Earlier when I did start it up in regular mode i did get a new bsod message it was 0x000000f7 dealing with a driver, I'm also trying to get new logs put up but kind of having same problem I can get everything with the sf tool besides the Windows information.

  20. ryyiyi

    ryyiyi New Member

    Joined:
    Jan 9, 2011
    Messages:
    32
    Likes Received:
    0

    The only way I could get Memory Clock Value or Limit --> 667 was to change timing mode to Manual, I just wanted to mention I did do that and I am trying to still get the cpu-z and logs once I can get windows to stay on long enough to get them ran.


Share This Page

Loading...
