BSOD Battlefield 3

#1
It happenes randomly,sometimes after 15mins or over an hour,and its the only game which gives me BSOD all others work fine, heres the dump files,any help is apprecieted ================================================== Dump File : 122011-20919-01.dmp Crash Time : 12/20/2011 7:54:58 PM Bug Check String : IRQL_NOT_LESS_OR_EQUAL Bug Check Code : 0x0000000a Parameter 1 : fffff784`00000008 Parameter 2 : 00000000`00000002 Parameter 3 : 00000000`00000000 Parameter 4 : fffff800`02c981f7 Caused By Driver : ntoskrnl.exe Caused By Address : ntoskrnl.exe+7cc40 File Description : NT Kernel & System Product Name : Microsoft® Windows® Operating System Company : Microsoft Corporation File Version : 6.1.7601.17640 (win7sp1_gdr.110622-1506) Processor : x64 Crash Address : ntoskrnl.exe+7cc40 Stack Address 1 : Stack Address 2 : Stack Address 3 : Computer Name : Full Path : C:\Windows\Minidump\122011-20919-01.dmp Processors Count : 4 Major Version : 15 Minor Version : 7601 Dump File Size : 275,224 ================================================== ================================================== Dump File : 122011-23992-01.dmp Crash Time : 12/20/2011 2:10:40 AM Bug Check String : Bug Check Code : 0x00000116 Parameter 1 : fffffa80`05e3b010 Parameter 2 : fffff880`0971045c Parameter 3 : 00000000`00000000 Parameter 4 : 00000000`00000002 Caused By Driver : dxgkrnl.sys Caused By Address : dxgkrnl.sys+5d000 File Description : Product Name : Company : File Version : Processor : x64 Crash Address : ntoskrnl.exe+7cc40 Stack Address 1 : Stack Address 2 : Stack Address 3 : Computer Name : Full Path : C:\Windows\Minidump\122011-23992-01.dmp Processors Count : 4 Major Version : 15 Minor Version : 7601 Dump File Size : 822,768 ================================================== ================================================== Dump File : 121611-17862-01.dmp Crash Time : 12/16/2011 6:19:26 PM Bug Check String : SYSTEM_THREAD_EXCEPTION_NOT_HANDLED Bug Check Code : 0x1000007e Parameter 1 : ffffffff`c0000005 Parameter 2 : fffff880`07220d90 Parameter 3 : fffff880`021fe6a8 Parameter 4 : fffff880`021fdf00 Caused By Driver : dxgmms1.sys Caused By Address : dxgmms1.sys+1ded3 File Description : Product Name : Company : File Version : Processor : x64 Crash Address : dxgmms1.sys+20d90 Stack Address 1 : Stack Address 2 : Stack Address 3 : Computer Name : Full Path : C:\Windows\Minidump\121611-17862-01.dmp Processors Count : 4 Major Version : 15 Minor Version : 7601 Dump File Size : 275,224 ================================================== ================================================== Dump File : 121411-14726-01.dmp Crash Time : 12/14/2011 8:51:55 PM Bug Check String : MEMORY_MANAGEMENT Bug Check Code : 0x0000001a Parameter 1 : 00000000`00041284 Parameter 2 : 00000000`178f2001 Parameter 3 : 00000000`0002bc4c Parameter 4 : fffff700`01080000 Caused By Driver : ntoskrnl.exe Caused By Address : ntoskrnl.exe+7fd00 File Description : NT Kernel & System Product Name : Microsoft® Windows® Operating System Company : Microsoft Corporation File Version : 6.1.7601.17640 (win7sp1_gdr.110622-1506) Processor : x64 Crash Address : ntoskrnl.exe+7fd00 Stack Address 1 : Stack Address 2 : Stack Address 3 : Computer Name : Full Path : C:\Windows\Minidump\121411-14726-01.dmp Processors Count : 4 Major Version : 15 Minor Version : 7601 Dump File Size : 275,224 ==================================================
View attachment minidump.rar View attachment minidump.rar



Last edited:

Elmer

Extraordinary Member
#2
Hi Marko23 and Welcome to The Forum.

We really need to see the DMP files as they contain the only record of the sequence of events leading up to the crash, what drivers were loaded, and what was responsible.

Please see: How to ask for help with a BSOD problem Following Method 2:
Download
and run the SF Diagnostics Tool. Right click the SF Diag tool and select Run as Administrator before running. When the reports have been created, zip them up and attach to a post.

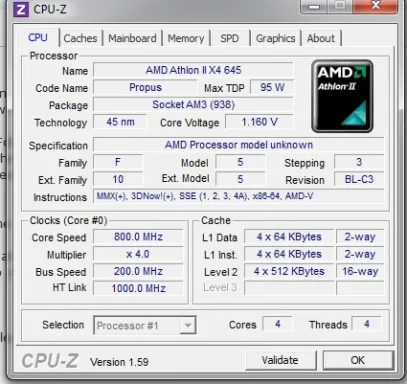

Download and run CPU-Z. Take screenshots**/snips of the Mainboard tab, Memory tab and all the slot #'s under the SPD tab.
Go to Post Reply, click on the Go Advanced button and attach the screenshots**/snips to your post for all the RAM experts to see by using the paper clip you will find on the top toolbar. Do not zip them up.
**
If screenshots, please crop.

Go to your C:\Windows\Minidump folder. Copy the .dmp files to a new folder on your desktop. Zip up that folder and attach to a post (Note that the dump files should be included with the other files collected by the SF Diag Tool).



Last edited:
#3
i think i added the dumps,there the ones minidump.rar on my post above?



#5
anyone,help? :/



Elmer

Extraordinary Member
#6
Think your problem is mis-matched ram/timings. Awaiting confirmation.

STOP 0x0000000A: IRQL_NOT_LESS_OR_EQUAL
Usual causes:
Kernel mode driver, System Service, BIOS, Windows, Virus scanner, Backup tool, compatibility.

You've one outdated driver to update:
Rt64win7.sys Thu Feb 26 09:04:13 2009 Realtek PCIe GBE Family Controller v7.049 If you're unsure about manually installing drivers then choose the Win7 and WinServer 2008 R2 Auto Installation Program (SID:1477671) option to download.



Elmer

Extraordinary Member
#7
Ok, your ram is mis-matched.

You may be able to stabilise your system by changing the Command Rate (CR) from 1T to 2T.

Ideally** you need to set your ram timings to 6-6-6-18, CR 2T @ 400mhz

**Ideally you need a set of matched ram. Same Manufacturer, Type, Model, Size, Batch, Timings, Etc.. Bought as a matched set.



#8
and how do i do that?



Last edited:
