BSOD bccode: 7a

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by b3ef, Feb 28, 2011.

  1. b3ef

    b3ef New Member

    Joined:
    Feb 28, 2011
    Messages:
    4
    Likes Received:
    0
    My rig is just a few weeks old and I've been getting BSODs. Reinstalled my OS once and still getting some. Any help from you experts would be greatly appreciated :)


    Attached Files:

  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

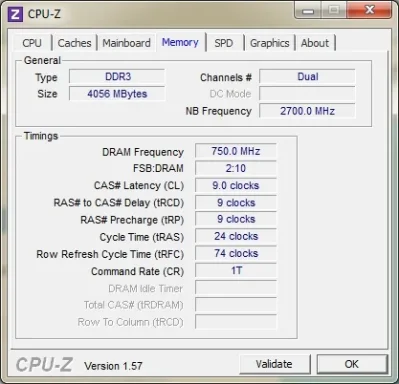

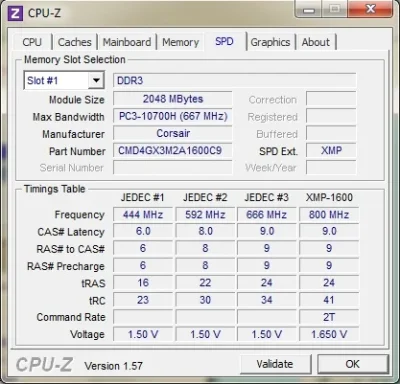

    1. RAM is underclocked 1500Mhz at the moment. Set it according to its rated specs DDR1600 9-9-9-24 1.65v.


    2.

    Check the hard drive HD Tune website HDDScan




    3. Update drivers:

    Intel Management Engine
    HECIx64.sys Thu Sep 17 15:54:16 2009

    Intel Matrix Storage
    iaStor.sys Fri Oct 02 15:58:50 2009

    IntelĀ® Driver Update Utility












    Crash Dumps:

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\022811-8642-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (8 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e5a000 PsLoadedModuleList = 0xfffff800`03097e50
    Debug session time: Sun Feb 27 22:53:26.496 2011 (UTC - 5:00)
    System Uptime: 0 days 3:45:34.480
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ............................
    Loading User Symbols
    Loading unloaded module list
    ......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 7A, {fffff6fb800083f8, ffffffffc0000056, a5601880, fffff7000107fff8}

    Probably caused by : ntkrnlmp.exe ( nt! ?? ::FNODOBFM::`string'+34c0e )

    Followup: MachineOwner
    ---------

    4: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    KERNEL_DATA_INPAGE_ERROR (7a)
    The requested page of kernel data could not be read in.  Typically caused by
    a bad block in the paging file or disk controller error. Also see
    KERNEL_STACK_INPAGE_ERROR.
    If the error status is 0xC000000E, 0xC000009C, 0xC000009D or 0xC0000185,
    it means the disk subsystem has experienced a failure.
    If the error status is 0xC000009A, then it means the request failed because
    a filesystem failed to make forward progress.
    Arguments:
    Arg1: fffff6fb800083f8, lock type that was held (value 1,2,3, or PTE address)
    Arg2: ffffffffc0000056, error status (normally i/o status code)
    Arg3: 00000000a5601880, current process (virtual address for lock type 3, or PTE)
    Arg4: fffff7000107fff8, virtual address that could not be in-paged (or PTE contents if arg1 is a PTE address)

    Debugging Details:
    ------------------


    OVERLAPPED_MODULE: Address regions for 'hiber_iaStor' and 'hiber_iaStor' overlap

    ERROR_CODE: (NTSTATUS) 0xc0000056 - A non close operation has been requested of a file object with a delete pending.

    BUGCHECK_STR:  0x7a_c0000056

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  wininit.exe

    CURRENT_IRQL:  0

    TRAP_FRAME:  fffff880037987f0 -- (.trap 0xfffff880037987f0)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=fffff70001080068 rbx=0000000000000000 rcx=00000000003fffff
    rdx=0000000000000001 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff800031d8b9a rsp=fffff88003798980 rbp=00000000003fffff
     r8=fffff70001000000  r9=0000000000000000 r10=0000000000002000
    r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na pe nc
    nt!MiInsertVadCharges+0x10a:
    fffff800`031d8b9a 490fa308        bt      qword ptr [r8],rcx ds:e000:fffff700`01000000=????????????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002f3f168 to fffff80002eca740

    STACK_TEXT:
    fffff880`037984d8 fffff800`02f3f168 : 00000000`0000007a fffff6fb`800083f8 ffffffff`c0000056 00000000`a5601880 : nt!KeBugCheckEx
    fffff880`037984e0 fffff800`02ebc52b : fffffa80`038fe3e0 fffff880`03798650 fffffa80`07da9ec8 fffff800`02f0b7a3 : nt! ?? ::FNODOBFM::`string'+0x34c0e
    fffff880`037985c0 fffff800`02ee58bb : 00000000`00000000 00000000`00000000 ffffffff`ffffffff 00000000`00000000 : nt!MiIssueHardFault+0x28b
    fffff880`03798690 fffff800`02ec882e : 00000000`00000000 000007ff`fffdd000 00000000`00000000 00000000`00011000 : nt!MmAccessFault+0x14bb
    fffff880`037987f0 fffff800`031d8b9a : fffff800`03059a50 fffff880`009b1180 fffffa80`00000000 00000000`00000000 : nt!KiPageFault+0x16e
    fffff880`03798980 fffff800`031921a3 : 00000000`00000000 ffffffff`ffffffff fffff880`03798a38 00000000`000007ff : nt!MiInsertVadCharges+0x10a
    fffff880`03798a10 fffff800`0319669c : fffffa80`07da9b30 00000000`00000000 00000004`00001818 fffff880`03798b30 : nt!MiCreatePebOrTeb+0x177
    fffff880`03798aa0 fffff800`031931ac : 000007ff`fffdc000 00000000`00001002 00000000`00000000 00000000`00000004 : nt!MmCreateTeb+0x5c
    fffff880`03798b30 fffff800`03196a02 : fffffa80`07da9b30 fffff880`03799998 fffffa80`03668900 fffff880`03799580 : nt!PspAllocateThread+0x364
    fffff880`03798d50 fffff800`03196d7b : 00000000`00000000 00000000`00000000 00000000`00000001 fffff880`03799580 : nt!PspCreateThread+0x1d2
    fffff880`03798fd0 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!NtCreateThreadEx+0x243


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt! ?? ::FNODOBFM::`string'+34c0e
    fffff800`02f3f168 cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  nt! ?? ::FNODOBFM::`string'+34c0e

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    FAILURE_BUCKET_ID:  X64_0x7a_c0000056_nt!_??_::FNODOBFM::_string_+34c0e

    BUCKET_ID:  X64_0x7a_c0000056_nt!_??_::FNODOBFM::_string_+34c0e

    Followup: MachineOwner
    ---------
























    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\022411-9048-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (8 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e65000 PsLoadedModuleList = 0xfffff800`030a2e50
    Debug session time: Wed Feb 23 20:28:45.797 2011 (UTC - 5:00)
    System Uptime: 0 days 6:12:30.781
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ........................
    Loading User Symbols
    Loading unloaded module list
    ..........................
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 7A, {fffff6fb80000000, ffffffffc0000056, 1921880, fffff70000000000}

    Probably caused by : ntkrnlmp.exe ( nt! ?? ::FNODOBFM::`string'+34c0e )

    Followup: MachineOwner
    ---------

    6: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    KERNEL_DATA_INPAGE_ERROR (7a)
    The requested page of kernel data could not be read in.  Typically caused by
    a bad block in the paging file or disk controller error. Also see
    KERNEL_STACK_INPAGE_ERROR.
    If the error status is 0xC000000E, 0xC000009C, 0xC000009D or 0xC0000185,
    it means the disk subsystem has experienced a failure.
    If the error status is 0xC000009A, then it means the request failed because
    a filesystem failed to make forward progress.
    Arguments:
    Arg1: fffff6fb80000000, lock type that was held (value 1,2,3, or PTE address)
    Arg2: ffffffffc0000056, error status (normally i/o status code)
    Arg3: 0000000001921880, current process (virtual address for lock type 3, or PTE)
    Arg4: fffff70000000000, virtual address that could not be in-paged (or PTE contents if arg1 is a PTE address)

    Debugging Details:
    ------------------


    OVERLAPPED_MODULE: Address regions for 'hiber_iaStor' and 'hiber_iaStor' overlap

    ERROR_CODE: (NTSTATUS) 0xc0000056 - A non close operation has been requested of a file object with a delete pending.

    BUGCHECK_STR:  0x7a_c0000056

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  acrotray.exe

    CURRENT_IRQL:  0

    TRAP_FRAME:  fffff88003797f90 -- (.trap 0xfffff88003797f90)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000033 rbx=0000000000000000 rcx=0000000000000033
    rdx=0000000000007ffe rsi=0000000000000000 rdi=0000000000000000
    rip=fffff800031e8491 rsp=fffff88003798120 rbp=000007fffffdffff
     r8=fffff70000000000  r9=fffff70001080040 r10=8000000000000000
    r11=fffffa8008873060 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl zr na po nc
    nt!MiFindEmptyAddressRange+0xc1:
    fffff800`031e8491 a10000000000f7ffff mov   eax,dword ptr [FFFFF70000000000h] ds:5b30:fffff700`00000000=00000000
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002f4a168 to fffff80002ed5740

    STACK_TEXT:
    fffff880`03797c78 fffff800`02f4a168 : 00000000`0000007a fffff6fb`80000000 ffffffff`c0000056 00000000`01921880 : nt!KeBugCheckEx
    fffff880`03797c80 fffff800`02ec752b : fffffa80`08af3750 fffff880`03797df0 fffffa80`088733f8 fffff880`03797d00 : nt! ?? ::FNODOBFM::`string'+0x34c0e
    fffff880`03797d60 fffff800`02ef08bb : 00000000`00000000 00000000`00000000 ffffffff`ffffffff fffff880`0147e1a8 : nt!MiIssueHardFault+0x28b
    fffff880`03797e30 fffff800`02ed382e : 00000000`00000000 ffffffff`ffffffff fffff880`03798000 fffff800`02f02a90 : nt!MmAccessFault+0x14bb
    fffff880`03797f90 fffff800`031e8491 : 00000000`00000001 fffffa80`088a5b30 fffffa80`088a5f78 00000000`00000000 : nt!KiPageFault+0x16e
    fffff880`03798120 fffff800`031d5504 : ffffffff`ffffffff ffffffff`ffffffff fffff880`03798430 00000000`00002000 : nt!MiFindEmptyAddressRange+0xc1
    fffff880`03798190 fffff800`02ed4993 : ffffffff`ffffffff fffff880`03798ad8 00000000`00000040 fffff880`03798648 : nt!NtAllocateVirtualMemory+0x724
    fffff880`03798340 fffff800`02ed0f30 : fffff800`0319c798 fffff8a0`02a38f80 fffff800`02eb3600 fffff680`0001f400 : nt!KiSystemServiceCopyEnd+0x13
    fffff880`03798548 fffff800`0319c798 : fffff8a0`02a38f80 fffff800`02eb3600 fffff680`0001f400 fffff880`00000003 : nt!KiServiceLinkage
    fffff880`03798550 fffff800`02ed4993 : 00000000`001fffff 00000000`00000000 fffffa80`036cd040 fffffa80`06b25660 : nt!NtSetInformationProcess+0x7d7
    fffff880`037988a0 fffff800`02ed0f30 : fffff800`0319f906 00000000`00000000 fffffa80`08876210 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    fffff880`03798a38 fffff800`0319f906 : 00000000`00000000 fffffa80`08876210 00000000`00000000 fffff800`031cc454 : nt!KiServiceLinkage
    fffff880`03798a40 fffff800`0319e3f6 : 00000000`00004000 00000000`00040000 00000000`00000000 00000000`00001000 : nt!RtlCreateUserStack+0x122
    fffff880`03798b30 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!PspAllocateThread+0x5ad


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt! ?? ::FNODOBFM::`string'+34c0e
    fffff800`02f4a168 cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  nt! ?? ::FNODOBFM::`string'+34c0e

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    FAILURE_BUCKET_ID:  X64_0x7a_c0000056_nt!_??_::FNODOBFM::_string_+34c0e

    BUCKET_ID:  X64_0x7a_c0000056_nt!_??_::FNODOBFM::_string_+34c0e

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start             end                 module name
    fffff880`00f75000 fffff880`00fcc000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`07400000 fffff880`07418000   adfs     adfs.SYS     Thu Jun 26 16:52:37 2008 (48640195)
    fffff880`02e4a000 fffff880`02ed4000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`01664000 fffff880`0167a000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`012c3000 fffff880`012ce000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`02e2f000 fffff880`02e37000   AppleCharger AppleCharger.sys Mon Apr 26 23:54:05 2010 (4BD65FDD)
    fffff880`0a568000 fffff880`0a573000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`01275000 fffff880`0127e000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`0127e000 fffff880`012a8000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff960`00810000 fffff960`00871000   ATMFD    ATMFD.DLL    unavailable (00000000)
    fffff880`044db000 fffff880`044e2000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`02e1e000 fffff880`02e2f000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`07526000 fffff880`07544000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`00640000 fffff960`00667000   cdd      cdd.dll      unavailable (00000000)
    fffff880`04477000 fffff880`044a1000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00e02000 fffff880`00ec2000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`01616000 fffff880`01646000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00cef000 fffff880`00d4d000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0169e000 fffff880`01711000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`01654000 fffff880`01664000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`05ee4000 fffff880`05ef2000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`02e00000 fffff880`02e1e000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02fee000 fffff880`02ffd000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`01600000 fffff880`01616000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`04b37000 fffff880`04b59000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`05f1b000 fffff880`05f2e000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`04256000 fffff880`0445e000   dump_iaStor dump_iaStor.sys Fri Oct 02 15:58:50 2009 (4AC65B7A)
    fffff880`05ed8000 fffff880`05ee4000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`10d03000 fffff880`10df7000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 23:22:56 2011 (4D3FA1A0)
    fffff880`10000000 fffff880`10046000   dxgmms1  dxgmms1.sys  Tue Jan 25 23:22:12 2011 (4D3FA174)
    fffff880`0131a000 fffff880`0132e000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`012ce000 fffff880`0131a000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`01722000 fffff880`0172c000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`017b2000 fffff880`017ec000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`01800000 fffff880`0184a000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`07867000 fffff880`07870000   gdrv     gdrv.sys     Thu Mar 12 23:22:29 2009 (49B9D175)
    fffff880`02e37000 fffff880`02e44000   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:17:04 2009 (4A1151C0)
    fffff800`02e1c000 fffff800`02e65000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`10046000 fffff880`1006a000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`1006a000 fffff880`1007b000   HECIx64  HECIx64.sys  Thu Sep 17 15:54:16 2009 (4AB293E8)
    fffff880`062e9000 fffff880`062fc000   hiber_dumpfve hiber_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`060e1000 fffff880`062e9000   hiber_iaStor hiber_iaStor.sys Fri Oct 02 15:58:50 2009 (4AC65B7A)
    fffff880`05f3c000 fffff880`05f55000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`05f55000 fffff880`05f5d080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`05f2e000 fffff880`05f3c000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`0745e000 fffff880`07526000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`019ea000 fffff880`019f3000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`0106d000 fffff880`01275000   iaStor   iaStor.sys   Fri Oct 02 15:58:50 2009 (4AC65B7A)
    fffff880`045ad000 fffff880`045c3000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`017ec000 fffff880`017fb000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05f5e000 fffff880`05f6c000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00bd2000 fffff800`00bdc000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`00daa000 fffff880`00ded000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`015d4000 fffff880`015ee000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`0199e000 fffff880`019c9000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`04b59000 fffff880`04b5e200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`05fbd000 fffff880`05fd2000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05f79000 fffff880`05f9c000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c97000 fffff880`00cdb000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`05ef2000 fffff880`05f00000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`015ee000 fffff880`015fd000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05f6c000 fffff880`05f79000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00c5c000 fffff880`00c76000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`044a1000 fffff880`044d2000   MpFilter MpFilter.sys Tue Sep 14 20:19:28 2010 (4C901110)
    fffff880`07870000 fffff880`07880000   MpNWMon  MpNWMon.sys  Tue Sep 14 20:19:30 2010 (4C901112)
    fffff880`07544000 fffff880`0755c000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`0755c000 fffff880`07589000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`07589000 fffff880`075d7000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`075d7000 fffff880`075fa000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`012a8000 fffff880`012b3000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`04540000 fffff880`0454b000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fd5000 fffff880`00fdf000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`0133a000 fffff880`01398000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`02fe3000 fffff880`02fee000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`019d8000 fffff880`019ea000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`0184c000 fffff880`0193e000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`045f2000 fffff880`045fe000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`01400000 fffff880`0142f000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04abc000 fffff880`04ad1000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02f48000 fffff880`02f57000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02ed4000 fffff880`02f19000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`0193e000 fffff880`0199e000   NETIO    NETIO.SYS    Thu Apr 08 22:43:59 2010 (4BBE946F)
    fffff880`07880000 fffff880`07895000   NisDrvWFP NisDrvWFP.sys Tue Sep 14 20:20:25 2010 (4C901149)
    fffff880`0454b000 fffff880`0455c000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02fd7000 fffff880`02fe3000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e65000 fffff800`03442000   nt       ntkrnlmp.exe Tue Oct 26 22:43:09 2010 (4CC791BD)
    fffff880`01431000 fffff880`015d4000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`044d2000 fffff880`044db000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`04aa5000 fffff880`04abc000   nusb3hub nusb3hub.sys Mon Oct 26 10:19:44 2009 (4AE5B000)
    fffff880`045c3000 fffff880`045f2000   nusb3xhc nusb3xhc.sys Mon Oct 26 10:19:48 2009 (4AE5B004)
    fffff880`10d01000 fffff880`10d02180   nvBridge nvBridge.kmd Fri Jan 07 20:57:22 2011 (4D27C482)
    fffff880`04ad1000 fffff880`04afa000   nvhda64v nvhda64v.sys Thu Nov 11 18:10:36 2010 (4CDC77EC)
    fffff880`100a6000 fffff880`10d00d00   nvlddmkm nvlddmkm.sys Fri Jan 07 21:07:22 2011 (4D27C6DA)
    fffff880`02f22000 fffff880`02f48000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`00d80000 fffff880`00d95000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00d4d000 fffff880`00d80000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`012b3000 fffff880`012c3000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`01711000 fffff880`01722000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`078f9000 fffff880`0799f000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`04afa000 fffff880`04b37000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00cdb000 fffff880`00cef000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`0132e000 fffff880`01339ae0   PxHlpa64 PxHlpa64.sys Mon Dec 10 18:49:01 2007 (475DD06D)
    fffff880`0167a000 fffff880`0169e000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`01000000 fffff880`0101b000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`0101b000 fffff880`0103c000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`0103c000 fffff880`01056000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02f86000 fffff880`02fd7000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`04525000 fffff880`0452e000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`0452e000 fffff880`04537000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`04537000 fffff880`04540000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01778000 fffff880`017b2000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`05fd2000 fffff880`05fea000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`01398000 fffff880`013ef000   Rt64win7 Rt64win7.sys Thu Mar 04 08:42:52 2010 (4B8FB8DC)
    fffff880`05c6c000 fffff880`05e9dc00   RTKVHD64 RTKVHD64.sys Fri Mar 26 06:30:50 2010 (4BAC8CDA)
    fffff880`0799f000 fffff880`079aa000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`019d1000 fffff880`019d8000   speedfan speedfan.sys Sun Sep 24 09:26:48 2006 (45168798)
    fffff880`019c9000 fffff880`019d1000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`04b5f000 fffff880`04bf5000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`07800000 fffff880`07867000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`079aa000 fffff880`079d7000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`1009b000 fffff880`1009c480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01a03000 fffff880`01c00000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`079d7000 fffff880`079e9000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`0457a000 fffff880`04587000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`0455c000 fffff880`0457a000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02f72000 fffff880`02f86000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`004c0000 fffff960`004ca000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`04587000 fffff880`045ad000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`01056000 fffff880`01068000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`05e9e000 fffff880`05ebb000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`10099000 fffff880`1009af00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`10088000 fffff880`10099000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`04a4b000 fffff880`04aa5000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`04200000 fffff880`04256000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`05ecc000 fffff880`05ed8000   usbprint usbprint.sys Mon Jul 13 20:38:18 2009 (4A5BD37A)
    fffff880`05ebb000 fffff880`05ecc000   usbscan  usbscan.sys  Mon Jul 13 20:35:32 2009 (4A5BD2D4)
    fffff880`05f00000 fffff880`05f1b000   USBSTOR  USBSTOR.SYS  Mon Jul 13 20:06:34 2009 (4A5BCC0A)
    fffff880`1007b000 fffff880`10088000   usbuhci  usbuhci.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00fdf000 fffff880`00fec000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`044e2000 fffff880`044f0000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`044f0000 fffff880`04515000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00d95000 fffff880`00daa000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00c00000 fffff880`00c5c000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`0172c000 fffff880`01778000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02f57000 fffff880`02f72000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`04515000 fffff880`04525000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00ec2000 fffff880`00f66000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f66000 fffff880`00f75000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02f19000 fffff880`02f22000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00060000 fffff960`00370000   win32k   win32k.sys   unavailable (00000000)
    fffff880`00fcc000 fffff880`00fd5000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`05f9c000 fffff880`05fbd000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)

    Unloaded modules:
    fffff880`060cc000 fffff880`062d4000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`062d4000 fffff880`062e7000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`06017000 fffff880`0621f000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0621f000 fffff880`06232000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`060fc000 fffff880`06304000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`06304000 fffff880`06317000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`060b3000 fffff880`062bb000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`062bb000 fffff880`062ce000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0602d000 fffff880`06235000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`06235000 fffff880`06248000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`060ef000 fffff880`062f7000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`062f7000 fffff880`0630a000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`06094000 fffff880`0629c000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0629c000 fffff880`062af000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`06013000 fffff880`0621b000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0621b000 fffff880`0622e000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0a6e8000 fffff880`0a8f0000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0a8f0000 fffff880`0a903000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0a6da000 fffff880`0a8e2000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0a8e2000 fffff880`0a8f5000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0a603000 fffff880`0a80b000   hiber_iaStor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`0a80b000 fffff880`0a81e000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0a4f7000 fffff880`0a568000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`01646000 fffff880`01654000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0425c000 fffff880`04464000   dump_iaStor.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00208000
    fffff880`04464000 fffff880`04477000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  3. b3ef

    b3ef New Member

    Joined:
    Feb 28, 2011
    Messages:
    4
    Likes Received:
    0
    Thank you for your quick response cybercore! I have updated my Intel Management Engine driver. However, I looked for Intel Matrix Storage in the Intel website and the one they have is apparently an older version than the one i have. I have yet to scan my hard drive but, I will post the results once have done so. Also, how do I set my RAM according to its rated specs (DDR1600 9-9-9-24 1.65v)? Do i have to change the System Memory Multiplier in the BIOS?

  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    As far as I've seen, the latest Intel drivers have 2010 timestamp. Load this page IntelĀ® Driver Update Utility in Internet Explorer 8, let the utility install and find the updates for your hardware.

    Look for these names: Intel Matrix Storage Manager and Intel Management Engine Interface.

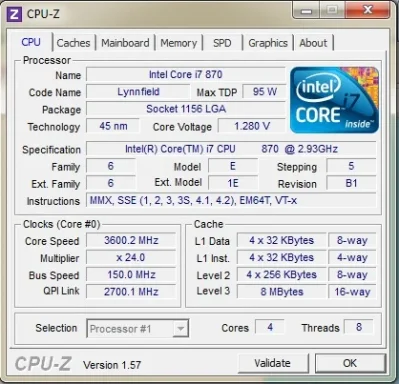

    1500Mhz - this is not the rated frequency for your RAM sticks, is it?

    Do not change any multipliers, DRAM options should be:

    Frequency DDR1600
    Timing DDR1600 9-9-9-24
    Voltage 1.65v


Share This Page

Loading...
