BSOD on fresh install

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by animebop, Feb 5, 2011.

  1. animebop

    animebop New Member

    Joined:
    Feb 5, 2011
    Messages:
    10
    Likes Received:
    0
    I've run memtest for 2 hours and nothing came up, and western digital's hard drive check device and nothing came out. I do have 2 HDD inside and I'm afraid the problem may be the second one. This is a fresh install and it should have all the drivers. I've gotten both a page fault in nonpaged area message and a win32k.sys message.


    Attached Files:

  2. animebop

    animebop New Member

    Joined:
    Feb 5, 2011
    Messages:
    10
    Likes Received:
    0
    Oh, more information. The BSOD doesn't appear to particularly happen when I'm accessing my 2nd HDD, mostly when I'm playing games.

  3. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Hold on, let me see it.

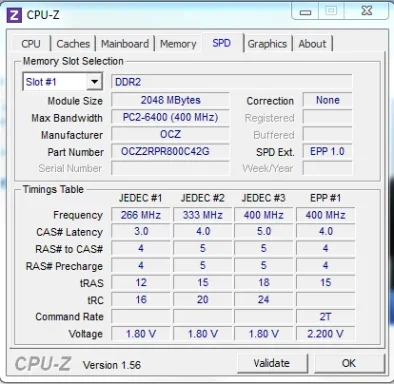

    ---> attach (CPU-Z) spd for each of your RAM slot.

    .....

  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

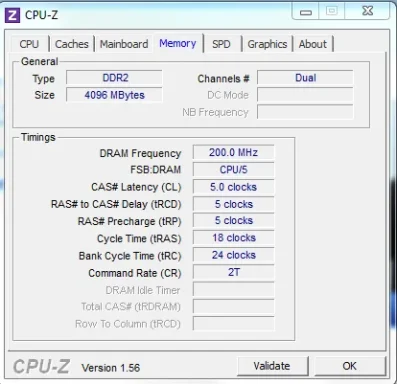

    The RAM is set wrong - 400 Mhz currently while you need it 800 Mhz.

  5. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    RAM is the culprit.


    PAGE_FAULT_IN_NONPAGED_AREA (50)
    MODULE_NAME: hardware
    FAILURE_BUCKET_ID: IP_MISALIGNED



    1. Load setup defaults in the bios, save, reboot, and re-attach new cpu-z screenshots with the SPD under each slot.

    2. Update motherboard drivers, especially the 1st one on the list:

    ASUS ATK0110 ACPI Utility
    ASACPI.sys Thu Aug 12 22:52:52 2004

    nForce
    nvmf6232.sys Wed Jul 01 14:54:57 2009

    VIA Audio
    viahduaa.sys Mon Aug 17 07:17:42 2009





    Crash Dumps:

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\020511-15444-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (2 procs) Free x86 compatible
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.x86fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0x82a3b000 PsLoadedModuleList = 0x82b83810
    Debug session time: Sat Feb  5 15:04:34.208 2011 (UTC - 5:00)
    System Uptime: 0 days 1:06:57.940
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .......................
    Loading User Symbols
    Loading unloaded module list
    ....
    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    PAGE_FAULT_IN_NONPAGED_AREA (50)
    Invalid system memory was referenced.  This cannot be protected by try-except,
    it must be protected by a Probe.  Typically the address is just plain bad or it
    is pointing at freed memory.
    Arguments:
    Arg1: d5df3344, memory referenced.
    Arg2: 00000001, value 0 = read operation, 1 = write operation.
    Arg3: 974072b0, If non-zero, the instruction address which referenced the bad memory
    	address.
    Arg4: 00000002, (reserved)

    Debugging Details:
    ------------------


    Could not read faulting driver name

    WRITE_ADDRESS: GetPointerFromAddress: unable to read from 82ba3718
    Unable to read MiSystemVaType memory at 82b83160
     d5df3344

    FAULTING_IP:
    win32k!xxxActivateThisWindow+478
    974072b0 008b402833db    add     byte ptr [ebx-24CCD7C0h],cl

    MM_INTERNAL_CODE:  2

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x50

    PROCESS_NAME:  firefox.exe

    CURRENT_IRQL:  0

    TRAP_FRAME:  a1c53914 -- (.trap 0xffffffffa1c53914)
    ErrCode = 00000002
    eax=faac0b04 ebx=faac0b04 ecx=00000000 edx=00000000 esi=a1c53b24 edi=0db705dc
    eip=974072b0 esp=a1c53988 ebp=a1c539a4 iopl=0         nv up ei pl zr na pe nc
    cs=0008  ss=0010  ds=0023  es=0023  fs=0030  gs=0000             efl=00010246
    win32k!xxxActivateThisWindow+0x478:
    974072b0 008b402833db    add     byte ptr [ebx-24CCD7C0h],cl ds:0023:d5df3344=??
    Resetting default scope

    MISALIGNED_IP:
    win32k!xxxActivateThisWindow+478
    974072b0 008b402833db    add     byte ptr [ebx-24CCD7C0h],cl

    LAST_CONTROL_TRANSFER:  from 82a81638 to 82ac0903

    STACK_TEXT:
    a1c538fc 82a81638 00000001 d5df3344 00000000 nt!MmAccessFault+0x106
    a1c538fc 974072b0 00000001 d5df3344 00000000 nt!KiTrap0E+0xdc
    a1c539a4 974271ea 0000009d 369d4bd4 ffa34008 win32k!xxxActivateThisWindow+0x478
    a1c53be4 9745cdd2 fa9bf010 fe0f8aa0 00000000 win32k!EngCopyBits+0x604
    a1c53ccc 97444fae fba05688 ff4933f8 fe5dfd10 win32k!NtGdiBitBltInternal+0x6ab
    a1c53d00 82a7e44a 73011a31 00000000 00000000 win32k!NtGdiBitBlt+0x2f
    a1c53d00 77a164f4 73011a31 00000000 00000000 nt!KiFastCallEntry+0x12a
    WARNING: Frame IP not in any known module. Following frames may be wrong.
    001ddb88 00000000 00000000 00000000 00000000 0x77a164f4


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    win32k!xxxActivateThisWindow+478
    974072b0 008b402833db    add     byte ptr [ebx-24CCD7C0h],cl

    SYMBOL_STACK_INDEX:  2

    SYMBOL_NAME:  win32k!xxxActivateThisWindow+478

    FOLLOWUP_NAME:  MachineOwner

    IMAGE_NAME:  hardware

    DEBUG_FLR_IMAGE_TIMESTAMP:  0

    MODULE_NAME: hardware

    FAILURE_BUCKET_ID:  IP_MISALIGNED

    BUCKET_ID:  IP_MISALIGNED

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start    end        module name
    8b607000 8b64f000   ACPI     ACPI.sys     Mon Jul 13 19:11:11 2009 (4A5BBF0F)
    8f630000 8f68a000   afd      afd.sys      Mon Jul 13 19:12:34 2009 (4A5BBF62)
    94f2f000 94f41000   AgileVpn AgileVpn.sys Mon Jul 13 19:55:00 2009 (4A5BC954)
    90ed3000 90ee5000   amdk8    amdk8.sys    Mon Jul 13 19:11:03 2009 (4A5BBF07)
    8b758000 8b761000   amdxata  amdxata.sys  Tue May 19 13:57:35 2009 (4A12F30F)
    90f08000 90f09420   ASACPI   ASACPI.sys   Thu Aug 12 22:52:52 2004 (411C2D04)
    8b72c000 8b735000   atapi    atapi.sys    Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8b735000 8b758000   ataport  ataport.SYS  Mon Jul 13 19:11:18 2009 (4A5BBF16)
    8ba26000 8ba2d000   Beep     Beep.SYS     Mon Jul 13 19:45:00 2009 (4A5BC6FC)
    90ea4000 90eb2000   blbdrive blbdrive.sys Mon Jul 13 19:23:04 2009 (4A5BC1D8)
    8b45b000 8b463000   BOOTVID  BOOTVID.dll  Mon Jul 13 21:04:34 2009 (4A5BD9A2)
    96eac000 96ec5000   bowser   bowser.sys   Mon Jul 13 19:14:21 2009 (4A5BBFCD)
    97220000 9723e000   cdd      cdd.dll      Mon Jul 13 21:04:18 2009 (4A5BD992)
    8ba00000 8ba1f000   cdrom    cdrom.sys    Mon Jul 13 19:11:24 2009 (4A5BBF1C)
    8b4a5000 8b550000   CI       CI.dll       Mon Jul 13 21:09:28 2009 (4A5BDAC8)
    8bbbc000 8bbe1000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:11:20 2009 (4A5BBF18)
    8b463000 8b4a5000   CLFS     CLFS.SYS     Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    8b982000 8b9df000   cng      cng.sys      Mon Jul 13 19:32:55 2009 (4A5BC427)
    94f22000 94f2f000   CompositeBus CompositeBus.sys Mon Jul 13 19:45:26 2009 (4A5BC716)
    8cc99000 8cca6000   crashdmp crashdmp.sys Mon Jul 13 19:45:50 2009 (4A5BC72E)
    90e28000 90e8c000   csc      csc.sys      Mon Jul 13 19:15:08 2009 (4A5BBFFC)
    90e8c000 90ea4000   dfsc     dfsc.sys     Mon Jul 13 19:14:16 2009 (4A5BBFC8)
    8f793000 8f79f000   discache discache.sys Mon Jul 13 19:24:04 2009 (4A5BC214)
    8bbab000 8bbbc000   disk     disk.sys     Mon Jul 13 19:11:28 2009 (4A5BBF20)
    95fdd000 95ff6000   drmk     drmk.sys     Mon Jul 13 20:36:05 2009 (4A5BD2F5)
    8ccb1000 8ccba000   dump_atapi dump_atapi.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8cca6000 8ccb1000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8ccba000 8cccb000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:12:47 2009 (4A5BBF6F)
    95ff6000 96000000   Dxapi    Dxapi.sys    Mon Jul 13 19:25:25 2009 (4A5BC265)
    94e29000 94ee0000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 20:48:33 2009 (4AC54DE1)
    94ee0000 94f19000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:25:25 2009 (4A5BC265)
    90ee5000 90ef0000   fdc      fdc.sys      Mon Jul 13 19:45:45 2009 (4A5BC729)
    8b795000 8b7a6000   fileinfo fileinfo.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    94e00000 94e0a000   flpydisk flpydisk.sys Mon Jul 13 19:45:45 2009 (4A5BC729)
    8b761000 8b795000   fltmgr   fltmgr.sys   Mon Jul 13 19:11:13 2009 (4A5BBF11)
    8b9ed000 8b9f6000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:11:14 2009 (4A5BBF12)
    8bb79000 8bbab000   fvevol   fvevol.sys   Fri Sep 25 22:24:21 2009 (4ABD7B55)
    8bd58000 8bd89000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:12:03 2009 (4A5BBF43)
    82a04000 82a3b000   hal      halmacpi.dll Mon Jul 13 19:11:03 2009 (4A5BBF07)
    90f81000 90fa0000   HDAudBus HDAudBus.sys Mon Jul 13 19:50:55 2009 (4A5BC85F)
    94e0a000 94e1d000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:51:01 2009 (4A5BC865)
    95e0b000 95e11480   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:50:59 2009 (4A5BC863)
    95e00000 95e0b000   hidusb   hidusb.sys   Mon Jul 13 19:51:04 2009 (4A5BC868)
    96e27000 96eac000   HTTP     HTTP.sys     Mon Jul 13 19:12:53 2009 (4A5BBF75)
    8bde9000 8bdf1000   hwpolicy hwpolicy.sys Mon Jul 13 19:11:01 2009 (4A5BBF05)
    94fd6000 94fe3000   kbdclass kbdclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8cccb000 8ccd7000   kbdhid   kbdhid.sys   Mon Jul 13 19:45:09 2009 (4A5BC705)
    80bbd000 80bc5000   kdcom    kdcom.dll    Mon Jul 13 21:08:58 2009 (4A5BDAAA)
    8f79f000 8f7d3000   ks       ks.sys       Wed Mar 03 22:57:52 2010 (4B8F2FC0)
    8b96f000 8b982000   ksecdd   ksecdd.sys   Mon Jul 13 19:11:56 2009 (4A5BBF3C)
    8bb27000 8bb4c000   ksecpkg  ksecpkg.sys  Thu Dec 10 23:04:22 2009 (4B21C4C6)
    8cd0c000 8cd1c000   lltdio   lltdio.sys   Mon Jul 13 19:53:18 2009 (4A5BC8EE)
    8ccd7000 8ccf2000   luafv    luafv.sys    Mon Jul 13 19:15:44 2009 (4A5BC020)
    8b43f000 8b44a000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 19:13:13 2009 (4A5BBF89)
    8cc7a000 8cc85000   monitor  monitor.sys  Mon Jul 13 19:25:58 2009 (4A5BC286)
    94fe3000 94ff0000   mouclass mouclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8cc58000 8cc63000   mouhid   mouhid.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8b716000 8b72c000   mountmgr mountmgr.sys Mon Jul 13 19:11:27 2009 (4A5BBF1F)
    96ec5000 96ed7000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:52:52 2009 (4A5BC8D4)
    96ed7000 96efa000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:32:02 2010 (4B88CA72)
    96efa000 96f35000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:32:21 2010 (4B88CA85)
    96f35000 96f50000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:32:11 2010 (4B88CA7B)
    8b7dc000 8b7e7000   Msfs     Msfs.SYS     Mon Jul 13 19:11:26 2009 (4A5BBF1E)
    8b658000 8b660000   msisadrv msisadrv.sys Mon Jul 13 19:11:09 2009 (4A5BBF0D)
    8b944000 8b96f000   msrpc    msrpc.sys    Mon Jul 13 19:11:59 2009 (4A5BBF3F)
    8f789000 8f793000   mssmbios mssmbios.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    8bdd9000 8bde9000   mup      mup.sys      Mon Jul 13 19:14:14 2009 (4A5BBFC6)
    8ba32000 8bae9000   ndis     ndis.sys     Mon Jul 13 19:12:24 2009 (4A5BBF58)
    94f59000 94f64000   ndistapi ndistapi.sys Mon Jul 13 19:54:24 2009 (4A5BC930)
    8cd62000 8cd72000   ndisuio  ndisuio.sys  Mon Jul 13 19:53:51 2009 (4A5BC90F)
    94f64000 94f86000   ndiswan  ndiswan.sys  Mon Jul 13 19:54:34 2009 (4A5BC93A)
    95e5a000 95e6b000   NDProxy  NDProxy.SYS  Mon Jul 13 19:54:27 2009 (4A5BC933)
    8f6f3000 8f701000   netbios  netbios.sys  Mon Jul 13 19:53:54 2009 (4A5BC912)
    8f68a000 8f6bc000   netbt    netbt.sys    Mon Jul 13 19:12:18 2009 (4A5BBF52)
    8bae9000 8bb27000   NETIO    NETIO.SYS    Mon Jul 13 19:12:35 2009 (4A5BBF63)
    8b7e7000 8b7f5000   Npfs     Npfs.SYS     Mon Jul 13 19:11:31 2009 (4A5BBF23)
    8f77f000 8f789000   nsiproxy nsiproxy.sys Mon Jul 13 19:12:08 2009 (4A5BBF48)
    82a3b000 82e4b000   nt       ntkrpamp.exe Fri Jun 18 23:55:24 2010 (4C1C3FAC)
    8b815000 8b944000   Ntfs     Ntfs.sys     Mon Jul 13 19:12:05 2009 (4A5BBF45)
    8ba1f000 8ba26000   Null     Null.SYS     Mon Jul 13 19:11:12 2009 (4A5BBF10)
    95dfa000 95dfb040   nvBridge nvBridge.kmd Fri Jan 07 20:57:19 2011 (4D27C47F)
    90e00000 90e21000   nvhda32v nvhda32v.sys Thu Nov 11 18:10:19 2010 (4CDC77DB)
    95400000 95df9ee0   nvlddmkm nvlddmkm.sys Fri Jan 07 21:03:58 2011 (4D27C60E)
    90fa0000 90fe4880   nvmf6232 nvmf6232.sys Wed Jul 01 14:54:57 2009 (4A4BB101)
    90f14000 90f1d000   nvsmu    nvsmu.sys    Mon Jun 29 03:36:34 2009 (4A486F02)
    8cd1c000 8cd62000   nwifi    nwifi.sys    Mon Jul 13 19:51:59 2009 (4A5BC89F)
    8f6c3000 8f6e2000   pacer    pacer.sys    Mon Jul 13 19:53:58 2009 (4A5BC916)
    90ef0000 90f08000   parport  parport.sys  Mon Jul 13 19:45:34 2009 (4A5BC71E)
    8b695000 8b6a6000   partmgr  partmgr.sys  Mon Jul 13 19:11:35 2009 (4A5BBF27)
    96f50000 96f57000   parvdm   parvdm.sys   Mon Jul 13 19:45:29 2009 (4A5BC719)
    8b660000 8b68a000   pci      pci.sys      Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8b701000 8b708000   pciide   pciide.sys   Mon Jul 13 19:11:19 2009 (4A5BBF17)
    8b708000 8b716000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8b9df000 8b9ed000   pcw      pcw.sys      Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    96f57000 96fee000   peauth   peauth.sys   Mon Jul 13 20:35:44 2009 (4A5BD2E0)
    8f600000 8f62f000   portcls  portcls.sys  Mon Jul 13 19:51:00 2009 (4A5BC864)
    8b44a000 8b45b000   PSHED    PSHED.dll    Mon Jul 13 21:09:36 2009 (4A5BDAD0)
    94f41000 94f59000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:54:33 2009 (4A5BC939)
    94f86000 94f9e000   raspppoe raspppoe.sys Mon Jul 13 19:54:53 2009 (4A5BC94D)
    94f9e000 94fb5000   raspptp  raspptp.sys  Mon Jul 13 19:54:47 2009 (4A5BC947)
    94fb5000 94fcc000   rassstp  rassstp.sys  Mon Jul 13 19:54:57 2009 (4A5BC951)
    8f73e000 8f77f000   rdbss    rdbss.sys    Mon Jul 13 19:14:26 2009 (4A5BBFD2)
    94fcc000 94fd6000   rdpbus   rdpbus.sys   Mon Jul 13 20:02:40 2009 (4A5BCB20)
    8b80c000 8b814000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    8b9f6000 8b9fe000   rdpencdd rdpencdd.sys Mon Jul 13 20:01:39 2009 (4A5BCAE3)
    8b7d4000 8b7dc000   rdprefmp rdprefmp.sys Mon Jul 13 20:01:41 2009 (4A5BCAE5)
    8bb4c000 8bb79000   rdyboost rdyboost.sys Mon Jul 13 19:22:02 2009 (4A5BC19A)
    8cd72000 8cd85000   rspndr   rspndr.sys   Mon Jul 13 19:53:20 2009 (4A5BC8F0)
    96fee000 96ff8000   secdrv   secdrv.SYS   Wed Sep 13 09:18:32 2006 (45080528)
    90f0a000 90f14000   serenum  serenum.sys  Mon Jul 13 19:45:27 2009 (4A5BC717)
    8f701000 8f71b000   serial   serial.sys   Mon Jul 13 19:45:33 2009 (4A5BC71D)
    8bdd1000 8bdd9000   spldr    spldr.sys    Mon May 11 12:13:47 2009 (4A084EBB)
    9ca5b000 9cac5000   spsys    spsys.sys    Mon May 11 12:37:10 2009 (4A085436)
    9ca0a000 9ca5b000   srv      srv.sys      Thu Aug 26 23:31:26 2010 (4C77318E)
    8cd92000 8cde1000   srv2     srv2.sys     Thu Aug 26 23:30:45 2010 (4C773165)
    96e00000 96e21000   srvnet   srvnet.sys   Thu Aug 26 23:30:39 2010 (4C77315F)
    94ff0000 94ff1380   swenum   swenum.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8bc0f000 8bd58000   tcpip    tcpip.sys    Sun Jun 13 23:36:59 2010 (4C15A3DB)
    8cd85000 8cd92000   tcpipreg tcpipreg.sys Mon Jul 13 19:54:14 2009 (4A5BC926)
    8b7f5000 8b800000   TDI      TDI.SYS      Mon Jul 13 19:12:12 2009 (4A5BBF4C)
    8b5cf000 8b5e6000   tdx      tdx.sys      Mon Jul 13 19:12:10 2009 (4A5BBF4A)
    8f72e000 8f73e000   termdd   termdd.sys   Mon Jul 13 20:01:35 2009 (4A5BCADF)
    975e0000 975e9000   TSDDD    TSDDD.dll    unavailable (00000000)
    90eb2000 90ed3000   tunnel   tunnel.sys   Mon Jul 13 19:54:03 2009 (4A5BC91B)
    8cc18000 8cc58000   udfs     udfs.sys     Mon Jul 13 19:14:09 2009 (4A5BBFC1)
    94ff2000 95000000   umbus    umbus.sys    Mon Jul 13 19:51:38 2009 (4A5BC88A)
    8cc85000 8cc98b00   usbaudio usbaudio.sys Mon Jul 13 19:51:23 2009 (4A5BC87B)
    8cc63000 8cc7a000   usbccgp  usbccgp.sys  Mon Jul 13 19:51:31 2009 (4A5BC883)
    95e12000 95e13700   USBD     USBD.SYS     Mon Jul 13 19:51:05 2009 (4A5BC869)
    90f72000 90f81000   usbehci  usbehci.sys  Fri Oct 23 23:58:55 2009 (4AE27B7F)
    95e16000 95e5a000   usbhub   usbhub.sys   Sat Oct 24 00:00:05 2009 (4AE27BC5)
    90f1d000 90f27000   usbohci  usbohci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    90f27000 90f72000   USBPORT  USBPORT.SYS  Mon Jul 13 19:51:13 2009 (4A5BC871)
    8b68a000 8b695000   vdrvroot vdrvroot.sys Mon Jul 13 19:46:19 2009 (4A5BC74B)
    8b800000 8b80c000   vga      vga.sys      Mon Jul 13 19:25:50 2009 (4A5BC27E)
    95e6b000 95fdd000   viahduaa viahduaa.sys Mon Aug 17 07:17:42 2009 (4A893C56)
    8b7a6000 8b7c7000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:25:49 2009 (4A5BC27D)
    8bd89000 8bd91380   vmstorfl vmstorfl.sys Mon Jul 13 19:28:44 2009 (4A5BC32C)
    8b6a6000 8b6b6000   volmgr   volmgr.sys   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8b6b6000 8b701000   volmgrx  volmgrx.sys  Mon Jul 13 19:11:41 2009 (4A5BBF2D)
    8bd92000 8bdd1000   volsnap  volsnap.sys  Mon Jul 13 19:11:34 2009 (4A5BBF26)
    8f6e2000 8f6f3000   vwififlt vwififlt.sys Mon Jul 13 19:52:03 2009 (4A5BC8A3)
    8f71b000 8f72e000   wanarp   wanarp.sys   Mon Jul 13 19:55:02 2009 (4A5BC956)
    8b7c7000 8b7d4000   watchdog watchdog.sys Mon Jul 13 19:24:10 2009 (4A5BC21A)
    8b550000 8b5c1000   Wdf01000 Wdf01000.sys Mon Jul 13 19:11:36 2009 (4A5BBF28)
    8b5c1000 8b5cf000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8f6bc000 8f6c3000   wfplwf   wfplwf.sys   Mon Jul 13 19:53:51 2009 (4A5BC90F)
    97380000 975cb000   win32k   win32k.sys   Tue Oct 19 23:00:01 2010 (4CBE5B31)
    94f19000 94f22000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:19:16 2009 (4A5BC0F4)
    8b64f000 8b658000   WMILIB   WMILIB.SYS   Mon Jul 13 19:11:22 2009 (4A5BBF1A)
    8ccf2000 8cd0c000   WudfPf   WudfPf.sys   Mon Jul 13 19:50:13 2009 (4A5BC835)

    Unloaded modules:
    8bdf1000 8bdfe000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000D000
    8bc00000 8bc0b000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    8bbe1000 8bbea000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    8bbea000 8bbfb000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000



  6. animebop

    animebop New Member

    Joined:
    Feb 5, 2011
    Messages:
    10
    Likes Received:
    0
  7. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Attach CPU-Z memory tab as you have it right now.

  8. animebop

    animebop New Member

    Joined:
    Feb 5, 2011
    Messages:
    10
    Likes Received:
    0
    oh right sorry

  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Set wrong - 750Mhz. You need it 800.

  10. animebop

    animebop New Member

    Joined:
    Feb 5, 2011
    Messages:
    10
    Likes Received:
    0
    How could you tell, and what can I do to change it?

  11. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    In the bios, set Dram frequency 800Mhz. Or load setup defaults for the entire bios.

    1. See your motherboard manual
    2. See the official rated specs for your RAM sticks

    #11 cybercore, Feb 6, 2011
    Last edited: Feb 6, 2011

Share This Page

Loading...
