BSOD upon waking from sleep mode

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by mchu102, Jan 2, 2011.

  1. mchu102

    mchu102 New Member

    Joined:
    Jan 2, 2011
    Messages:
    4
    Likes Received:
    0
    Hi there,

    I just performed a clean install of Windows 7 Professional (32-bit) on my HP Pavilion dv5-1211AX laptop. I ran Windows Update and installed all the important updates. Everything seems to work fine until I try to wake from sleep mode. A BSOD will occur within 20 seconds of me attempting to wake it up. I know that this is an extremely common problem but I'm not particularly computer savvy so I wasn't able to glean much from reading the other threads created about this problem.

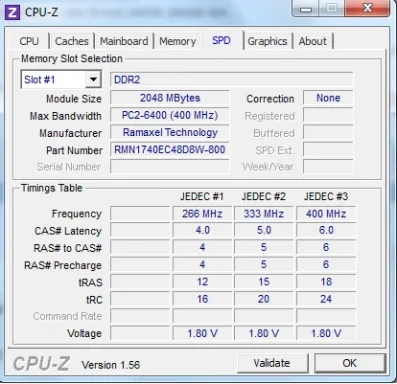

    CPU-Z screenshots and minidumps are attached.

    Thanks!


    Attached Files:

  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    [​IMG]

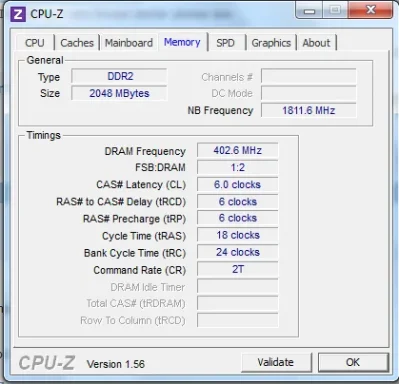

    1. The memory is set right, thank you for attaching.


    2. Uninstall AVG:

    AVG - Download tools



    3. Install MSE as the replacement:

    www.microsoft.com/security_essentials/



    4. Update Realtek LAN:

    Rt86win7.sys Thu Feb 26 04:04:22 2009
    Realtek LAN PCI/PCIe
    Realtek



    5. Update Atheros Wireless LAN:

    athr.sys Tue Jun 09 14:04:52 2009


    6. You won't be able to find an update for Agere 56k modem, so you may want to disable it in the device manager:

    AGRSM.sys Mon Nov 10 09:56:37 2008


    7. Should crashes reoccur after doing the above 1-6, reinstall the Catalyst with the use of an earlier Catalyst version and the driver sweeper to clear up of remnants between the reinstalls:

    atikmpag.sys Thu Nov 25 21:16:27 2010

    Guru3D - Driver Sweeper







    Crash Dumps:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\010311-36410-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (2 procs) Free x86 compatible
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.x86fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0x82a18000 PsLoadedModuleList = 0x82b60810
    Debug session time: Sun Jan  2 14:23:36.338 2011 (UTC - 5:00)
    System Uptime: 0 days 0:04:14.428
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ..................................
    Loading User Symbols
    Loading unloaded module list
    .....
    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    THREAD_STUCK_IN_DEVICE_DRIVER_M (100000ea)
    The device driver is spinning in an infinite loop, most likely waiting for
    hardware to become idle. This usually indicates problem with the hardware
    itself or with the device driver programming the hardware incorrectly.
    If the kernel debugger is connected and running when watchdog detects a
    timeout condition then DbgBreakPoint() will be called instead of KeBugCheckEx()
    and detailed message including bugcheck arguments will be printed to the
    debugger. This way we can identify an offending thread, set breakpoints in it,
    and hit go to return to the spinning code to debug it further. Because
    KeBugCheckEx() is not called the .bugcheck directive will not return bugcheck
    information in this case. The arguments are already printed out to the kernel
    debugger. You can also retrieve them from a global variable via
    "dd watchdog!g_WdBugCheckData l5" (use dq on NT64).
    On MP machines it is possible to hit a timeout when the spinning thread is
    interrupted by hardware interrupt and ISR or DPC routine is running at the time
    of the bugcheck (this is because the timeout's work item can be delivered and
    handled on the second CPU and the same time). If this is the case you will have
    to look deeper at the offending thread's stack (e.g. using dds) to determine
    spinning code which caused the timeout to occur.
    Arguments:
    Arg1: 85d52508, Pointer to a stuck thread object.  Do .thread then kb on it to find
    	the hung location.
    Arg2: 00000000, Pointer to a DEFERRED_WATCHDOG object.
    Arg3: 00000000, Pointer to offending driver name.
    Arg4: 00000000, Number of times "intercepted" bugcheck 0xEA was hit (see notes).

    Debugging Details:
    ------------------

    *** WARNING: Unable to verify timestamp for atikmdag.sys
    *** ERROR: Module load completed but symbols could not be loaded for atikmdag.sys
    *** WARNING: Unable to verify timestamp for atikmpag.sys
    *** ERROR: Module load completed but symbols could not be loaded for atikmpag.sys

    FAULTING_THREAD:  85d52508

    DEFAULT_BUCKET_ID:  GRAPHICS_DRIVER_FAULT

    CUSTOMER_CRASH_COUNT:  1

    BUGCHECK_STR:  0xEA

    PROCESS_NAME:  csrss.exe

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from 8f8c7bbc to 82af4d10

    STACK_TEXT:
    8c8cc388 8f8c7bbc 000000ea 85d52508 00000000 nt!KeBugCheckEx+0x1e
    WARNING: Stack unwind information not available. Following frames may be wrong.
    8c8cc3cc 8f8c034d 8c8cc418 00000000 8f8ba673 dxgkrnl+0x11bbc
    8c8cc3f4 8f2398d2 8c8cc418 00000000 00000000 dxgkrnl+0xa34d
    8c8cc444 8f233029 8f3e663e 8c8cc4e4 ffffffff atikmdag+0x298d2
    8c8cc464 8f3e357f 85c28001 8c8cc480 1fff1fff atikmdag+0x23029
    8c8cc4c0 8f3e67b7 869f1004 8f3e663e 8c8cc4e4 atikmdag+0x1d357f
    8c8cc4fc 8f41901b 85d08000 00000000 00000001 atikmdag+0x1d67b7
    8c8cc518 8f3881ef 85d08000 00000000 00000000 atikmdag+0x20901b
    8c8cc538 8f39f086 869f1000 869f9f7e 00000000 atikmdag+0x1781ef
    8c8cc55c 8f39f11c 869f1000 869f9658 00000000 atikmdag+0x18f086
    8c8cc57c 8f370508 869f12c0 00000000 00000000 atikmdag+0x18f11c
    8c8cc590 8f29b90a 00000000 00000000 8c8cc5b4 atikmdag+0x160508
    8c8cc5a0 8f24a21e 84acc058 00000000 00000000 atikmdag+0x8b90a
    8c8cc5b4 8f260b58 00000000 85c47008 85c47390 atikmdag+0x3a21e
    8c8cc5cc 8f252685 00000001 8c8cc80c 85d988c0 atikmdag+0x50b58
    8c8cc624 8f21f579 8c8cc80c 85d988c0 00000000 atikmdag+0x42685
    8c8cc63c 8db09e48 00000001 8c8cc80c 82e2d6ee atikmdag+0xf579
    8c8cc678 8f8ec968 85d988c0 8c8cc80c 8c8cc814 atikmpag+0x5e48
    8c8cc6a4 8f917ff6 8c8cc80c b06373a4 88df41b0 dxgkrnl+0x36968
    8c8cc828 8f8f10de b05be008 00000000 8c8ccc00 dxgkrnl+0x61ff6
    8c8cc87c 8f91a5bb 865cd000 89a62ca0 b05be008 dxgkrnl+0x3b0de
    8c8cca78 94712611 00000004 00000000 8c8ccd28 dxgkrnl+0x645bb
    8c8ccac0 94715151 ffb89010 8c8cccd0 8c8ccd28 cdd!CreateAndEnableDevice+0x171
    8c8ccd50 82c266d3 ffb89010 a27d775a 00000000 cdd!PresentWorkerThread+0x81d
    8c8ccd90 82ad80f9 94714934 ffb89010 00000000 nt!PspSystemThreadStartup+0x9e
    00000000 00000000 00000000 00000000 00000000 nt!KiThreadStartup+0x19


    STACK_COMMAND:  .thread 0xffffffff85d52508 ; kb

    FOLLOWUP_IP:
    dxgkrnl+11bbc
    8f8c7bbc ??              ???

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  dxgkrnl+11bbc

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: dxgkrnl

    IMAGE_NAME:  dxgkrnl.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4ac54de1

    FAILURE_BUCKET_ID:  0xEA_IMAGE_dxgkrnl.sys

    BUCKET_ID:  0xEA_IMAGE_dxgkrnl.sys

    Followup: MachineOwner
    ---------


    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\010311-35178-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (2 procs) Free x86 compatible
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.x86fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0x82a49000 PsLoadedModuleList = 0x82b91810
    Debug session time: Sun Jan  2 22:47:10.418 2011 (UTC - 5:00)
    System Uptime: 0 days 0:11:45.399
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ...............................
    Loading User Symbols
    Loading unloaded module list
    .......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck A, {0, 2, 1, 82ab2daf}

    Probably caused by : ntkrpamp.exe ( nt!KiTimerExpiration+15d )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 00000000, memory referenced
    Arg2: 00000002, IRQL
    Arg3: 00000001, bitfield :
    	bit 0 : value 0 = read operation, 1 = write operation
    	bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: 82ab2daf, address which referenced memory

    Debugging Details:
    ------------------


    WRITE_ADDRESS: GetPointerFromAddress: unable to read from 82bb1718
    Unable to read MiSystemVaType memory at 82b91160
     00000000

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!KiTimerExpiration+15d
    82ab2daf 8911            mov     dword ptr [ecx],edx

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  atieclxx.exe

    TRAP_FRAME:  8078aedc -- (.trap 0xffffffff8078aedc)
    ErrCode = 00000002
    eax=862460c8 ebx=82b755d8 ecx=00000000 edx=84ae1888 esi=82b755dc edi=82b74680
    eip=82ab2daf esp=8078af50 ebp=8078afac iopl=0         nv up ei ng nz ac pe cy
    cs=0008  ss=0010  ds=0023  es=0023  fs=0030  gs=0000             efl=00010297
    nt!KiTimerExpiration+0x15d:
    82ab2daf 8911            mov     dword ptr [ecx],edx  ds:0023:00000000=????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from 82ab2daf to 82a8f82b

    STACK_TEXT:
    8078aedc 82ab2daf badb0d00 84ae1888 88a1357c nt!KiTrap0E+0x2cf
    8078afac 82ab120e 0000b0a1 95e6b87c 00000000 nt!KiTimerExpiration+0x15d
    8078aff4 82ab09dc 95e6b82c 00000000 00000000 nt!KiRetireDpcList+0xcb
    8078aff8 95e6b82c 00000000 00000000 00000000 nt!KiDispatchInterrupt+0x2c
    WARNING: Frame IP not in any known module. Following frames may be wrong.
    82ab09dc 00000000 0000001a 00d6850f bb830000 0x95e6b82c


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!KiTimerExpiration+15d
    82ab2daf 8911            mov     dword ptr [ecx],edx

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  nt!KiTimerExpiration+15d

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrpamp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c1c3fac

    FAILURE_BUCKET_ID:  0xA_nt!KiTimerExpiration+15d

    BUCKET_ID:  0xA_nt!KiTimerExpiration+15d

    Followup: MachineOwner
    ---------





    Drivers:

    Code:
    start    end        module name
    8fb6c000 8fb98000   1394ohci 1394ohci.sys Mon Jul 13 19:51:59 2009 (4A5BC89F)
    8fa0d000 8fa19000   Accelerometer Accelerometer.sys Fri Jul 16 11:02:49 2010 (4C407499)
    88993000 889db000   ACPI     ACPI.sys     Mon Jul 13 19:11:11 2009 (4A5BBF0F)
    8e67f000 8e6d9000   afd      afd.sys      Mon Jul 13 19:12:34 2009 (4A5BBF62)
    8f9d2000 8f9e4000   AgileVpn AgileVpn.sys Mon Jul 13 19:55:00 2009 (4A5BC954)
    90023000 90129000   AGRSM    AGRSM.sys    Mon Nov 10 09:56:37 2008 (49184BA5)
    8daf3000 8db04000   amdppm   amdppm.sys   Mon Jul 13 19:11:03 2009 (4A5BBF07)
    88b4f000 88b58000   amdxata  amdxata.sys  Tue May 19 13:57:35 2009 (4A12F30F)
    88b19000 88b22000   atapi    atapi.sys    Mon Jul 13 19:11:15 2009 (4A5BBF13)
    88b22000 88b45000   ataport  ataport.SYS  Mon Jul 13 19:11:18 2009 (4A5BBF16)
    8fa2d000 8fb3d000   athr     athr.sys     Tue Jun 09 14:04:52 2009 (4A2EA444)
    8f210000 8f8b6000   atikmdag atikmdag.sys Thu Nov 25 21:43:13 2010 (4CEF1EC1)
    8db04000 8db41000   atikmpag atikmpag.sys Thu Nov 25 21:16:27 2010 (4CEF187B)
    a7f38000 a7f60000   AVGIDSDriver AVGIDSDriver.Sys Tue Aug 03 18:24:21 2010 (4C589715)
    88fc9000 88fd2000   AVGIDSEH AVGIDSEH.Sys Mon Sep 13 18:46:35 2010 (4C8EA9CB)
    a7edf000 a7ee9000   AVGIDSFilter AVGIDSFilter.Sys Tue Aug 03 18:23:18 2010 (4C5896D6)
    95f6a000 95f73000   AVGIDSShim AVGIDSShim.Sys Tue Aug 03 18:25:56 2010 (4C589774)
    8da96000 8dad1d00   avgldx86 avgldx86.sys Tue Dec 07 21:00:20 2010 (4CFEE6B4)
    88e11000 88e1d000   avgmfx86 avgmfx86.sys Mon Sep 06 20:48:01 2010 (4C858BC1)
    88fc4000 88fc8b80   avgrkx86 avgrkx86.sys Mon Sep 06 20:48:16 2010 (4C858BD0)
    8e605000 8e64c980   avgtdix  avgtdix.sys  Fri Nov 12 06:05:58 2010 (4CDD1F96)
    88a88000 88a93000   BATTC    BATTC.SYS    Mon Jul 13 19:19:15 2009 (4A5BC0F3)
    88ff4000 88ffb000   Beep     Beep.SYS     Mon Jul 13 19:45:00 2009 (4A5BC6FC)
    8da88000 8da96000   blbdrive blbdrive.sys Mon Jul 13 19:23:04 2009 (4A5BC1D8)
    8881f000 88827000   BOOTVID  BOOTVID.dll  Mon Jul 13 21:04:34 2009 (4A5BD9A2)
    95eae000 95ec7000   bowser   bowser.sys   Mon Jul 13 19:14:21 2009 (4A5BBFCD)
    94710000 9472e000   cdd      cdd.dll      Mon Jul 13 21:04:18 2009 (4A5BD992)
    88b9d000 88bbc000   cdrom    cdrom.sys    Mon Jul 13 19:11:24 2009 (4A5BBF1C)
    88869000 88914000   CI       CI.dll       Mon Jul 13 21:09:28 2009 (4A5BDAC8)
    88f9f000 88fc4000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:11:20 2009 (4A5BBF18)
    88827000 88869000   CLFS     CLFS.SYS     Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    8fa19000 8fa1c700   CmBatt   CmBatt.sys   Mon Jul 13 19:19:18 2009 (4A5BC0F6)
    88d96000 88df3000   cng      cng.sys      Mon Jul 13 19:32:55 2009 (4A5BC427)
    88a80000 88a88000   compbatt compbatt.sys Mon Jul 13 19:19:18 2009 (4A5BC0F6)
    8f9c5000 8f9d2000   CompositeBus CompositeBus.sys Mon Jul 13 19:45:26 2009 (4A5BC716)
    8ff0a000 8ff17000   crashdmp crashdmp.sys Mon Jul 13 19:45:50 2009 (4A5BC72E)
    8da0c000 8da70000   csc      csc.sys      Mon Jul 13 19:15:08 2009 (4A5BBFFC)
    8da70000 8da88000   dfsc     dfsc.sys     Mon Jul 13 19:14:16 2009 (4A5BBFC8)
    8e796000 8e7a2000   discache discache.sys Mon Jul 13 19:24:04 2009 (4A5BC214)
    89011000 89022000   disk     disk.sys     Mon Jul 13 19:11:28 2009 (4A5BBF20)
    8fef1000 8ff0a000   drmk     drmk.sys     Mon Jul 13 20:36:05 2009 (4A5BD2F5)
    8ff17000 8ff22000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8ff2c000 8ff3d000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:12:47 2009 (4A5BBF6F)
    8ff22000 8ff2c000   dump_msahci dump_msahci.sys Mon Jul 13 19:45:50 2009 (4A5BC72E)
    901a3000 901ad000   Dxapi    Dxapi.sys    Mon Jul 13 19:25:25 2009 (4A5BC265)
    8f8b6000 8f96d000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 20:48:33 2009 (4AC54DE1)
    8f96d000 8f9a6000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:25:25 2009 (4A5BC265)
    88b8c000 88b9d000   fileinfo fileinfo.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    88b58000 88b8c000   fltmgr   fltmgr.sys   Mon Jul 13 19:11:13 2009 (4A5BBF11)
    88c0e000 88c17000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:11:14 2009 (4A5BBF12)
    88f6d000 88f9f000   fvevol   fvevol.sys   Fri Sep 25 22:24:21 2009 (4ABD7B55)
    8916d000 8919e000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:12:03 2009 (4A5BBF43)
    8fbb1000 8fbb6280   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:16:53 2009 (4A1151B5)
    82e28000 82e5f000   hal      halmacpi.dll Mon Jul 13 19:11:03 2009 (4A5BBF07)
    8f9a6000 8f9c5000   HDAudBus HDAudBus.sys Mon Jul 13 19:50:55 2009 (4A5BC85F)
    8fe72000 8fec2000   HdAudio  HdAudio.sys  Mon Jul 13 19:51:46 2009 (4A5BC892)
    90143000 90156000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:51:01 2009 (4A5BC865)
    90156000 9015c480   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:50:59 2009 (4A5BC863)
    90138000 90143000   hidusb   hidusb.sys   Mon Jul 13 19:51:04 2009 (4A5BC868)
    89008000 89011000   hpdskflt hpdskflt.sys Fri Jul 16 11:02:49 2010 (4C407499)
    95e29000 95eae000   HTTP     HTTP.sys     Mon Jul 13 19:12:53 2009 (4A5BBF75)
    89000000 89008000   hwpolicy hwpolicy.sys Mon Jul 13 19:11:01 2009 (4A5BBF05)
    8fbd0000 8fbe8000   i8042prt i8042prt.sys Mon Jul 13 19:11:23 2009 (4A5BBF1B)
    8fbe8000 8fbf5000   kbdclass kbdclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    80bd2000 80bda000   kdcom    kdcom.dll    Mon Jul 13 21:08:58 2009 (4A5BDAAA)
    8e7a2000 8e7d6000   ks       ks.sys       Wed Mar 03 22:57:52 2010 (4B8F2FC0)
    88d83000 88d96000   ksecdd   ksecdd.sys   Mon Jul 13 19:11:56 2009 (4A5BBF3C)
    88f1b000 88f40000   ksecpkg  ksecpkg.sys  Thu Dec 10 23:04:22 2009 (4B21C4C6)
    8ff3d000 8ff4d000   lltdio   lltdio.sys   Mon Jul 13 19:53:18 2009 (4A5BC8EE)
    90000000 9001b000   luafv    luafv.sys    Mon Jul 13 19:15:44 2009 (4A5BC020)
    88803000 8880e000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 19:13:13 2009 (4A5BBF89)
    9012b000 90138000   modem    modem.sys    Mon Jul 13 19:55:24 2009 (4A5BC96C)
    901ad000 901b8000   monitor  monitor.sys  Mon Jul 13 19:25:58 2009 (4A5BC286)
    8fa00000 8fa0d000   mouclass mouclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    9015d000 90168000   mouhid   mouhid.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    88b03000 88b19000   mountmgr mountmgr.sys Mon Jul 13 19:11:27 2009 (4A5BBF1F)
    95ec7000 95ed9000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:52:52 2009 (4A5BC8D4)
    95ed9000 95efc000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:32:02 2010 (4B88CA72)
    95efc000 95f37000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:32:21 2010 (4B88CA85)
    95f37000 95f52000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:32:11 2010 (4B88CA7B)
    88b45000 88b4f000   msahci   msahci.sys   Mon Jul 13 19:45:50 2009 (4A5BC72E)
    88bf5000 88c00000   Msfs     Msfs.SYS     Mon Jul 13 19:11:26 2009 (4A5BBF1E)
    889e4000 889ec000   msisadrv msisadrv.sys Mon Jul 13 19:11:09 2009 (4A5BBF0D)
    88d58000 88d83000   msrpc    msrpc.sys    Mon Jul 13 19:11:59 2009 (4A5BBF3F)
    8e78c000 8e796000   mssmbios mssmbios.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    891ee000 891fe000   mup      mup.sys      Mon Jul 13 19:14:14 2009 (4A5BBFC6)
    88e26000 88edd000   ndis     ndis.sys     Mon Jul 13 19:12:24 2009 (4A5BBF58)
    8fbf5000 8fc00000   ndistapi ndistapi.sys Mon Jul 13 19:54:24 2009 (4A5BC930)
    8ff93000 8ffa3000   ndisuio  ndisuio.sys  Mon Jul 13 19:53:51 2009 (4A5BC90F)
    8db8c000 8dbae000   ndiswan  ndiswan.sys  Mon Jul 13 19:54:34 2009 (4A5BC93A)
    8fe61000 8fe72000   NDProxy  NDProxy.SYS  Mon Jul 13 19:54:27 2009 (4A5BC933)
    8e710000 8e71e000   netbios  netbios.sys  Mon Jul 13 19:53:54 2009 (4A5BC912)
    8e64d000 8e67f000   netbt    netbt.sys    Mon Jul 13 19:12:18 2009 (4A5BBF52)
    88edd000 88f1b000   NETIO    NETIO.SYS    Mon Jul 13 19:12:35 2009 (4A5BBF63)
    88a00000 88a0e000   Npfs     Npfs.SYS     Mon Jul 13 19:11:31 2009 (4A5BBF23)
    8e782000 8e78c000   nsiproxy nsiproxy.sys Mon Jul 13 19:12:08 2009 (4A5BBF48)
    82a18000 82e28000   nt       ntkrpamp.exe Fri Jun 18 23:55:24 2010 (4C1C3FAC)
    88c29000 88d58000   Ntfs     Ntfs.sys     Mon Jul 13 19:12:05 2009 (4A5BBF45)
    88e1d000 88e24000   Null     Null.SYS     Mon Jul 13 19:11:12 2009 (4A5BBF10)
    8ff4d000 8ff93000   nwifi    nwifi.sys    Mon Jul 13 19:51:59 2009 (4A5BC89F)
    8e6e0000 8e6ff000   pacer    pacer.sys    Mon Jul 13 19:53:58 2009 (4A5BC916)
    88a6f000 88a80000   partmgr  partmgr.sys  Mon Jul 13 19:11:35 2009 (4A5BBF27)
    88a3a000 88a64000   pci      pci.sys      Mon Jul 13 19:11:16 2009 (4A5BBF14)
    88aee000 88af5000   pciide   pciide.sys   Mon Jul 13 19:11:19 2009 (4A5BBF17)
    88af5000 88b03000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:11:15 2009 (4A5BBF13)
    88c00000 88c0e000   pcw      pcw.sys      Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    a7e10000 a7ea7000   peauth   peauth.sys   Mon Jul 13 20:35:44 2009 (4A5BD2E0)
    8fec2000 8fef1000   portcls  portcls.sys  Mon Jul 13 19:51:00 2009 (4A5BC864)
    8880e000 8881f000   PSHED    PSHED.dll    Mon Jul 13 21:09:36 2009 (4A5BDAD0)
    8f9e4000 8f9fc000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:54:33 2009 (4A5BC939)
    8dbae000 8dbc6000   raspppoe raspppoe.sys Mon Jul 13 19:54:53 2009 (4A5BC94D)
    8dbc6000 8dbdd000   raspptp  raspptp.sys  Mon Jul 13 19:54:47 2009 (4A5BC947)
    8dbdd000 8dbf4000   rassstp  rassstp.sys  Mon Jul 13 19:54:57 2009 (4A5BC951)
    8e741000 8e782000   rdbss    rdbss.sys    Mon Jul 13 19:14:26 2009 (4A5BBFD2)
    8f200000 8f20a000   rdpbus   rdpbus.sys   Mon Jul 13 20:02:40 2009 (4A5BCB20)
    88bdd000 88be5000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    88be5000 88bed000   rdpencdd rdpencdd.sys Mon Jul 13 20:01:39 2009 (4A5BCAE3)
    88bed000 88bf5000   rdprefmp rdprefmp.sys Mon Jul 13 20:01:41 2009 (4A5BCAE5)
    88f40000 88f6d000   rdyboost rdyboost.sys Mon Jul 13 19:22:02 2009 (4A5BC19A)
    8ffa3000 8ffb6000   rspndr   rspndr.sys   Mon Jul 13 19:53:20 2009 (4A5BC8F0)
    8fb47000 8fb6c000   Rt86win7 Rt86win7.sys Thu Feb 26 04:04:22 2009 (49A65B16)
    8fb98000 8fbb1000   sdbus    sdbus.sys    Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    a7ea7000 a7eb1000   secdrv   secdrv.SYS   Wed Sep 13 09:18:32 2006 (45080528)
    891e6000 891ee000   spldr    spldr.sys    Mon May 11 12:13:47 2009 (4A084EBB)
    95f73000 95fdd000   spsys    spsys.sys    Mon May 11 12:37:10 2009 (4A085436)
    a7f60000 a7fb1000   srv      srv.sys      Thu Aug 26 23:31:26 2010 (4C77318E)
    a7ee9000 a7f38000   srv2     srv2.sys     Thu Aug 26 23:30:45 2010 (4C773165)
    a7eb1000 a7ed2000   srvnet   srvnet.sys   Thu Aug 26 23:30:39 2010 (4C77315F)
    8fa26000 8fa27380   swenum   swenum.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    89024000 8916d000   tcpip    tcpip.sys    Sun Jun 13 23:36:59 2010 (4C15A3DB)
    a7ed2000 a7edf000   tcpipreg tcpipreg.sys Mon Jul 13 19:54:14 2009 (4A5BC926)
    88a25000 88a30000   TDI      TDI.SYS      Mon Jul 13 19:12:12 2009 (4A5BBF4C)
    88a0e000 88a25000   tdx      tdx.sys      Mon Jul 13 19:12:10 2009 (4A5BBF4A)
    8e731000 8e741000   termdd   termdd.sys   Mon Jul 13 20:01:35 2009 (4A5BCADF)
    946e0000 946e9000   TSDDD    TSDDD.dll    unavailable (00000000)
    8dad2000 8daf3000   tunnel   tunnel.sys   Mon Jul 13 19:54:03 2009 (4A5BC91B)
    901b8000 901f8000   udfs     udfs.sys     Mon Jul 13 19:14:09 2009 (4A5BBFC1)
    8e7d6000 8e7e4000   umbus    umbus.sys    Mon Jul 13 19:51:38 2009 (4A5BC88A)
    90168000 9017f000   usbccgp  usbccgp.sys  Mon Jul 13 19:51:31 2009 (4A5BC883)
    90129000 9012a700   USBD     USBD.SYS     Mon Jul 13 19:51:05 2009 (4A5BC869)
    8fbc1000 8fbd0000   usbehci  usbehci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    8fe1d000 8fe61000   usbhub   usbhub.sys   Mon Jul 13 19:52:06 2009 (4A5BC8A6)
    8fbb7000 8fbc1000   usbohci  usbohci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    8db41000 8db8c000   USBPORT  USBPORT.SYS  Mon Jul 13 19:51:13 2009 (4A5BC871)
    9017f000 901a2b80   usbvideo usbvideo.sys Wed Mar 03 23:04:40 2010 (4B8F3158)
    88a64000 88a6f000   vdrvroot vdrvroot.sys Mon Jul 13 19:46:19 2009 (4A5BC74B)
    88c17000 88c23000   vga      vga.sys      Mon Jul 13 19:25:50 2009 (4A5BC27E)
    88bbc000 88bdd000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:25:49 2009 (4A5BC27D)
    8919e000 891a6380   vmstorfl vmstorfl.sys Mon Jul 13 19:28:44 2009 (4A5BC32C)
    88a93000 88aa3000   volmgr   volmgr.sys   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    88aa3000 88aee000   volmgrx  volmgrx.sys  Mon Jul 13 19:11:41 2009 (4A5BBF2D)
    891a7000 891e6000   volsnap  volsnap.sys  Mon Jul 13 19:11:34 2009 (4A5BBF26)
    8fb3d000 8fb47000   vwifibus vwifibus.sys Mon Jul 13 19:52:02 2009 (4A5BC8A2)
    8e6ff000 8e710000   vwififlt vwififlt.sys Mon Jul 13 19:52:03 2009 (4A5BC8A3)
    8e71e000 8e731000   wanarp   wanarp.sys   Mon Jul 13 19:55:02 2009 (4A5BC956)
    88df3000 88e00000   watchdog watchdog.sys Mon Jul 13 19:24:10 2009 (4A5BC21A)
    88914000 88985000   Wdf01000 Wdf01000.sys Mon Jul 13 19:11:36 2009 (4A5BBF28)
    88985000 88993000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8e6d9000 8e6e0000   wfplwf   wfplwf.sys   Mon Jul 13 19:53:51 2009 (4A5BC90F)
    94480000 946cb000   win32k   win32k.sys   Tue Oct 19 23:00:01 2010 (4CBE5B31)
    8fa1d000 8fa26000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:19:16 2009 (4A5BC0F4)
    889db000 889e4000   WMILIB   WMILIB.SYS   Mon Jul 13 19:11:22 2009 (4A5BBF1A)

    Unloaded modules:
    95f52000 95f6a000   parport.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00018000
    88fd2000 88fdf000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000D000
    88fdf000 88fea000   dump_pciidex
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    88fea000 88ff4000   dump_msahci.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000A000
    88e00000 88e11000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000



  3. mchu102

    mchu102 New Member

    Joined:
    Jan 2, 2011
    Messages:
    4
    Likes Received:
    0
    I tried steps 1-6 with no luck and then installed the Catalyst version provided on the HP website (8.632.3) which also didn't help. Minidump files are again attached.

    Thanks.


    Attached Files:

  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Realtek LAN has not been updated:

    Code:
    Rt86win7.sys Thu Feb 26 04:04:22 2009



    ATI Driver is now outdated and is not good for Windows 7:

    Code:
    atikmdag.sys Wed Jul 22 22:44:46 2009



Share This Page

Loading...
