BSOD; Win 7 64 bit home premium

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by poizondragon, Oct 31, 2010.

  1. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Hello all, and thanks for your time....99% of my bluescreens occur while watching Youtube or any other video. I've tried disabling hardware acceleration in flash, but that doesn't seem to work. The other 1% seems to happen randomly while I'm away from the computer(All together, I get about 3-4 a week). I never put it to sleep; I have the display turn off after 15 minutes of idle. I used the diagnostic tool uploaded by Capt. Jack Sparrow(awesome program btw :D), and will provide all the info I can here. Any help would be appreciated! Thanks again!

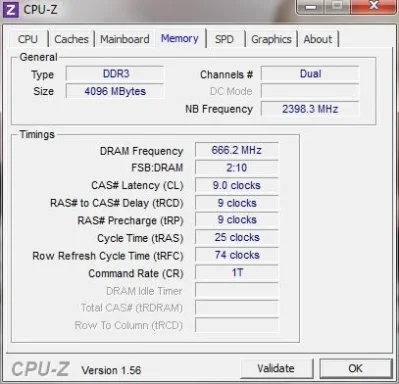

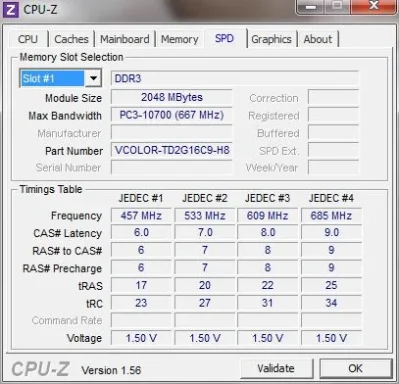

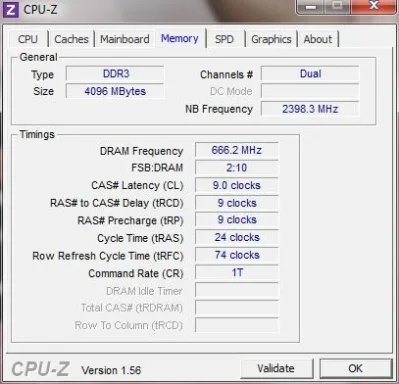

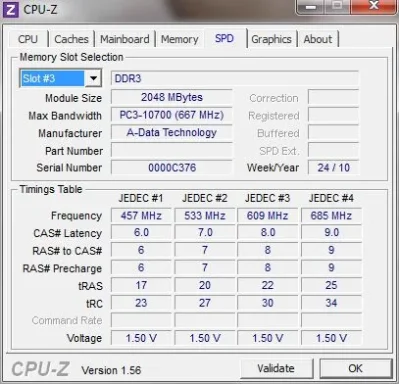

    P.S. On 8/27 of this year, I sent back a stick of memory to Cyberpower and had it replaced; (I ran Memtest and found that one of the sticks was bad). Everything seemed fine for about 2-3 weeks, and then it started again. With this said, any bsods on 8/27 or prior will probably point to memory; I'm only concerned about those that happened afterwards. Hope that makes sense :D

    General Spec BrandCyberpowerPC ModelGamer Xtreme 1047 TypeGaming ProcessorIntel Core i7 860(2.8GHz) Processor Main Features64 bit Quad-Core Processor Memory4GB (2x2GB) DDR3 1333 Hard Drive1TB SATA-II 3.0Gb/s 7200RPM HDD Optical Drive 124X DVD±R/±RW Dual Layer Drive GraphicsATI Radeon HD 5850 1GB PCI Express Video Card AudioSound card - Integrated EthernetGigabit LAN Power Supply800W
    Operating SystemWindows 7 Home Premium 64-bit Special FeaturesX-Cruiser 2 Gaming Case Motherboard ChipsetIntel P55M-UD2 CPU CPU TypeIntel Core i7 Installed Qty1 CPU Speed860(2.80GHz) L3 Cache Per CPU8MB CPU Socket TypeLGA 1156 CPU Main Features64 bit Quad-Core Processor Graphics GPU/VPU TypeATI Radeon HD 5850 Graphics InterfacePCI Express 2.0 x16 Memory Memory Capacity4GB DDR3 Memory SpeedDDR3 1333 Form FactorDIMM 240-pin Memory Spec2GB x 2 Memory Slot (Total)4 Memory Slot (Available)2 Maximum Memory Supported16GB Hard Drive HDD Capacity1TB HDD InterfaceSATA II HDD RPM7200rpm Optical Drive Optical Drive TypeDVD±RW Optical Drive Spec24X DVD±R/±RW Dual Layer Drive Audio Audio ChipsetIntegrated Communications LAN ChipsetIntegrated LAN Speed10/100/1000Mbps Front Panel Ports Front USB2 Front IEEE 13941 Front Audio Ports2 Back Panel Ports PS/21 Video Ports2 DVI, 1 HDMI, 1 Display Port Rear USB10 Rear IEEE 13941 eSATA1 RJ451 port Rear Audio Ports6 ports S/P DIF1 x Optical S/PDIF Out
    1 x Coaxial S/PDIF Out Expansion PCI Slots (Available/Total)2 x PCI Express x16
    2 x PCI


    Attached Files:

  2. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Hey there, welcome.

    1) Uninstall AVG in safe mode using the tool found here:

    AV Uninstallers - Windows 7 Forums

    Reboot and install MSE to replace it.

    2) Update the Realtek HD Audio driver:

    RTKVHD64 RTKVHD64.sys Tue Aug 25 07:28:04 2009

    RtkHDAudio

    3) Update Realtek lan driver:

    Rt64win7 Rt64win7.sys Thu Jul 30 07:58:43 2009

    RTL8111

    4) Daemon Tools with its sptd.sys is notorious. Uninstall Daemon Tools normally then use the installer/uninstaller found here to remove sptd.sys (do not update instead while using):

    DuplexSecure - Downloads

    Reboot and install PowerISO to replace it. Disc emulation part of the software is free forever:

    PowerISO - Create, Edit, Compress, Encrypt, Split, Mount, Extract ISO file, ISO/BIN converter, Virtual Drive

    5) Good luck and enjoy.

  3. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Thank you for your quick reply! :D
    Only 1 question though.... when it comes to...
    3) Update Realtek lan driver:

    Rt64win7 Rt64win7.sys Thu Jul 30 07:58:43 2009

    I downloaded: Win7 and WinServer 2008 R2 Driver from the site; now, I have a zip folder of the 32 and 64 versions( I attached what I have to this message) but I'm not sure what to do with them and how to update this one. Any advice?


    Attached Files:

  4. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    You're welcome.

    Extract the driver to a folder. Then use the device manager to install. Right click it. Update driver software. Browse my computer. Let me pick. Have disk. Browse.

    Now navigate to the extracted folder Win7\64 and double click on the .inf file. Hit ok then next and it will install.

    #4 TorrentG, Oct 31, 2010
    Last edited: Oct 31, 2010
  5. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Thanks again! I really appreciate it. So far, all has worked except the Realtek HD audio driver; I went to the link, downloaded
    Vista, Windows7 Driver (32/64bits) Driver only (ZIP file)

    and ran the setup.exe that it came with. Current driver was uninstalled. Rebooted. Driver appreared to install; rebooted again. No sound. So, I rolled back the last driver, and everything seems to be ok for now. Overall, I haven't had a bluescreen yet, but I'll report back if I do. If you ever come to NJ, I owe you a beer or 2!

    #5 poizondragon, Nov 1, 2010
    Last edited: Nov 1, 2010
  6. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Well...looks like I spoke too soon. Came home to a blank screen; I had to restart the computer, and received another, "windows has recovered blah blah blah" message :mad: any thoughts? I'll have to figure out how to read this stuff so I don't have to keep bugging people.


    Attached Files:

  7. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Steps 1, 2 are not completed and from step 4, sptd.sys has not been removed.

    You're welcome.

  8. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321




    You didn't follow Torrent's troubleshooting correctly:


    1. Remove AVG completely http://www.avg.com/ww-en/download-tools



    2. sptd.sys is still there and is quite outdated - remove it for now:

    DuplexSecure - FAQ

    http://www.duplexsecure.com/download/SPTDinst-v174-x64.exe

    To remove SPTD, simply download SPTD setup file "SPTDinst-v174-x64.exe" for Windows XP/2003/Vista (64-bit) [700,984 bytes] and execute it.

    In dialog that appears press "Uninstall" button and then SPTD will remove itself from your Windows installation.

    (If you want to install it again then execute same setup and press "Install")




    3. You may want to update your realtek audio as well, it's not bugging but yet a good idea.



    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\110110-32417-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (8 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0xfffff800`02e09000 PsLoadedModuleList = 0xfffff800`03046e50
    Debug session time: Mon Nov  1 20:26:41.996 2010 (UTC - 4:00)
    System Uptime: 0 days 2:28:20.104
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ...........................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 4A, {7fefef9bc3a, 2, 0, fffff88007b48520}

    Probably caused by : ntkrnlmp.exe ( nt!KiSystemServiceExit+245 )

    Followup: MachineOwner
    ---------

    6: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_GT_ZERO_AT_SYSTEM_SERVICE (4a)
    Returning to usermode from a system call at an IRQL > PASSIVE_LEVEL.
    Arguments:
    Arg1: 000007fefef9bc3a, Address of system function (system call routine)
    Arg2: 0000000000000002, Current IRQL
    Arg3: 0000000000000000, 0
    Arg4: fffff88007b48520, 0

    Debugging Details:
    ------------------


    PROCESS_NAME:  explorer.exe

    BUGCHECK_STR:  RAISED_IRQL_FAULT

    FAULTING_IP:
    +6132353634613066
    000007fe`fef9bc3a ??              ???

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    CURRENT_IRQL:  2

    LAST_CONTROL_TRANSFER:  from fffff80002e78ca9 to fffff80002e79740

    STACK_TEXT:
    fffff880`07b482e8 fffff800`02e78ca9 : 00000000`0000004a 000007fe`fef9bc3a 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
    fffff880`07b482f0 fffff800`02e78be0 : 00000000`23050fb5 00000000`0185000f fffff900`c0178460 00000000`780513c9 : nt!KiBugCheckDispatch+0x69
    fffff880`07b48430 000007fe`fef9bc3a : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceExit+0x245
    00000000`0932dd68 fffff800`02e71080 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x7fe`fef9bc3a
    fffff880`07b48880 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 fffffa80`076fb060 : nt!KiCallUserMode


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!KiSystemServiceExit+245
    fffff800`02e78be0 4883ec50        sub     rsp,50h

    SYMBOL_STACK_INDEX:  2

    SYMBOL_NAME:  nt!KiSystemServiceExit+245

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c1c44a9

    FAILURE_BUCKET_ID:  X64_RAISED_IRQL_FAULT_explorer.exe_nt!KiSystemServiceExit+245

    BUCKET_ID:  X64_RAISED_IRQL_FAULT_explorer.exe_nt!KiSystemServiceExit+245







    fffff880`04800000 fffff880`0483e000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`01171000 fffff880`011c8000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`03c9d000 fffff880`03d27000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0438c000 fffff880`043a2000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`00e48000 fffff880`00e53000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`091b4000 fffff880`091bf000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00fe0000 fffff880`00fe9000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e00000 fffff880`00e2a000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`04841000 fffff880`04ffc000   atikmdag atikmdag.sys Wed Aug 25 21:47:22 2010 (4C75C7AA)
    fffff880`042db000 fffff880`04325000   atikmpag atikmpag.sys Wed Aug 25 21:20:56 2010 (4C75C178)
    fffff960`008e0000 fffff960`00941000   ATMFD    ATMFD.DLL    Thu May 27 00:11:31 2010 (4BFDF0F3)
    fffff880`017ee000 fffff880`017f8000   AVGIDSEH AVGIDSEH.Sys Mon Sep 13 18:46:38 2010 (4C8EA9CE)
    fffff880`02c45000 fffff880`02c94000   avgldx64 avgldx64.sys Mon Sep 06 20:49:29 2010 (4C858C19)
    fffff880`02ce5000 fffff880`02cf4000   avgmfx64 avgmfx64.sys Mon Sep 06 20:49:14 2010 (4C858C0A)
    fffff880`02d2a000 fffff880`02d31000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03db1000 fffff880`03dc2000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`02b65000 fffff880`02b83000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`00670000 fffff960`00697000   cdd      cdd.dll      Wed May 19 15:48:26 2010 (4BF4408A)
    fffff880`05600000 fffff880`0561d000   cdfs     cdfs.sys     Mon Jul 13 19:19:46 2009 (4A5BC112)
    fffff880`02cbb000 fffff880`02ce5000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00c00000 fffff880`00cc0000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`01200000 fffff880`01230000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00d37000 fffff880`00d95000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`014fa000 fffff880`0156d000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`0437c000 fffff880`0438c000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`042c9000 fffff880`042d7000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03c77000 fffff880`03c95000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`03c68000 fffff880`03c77000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`015d4000 fffff880`015ea000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`05674000 fffff880`0569c000   Dot4     Dot4.sys     Mon Jul 13 20:00:16 2009 (4A5BCA90)
    fffff880`0569c000 fffff880`056a6000   Dot4Prt  Dot4Prt.sys  Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`05664000 fffff880`05674000   dot4usb  dot4usb.sys  Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`057bb000 fffff880`057dd000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`043f5000 fffff880`043fe000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`056a6000 fffff880`056b2000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`02dd6000 fffff880`02de9000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`02caf000 fffff880`02cbb000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`044aa000 fffff880`0459e000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
    fffff880`0459e000 fffff880`045e4000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
    fffff880`00e53000 fffff880`00e67000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`00d95000 fffff880`00de1000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`0157e000 fffff880`01588000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`0143a000 fffff880`01474000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`0168b000 fffff880`016d5000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`045e4000 fffff880`045f1000   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:17:04 2009 (4A1151C0)
    fffff800`033e5000 fffff800`0342e000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`04400000 fffff880`04424000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`05722000 fffff880`0577e000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`057e3000 fffff880`057fc000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`06df7000 fffff880`06dff080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`06c00000 fffff880`06c0e000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`02a9d000 fffff880`02b65000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`016ef000 fffff880`016f8000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`03de8000 fffff880`03dfe000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00e2a000 fffff880`00e48000   jraid    jraid.sys    Thu Aug 13 04:10:27 2009 (4A83CA73)
    fffff880`04256000 fffff880`04265000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`02de9000 fffff880`02df7000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00ba3000 fffff800`00bad000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`04274000 fffff880`042b7000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`014e0000 fffff880`014fa000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01660000 fffff880`0168b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`057dd000 fffff880`057e2200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`02a70000 fffff880`02a85000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`01230000 fffff880`01253000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00cdf000 fffff880`00d23000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`015ea000 fffff880`015f8000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`04265000 fffff880`04274000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`0561d000 fffff880`0562a000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00fc6000 fffff880`00fe0000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02cf4000 fffff880`02d21000   MpFilter MpFilter.sys Sat Mar 20 01:58:08 2010 (4BA463F0)
    fffff880`07776000 fffff880`07786000   MpNWMon  MpNWMon.sys  Sat Mar 20 01:58:00 2010 (4BA463E8)
    fffff880`02b83000 fffff880`02b9b000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`02b9b000 fffff880`02bc8000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`02a00000 fffff880`02a4e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`02bc8000 fffff880`02beb000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`02d8f000 fffff880`02d9a000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`011c8000 fffff880`011d2000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`01482000 fffff880`014e0000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`03c5d000 fffff880`03c68000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`016dd000 fffff880`016ef000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`016fc000 fffff880`017ee000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`045f1000 fffff880`045fd000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`043c6000 fffff880`043f5000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`0570d000 fffff880`05722000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`03d56000 fffff880`03d65000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02c00000 fffff880`02c45000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`01600000 fffff880`01660000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`02d9a000 fffff880`02dab000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`03c51000 fffff880`03c5d000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e09000 fffff800`033e5000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff880`01255000 fffff880`013f8000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`02d21000 fffff880`02d2a000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`03d30000 fffff880`03d56000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`011df000 fffff880`011f4000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00f22000 fffff880`00f55000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`011f4000 fffff880`011fb000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`01000000 fffff880`01010000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`0156d000 fffff880`0157e000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`07686000 fffff880`0772c000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`0577e000 fffff880`057bb000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00d23000 fffff880`00d37000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`043a2000 fffff880`043c6000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04200000 fffff880`0421b000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`0421b000 fffff880`0423c000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`0423c000 fffff880`04256000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`03c00000 fffff880`03c51000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`02d74000 fffff880`02d7d000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02d7d000 fffff880`02d86000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02d86000 fffff880`02d8f000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01400000 fffff880`0143a000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`02a85000 fffff880`02a9d000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`04325000 fffff880`0437c000   Rt64win7 Rt64win7.sys Mon Sep 20 03:38:09 2010 (4C970F61)
    fffff880`06c12000 fffff880`06df6480   RTKVHD64 RTKVHD64.sys Tue Aug 25 07:28:04 2009 (4A93CAC4)
    fffff880`01142000 fffff880`01171000   SCSIPORT SCSIPORT.SYS Mon Jul 13 20:01:04 2009 (4A5BCAC0)
    fffff880`0772c000 fffff880`07737000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04498000 fffff880`044a4000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`03d65000 fffff880`03d82000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`016d5000 fffff880`016dd000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`01013000 fffff880`01139000   sptd     sptd.sys     Sun Oct 11 16:55:14 2009 (4AD24632)
    fffff880`0907c000 fffff880`09112000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`07786000 fffff880`077ed000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`07737000 fffff880`07764000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`045fd000 fffff880`045fe480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01800000 fffff880`019fd000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`07764000 fffff880`07776000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`02dc9000 fffff880`02dd6000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`02dab000 fffff880`02dc9000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`03d9d000 fffff880`03db1000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00480000 fffff960`0048a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03dc2000 fffff880`03de8000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`042b7000 fffff880`042c9000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`0562a000 fffff880`05647000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`06c0e000 fffff880`06c0ff00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`04487000 fffff880`04498000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`056b3000 fffff880`0570d000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`04431000 fffff880`04487000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`05658000 fffff880`05664000   usbprint usbprint.sys Mon Jul 13 20:38:18 2009 (4A5BD37A)
    fffff880`05647000 fffff880`05658000   usbscan  usbscan.sys  Mon Jul 13 20:35:32 2009 (4A5BD2D4)
    fffff880`02c94000 fffff880`02caf000   USBSTOR  USBSTOR.SYS  Mon Jul 13 20:06:34 2009 (4A5BCC0A)
    fffff880`04424000 fffff880`04431000   usbuhci  usbuhci.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`011d2000 fffff880`011df000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`02d31000 fffff880`02d3f000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`02d3f000 fffff880`02d64000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f55000 fffff880`00f6a000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00f6a000 fffff880`00fc6000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`01588000 fffff880`015d4000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`03d82000 fffff880`03d9d000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`02d64000 fffff880`02d74000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e6f000 fffff880`00f13000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f13000 fffff880`00f22000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`03d27000 fffff880`03d30000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00060000 fffff960`0036f000   win32k   win32k.sys   Tue Aug 31 22:58:04 2010 (4C7DC13C)
    fffff880`01139000 fffff880`01142000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`02a4f000 fffff880`02a70000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)
    fffff880`09112000 fffff880`09143000   WUDFRd   WUDFRd.sys   Mon Jul 13 20:06:06 2009 (4A5BCBEE)

    Unloaded modules:
    fffff880`09143000 fffff880`091b4000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`015ea000 fffff880`015f8000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`01474000 fffff880`01480000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`01230000 fffff880`01239000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`01239000 fffff880`0124c000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000




  9. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Ok, AVG is gone, as well as sptd.sys(this time I did it right, sorry :-( I'm new at some of this stuff. Only concern is the Realtek HD audio driver; should I download.... Vista, Windows7 Driver(64bits) Driver only (Executable file) from the site? My apologies again. My idiotic self didn't reboot, and I have since slapped myself.

  10. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Download "Vista, Windows7 Driver(64bits) Driver only (Executable file)" and run it. Reboot and run it again.

    The first time will uninstall it.

    The second will install new version.


  11. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Everything has been well up until a couple minutes ago...

    I updated the Realtek sound and Lan drivers
    uninstalled daemon and sptd.sys
    AVG is gone(as far as I know; I've searched all over my pc and haven't found a single trace of it)

    my only guess is that I have another bad stick of memory, and Memtest may have not picked up on it.
    Thanks again for your assistance.


    Attached Files:

  12. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Very possible. It is showing an error with the Realtek lan driver, but it is brand new and well. I've never seen another crash dump from this, and for sure 100%, the driver itself is not the issue.

    Uninstall any funky network software which you might have or firewall-type utilities. I don't see any other drivers of concern, so it very well is probably a fault in the memory itself:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 X86
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [E:\Temp\Rar$DI00.506\110410-30388-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*C:\SymCache*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (8 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0xfffff800`03609000 PsLoadedModuleList = 0xfffff800`03846e50
    Debug session time: Thu Nov  4 08:15:47.023 2010 (UTC - 4:00)
    System Uptime: 0 days 5:19:10.147
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ...............
    Loading User Symbols
    Loading unloaded module list
    ......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 1E, {ffffffffc0000005, fffff80000b9a580, 0, 0}

    Unable to load image \SystemRoot\system32\DRIVERS\Rt64win7.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for Rt64win7.sys
    *** ERROR: Module load completed but symbols could not be loaded for Rt64win7.sys
    Probably caused by : Rt64win7.sys ( Rt64win7+147fa )

    Followup: MachineOwner
    ---------

    0: kd> lmtn
    start             end                 module name
    fffff800`00bb5000 fffff800`00bbf000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff800`03609000 fffff800`03be5000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff800`03be5000 fffff800`03c2e000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`00c00000 fffff880`00c2a000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`00c2a000 fffff880`00c48000   jraid    jraid.sys    Thu Aug 13 04:10:27 2009 (4A83CA73)
    fffff880`00c63000 fffff880`00ca7000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`00ca7000 fffff880`00cbb000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`00cbb000 fffff880`00d19000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00d19000 fffff880`00dd9000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`00dd9000 fffff880`00df3000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00df3000 fffff880`00dfc000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e00000 fffff880`00e15000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00e15000 fffff880`00e2a000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e2a000 fffff880`00e86000   volmgrx  volmgrx.sys  unavailable (00000000)
    fffff880`00e86000 fffff880`00e8d000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00e93000 fffff880`00f37000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f37000 fffff880`00f46000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00f46000 fffff880`00f9d000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`00f9d000 fffff880`00fa6000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00fa6000 fffff880`00fb0000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`00fb0000 fffff880`00fbd000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`00fbd000 fffff880`00ff0000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00ff0000 fffff880`01000000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`01000000 fffff880`01026000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`0102f000 fffff880`0105e000   SCSIPORT SCSIPORT.SYS Mon Jul 13 20:01:04 2009 (4A5BCAC0)
    fffff880`0105e000 fffff880`01069000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`01069000 fffff880`010b5000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`010b5000 fffff880`010c9000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`010c9000 fffff880`01127000   msrpc    msrpc.sys    unavailable (00000000)
    fffff880`01127000 fffff880`0119a000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`0119a000 fffff880`011e6000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`01200000 fffff880`013a3000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`013a3000 fffff880`013bd000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`013bd000 fffff880`013ce000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`013ce000 fffff880`013d8000   Fs_Rec   Fs_Rec.sys   unavailable (00000000)
    fffff880`013d8000 fffff880`013e9000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`013e9000 fffff880`013ff000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`01400000 fffff880`0141e000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`0141e000 fffff880`0142b000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`0142d000 fffff880`0151f000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0151f000 fffff880`0157f000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`0157f000 fffff880`015aa000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`015aa000 fffff880`015f4000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`015f4000 fffff880`015fc000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`01603000 fffff880`01800000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`01800000 fffff880`0182a000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`0182a000 fffff880`01857000   MpFilter MpFilter.sys Sat Mar 20 01:58:08 2010 (4BA463F0)
    fffff880`01857000 fffff880`01860000   Null     Null.SYS     unavailable (00000000)
    fffff880`01860000 fffff880`01867000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`01867000 fffff880`01875000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`01875000 fffff880`0189a000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`0189a000 fffff880`018aa000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`018aa000 fffff880`018b3000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`018b3000 fffff880`018bc000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`018bc000 fffff880`018c5000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`018c5000 fffff880`018d0000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`018da000 fffff880`01914000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`01914000 fffff880`01926000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`01926000 fffff880`0192f000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`0192f000 fffff880`01969000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`01969000 fffff880`0197f000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0197f000 fffff880`019af000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`019e5000 fffff880`019f6000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02c00000 fffff880`02c0f000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`02c0f000 fffff880`02c2d000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02c37000 fffff880`02c7c000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`02c7c000 fffff880`02d06000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`02d06000 fffff880`02d0f000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d0f000 fffff880`02d35000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`02d35000 fffff880`02d44000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d44000 fffff880`02d61000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`02d61000 fffff880`02d7c000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`02d7c000 fffff880`02d90000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff880`02d90000 fffff880`02de1000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`02de1000 fffff880`02ded000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff880`02ded000 fffff880`02df8000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`03e39000 fffff880`03f01000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`03f01000 fffff880`03f1f000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`03f1f000 fffff880`03f37000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`03f37000 fffff880`03f64000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`03f64000 fffff880`03fb2000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`03fb2000 fffff880`03fd5000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`04200000 fffff880`0421b000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`0421b000 fffff880`0423c000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`0423c000 fffff880`04256000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`04256000 fffff880`04265000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04265000 fffff880`04274000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04274000 fffff880`042b7000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`042b7000 fffff880`042c9000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`042f2000 fffff880`0433c000   atikmpag atikmpag.sys Wed Aug 25 21:20:56 2010 (4C75C178)
    fffff880`0437a000 fffff880`043b8000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`043b8000 fffff880`043c4000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`043c4000 fffff880`043f3000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04400000 fffff880`04410000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`04411000 fffff880`04505000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
    fffff880`04505000 fffff880`0454b000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
    fffff880`0454b000 fffff880`0456f000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`0456f000 fffff880`0457c000   usbuhci  usbuhci.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`0457c000 fffff880`045d2000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`045d2000 fffff880`045e3000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`045e3000 fffff880`045ef000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`045ef000 fffff880`045fc000   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:17:04 2009 (4A1151C0)
    fffff880`045fc000 fffff880`045fd480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`04800000 fffff880`04824000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04828000 fffff880`04fe3000   atikmdag atikmdag.sys Wed Aug 25 21:47:22 2010 (4C75C7AA)
    fffff880`04fe3000 fffff880`04ff9000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`05635000 fffff880`0568f000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`0568f000 fffff880`056a4000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`056a4000 fffff880`05700000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`05700000 fffff880`0573d000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`0573d000 fffff880`0575f000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`0575f000 fffff880`05764200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`05765000 fffff880`057fb000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`0621d000 fffff880`062c3000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`062c3000 fffff880`062ce000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`062ce000 fffff880`062fb000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`062fb000 fffff880`0630b000   MpNWMon  MpNWMon.sys  Sat Mar 20 01:58:00 2010 (4BA463E8)
    fffff880`0630b000 fffff880`0631d000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`0631d000 fffff880`06384000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`06384000 fffff880`063db000   Rt64win7 Rt64win7.sys Mon Sep 20 03:38:09 2010 (4C970F61)
    fffff880`063f5000 fffff880`06400000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`06a00000 fffff880`06a21000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)
    fffff880`06a21000 fffff880`06a36000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`06a36000 fffff880`06a4e000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`06abf000 fffff880`06d22800   RTKVHD64 RTKVHD64.sys Tue Oct 05 05:58:40 2010 (4CAAF6D0)
    fffff880`06d23000 fffff880`06d31000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`06d31000 fffff880`06d4a000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`06d4a000 fffff880`06d52080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`06d53000 fffff880`06d54f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`06d55000 fffff880`06d62000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`06d62000 fffff880`06d70000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`06d70000 fffff880`06d7c000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`06d7c000 fffff880`06d85000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`06d85000 fffff880`06d98000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`06d98000 fffff880`06da4000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`06da4000 fffff880`06dc1000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`06dc1000 fffff880`06dcf000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`06dcf000 fffff880`06ddd000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`06ddd000 fffff880`06e00000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff960`00070000 fffff960`0037f000   win32k   win32k.sys   unavailable (00000000)
    fffff960`00440000 fffff960`0044a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff960`00620000 fffff960`00647000   cdd      cdd.dll      unavailable (00000000)
    fffff960`00820000 fffff960`00881000   ATMFD    ATMFD.DLL    unavailable (00000000)

    Unloaded modules:
    fffff880`0433c000 fffff880`0437a000   Rt64win7.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0003E000
    fffff880`06384000 fffff880`063f5000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`019af000 fffff880`019bd000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`019bd000 fffff880`019c9000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`019c9000 fffff880`019d2000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`019d2000 fffff880`019e5000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    KMODE_EXCEPTION_NOT_HANDLED (1e)
    This is a very common bugcheck.  Usually the exception address pinpoints
    the driver/function that caused the problem.  Always note this address
    as well as the link date of the driver/image that contains this address.
    Arguments:
    Arg1: ffffffffc0000005, The exception code that was not handled
    Arg2: fffff80000b9a580, The address that the exception occurred at
    Arg3: 0000000000000000, Parameter 0 of the exception
    Arg4: 0000000000000000, Parameter 1 of the exception

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    +65cd2faf0160dd0c
    fffff800`00b9a580 98              cwde

    EXCEPTION_PARAMETER1:  0000000000000000

    EXCEPTION_PARAMETER2:  0000000000000000

    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff800038b10e0
     0000000000000000

    ERROR_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    BUGCHECK_STR:  0x1E_c0000005

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VERIFIER_ENABLED_VISTA_MINIDUMP

    PROCESS_NAME:  System

    CURRENT_IRQL:  2

    EXCEPTION_RECORD:  fffff80000b9b498 -- (.exr 0xfffff80000b9b498)
    ExceptionAddress: fffff8000367c905 (nt!ExpInterlockedPopEntrySListFault16)
       ExceptionCode: c0000005 (Access violation)
      ExceptionFlags: 00000000
    NumberParameters: 2
       Parameter[0]: 0000000000000000
       Parameter[1]: ffffffffffffffff
    Attempt to read from address ffffffffffffffff

    TRAP_FRAME:  fffff80000b9b540 -- (.trap 0xfffff80000b9b540)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=00000000000b0001 rbx=0000000000000000 rcx=fffffa8005254980
    rdx=0dfffa800378e041 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff8000367c905 rsp=fffff80000b9b6d0 rbp=00000000000005b4
     r8=0dfffa800378e040  r9=0000000000000000 r10=fffffa8005254980
    r11=fffff80000b9b7a8 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na pe nc
    nt!ExpInterlockedPopEntrySListFault16:
    fffff800`0367c905 498b08          mov     rcx,qword ptr [r8] ds:0dfffa80`0378e040=????????????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff8000370bbdb to fffff80003679740

    STACK_TEXT:
    fffff800`00b9b6d0 fffff880`0160d32b : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!ExpInterlockedPopEntrySListFault16
    fffff800`00b9b6e0 fffff880`0167fb18 : fffffa80`0667e010 fffff800`00000c8b 00000000`00000000 fffff980`0487ce20 : tcpip!TcpCovetNetBufferListAndEnqueueInput+0x25b
    fffff800`00b9b7b0 fffff880`01679298 : 00000000`00000000 fffff800`036a64eb 00000000`00000018 fffffa80`0366d5e0 : tcpip!TcpDeliverReceive+0x128
    fffff800`00b9b8b0 fffff880`01679e95 : 00000000`0165ef30 fffff880`0165ef30 fffff800`037f3e80 fffffa80`06600000 : tcpip!TcpTcbFastDatagram+0x208
    fffff800`00b9ba70 fffff880`0167e86a : fffffa80`053afe40 00000000`80000000 fffffa80`0524c701 00000000`00000000 : tcpip!TcpTcbReceive+0x1f5
    fffff800`00b9bc20 fffff880`0167e3b7 : fffff880`05e6a4e2 fffffa80`053a1000 00000000`00000000 fffff880`01661600 : tcpip!TcpMatchReceive+0x1fa
    fffff800`00b9bd70 fffff880`016606c7 : fffffa80`053a13a8 fffffa80`053d03a0 fffffa80`053a5000 00000000`00000003 : tcpip!TcpPreValidatedReceive+0x177
    fffff800`00b9be20 fffff880`01660799 : fffff800`00b9bfa0 fffff880`0176e9a0 fffff800`00b9bfb0 fffff800`00b9d000 : tcpip!IppDeliverListToProtocol+0x97
    fffff800`00b9bee0 fffff880`01660c90 : fffffa80`053a1000 00000000`00004f26 fffff800`03894c98 fffff800`00b9bfa0 : tcpip!IppProcessDeliverList+0x59
    fffff800`00b9bf50 fffff880`0165fb21 : 00000000`00000000 fffffa80`053a13a8 fffff880`0176e9a0 00000000`078b3801 : tcpip!IppReceiveHeaderBatch+0x231
    fffff800`00b9c030 fffff880`0165e592 : fffffa80`05533160 00000000`00000000 fffffa80`078b3801 fffffa80`00000004 : tcpip!IpFlcReceivePackets+0x651
    fffff800`00b9c230 fffff880`01677e5a : fffffa80`078b38d0 fffff800`00b9c360 fffffa80`078b38d0 fffff800`00b90000 : tcpip!FlpReceiveNonPreValidatedNetBufferListChain+0x2b2
    fffff800`00b9c310 fffff800`03688e5a : fffff980`0487ce20 fffff800`00b97000 00000000`00004800 00000000`00000000 : tcpip!FlReceiveNetBufferListChainCalloutRoutine+0xda
    fffff800`00b9c360 fffff880`01677882 : fffff880`01677d80 fffff800`00b9c470 fffff800`00b9c502 00000000`0007bbfc : nt!KeExpandKernelStackAndCalloutEx+0xda
    fffff800`00b9c440 fffff880`014eb0eb : fffff980`131a08d0 00000000`00000000 fffffa80`064e71a0 00000000`00000000 : tcpip!FlReceiveNetBufferListChain+0xb2
    fffff800`00b9c4b0 fffff880`014b4fc6 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : ndis!ndisMIndicateNetBufferListsToOpen+0xdb
    fffff800`00b9c520 fffff880`0142eef1 : fffffa80`064e71a0 00000000`00000002 00000000`00000004 00000000`00000004 : ndis!ndisMDispatchReceiveNetBufferLists+0x1d6
    fffff800`00b9c9a0 fffff880`063987fa : fffffa80`06600000 00000000`00000000 fffffa80`06600600 fffff880`05d46130 : ndis!NdisMIndicateReceiveNetBufferLists+0xc1
    fffff800`00b9c9f0 fffffa80`06600000 : 00000000`00000000 fffffa80`06600600 fffff880`05d46130 fffff980`00000001 : Rt64win7+0x147fa
    fffff800`00b9c9f8 00000000`00000000 : fffffa80`06600600 fffff880`05d46130 fffff980`00000001 fffff980`1ee10d30 : 0xfffffa80`06600000


    STACK_COMMAND:  .trap 0xfffff80000b9b540 ; kb

    FOLLOWUP_IP:
    Rt64win7+147fa
    fffff880`063987fa ??              ???

    SYMBOL_STACK_INDEX:  12

    SYMBOL_NAME:  Rt64win7+147fa

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: Rt64win7

    IMAGE_NAME:  Rt64win7.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c970f61

    FAILURE_BUCKET_ID:  X64_0x1E_c0000005_VRF_Rt64win7+147fa

    BUCKET_ID:  X64_0x1E_c0000005_VRF_Rt64win7+147fa

    Followup: MachineOwner
    ---------


    For now, also disable Driver Verifier.

    #12 TorrentG, Nov 4, 2010
    Last edited: Nov 4, 2010
  13. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Thanks for your patience, TorrentG :) possibly the home network between my wife and I? I was just coming back to update my post to say that when this last one happened, I was transferring files to her computer via Homegroup....maybe there's an issue there? Thanks again!

  14. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    No, it can't be from any other machine or networking to anything. It's your specific machine only. Very likely it's a memory issue. Could be from 3rd party software but I don't see any drivers like that, so very likely, not.

    You're welcome.

    Post new crashes for more insight.

    #14 TorrentG, Nov 4, 2010
    Last edited: Nov 4, 2010
  15. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    The only network program that I run on a regular basis is Tversity...TVersity - Home
    I only use the included Windows firewall and MSE; I also get a lot of errors in event viewer stating, "Microsoft Security Essentials OOBE" stopped due to the following error: 0xC000000D" Maybe a reinstall of the program would help?

    I've only had 1 bluescreen since my last minidump posted, and this is the new one from last night around 11 p.m. I guess the next step is to purchase some new memory. I'll be shopping around for
    DDR3 1333 (PC3 10666)...any suggestions? I have a Gigabyte GA- P55M-UD2 motherboard; also, could my problem be an outdated bios? If not, I'll just stick with the memory replacement. Thanks again for your time and expertise. Much appreciated.

    P.S. just checked task manager...I have Microsoft.net framework NGEN v2.0 and v4.0 both running...is this normal, and could this also be the culprit?


    Attached Files:

  16. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    I use TVersity too. Excellent software.

    Anyhow, no, the culprit is faulty RAM or incorrect bios settings.

    You can post 2 screenshots of CPU-Z. One of the memory tab and one of the spd tab.
    First we'll see if settings are correct.

    If they are, then you should test the memory overnight 8-10 passes with Memtest86+. When the faults are found, then the memory needs to be replaced.

    Let's see those screenshots though.

  17. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Here you go; thank you for another response! :D As a side note, I am running bios version F8 with a date of 2/11/10.

    Here are the screens. I have my ram in slots 1 and 3, as seen here. I never knew about this program until now; looks very helpful.

    spd. spd2. memory-1199.

    #17 poizondragon, Nov 6, 2010
    Last edited: Nov 6, 2010
  18. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    I just helped someone on another site with the exact same memory.

    He says he hasn't had any crashes yet so perhaps you'll have the same luck.

    Go into the bios and change the tRAS 24 number to 25. Save.

  19. poizondragon

    poizondragon New Member

    Joined:
    Oct 31, 2010
    Messages:
    26
    Likes Received:
    0
    Ok, just did that. Here's another screenie...looks like I did it correctly. Thanks again, and I'll report back if I get another bsod. I really appreciate your help. Cheers.
    memory-1199.

  20. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Looks good. Yep, you're welcome. Please let us know how it goes in any case. :)


Share This Page

Loading...
