BSOD with weird pixelated screen and sound

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by nnparisi, Nov 12, 2010.

  1. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Hi, I'm getting a recurring blue screen, rendering my computer basically unusable.

    Dump Files:View attachment Minidump.zip

    My specs:
    OS: Windows 7 Home Premium 64-bit
    Processor: AMD Phenom II X4 965 Processor 3.40 GHz
    RAM: 4.00 GB
    Graphics: ATI Radeon HD 5870 1GB PCI Express Video Card
    Age: About 3 months, from Newegg. Full specs are here


    It started a few weeks ago, and only seemed to start crashing when I would be playing WoW. When I would try to restart after the BSOD, the problem seemed to snowball and it would crash on startup, directly after startup, etc. If I left the computer off for a while and came back, it would be back to normal, leading me to believe it was an overheating issue.

    I seemed to solve the problem for about a week by pointing a fan at my open tower and raising the tower up off the carpeted floor (the design is kind of open in the bottom which some reviewers said caused problems for them). If the fan was off while playing WoW, I would quickly BSOD.

    I thought I had figured out the problem and was controlling it with the fan, but over the past few days it has gotten much worse. I get the BSODs even with the fan on, and just when doing simple things like browsing the internet.

    The nature of the BSODs is strange. Before going to the blue screen, my screen turns into weird rainbow pixels and a garbled sound blasts through the speakers. Sometimes on the blue screen, the memory dump seems to get frozen and the sound gets more intense/strange. The error message is not consistent either. Perhaps it is graphics card-related?

    Any advice or ideas would be greatly appreciated! Thanks =)

  2. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Hey, welcome...

    1) First thing's first. Uninstall Daemon Tools then use this installer/uninstaller to remove sptd.sys, being careful not to update while using it, instead:

    DuplexSecure - Downloads

    Install PowerISO to replace it:

    http://www.PowerISO.com

    Disc emulation is free forever.

    2) Update all the drivers for keyboard and mouse from Logitech:

    LMouFilt LMouFilt.Sys Wed Jun 17 12:49:43 2009
    LUsbFilt LUsbFilt.Sys Wed Jun 17 12:49:46 2009

    Support + Downloads

    3) Update the NEC USB 3.0 driver from your motherboard manufacturer's website:

    nusb3xhc nusb3xhc.sys Fri Nov 20 05:16:01 2009

    4) Update the video card driver:

    atikmpag atikmpag.sys Tue Jul 06 21:15:42 2010

    Drivers & Support | GAME.AMD.COM

    5) If crashes persist, post them. Then also post a screen shot of the spd and memory tabs of CPU-Z.

  3. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Thanks for the reply. I did each of yours step and thought it was fixed (Daemon Tools seemed likely since I got through the rest of the steps with no BSOD), but I got back on WoW to test it out and got another one.

    View attachment 111210-20592-01.zip

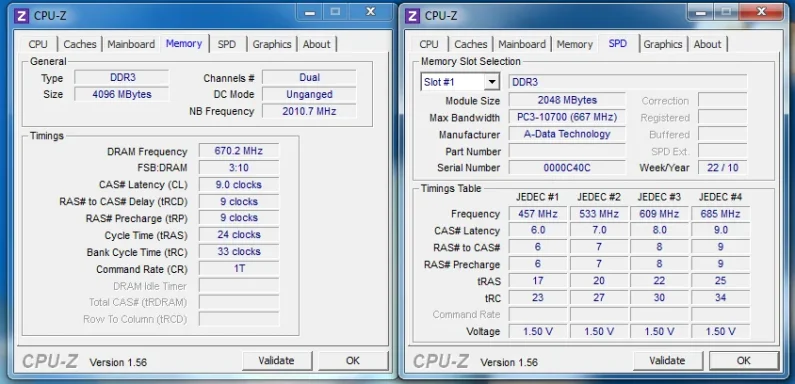

    CPU-Z screenshots taken after I restarted:
    cpuz.

  4. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Run Driver Sweeper in safe mode, from guru3d.com, to clear all the ATI video files/drivers/settings.

    Reboot to normal mode and install the latest driver again and then test with WoW.

  5. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Followed those steps, played WoW for about 5 minutes when my mouse started malfunctioning (it would suddenly get really slow), and then it bluescreened. The memory dump didn't get frozen this time, and no weird pixels or sounds either.

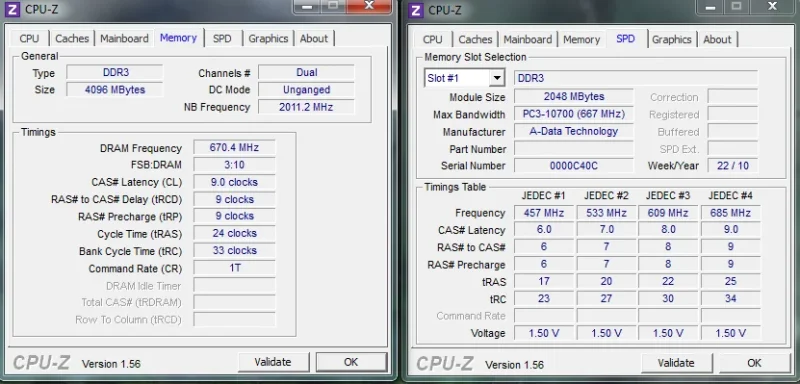

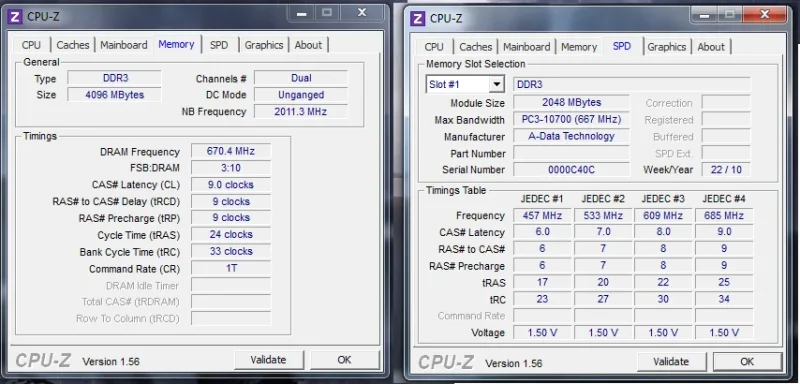

    After I rebooted and was taking screenshots of CPU-Z, it crashed again when I was trying to save the JPEG of the screenshots. I tried again after rebooting and was able to save the file, but as I was moving the icon on my desktop, it crashed again (and the memory dump crashed during the bsod).
    cpuz-2.


    One more crash while trying to make a folder for the new dump files.
    View attachment dump3.zip

  6. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    The video card is likely defective. The crash is complaining of hardware.

    I'd remove the video card and use the onboard video to see if it crashes at all. If not, purchase a new video card.

    ----------

    Also, uninstall all motherboard utilities like EasyTune or Overdrive. Then check C:\Windows for gdrv.sys. If it is there, delete it then reboot.

    ----------

    I would also uninstall Avast in safe mode with the tool here:

    http://files.avast.com/files/eng/aswclear.exe


    Reboot and install MSE to replace it.


    -----------

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 X86
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [E:\Temp\Rar$DI02.988\111310-19484-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*C:\SymCache*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0xfffff800`03006000 PsLoadedModuleList = 0xfffff800`03243e50
    Debug session time: Sat Nov 13 10:29:03.444 2010 (UTC - 5:00)
    System Uptime: 0 days 0:02:23.130
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ......................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck A, {a7401f9, 2, 0, fffff80003111d38}

    Probably caused by : hardware ( nt!PpmQueryTime+8 )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 000000000a7401f9, memory referenced
    Arg2: 0000000000000002, IRQL
    Arg3: 0000000000000000, bitfield :
        bit 0 : value 0 = read operation, 1 = write operation
        bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: fffff80003111d38, address which referenced memory

    Debugging Details:
    ------------------


    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff800032ae0e0
     000000000a7401f9

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!PpmQueryTime+8
    fffff800`03111d38 3383f901740a    xor     eax,dword ptr [rbx+0A7401F9h]

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  System

    TRAP_FRAME:  fffffa8004d0f670 -- (.trap 0xfffffa8004d0f670)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=fffff80000b9c408 rbx=0000000000000000 rcx=00000000ffffffff
    rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80003111d38 rsp=fffffa8004d0f808 rbp=fffffa8004d0f800
     r8=fffff80000b9c490  r9=fffff80000b9c498 r10=0000000000000001
    r11=fffff80000b9c478 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei ng nz ac po cy
    nt!PpmQueryTime+0x8:
    fffff800`03111d38 3383f901740a    xor     eax,dword ptr [rbx+0A7401F9h] ds:00000000`0a7401f9=????????
    Resetting default scope

    MISALIGNED_IP:
    nt!PpmQueryTime+8
    fffff800`03111d38 3383f901740a    xor     eax,dword ptr [rbx+0A7401F9h]

    LAST_CONTROL_TRANSFER:  from fffff80003075ca9 to fffff80003076740

    STACK_TEXT:
    fffffa80`04d0f528 fffff800`03075ca9 : 00000000`0000000a 00000000`0a7401f9 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
    fffffa80`04d0f530 fffff800`03074920 : 00000000`00000000 00000000`00000000 00000000`00000000 ffffffff`ffffffff : nt!KiBugCheckDispatch+0x69
    fffffa80`04d0f670 fffff800`03111d38 : fffffa80`04d0f800 00000000`00000000 fffffa80`04e0df00 fffffa80`04e0df20 : nt!KiPageFault+0x260
    fffffa80`04d0f808 00000000`00000000 : fffffa80`04ca3620 00000000`00000000 fffffa80`04e0df78 fffffa80`04e0df78 : nt!PpmQueryTime+0x8


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!PpmQueryTime+8
    fffff800`03111d38 3383f901740a    xor     eax,dword ptr [rbx+0A7401F9h]

    SYMBOL_STACK_INDEX:  3

    SYMBOL_NAME:  nt!PpmQueryTime+8

    FOLLOWUP_NAME:  MachineOwner

    IMAGE_NAME:  hardware

    DEBUG_FLR_IMAGE_TIMESTAMP:  0

    MODULE_NAME: hardware

    FAILURE_BUCKET_ID:  X64_IP_MISALIGNED

    BUCKET_ID:  X64_IP_MISALIGNED

    Followup: MachineOwner
    ---------

    0: kd> lmtn
    start             end                 module name
    fffff800`00bca000 fffff800`00bd4000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff800`03006000 fffff800`035e2000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff800`035e2000 fffff800`0362b000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`00c00000 fffff880`00c1a000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00c1a000 fffff880`00c44000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`00c44000 fffff880`00c90000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`00c98000 fffff880`00ca5000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`00ca5000 fffff880`00cb9000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`00cb9000 fffff880`00d17000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00d17000 fffff880`00dd7000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`00dd7000 fffff880`00de7000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`00de7000 fffff880`00dfb000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`00e00000 fffff880`00e15000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e15000 fffff880`00e71000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`00e71000 fffff880`00e78000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00e78000 fffff880`00e81000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e81000 fffff880`00f25000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f25000 fffff880`00f34000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00f34000 fffff880`00f8b000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`00f8b000 fffff880`00f94000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00f94000 fffff880`00f9e000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`00f9e000 fffff880`00fab000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`00fab000 fffff880`00fde000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00fde000 fffff880`00ff3000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00ff3000 fffff880`00ffe000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`01000000 fffff880`01030000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`01030000 fffff880`0103f000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`01050000 fffff880`011f3000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`01200000 fffff880`0124c000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`0124c000 fffff880`01286000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`01286000 fffff880`012c0000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`012d4000 fffff880`01332000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`01332000 fffff880`0134c000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`0134c000 fffff880`013bf000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`013bf000 fffff880`013d0000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`013d0000 fffff880`013da000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`013da000 fffff880`013f0000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`01400000 fffff880`0142b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`0142b000 fffff880`01475000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`01475000 fffff880`0147d000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`0147d000 fffff880`0148f000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`0148f000 fffff880`01498000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`014a1000 fffff880`01593000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`01593000 fffff880`015f3000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`01602000 fffff880`017ff000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`02a00000 fffff880`02a8a000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`02a8a000 fffff880`02a94000   aswRdr   aswRdr.SYS   Tue Sep 07 10:47:47 2010 (4C865093)
    fffff880`02a94000 fffff880`02ad9000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`02ae1000 fffff880`02b0b000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02b0b000 fffff880`02b14000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`02b14000 fffff880`02b1b000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`02b1b000 fffff880`02b29000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`02b29000 fffff880`02b4e000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`02b4e000 fffff880`02b5e000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`02b5e000 fffff880`02b67000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b67000 fffff880`02b70000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b70000 fffff880`02b79000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`02b79000 fffff880`02b84000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`02b84000 fffff880`02b95000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02b95000 fffff880`02bb3000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02bb3000 fffff880`02bc0000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`02bc0000 fffff880`02bd0000   aswTdi   aswTdi.SYS   Tue Sep 07 10:52:27 2010 (4C8651AB)
    fffff880`02bd0000 fffff880`02bd9000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02bd9000 fffff880`02bff000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`03c00000 fffff880`03c23000   aswSP    aswSP.SYS    Tue Sep 07 10:52:07 2010 (4C865197)
    fffff880`03c23000 fffff880`03c49000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`03c49000 fffff880`03c5e000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`03c5e000 fffff880`03c67000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`03c67000 fffff880`03cb2000   atikmpag atikmpag.sys Tue Sep 28 21:14:49 2010 (4CA29309)
    fffff880`03cef000 fffff880`03d0c000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`03d0c000 fffff880`03d27000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`03d27000 fffff880`03d3b000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff880`03d3b000 fffff880`03d8c000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`03d8c000 fffff880`03d98000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff880`03d98000 fffff880`03da3000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`03da3000 fffff880`03db2000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`03db2000 fffff880`03dd0000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`03dd0000 fffff880`03de1000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`03e00000 fffff880`03e30000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`03e30000 fffff880`03e31f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`03e32000 fffff880`03e89000   Rt64win7 Rt64win7.sys Mon Sep 20 03:38:09 2010 (4C970F61)
    fffff880`03e89000 fffff880`03e94000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`03e96000 fffff880`03f8a000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
    fffff880`03f8a000 fffff880`03fd0000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
    fffff880`03fd0000 fffff880`03ff4000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`04000000 fffff880`0400f000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`0400f000 fffff880`0401f000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`0401f000 fffff880`04035000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`04035000 fffff880`04059000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04059000 fffff880`04065000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`04065000 fffff880`04094000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04094000 fffff880`040af000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`040af000 fffff880`040d0000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`040d0000 fffff880`040ea000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`040ea000 fffff880`040f9000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`040f9000 fffff880`040fa480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`040ff000 fffff880`04155000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`04155000 fffff880`04166000   usbehci  usbehci.sys  Sat Oct 24 00:27:33 2009 (4AE28235)
    fffff880`04166000 fffff880`041a4000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`041a4000 fffff880`041b0000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`041b0000 fffff880`041cd000   parport  parport.sys  Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`041cd000 fffff880`041eb000   i8042prt i8042prt.sys Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`041eb000 fffff880`041f6000   L8042Kbd L8042Kbd.sys Thu Mar 18 04:52:59 2010 (4BA1E9EB)
    fffff880`0461e000 fffff880`04df4000   atikmdag atikmdag.sys Tue Sep 28 21:41:26 2010 (4CA29946)
    fffff880`04e7a000 fffff880`04ebd000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`04ebd000 fffff880`04ecf000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`04ecf000 fffff880`04ee7000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`04ee7000 fffff880`04f41000   usbhub   usbhub.sys   Sat Oct 24 00:28:24 2009 (4AE28268)
    fffff880`04f41000 fffff880`04f56000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`04f56000 fffff880`04f76000   AtihdW76 AtihdW76.sys Mon Aug 16 06:41:02 2010 (4C6915BE)
    fffff880`04f76000 fffff880`04fb3000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`04fb3000 fffff880`04fd5000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`04fd5000 fffff880`04fda200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`06400000 fffff880`06414000   LMouFilt LMouFilt.Sys Thu Mar 18 04:51:24 2010 (4BA1E98C)
    fffff880`06414000 fffff880`06422000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`06422000 fffff880`06445000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`06445000 fffff880`0647f000   aswMonFlt aswMonFlt.sys Tue Sep 07 10:47:32 2010 (4C865084)
    fffff880`0647f000 fffff880`06488000   aswFsBlk aswFsBlk.SYS Tue Sep 07 10:47:09 2010 (4C86506D)
    fffff880`06488000 fffff880`064a9000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)
    fffff880`064a9000 fffff880`064be000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`064be000 fffff880`064d6000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`064e8000 fffff880`0674b800   RTKVHD64 RTKVHD64.sys Tue Oct 05 05:58:40 2010 (4CAAF6D0)
    fffff880`0674c000 fffff880`06758000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`06758000 fffff880`06766000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`06766000 fffff880`06772000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`06772000 fffff880`0677b000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`0677b000 fffff880`0678e000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`0678e000 fffff880`0679e000   LUsbFilt LUsbFilt.Sys Thu Mar 18 04:51:28 2010 (4BA1E990)
    fffff880`0679e000 fffff880`067ac000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`067ac000 fffff880`067c5000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`067c5000 fffff880`067cd080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`067ce000 fffff880`067e3000   LHidFilt LHidFilt.Sys Thu Mar 18 04:51:17 2010 (4BA1E985)
    fffff880`067e3000 fffff880`067f0000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`06800000 fffff880`0684e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`0684e000 fffff880`06871000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`06871000 fffff880`0687a000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
    fffff880`068d2000 fffff880`0699a000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`0699a000 fffff880`069b8000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`069b8000 fffff880`069d0000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`069d0000 fffff880`069fd000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`08680000 fffff880`08726000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`08726000 fffff880`08731000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`08731000 fffff880`0875e000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`0875e000 fffff880`08770000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`08770000 fffff880`087d7000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`09427000 fffff880`094bd000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`094bd000 fffff880`094c6000   gdrv     gdrv.sys     Thu Mar 12 23:22:29 2009 (49B9D175)
    fffff960`00000000 fffff960`0030f000   win32k   win32k.sys   unavailable (00000000)
    fffff960`00550000 fffff960`0055a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff960`007d0000 fffff960`007f7000   cdd      cdd.dll      unavailable (00000000)

    Unloaded modules:
    fffff880`013f0000 fffff880`013fe000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`015f3000 fffff880`015ff000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`01498000 fffff880`014a1000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`012c0000 fffff880`012d3000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000


  7. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Hi, back again!

    I replaced Avast with MSE. I tried taking out the graphics card and using the on-board one like you said, but then I had no way to plug in my monitor. Would I just be waiting for the PC to restart in that case? I'm not sure it will still bluescreen just from the desktop anymore.

    After following all of your advice up to that point, the bluescreens seemed to level off for a while. I would still get one every once in a while, especially if I didn't have the fan pointed at the tower, but it wasn't enough to really hinder my computer use.

    I've been getting several more over the past few days though, and it's starting to get annoying again. Any other ideas?

    View attachment minidump-11-23.zip

  8. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    gdrv.sys Thu Mar 12 23:22:29 2009

    Uninstall Gygabite tools, and if that doesn't help you (most likely it won't) go ahead run memtest overnight.


    RAM - Test with Memtest86+ - Windows 7 Forums


    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\112310-13306-01.dmp]


    BugCheck 3B, {c0000005, fffff8000338a1ce, fffff8800910cac0, 0}

    Probably caused by : ntkrnlmp.exe ( nt!ObpWaitForMultipleObjects+173 )


    SYSTEM_SERVICE_EXCEPTION (3b)


    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x3B

    PROCESS_NAME:  chrome.exe


    fffff880`0413b000 fffff880`04179000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00f31000 fffff880`00f88000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02b75000 fffff880`02bff000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`041ea000 fffff880`04200000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`03c00000 fffff880`03c15000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00df0000 fffff880`00dfb000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`093d9000 fffff880`093e4000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00dbd000 fffff880`00dc6000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00dc6000 fffff880`00df0000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`05b2e000 fffff880`05b4e000   AtihdW76 AtihdW76.sys Mon Aug 16 06:41:02 2010 (4C6915BE)
    fffff880`0460d000 fffff880`04de3000   atikmdag atikmdag.sys Tue Sep 28 21:41:26 2010 (4CA29946)
    fffff880`03c1e000 fffff880`03c69000   atikmpag atikmpag.sys Tue Sep 28 21:14:49 2010 (4CA29309)
    fffff880`02ac9000 fffff880`02ad0000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03dc3000 fffff880`03dd4000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`060ca000 fffff880`060e8000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`006d0000 fffff960`006f7000   cdd      cdd.dll      Wed May 19 15:48:26 2010 (4BF4408A)
    fffff880`02a69000 fffff880`02a93000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00ce3000 fffff880`00da3000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`011c5000 fffff880`011f5000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00c85000 fffff880`00ce3000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0135b000 fffff880`013ce000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`041da000 fffff880`041ea000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`0619e000 fffff880`061a7000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
    fffff880`0671b000 fffff880`06729000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03da5000 fffff880`03dc3000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`03d96000 fffff880`03da5000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`012c0000 fffff880`012d6000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`05b8b000 fffff880`05bad000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`06735000 fffff880`0673e000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`06729000 fffff880`06735000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`0673e000 fffff880`06751000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`0670f000 fffff880`0671b000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`03ed2000 fffff880`03fc6000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
    fffff880`03e00000 fffff880`03e46000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
    fffff880`00c4c000 fffff880`00c60000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`00c00000 fffff880`00c4c000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`013df000 fffff880`013e9000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`01286000 fffff880`012c0000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`0148b000 fffff880`014d5000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff880`0935f000 fffff880`09368000   gdrv     gdrv.sys     Thu Mar 12 23:22:29 2009 (49B9D175)
    fffff800`035fa000 fffff800`03643000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`03e46000 fffff880`03e6a000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`0676f000 fffff880`06788000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`06788000 fffff880`06790080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`06761000 fffff880`0676f000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`06002000 fffff880`060ca000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`015f0000 fffff880`015f9000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`041a2000 fffff880`041c0000   i8042prt i8042prt.sys Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`041cb000 fffff880`041da000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff800`00bcc000 fffff800`00bd6000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`03c69000 fffff880`03cac000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`01341000 fffff880`0135b000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`05bad000 fffff880`05bb2200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`041c0000 fffff880`041cb000   L8042Kbd L8042Kbd.sys Thu Mar 18 04:52:59 2010 (4BA1E9EB)
    fffff880`06791000 fffff880`067a6000   LHidFilt LHidFilt.Sys Thu Mar 18 04:51:17 2010 (4BA1E985)
    fffff880`06421000 fffff880`06436000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`067b3000 fffff880`067c7000   LMouFilt LMouFilt.Sys Thu Mar 18 04:51:24 2010 (4BA1E98C)
    fffff880`067d5000 fffff880`067f8000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`06751000 fffff880`06761000   LUsbFilt LUsbFilt.Sys Thu Mar 18 04:51:28 2010 (4BA1E990)
    fffff880`00c64000 fffff880`00c71000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`067c7000 fffff880`067d5000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`0405f000 fffff880`0406e000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`067a6000 fffff880`067b3000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00da3000 fffff880`00dbd000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02a93000 fffff880`02ac0000   MpFilter MpFilter.sys Sat Mar 20 01:58:08 2010 (4BA463F0)
    fffff880`061a7000 fffff880`061b7000   MpNWMon  MpNWMon.sys  Sat Mar 20 01:58:00 2010 (4BA463E8)
    fffff880`060e8000 fffff880`06100000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06100000 fffff880`0612d000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`0612d000 fffff880`0617b000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`0617b000 fffff880`0619e000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`02b2e000 fffff880`02b39000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00f91000 fffff880`00f9b000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`012e3000 fffff880`01341000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`03d8b000 fffff880`03d96000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`015de000 fffff880`015f0000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014ec000 fffff880`015de000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`04024000 fffff880`04030000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`04030000 fffff880`0405f000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`05b19000 fffff880`05b2e000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`03cd3000 fffff880`03ce2000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02a00000 fffff880`02a45000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`02b39000 fffff880`02b4a000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`03d7f000 fffff880`03d8b000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`0301e000 fffff800`035fa000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
    fffff880`01022000 fffff880`011c5000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`02ac0000 fffff880`02ac9000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`04de3000 fffff880`04dfb000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`03e6a000 fffff880`03e9a000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`03cad000 fffff880`03cd3000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`04185000 fffff880`041a2000   parport  parport.sys  Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`00fdb000 fffff880`00ff0000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00fa8000 fffff880`00fdb000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00e71000 fffff880`00e78000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00ff0000 fffff880`01000000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013ce000 fffff880`013df000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`05a00000 fffff880`05aa6000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`05b4e000 fffff880`05b8b000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c71000 fffff880`00c85000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`04000000 fffff880`04024000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`03e9c000 fffff880`03eb7000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`03fc6000 fffff880`03fe7000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`03eb7000 fffff880`03ed1000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`03d2e000 fffff880`03d7f000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`02b13000 fffff880`02b1c000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b1c000 fffff880`02b25000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`02b25000 fffff880`02b2e000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`0124c000 fffff880`01286000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`06436000 fffff880`0644e000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`04072000 fffff880`040c9000   Rt64win7 Rt64win7.sys Mon Sep 20 03:38:09 2010 (4C970F61)
    fffff880`064ab000 fffff880`0670e800   RTKVHD64 RTKVHD64.sys Tue Oct 05 05:58:40 2010 (4CAAF6D0)
    fffff880`061b7000 fffff880`061c2000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04179000 fffff880`04185000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`03ce2000 fffff880`03cff000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`014d5000 fffff880`014dd000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`092c9000 fffff880`0935f000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`09262000 fffff880`092c9000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`061c2000 fffff880`061ef000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`0406e000 fffff880`0406f480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`0644e000 fffff880`06460000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`02b68000 fffff880`02b75000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`02b4a000 fffff880`02b68000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`03d1a000 fffff880`03d2e000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00460000 fffff960`0046a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03dd4000 fffff880`03dfa000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`03fe7000 fffff880`03ff9000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`03e9a000 fffff880`03e9bf00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0412a000 fffff880`0413b000   usbehci  usbehci.sys  Sat Oct 24 00:27:33 2009 (4AE28235)
    fffff880`05abf000 fffff880`05b19000   usbhub   usbhub.sys   Sat Oct 24 00:28:24 2009 (4AE28268)
    fffff880`040c9000 fffff880`040d4000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`040d4000 fffff880`0412a000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`00f9b000 fffff880`00fa8000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`02ad0000 fffff880`02ade000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`02ade000 fffff880`02b03000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00e00000 fffff880`00e15000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e15000 fffff880`00e71000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`01200000 fffff880`0124c000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`03cff000 fffff880`03d1a000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`02b03000 fffff880`02b13000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e7e000 fffff880`00f22000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f22000 fffff880`00f31000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02a45000 fffff880`02a4e000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00020000 fffff960`0032f000   win32k   win32k.sys   Tue Aug 31 22:58:04 2010 (4C7DC13C)
    fffff880`03c15000 fffff880`03c1e000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00f88000 fffff880`00f91000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`06400000 fffff880`06421000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)

    Unloaded modules:
    fffff880`09368000 fffff880`093d9000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`014dd000 fffff880`014eb000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`012d6000 fffff880`012e2000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`013e9000 fffff880`013f2000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`01000000 fffff880`01013000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000

  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

    You need to reconnect your monitor in this case, to the onboard video, of course. If this is absolutely not an option, you can stress test your main card, to see if the system crashes during the tests:

    FurMark: VGA Stress Test, Graphics Card and GPU Stability Test, Burn-in Test, OpenGL Benchmark and GPU Temperature | oZone3D.Net

    |MG| Video Memory Stress Test 1.7.116 Download

  10. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    I ran FurMark and the Video Memory Stress test, and bluescreened once during each.

    View attachment 112310-13088-01.zip

    I also ran the Memtest for a whole day and got no errors.

  11. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
  12. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Ok, I installed a new Radeon HD 5450 graphics card and tested that out. I used my computer (playing a lot of WoW) for a solid 24 hours with no problems at all. About 30 minutes ago, I started blue screening again. It bluescreens again when I try to reboot, sometimes instantly, sometimes after a few minutes, but I basically can't use my computer for more than a few minutes before it crashes again.

    View attachment 121210-14445-01.zip

    It seems to be the same error message every time now, and the dump finishes every time, both of which used to not happen. Does this imply that I had two broken components, and now that I've replaced the graphics card, just one thing is left malfunctioning?

  13. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Uninstall Microsoft Application Virtualization and/or the apps that have installed along with it.

    Sftredirlh Sftredirlh.sys Fri Apr 23 15:20:39 2010
    Sftfslh Sftfslh.sys Fri Apr 23 15:20:30 2010
    Sftplaylh Sftplaylh.sys Fri Apr 23 15:20:28 2010
    Sftvollh Sftvollh.sys Fri Apr 23 15:20:08 2010

    Then run this command from elevated command prompt, after removing all external storage:

    chkdsk /r

    Leave external storage off machine until problems solved.

    #13 TorrentG, Dec 12, 2010
    Last edited: Dec 12, 2010
  14. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    I don't believe I have ever downloaded/installed this program before, I don't see the program in the Add/Remove programs list, and I can't find any files related to it. As for the four files you mentioned, do I need to do anything with them? Also, should I go ahead and run chkdsk /r w/o uninstalling any programs?

  15. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Yep, it's probably for XP mode if you have that installed. In this case, you can leave it as it wouldn't be causing any issues.

    Yep, run the command.

    The RAM is defective.

  16. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    I ran the chkdsk, it said there were no bad sectors.

    As far as defective RAM, I mentioned running Memtest a few weeks ago, and there were no errors over 20 hours.

    Got a blue screen 2 minutes after loading WoW. I've switched back to my original graphics card as well (Radeon HD 5800).

    cpu-z-12-13-10.



    View attachment 121310-17316-01.dmp

    #16 nnparisi, Dec 13, 2010
    Last edited: Dec 13, 2010
  17. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    What I'm saying is technically final and conclusive. I wouldn't make a statement like that, otherwise.

  18. nnparisi

    nnparisi New Member

    Joined:
    Nov 12, 2010
    Messages:
    22
    Likes Received:
    0
    Hey, sorry, I submitted my post early and have edited it with some more info, a screenshot and a dump file

    .

  19. TorrentG

    TorrentG Banned

    Joined:
    May 31, 2010
    Messages:
    7,814
    Likes Received:
    372
    Good luck with the completely new matching set of RAM.


Share This Page

Loading...
