Create a System Image Backup and Restore in Windows 10/11
Difficulty: Beginner | Time Required: 20-30 minutesA system image is a complete snapshot of your computer: the operating system, programs, system settings, and your files. Having a recent system image lets you recover your PC exactly as it was if something goes wrong—crashes, failed updates, malware, or hardware failures. This guide walks you through creating and restoring a system image on Windows 10 and Windows 11.
Prerequisites
- An external hard drive or a large USB drive with enough free space to store the image (system drives plus any included drives require significant space). For most systems, plan for 1–2x the size of the used data.
- Administrative access on the PC.
- Optional but recommended: a Windows recovery drive or installation media in case you need to restore when Windows won’t boot.
Step-by-step instructions
1) Open the backup tool- Windows 10/11: Type “Control Panel” in the Start menu and open it.

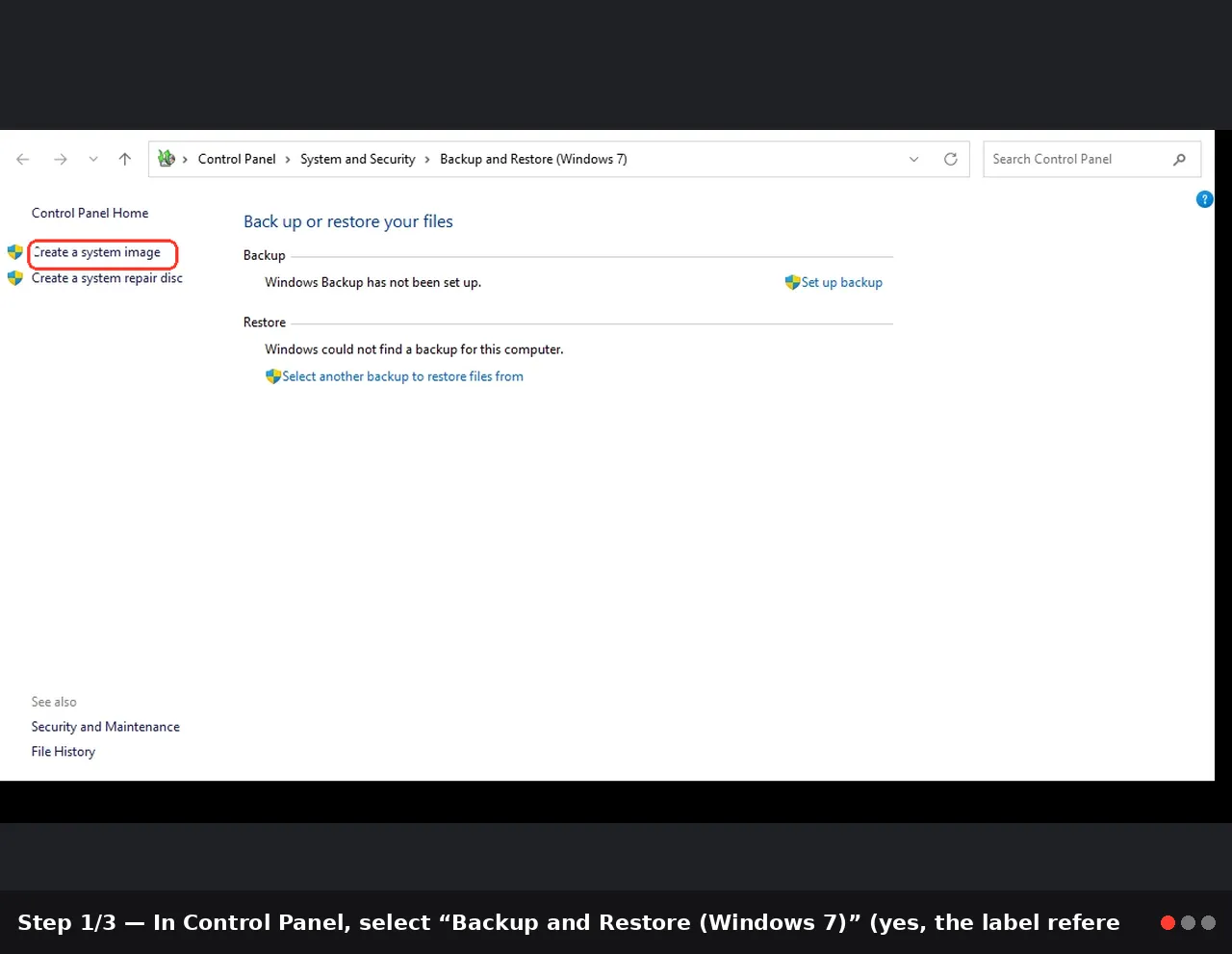

- In Control Panel, select “Backup and Restore (Windows 7)” (yes, the label references Windows 7, but the feature works on Windows 10/11).
- In the left pane, choose “Create a system image.”
- You’ll be asked where to save the backup. Choose one:
- On a hard disk (external drive)
- On one or more DVDs
- On a network location (shared drive or NAS)
- For safety and reliability, external drive is the most common and recommended option.
- By default, the wizard selects the system drive (usually C
. You can add other drives if you want them included in the image. Be mindful of space requirements. - Click Next to proceed.
- Review your backup location and selected drives.
- Click “Start backup.” The process may take 15–60 minutes (or longer on larger disks or slower USB drives).
- When it finishes, Windows may prompt to “Create a system repair disc.” This is optional but highly recommended, because it lets you boot into recovery tools if Windows can’t start.
- If you chose to create one, insert a blank CD/DVD and follow the prompts to burn a system repair disc.
- If you don’t have an optical drive, you can use a USB recovery drive instead as a recovery option (see your preferred method in Windows Recovery options).
- Eject the external drive and store it in a safe place. Label it with the PC name and date.
- If you used a network location, ensure the location remains accessible and the credentials are kept secure.
How to restore from a system image
Restore is only supported when you need to bring back the entire PC to a previous state. The target drive will be overwritten, so ensure you’re restoring to the correct disk.1) Prepare to boot into recovery options
- If Windows still boots: Go to Settings > Update & Security > Recovery > Advanced startup > Restart now. Choose “Troubleshoot” → “System Image Recovery.” This will search for a system image and guide you through restoration.
- If Windows won’t boot: Boot from the Windows installation media or the recovery drive. On the first screen, choose “Repair your computer” → “Troubleshoot” → “System Image Recovery.”
- The recovery wizard will search for available images. If your image is on a network share, you may need to connect to the network and provide credentials.
- Select the image you created earlier.
- The wizard will display available disks. Select the disk where Windows will be restored. Note: This will overwrite the contents of the selected disk.
- Confirm your choices and let Windows restore the image. The process will take time—often longer than the backup, depending on disk speed and image size.
- After the restore completes, your PC will restart and boot into the restored system state.
- You may be prompted to correct boot issues or re-enter some drive-letter mappings. In most cases, Windows completes these automatically.
- If you used a different hardware configuration, Windows may run a brief “First-time setup” experience or install missing drivers automatically.
Tips, warnings, and notes
- Important: A system image is a full snapshot of the system drive(s) at the time of the backup. It is not a substitute for regular personal file backups. Maintain separate file backups (e.g., OneDrive, File History, or another backup tool) for documents, photos, and other data.
- Larger disks and more data mean longer backup/restore times. Plan your backup during a low-usage window.
- If you back up to a network location, ensure the network share is stable and accessible during restore. A failed network connection can interrupt the restore process.
- Encryption: If the backup drive is encrypted (e.g., BitLocker-enabled external drive), keep the recovery key safe. You’ll need it to access the image during restoration.
- Disk compatibility: You can restore to a larger drive or a different drive layout, but restoring to a much smaller disk is risky. The target disk must be large enough to hold all the data from the image.
- Windows version notes: The built-in system image tooling is consistent across Windows 10 (including versions like 20H2/21H2) and Windows 11. For long-term disaster recovery, you may also consider third-party imaging tools that offer features like differential backups, cloud storage, and easier restoration on different hardware.
- After restoring to new hardware, you may need to reactivate Windows with your license. If you’re unsure, consult Microsoft licensing help or your device vendor.
Troubleshooting quick tips
- If “Create a system image” is missing: Open Control Panel > All Control Panel Items > Backup and Restore (Windows 7). The feature still exists there in Windows 10/11.
- If the system image is not found during restore: Verify the backup location is accessible (external drive connected, network shares mounted) and that you’re selecting the correct image file.
- If the restore fails due to “not enough space”: Use a larger target drive or detach nonessential drives during the restore to reduce space pressure.
- If Windows won’t boot after restoration: Use the system repair options again and consider repairing the boot configuration with the “Startup Repair” tool inside the same recovery environment.
Conclusion
A system image backup gives you a robust safety net, letting you recover your entire PC to a known-good state with minimal downtime. By following these steps on Windows 10 or Windows 11, you can create a reliable restore point for your OS, programs, and settings, then restore quickly if disaster strikes. Remember to store the image on a separate drive, test your restore periodically (every few months or after major software changes), and maintain separate, regular backups of your personal files.Key Takeaways:
- A system image captures your OS, programs, and settings for full recovery.
- Store the image on an external drive or a reliable network share; keep the recovery media handy.
- Regularly test the restore process to ensure you can recover when needed.
- Pair system images with ongoing personal file backups for complete protection.
