Random BSOD - Appreciate help

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by leebter, Mar 20, 2011.

  1. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Hi,
    I am getting random bsods and would be grateful if someone could help out.

    The computer works fine if I run only one progam on it. however, if I say, run windows media player and internet explorer at the same time, i will usually get a BSOD in 30min-1h. tried blueScreenViewer, which tells me the kernel file is the problem (cannot be) and I have tried going back to old restore points and reinstalling with no success. Also tried CCCleaner wthout success.

    i am on windows 7 64bit.

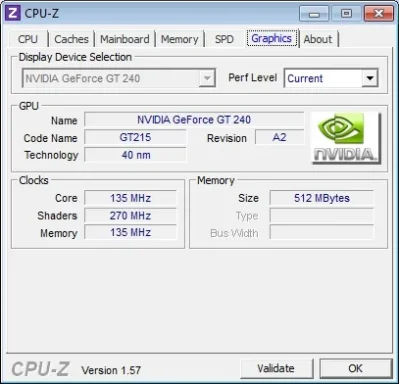

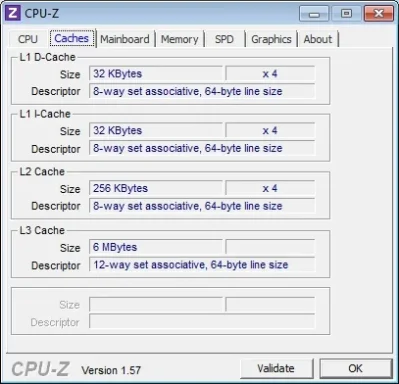

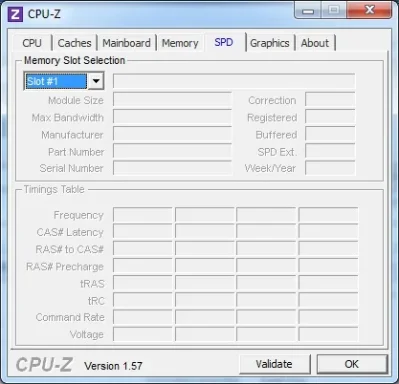

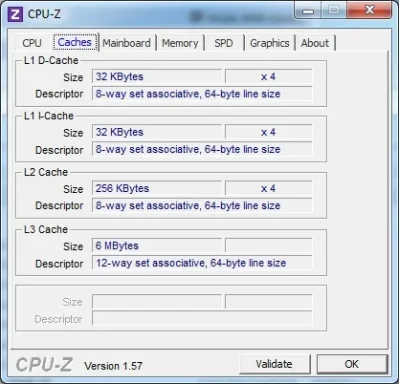

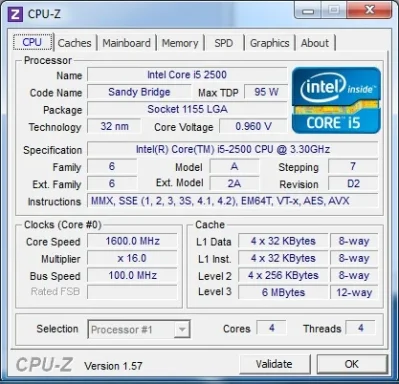

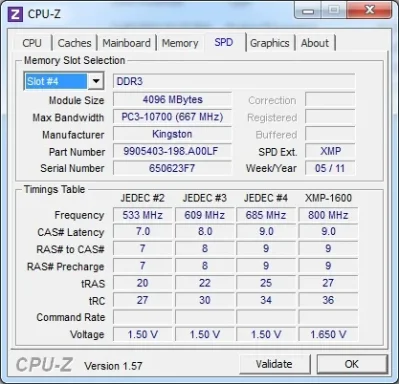

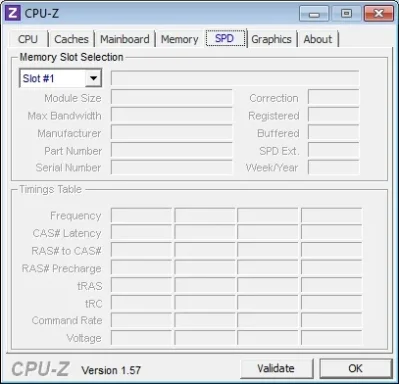

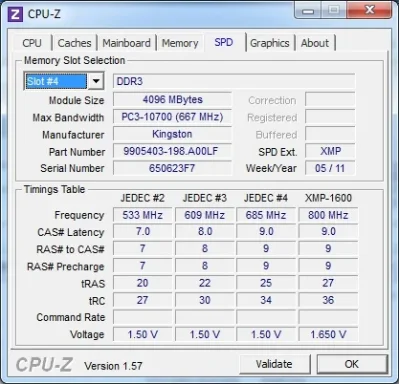

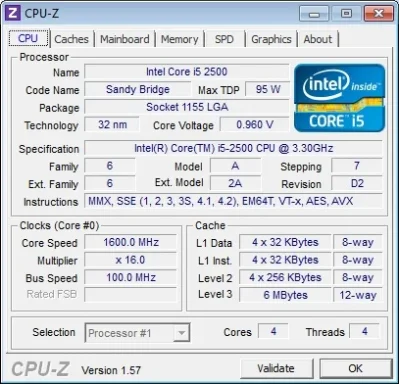

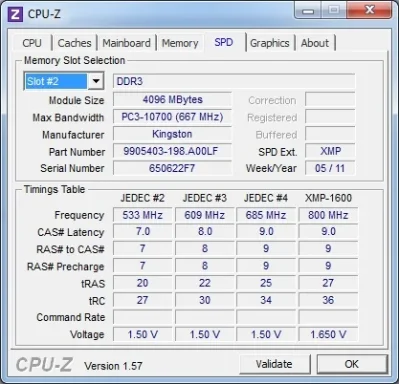

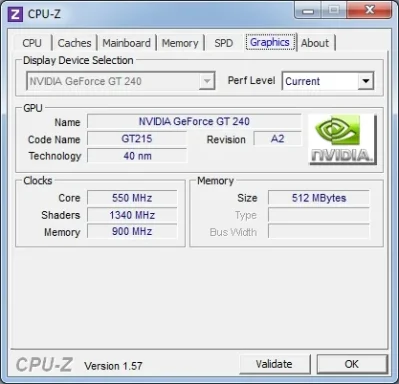

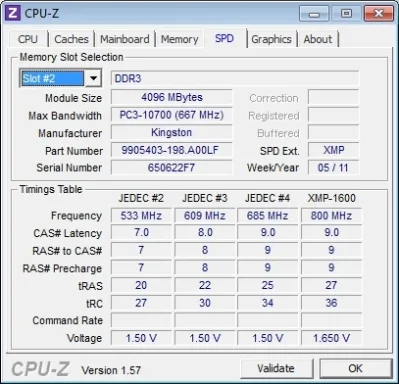

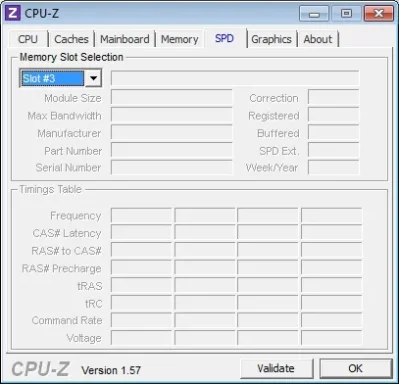

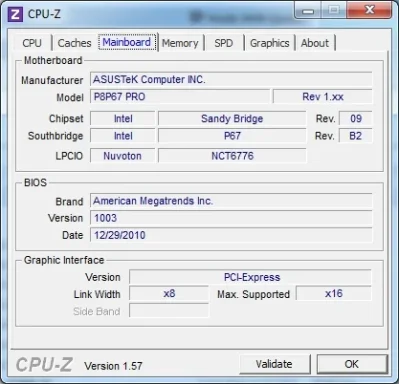

    My dmp and CPU_Z screens are attached. Would be grateful if someone could help?


    Attached Files:

    #1 leebter, Mar 20, 2011
    Last edited: Mar 20, 2011
  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

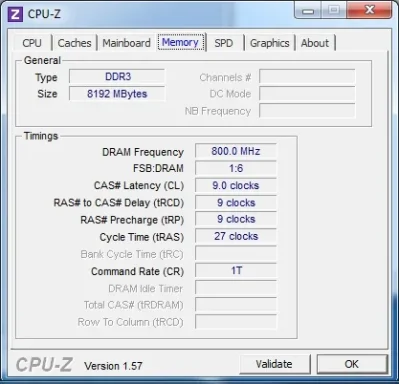

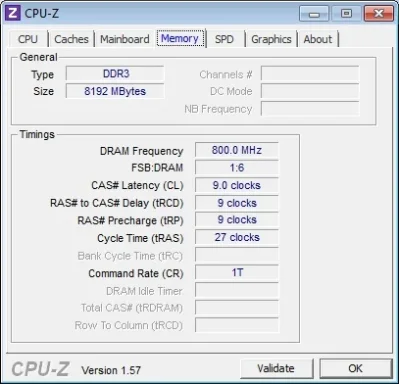

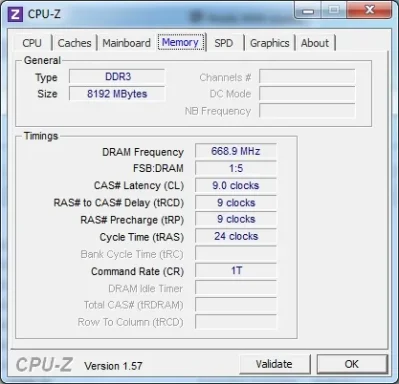

    RAM is not set according to its rates, should be 1600Mhz, and right now you have it 1333Mhz. Enable XMP profile in the bios and set the dram frequency 1600.

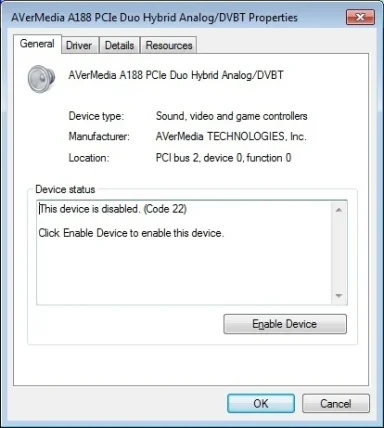

    Check for Avermedia updates:
    AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009


    Let's not uninstall AVG yet, adjust the memory settings first of all and let know how it goes.



    CRASH DUMPS

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\031811-27549-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e56000 PsLoadedModuleList = 0xfffff800`03093e50
    Debug session time: Fri Mar 18 09:07:31.047 2011 (UTC - 4:00)
    System Uptime: 0 days 0:11:49.000
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ......................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck D1, {0, 2, 0, fffff88004d006b1}

    Probably caused by : usbhub.sys ( usbhub!USBHUB_TriggerCallBacks+11 )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    DRIVER_IRQL_NOT_LESS_OR_EQUAL (d1)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If kernel debugger is available get stack backtrace.
    Arguments:
    Arg1: 0000000000000000, memory referenced
    Arg2: 0000000000000002, IRQL
    Arg3: 0000000000000000, value 0 = read operation, 1 = write operation
    Arg4: fffff88004d006b1, address which referenced memory

    Debugging Details:
    ------------------


    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff800030fe0e0
     0000000000000000

    CURRENT_IRQL:  2

    FAULTING_IP:
    usbhub!USBHUB_TriggerCallBacks+11
    fffff880`04d006b1 813848554220    cmp     dword ptr [rax],20425548h

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xD1

    PROCESS_NAME:  System

    TRAP_FRAME:  fffff800043ed170 -- (.trap 0xfffff800043ed170)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000000 rbx=0000000000000000 rcx=fffffa800ab9e050
    rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff88004d006b1 rsp=fffff800043ed300 rbp=0000000000000004
     r8=0000000000000000  r9=0000000000000000 r10=fffff80002e56000
    r11=fffff800043ed3f0 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei ng nz na po nc
    usbhub!USBHUB_TriggerCallBacks+0x11:
    fffff880`04d006b1 813848554220    cmp     dword ptr [rax],20425548h ds:c1a0:00000000`00000000=????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002ec5ca9 to fffff80002ec6740

    STACK_TEXT:
    fffff800`043ed028 fffff800`02ec5ca9 : 00000000`0000000a 00000000`00000000 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
    fffff800`043ed030 fffff800`02ec4920 : 00000000`00000000 fffffa80`0ab9e050 00000000`00000000 fffffa80`0000cf00 : nt!KiBugCheckDispatch+0x69
    fffff800`043ed170 fffff880`04d006b1 : 00000000`77485353 fffff880`04cdf9be fffffa80`06f34e10 fffffa80`06f34e10 : nt!KiPageFault+0x260
    fffff800`043ed300 fffff880`04cdaa67 : fffff800`030cb0c0 00000000`00000000 00000000`00000000 00000000`00000002 : usbhub!USBHUB_TriggerCallBacks+0x11
    fffff800`043ed330 fffff880`04cdaac1 : fffffa80`0a97cef8 fffffa80`00000001 fffffa80`0a97c1a0 fffffa80`0a97c050 : usbhub!UsbhTrapFatal_Dbg+0x13
    fffff800`043ed370 fffff880`04cf2fd4 : fffffa80`0a97c050 fffff880`042e6f79 fffffa80`0a97ce18 fffffa80`0a97d030 : usbhub!FdoExt+0x35
    fffff800`043ed3b0 fffff800`02eb15bf : 00000000`00000000 00000000`00000004 00000000`00000001 fffffa80`07762288 : usbhub!UsbhDmTimer+0x24
    fffff800`043ed420 fffff800`02ed229e : 00000000`00000002 fffff800`043ed620 00000000`00000000 fffffa80`00100101 : nt!IopTimerDispatch+0x132
    fffff800`043ed530 fffff800`02ed1dd6 : fffffa80`0ad2e450 00000000`0000b188 00000000`00000000 fffff800`02ffb2dd : nt!KiProcessTimerDpcTable+0x66
    fffff800`043ed5a0 fffff800`02ed24be : 00000001`a698d531 fffff800`043edc18 00000000`0000b188 fffff800`03044388 : nt!KiProcessExpiredTimerList+0xc6
    fffff800`043edbf0 fffff800`02ed1cb7 : 00000000`88c06fc8 00000000`0000b188 00000000`88c06fb6 00000000`00000088 : nt!KiTimerExpiration+0x1be
    fffff800`043edc90 fffff800`02eceeea : fffff800`03040e80 fffff800`0304ec40 00000000`00000002 fffff880`00000000 : nt!KiRetireDpcList+0x277
    fffff800`043edd40 00000000`00000000 : fffff800`043ee000 fffff800`043e8000 fffff800`043edd00 00000000`00000000 : nt!KiIdleLoop+0x5a


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    usbhub!USBHUB_TriggerCallBacks+11
    fffff880`04d006b1 813848554220    cmp     dword ptr [rax],20425548h

    SYMBOL_STACK_INDEX:  3

    SYMBOL_NAME:  usbhub!USBHUB_TriggerCallBacks+11

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: usbhub

    IMAGE_NAME:  usbhub.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4a5bcc2d

    FAILURE_BUCKET_ID:  X64_0xD1_usbhub!USBHUB_TriggerCallBacks+11

    BUCKET_ID:  X64_0xD1_usbhub!USBHUB_TriggerCallBacks+11

    Followup: MachineOwner
    ---------






















    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\031311-31231-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e50000 PsLoadedModuleList = 0xfffff800`0308de50
    Debug session time: Sun Mar 13 08:00:41.519 2011 (UTC - 4:00)
    System Uptime: 0 days 0:06:25.471
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ..........................................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 3B, {c0000005, fffff80002f72b1f, fffff88007171c70, 0}

    Probably caused by : memory_corruption ( nt!MiIdentifyPfn+26f )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    SYSTEM_SERVICE_EXCEPTION (3b)
    An exception happened while executing a system service routine.
    Arguments:
    Arg1: 00000000c0000005, Exception code that caused the bugcheck
    Arg2: fffff80002f72b1f, Address of the instruction which caused the bugcheck
    Arg3: fffff88007171c70, Address of the context record for the exception that caused the bugcheck
    Arg4: 0000000000000000, zero.

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f72b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    CONTEXT:  fffff88007171c70 -- (.cxr 0xfffff88007171c70)
    rax=0000000000000001 rbx=02000000001c982c rcx=0200000000000020
    rdx=00000000001bd5b4 rsi=0000000000000000 rdi=fffffa800709c558
    rip=fffff80002f72b1f rsp=fffff88007172640 rbp=fffffa800a7c3b20
     r8=00000000001bd4b3  r9=0000000000000001 r10=0000000000000042
    r11=0000058000000000 r12=fffff88002f64180 r13=0000000000000000
    r14=f8ff1c028496f896 r15=0000000000000000
    iopl=0         nv up ei pl nz ac po nc
    cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00010216
    nt!MiIdentifyPfn+0x26f:
    fffff800`02f72b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh ds:002b:f8ff1c02`8496f8de=????????
    Resetting default scope

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x3B

    PROCESS_NAME:  svchost.exe

    CURRENT_IRQL:  2

    LAST_CONTROL_TRANSFER:  from 0000000000000000 to fffff80002f72b1f

    STACK_TEXT:
    fffff880`07172640 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!MiIdentifyPfn+0x26f


    FOLLOWUP_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f72b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nt!MiIdentifyPfn+26f

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    STACK_COMMAND:  .cxr 0xfffff88007171c70 ; kb

    IMAGE_NAME:  memory_corruption

    FAILURE_BUCKET_ID:  X64_0x3B_nt!MiIdentifyPfn+26f

    BUCKET_ID:  X64_0x3B_nt!MiIdentifyPfn+26f

    Followup: MachineOwner
    ---------
























    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\031411-31808-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e10000 PsLoadedModuleList = 0xfffff800`0304de50
    Debug session time: Mon Mar 14 11:52:01.084 2011 (UTC - 4:00)
    System Uptime: 0 days 0:31:15.036
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ......................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck A, {48, 2, 1, fffff80002f32b1f}

    Probably caused by : memory_corruption ( nt!MiIdentifyPfn+26f )

    Followup: MachineOwner
    ---------

    3: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 0000000000000048, memory referenced
    Arg2: 0000000000000002, IRQL
    Arg3: 0000000000000001, bitfield :
    	bit 0 : value 0 = read operation, 1 = write operation
    	bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: fffff80002f32b1f, address which referenced memory

    Debugging Details:
    ------------------


    WRITE_ADDRESS: GetPointerFromAddress: unable to read from fffff800030b80e0
     0000000000000048

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f32b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  svchost.exe

    TRAP_FRAME:  fffff88007a274b0 -- (.trap 0xfffff88007a274b0)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000001 rbx=0000000000000000 rcx=0400000000000020
    rdx=000000000001fa06 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002f32b1f rsp=fffff88007a27640 rbp=fffffa800aafdb20
     r8=0000000000022a07  r9=0000000000000001 r10=0000000000000042
    r11=0000058000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na pe nc
    nt!MiIdentifyPfn+0x26f:
    fffff800`02f32b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh ds:00000000`00000048=????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002e7fca9 to fffff80002e80740

    STACK_TEXT:
    fffff880`07a27368 fffff800`02e7fca9 : 00000000`0000000a 00000000`00000048 00000000`00000002 00000000`00000001 : nt!KeBugCheckEx
    fffff880`07a27370 fffff800`02e7e920 : 00000000`42506650 02000000`0015171d 00000000`00000000 00000000`00000000 : nt!KiBugCheckDispatch+0x69
    fffff880`07a274b0 fffff800`02f32b1f : 00000000`00000000 02000000`000a01fa 00000000`000018c0 fffff800`0314504b : nt!KiPageFault+0x260
    fffff880`07a27640 fffff800`02f337cb : 00000000`00000000 00000000`00000004 fffffa80`09920fe8 fffffa80`09920000 : nt!MiIdentifyPfn+0x26f
    fffff880`07a276e0 fffff800`03292ed5 : fffffa80`09920000 fffff880`07a27c60 fffff880`07a277b8 00000000`00000000 : nt!MmQueryPfnList+0xbb
    fffff880`07a27720 fffff800`031d81f8 : 00000000`00000006 00000000`00000000 fffffa80`09920000 fffff800`02e10001 : nt!PfpPfnPrioRequest+0x115
    fffff880`07a27770 fffff800`0317c0c3 : 00000000`00000000 fffff800`02e10000 fffffa80`09947000 00000000`00000001 : nt! ?? ::NNGAKEGL::`string'+0x46ddd
    fffff880`07a27800 fffff800`0317cee5 : 00000000`0106b688 fffff800`02e8d618 00000000`0106b6e0 00000000`0106b6a8 : nt!ExpQuerySystemInformation+0x11c2
    fffff880`07a27ba0 fffff800`02e7f993 : 00000000`00000002 fffff880`07a27c60 00000000`08e72628 00000000`02c9bf20 : nt!NtQuerySystemInformation+0x4d
    fffff880`07a27be0 00000000`776bfa1a : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`0106b5a8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x776bfa1a


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f32b1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    SYMBOL_STACK_INDEX:  3

    SYMBOL_NAME:  nt!MiIdentifyPfn+26f

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    IMAGE_NAME:  memory_corruption

    FAILURE_BUCKET_ID:  X64_0xA_nt!MiIdentifyPfn+26f

    BUCKET_ID:  X64_0xA_nt!MiIdentifyPfn+26f

    Followup: MachineOwner
    ---------



















    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032011-32557-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e09000 PsLoadedModuleList = 0xfffff800`03046e50
    Debug session time: Sun Mar 20 10:45:19.675 2011 (UTC - 4:00)
    System Uptime: 0 days 0:08:52.002
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .......................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 3B, {c0000005, fffff8000318d2e1, fffff880089af130, 0}

    Probably caused by : ntkrnlmp.exe ( nt!ObpCloseHandleTableEntry+51 )

    Followup: MachineOwner
    ---------

    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    SYSTEM_SERVICE_EXCEPTION (3b)
    An exception happened while executing a system service routine.
    Arguments:
    Arg1: 00000000c0000005, Exception code that caused the bugcheck
    Arg2: fffff8000318d2e1, Address of the instruction which caused the bugcheck
    Arg3: fffff880089af130, Address of the context record for the exception that caused the bugcheck
    Arg4: 0000000000000000, zero.

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    nt!ObpCloseHandleTableEntry+51
    fffff800`0318d2e1 4883bba800000000 cmp     qword ptr [rbx+0A8h],0

    CONTEXT:  fffff880089af130 -- (.cxr 0xfffff880089af130)
    rax=0000000000000000 rbx=0000000000000000 rcx=fffff8a008396a10
    rdx=fffff8a008bf4530 rsi=fffffa800723a6d0 rdi=fffff8a008bf4530
    rip=fffff8000318d2e1 rsp=fffff880089afb00 rbp=fffffa8007241060
     r8=fffffa8007241060  r9=000000000000014c r10=000000000000014c
    r11=0000000000313160 r12=fffffa800b0d2e20 r13=fffffa8007241060
    r14=8000000000004000 r15=fffff8a008396a10
    iopl=0         nv up ei pl zr na po nc
    cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00010246
    nt!ObpCloseHandleTableEntry+0x51:
    fffff800`0318d2e1 4883bba800000000 cmp     qword ptr [rbx+0A8h],0 ds:002b:00000000`000000a8=????????????????
    Resetting default scope

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x3B

    PROCESS_NAME:  SearchProtocol

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from fffff8000318d254 to fffff8000318d2e1

    STACK_TEXT:
    fffff880`089afb00 fffff800`0318d254 : 00000000`0000014c fffffa80`07241060 fffff8a0`08396a10 00000000`0000014c : nt!ObpCloseHandleTableEntry+0x51
    fffff880`089afb90 fffff800`02e78993 : fffffa80`0723a6d0 fffff880`089afc60 00000000`0018b0b0 fffffa80`0cd826e0 : nt!ObpCloseHandle+0x94
    fffff880`089afbe0 00000000`776bf7aa : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`00186708 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x776bf7aa


    FOLLOWUP_IP:
    nt!ObpCloseHandleTableEntry+51
    fffff800`0318d2e1 4883bba800000000 cmp     qword ptr [rbx+0A8h],0

    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nt!ObpCloseHandleTableEntry+51

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    STACK_COMMAND:  .cxr 0xfffff880089af130 ; kb

    FAILURE_BUCKET_ID:  X64_0x3B_nt!ObpCloseHandleTableEntry+51

    BUCKET_ID:  X64_0x3B_nt!ObpCloseHandleTableEntry+51

    Followup: MachineOwner
    ---------








    DRIVERS

    Code:
    start             end                 module name
    fffff880`03e93000 fffff880`03ed1000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00f99000 fffff880`00ff0000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02c00000 fffff880`02c8a000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`048e1000 fffff880`048f7000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`00de1000 fffff880`00dec000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`0fe24000 fffff880`0fe47000   AnyDVD   AnyDVD.sys   Wed Dec 01 14:06:20 2010 (4CF69CAC)
    fffff880`03f22000 fffff880`03f71000   ArcSec   ArcSec.sys   Mon Sep 20 20:38:32 2010 (4C97FE88)
    fffff880`00ed7000 fffff880`00ee0000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00dac000 fffff880`00dd6000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`04044000 fffff880`0418ec80   AVerBDA716x_x64 AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009 (4A28EC4E)
    fffff880`05c00000 fffff880`05c34000   AVGIDSDriver AVGIDSDriver.Sys Tue Aug 03 18:24:45 2010 (4C58972D)
    fffff880`01890000 fffff880`0189a000   AVGIDSEH AVGIDSEH.Sys Mon Sep 13 18:46:38 2010 (4C8EA9CE)
    fffff880`047ba000 fffff880`047c6000   AVGIDSFilter AVGIDSFilter.Sys Tue Aug 03 18:23:21 2010 (4C5896D9)
    fffff880`03ed2000 fffff880`03f22000   avgldx64 avgldx64.sys Tue Dec 07 21:01:55 2010 (4CFEE713)
    fffff880`018fc000 fffff880`0190b000   avgmfx64 avgmfx64.sys Mon Sep 06 20:49:14 2010 (4C858C0A)
    fffff880`01886000 fffff880`01890000   avgrkx64 avgrkx64.sys Mon Sep 06 20:49:37 2010 (4C858C21)
    fffff880`02cef000 fffff880`02d50000   avgtdia  avgtdia.sys  Fri Nov 12 06:08:42 2010 (4CDD203A)
    fffff880`041d2000 fffff880`041d5e80   BdaSup   BdaSup.SYS   Mon Jul 13 20:06:40 2009 (4A5BCC10)
    fffff880`01914000 fffff880`0191b000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`019de000 fffff880`019ef000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`0189a000 fffff880`018b8000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`04618000 fffff880`0467f000   btath_a2dp btath_a2dp.sys Thu Sep 16 07:34:42 2010 (4C9200D2)
    fffff880`049cc000 fffff880`049d7000   btath_bus btath_bus.sys Thu Jun 24 02:17:43 2010 (4C22F887)
    fffff880`04727000 fffff880`04736000   btath_flt btath_flt.sys Thu Jun 24 02:17:38 2010 (4C22F882)
    fffff880`04697000 fffff880`046fa000   btath_hcrp btath_hcrp.sys Tue Jun 29 05:30:43 2010 (4C29BD43)
    fffff880`04784000 fffff880`04797000   btath_lwflt btath_lwflt.sys Mon Sep 13 04:26:54 2010 (4C8DE04E)
    fffff880`048b0000 fffff880`048d4e00   btath_rcp btath_rcp.sys Thu Jun 24 02:17:21 2010 (4C22F871)
    fffff880`05600000 fffff880`05647000   btfilter btfilter.sys Fri Oct 22 02:40:47 2010 (4CC131EF)
    fffff880`02600000 fffff880`02610000   BthEnum  BthEnum.sys  Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`0565f000 fffff880`0567f000   bthpan   bthpan.sys   Mon Jul 13 20:07:00 2009 (4A5BCC24)
    fffff880`02622000 fffff880`026ae000   bthport  bthport.sys  Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`05647000 fffff880`0565f000   BTHUSB   BTHUSB.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff960`006e0000 fffff960`00707000   cdd      cdd.dll      unavailable (00000000)
    fffff880`018d2000 fffff880`018fc000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00c00000 fffff880`00cc0000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`01856000 fffff880`01886000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00d24000 fffff880`00d82000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`04211000 fffff880`043d6000   cmudaxp  cmudaxp.sys  Thu Oct 28 04:27:22 2010 (4CC933EA)
    fffff880`0113f000 fffff880`011b2000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`03fe6000 fffff880`03ff6000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`05759000 fffff880`05767000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`019c0000 fffff880`019de000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02de7000 fffff880`02df6000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`013e2000 fffff880`013f8000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`043d6000 fffff880`043f8000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`05767000 fffff880`05773000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`0577e000 fffff880`05791000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`05773000 fffff880`0577e000   dump_msahci dump_msahci.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`057bd000 fffff880`057c9000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`10aa5000 fffff880`10b99000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 23:22:56 2011 (4D3FA1A0)
    fffff880`10b99000 fffff880`10bdf000   dxgmms1  dxgmms1.sys  Tue Jan 25 23:22:12 2011 (4D3FA174)
    fffff880`03f97000 fffff880`03fe6000   e1c62x64 e1c62x64.sys Tue Sep 21 17:34:15 2010 (4C9924D7)
    fffff880`02ddb000 fffff880`02de7000   ElbyCDIO ElbyCDIO.sys Thu Dec 16 17:58:13 2010 (4D0A9985)
    fffff880`010cd000 fffff880`010e1000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`01081000 fffff880`010cd000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`013d8000 fffff880`013e2000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`0103a000 fffff880`01074000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`0142b000 fffff880`01475000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff800`033e6000 fffff800`0342f000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`0fe00000 fffff880`0fe24000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`05695000 fffff880`056f1000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`041dc000 fffff880`041ed000   HECIx64  HECIx64.sys  Tue Sep 21 12:59:04 2010 (4C98E458)
    fffff880`057d7000 fffff880`057f5000   hidbth   hidbth.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`0571c000 fffff880`05735000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`05735000 fffff880`0573d080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`0570e000 fffff880`0571c000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`026fe000 fffff880`027c6000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`0148f000 fffff880`01498000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`10bdf000 fffff880`10bf5000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`049ac000 fffff880`049bb000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`0574b000 fffff880`05759000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00bac000 fffff800`00bb6000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`0418f000 fffff880`041d2000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`013ad000 fffff880`013c7000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01400000 fffff880`0142b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`041d6000 fffff880`041db200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`026d1000 fffff880`026e6000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`026ae000 fffff880`026d1000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00ccc000 fffff880`00d10000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`057c9000 fffff880`057d7000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`049bb000 fffff880`049ca000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`0573e000 fffff880`0574b000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00d92000 fffff880`00dac000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`0467f000 fffff880`04697000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`046fa000 fffff880`04727000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`04736000 fffff880`04784000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`04797000 fffff880`047ba000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`00dd6000 fffff880`00de1000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`01979000 fffff880`01984000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e00000 fffff880`00e0a000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010e1000 fffff880`0113f000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`02dd0000 fffff880`02ddb000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`0147d000 fffff880`0148f000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`0149d000 fffff880`0158f000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0491b000 fffff880`04927000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`04927000 fffff880`04956000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04872000 fffff880`04887000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02cb9000 fffff880`02cc8000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d50000 fffff880`02d95000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`0158f000 fffff880`015ef000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`01984000 fffff880`01995000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02dc4000 fffff880`02dd0000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e09000 fffff800`033e6000   nt       ntkrnlmp.exe Tue Oct 26 22:43:09 2010 (4CC791BD)
    fffff880`0120a000 fffff880`013ad000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`0190b000 fffff880`01914000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`0485a000 fffff880`04872000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`04000000 fffff880`04030000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`10aa3000 fffff880`10aa4180   nvBridge nvBridge.kmd Fri Jan 07 20:57:22 2011 (4D27C482)
    fffff880`04887000 fffff880`048b0000   nvhda64v nvhda64v.sys Thu Nov 11 18:10:36 2010 (4CDC77EC)
    fffff880`0fe48000 fffff880`10aa2d00   nvlddmkm nvlddmkm.sys Fri Jan 07 21:07:22 2011 (4D27C6DA)
    fffff880`02c93000 fffff880`02cb9000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`00e4a000 fffff880`00e5f000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00e0a000 fffff880`00e3d000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00ed0000 fffff880`00ed7000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00d82000 fffff880`00d92000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013c7000 fffff880`013d8000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`05ced000 fffff880`05d93000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`03e56000 fffff880`03e93000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00d10000 fffff880`00d24000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`048f7000 fffff880`0491b000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04956000 fffff880`04971000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`04971000 fffff880`04992000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`04992000 fffff880`049ac000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`01800000 fffff880`01851000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`0195e000 fffff880`01967000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`01967000 fffff880`01970000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`01970000 fffff880`01979000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01000000 fffff880`0103a000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`027c6000 fffff880`027f2000   rfcomm   rfcomm.sys   Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`026e6000 fffff880`026fe000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05d93000 fffff880`05d9e000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04200000 fffff880`0420c000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02cc8000 fffff880`02ce5000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`01475000 fffff880`0147d000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`05f07000 fffff880`05f78000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`05e71000 fffff880`05f07000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`05c34000 fffff880`05c9b000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`05d9e000 fffff880`05dcb000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`049ca000 fffff880`049cb480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01603000 fffff880`01800000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`05dcb000 fffff880`05ddd000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`019b3000 fffff880`019c0000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`01995000 fffff880`019b3000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02db0000 fffff880`02dc4000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00520000 fffff960`0052a000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`03f71000 fffff880`03f97000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`049d7000 fffff880`049e9000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`05791000 fffff880`057abc00   usbaudio usbaudio.sys Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`056f1000 fffff880`0570e000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`04030000 fffff880`04031f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`041ed000 fffff880`041fe000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`04800000 fffff880`0485a000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`03e00000 fffff880`03e56000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`00e3d000 fffff880`00e4a000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`0191b000 fffff880`01929000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`01929000 fffff880`0194e000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00e5f000 fffff880`00e74000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e74000 fffff880`00ed0000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`011b2000 fffff880`011fe000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02d95000 fffff880`02db0000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`0194e000 fffff880`0195e000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00ee6000 fffff880`00f8a000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f8a000 fffff880`00f99000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02c8a000 fffff880`02c93000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00060000 fffff960`00370000   win32k   win32k.sys   Tue Jan 04 22:59:44 2011 (4D23ECB0)
    fffff880`04032000 fffff880`0403b000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00ff0000 fffff880`00ff9000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)

    Unloaded modules:
    fffff880`057ac000 fffff880`057bd000   AthDfu.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000
    fffff880`0189a000 fffff880`018a8000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`018a8000 fffff880`018b4000   dump_pciidex
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`018b4000 fffff880`018bf000   dump_msahci.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    fffff880`018bf000 fffff880`018d2000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  3. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Thanks. Did the dram profile change. No help though. Still got the bsod. Dump attached.
    Avermedia was already removed due to one of the earlier system restores.
    You think it could be AVG? Or (hopefully not) my Asus Xonar Essence stx driver? If yes could you recommend an alternative antivirus?


    Attached Files:

  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    BugCheck A, {48, 2, 1, fffff80002f3ab1f}
    Probably caused by : memory_corruption ( nt!MiIdentifyPfn+26f )




    Set your memory correctly according to the maker's specs.


    Re-attach screenshots:

    --> CPU-Z MEMORY tab
    --> CPU-Z CPU tab


    Uninstall AVG, install MSE.





    CRASH DUMPS

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032111-27799-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e18000 PsLoadedModuleList = 0xfffff800`03055e50
    Debug session time: Mon Mar 21 09:06:06.435 2011 (UTC - 4:00)
    System Uptime: 0 days 0:06:11.411
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .......................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck A, {48, 2, 1, fffff80002f3ab1f}

    Probably caused by : memory_corruption ( nt!MiIdentifyPfn+26f )

    Followup: MachineOwner
    ---------

    3: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 0000000000000048, memory referenced
    Arg2: 0000000000000002, IRQL
    Arg3: 0000000000000001, bitfield :
        bit 0 : value 0 = read operation, 1 = write operation
        bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: fffff80002f3ab1f, address which referenced memory

    Debugging Details:
    ------------------


    WRITE_ADDRESS: GetPointerFromAddress: unable to read from fffff800030c00e0
     0000000000000048

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f3ab1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  svchost.exe

    TRAP_FRAME:  fffff88005e6e4b0 -- (.trap 0xfffff88005e6e4b0)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000001 rbx=0000000000000000 rcx=0800000000000020
    rdx=00000000001d0f2b rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002f3ab1f rsp=fffff88005e6e640 rbp=fffffa800b1c53c0
     r8=00000000001d28b4  r9=0000000000000001 r10=0000000000000042
    r11=0000058000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na po nc
    nt!MiIdentifyPfn+0x26f:
    fffff800`02f3ab1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh ds:00000000`00000048=????????
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002e87ca9 to fffff80002e88740

    STACK_TEXT:
    fffff880`05e6e368 fffff800`02e87ca9 : 00000000`0000000a 00000000`00000048 00000000`00000002 00000000`00000001 : nt!KeBugCheckEx
    fffff880`05e6e370 fffff800`02e86920 : 00000000`42506650 02000000`001decaa 00000000`00000000 00000000`00000000 : nt!KiBugCheckDispatch+0x69
    fffff880`05e6e4b0 fffff800`02f3ab1f : 00000000`001d39b3 fffffa80`0713a868 00000000`000018c0 fffff800`0314d04b : nt!KiPageFault+0x260
    fffff880`05e6e640 fffff800`02f3b7cb : 00000000`00000000 00000000`00000004 fffffa80`0713a880 fffffa80`0713a000 : nt!MiIdentifyPfn+0x26f
    fffff880`05e6e6e0 fffff800`0329aed5 : fffffa80`0713a000 fffff880`05e6ec60 fffff880`05e6e7b8 00000000`00000000 : nt!MmQueryPfnList+0xbb
    fffff880`05e6e720 fffff800`031e01f8 : 00000000`00000006 00000000`00000000 fffffa80`0713a000 fffff800`02e18001 : nt!PfpPfnPrioRequest+0x115
    fffff880`05e6e770 fffff800`031840c3 : 00000000`00000000 fffff800`02e18000 ffffffff`ffffffff fffffa80`04a23801 : nt! ?? ::NNGAKEGL::`string'+0x46ddd
    fffff880`05e6e800 fffff800`03184ee5 : 00000000`00a1b3e8 fffff800`02e95618 00000000`00a1b440 00000000`09cebb28 : nt!ExpQuerySystemInformation+0x11c2
    fffff880`05e6eba0 fffff800`02e87993 : 00000000`0008c22a fffff880`05e6ec60 00000000`02fd9380 00000000`049fc810 : nt!NtQuerySystemInformation+0x4d
    fffff880`05e6ebe0 00000000`778cfa1a : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`00a1b318 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x778cfa1a


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!MiIdentifyPfn+26f
    fffff800`02f3ab1f f0410fba6e481f  lock bts dword ptr [r14+48h],1Fh

    SYMBOL_STACK_INDEX:  3

    SYMBOL_NAME:  nt!MiIdentifyPfn+26f

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    DEBUG_FLR_IMAGE_TIMESTAMP:  4cc791bd

    IMAGE_NAME:  memory_corruption

    FAILURE_BUCKET_ID:  X64_0xA_nt!MiIdentifyPfn+26f

    BUCKET_ID:  X64_0xA_nt!MiIdentifyPfn+26f

    Followup: MachineOwner
    ---------






    DRIVERS

    Code:
    start             end                 module name
    fffff880`0fe00000 fffff880`0fe3e000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00f84000 fffff880`00fdb000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02c00000 fffff880`02c8a000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0fe3e000 fffff880`0fe54000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`00c00000 fffff880`00c0b000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`04000000 fffff880`04023000   AnyDVD   AnyDVD.sys   Wed Dec 01 14:06:20 2010 (4CF69CAC)
    fffff880`03fb0000 fffff880`03fff000   ArcSec   ArcSec.sys   Mon Sep 20 20:38:32 2010 (4C97FE88)
    fffff880`00dc0000 fffff880`00dc9000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00dc9000 fffff880`00df3000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`0429f000 fffff880`043e9c80   AVerBDA716x_x64 AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009 (4A28EC4E)
    fffff880`05d91000 fffff880`05dc5000   AVGIDSDriver AVGIDSDriver.Sys Tue Aug 03 18:24:45 2010 (4C58972D)
    fffff880`018c9000 fffff880`018d3000   AVGIDSEH AVGIDSEH.Sys Mon Sep 13 18:46:38 2010 (4C8EA9CE)
    fffff880`03a71000 fffff880`03a7d000   AVGIDSFilter AVGIDSFilter.Sys Tue Aug 03 18:23:21 2010 (4C5896D9)
    fffff880`03f60000 fffff880`03fb0000   avgldx64 avgldx64.sys Tue Dec 07 21:01:55 2010 (4CFEE713)
    fffff880`01935000 fffff880`01944000   avgmfx64 avgmfx64.sys Mon Sep 06 20:49:14 2010 (4C858C0A)
    fffff880`018bf000 fffff880`018c9000   avgrkx64 avgrkx64.sys Mon Sep 06 20:49:37 2010 (4C858C21)
    fffff880`02cf0000 fffff880`02d51000   avgtdia  avgtdia.sys  Fri Nov 12 06:08:42 2010 (4CDD203A)
    fffff880`04243000 fffff880`04246e80   BdaSup   BdaSup.SYS   Mon Jul 13 20:06:40 2009 (4A5BCC10)
    fffff880`0194d000 fffff880`01954000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03f4f000 fffff880`03f60000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`03b8e000 fffff880`03bac000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`084a5000 fffff880`0850c000   btath_a2dp btath_a2dp.sys Thu Sep 16 07:34:42 2010 (4C9200D2)
    fffff880`0fece000 fffff880`0fed9000   btath_bus btath_bus.sys Thu Jun 24 02:17:43 2010 (4C22F887)
    fffff880`0856f000 fffff880`0857e000   btath_flt btath_flt.sys Thu Jun 24 02:17:38 2010 (4C22F882)
    fffff880`0850c000 fffff880`0856f000   btath_hcrp btath_hcrp.sys Tue Jun 29 05:30:43 2010 (4C29BD43)
    fffff880`0857e000 fffff880`08591000   btath_lwflt btath_lwflt.sys Mon Sep 13 04:26:54 2010 (4C8DE04E)
    fffff880`061d2000 fffff880`061f6e00   btath_rcp btath_rcp.sys Thu Jun 24 02:17:21 2010 (4C22F871)
    fffff880`03a7d000 fffff880`03ac4000   btfilter btfilter.sys Fri Oct 22 02:40:47 2010 (4CC131EF)
    fffff880`06184000 fffff880`06194000   BthEnum  BthEnum.sys  Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`06194000 fffff880`061b4000   bthpan   bthpan.sys   Mon Jul 13 20:07:00 2009 (4A5BCC24)
    fffff880`06036000 fffff880`060c2000   bthport  bthport.sys  Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`05c67000 fffff880`05c7f000   BTHUSB   BTHUSB.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff960`006b0000 fffff960`006d7000   cdd      cdd.dll      unavailable (00000000)
    fffff880`0190b000 fffff880`01935000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00ce6000 fffff880`00da6000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`0188f000 fffff880`018bf000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00c88000 fffff880`00ce6000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0441c000 fffff880`045e1000   cmudaxp  cmudaxp.sys  Thu Oct 28 04:27:22 2010 (4CC933EA)
    fffff880`01175000 fffff880`011e8000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`043ec000 fffff880`043fc000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`04de8000 fffff880`04df6000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03f31000 fffff880`03f4f000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`03f22000 fffff880`03f31000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`01879000 fffff880`0188f000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`041d6000 fffff880`041f8000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`04c00000 fffff880`04c0c000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`04c17000 fffff880`04c2a000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`04c0c000 fffff880`04c17000   dump_msahci dump_msahci.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`04c2a000 fffff880`04c36000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`04029000 fffff880`0411d000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 23:22:56 2011 (4D3FA1A0)
    fffff880`0411d000 fffff880`04163000   dxgmms1  dxgmms1.sys  Tue Jan 25 23:22:12 2011 (4D3FA174)
    fffff880`04187000 fffff880`041d6000   e1c62x64 e1c62x64.sys Tue Sep 21 17:34:15 2010 (4C9924D7)
    fffff880`03f16000 fffff880`03f22000   ElbyCDIO ElbyCDIO.sys Thu Dec 16 17:58:13 2010 (4D0A9985)
    fffff880`01103000 fffff880`01117000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`010b7000 fffff880`01103000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`01211000 fffff880`0121b000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`0183f000 fffff880`01879000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`01000000 fffff880`0104a000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff800`033f5000 fffff800`0343e000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`04163000 fffff880`04187000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`04d8c000 fffff880`04de8000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`0424d000 fffff880`0425e000   HECIx64  HECIx64.sys  Tue Sep 21 12:59:04 2010 (4C98E458)
    fffff880`061b4000 fffff880`061d2000   hidbth   hidbth.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`04c61000 fffff880`04c7a000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`04c7a000 fffff880`04c82080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`04c53000 fffff880`04c61000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`03ac6000 fffff880`03b8e000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`015d7000 fffff880`015e0000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`04400000 fffff880`04416000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`10bec000 fffff880`10bfb000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04c83000 fffff880`04c91000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00bd5000 fffff800`00bdf000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`04200000 fffff880`04243000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`013d8000 fffff880`013f2000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`04247000 fffff880`0424c200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`04cbd000 fffff880`04cd2000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`03e61000 fffff880`03e84000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c30000 fffff880`00c74000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`04caf000 fffff880`04cbd000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`03e40000 fffff880`03e4f000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04c91000 fffff880`04c9e000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00da6000 fffff880`00dc0000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`03bac000 fffff880`03bc4000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`03bc4000 fffff880`03bf1000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`03a00000 fffff880`03a4e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`03a4e000 fffff880`03a71000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`00df3000 fffff880`00dfe000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`019b2000 fffff880`019bd000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fe4000 fffff880`00fee000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`01117000 fffff880`01175000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`03f0b000 fffff880`03f16000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`015c5000 fffff880`015d7000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014d3000 fffff880`015c5000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0fe78000 fffff880`0fe84000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`0fe84000 fffff880`0feb3000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04d4e000 fffff880`04d63000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02cb9000 fffff880`02cc8000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d51000 fffff880`02d96000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
    fffff880`019bd000 fffff880`019ce000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`03eff000 fffff880`03f0b000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e18000 fffff800`033f5000   nt       ntkrnlmp.exe Tue Oct 26 22:43:09 2010 (4CC791BD)
    fffff880`01235000 fffff880`013d8000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`01944000 fffff880`0194d000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`04d36000 fffff880`04d4e000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`0426f000 fffff880`0429f000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`10b36000 fffff880`10b37180   nvBridge nvBridge.kmd Fri Jan 07 20:57:22 2011 (4D27C482)
    fffff880`04d63000 fffff880`04d8c000   nvhda64v nvhda64v.sys Thu Nov 11 18:10:36 2010 (4CDC77EC)
    fffff880`0fedb000 fffff880`10b35d00   nvlddmkm nvlddmkm.sys Fri Jan 07 21:07:22 2011 (4D27C6DA)
    fffff880`02c93000 fffff880`02cb9000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`00e40000 fffff880`00e55000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00e00000 fffff880`00e33000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00ec6000 fffff880`00ecd000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00fee000 fffff880`00ffe000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`01200000 fffff880`01211000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`05ca1000 fffff880`05d47000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`10b8e000 fffff880`10bcb000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c74000 fffff880`00c88000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`0fe54000 fffff880`0fe78000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`0feb3000 fffff880`0fece000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`10bcb000 fffff880`10bec000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`03e26000 fffff880`03e40000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`03eae000 fffff880`03eff000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`01997000 fffff880`019a0000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`019a0000 fffff880`019a9000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`019a9000 fffff880`019b2000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01493000 fffff880`014cd000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`06158000 fffff880`06184000   rfcomm   rfcomm.sys   Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`03e84000 fffff880`03e9c000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05d47000 fffff880`05d52000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`045e1000 fffff880`045ed000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02cc8000 fffff880`02ce5000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`0148b000 fffff880`01493000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08400000 fffff880`08471000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`060c2000 fffff880`06158000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`05c00000 fffff880`05c67000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`05d52000 fffff880`05d7f000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`04416000 fffff880`04417480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`05d7f000 fffff880`05d91000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`019ec000 fffff880`019f9000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`019ce000 fffff880`019ec000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02db1000 fffff880`02dc5000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`004b0000 fffff960`004ba000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`03e00000 fffff880`03e26000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`03e4f000 fffff880`03e61000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`08591000 fffff880`085abc00   usbaudio usbaudio.sys Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`04c36000 fffff880`04c53000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`043ea000 fffff880`043ebf00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0425e000 fffff880`0426f000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`04cdc000 fffff880`04d36000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`10b38000 fffff880`10b8e000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`00e33000 fffff880`00e40000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`01954000 fffff880`01962000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`01962000 fffff880`01987000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00e55000 fffff880`00e6a000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00e6a000 fffff880`00ec6000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`0104a000 fffff880`01096000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02d96000 fffff880`02db1000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`01987000 fffff880`01997000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00ed1000 fffff880`00f75000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00f75000 fffff880`00f84000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02c8a000 fffff880`02c93000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00000000 fffff960`00310000   win32k   win32k.sys   Tue Jan 04 22:59:44 2011 (4D23ECB0)
    fffff880`045ed000 fffff880`045f6000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00fdb000 fffff880`00fe4000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)

    Unloaded modules:
    fffff880`04c9e000 fffff880`04caf000   AthDfu.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000
    fffff880`018d3000 fffff880`018e1000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`018e1000 fffff880`018ed000   dump_pciidex
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`018ed000 fffff880`018f8000   dump_msahci.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    fffff880`018f8000 fffff880`0190b000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  5. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Thanks. Switching the antivirus now. Could I just check if, based on the attached screens the memory setting looks ok? I checked vs the specs (also attached) and they seem ok.

    Really appreciate the help!


    Attached Files:

  6. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Yes, the memory settings are now correct -- 1600Mhz 9-9-9-24.


    As your pdf says, it can be set:


    - 1600Mhz 9-9-9-24 1.65v (XMP)
    - 1333Mhz 9-9-9-24 1.5v

  7. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Thanks very much. stressing the computer by opening multiple programs does not produce the BSOD like previously anymore.

    only thing is that i am getting othr errors now. Could you help see which drivers are causing this? Dmp files attached. Memory/mainboardsettings have not changed so i am not reattaching.

    Gonna update my USB drivers now but appreciate if you could have a look at the dmps.


    Attached Files:

  8. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    sorry to bother again but ionly have 3 usb connections. one dAC, one mouse and one keyboard. Tried to view the driver in the properties page and it seems like the "Update driver" option is shaded out, meaning, I cannot click it.

    How do I update dirvers in this case?

  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    How to update drivers: go to manufacturers support site, search your device and download updates for it.

    USB 3.0 Controller driver is the causer of your crashes:



    Update USB 3.0 Controller Driver
    nusb3hub.sys Thu Apr 22 21:34:35 2010
    Go to your motherboard support site to update it


    Disable Avermedia card in device manager.




    CRASH DUMPS

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032111-26504-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e4a000 PsLoadedModuleList = 0xfffff800`03087e50
    Debug session time: Mon Mar 21 11:47:00.366 2011 (UTC - 4:00)
    System Uptime: 0 days 0:57:34.287
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ....................................
    Loading User Symbols
    Loading unloaded module list
    .....
    Unable to load image \SystemRoot\system32\DRIVERS\nusb3hub.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for nusb3hub.sys
    *** ERROR: Module load completed but symbols could not be loaded for nusb3hub.sys
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 1000007E, {ffffffffc0000005, fffff88003f9cb9f, fffff880051ac968, fffff880051ac1d0}

    Probably caused by : nusb3hub.sys ( nusb3hub+4b9f )

    Followup: MachineOwner
    ---------

    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    SYSTEM_THREAD_EXCEPTION_NOT_HANDLED_M (1000007e)
    This is a very common bugcheck.  Usually the exception address pinpoints
    the driver/function that caused the problem.  Always note this address
    as well as the link date of the driver/image that contains this address.
    Some common problems are exception code 0x80000003.  This means a hard
    coded breakpoint or assertion was hit, but this system was booted
    /NODEBUG.  This is not supposed to happen as developers should never have
    hardcoded breakpoints in retail code, but ...
    If this happens, make sure a debugger gets connected, and the
    system is booted /DEBUG.  This will let us see why this breakpoint is
    happening.
    Arguments:
    Arg1: ffffffffc0000005, The exception code that was not handled
    Arg2: fffff88003f9cb9f, The address that the exception occurred at
    Arg3: fffff880051ac968, Exception Record Address
    Arg4: fffff880051ac1d0, Context Record Address

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    nusb3hub+4b9f
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b

    EXCEPTION_RECORD:  fffff880051ac968 -- (.exr 0xfffff880051ac968)
    ExceptionAddress: fffff88003f9cb9f (nusb3hub+0x0000000000004b9f)
       ExceptionCode: c0000005 (Access violation)
      ExceptionFlags: 00000000
    NumberParameters: 2
       Parameter[0]: 0000000000000000
       Parameter[1]: 0000000000000002
    Attempt to read from address 0000000000000002

    CONTEXT:  fffff880051ac1d0 -- (.cxr 0xfffff880051ac1d0)
    rax=01cbe7df376ae6b3 rbx=01cbe7df376ae6b3 rcx=fffffa800b138660
    rdx=00000a5e00000000 rsi=0000000000000000 rdi=fffffa800b138660
    rip=fffff88003f9cb9f rsp=fffff880051acba0 rbp=0000000000000001
     r8=0000000000000000  r9=0000000000000f44 r10=fffff80002e4a000
    r11=0000000000000000 r12=00000000c0000001 r13=0000000000000000
    r14=0000000000000001 r15=0000000000000001
    iopl=0         nv up ei ng nz na po nc
    cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00010286
    nusb3hub+0x4b9f:
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b ds:002b:00000000`00000002=??
    Resetting default scope

    CUSTOMER_CRASH_COUNT:  1

    PROCESS_NAME:  System

    CURRENT_IRQL:  0

    ERROR_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    EXCEPTION_PARAMETER1:  0000000000000000

    EXCEPTION_PARAMETER2:  0000000000000002

    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff800030f20e0
     0000000000000002

    FOLLOWUP_IP:
    nusb3hub+4b9f
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b

    BUGCHECK_STR:  0x7E

    DEFAULT_BUCKET_ID:  NULL_CLASS_PTR_DEREFERENCE

    LAST_CONTROL_TRANSFER:  from 0000000000000000 to fffff88003f9cb9f

    STACK_TEXT:
    fffff880`051acba0 00000000`00000000 : 00000000`00000000 00000000`000000f3 00000000`00000000 00000000`00000000 : nusb3hub+0x4b9f


    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nusb3hub+4b9f

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nusb3hub

    IMAGE_NAME:  nusb3hub.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4bd0f92b

    STACK_COMMAND:  .cxr 0xfffff880051ac1d0 ; kb

    FAILURE_BUCKET_ID:  X64_0x7E_nusb3hub+4b9f

    BUCKET_ID:  X64_0x7E_nusb3hub+4b9f

    Followup: MachineOwner
    ---------
























    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032111-26535-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e5c000 PsLoadedModuleList = 0xfffff800`03099e50
    Debug session time: Mon Mar 21 11:58:44.311 2011 (UTC - 4:00)
    System Uptime: 0 days 0:11:01.232
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ....................................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck FE, {6, fffffa800aaf2a40, 43737542, 0}

    Probably caused by : USBPORT.SYS ( USBPORT!USBPORT_AssertSig+25 )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    BUGCODE_USB_DRIVER (fe)
    USB Driver bugcheck, first parameter is USB bugcheck code.
    Arguments:
    Arg1: 0000000000000006, USBBUGCODE_BAD_SIGNATURE An Internal data structure (object)
    	has been corrupted.
    Arg2: fffffa800aaf2a40, Object address
    Arg3: 0000000043737542, Signature that was expected
    Arg4: 0000000000000000

    Debugging Details:
    ------------------


    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xFE

    PROCESS_NAME:  nusb3mon.exe

    CURRENT_IRQL:  2

    LAST_CONTROL_TRANSFER:  from fffff88003f7f14d to fffff80002ecc740

    STACK_TEXT:
    fffff880`0a398758 fffff880`03f7f14d : 00000000`000000fe 00000000`00000006 fffffa80`0aaf2a40 00000000`43737542 : nt!KeBugCheckEx
    fffff880`0a398760 fffff880`03f5e016 : 00000000`55426369 fffffa80`06e91c60 00000000`00000000 00000000`00000001 : USBPORT!USBPORT_AssertSig+0x25
    fffff880`0a3987a0 fffff880`04d202e7 : 00000000`00000000 fffffa80`0ac1c590 fffffa80`09e3ecb0 fffffa80`0ab62050 : USBPORT!USBPORTBUSIF_RefDeviceHandle+0x32
    fffff880`0a3987e0 fffff880`04d0bf54 : fffffa80`06fd0ac0 fffffa80`06fd0ac0 fffffa80`0ac1d000 fffff880`04d1fcbb : usbhub!UsbhRefPdoDeviceHandle+0xdf
    fffff880`0a398840 fffff880`04d0c307 : fffffa80`0ac1d000 fffffa80`06fd0ac0 fffffa80`06e91c60 fffffa80`06e91c60 : usbhub!UsbhGetNodeConnectionInfoForPdo+0xa8
    fffff880`0a3988b0 fffff880`04ceb2d9 : 00000000`00000000 fffffa80`0000016d fffffa80`00000112 fffffa80`06e91c01 : usbhub!UsbhIoctlGetNodeConnectionInfoExApi+0x197
    fffff880`0a398940 fffff880`04ceafdf : fffffa80`072deb10 fffff880`0a398c60 fffffa80`072deb10 00000000`0000016d : usbhub!UsbhFdoDeviceControl+0x1a5
    fffff880`0a3989a0 fffff800`031e5547 : fffffa80`072deb10 fffff880`0a398c60 fffffa80`06e91e98 fffffa80`06e91c60 : usbhub!UsbhGenDispatch+0x7f
    fffff880`0a3989d0 fffff800`031e5da6 : 00000000`0008e348 00000000`000001b0 00000000`00000001 00000000`0018f480 : nt!IopXxxControlFile+0x607
    fffff880`0a398b00 fffff800`02ecb993 : fffffa80`0cecab60 00000000`0008e2e8 fffff880`0a398b88 00000000`00000000 : nt!NtDeviceIoControlFile+0x56
    fffff880`0a398b70 00000000`736d2dd9 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`0008ebf8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x736d2dd9


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    USBPORT!USBPORT_AssertSig+25
    fffff880`03f7f14d cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  USBPORT!USBPORT_AssertSig+25

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: USBPORT

    IMAGE_NAME:  USBPORT.SYS

    DEBUG_FLR_IMAGE_TIMESTAMP:  4a5bcc07

    FAILURE_BUCKET_ID:  X64_0xFE_USBPORT!USBPORT_AssertSig+25

    BUCKET_ID:  X64_0xFE_USBPORT!USBPORT_AssertSig+25

    Followup: MachineOwner
    ---------








    DRIVERS

    Code:
    start             end                 module name
    fffff880`03e00000 fffff880`03e3e000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00ec0000 fffff880`00f17000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02c7d000 fffff880`02d07000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03e4e000 fffff880`03e64000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`00dcc000 fffff880`00dd7000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`04071000 fffff880`04094000   AnyDVD   AnyDVD.sys   Wed Dec 01 14:06:20 2010 (4CF69CAC)
    fffff880`03e8e000 fffff880`03edd000   ArcSec   ArcSec.sys   Mon Sep 20 20:38:32 2010 (4C97FE88)
    fffff880`00ff7000 fffff880`01000000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00da2000 fffff880`00dcc000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`04099000 fffff880`041e3c80   AVerBDA716x_x64 AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009 (4A28EC4E)
    fffff880`04043000 fffff880`04046e80   BdaSup   BdaSup.SYS   Mon Jul 13 20:06:40 2009 (4A5BCC10)
    fffff880`019dc000 fffff880`019e3000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`02c1b000 fffff880`02c2c000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`06b71000 fffff880`06b8f000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`03a3e000 fffff880`03aa5000   btath_a2dp btath_a2dp.sys Thu Sep 16 07:34:42 2010 (4C9200D2)
    fffff880`02c2c000 fffff880`02c37000   btath_bus btath_bus.sys Thu Jun 24 02:17:43 2010 (4C22F887)
    fffff880`03b08000 fffff880`03b17000   btath_flt btath_flt.sys Thu Jun 24 02:17:38 2010 (4C22F882)
    fffff880`03aa5000 fffff880`03b08000   btath_hcrp btath_hcrp.sys Tue Jun 29 05:30:43 2010 (4C29BD43)
    fffff880`03b17000 fffff880`03b2a000   btath_lwflt btath_lwflt.sys Mon Sep 13 04:26:54 2010 (4C8DE04E)
    fffff880`0289d000 fffff880`028c1e00   btath_rcp btath_rcp.sys Thu Jun 24 02:17:21 2010 (4C22F871)
    fffff880`028f8000 fffff880`0293f000   btfilter btfilter.sys Fri Oct 22 02:40:47 2010 (4CC131EF)
    fffff880`0284f000 fffff880`0285f000   BthEnum  BthEnum.sys  Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`0285f000 fffff880`0287f000   bthpan   bthpan.sys   Mon Jul 13 20:07:00 2009 (4A5BCC24)
    fffff880`02957000 fffff880`029e3000   bthport  bthport.sys  Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`0293f000 fffff880`02957000   BTHUSB   BTHUSB.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff960`007a0000 fffff960`007c7000   cdd      cdd.dll      Wed Jan 26 01:31:34 2011 (4D3FBFC6)
    fffff880`04c00000 fffff880`04c1d000   cdfs     cdfs.sys     Mon Jul 13 19:19:46 2009 (4A5BC112)
    fffff880`01978000 fffff880`019a2000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00c00000 fffff880`00cc0000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`01910000 fffff880`01940000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00d44000 fffff880`00da2000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`04216000 fffff880`043db000   cmudaxp  cmudaxp.sys  Thu Oct 28 04:27:22 2010 (4CC933EA)
    fffff880`01156000 fffff880`011c9000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`03e3e000 fffff880`03e4e000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`04c92000 fffff880`04ca0000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`01897000 fffff880`018b5000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02c0c000 fffff880`02c1b000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`018fa000 fffff880`01910000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`043db000 fffff880`043fd000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`04ca0000 fffff880`04cac000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`04cb7000 fffff880`04cca000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`04cac000 fffff880`04cb7000   dump_msahci dump_msahci.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`04c1d000 fffff880`04c29000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`10abf000 fffff880`10bb3000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 23:22:56 2011 (4D3FA1A0)
    fffff880`10bb3000 fffff880`10bf9000   dxgmms1  dxgmms1.sys  Tue Jan 25 23:22:12 2011 (4D3FA174)
    fffff880`03f03000 fffff880`03f52000   e1c62x64 e1c62x64.sys Tue Sep 21 17:34:15 2010 (4C9924D7)
    fffff880`02c00000 fffff880`02c0c000   ElbyCDIO ElbyCDIO.sys Thu Dec 16 17:58:13 2010 (4D0A9985)
    fffff880`010e4000 fffff880`010f8000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`01098000 fffff880`010e4000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`0122b000 fffff880`01235000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`018c0000 fffff880`018fa000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`01400000 fffff880`0144a000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff800`02e13000 fffff800`02e5c000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`0fe00000 fffff880`0fe24000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`04d99000 fffff880`04df5000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`0404d000 fffff880`0405e000   HECIx64  HECIx64.sys  Tue Sep 21 12:59:04 2010 (4C98E458)
    fffff880`0287f000 fffff880`0289d000   hidbth   hidbth.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`04c62000 fffff880`04c7b000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`04c7b000 fffff880`04c83080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`04c54000 fffff880`04c62000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`06aa9000 fffff880`06b71000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`015e2000 fffff880`015eb000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`041e4000 fffff880`041fa000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`019f1000 fffff880`01a00000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04c84000 fffff880`04c92000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00bc2000 fffff800`00bcc000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`04000000 fffff880`04043000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`01200000 fffff880`0121a000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`0159d000 fffff880`015c8000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`04047000 fffff880`0404c200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`03b2a000 fffff880`03b3f000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`02800000 fffff880`02823000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00cec000 fffff880`00d30000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`04c29000 fffff880`04c37000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`015eb000 fffff880`015fa000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04cca000 fffff880`04cd7000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00cd0000 fffff880`00cea000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`019a2000 fffff880`019d3000   MpFilter MpFilter.sys Tue Sep 14 20:19:28 2010 (4C901110)
    fffff880`0838e000 fffff880`0839e000   MpNWMon  MpNWMon.sys  Tue Sep 14 20:19:30 2010 (4C901112)
    fffff880`06b8f000 fffff880`06ba7000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06ba7000 fffff880`06bd4000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`06a00000 fffff880`06a4e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`06a4e000 fffff880`06a71000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`00e00000 fffff880`00e0b000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`01850000 fffff880`0185b000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00f20000 fffff880`00f2a000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010f8000 fffff880`01156000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`02dee000 fffff880`02df9000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`015d0000 fffff880`015e2000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`0144b000 fffff880`0153d000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0fe54000 fffff880`0fe60000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`011c9000 fffff880`011f8000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04d5b000 fffff880`04d70000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02d36000 fffff880`02d45000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02c38000 fffff880`02c7d000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`0153d000 fffff880`0159d000   NETIO    NETIO.SYS    Thu Apr 08 22:43:59 2010 (4BBE946F)
    fffff880`0839e000 fffff880`083b3000   NisDrvWFP NisDrvWFP.sys Tue Sep 14 20:20:25 2010 (4C901149)
    fffff880`0185b000 fffff880`0186c000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02de2000 fffff880`02dee000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e5c000 fffff800`03439000   nt       ntkrnlmp.exe Tue Oct 26 22:43:09 2010 (4CC791BD)
    fffff880`01250000 fffff880`013f3000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`019d3000 fffff880`019dc000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`04d43000 fffff880`04d5b000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`0fe24000 fffff880`0fe54000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`10abd000 fffff880`10abe180   nvBridge nvBridge.kmd Fri Jan 07 20:57:22 2011 (4D27C482)
    fffff880`04d70000 fffff880`04d99000   nvhda64v nvhda64v.sys Thu Nov 11 18:10:36 2010 (4CDC77EC)
    fffff880`0fe62000 fffff880`10abcd00   nvlddmkm nvlddmkm.sys Fri Jan 07 21:07:22 2011 (4D27C6DA)
    fffff880`02d10000 fffff880`02d36000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`00f6a000 fffff880`00f7f000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00f2a000 fffff880`00f5d000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00ff0000 fffff880`00ff7000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00cc0000 fffff880`00cd0000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`0121a000 fffff880`0122b000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`03b57000 fffff880`03bfd000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`03fa8000 fffff880`03fe5000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00d30000 fffff880`00d44000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`03e64000 fffff880`03e88000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`03fe5000 fffff880`04000000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`00dd7000 fffff880`00df8000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`01235000 fffff880`0124f000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02d91000 fffff880`02de2000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`01835000 fffff880`0183e000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`0183e000 fffff880`01847000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`01847000 fffff880`01850000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`0104c000 fffff880`01086000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`02823000 fffff880`0284f000   rfcomm   rfcomm.sys   Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`03b3f000 fffff880`03b57000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`06a71000 fffff880`06a7c000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04200000 fffff880`0420c000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02d45000 fffff880`02d62000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`015c8000 fffff880`015d0000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08200000 fffff880`08271000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`082f8000 fffff880`0838e000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`08291000 fffff880`082f8000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`06a7c000 fffff880`06aa9000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`043fd000 fffff880`043fe480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`06bd4000 fffff880`06be6000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`0188a000 fffff880`01897000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`0186c000 fffff880`0188a000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02d7d000 fffff880`02d91000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00530000 fffff960`0053a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03edd000 fffff880`03f03000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`01086000 fffff880`01098000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`01940000 fffff880`0195ac00   usbaudio usbaudio.sys Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`04c37000 fffff880`04c54000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`0406f000 fffff880`04070f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0405e000 fffff880`0406f000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`04ce9000 fffff880`04d43000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`03f52000 fffff880`03fa8000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`00f5d000 fffff880`00f6a000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`019e3000 fffff880`019f1000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`01800000 fffff880`01825000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f7f000 fffff880`00f94000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00f94000 fffff880`00ff0000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`01000000 fffff880`0104c000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02d62000 fffff880`02d7d000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`01825000 fffff880`01835000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e0d000 fffff880`00eb1000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00eb1000 fffff880`00ec0000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02d07000 fffff880`02d10000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00080000 fffff960`00390000   win32k   win32k.sys   Tue Jan 04 22:59:44 2011 (4D23ECB0)
    fffff880`0420c000 fffff880`04215000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00f17000 fffff880`00f20000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)

    Unloaded modules:
    fffff880`01940000 fffff880`0194e000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0194e000 fffff880`0195a000   dump_pciidex
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`0195a000 fffff880`01965000   dump_msahci.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    fffff880`01965000 fffff880`01978000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  10. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Hi,

    just reset everything by doing a clean install. No more AVG and avermedia is disabled. still get the BSOD though. any reason why?

    I did not change BIOS settings so the cpu z screens have not changed. If you still need to see them do let me know.

    As an addition, I also ran windows diagnostics Extended run 6 passes (continuous) and there were no errors.


    Attached Files:

    #10 leebter, Mar 28, 2011
    Last edited: Mar 28, 2011
  11. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    USB 3.0 controller causes blue screens again:



    Again, try to follow:


    1. Update USB 3.0 Controller
    nusb3hub.sys Thu Apr 22 21:34:35 2010
    nusb3xhc.sys Thu Apr 22 21:34:36 2010
    ASUSTeK Computer Inc.-Support-
    Support & Downloads | NEC



    2.
    No, it's not:

    fffff880`04099000 fffff880`041e3c80 AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009 (4A28EC4E)

    How to disable in device manager.




    3. RAM must be set 1600Mhz 9-9-9-24. Yours is 1600 9 9 9 27 at the moment:

    [​IMG]






    Please follow 1, 2, and 3, each step is important!

    If you get more crashes, re-attach:

    - cpuz MEMORY and CPU
    - latest crash dumps





    CRASH DUMPS

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032111-26504-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e4a000 PsLoadedModuleList = 0xfffff800`03087e50
    Debug session time: Mon Mar 21 11:47:00.366 2011 (UTC - 4:00)
    System Uptime: 0 days 0:57:34.287
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ....................................
    Loading User Symbols
    Loading unloaded module list
    .....
    Unable to load image \SystemRoot\system32\DRIVERS\nusb3hub.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for nusb3hub.sys
    *** ERROR: Module load completed but symbols could not be loaded for nusb3hub.sys
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 1000007E, {ffffffffc0000005, fffff88003f9cb9f, fffff880051ac968, fffff880051ac1d0}

    Probably caused by : nusb3hub.sys ( nusb3hub+4b9f )

    Followup: MachineOwner
    ---------

    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    SYSTEM_THREAD_EXCEPTION_NOT_HANDLED_M (1000007e)
    This is a very common bugcheck.  Usually the exception address pinpoints
    the driver/function that caused the problem.  Always note this address
    as well as the link date of the driver/image that contains this address.
    Some common problems are exception code 0x80000003.  This means a hard
    coded breakpoint or assertion was hit, but this system was booted
    /NODEBUG.  This is not supposed to happen as developers should never have
    hardcoded breakpoints in retail code, but ...
    If this happens, make sure a debugger gets connected, and the
    system is booted /DEBUG.  This will let us see why this breakpoint is
    happening.
    Arguments:
    Arg1: ffffffffc0000005, The exception code that was not handled
    Arg2: fffff88003f9cb9f, The address that the exception occurred at
    Arg3: fffff880051ac968, Exception Record Address
    Arg4: fffff880051ac1d0, Context Record Address

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    nusb3hub+4b9f
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b

    EXCEPTION_RECORD:  fffff880051ac968 -- (.exr 0xfffff880051ac968)
    ExceptionAddress: fffff88003f9cb9f (nusb3hub+0x0000000000004b9f)
       ExceptionCode: c0000005 (Access violation)
      ExceptionFlags: 00000000
    NumberParameters: 2
       Parameter[0]: 0000000000000000
       Parameter[1]: 0000000000000002
    Attempt to read from address 0000000000000002

    CONTEXT:  fffff880051ac1d0 -- (.cxr 0xfffff880051ac1d0)
    rax=01cbe7df376ae6b3 rbx=01cbe7df376ae6b3 rcx=fffffa800b138660
    rdx=00000a5e00000000 rsi=0000000000000000 rdi=fffffa800b138660
    rip=fffff88003f9cb9f rsp=fffff880051acba0 rbp=0000000000000001
     r8=0000000000000000  r9=0000000000000f44 r10=fffff80002e4a000
    r11=0000000000000000 r12=00000000c0000001 r13=0000000000000000
    r14=0000000000000001 r15=0000000000000001
    iopl=0         nv up ei ng nz na po nc
    cs=0010  ss=0018  ds=002b  es=002b  fs=0053  gs=002b             efl=00010286
    nusb3hub+0x4b9f:
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b ds:002b:00000000`00000002=??
    Resetting default scope

    CUSTOMER_CRASH_COUNT:  1

    PROCESS_NAME:  System

    CURRENT_IRQL:  0

    ERROR_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    EXCEPTION_PARAMETER1:  0000000000000000

    EXCEPTION_PARAMETER2:  0000000000000002

    READ_ADDRESS: GetPointerFromAddress: unable to read from fffff800030f20e0
     0000000000000002

    FOLLOWUP_IP:
    nusb3hub+4b9f
    fffff880`03f9cb9f 45387502        cmp     byte ptr [r13+2],r14b

    BUGCHECK_STR:  0x7E

    DEFAULT_BUCKET_ID:  NULL_CLASS_PTR_DEREFERENCE

    LAST_CONTROL_TRANSFER:  from 0000000000000000 to fffff88003f9cb9f

    STACK_TEXT:
    fffff880`051acba0 00000000`00000000 : 00000000`00000000 00000000`000000f3 00000000`00000000 00000000`00000000 : nusb3hub+0x4b9f


    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nusb3hub+4b9f

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nusb3hub

    IMAGE_NAME:  nusb3hub.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4bd0f92b

    STACK_COMMAND:  .cxr 0xfffff880051ac1d0 ; kb

    FAILURE_BUCKET_ID:  X64_0x7E_nusb3hub+4b9f

    BUCKET_ID:  X64_0x7E_nusb3hub+4b9f

    Followup: MachineOwner
    ---------

























    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\DMP\032111-26535-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7600.16695.amd64fre.win7_gdr.101026-1503
    Machine Name:
    Kernel base = 0xfffff800`02e5c000 PsLoadedModuleList = 0xfffff800`03099e50
    Debug session time: Mon Mar 21 11:58:44.311 2011 (UTC - 4:00)
    System Uptime: 0 days 0:11:01.232
    Loading Kernel Symbols
    .

    Press ctrl-c (cdb, kd, ntsd) or ctrl-break (windbg) to abort symbol loads that take too long.
    Run !sym noisy before .reload to track down problems loading symbols.

    ..............................................................
    ................................................................
    ....................................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck FE, {6, fffffa800aaf2a40, 43737542, 0}

    Probably caused by : USBPORT.SYS ( USBPORT!USBPORT_AssertSig+25 )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    BUGCODE_USB_DRIVER (fe)
    USB Driver bugcheck, first parameter is USB bugcheck code.
    Arguments:
    Arg1: 0000000000000006, USBBUGCODE_BAD_SIGNATURE An Internal data structure (object)
    	has been corrupted.
    Arg2: fffffa800aaf2a40, Object address
    Arg3: 0000000043737542, Signature that was expected
    Arg4: 0000000000000000

    Debugging Details:
    ------------------


    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xFE

    PROCESS_NAME:  nusb3mon.exe

    CURRENT_IRQL:  2

    LAST_CONTROL_TRANSFER:  from fffff88003f7f14d to fffff80002ecc740

    STACK_TEXT:
    fffff880`0a398758 fffff880`03f7f14d : 00000000`000000fe 00000000`00000006 fffffa80`0aaf2a40 00000000`43737542 : nt!KeBugCheckEx
    fffff880`0a398760 fffff880`03f5e016 : 00000000`55426369 fffffa80`06e91c60 00000000`00000000 00000000`00000001 : USBPORT!USBPORT_AssertSig+0x25
    fffff880`0a3987a0 fffff880`04d202e7 : 00000000`00000000 fffffa80`0ac1c590 fffffa80`09e3ecb0 fffffa80`0ab62050 : USBPORT!USBPORTBUSIF_RefDeviceHandle+0x32
    fffff880`0a3987e0 fffff880`04d0bf54 : fffffa80`06fd0ac0 fffffa80`06fd0ac0 fffffa80`0ac1d000 fffff880`04d1fcbb : usbhub!UsbhRefPdoDeviceHandle+0xdf
    fffff880`0a398840 fffff880`04d0c307 : fffffa80`0ac1d000 fffffa80`06fd0ac0 fffffa80`06e91c60 fffffa80`06e91c60 : usbhub!UsbhGetNodeConnectionInfoForPdo+0xa8
    fffff880`0a3988b0 fffff880`04ceb2d9 : 00000000`00000000 fffffa80`0000016d fffffa80`00000112 fffffa80`06e91c01 : usbhub!UsbhIoctlGetNodeConnectionInfoExApi+0x197
    fffff880`0a398940 fffff880`04ceafdf : fffffa80`072deb10 fffff880`0a398c60 fffffa80`072deb10 00000000`0000016d : usbhub!UsbhFdoDeviceControl+0x1a5
    fffff880`0a3989a0 fffff800`031e5547 : fffffa80`072deb10 fffff880`0a398c60 fffffa80`06e91e98 fffffa80`06e91c60 : usbhub!UsbhGenDispatch+0x7f
    fffff880`0a3989d0 fffff800`031e5da6 : 00000000`0008e348 00000000`000001b0 00000000`00000001 00000000`0018f480 : nt!IopXxxControlFile+0x607
    fffff880`0a398b00 fffff800`02ecb993 : fffffa80`0cecab60 00000000`0008e2e8 fffff880`0a398b88 00000000`00000000 : nt!NtDeviceIoControlFile+0x56
    fffff880`0a398b70 00000000`736d2dd9 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`0008ebf8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x736d2dd9


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    USBPORT!USBPORT_AssertSig+25
    fffff880`03f7f14d cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  USBPORT!USBPORT_AssertSig+25

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: USBPORT

    IMAGE_NAME:  USBPORT.SYS

    DEBUG_FLR_IMAGE_TIMESTAMP:  4a5bcc07

    FAILURE_BUCKET_ID:  X64_0xFE_USBPORT!USBPORT_AssertSig+25

    BUCKET_ID:  X64_0xFE_USBPORT!USBPORT_AssertSig+25

    Followup: MachineOwner
    ---------








    DRIVERS

    Code:
    start             end                 module name
    fffff880`03e00000 fffff880`03e3e000   1394ohci 1394ohci.sys Mon Jul 13 20:07:12 2009 (4A5BCC30)
    fffff880`00ec0000 fffff880`00f17000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
    fffff880`02c7d000 fffff880`02d07000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`03e4e000 fffff880`03e64000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`00dcc000 fffff880`00dd7000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
    fffff880`04071000 fffff880`04094000   AnyDVD   AnyDVD.sys   Wed Dec 01 14:06:20 2010 (4CF69CAC)
    fffff880`03e8e000 fffff880`03edd000   ArcSec   ArcSec.sys   Mon Sep 20 20:38:32 2010 (4C97FE88)
    fffff880`00ff7000 fffff880`01000000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00da2000 fffff880`00dcc000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
    fffff880`04099000 fffff880`041e3c80   AVerBDA716x_x64 AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009 (4A28EC4E)
    fffff880`04043000 fffff880`04046e80   BdaSup   BdaSup.SYS   Mon Jul 13 20:06:40 2009 (4A5BCC10)
    fffff880`019dc000 fffff880`019e3000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`02c1b000 fffff880`02c2c000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`06b71000 fffff880`06b8f000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff880`03a3e000 fffff880`03aa5000   btath_a2dp btath_a2dp.sys Thu Sep 16 07:34:42 2010 (4C9200D2)
    fffff880`02c2c000 fffff880`02c37000   btath_bus btath_bus.sys Thu Jun 24 02:17:43 2010 (4C22F887)
    fffff880`03b08000 fffff880`03b17000   btath_flt btath_flt.sys Thu Jun 24 02:17:38 2010 (4C22F882)
    fffff880`03aa5000 fffff880`03b08000   btath_hcrp btath_hcrp.sys Tue Jun 29 05:30:43 2010 (4C29BD43)
    fffff880`03b17000 fffff880`03b2a000   btath_lwflt btath_lwflt.sys Mon Sep 13 04:26:54 2010 (4C8DE04E)
    fffff880`0289d000 fffff880`028c1e00   btath_rcp btath_rcp.sys Thu Jun 24 02:17:21 2010 (4C22F871)
    fffff880`028f8000 fffff880`0293f000   btfilter btfilter.sys Fri Oct 22 02:40:47 2010 (4CC131EF)
    fffff880`0284f000 fffff880`0285f000   BthEnum  BthEnum.sys  Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`0285f000 fffff880`0287f000   bthpan   bthpan.sys   Mon Jul 13 20:07:00 2009 (4A5BCC24)
    fffff880`02957000 fffff880`029e3000   bthport  bthport.sys  Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`0293f000 fffff880`02957000   BTHUSB   BTHUSB.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff960`007a0000 fffff960`007c7000   cdd      cdd.dll      Wed Jan 26 01:31:34 2011 (4D3FBFC6)
    fffff880`04c00000 fffff880`04c1d000   cdfs     cdfs.sys     Mon Jul 13 19:19:46 2009 (4A5BC112)
    fffff880`01978000 fffff880`019a2000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`00c00000 fffff880`00cc0000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
    fffff880`01910000 fffff880`01940000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00d44000 fffff880`00da2000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`04216000 fffff880`043db000   cmudaxp  cmudaxp.sys  Thu Oct 28 04:27:22 2010 (4CC933EA)
    fffff880`01156000 fffff880`011c9000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
    fffff880`03e3e000 fffff880`03e4e000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`04c92000 fffff880`04ca0000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`01897000 fffff880`018b5000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
    fffff880`02c0c000 fffff880`02c1b000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`018fa000 fffff880`01910000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`043db000 fffff880`043fd000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`04ca0000 fffff880`04cac000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`04cb7000 fffff880`04cca000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`04cac000 fffff880`04cb7000   dump_msahci dump_msahci.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`04c1d000 fffff880`04c29000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`10abf000 fffff880`10bb3000   dxgkrnl  dxgkrnl.sys  Tue Jan 25 23:22:56 2011 (4D3FA1A0)
    fffff880`10bb3000 fffff880`10bf9000   dxgmms1  dxgmms1.sys  Tue Jan 25 23:22:12 2011 (4D3FA174)
    fffff880`03f03000 fffff880`03f52000   e1c62x64 e1c62x64.sys Tue Sep 21 17:34:15 2010 (4C9924D7)
    fffff880`02c00000 fffff880`02c0c000   ElbyCDIO ElbyCDIO.sys Thu Dec 16 17:58:13 2010 (4D0A9985)
    fffff880`010e4000 fffff880`010f8000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`01098000 fffff880`010e4000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
    fffff880`0122b000 fffff880`01235000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`018c0000 fffff880`018fa000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
    fffff880`01400000 fffff880`0144a000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
    fffff800`02e13000 fffff800`02e5c000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
    fffff880`0fe00000 fffff880`0fe24000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
    fffff880`04d99000 fffff880`04df5000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
    fffff880`0404d000 fffff880`0405e000   HECIx64  HECIx64.sys  Tue Sep 21 12:59:04 2010 (4C98E458)
    fffff880`0287f000 fffff880`0289d000   hidbth   hidbth.sys   Mon Jul 13 20:06:52 2009 (4A5BCC1C)
    fffff880`04c62000 fffff880`04c7b000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
    fffff880`04c7b000 fffff880`04c83080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`04c54000 fffff880`04c62000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
    fffff880`06aa9000 fffff880`06b71000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
    fffff880`015e2000 fffff880`015eb000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
    fffff880`041e4000 fffff880`041fa000   intelppm intelppm.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`019f1000 fffff880`01a00000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04c84000 fffff880`04c92000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff800`00bc2000 fffff800`00bcc000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`04000000 fffff880`04043000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
    fffff880`01200000 fffff880`0121a000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
    fffff880`0159d000 fffff880`015c8000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
    fffff880`04047000 fffff880`0404c200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`03b2a000 fffff880`03b3f000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`02800000 fffff880`02823000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00cec000 fffff880`00d30000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 21:29:10 2009 (4A5BDF66)
    fffff880`04c29000 fffff880`04c37000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`015eb000 fffff880`015fa000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`04cca000 fffff880`04cd7000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00cd0000 fffff880`00cea000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`019a2000 fffff880`019d3000   MpFilter MpFilter.sys Tue Sep 14 20:19:28 2010 (4C901110)
    fffff880`0838e000 fffff880`0839e000   MpNWMon  MpNWMon.sys  Tue Sep 14 20:19:30 2010 (4C901112)
    fffff880`06b8f000 fffff880`06ba7000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06ba7000 fffff880`06bd4000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
    fffff880`06a00000 fffff880`06a4e000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
    fffff880`06a4e000 fffff880`06a71000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
    fffff880`00e00000 fffff880`00e0b000   msahci   msahci.sys   Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`01850000 fffff880`0185b000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00f20000 fffff880`00f2a000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010f8000 fffff880`01156000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
    fffff880`02dee000 fffff880`02df9000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`015d0000 fffff880`015e2000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`0144b000 fffff880`0153d000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
    fffff880`0fe54000 fffff880`0fe60000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`011c9000 fffff880`011f8000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`04d5b000 fffff880`04d70000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
    fffff880`02d36000 fffff880`02d45000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02c38000 fffff880`02c7d000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
    fffff880`0153d000 fffff880`0159d000   NETIO    NETIO.SYS    Thu Apr 08 22:43:59 2010 (4BBE946F)
    fffff880`0839e000 fffff880`083b3000   NisDrvWFP NisDrvWFP.sys Tue Sep 14 20:20:25 2010 (4C901149)
    fffff880`0185b000 fffff880`0186c000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02de2000 fffff880`02dee000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02e5c000 fffff800`03439000   nt       ntkrnlmp.exe Tue Oct 26 22:43:09 2010 (4CC791BD)
    fffff880`01250000 fffff880`013f3000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
    fffff880`019d3000 fffff880`019dc000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`04d43000 fffff880`04d5b000   nusb3hub nusb3hub.sys Thu Apr 22 21:34:35 2010 (4BD0F92B)
    fffff880`0fe24000 fffff880`0fe54000   nusb3xhc nusb3xhc.sys Thu Apr 22 21:34:36 2010 (4BD0F92C)
    fffff880`10abd000 fffff880`10abe180   nvBridge nvBridge.kmd Fri Jan 07 20:57:22 2011 (4D27C482)
    fffff880`04d70000 fffff880`04d99000   nvhda64v nvhda64v.sys Thu Nov 11 18:10:36 2010 (4CDC77EC)
    fffff880`0fe62000 fffff880`10abcd00   nvlddmkm nvlddmkm.sys Fri Jan 07 21:07:22 2011 (4D27C6DA)
    fffff880`02d10000 fffff880`02d36000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
    fffff880`00f6a000 fffff880`00f7f000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
    fffff880`00f2a000 fffff880`00f5d000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`00ff0000 fffff880`00ff7000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00cc0000 fffff880`00cd0000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`0121a000 fffff880`0122b000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`03b57000 fffff880`03bfd000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`03fa8000 fffff880`03fe5000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00d30000 fffff880`00d44000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`03e64000 fffff880`03e88000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
    fffff880`03fe5000 fffff880`04000000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`00dd7000 fffff880`00df8000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
    fffff880`01235000 fffff880`0124f000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02d91000 fffff880`02de2000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
    fffff880`01835000 fffff880`0183e000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`0183e000 fffff880`01847000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`01847000 fffff880`01850000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`0104c000 fffff880`01086000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
    fffff880`02823000 fffff880`0284f000   rfcomm   rfcomm.sys   Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`03b3f000 fffff880`03b57000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`06a71000 fffff880`06a7c000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04200000 fffff880`0420c000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02d45000 fffff880`02d62000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`015c8000 fffff880`015d0000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08200000 fffff880`08271000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`082f8000 fffff880`0838e000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
    fffff880`08291000 fffff880`082f8000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
    fffff880`06a7c000 fffff880`06aa9000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
    fffff880`043fd000 fffff880`043fe480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01601000 fffff880`017fe000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
    fffff880`06bd4000 fffff880`06be6000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
    fffff880`0188a000 fffff880`01897000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
    fffff880`0186c000 fffff880`0188a000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
    fffff880`02d7d000 fffff880`02d91000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
    fffff960`00530000 fffff960`0053a000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`03edd000 fffff880`03f03000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
    fffff880`01086000 fffff880`01098000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
    fffff880`01940000 fffff880`0195ac00   usbaudio usbaudio.sys Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`04c37000 fffff880`04c54000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
    fffff880`0406f000 fffff880`04070f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0405e000 fffff880`0406f000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`04ce9000 fffff880`04d43000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
    fffff880`03f52000 fffff880`03fa8000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`00f5d000 fffff880`00f6a000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`019e3000 fffff880`019f1000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`01800000 fffff880`01825000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f7f000 fffff880`00f94000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`00f94000 fffff880`00ff0000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
    fffff880`01000000 fffff880`0104c000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
    fffff880`02d62000 fffff880`02d7d000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
    fffff880`01825000 fffff880`01835000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00e0d000 fffff880`00eb1000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00eb1000 fffff880`00ec0000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02d07000 fffff880`02d10000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00080000 fffff960`00390000   win32k   win32k.sys   Tue Jan 04 22:59:44 2011 (4D23ECB0)
    fffff880`0420c000 fffff880`04215000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00f17000 fffff880`00f20000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)

    Unloaded modules:
    fffff880`01940000 fffff880`0194e000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0194e000 fffff880`0195a000   dump_pciidex
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`0195a000 fffff880`01965000   dump_msahci.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    fffff880`01965000 fffff880`01978000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  12. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Thanks Cybercore. I may not be the easiest person to work with because I am confused about the problem too but thanks for your patience. Last few confirmations.

    usb 3- Can I just confirm that the usb3 driver was the immediate reason for the crash? I will check with Asus but it is strange that their website and windows updating say I have the latest driver.Renesas does not provide them.

    RAM - specs of my ram attached. Not too sure how the previous conclusion was reached but relooking the specs, it says 9-9-9-27, 1.65v. Could you spare a min to confirm? Sorry to bother.

    Avermedia - Attached a screen showing that the avermedia driver has been disabled. Do I need to uninstall?


    Attached Files:

  13. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Memory - Ok, yes, according to the pdf the rates are DDR3-1600MHz at a low latency timing of 9-9-9-27 at 1.65V.. This means your current settings are correct.


    Avermedia - Ok, disabled. To prevent its driver from loading on startup, navigate to C:\Windows\system32\drivers and rename to .BAK this file:

    AVerBDA716x_x64.sys Fri Jun 05 05:58:38 2009

    At some point later you can rename it back when needed.



    Yes, that's what your crash dumps point to.



    So update USB 3.0 and rename the Avermedia driver. If you get a blue screen, this time attach the .dmp's only.

    ASUSTeK Computer Inc.-Support-

    Support & Downloads | NEC

    The latest version is November 2010 or later.

  14. leebter

    leebter New Member

    Joined:
    Mar 20, 2011
    Messages:
    16
    Likes Received:
    0
    Thanks very much for this.

    A bit off topic so if you don't want to reply is ok. I'm just curious considering the speed of your replies. Are you salaried support or doing this for free? Also are you just one person replying or a bunch of people? The speed of replies is incredible!

  15. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    No, I don't get paid for this.




    No, anyone is free to join me.





    Thank you.


    You are much welcome.


Share This Page

Loading...
