So many different BSOD and various others!

Hello, I recently wiped my hard drive and installed windows 7 home edition but I've been having alot of issues recently, if my computer boots up at all. Sometimes it just loops the sound of the fans starting up for as long as 20 minutes. Sometimes it just has graphics errors on the boot up screens.

Some of the errors I have encountered are BSOD's like 0x00000008E/0A/1A/1C and C5


Bootmgr error and checksum errors.

win32k error.


I've no clue what to do about it! I've wiped and formatted several times now.



Extraordinary Member
Hi Adramlech and Welcome to The Forum.

Can you please attach your latest dump file(s) in a zip file to a post. Could you also read the stickies at the top of the BSOD forum for valid information that will help.

Basically, the more we know of what you are running and how you are running it, the easier and quicker it is to resolve your issue.

(Imagine meeting your best friend and saying "I had a bluescreen" And your friend says "That's nothing, I had a yellow lollypop". See what I mean? No connection!!)

Sorry I had tried to post them but they arent here, I have had four BSOD since that post too. Let me attempt once more,


Extraordinary Member
I tend to use the inbuilt Windows zip. Or WinRAR.

It's a lot handier for us poor bu**ers on this end D/Ling your dumps in one file. But what the heck, you got them attached, that's the main thing. That'll be the start of sorting you out.

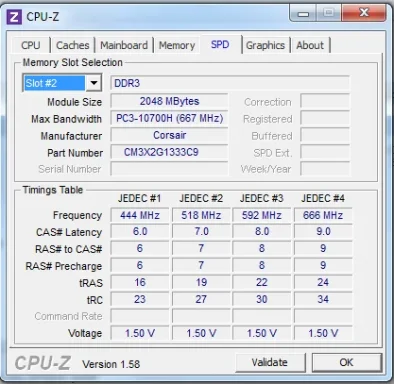

I have noticed you have 6Gb of ram, but you only posted the one 2Gb stick/slot. Can you post them all? (under CPU). Your RAM timings as far as I can see are a mile out on the one stick (slot) you've shown us

Last edited:

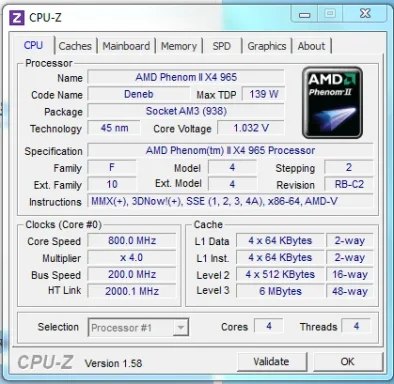

Ok here's the CPU screen, had another crash. It's just non-stop :(



Extraordinary Member

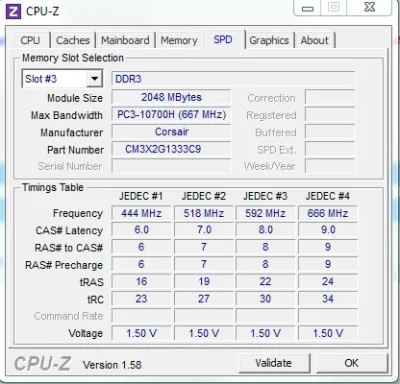

Did I say CPU? (Yes I did). My apologies I should have said every slot# under the SPD tab.

Usual causes:
Insufficient disk space, Device driver, Video card, BIOS, Breakpoint in startup without having a debugger attached, Hardware incompatibility, Faulty system service, 3rd party remote control, Memory

Your latest dump file lists win32k.sys as the probable cause. This is a Windows System file and for it to be the cause of your crash is highly unlikely.
Old and incompatible drivers can and do cause issues with Windows 7, often giving false error codes. Random stop codes often indicate hardware issues.

Outdated Drivers. Update:

viahduaa.sys Tue Jun 02 09:54:04 2009 VIA High Definition Audio Function Driver

Rt86win7.sys Fri May 22 15:52:05 2009 Realtek PCIe GBE Family Controller v7.046

nvlddmkm.sys Mon Mar 09 00:41:54 2009 nVidia Graphics Drivers.

mv61xx.sys Fri Mar 20 03:47:19 2009 Marvell Thor Windows Driver

AtiPcie.sys Tue May 05 16:00:16 2009 ATI PCIE Chipset Driver. Go to Mobo Mfr. or AMD

AsIO.sys Mon Dec 17 09:10:20 2007 ASUS Probe Utility - Has issues with Windows 7. Uninstall.

Bugcheck Analysis:
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *

Use !analyze -v to get detailed debugging information.

BugCheck 1000008E, {c0000005, a30cc82b, a82b3c68, 0}

Probably caused by : win32k.sys ( win32k!HMAllocObject+29 )

Followup: MachineOwner

This is a very common bugcheck.  Usually the exception address pinpoints
the driver/function that caused the problem.  Always note this address
as well as the link date of the driver/image that contains this address.
Some common problems are exception code 0x80000003.  This means a hard
coded breakpoint or assertion was hit, but this system was booted
/NODEBUG.  This is not supposed to happen as developers should never have
hardcoded breakpoints in retail code, but ...
If this happens, make sure a debugger gets connected, and the
system is booted /DEBUG.  This will let us see why this breakpoint is
Arg1: c0000005, The exception code that was not handled
Arg2: a30cc82b, The address that the exception occurred at
Arg3: a82b3c68, Trap Frame
Arg4: 00000000

Debugging Details:

EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

a30cc82b 8b80b8000000    mov     eax,dword ptr [eax+0B8h]

TRAP_FRAME:  a82b3c68 -- (.trap 0xffffffffa82b3c68)
ErrCode = 00000000
eax=0003afbe ebx=a30cc50e ecx=883ae300 edx=00000000 esi=00000024 edi=00000003
eip=a30cc82b esp=a82b3cdc ebp=a82b3cf4 iopl=0         nv up ei pl nz na po nc
cs=0008  ss=0010  ds=0023  es=0023  fs=0030  gs=0000             efl=00010202
a30cc82b 8b80b8000000    mov     eax,dword ptr [eax+0B8h] ds:0023:0003b076=????????
Resetting default scope




PROCESS_NAME:  firefox.exe


LAST_CONTROL_TRANSFER:  from a3095539 to a30cc82b

a82b3cf4 a3095539 0003afbe 00000000 00000003 win32k!HMAllocObject+0x29
a82b3d10 a30cc5aa 00000000 00000000 002abffc win32k!_CreateEmptyCursorObject+0x17
a82b3d24 82a4e3ea 00000000 00000026 002ac09c win32k!NtUserCallOneParam+0x2f
a82b3d24 772764f4 00000000 00000026 002ac09c nt!KiFastCallEntry+0x12a
WARNING: Frame IP not in any known module. Following frames may be wrong.
002ac09c 00000000 00000000 00000000 00000000 0x772764f4


a30cc82b 8b80b8000000    mov     eax,dword ptr [eax+0B8h]


SYMBOL_NAME:  win32k!HMAllocObject+29

FOLLOWUP_NAME:  MachineOwner


IMAGE_NAME:  win32k.sys


FAILURE_BUCKET_ID:  0x8E_win32k!HMAllocObject+29

BUCKET_ID:  0x8E_win32k!HMAllocObject+29

Followup: MachineOwner

a0196000 a01c2000   1394ohci 1394ohci.sys Tue Jul 14 00:51:59 2009 (4A5BC89F)
8b601000 8b649000   ACPI     ACPI.sys     Tue Jul 14 00:11:11 2009 (4A5BBF0F)
90927000 90981000   afd      afd.sys      Mon Apr 25 03:35:37 2011 (4DB4DDF9)
a02c6000 a02d8000   AgileVpn AgileVpn.sys Tue Jul 14 00:55:00 2009 (4A5BC954)
a00ce000 a00df000   amdppm   amdppm.sys   Tue Jul 14 00:11:03 2009 (4A5BBF07)
8b7b8000 8b7c1000   amdxata  amdxata.sys  Tue May 19 18:57:35 2009 (4A12F30F)
a0299000 a029a6c0   ASACPI   ASACPI.sys   Wed May 13 12:11:32 2009 (4A0AAAE4)
a00ab000 a00ac440   AsIO     AsIO.sys     Mon Dec 17 09:10:20 2007 (47663CFC)
a05f4000 a05fd000   asyncmac asyncmac.sys Tue Jul 14 00:54:46 2009 (4A5BC946)
8b726000 8b72f000   atapi    atapi.sys    Tue Jul 14 00:11:15 2009 (4A5BBF13)
8b72f000 8b752000   ataport  ataport.SYS  Tue Jul 14 00:11:18 2009 (4A5BBF16)
8bc11000 8bc19000   AtiPcie  AtiPcie.sys  Tue May 05 16:00:16 2009 (4A005480)
90893000 9089a000   Beep     Beep.SYS     Tue Jul 14 00:45:00 2009 (4A5BC6FC)
a009d000 a00ab000   blbdrive blbdrive.sys Tue Jul 14 00:23:04 2009 (4A5BC1D8)
8b451000 8b459000   BOOTVID  BOOTVID.dll  Tue Jul 14 02:04:34 2009 (4A5BD9A2)
a05db000 a05f4000   bowser   bowser.sys   Tue Jul 14 00:14:21 2009 (4A5BBFCD)
a3290000 a32ae000   cdd      cdd.dll      Tue Jul 14 02:04:18 2009 (4A5BD992)
8ba00000 8ba16000   cdfs     cdfs.sys     Tue Jul 14 00:11:14 2009 (4A5BBF12)
9086d000 9088c000   cdrom    cdrom.sys    Tue Jul 14 00:11:24 2009 (4A5BBF1C)
8b49b000 8b546000   CI       CI.dll       Tue Jul 14 02:09:28 2009 (4A5BDAC8)
8bbae000 8bbd3000   CLASSPNP CLASSPNP.SYS Tue Jul 14 00:11:20 2009 (4A5BBF18)
8b459000 8b49b000   CLFS     CLFS.SYS     Tue Jul 14 00:11:10 2009 (4A5BBF0E)
8b970000 8b9cd000   cng      cng.sys      Tue Jul 14 00:32:55 2009 (4A5BC427)
a02b9000 a02c6000   CompositeBus CompositeBus.sys Tue Jul 14 00:45:26 2009 (4A5BC716)
a13d5000 a13e2000   crashdmp crashdmp.sys Tue Jul 14 00:45:50 2009 (4A5BC72E)
a0085000 a009d000   dfsc     dfsc.sys     Wed Apr 27 03:33:45 2011 (4DB78089)
a0079000 a0085000   discache discache.sys Tue Jul 14 00:24:04 2009 (4A5BC214)
8bc00000 8bc11000   disk     disk.sys     Tue Jul 14 00:11:28 2009 (4A5BBF20)
a13bc000 a13d5000   drmk     drmk.sys     Tue Jul 14 01:36:05 2009 (4A5BD2F5)
90830000 9086d000   dtsoftbus01 dtsoftbus01.sys Fri Jun 17 08:38:44 2011 (4DFB0484)
a13ed000 a13f6000   dump_atapi dump_atapi.sys Tue Jul 14 00:11:15 2009 (4A5BBF13)
a13e2000 a13ed000   dump_dumpata dump_dumpata.sys Tue Jul 14 00:11:16 2009 (4A5BBF14)
a1200000 a1211000   dump_dumpfve dump_dumpfve.sys Tue Jul 14 00:12:47 2009 (4A5BBF6F)
a04c6000 a04d0000   Dxapi    Dxapi.sys    Tue Jul 14 00:25:25 2009 (4A5BC265)
a00df000 a0196000   dxgkrnl  dxgkrnl.sys  Fri Oct 02 01:48:33 2009 (4AC54DE1)
a119c000 a11d5000   dxgmms1  dxgmms1.sys  Tue Jul 14 00:25:25 2009 (4A5BC265)
a11d5000 a11eee00   ewusbmdm ewusbmdm.sys Thu Mar 25 02:08:36 2010 (4BAAC5A4)
a02a5000 a02b0000   fdc      fdc.sys      Tue Jul 14 00:45:45 2009 (4A5BC729)
8b5c5000 8b5d6000   fileinfo fileinfo.sys Tue Jul 14 00:21:51 2009 (4A5BC18F)
8b7c1000 8b7f5000   fltmgr   fltmgr.sys   Tue Jul 14 00:11:13 2009 (4A5BBF11)
8b9db000 8b9e4000   Fs_Rec   Fs_Rec.sys   Tue Jul 14 00:11:14 2009 (4A5BBF12)
8bb7c000 8bbae000   fvevol   fvevol.sys   Tue Jul 14 00:13:01 2009 (4A5BBF7D)
8bd6b000 8bd9c000   fwpkclnt fwpkclnt.sys Tue Jul 14 00:12:03 2009 (4A5BBF43)
82e1b000 82e52000   hal      halmacpi.dll Tue Jul 14 00:11:03 2009 (4A5BBF07)
a027a000 a0299000   HDAudBus HDAudBus.sys Tue Jul 14 00:50:55 2009 (4A5BC85F)
a04a8000 a04bb000   HIDCLASS HIDCLASS.SYS Tue Jul 14 00:51:01 2009 (4A5BC865)
a13f6000 a13fc480   HIDPARSE HIDPARSE.SYS Tue Jul 14 00:50:59 2009 (4A5BC863)
a1211000 a121c000   hidusb   hidusb.sys   Tue Jul 14 00:51:04 2009 (4A5BC868)
a0556000 a05db000   HTTP     HTTP.sys     Tue Jul 14 00:12:53 2009 (4A5BBF75)
8bdf3000 8bdfb000   hwpolicy hwpolicy.sys Tue Jul 14 00:11:01 2009 (4A5BBF05)
a0363000 a0370000   kbdclass kbdclass.sys Tue Jul 14 00:11:15 2009 (4A5BBF13)
a04e7000 a04f3000   kbdhid   kbdhid.sys   Tue Jul 14 00:45:09 2009 (4A5BC705)
80bb9000 80bc1000   kdcom    kdcom.dll    Tue Jul 14 02:08:58 2009 (4A5BDAAA)
a037f000 a03b3000   ks       ks.sys       Tue Jul 14 00:45:13 2009 (4A5BC709)
8b95d000 8b970000   ksecdd   ksecdd.sys   Tue Jul 14 00:11:56 2009 (4A5BBF3C)
8bb2a000 8bb4f000   ksecpkg  ksecpkg.sys  Fri Dec 11 04:04:22 2009 (4B21C4C6)
a0533000 a0543000   lltdio   lltdio.sys   Tue Jul 14 00:53:18 2009 (4A5BC8EE)
a04fe000 a0519000   luafv    luafv.sys    Tue Jul 14 00:15:44 2009 (4A5BC020)
8b435000 8b440000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Tue Jul 14 00:13:13 2009 (4A5BBF89)
825f2000 825ff000   modem    modem.sys    Tue Jul 14 00:55:24 2009 (4A5BC96C)
a04f3000 a04fe000   monitor  monitor.sys  Tue Jul 14 00:25:58 2009 (4A5BC286)
a0370000 a037d000   mouclass mouclass.sys Tue Jul 14 00:11:15 2009 (4A5BBF13)
a04bb000 a04c6000   mouhid   mouhid.sys   Tue Jul 14 00:45:08 2009 (4A5BC704)
8b710000 8b726000   mountmgr mountmgr.sys Tue Jul 14 00:11:27 2009 (4A5BBF1F)
a03ca000 a03dc000   mpsdrv   mpsdrv.sys   Tue Jul 14 00:52:52 2009 (4A5BC8D4)
a03dc000 a03ff000   mrxsmb   mrxsmb.sys   Wed May 04 03:43:40 2011 (4DC0BD5C)
a01c2000 a01fd000   mrxsmb10 mrxsmb10.sys Sat Jul 09 03:26:07 2011 (4E17BC3F)
a0200000 a021b000   mrxsmb20 mrxsmb20.sys Wed May 04 03:43:47 2011 (4DC0BD63)
908ec000 908f7000   Msfs     Msfs.SYS     Tue Jul 14 00:11:26 2009 (4A5BBF1E)
8b652000 8b65a000   msisadrv msisadrv.sys Tue Jul 14 00:11:09 2009 (4A5BBF0D)
8b932000 8b95d000   msrpc    msrpc.sys    Tue Jul 14 00:11:59 2009 (4A5BBF3F)
a006f000 a0079000   mssmbios mssmbios.sys Tue Jul 14 00:19:25 2009 (4A5BC0FD)
8bde3000 8bdf3000   mup      mup.sys      Tue Jul 14 00:14:14 2009 (4A5BBFC6)
8b752000 8b792000   mv61xx   mv61xx.sys   Fri Mar 20 03:47:19 2009 (49C311C7)
8ba35000 8baec000   ndis     ndis.sys     Tue Jul 14 00:12:24 2009 (4A5BBF58)
a02f0000 a02fb000   ndistapi ndistapi.sys Tue Jul 14 00:54:24 2009 (4A5BC930)
a02fb000 a031d000   ndiswan  ndiswan.sys  Tue Jul 14 00:54:34 2009 (4A5BC93A)
a0497000 a04a8000   NDProxy  NDProxy.SYS  Tue Jul 14 00:54:27 2009 (4A5BC933)
909d9000 909e7000   netbios  netbios.sys  Tue Jul 14 00:53:54 2009 (4A5BC912)
90981000 909b3000   netbt    netbt.sys    Tue Jul 14 00:12:18 2009 (4A5BBF52)
8baec000 8bb2a000   NETIO    NETIO.SYS    Tue Jul 14 00:12:35 2009 (4A5BBF63)
908f7000 90905000   Npfs     Npfs.SYS     Tue Jul 14 00:11:31 2009 (4A5BBF23)
a0065000 a006f000   nsiproxy nsiproxy.sys Tue Jul 14 00:12:08 2009 (4A5BBF48)
82a0b000 82e1b000   nt       ntkrpamp.exe Thu Jun 23 03:27:31 2011 (4E02A493)
8b803000 8b932000   Ntfs     Ntfs.sys     Tue Jul 14 00:12:05 2009 (4A5BBF45)
9088c000 90893000   Null     Null.SYS     Tue Jul 14 00:11:12 2009 (4A5BBF10)
a119a000 a119b040   nvBridge nvBridge.kmd Mon Mar 09 00:12:21 2009 (49B45EE5)
a0a36000 a11990a0   nvlddmkm nvlddmkm.sys Mon Mar 09 00:41:54 2009 (49B465D2)
909ba000 909d9000   pacer    pacer.sys    Tue Jul 14 00:53:58 2009 (4A5BC916)
8b68f000 8b6a0000   partmgr  partmgr.sys  Tue Jul 14 00:11:35 2009 (4A5BBF27)
8b65a000 8b684000   pci      pci.sys      Tue Jul 14 00:11:16 2009 (4A5BBF14)
8b6fb000 8b702000   pciide   pciide.sys   Tue Jul 14 00:11:19 2009 (4A5BBF17)
8b702000 8b710000   PCIIDEX  PCIIDEX.SYS  Tue Jul 14 00:11:15 2009 (4A5BBF13)
8b9cd000 8b9db000   pcw      pcw.sys      Tue Jul 14 00:11:10 2009 (4A5BBF0E)
82418000 824af000   peauth   peauth.sys   Tue Jul 14 01:35:44 2009 (4A5BD2E0)
a138d000 a13bc000   portcls  portcls.sys  Tue Jul 14 00:51:00 2009 (4A5BC864)
8b440000 8b451000   PSHED    PSHED.dll    Tue Jul 14 02:09:36 2009 (4A5BDAD0)
a02d8000 a02f0000   rasl2tp  rasl2tp.sys  Tue Jul 14 00:54:33 2009 (4A5BC939)
a031d000 a0335000   raspppoe raspppoe.sys Tue Jul 14 00:54:53 2009 (4A5BC94D)
a0335000 a034c000   raspptp  raspptp.sys  Tue Jul 14 00:54:47 2009 (4A5BC947)
a034c000 a0363000   rassstp  rassstp.sys  Tue Jul 14 00:54:57 2009 (4A5BC951)
a0024000 a0065000   rdbss    rdbss.sys    Tue Jul 14 00:14:26 2009 (4A5BBFD2)
908d4000 908dc000   RDPCDD   RDPCDD.sys   Tue Jul 14 01:01:40 2009 (4A5BCAE4)
908dc000 908e4000   rdpencdd rdpencdd.sys Tue Jul 14 01:01:39 2009 (4A5BCAE3)
908e4000 908ec000   rdprefmp rdprefmp.sys Tue Jul 14 01:01:41 2009 (4A5BCAE5)
8bb4f000 8bb7c000   rdyboost rdyboost.sys Tue Jul 14 00:22:02 2009 (4A5BC19A)
a0543000 a0556000   rspndr   rspndr.sys   Tue Jul 14 00:53:20 2009 (4A5BC8F0)
a0a00000 a0a2c000   Rt86win7 Rt86win7.sys Fri May 22 15:52:05 2009 (4A16BC15)
8b792000 8b7b8000   SCSIPORT SCSIPORT.SYS Tue Jul 14 00:45:55 2009 (4A5BC733)
824af000 824b9000   secdrv   secdrv.SYS   Wed Sep 13 14:18:32 2006 (45080528)
a029b000 a02a5000   serenum  serenum.sys  Tue Jul 14 00:45:27 2009 (4A5BC717)
90800000 9081a000   serial   serial.sys   Tue Jul 14 00:45:33 2009 (4A5BC71D)
8bddb000 8bde3000   spldr    spldr.sys    Mon May 11 17:13:47 2009 (4A084EBB)
82588000 825f2000   spsys    spsys.sys    Mon May 11 17:37:10 2009 (4A085436)
82536000 82588000   srv      srv.sys      Fri Apr 29 03:57:31 2011 (4DBA291B)
824e7000 82536000   srv2     srv2.sys     Fri Apr 29 03:57:19 2011 (4DBA290F)
824b9000 824da000   srvnet   srvnet.sys   Fri Apr 29 03:57:12 2011 (4DBA2908)
a037d000 a037e380   swenum   swenum.sys   Tue Jul 14 00:45:08 2009 (4A5BC704)
8bc22000 8bd6b000   tcpip    tcpip.sys    Tue Jun 21 04:25:01 2011 (4E000F0D)
824da000 824e7000   tcpipreg tcpipreg.sys Tue Jul 14 00:54:14 2009 (4A5BC926)
9091c000 90927000   TDI      TDI.SYS      Tue Jul 14 00:12:12 2009 (4A5BBF4C)
90905000 9091c000   tdx      tdx.sys      Tue Jul 14 00:12:10 2009 (4A5BBF4A)
909e7000 909f7000   termdd   termdd.sys   Tue Jul 14 01:01:35 2009 (4A5BCADF)
a3260000 a3269000   TSDDD    TSDDD.dll    unavailable (00000000)
a00ad000 a00ce000   tunnel   tunnel.sys   Tue Jul 14 00:54:03 2009 (4A5BC91B)
a03b3000 a03c1000   umbus    umbus.sys    Tue Jul 14 00:51:38 2009 (4A5BC88A)
a04d0000 a04e7000   usbccgp  usbccgp.sys  Tue Jul 14 00:51:31 2009 (4A5BC883)
a13fd000 a13fe700   USBD     USBD.SYS     Tue Jul 14 00:51:05 2009 (4A5BC869)
a026b000 a027a000   usbehci  usbehci.sys  Tue Jul 14 00:51:14 2009 (4A5BC872)
a0453000 a0497000   usbhub   usbhub.sys   Tue Jul 14 00:52:06 2009 (4A5BC8A6)
a0a2c000 a0a36000   usbohci  usbohci.sys  Tue Jul 14 00:51:14 2009 (4A5BC872)
a0220000 a026b000   USBPORT  USBPORT.SYS  Tue Jul 14 00:51:13 2009 (4A5BC871)
82400000 82417000   USBSTOR  USBSTOR.SYS  Tue Jul 14 00:51:19 2009 (4A5BC877)
8b684000 8b68f000   vdrvroot vdrvroot.sys Tue Jul 14 00:46:19 2009 (4A5BC74B)
9089a000 908a6000   vga      vga.sys      Tue Jul 14 00:25:50 2009 (4A5BC27E)
a1221000 a138d000   viahduaa viahduaa.sys Tue Jun 02 09:54:04 2009 (4A24E8AC)
908a6000 908c7000   VIDEOPRT VIDEOPRT.SYS Tue Jul 14 00:25:49 2009 (4A5BC27D)
8b6a0000 8b6b0000   volmgr   volmgr.sys   Tue Jul 14 00:11:25 2009 (4A5BBF1D)
8b6b0000 8b6fb000   volmgrx  volmgrx.sys  Tue Jul 14 00:11:41 2009 (4A5BBF2D)
8bd9c000 8bddb000   volsnap  volsnap.sys  Tue Jul 14 00:11:34 2009 (4A5BBF26)
9081a000 9082d000   wanarp   wanarp.sys   Tue Jul 14 00:55:02 2009 (4A5BC956)
908c7000 908d4000   watchdog watchdog.sys Tue Jul 14 00:24:10 2009 (4A5BC21A)
8b546000 8b5b7000   Wdf01000 Wdf01000.sys Tue Jul 14 00:11:36 2009 (4A5BBF28)
8b5b7000 8b5c5000   WDFLDR   WDFLDR.SYS   Tue Jul 14 00:11:25 2009 (4A5BBF1D)
909b3000 909ba000   wfplwf   wfplwf.sys   Tue Jul 14 00:53:51 2009 (4A5BC90F)
a3000000 a324c000   win32k   win32k.sys   Sat Jun 11 03:36:57 2011 (4DF2D4C9)
a02b0000 a02b9000   wmiacpi  wmiacpi.sys  Tue Jul 14 00:19:16 2009 (4A5BC0F4)
8b649000 8b652000   WMILIB   WMILIB.SYS   Tue Jul 14 00:11:22 2009 (4A5BBF1A)
a03c1000 a03c9600   wtsmpadap wtsmpadap.sys Fri Jan 30 23:11:06 2009 (4983890A)
a0410000 a0452500   wtsmpflt wtsmpflt.sys Fri Jan 30 23:11:08 2009 (4983890C)
a0519000 a0533000   WudfPf   WudfPf.sys   Tue Jul 14 00:50:13 2009 (4A5BC835)
a0000000 a0020480   WUDFRd   WUDFRd.sys   Tue Jul 14 00:50:44 2009 (4A5BC854)

Unloaded modules:
a11d5000 a11ee000   ew_hwusbdev.
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00019000
a11d5000 a11ed000   parport.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00018000
8bbd3000 8bbe0000   crashdmp.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000D000
8bbe0000 8bbeb000   dump_ataport
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000B000
8bc19000 8bc22000   dump_atapi.s
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00009000
8bbeb000 8bbfc000   dump_dumpfve
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00011000
Let us know how it goes. If you get further problems with blue screens, attach your new dump files and details and we'll move on from there.


Thanks, I hadnt actually updated drivers because I had been crashing so much and even once it wiped my entire c drive. I'll post the rest of the ram when I can, it won't boot past the motherboard logo at the moment.

Really appreciate the help, I'll get back to you when I can.


Extraordinary Member
So, you cannot get past the BIOS screen? That wipes out my suggestion to get into safe mode!

Can you actually get into BIOS? On my PC I have to press F2 at the BIOS screen.

If you can, can you see if your RAM timings are set to (auto) or do they have numbers next to them? In your case 6 6 6 15.

If it says 6 6 6 15 can you change them to (auto).

If it does already say (auto), set the timings to 9 9 9 24

(In my BIOS the headings I look for are Advanced then the sub-heading Chipset Configuration).

If that doesn't seem to help, go back into your BIOS and change the 1T setting to 2T and try again.


I, of course, assume you are using another PC to post!!

Last edited:
Yeah I was, managed to get onto my PC so I will post those other two SPD screenshots and try your suggestions. I can sometimes boot up or get into safe mode but it can take awhile sometimes.



Extraordinary Member
I don't think this is your problem for a moment, but hey, let's cover all bases! On your other PC can you download TDSSKiller and put it on a USB.

On your problematic machine, when you can get in Safe Mode, run it. It'll be one less thing to worry about.

(Elmer mutters to self "Where are the RAM geniuses when you need them? :))

Last edited:
Trying this now.


Noob Whisperer
Try your system without the memory that is currently in Slot #1 on your motherboard.
According to the images you've badly mismatched some old ram or there is something wrong, possibly removing and re-seating might help. It looks like the same part number, but CPU-z is not seeing it properly.
Remove, make sure it's identical (or very close) re-seat, run CPU-z Again and attach screen shots for all three slots under the SPD tab.

Finally managed to get onto the BIOS, I tried changing it to 2T but when I tried booting it said I had to change it back in bios because it cant overclock. I don't know how to change it from 6-6-6-15 either, its blanked out.

This website is not affiliated, owned, or endorsed by Microsoft Corporation. It is a member of the Microsoft Partner Program.
