Using Windows Snipping Tool for Fast Annotated Screenshots

Using Windows Snipping Tool for Fast Annotated Screenshots​

Difficulty: Beginner | Time Required: 10 minutes
Windows has a built-in, ready-to-use tool for capturing quick screenshots and marking them up. The Snipping Tool (and its companion Snip & Sketch heritage) makes it easy to grab exactly what you need on screen, annotate it for clarity, and share or save the result—all without installing any third-party software. This tutorial walks you through using the Snipping Tool on Windows 10 and Windows 11, with practical tips for everyday forum posts, troubleshooting, and best practices.
Introduction

• Why use the Snipping Tool? It’s fast, free, and integrated into Windows. Whether you’re reporting a bug, sharing steps with a friend, or including a diagram in a forum post, annotated screenshots help others understand your point quickly.
• What’s covered here: how to capture, annotate, save, and share screenshots using the built-in Snipping Tool across Windows 10 and Windows 11, plus tips and common issues you might run into.

Prerequisites

• A PC running Windows 10 (Version 1809 or later, where Snipping Tool/Snip & Sketch features were unified) or Windows 11.
• A mouse, trackpad, or touchscreen for easy annotation.
• Basic familiarity with keyboard shortcuts (helps speed things up).

Detailed step-by-step instructions
1) Decide what you want to capture

• Prepare the screen area you want to share. If you’re reporting a settings change, a small portion may be enough; for a full tutorial, you might want a larger region.

2) Start the capture

• Quick method (recommended for speed): Press Windows key + Shift + S. This opens the screen capture overlay and copies the snip to your clipboard.

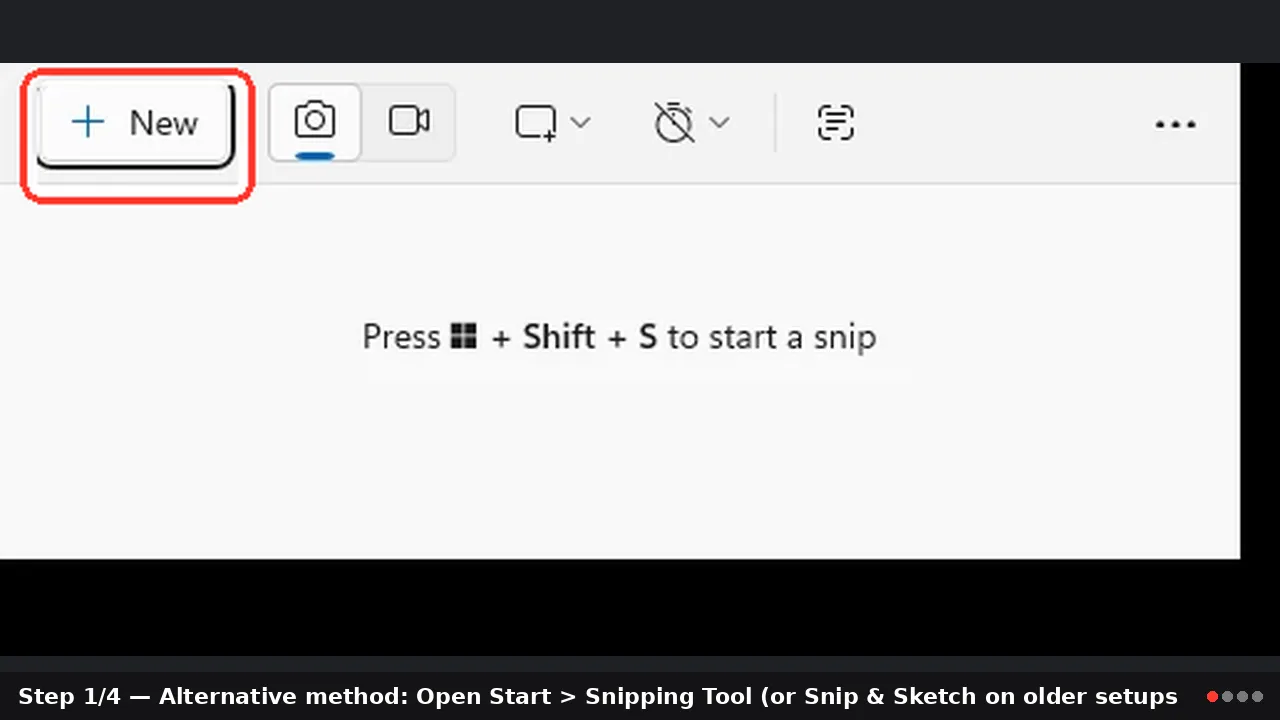

• Alternative method: Open Start > Snipping Tool (or Snip & Sketch on older setups) and click New to start a capture.

3) Choose your snip mode

• A small toolbar appears at the top of the screen (Windows 11) or a pop-up near the cursor (Windows 10). Select one of:
• Rectangular Snip: drag a rectangle around the area you want.
• Freeform Snip: draw the shape you want with your mouse.
• Window Snip: click on any open window to capture it.
• Fullscreen Snip: capture the entire screen.
• For most forum posts, Rectangular or Window snips are the most practical.

4) Optional: add a brief delay (useful for dropdowns or menus)

• If the overlay shows a Delay option (0, 1, 2, 3, 5 seconds), you can set a short delay to capture pop-ups, tooltips, or menus that only appear after a click.
• Use a 0-second delay for immediate captures, or select 1–5 seconds to give yourself time to open a drop-down or hover over a control.

5) Capture the image

• Use your mouse or touch to define the snip area or click the target window. The captured image is copied to your clipboard (and, in Windows 11, a notification may appear with options to edit or open the Snipping Tool).

6) Edit and annotate (optional but highly recommended for clarity)

• If you click the notification or open the Snipping Tool app, you’ll land in the editing view. Here you can:
• Use the Pen (choose color and thickness) to draw arrows or outline important details.
• Use the Highlighter to emphasize text or UI elements.
• Use the Eraser to remove mistakes.
• Some versions allow basic cropping or adding simple shapes.
• Annotations are ideal for forum posts, making steps obvious and reducing back-and-forth questions.

7) Save, copy, or share

• After annotating, you have several options:
• Save: Click Save (or press Ctrl+S) to store the image as PNG/JPG in your chosen folder.
• Copy: Use Copy to place the annotated image back on your clipboard for pasting directly into a response, document, or email.
• Share: Use the Share button (where available) to send the image via email, messaging apps, or other sharing targets.
• Tip: If you’re posting to WindowsForum.com, saving to a dedicated Troubleshooting or Tutorials folder makes it easier to locate later, or paste directly into a forum post if the editor supports image paste.

8) Practical workflow for forum posts

• Step capture: Capture the relevant screen region (or window) with a clear focus on the issue.
• Quick annotation: Use a bold color to highlight the problematic area and add a short note using the Pen tool.
• Save and attach: Save the annotated image to a topic-specific folder, then attach it to your WindowsForum.com post, or paste it directly into the post if the editor supports image paste.

Tips and troubleshooting notes

• If Win+Shift+S doesn’t seem to work: Ensure you’re on a supported Windows version (Windows 10 1809+ or Windows 11) and that you’re not in a corporate policy that disables the shortcut. You can still start the capture via Start > Snipping Tool > New as a workaround.
• If you don’t see annotation tools: After capturing, open the Snipping Tool app (or click the notification) to access editing tools. Some screenshots saved directly to the clipboard don’t automatically open the editor.
• Saving defaults: The Snipping Tool doesn’t auto-save; you must use Save or Copy. For consistency across posts, consider setting a dedicated “Screenshots” folder so you can quickly locate annotated images.
• Handling sensitive information: Before saving or sharing, review the captured area to crop out passwords, account numbers, or other private data. Use the cropping tool or re-snip a smaller region if needed.
• Across Windows versions:
• Windows 10 users typically rely on Snipping Tool or Snip & Sketch. Win+Shift+S works in most 10.x builds with the combined tool behavior.
• Windows 11 combines capabilities in a modern Snipping Tool with a sleek editing surface; the on-screen toolbar makes mode switching, delay, and annotation straightforward.
• Accessibility note: If you’re using a touchscreen or stylus, the annotation tools respond well to a finger, pen, or stylus, which can speed up your workflow and improve clarity.

Conclusion
The built-in Snipping Tool is a versatile, fast solution for creating clear, annotated screenshots on Windows 10 and Windows 11. By quick-keying into a snip, choosing the right mode, optionally delaying for dynamic UI elements, and annotating on the spot, you can craft precise, shareable visuals for troubleshooting, guides, or forum posts. It’s a lightweight tool that stays out of your way while delivering professional-looking results.
Key Takeaways:

• Quick captures: Use Windows key + Shift + S for fast snips and clipboard-ready results.
• Flexible modes: Rectangular, Freeform, Window, and Fullscreen snips cover most needs.
• Built-in annotation: Add pen/highlighter notes directly on the image to improve clarity.
• Easy save/share: Save to disk, copy back to clipboard, or share directly from the editor.
• Windows 10/11 compatibility: A single workflow works across supported versions, with Windows 11 offering a polished, integrated experience.

---
