What one PCIe lane can carry
PCIe bandwidth is set by generation and lane count. PCIe 3.0 runs at 8 GT/s per lane, which works out to about 985 MB/s of effective bandwidth per lane per direction after 128b/130b encoding. Each generation roughly doubles that. PCIe 4.0 gives about 2 GB/s per lane.
Two caveats apply to those figures:
- They are theoretical link ceilings, not guaranteed throughput. PCIe is full duplex, so total bus traffic can be up to double the listed per-direction figure.
- Physical slot size and electrical lane count are separate things. Elgato's PCIe guide notes that a slot may physically be a full-size x16 but only wire two, four or eight lanes. The reverse matters too. A card that needs x4 may not fit a closed x1 slot, and it may not work properly if the board drops it to x1 speed.
1. Wi-Fi and Bluetooth card
If your board has no wireless, or only an old Wi-Fi 5 module, a PCIe add-in card is the tidy fix. These cards usually carry an M.2 Wi-Fi module on a carrier board, with antennas that attach at the rear bracket. Wi-Fi needs little bandwidth. One hardware guide puts a Wi-Fi 6E or Wi-Fi 7 card at about 0.3 GB/s max, so a single lane is plenty.
Intel's BE200 shows the practical details:
- It's an M.2 2230 or 1216 module with a 2x2 radio and Bluetooth 5.4.
- Intel lists a peak speed of 5.8 Gbps (320MHz, 4096QAM) in its spec sheet. That is a best-case figure, not what you'll see in daily use.
- Its system interface is listed as M.2: PCIe, USB. Wi-Fi uses PCIe and Bluetooth uses USB.
Bluetooth wiring. Many desktop adapter cards include a cable for an internal USB header on the motherboard. Skip it and Wi-Fi may work while Bluetooth doesn't. Follow your card's instructions for which header it needs.
OS requirement. Intel's support documentation lists the BE200 as supported on 64-bit Windows 10 and Windows 11. Its Wi-Fi 7 functionality requires a Wi-Fi 7 router and Windows 11 24H2 or later. Intel also says 6 GHz use depends on Windows support, a compatible router, drivers and local regulations. Plan on Windows 11 24H2 or later if Wi-Fi 7 is the goal.
Ryzen reports. The original article says some Ryzen owners report BE200 modules not working on their systems. I found no official Intel statement of a blanket incompatibility. Intel's materials only say to check feature compatibility with your system vendor and platform. Treat it as a board- and card-specific risk. Check the card's compatibility notes and user reports for your exact motherboard before buying.
2. Multi-gig Ethernet card
A 2.5GbE card is probably the most sensible use of an x1 slot. TP-Link's TX201 is a concrete example. Its spec sheet lists a PCI Express 2.1 x 1 interface and 2.5GBASE-T, 1000BASE-T and 100BASE-TX media. It also supports Windows 11 and 10.
The numbers fit comfortably:
- 2.5 Gb/s is roughly 312 MB/s before overhead.
- 5 Gb/s is roughly 625 MB/s.
- Both sit under a PCIe 3.0 x1 link's roughly 985 MB/s per direction.
The card is only half the equation. TP-Link's own fine print says actual speed can be limited by the other port, the cable, the ISP and environmental conditions. You'll only see a gain if the switch or router, the cabling, the NAS or other endpoint, and the storage on both sides can also go beyond gigabit.
3. USB expansion card
If you've run out of ports, a USB card helps. Plan around these limits:
- Shared bandwidth. Every port on the card shares one upstream link. Ports rated 5 Gbps each don't give you 5 Gbps apiece at the same time.
- 5 Gbps cards fit easily. The original article says a 5 Gbps card sits comfortably within one lane, even across several ports.
- 10 Gbps is the squeeze. A single 10 Gbps port can ask for more than a PCIe 3.0 x1 lane delivers. Many 10 Gbps cards are also physically x4 and won't seat in a short slot.
- Power connectors. Cards meant to run external drives may need a SATA power connection.
- Front-panel USB-C cards. The article says these often require x4.
Check the connector length, the lane requirement and any power connector before you buy.
4. Passive M.2 NVMe adapter
When your motherboard's M.2 slots are full, a passive adapter can turn the x1 slot into another drive bay. The card has no controller, only traces, so it's cheap. It adds no lanes either, so the drive runs at x1 speed. Ceilings are roughly 1 GB/s on PCIe 3.0 and 2 GB/s on PCIe 4.0.
That is below what a good NVMe drive does in a normal x4 socket. It's still well above a SATA SSD's limit of about 550 MB/s. The article argues that game loading and everyday use feel similar because small random reads depend more on drive latency than on link speed. That's reasonable, but I wouldn't say it performs the same as a full-speed slot. Sequential copies will be capped, and results vary by drive and workload.
Slot generation matters too. A PCIe 4.0 drive in a PCIe 3.0 x1 slot runs at PCIe 3.0 x1 speed. Elgato's guide notes that M.2 and PCIe share bandwidth, so using an M.2 SSD can disable a slot. The reverse can also happen.
5. Capture card
A PCIe capture card suits a console sitting at the same desk. The original article estimates uncompressed 1080p60 at roughly 250 MB/s. Elgato's HD60 Pro is a real x1 example. Its spec page lists:
- PCIe 2.0 x1.
- Supported inputs up to 1080p60.
- Encoding up to 60 Mbps at 1080p60.
- Unencrypted HDMI sources, including PS5, PS4, Xbox Series X/S, Xbox One X/S, Nintendo Switch and PC.
- A requirement of a PCIe 2.0 or higher slot (x1, x4, x8 or x16), plus Windows 10 64-bit, a 4th-gen Core i5 or Ryzen 5, and a GeForce GTX 6xx or better.
Elgato's PCIe guide marks the HD60 Pro as end of life, so you may be buying used or old stock.
Don't confuse this with 4K. Elgato lists the 4K60 Pro MK.2 as PCIe 2.0 x4 with inputs up to 2160p60 HDR10. Its guide says that card won't work in an x1 slot because of both slot size and speed. If it lands in an x4 slot that the board has cut down to x1, it will install but not function correctly. The x1 slot suits 1080p capture, not 4K60.
6. Dedicated sound card
Audio barely registers on a PCIe link, so this is the easiest fit. It's also the narrowest case. A discrete card may give you a stronger headphone amp for high-impedance headphones, cleaner analog outputs, or features your motherboard lacks. For most people, modern onboard audio is good enough. Whether a card is audible in your setup depends on your headphones or speakers and on the card's output stage. It is not an automatic upgrade.
Before you buy: a short checklist

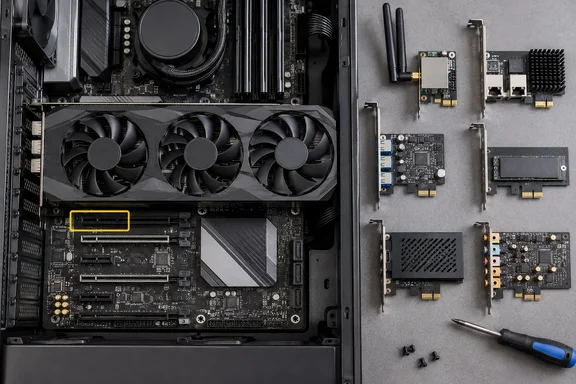

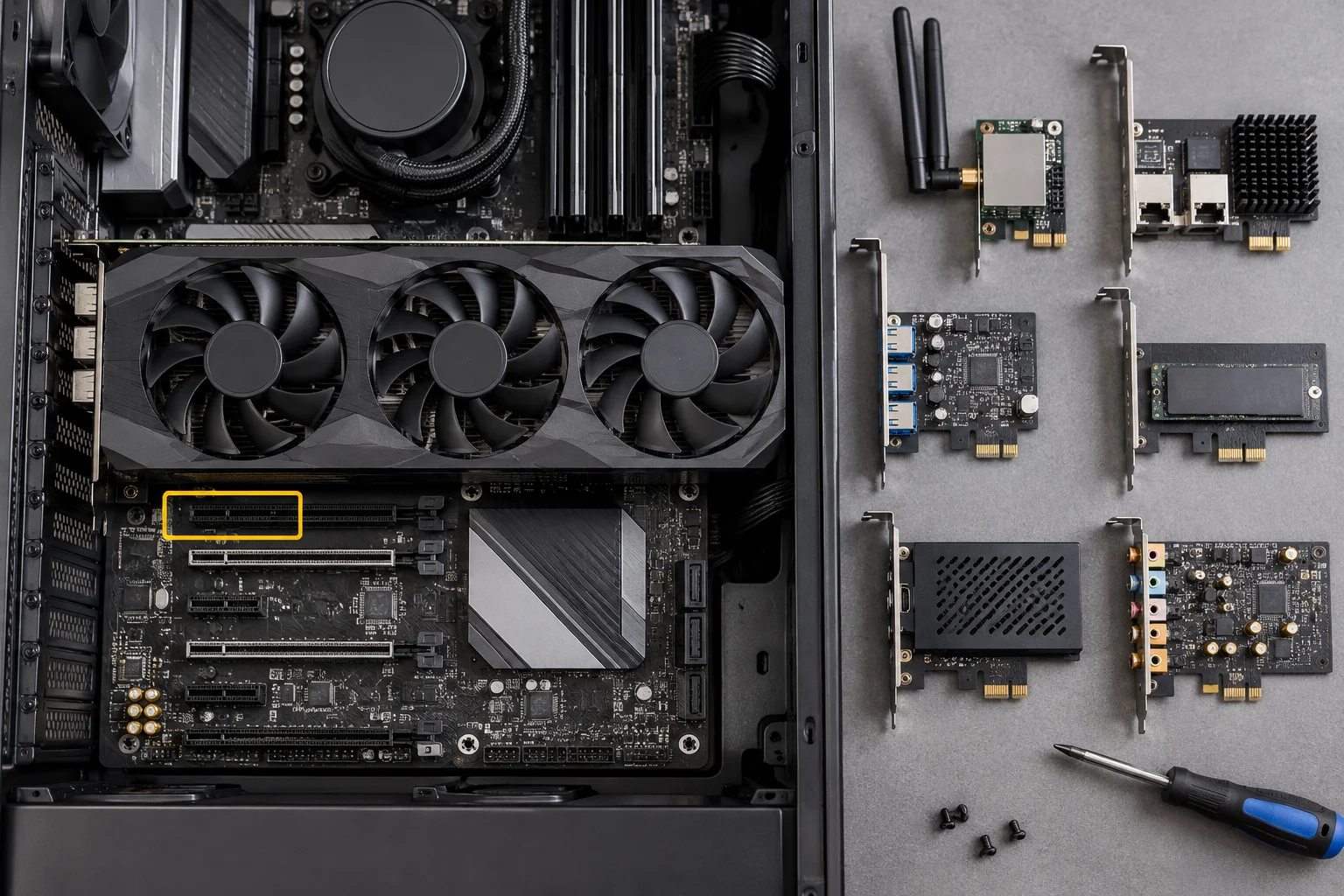

- Find the slot. On many boards it sits right under the graphics card. The original article warns that three- and four-slot coolers can cover it completely, and a card that does fit can partly block GPU fan airflow.
- Read the manual's lane-sharing table. The x1 slot usually hangs off the chipset, which reaches the CPU over one shared link. Some boards disable a slot when a particular M.2 or SATA port is in use. Elgato's guide gives an MSI B550M Mortar example where installing an M.2 SSD disables the x4 slot.
- Match the card to the slot. Check the card's physical connector length and its required lane count and PCIe generation. Cards are forward compatible: Elgato notes a PCIe 2.0 device runs in a 3.0 or 4.0 slot.
- Check the extra connections. That means the internal USB header for Bluetooth, SATA power for USB cards, and the right cabling for multi-gig Ethernet.
- Check the OS. Wi-Fi 7 features need Windows 11 24H2 or later, and capture software may list Windows 10 as its tested platform.
Bottom line
The x1 slot suits modest-bandwidth expansion. Wi-Fi, 2.5GbE, 5 Gbps USB, 1080p capture and audio all fit one lane with room to spare. M.2 storage and 10 Gbps USB are workable compromises. 4K capture and many x4-wired cards are not. The slot is only worth using once you've confirmed it's clear of the GPU cooler and active in your board's lane-sharing layout.
