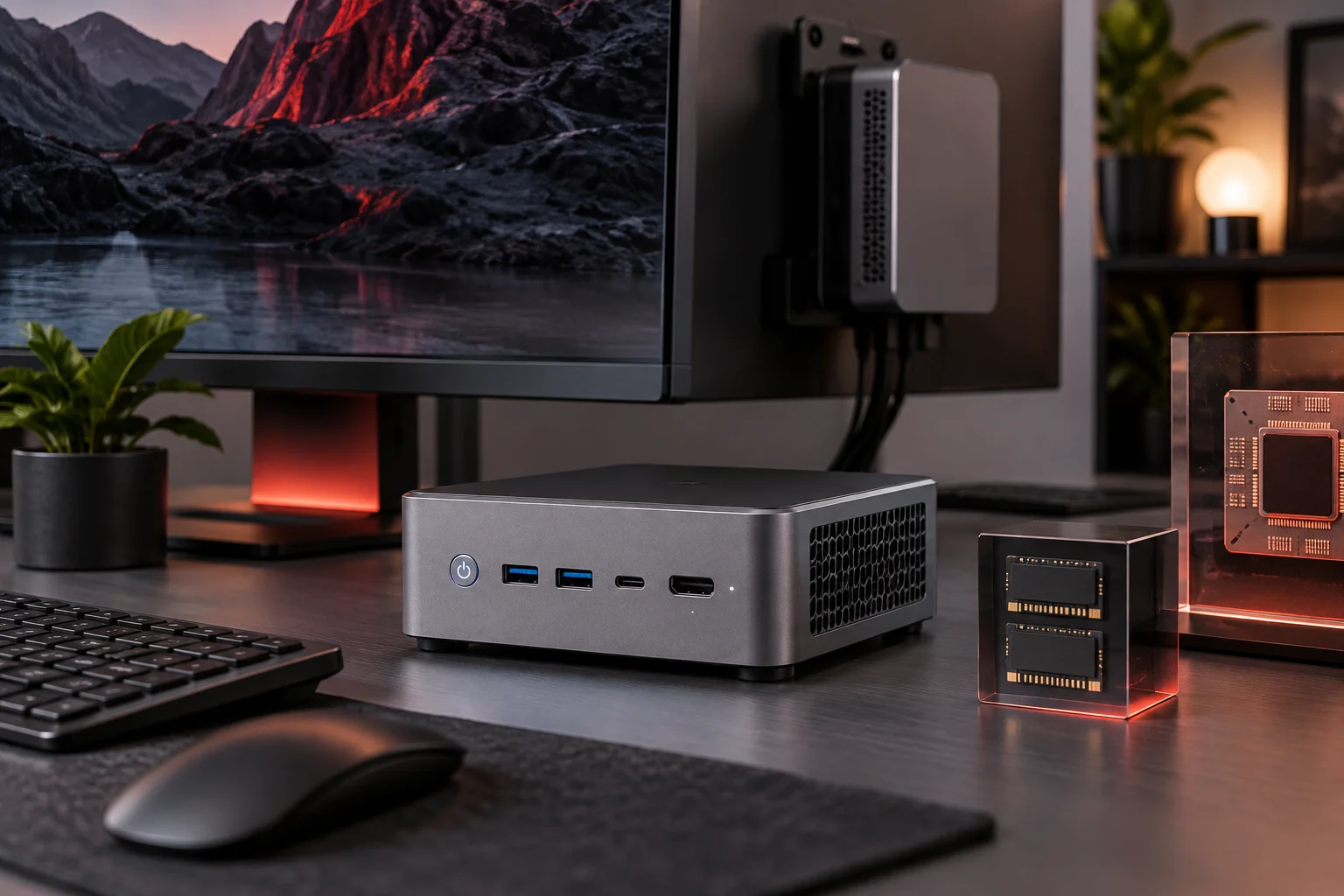

A compact desktop PC sits on a desk beneath a monitor, surrounded by keyboard, mouse, plants, and glowing processor displays.
The GMKtec NucBox EVO-X1 Pro is a familiar small box with a new chip and a lot more memory. TechRadar's Mark Pickavance reviewed it on October 24, 2026, and rated it 4/5. His main finding is that the Ryzen AI 9 HX 470 is only a small step up from the HX 370. The real reason to buy the Pro is its 64GB of RAM, and he says even that doesn't fully justify the price gap.

For Windows users, the useful question is whether this mini PC earns a place on a desk or behind a monitor, or whether you should save about $450 and buy its sibling.

A compact desktop PC sits on a desk beneath a monitor, surrounded by keyboard, mouse, plants, and glowing processor displays. What GMKtec changed​

The chassis is unchanged from the original EVO X1, which arrived in late 2024. Inside, the review says GMKtec has made three changes:

  • It uses AMD's Ryzen AI 9 HX 470.
  • It moves to Wi-Fi 7.
  • It ships with 64GB of soldered LPDDR5 memory at 6400MT/s.

The HX 470 is a refresh, not a new design. Independent specification roundups agree. Notebookcheck says this Ryzen AI 9 family shares most of its specifications with the HX 370. Wccftech notes the HX 470 has 12 cores and 24 threads, made up of four standard Zen 5 cores and eight denser Zen 5c cores. That matches the layout the review describes.

The gains are small:

  • Maximum boost rises by 100MHz, to 5.2GHz.
  • GMKtec lists the Radeon 890M at up to 3.1GHz, against 2.9GHz on the HX 370.
  • The NPU goes from 50 to 55 TOPS. Wccftech lists the NPU at a 55 TOPS peak, with 86 TOPS across the whole platform.

Price and the memory trade-off​

Prices below come from the review's account of GMKtec's US store. They are not current prices I checked. Pickavance reports:

  • The 64GB/1TB configuration is listed at $1,599.99.
  • The 64GB/2TB configuration is listed at $1,769.99.
  • Every configuration showed as sold out when he checked, with a banner warning of coming price rises.
  • The store shows a struck-through "was" price of $2,299.99. He doubts GMKtec ever sold the machine at that price.
  • The HX 370 version with 32GB and 1TB is $1,149.99. That is the $450 saving he keeps coming back to.

Memory is the central constraint:

  • The RAM is soldered on both the HX 370 and HX 470 models.
  • The platform can address more memory, but this hardware can't take it. What you buy is what you keep.
  • The warranty is one year on the US store.

Pickavance compares it with rivals that use the same chip:

SystemMemoryReported price (64GB + 1TB unless noted)
GMKtec EVO-X1 ProSoldered$1,599.99
Minisforum AI X1 Pro-470Socketed, slightly slower$1,655 (barebones $727, two-year warranty)
Beelink SER10 MAXSocketed$1,699
Geekom A9 Max 2026 EditionSocketed, up to 128GB$1,519 (32GB + 2TB)

The GMKtec is priced in line with these rivals. The others trade a little memory speed for the ability to upgrade later. Pickavance says Geekom offers a three-year warranty.

Design, ports and internals​

The machine measures 107 × 111 × 63mm and weighs about 590g. It comes with a frame for mounting on the back of a monitor.

  • Noise and heat: Pickavance found it very quiet under benchmark load. The side exhaust air gets noticeably warm in performance mode.
  • Front ports: two USB-A, one USB4 (40Gbps, PD 3.0, display output), one OCuLink (PCIe 4.0 x4) and a 3.5mm jack.
  • Rear ports: two more 10Gbps USB-A, HDMI 2.1, DisplayPort 2.1, two 2.5GbE LAN ports, DC input and a Kensington lock slot.
  • Triple displays: an HDMI adapter on the front USB4 port lets you run three monitors.
  • Labelling: he complains that the USB and LAN ports are labelled only "USB" and "LAN", with no speeds or numbers.
  • Opening it up: the threaded feet suggest a tool-free case, but a screwdriver is still needed. Four more screws free the fan housing and expose the storage.

Storage is the one part you can expand. There are two PCIe 4.0 x4 M.2 2280 slots, one filled by the shipped drive. Pickavance notes the second slot makes cloning a Windows install straightforward. With 8TB drives, that gives 16TB in total.

He also speculates that the small Wi-Fi/Bluetooth M.2 slot might be modifiable to take a third drive, at the cost of wireless. That is his untested idea, not a supported feature.

The PCIe lane budget​

The review explains why dual x4 SSD slots are unusual in a box this size. The HX 470 has 16 PCIe 4.0 lanes. The two SSD slots use eight of them and OCuLink uses four. That leaves four for Wi-Fi and the two Ethernet ports. USB is handled natively by the processor and doesn't draw on that pool.

OCuLink warning: GMKtec says the port isn't hot-swappable.

  1. Connect your external device while the mini PC is fully powered down.
  2. Power on the external device first.
  3. Then start the mini PC.

That makes it a workable route to an external GPU or local-LLM hardware, but it isn't plug-and-play.

Power modes​

GMKtec lists three modes:

  • Silent: 35W
  • Balanced: 54W
  • Performance: up to 65W peak

AMD's own figures give a 28W default TDP, configurable from 15W to 54W. Wccftech's review of another HX 470 mini PC repeats that 15–54W range. So 65W is GMKtec's system-level tuning, not an AMD specification. It is the main reason the benchmarks below carry caveats.

Benchmarks: close to Intel, not a rout​

Pickavance compared the EVO-X1 Pro with GMKtec's Intel-based EVO-T1, which uses a Core Ultra 9 285H. Both ran in BIOS performance mode. On the X1 Pro he allocated 8GB of RAM to the Radeon 890M. The T1 has socketed 5600MT/s memory and can be set to 80W, against the X1 Pro's 65W.

TestEVO-X1 Pro (HX 470)EVO-T1 (Core Ultra 9 285H)
Geekbench 6 single2,9412,973
Geekbench 6 multi15,19816,097
Cinebench 2024 multi1,1861,141
3DMark Fire Strike8,4908,213
3DMark Time Spy3,8004,363
Steel Nomad3,3323,436
CrystalDisk read (MB/s)7,1175,198
CrystalDisk write (MB/s)6,4184,726
PCMark 10 Office8,9337,917

The results are mixed. The AMD machine wins in Cinebench multi-core, Fire Strike and storage, and the Intel machine takes Time Spy and the Geekbench multi-core score. Pickavance concludes the T1 suits single-threaded work and the X1 Pro suits multi-threaded code. He also says the X1 Pro is more efficient, at a 28W base TDP against 45W.

Two caveats apply. This is one reviewer's single comparison, and the power limits differ. The SSDs also differ, so the storage gap says little about the processors.

He also tried giving the GPU 16GB of RAM. That lifted Steel Nomad Light to 3,361, which he judged not worth losing 8GB of system memory.

The upgradable alternative​

The review prices an EVO-T1 build as a cross-check:

  • A barebones T1 is $829.99.
  • Adding 64GB of SODIMM at about $290 per 32GB module, plus a 1TB Gen4 SSD at about $160, brings the total to roughly $1,570.
  • That is about $30 less than the X1 Pro, but without a Windows license.

These component prices are the reviewer's estimates, and RAM pricing moves quickly. Don't treat them as fixed.

Who should buy it​

Pickavance's advice is simple. Buy the HX 470 model if you need 64GB for local AI models or heavy multitasking, or if you want OCuLink expansion in a tiny chassis. If 32GB is enough, the HX 370 version in the same case is the better value.

My own read is that the single-year warranty and fixed RAM matter more than the chip, because this is a machine you would expect to keep for years. If you might want more than 64GB later, a socketed rival is the safer choice. For a quiet, compact Windows 11 Pro desktop with fast storage, the EVO-X1 Pro is a strong option, as long as you accept its fixed memory and premium price.

Also note that the source is an affiliate-supported review, and I haven't tested the hardware myself.
