That distinction matters for Windows administrators. A blue 15-pin connector on a new server, industrial PC or old classroom projector is not evidence that analog video won the standards war. It is evidence that organizations still have racks, carts, KVMs, displays and workflows built around a connector cheap enough to retain and familiar enough to troubleshoot under pressure.
IBM introduced VGA with the PS/2 line on April 2, 1987. The IEEE Computer Society’s historical account describes the interface as a standard-defining event for PC graphics, while period reporting on IBM’s PS/2 launch shows how quickly VGA compatibility became a requirement for the PC-clone market. Its impact came from a combination of backward compatibility with older IBM graphics modes, a workable analog RGB interface and the enormous volume of compatible PCs that followed.
MakeUseOf is right on the central historical point: VGA became entrenched because it arrived at the moment the compatible-PC industry needed a common baseline. Its account becomes less reliable when it treats the connector’s survival as proof that its successors failed to replace it.
VGA was an interface, a graphics baseline and a connector
“VGA” is routinely used to describe the familiar 15-pin connector, but IBM’s original Video Graphics Array covered more than the plug. It was a graphics subsystem with display modes, signaling expectations and compatibility behavior. The connector commonly called VGA is technically a high-density 15-pin D-subminiature connector, often called DE-15 or HD-15; calling it “DB-15” has become common shorthand, but it is not the precise shell designation.
That bundled identity gave VGA a durable advantage. A PC maker could advertise VGA support knowing that buyers, monitor makers and software developers broadly understood what the machine would do. The baseline included familiar low-resolution modes, while later Super VGA implementations extended the practical resolutions and refresh rates far beyond IBM’s original specification.
This is also where claims about VGA reaching 1080p or 2048×1536 need qualification. The analog connector itself does not impose one universal resolution ceiling. Image quality depends on the graphics hardware’s analog converter, cable quality and length, electrical interference, the display’s analog front end, and the timing capabilities exposed by the monitor. High-end CRTs and specialized equipment could run high resolutions over VGA; that does not mean every 15-pin connection can deliver a clean 1080p image.
For a Windows user confronting an old projector or display, the operational limit is simpler: use the native timing the display reports, then reduce the resolution and refresh rate if the picture is unstable. A fuzzy image, color fringing, shimmer or intermittent sync is frequently a signal-path problem, not a Windows driver mystery.
“No handshake” was never the whole story
MakeUseOf credits VGA’s longevity partly to an absence of handshaking. There is a grain of truth there: analog VGA can produce an image with remarkably little negotiation. A source can emit red, green and blue analog voltages plus synchronization signals, and a compatible display can lock onto them. That made basic troubleshooting straightforward in an era when a monitor was expected to be comparatively dumb.
But modern VGA installations are not necessarily handshake-free. The Video Electronics Standards Association developed Display Data Channel and Extended Display Identification Data mechanisms that operate over pins in the VGA connector. Extron’s technical explanation of EDID notes that the standards originated with analog computer-video devices and allow a display to tell the source about supported modes. Digital View’s current VGA controller documentation likewise specifies VESA DDC compatibility and EDID storage.
In other words, VGA survived long enough to acquire parts of the plug-and-play behavior people often associate only with digital ports. Windows can use EDID over a correctly wired VGA path to choose a mode, identify a monitor and retain display settings.
The critical limitation is that analog video does not carry pixels as discrete digital values from GPU to panel. The source converts a digital framebuffer into voltages; the display samples those voltages and converts them back into digital information for an LCD panel. Each conversion and every marginal cable connection adds opportunity for softness, phase errors, noise and poor automatic calibration.
Digital successors added complexity because they were solving real problems VGA did not solve: stable pixel-perfect transmission to flat panels, protected content paths, audio transport, higher bandwidth, multi-monitor support and, in DisplayPort’s case, a broader computer-display feature set. Those features are not gratuitous replacements for simplicity. They are why a 4K 144Hz desktop, HDR monitor or USB-C dock cannot be treated as a VGA problem with a different plug.
DVI, HDMI and DisplayPort did replace VGA where image quality mattered
DVI’s confusing mix of DVI-A, DVI-D and DVI-I made the transition from analog to digital untidy. It also had a shorter commercial runway than VGA, arriving just before HDMI became the consumer-electronics default and DisplayPort became the PC industry’s modern display link. But DVI did not fail to replace VGA in the monitor market; it was itself replaced by newer digital interfaces.
HDMI became dominant on televisions, consoles and many low-cost monitors because it combined digital video and audio in a familiar cable format. DisplayPort became common on business and enthusiast PCs because it was designed around modern computer-display requirements and can support capabilities that legacy analog equipment cannot approach. USB-C then made DisplayPort signaling available through a compact connector that can also carry data and power, subject to the specific device’s implementation.
The replacement happened decisively at the source end. Current discrete graphics cards do not expose native VGA ports, and modern laptops rarely include them. When a DisplayPort-only PC drives a VGA projector, it usually needs an active converter with a digital-to-analog converter inside. VESA’s DisplayPort guidance explicitly describes active DisplayPort-to-VGA protocol converters.
That requirement is the practical proof that VGA now sits outside the modern display pipeline. The signal is no longer naturally available; it must be recreated for the legacy endpoint.
Why new servers can still have a blue connector
The strongest evidence for VGA’s remaining role is not a budget desktop motherboard. It is server hardware.
Supermicro’s documentation for the SYS-512AR-N4T, published in December 2025, identifies a VGA port on the motherboard’s I/O panel and calls it an analog video interface. Its current GPU-server documentation also lists VGA connections on systems built around extraordinarily modern components, including high-capacity DDR5 memory and accelerator-heavy designs.

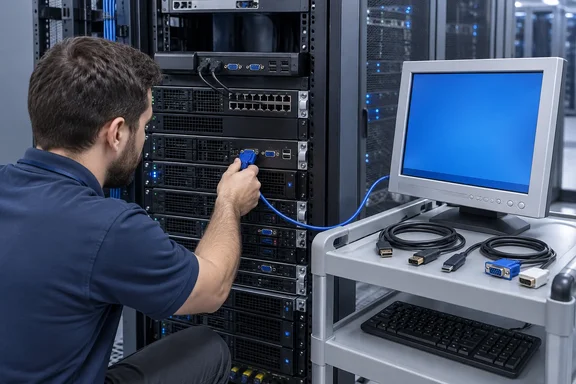

That does not mean anyone is buying those systems for analog graphics. It means a local crash-cart display remains useful in a data center. A technician can connect a known-working monitor during provisioning, firmware configuration, recovery or diagnosis without assuming that a rack display accepts HDMI or DisplayPort. The port’s value is continuity: it works with the inexpensive screens, KVM infrastructure and spare cables that facilities teams may already have.
Industrial displays show the same pattern. Current specialized monitor and controller products still advertise VGA alongside DVI or DisplayPort, especially where long service life, controlled hardware configurations and conservative replacement schedules outweigh visual fidelity. In those environments, replacement costs include validation, downtime, cabling changes and staff procedures—not merely the price of a monitor.
This is the real reason VGA remains visible: the installed base is expensive to disturb. A connector that is technically obsolete can remain economically rational for years when it supports a narrow but essential operational task.
What Windows and IT teams should do with remaining VGA gear
Organizations should treat VGA as supported legacy infrastructure, not as a future-proof display standard. The immediate goal is reliability and a controlled exit path.
- Keep tested active DisplayPort-to-VGA adapters with server crash-cart equipment, because a passive cable cannot generally convert a native digital DisplayPort output into analog VGA.
- Record the working resolution and refresh rate for each old projector, KVM and industrial display, since EDID information can be missing, damaged or mishandled by extenders and switches.
- Use short, well-made cables where possible and replace cables showing bent pins, loose thumbscrews, color loss or intermittent sync before escalating the incident to Windows, firmware or GPU drivers.
- Budget replacement around operational dependencies, especially classroom AV chains, point-of-sale peripherals, KVM matrices and embedded systems where a new display connector may require more than a new cable.
VGA’s long life is not a story about an old connector outclassing modern standards. It is a story about how standards persist after their original market has moved on. For the Windows administrator still carrying a VGA adapter, that blue connector remains useful precisely because it is old, predictable and attached to equipment that cannot be casually replaced.
