Where the dedicated CPU connector came from
Early ATX systems ran everything through one 20-pin main connector. The Pentium 4 changed that. Intel extended the ATX 2.03 specification to define a new class of supply called ATX12V, with the Pentium 4 as the trigger. ATX12V supplies added a 2x2, 4-pin +12V power connector. One reference describes it as a 4-pin Molex Mini-Fit Jr. connector, introduced with ATX12V version 1.0 in 2000 to feed extra +12V current to the Pentium 4's voltage regulator.
It was also mandatory in practice. Intel's policy was that all Pentium 4 motherboards, and all power supplies used with them, had to include the 4-pin +12V connector. That fits what motherboard manuals of the time said. My evidence notes cite an ASUS P4C800 manual that required a separate 4-pin ATX12V plug alongside the 20-pin connector. The manual warned that the system would not boot without it.
The 4-pin plug was therefore not a cosmetic change. It moved CPU power delivery off the older rails and onto a dedicated 12V feed.
What the 4+4 split actually does
The 8-pin CPU connector is commonly called EPS12V, and it has server roots. Intel's ATX 3.0 design guide says the dedicated 12V CPU connectors on the motherboard are either a single 8-pin (2x4) connector or one or two 4-pin (2x2) connectors. The guide adds that these are often referred to as EPS12V connectors.

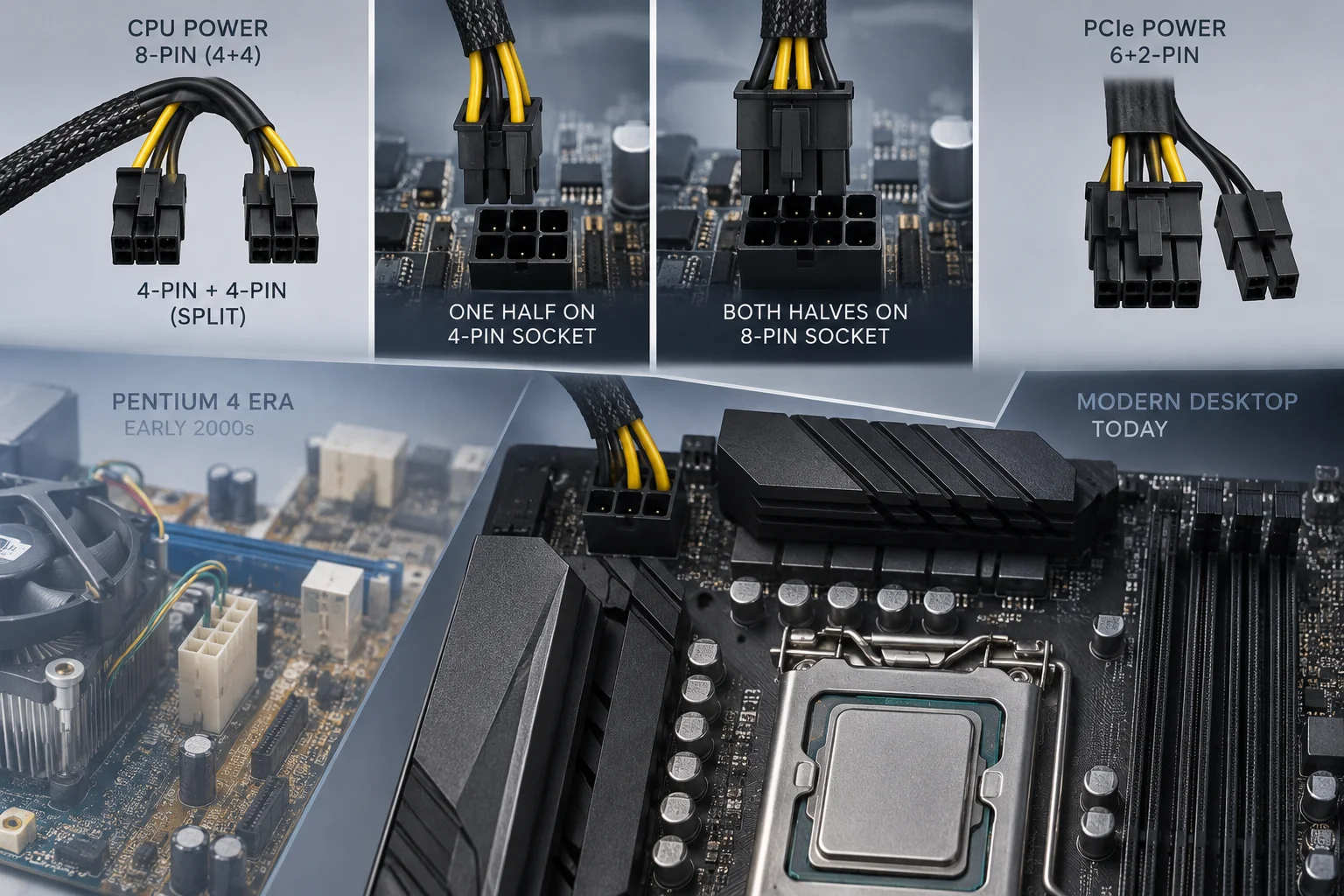

Seasonic's cable guide explains how builders use the split. Some boards have only a 4-pin CPU socket. In that case you separate the two halves, plug in one 4-pin connector, and leave the other unused. Seasonic says that's safe and doesn't affect the motherboard's function. On an 8-pin board, you plug in both halves as one connector.
In short, one cable end fits either socket size. That is a practical reason the design persists. Intel's guides still list both 4-pin and 8-pin CPU connectors as valid.
Where the popular story overreaches
The original XDA piece says the split was created to preserve compatibility with old 4-pin boards. It also says the 4+4 form arrived with ATX12V 2.0 in 2003. I couldn't confirm either claim from the primary specifications I reviewed.
- Intel's documents specify the connector forms. They don't state why PSU makers adopted a split cable.
- The ATX12V 2.0 changes I found describe the 24-pin main connector. They don't describe the 4+4 CPU cable arriving at that revision.
- Forum and reference-site accounts commonly say that the 8-pin EPS connector moved from servers to desktop boards with dual-core and quad-core CPUs. That's plausible and widely repeated, but those are informal sources. They aren't primary specification text.
- One AllPinouts-style reference says many later power supplies ship a 4+4 split cable that is also compatible with the 8-pin EPS12V socket. That is a description of what shipped, not a documented design motive.
The claim that "almost nobody needs that split anymore" is also unverified. I found no prevalence data on 4-pin versus 8-pin boards. Retailer-style guides say many users still encounter legacy 4-pin ATX 12V headers, especially when upgrading older cases or reusing PSUs. That is weak evidence, but it points the other way.
The safe summary is that the split is a convenient fitment feature. It matches either socket, and the standards still allow both.
Connector specs at a glance
Intel's ATX 3.0 guide gives the pinouts, and they scale simply:
| Connector | Ground (COM) pins | +12V pins | Wire gauge |
|---|---|---|---|
| 4-pin CPU | 2 | 2 | 18 AWG |
| 8-pin CPU | 4 | 4 | 18 AWG |
Some third-party guides quote wattage or amperage ceilings for each size. They differ from one another, so I'm not repeating them. For real limits, check your PSU and motherboard documentation.
Practical guidance for builders
- Find the right cable. Use the lead labeled CPU or EPS on your PSU. Seasonic notes it usually plugs in next to the processor socket, in the upper left corner of the motherboard. The board header may be labeled CPU_PWR, EPS12V, ATX12V, P4, or simply 12V.
- Match the socket. If you have an 8-pin socket, plug in the joined 4+4 connector. With a 4-pin socket, use one half and leave the other tucked away.
- Read your manuals. Whether your board needs one, two, or an extra CPU power connector depends on the board, so check its documentation. The general sources I reviewed don't establish a universal rule.
- Check orientation before inserting. Seasonic advises this explicitly, and AllPinouts notes the housings can sometimes be forced the wrong way.
- Never swap CPU and GPU cables. Intel's ATX 3.0 guide says the PCIe and CPU connectors use different pin locations and mechanical keying, and are not directly interchangeable. The 8-pin CPU and PCIe connectors look similar, but they are wired differently. A forced fit can damage hardware.
- Use cables from your own PSU. Seasonic recommends using only the cables that came with the unit, because others may not fit or may not be calibrated for that PSU. On modular supplies, a matching plug doesn't guarantee matching wiring on the PSU end.
The takeaway
The Pentium 4 explains why your PC has a dedicated CPU power connector at all. The 4+4 split is a handy, still-valid way to cover both common socket sizes. Because the specifications describe connector forms and not intent, the neat "legacy compatibility" story is plausible but not documented.
That's a good reason to treat the cable as a plug-in-and-check-the-manual job. It also means a 20-year-old design decision is still working in your case today.
