Dynamics 365 Contact Center Delivers Rich Messaging Across Live Chat and WhatsApp

Microsoft’s Dynamics 365 Contact Center is bringing richer conversations to customer service: admins can now design rich media templates that work across the live chat widget and WhatsApp, agents can preview and customize those templates at send time, and Copilot Studio can reuse the same JSON-based Adaptive Cards so bots and humans deliver consistent, interactive experiences.

Background​

Customer expectations for conversational UX have moved well beyond blocks of text. Interactive, in-line elements — buttons, quick replies, multi-field forms, and cards with images or pricing information — shorten decision cycles and reduce friction. Microsoft’s recent product notes and documentation confirm that Dynamics 365 Contact Center now supports a cross-channel rich messaging authoring and delivery workflow aimed at both human agents (live chat) and asynchronous channels (WhatsApp), with Adaptive Card JSON available for reuse inside Copilot Studio.
This announcement joins a wider product trajectory where Microsoft binds Dynamics 365 Contact Center, Dataverse, and Copilot Studio as a unified stack for omnichannel service — a pattern that several enterprise case studies and product updates have emphasized in 2025.

---

What Microsoft announced — the essentials​

Supported rich message types (current scope)​

• Live chat widget (preview): Forms, Suggested replies, Cards and carousels, and Custom JSON via Adaptive Cards.
• WhatsApp (preview): Suggested replies (reply buttons).

Microsoft explicitly calls out that Adaptive Card JSON for Live Chat forms, Live Chat custom JSON, and WhatsApp suggested replies can be copied from the Copilot Service admin center and pasted into Copilot Studio adaptive card nodes — enabling a single template design to be reused for both bot-driven and human-assisted journeys.

Admin and agent tooling​

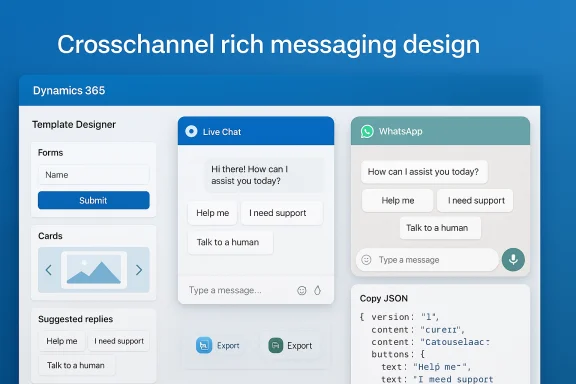

• Template designer + preview pane: admins design a single template and preview how it looks to customers on the target channel while authoring.
• Agent customization: select templates that allow single-use edits by a customer service representative before sending (for personalization).
• Copilot Studio integration: JSON for supported templates appears in the admin center and can be reused directly in Copilot Studio flows and adaptive card nodes.

These capabilities together are meant to reduce duplication (design once, use everywhere), speed agent workflows, and make conversational experiences more visual and actionable.

---

Why this matters to contact center teams​

Faster resolution and fewer keystrokes​

Rich interactive messages reduce back-and-forth. For example, a short form rich message can collect structured data (date picker, dropdown, single-line input) within the chat flow — removing the need for an agent to manually type and parse responses. Microsoft documentation lays out form field types and behavior options, which are used by agents and bots alike.

Consistency between bots and humans​

By exposing Adaptive Card JSON from the admin center for direct use in Copilot Studio, businesses can ensure that a Copilot agent and a live agent show the same interface — reducing customer confusion and improving hand-offs. This reduces rework and accelerates issue resolution inside the same conversation thread.

Reuse and governance​

Templates are created and published by admins, which supports governance, localization, and compliance. Published templates can be scoped to workstreams and only made available to agents who need them, preserving control while enabling reuse.

---

Technical verification — what the docs actually say​

Microsoft’s product pages and developer documentation show the implementation details and limitations that matter in production planning:

• Template types and channels: the Dynamics 365 release documentation lists which rich message types map to the Live Chat widget and WhatsApp channel, and explicitly notes Forms and Custom JSON for live chat and Suggested replies for WhatsApp.
• Adaptive Card JSON extraction: you can copy JSON for Live Chat and WhatsApp templates from the Copilot Service admin center and paste it into an Adaptive Card node in Copilot Studio. This is the supported path for reusing templates between agents and Copilot flows.
• Agent-side experience: agents can search and send rich messages using the conversation control UI, and certain types of messages support agent-side configuration (single-use edits). The Send Rich Messages guidance documents the /rm command and preview pane for representatives.

Externally, platform-agnostic Adaptive Card training and Azure Communication Services chat guides demonstrate how Adaptive Cards render in chat contexts and how to embed actionable JSON into chat UIs — useful background when designing custom JSON or debugging render differences.
Additionally, third-party messaging platform documentation reminds engineers of channel-specific constraints (for instance, WhatsApp UI limits for buttons and the 24‑hour message window semantics), which should inform template design decisions for WhatsApp suggested replies.

---

Strengths and practical benefits​

• One authoring surface for multiple channels: Designing templates once and deploying them to both Live Chat and WhatsApp reduces translation work and avoids layout surprises across channels. This is a major operational efficiency.
• Copilot Studio reuse: exporting JSON directly into Copilot Studio adaptive card nodes speeds bot-building and ensures parity between automated and human flows. This materially lowers the cost of adding automation to established human processes.
• Agent flexibility: allowing agents to personalize templates at send time preserves the benefits of standardized messaging while keeping the human touch. That combination helps with customer satisfaction and compliance.
• Better data capture: forms in live chat can populate structured fields back into conversation control or Dataverse, improving downstream processing and analytics.

These strengths align with the operational goals most contact centers report: shorter average handle time, fewer escalations, and better first-contact resolution when agents and bots share the same structured interactions. Observers of Microsoft’s broader contact center push have repeatedly described this stack (Dynamics + Dataverse + Copilot) as aimed squarely at those gains.

---

Risks, limitations and caveats​

No feature is without constraints. The following are the practical risks and limitations to plan for.

Preview status and SLAs​

Microsoft lists some features in preview (live chat and WhatsApp rich messages are presented in the documentation as preview-capable in many tenants). Preview features may change, and they often have no contractual SLA — this matters for mission-critical flows. Treat preview as pilot-ready but not always production-ready until GA is confirmed for your tenant and region.

Channel rendering differences and button limits​

WhatsApp and other clients impose strict UI and interaction limits (for example, reply button counts, image handling, and template behavior). A card that renders beautifully in the Live Chat widget may be simplified or truncated on WhatsApp. Test each channel aggressively. Third-party WhatsApp platform documentation highlights UI constraints and session rules that apply to templates and interactive elements.

Dependency on partner carriers and provisioning (for WhatsApp)​

WhatsApp Business delivery and feature availability often rely on partner CPaaS vendors (Infobip, Twilio, etc.) and per-country provisioning rules. Regional restrictions, sender ID rules, and template registration can add weeks to rollout timelines. Enterprises should validate per-country support and delivery characteristics before relying on WhatsApp templates for critical tasks.

Complexity of Adaptive Card JSON​

Adaptive Cards are powerful but brittle if not strictly validated across clients. Differences in the renderer versions across channels can cause unexpected layout changes or broken actions. Treat Adaptive Card JSON as a product artifact that requires version control, testing, and governance. Microsoft’s training and Adaptive Card modules are useful, but the work remains non-trivial.

Compliance and privacy​

Collecting structured inputs via forms can capture sensitive PII or financial data. The platform supports configuration to hide responses from live representatives for sensitive flows, but governance must be explicit: who can view stored responses in Dataverse, what retention applies, and how redaction is implemented for voice and transcripts (a separate privacy capability Microsoft recently documented). These are operational decisions that need legal and security sign-off.

---

Recommended rollout plan — pilot to production​

A phased approach preserves customer experience while limiting risk.

• Plan and scope your pilot
• Identify one use case (e.g., appointment booking) where structured choices reduce steps.
• Choose a limited agent group and a single region/channel (start with live chat widget).
• Confirm tenant feature availability and preview/G A status for your region.
• Author templates and test rendering
• Build templates in the Copilot Service admin center and use the preview pane for design iterations.
• Export the Adaptive Card JSON and test in Copilot Studio adaptive card nodes to validate bot behaviour.
• Security, privacy, legal review
• Define data retention for form responses, enforce DLP rules, and configure which message types allow agent edits.
• Pilot monitoring and fallbacks
• Instrument telemetry (Dataverse, agent dashboards, message DLRs). Monitor for failures and user drop-off.
• Provide clear fallbacks (rich → plain text) when render issues occur on a client.
• Expand to WhatsApp and automation
• Validate WhatsApp partner provisioning, template approvals, and button limits with your CPaaS or WhatsApp vendor.
• Add Copilot Studio flows that reuse the admin JSON so bots can safely handle the same interactions as agents.
• Iterate, localize, and govern
• Manage templates centrally, publish updates carefully, and maintain a versioned template library to avoid agent confusion.

---

How to implement — step‑by‑step (practical)​

Follow these condensed steps to go from concept to a working rich message in agent conversations and Copilot Studio.

• In the Copilot Service admin center, open the Productivity section under Support experience and select Manage for Rich messages.
• Create a new rich message template and pick the appropriate Type (Forms, Suggested Reply, Custom JSON). Set locale, tags, and whether agents may configure the message at send time.
• Use the template designer and the preview pane to iterate on how the message will appear in the Live Chat widget and WhatsApp (when applicable).
• Publish the template. The designer will prevent publishing if required fields are missing.
• To reuse in Copilot Studio, open the published template in the admin center, copy the JSON available under the JSON for Copilot Studio column, then paste into an Adaptive Card node in your Copilot flow. Test conversational logic and action handlers.
• Train agents: show them the /rm command for quick template search, the rich message preview pane, and explain which templates permit last‑mile edits.

---

Design and accessibility best practices​

• Keep suggested reply labels short and concrete (2–4 words) and avoid compound options to minimize selection errors.
• Use images sparingly and ensure they are accessible (alt text and small file sizes); the Live Chat form designer disallows animated GIFs in place of titles and recommends static images.
• For WhatsApp suggested replies, design around the client’s limit of buttons and respect the 24‑hour session rules for open, non-templated messages.
• Validate Adaptive Card JSON with both online designers and runtime renderers across typical client sizes to catch layout regressions early.

---

Operational checkpoints and governance​

• Maintain a template catalog: name, locale, type, owner, last‑tested date, and allowed edit fields.
• Enforce template publishing rules and a staging/production workflow for adaptive JSON changes to avoid accidental agent-facing breakage.
• Monitor delivery receipts and complaint rates for WhatsApp templates through your CPaaS partner and Azure telemetry to detect regional delivery or block issues early.
• Ensure privacy controls: redact or avoid capturing unnecessary sensitive inputs, and apply Dataverse field-level access controls for stored form results.

---

Critical perspective — how this fits industry-wide​

Microsoft’s approach mirrors an industry pattern: empower authors with channel-aware design tools, provide adaptive UI via JSON (Adaptive Cards), and tightly integrate bot-authoring tools so automation and human agents share the same UX artifacts. The advantage is clear: faster time to production, consistent experiences, and lower cost of bot/human parity. Analysts and case studies that examine rapid contact center modernizations have repeatedly highlighted the operational gains from these integrations.
However, the industry also shows the downsides: channel fragmentation (client‑specific render quirks), partner dependencies for messaging channels like WhatsApp, and the slow movement from preview to GA for critical features. Those tradeoffs mean that organizations should pilot ambitiously but operate conservatively — especially where regulated data or mission‑critical transactions are involved.

---

Final verdict and next steps (for technical leads and admins)​

Microsoft’s rich messaging preview in Dynamics 365 Contact Center is a pragmatic and well-integrated step toward interactive, low‑friction conversations. The ability to author once and reuse JSON in Copilot Studio reduces friction between automation and human agents, and agent-side editing preserves personalization.
That said, treat the feature as a strategic capability to be introduced via carefully scoped pilots. Confirm preview vs GA status in your tenant and geography, validate WhatsApp provisioning and button limits with your messaging partner, and build governance — template libraries, telemetry, DLP, and change control — before broad rollout. Microsoft’s documentation provides the admin and developer workflows you need to get started and the Adaptive Card resources to design robust UI JSON.

---

Microsoft’s rich messaging makes conversations more structured, visual, and actionable — and it does so within the same ecosystem that enterprises are already using for omnichannel service. With disciplined pilots, robust governance, and careful attention to channel limitations, contact centers can realize faster resolutions and higher customer satisfaction while keeping a single set of templates and code as the source of truth.

---

Source: Microsoft Try rich messaging for live chat and WhatsApp in Contact Center - Microsoft Dynamics 365 Blog
