Enable and Tune Auto HDR in Windows 11 for Better Color in DirectX Games

Enable and Tune Auto HDR in Windows 11 for Better Color in DirectX Games​

Difficulty: Intermediate | Time Required: 15 minutes
Auto HDR is a Windows 11 feature that can automatically expand the color and brightness range of many non-HDR DirectX games (especially DirectX 11 and DirectX 12 titles), making highlights “pop” more, improving shadow detail, and delivering a more modern HDR-like presentation—without requiring a native HDR patch. The catch: results depend heavily on your display, GPU settings, and a few Windows toggles. This guide walks you through enabling Auto HDR and tuning it so your games look vivid without being washed out or overly bright.

---

Prerequisites​

Before you start, confirm you have the following:

1. Windows 11
   • Auto HDR is a Windows 11 feature.
   • Recommended: Windows 11 22H2 or newer for the best HDR-related controls and fixes.
2. An HDR-capable display (monitor or TV)
   • Ideally HDR10-capable with decent peak brightness.
   • Built-in laptop HDR panels can work too, but quality varies widely.
3. A GPU that supports HDR output
   • Modern NVIDIA/AMD/Intel GPUs generally support this.
   • Update to the latest graphics driver for best results.
4. A DirectX game that runs in a compatible mode
   • Auto HDR is most commonly effective in DirectX 11/12 games.
   • Some games (especially older or unusual rendering paths) may not benefit.

Note (Windows 10): Windows 10 supports HDR, but Auto HDR is Windows 11-only. If you’re on Windows 10, you can still enable HDR for native HDR games, but you won’t get Auto HDR’s automatic conversion.

---

Step-by-Step: Enable HDR and Auto HDR in Windows 11​

1) Confirm Windows detects your HDR display​

1. Right-click the desktop and choose Display settings.
2. Select the correct display at the top (if you have multiple monitors).
3. Scroll to Brightness & color.
4. Look for HDR.

If you don’t see HDR options:

• Ensure you selected the HDR-capable display.
• Verify the monitor’s on-screen menu has HDR mode enabled (many displays require it).
• Check your HDMI/DisplayPort cable and port version (a bad/older cable can block HDR).

---

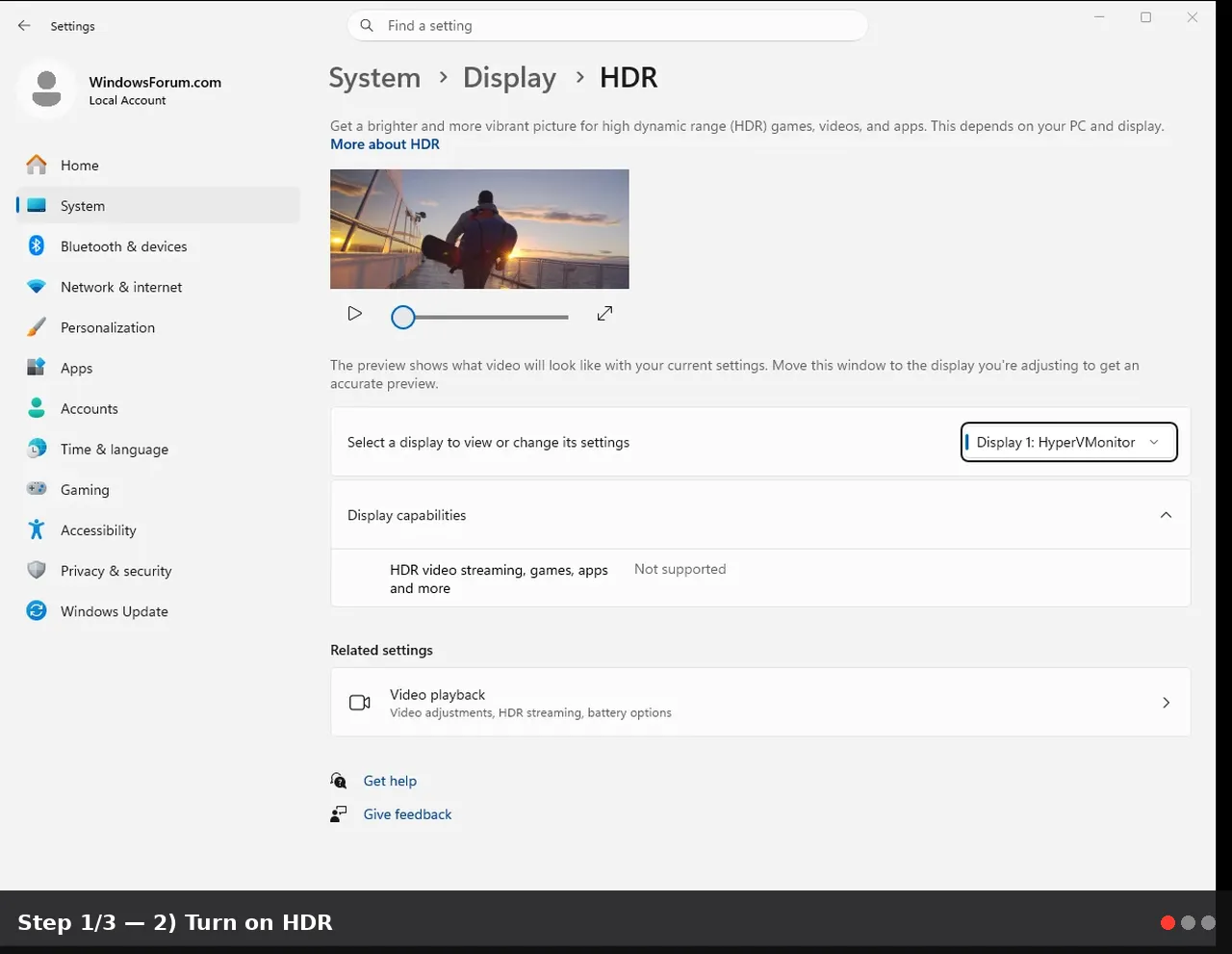

2) Turn on HDR​

1. Go to Settings → System → Display.
2. Select your HDR display.
3. Click HDR.
4. Toggle Use HDR to On.

Warning: Turning on HDR can change how the Windows desktop looks (sometimes dimmer or different color). That’s normal—Windows is switching to an HDR output mode.

---

3) Enable Auto HDR​

1. Still in Settings → System → Display → HDR (with your HDR display selected),
2. Find Auto HDR.
3. Toggle Auto HDR to On.

That’s the main switch. Next, you’ll tune it so games don’t look overexposed or gray.

---

4) Adjust HDR brightness / SDR content brightness (important!​

When HDR is enabled, Windows provides controls that affect the desktop and non-HDR content:

1. In Settings → System → Display → HDR:
2. Adjust SDR content brightness (wording may vary slightly by Windows build).
   • This controls how bright non-HDR content looks while HDR mode is on.

Suggested starting point:

• If your desktop looks washed out: lower SDR content brightness.
• If your desktop looks too dim: raise it slightly.

Tip: This slider affects Windows desktop and SDR apps. Auto HDR games often look best when SDR brightness is not set excessively high.

---

Step-by-Step: Calibrate HDR for Better Auto HDR Results​

5) Install and run the Windows HDR Calibration app (highly recommended)​

Microsoft provides a calibration app that can improve HDR tone mapping.

1. Open the Microsoft Store.
2. Search for Windows HDR Calibration and install it.
3. Launch the app and follow the on-screen patterns:
   • Minimum luminance (black level)
   • Maximum luminance (peak brightness)
   • Color saturation (avoid neon/oversaturated colors)

When you finish, Windows saves a calibration profile that can improve HDR consistency across games.

Note: This is especially helpful for Auto HDR because the conversion relies on correct display luminance and tone mapping.

---

Step-by-Step: Make Sure Games Actually Trigger Auto HDR​

6) Use the right display mode and game settings​

Auto HDR may not engage in every scenario. For best compatibility:

1. In-game, prefer Exclusive Fullscreen if available.
   • Many games work in borderless too, but fullscreen can be more consistent.
2. Use DirectX 11/12 renderers when the game offers a choice.
3. Disable conflicting “fake HDR” or post-processing that crushes blacks/whites (overly aggressive gamma or contrast mods).

Tip: When Auto HDR activates, Windows may show a small notification. You can also press Win + G (Xbox Game Bar) to view Auto HDR controls (next step).

---

7) Tune intensity per game using Xbox Game Bar (the secret weapon)​

Windows 11 includes an Auto HDR intensity slider (works in supported games).

1. Launch a game that should benefit from Auto HDR.
2. Press Win + G to open Xbox Game Bar.
3. Look for Auto HDR settings (it may appear as a widget/option when the game supports it).
4. Adjust Auto HDR intensity:
   • Lower intensity if highlights are blowing out (too bright, loss of detail).
   • Raise intensity if the image looks too flat or similar to SDR.

Warning: Overdriving intensity can create “glowing” highlights and unnatural colors. If faces look sunburned or UI elements are blinding, back it down.

---

Tips for Best Color and Contrast (Without the “Washed Out HDR” Look)​

Tip A) Confirm your monitor’s HDR mode is set correctly​

Many monitors have multiple HDR behaviors (often poorly named). Check the monitor OSD for:

• HDR mode (HDR Standard / HDR Game / HDR Cinema, etc.
• Local dimming settings (if available)
• Dynamic contrast features

General guidance:

• Avoid overly aggressive “dynamic contrast” if it causes flicker or crushed blacks.
• If local dimming causes blooming artifacts, try a less aggressive setting.

---

Tip B) Set the correct output format in GPU control panel​

If colors look wrong (gray blacks, crushed shadows, weird saturation), check GPU output:

• NVIDIA Control Panel → Change resolution
  • Output color format: RGB
  • Output dynamic range: Full (especially for monitors)
• AMD Radeon Settings and Intel Graphics Command Center have similar options.

Note: TVs sometimes expect limited range in certain modes; monitors typically prefer RGB Full. If you’re using a TV, also check the TV input label (PC mode can help).

---

Tip C) Don’t forget the game’s own brightness/gamma settings​

Auto HDR doesn’t override bad in-game calibration.

• If the game has a brightness/gamma slider (even in SDR mode), set it so:
  • Near-black details are visible but blacks still look black
  • White details aren’t clipped

---

Troubleshooting: Common Problems and Fixes​

Problem 1: “Auto HDR option is missing”​

• You’re likely on Windows 10, or HDR is not detected.
• Confirm Windows 11 and that Use HDR is available for that display.

Problem 2: “HDR is on, but games look washed out”​

Try this order:

1. Lower SDR content brightness in Settings → Display → HDR.
2. Run Windows HDR Calibration again.
3. Check GPU output range (RGB Full vs Limited).
4. Reduce Auto HDR intensity in Game Bar.

Problem 3: “Auto HDR doesn’t activate in my game”​

• Try Exclusive Fullscreen.
• Ensure the game uses DX11/DX12 (if selectable).
• Update GPU drivers.
• Some games simply aren’t compatible—Auto HDR is not guaranteed for every title.

Problem 4: “Performance stutters or input lag feels worse”​

Auto HDR itself is usually light, but HDR pipelines can interact with:

• Capture/overlay tools
• Variable refresh features
• Borderless vs fullscreen behavior

Try:

• Disable extra overlays (Discord overlay, recording, etc. temporarily
• Use fullscreen mode
• Update GPU drivers and Windows

---

Conclusion​

Auto HDR can dramatically improve how many DirectX games look on an HDR display—brighter highlights, richer contrast, and more vibrant color—without waiting for native HDR updates. The best results come from doing three things: turning on HDR + Auto HDR in Windows, calibrating your display using the Windows HDR Calibration app, and dialing in per-game intensity using Xbox Game Bar. Once tuned, you can get a noticeably more modern, punchy image in supported games with minimal effort.

---

Key Takeaways:

• Auto HDR (Windows 11) can upgrade many DirectX 11/12 games with better highlights and color range.
• Best results come from Windows HDR Calibration plus sensible SDR content brightness settings.
• Use Xbox Game Bar to adjust Auto HDR intensity per game and avoid blown-out highlights.
• If colors look wrong, check GPU output format/range and your monitor/TV HDR mode.

---
