Fix Windows 10/11 Mapped Drive Red X Errors After Sign-In

Fix Windows 10/11 Mapped Drive Red X Errors After Sign-In​

Difficulty: Intermediate | Time Required: 20 minutes
If your mapped network drives show a red X icon after you sign in to Windows 10 or Windows 11, you’re not alone. This is a common issue on PCs that reconnect to file shares during login, especially on systems that start faster than the network is ready. In many cases, the drive still works if you click it, but the red X can be confusing and may also break apps, scripts, or backup jobs that expect the drive to be available immediately.
This guide walks you through several proven ways to fix mapped drive red X errors after sign-in, including forcing Windows to wait for the network, remapping drives properly, and using a sign-in script for more reliable reconnection.

Prerequisites​

Before you begin, make sure you have:

• A Windows 10 or Windows 11 PC
• Access to the network share path, such as \\Server\Share
• Permission to access the shared folder
• An account with administrative rights for some steps
• Your mapped drive letter(s), if already assigned

Note: These instructions apply to both Windows 10 and Windows 11. Some menu names may look slightly different depending on your version, such as 22H2, 23H2, or newer builds.

---

Step 1: Confirm the mapped drive path still works​

Before changing settings, make sure the network share itself is available.

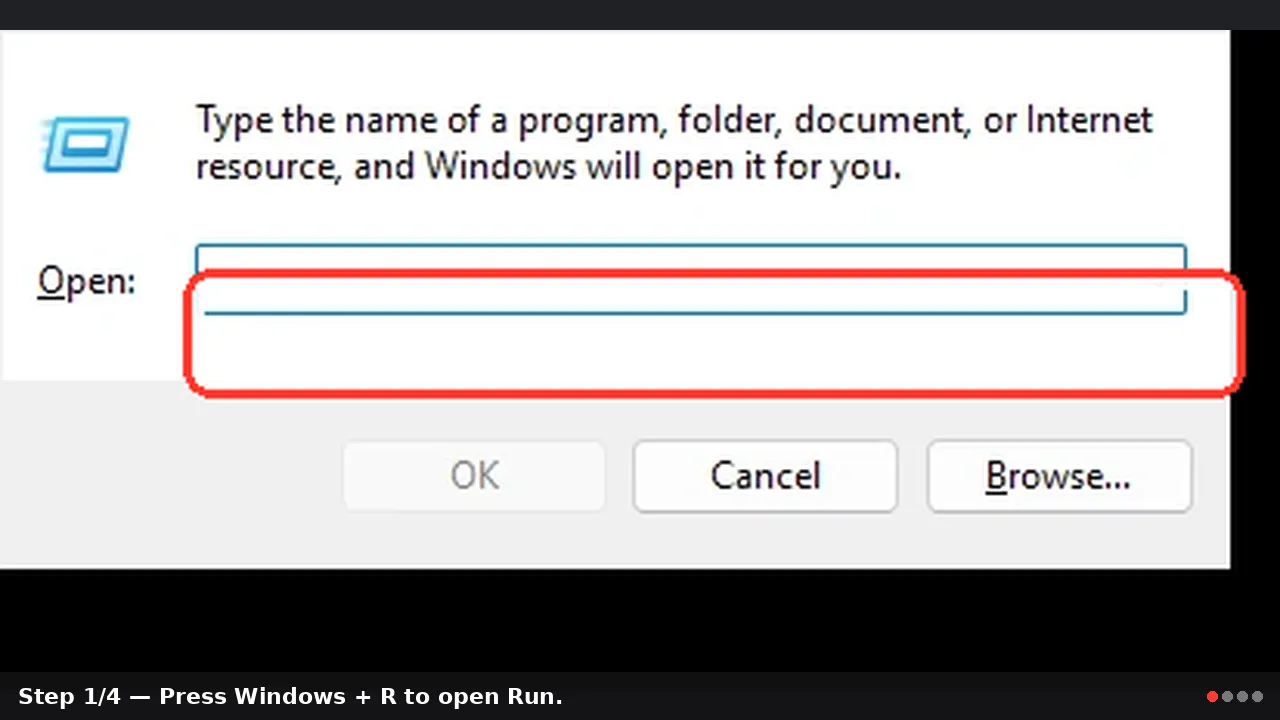

1. Press Windows + R to open Run.
2. Type the full network path to your share, for example:
   \\ServerName\SharedFolder
3. Click OK.
4. If prompted, enter your network credentials.
5. Verify that the folder opens normally.

If the share does not open:

• Check that the server or NAS is powered on
• Confirm the device is on the same network or VPN
• Verify the shared folder name has not changed
• Make sure your user account still has access

Tip: If the network path itself fails, fixing the red X icon alone will not solve the problem. Resolve share connectivity first.

---

Step 2: Disconnect and remap the drive correctly​

Sometimes Windows stores an old or broken reconnect entry. Removing and recreating the mapping can help.

1. Open File Explorer.
2. In the left pane, click This PC.
3. Right-click the mapped drive showing the red X.
4. Select Disconnect.

Now remap it:

1. In File Explorer, click the three-dot menu or Computer tab, depending on your Windows version.
2. Select Map network drive.
3. Choose the drive letter you want to use.
4. In the Folder box, enter the network path:
   \\ServerName\SharedFolder
5. Check Reconnect at sign-in.
6. If needed, check Connect using different credentials.
7. Click Finish.

After remapping, restart your PC and check whether the red X returns.

Warning: If you map the same share using different credentials from another share on the same server, Windows may reject it. In that case, disconnect all shares from that server first and remap them consistently.

---

Step 3: Enable “Always wait for the network at computer startup and logon”​

One of the most effective fixes is forcing Windows to wait until the network is fully available before completing sign-in.

Option A: Using Local Group Policy Editor​

(Windows Pro, Enterprise, and Education editions)

1. Press Windows + R.
2. Type:
   gpedit.msc
3. Press Enter.
4. Navigate to:
   Computer Configuration > Administrative Templates > System > Logon
5. Double-click Always wait for the network at computer startup and logon.
6. Select Enabled.
7. Click Apply, then OK.
8. Restart your computer.

Option B: Using the Registry​

(For Windows Home where Group Policy Editor is not available)

1. Press Windows + R.
2. Type:
   regedit
3. Press Enter.
4. Go to:
   HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows NT\CurrentVersion\Winlogon
5. If Winlogon does not exist under that path, create it.
6. In the right pane, right-click and choose New > DWORD (32-bit) Value.
7. Name it:
   SyncForegroundPolicy
8. Double-click it and set the value to:
   1
9. Click OK.
10. Restart the PC.

Note: This setting helps when Windows signs you in before Wi-Fi, Ethernet, domain services, or VPN connections are fully ready.

---

Step 4: Install Microsoft’s mapped drive update behavior fix manually with a logon script​

In some Windows 10 and Windows 11 environments, mapped drives may appear disconnected until accessed. A logon script can force Windows to reconnect them after sign-in.

Create a reconnect script​

1. Open Notepad.
2. Paste the following script:


   [USER=35331]@echo[/USER] off
   timeout /t 15 /nobreak >nul
   net use * /delete /y >nul 2>&1
   net use Z: \\ServerName\SharedFolder /persistent:yes

3. Replace:
   • Z: with your preferred drive letter
   • \\ServerName\SharedFolder with your actual network share
4. Save the file as:
   ReconnectDrive.bat
5. Store it in a folder such as:
   C:\Scripts

Run the script at sign-in​

1. Press Windows + R, type:
   shell:startup
   then press Enter.
2. Copy or create a shortcut to ReconnectDrive.bat in the Startup folder.
3. Sign out and sign back in to test.

Tip: The 15-second delay gives Windows time to establish the network connection before attempting to map the drive.

Warning: If you use multiple mapped drives, add one net use command per drive instead of using only a single mapping.

Example:

[USER=35331]@echo[/USER] off
timeout /t 15 /nobreak >nul
net use Z: \\ServerName\SharedFolder /persistent:yes
net use Y: \\ServerName\DeptFiles /persistent:yes

---

Step 5: Check Credential Manager for saved or outdated credentials​

Incorrect saved credentials can cause drives to reconnect improperly.

1. Open Control Panel.
2. Go to User Accounts > Credential Manager.
3. Click Windows Credentials.
4. Look for entries related to your file server, NAS, or shared path.
5. Remove outdated or incorrect credentials.
6. Restart the PC.
7. Reconnect to the share and enter the correct username and password if prompted.

Note: This is especially useful if a password was recently changed or if the share moved to a different server.

---

Step 6: If you use Wi-Fi or VPN, make sure the connection starts early enough​

Mapped drives often fail at sign-in because the device is not connected to the network yet.

For Wi-Fi users:​

1. Make sure your PC automatically connects to your main Wi-Fi network.
2. Open Settings > Network & Internet > Wi-Fi.
3. Select your network and confirm Connect automatically is enabled.

For VPN users:​

1. If the network share is only reachable through VPN, connect the VPN before trying to access the mapped drive.
2. Consider using a VPN client that supports connect before sign-in or always-on VPN, if available.

Tip: Standard sign-in mapped drives may fail if the VPN connection starts only after the desktop loads.

---

Step 7: Verify mapping status with Command Prompt​

You can check how Windows sees your mapped drives.

1. Open Command Prompt as your user account.
2. Type:
   net use
3. Press Enter.
4. Review the output for:
   • Status
   • Local drive letter
   • Remote path

If a drive shows as unavailable, you can remove and recreate it:

net use Z: /delete
net use Z: \\ServerName\SharedFolder /persistent:yes

This method is often faster and more reliable than using File Explorer.

---

Tips and Troubleshooting Notes​

• Red X but drive opens normally: This can be a cosmetic or delayed refresh issue. The drive may reconnect only when accessed.
• Fast Startup can contribute to odd reconnect behavior: Try disabling Fast Startup in Control Panel > Power Options > Choose what the power buttons do.
• Domain-joined PCs: Group Policy or login scripts from your organization may override local settings.
• Multiple shares on one server: Use the same credentials for all shares on that server to avoid authentication conflicts.
• NAS devices: Older NAS units may respond slowly after reboot. Allow extra time before Windows tries to reconnect.
• Windows updates: Some mapped drive issues have appeared after cumulative updates and later been improved by newer updates, so make sure your system is current.

Helpful note: If the red X problem started recently, check whether it began after a password change, router replacement, NAS firmware update, or Windows feature update.

---

Conclusion​

Mapped drive red X errors after sign-in usually happen because Windows tries to reconnect network drives before the network, credentials, or remote device is fully ready. By verifying the share path, remapping the drive, enabling Windows to wait for the network, and using a startup script when needed, you can make mapped drives reconnect much more reliably in Windows 10 and Windows 11.
A few small configuration changes can save time, reduce confusion, and prevent apps or workflows from failing when they depend on network drives.
Key Takeaways:

• Verify the network share path works before troubleshooting the red X icon
• Remap drives with Reconnect at sign-in enabled
• Enable Always wait for the network at computer startup and logon for more reliable reconnects
• Use a startup script if Windows still reconnects drives too early
• Check saved credentials and Wi-Fi/VPN timing issues if the problem persists

---
