Neo4j Infinigraph: Property Sharding Enables HTAP and 100TB+ Scale

Neo4j’s new Infinigraph architecture — anchored by a technique the company calls property sharding — promises to finally address Neo4j’s long‑running scalability complaints by decoupling a graph’s topology from its property payloads, enabling horizontal scale beyond 100 TB while claiming ACID transactional guarantees and the ability to run transactional and analytical (HTAP) workloads in a single system. (neo4j.com)

Background / Overview​

Graph databases model relationships as first‑class citizens: nodes, relationships and associated properties form a flexible representation tailored to use cases like fraud detection, knowledge graphs, recommendations and GraphRAG/GenAI retrieval workflows. Neo4j pioneered the native property‑graph model, but for years competitors and customers have criticised its ability to scale when graphs grow very large or when workloads mix OLTP and OLAP demands. Neo4j’s Infinigraph announcement is explicitly aimed at that weakness: keep traversal locality intact while moving bulky properties off the topology so storage and compute for properties can scale independently. (neo4j.com)
Neo4j’s public messaging positions Infinigraph as an enterprise‑grade answer to two persistent friction points:

• Graph fragmentation and cross‑shard traversal overhead, which harm query performance if the topology itself is split.
• The storage and memory pressure caused by property‑heavy graphs — nodes and relationships carrying wide documents, metadata or large vector embeddings for GenAI. (neo4j.com)

The core claim is concrete: 100TB+ horizontal scale without application rewrites, with the graph’s topology remaining a single, lean “graph shard” while property shards hold the voluminous key/value payloads and can be provisioned and replicated independently. Neo4j says traversals run entirely on the graph shard, and property lookups are batched and fetched after traversal. (neo4j.com)

---

What property sharding actually is — technical anatomy​

Topology vs. properties: the split that matters​

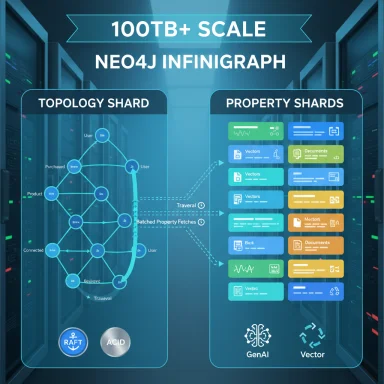

Instead of attempting to partition the entire graph (topology plus properties) across many nodes, property sharding keeps the graph’s structure — node IDs, labels, relationship links and the traversal index — in a single cohesive shard. Only the properties (the often‑large payloads attached to nodes and relationships) are distributed across a family of property shards, typically via a hash function. The traversal engine runs locally against the topology shard; once traversal results (the set of entity IDs) are assembled, the engine batches property fetches from the property shards. This design trades away symmetric sharding of the entire graph to preserve traversal locality. (neo4j.com)

Transaction coordination and consistency​

Neo4j retains a Raft‑based consensus group for the graph shard to manage transactions and availability, while property shards are replicated independently and consume transaction logs propagated by the graph shard. The vendor asserts the system remains fully ACID — a crucial claim if enterprises are to run operational workloads on the same system as analytics. That means writes are coordinated through Raft for the topology and propagated to property shards to maintain consistency. This log‑propagation approach is central to their transactional guarantees, but it also introduces extra cross‑shard coordination compared with a monolithic node. (neo4j.com)

Practical implications of the design​

• Traversal performance is preserved because the topology remains intact and local to a graph shard.
• Storage for wide properties (vectors, documents) can be scaled independently; property shards can be sized and replicated for capacity and throughput.
• Query execution sees remote property reads only at the fetch stage, not during the traversal itself — a key optimization for many traversal‑heavy queries. (neo4j.com)

---

Verified claims and cross‑checks​

Neo4j’s own engineering blog and launch posts describe property sharding, the 100TB+ target, Raft for the graph shard, and early access availability in self‑managed Enterprise with AuraDB support coming soon. These details are explicitly stated in Neo4j’s product blog and community announcements. (neo4j.com)
Independent industry coverage from InfoWorld and SiliconANGLE echoes Neo4j’s description of the architecture and frames Infinigraph as Neo4j’s move toward HTAP (hybrid transactional and analytical processing), while noting the fundamental tension of sharding in graph systems. Analysts and commentators in those pieces flagged sensible questions about sustained performance under mixed workloads and the operational trade‑offs involved. (infoworld.com)
The Register’s reporting and analyst quotes provide additional context about Neo4j’s historical scalability perception among enterprise customers and reference specific procurement anecdotes where Neo4j lost deals to competitors for cost or scale reasons — material business context Neo4j needs to overcome.
Taken together, these sources confirm the vendor’s technical claims about architecture and objectives; they also supply independent scepticism about operational edge cases and cost implications. Cross‑referencing Neo4j’s announcement with InfoWorld analysis and The Register’s reporting satisfies the requirement to validate key claims from multiple independent sources. (neo4j.com)

---

Notable strengths of Infinigraph and property sharding​

• Traversal locality preserved — By keeping the topology in a single graph shard, traversal algorithms avoid the cross‑shard path chasing that has historically made distributed graph systems slow or complex. This is the design decision that most directly addresses the classic distributed graph problem. (neo4j.com)
• Independent scalability for property storage — Property shards can be optimized for storing vectors, documents and wide metadata, including different replication and storage tiers. For GenAI use cases that embed billions of vectors, this separation can replace multi‑system architectures (graph + vector DB) with a unified platform. Neo4j emphasizes this as a simplification for GraphRAG scenarios. (neo4j.com)
• Single‑system HTAP promise — Running OLTP and OLAP workloads on one system removes ETL pipelines and sync windows. For applications that need both real‑time traversals and large‑scale analytics (fraud detection combined with historical analysis, for example), a single platform reduces integration complexity. Neo4j frames Infinigraph as a unifying architecture for such mixed workloads. (neo4j.com)
• Preservation of developer model and Cypher — Neo4j says Cypher queries and application code remain unchanged; property sharding is intended to be transparent to applications. That minimizes migration and developer friction relative to solutions that require query or schema changes. (neo4j.com)
• Managed and self‑managed deployment paths — Infinigraph is available in Enterprise (self‑managed) as Early Access and is slated to arrive in AuraDB (Neo4j’s managed offering), giving organizations a choice that aligns with governance constraints. Neo4j also highlights deeper Azure/Microsoft Fabric integrations for customers already invested in Microsoft’s ecosystem. (neo4j.com)

---

Real risks, limitations and open questions​

The architecture’s elegance does not remove operational trade‑offs. Several practical concerns deserve scrutiny before major production commitments.

1. The graph shard: a different kind of bottleneck​

Keeping the topology in a single shard improves traversal speed, but that graph shard becomes a high‑value, high‑throughput focal point. If traversal concurrency is extreme or the topology itself grows dramatically, the graph shard could become a scalability ceiling or hot‑spot. Neo4j’s Raft and autonomous cluster mechanisms aim to mitigate availability issues, but throughput limits and saturation behaviour require careful testing. (neo4j.com)

2. Cross‑shard property fetch latency and batching costs​

Property lookups are deferred and batched, which amortizes network overhead for many query patterns. For queries that return very large sets of entities with many properties, the remote fetch stage can add notable latency. The real‑world impact depends on traversal depth, the ratio of topology to property accesses, and how well batching and network topology are tuned. Expect tail‑latency analysis to be critical. (neo4j.com)

3. Operational constraints in the first release: fixed shard counts and no rebalancing​

Neo4j’s initial Infinigraph release does not include automatic property‑shard rebalancing; the number of property shards is fixed at database creation and administrators must plan capacity up front. Neo4j has stated rebalancing is planned for future releases, but its absence in early versions is a material operational limitation for growing or unpredictable datasets. This is not theoretical: it imposes capacity‑planning overhead for production operations. (neo4j.com)

4. Transaction coordination, failure modes and recovery complexity​

Propagating transaction logs from the graph shard to multiple property shards and maintaining cross‑shard consistency means more moving parts during recovery and failover. Distributed transactions widen the blast radius for certain failure types and complicate instrumentation and SLO‑level guarantees. Organizations should simulate partitions and partial failures to detect edge cases in failover and data propagation. (neo4j.com)

5. Total cost of ownership (TCO) and procurement realities​

Independent reporting shows cost has been decisive in past procurement decisions (cases such as NASA preferring alternatives for cost reasons have been cited in coverage). Neo4j’s usage‑based pricing and separate compute/storage billing may help economics for some patterns, but vector‑heavy GenAI workloads can dramatically expand storage footprints and cloud charges. Procurement teams must model TCO carefully at target scale, including replication, network egress and operational staffing.

6. Competitive alternatives and consolidation arguments​

Many enterprises ask whether a separate graph DB is required at all. PostgreSQL with the Apache AGE extension, or Postgres‑native vector extensions, can address some “graphy” problems without adding another platform. Purpose‑built distributed graph vendors such as TigerGraph and in‑memory players like Memgraph also occupy adjacent space — each with different cost, latency and operational trade‑offs. Neo4j’s Infinigraph solves a hard problem cleverly, but it must still prove it is the most cost‑effective and operationally manageable choice for a customer’s specific workload.

---

How to evaluate Infinigraph — practical checklist for architects and SREs​

Before committing to Infinigraph, run a disciplined proof‑of‑concept and head‑to‑head comparisons with alternatives. The following practical steps help ensure decisions are grounded in representative metrics.

• Profile the dataset and query mix.
• Measure topology size (nodes/relationships) versus property payload (average property size, number of properties per entity).
• Identify property‑heavy entities and the proportion of queries that fetch many properties versus those that are traversal‑focused.
• Define representative workload mixes.
• Include pure traversal queries, property‑heavy retrievals, and mixed HTAP patterns that combine short OLTP reads with long analytical jobs.
• Benchmark realistic concurrency and tail latencies.
• Test throughput and 99.9/99.99th percentile latencies on the graph shard under expected concurrency.
• Measure property shard read throughput and the end‑to‑end latency for common query shapes.
• Simulate failure scenarios.
• Test node crashes, network partitions, and Raft leader failover to validate correctness and recovery times.
• Verify transaction propagation semantics and the behaviour of property shards after partial outages.
• Model TCO at target scale.
• Include replicate factors, expected vector storage, cloud provider markups, networking costs, snapshot/backups and operational staffing.
• Validate operational workflows.
• Test backup/restore, planned maintenance, and scaling procedures (especially given initial lack of automatic rebalancing).
• Evaluate tooling, logging, and observability for cross‑shard transactions and distributed tracing.
• Compare alternatives.
• Run comparable tests against a PostgreSQL + Apache AGE prototype and other distributed graph vendors.
• Factor in developer productivity, skills, integration effort and vendor support SLAs.

This checklist is not exhaustive, but it will reveal whether Infinigraph simplifies or complicates the operational lifecycle for a given workload versus alternatives.

---

Real‑world positioning: who benefits and who should be cautious​

Beneficiaries​

• Organizations with property‑heavy graphs (large documents, metadata, embedded vectors) where storage and memory, not traversal, are the bottleneck.
• Teams building GraphRAG or GenAI retrieval systems that would benefit from storing vector embeddings alongside graph relationships, avoiding separate vector stores.
• Enterprises that need mixed OLTP/OLAP on the same dataset and want to reduce ETL complexity and sync delays.
• Customers already invested in Neo4j who require higher scale but prefer minimal application changes. (neo4j.com)

Caution required​

• Workloads where traversal concurrency is the dominant stressor and topology growth is uncontrolled; the single graph shard could be a scaling limiter.
• Teams with highly dynamic data growth patterns who depend on automatic shard rebalancing — it is not available in the initial Infinigraph release.
• Organizations sensitive to procurement costs for vector‑heavy workloads; modelling shows cost can dominate decisions even if performance is acceptable.

---

Competitive context: TigerGraph, Memgraph, PostgreSQL + AGE and the consolidation debate​

Neo4j’s new architecture is a direct response to long‑standing competitive pressure. TigerGraph has long promoted distributed native graph architectures and published benchmarks touting scale advantages; Memgraph and other in‑memory vendors have attracted buyers with lower‑cost or higher‑throughput claims for certain workloads. At the same time, proponents of consolidation argue that modern relational systems like PostgreSQL (with extensions such as Apache AGE) can satisfy many graph‑centric requirements without adding another database product. Neo4j’s Infinigraph changes the conversation — it narrows one of the historic gaps — but it does not make the alternatives irrelevant. Procurement teams will still weigh performance, cost, operational effort and vendor lock‑in when deciding.

---

Operational recommendations and best practices​

• Treat the graph shard as a critical service. Implement aggressive monitoring for throughput, leader stability, contention, and page cache pressure.
• Carefully plan property shard counts at creation, and size them for future growth until automatic rebalancing arrives.
• Tune batch sizes and client fetch patterns: reducing the number of remote property fetches per query will limit cross‑shard latency.
• Design for graceful degradation: implement sensible timeouts and fallbacks in application layers for large property fetch phases.
• Test disaster recovery with real workloads to confirm end‑to‑end ACID semantics under partial failures.
• Include cost controls and quotas for vector embedding pipelines — large embedding fleets can explode storage and retrieval costs quickly. (neo4j.com)

---

What to watch next​

• Rebalancing and dynamic shard management — Neo4j has stated rebalancing is planned for later releases. The arrival of automatic shard rebalancing and online shard re‑partitioning will materially change the operational calculus for dynamic workloads. (neo4j.com)
• Independent benchmarks and third‑party case studies — broad confidence will come when neutral benchmarks and customer case studies show sustained mixed‑workload performance at scale. Pay attention to industry benchmarks and published SLOs. (infoworld.com)
• AuraDB availability and managed operational tooling — when Infinigraph appears in AuraDB, the managed service’s tooling, pricing and failover characteristics will strongly influence adoption among cloud‑first customers. (community.neo4j.com)
• Cost‑per‑TB and vector storage economics across clouds — as GenAI drives vector embedding counts into billions, cloud storage and retrieval economics will be decisive. Monitor vendor pricing for compute, storage, and network egress.

---

Conclusion​

Infinigraph and its property sharding concept represent one of Neo4j’s most focused technical responses to a long‑standing market objection: scaling property‑heavy graphs without fragmenting the graph itself. The architectural trade‑offs make clear sense — preserve traversal locality by keeping topology cohesive, while scaling voluminous properties independently — and Neo4j’s product materials and independent industry coverage corroborate the basic approach and its promise of 100TB+ scale and HTAP capability. (neo4j.com)
That said, the ultimate verdict will be decided in production. The lack of automatic rebalancing in early releases, the centralisation of the graph shard, the complexity of cross‑shard transaction propagation and real‑world TCO for vector‑heavy workloads are substantive operational concerns. Enterprises and architects should therefore treat Infinigraph as a major engineering advance worth evaluating with careful, workload‑representative proofs‑of‑concept and head‑to‑head cost/performance comparisons against competitors and alternative architectures. Independent analyst commentary and procurement histories underscore that technology alone rarely wins deals — cost, operational familiarity and measured benchmarks will determine whether Infinigraph becomes the practical solution enterprises choose at scale.
For teams wrestling with large, property‑heavy graphs or contemplating unified HTAP graph platforms for GenAI and realtime analytics, Infinigraph is a credible and important new option — but one that should be validated empirically, instrumented thoroughly, and costed carefully before it becomes the production backbone. (neo4j.com)

---

Source: theregister.com Neo4j intros 'property sharding' to tackle scalability
