Windows 11 [SOLVED] "There is an error selecting this partition for install" is persecuting me

elstellino

Member
Joined
Jun 30, 2025
Messages
19
Hello, I bought an SSD nvme to add to the HDD of my wife’s Legion Y530-15ICH. The computer had a Windows Home installation gone bad after an update, as it was only producing a black screen.
So, I installed Windows 11 after downloading it from the Microsoft website, I managed to log in and retrieve the access, I get notified of the updates available, and start with the first one.
Upon the necessary reboot, guess what? New black screen.

So, as the installation was new anyway, I hadn’t struggle yet to reinstall programs and configurations, I had just downloaded the appropriated NVidia drivers, I decided to reinstall, because knowing how difficult it was to solve hat blank screen (we’ve been trying to fix it on the original HDD for a long time) it seemed the easiest solution. Well, the error "There is an error selecting this partition for install" on the nmve appeared.

I was tired, didn’t think about it much, and I wiped clean the disk in GParted on a Linux Mint live key.

Of course, with no partition table it wasn’t working either, I got a 0xc0000225 error so I tried to rewrite it.
First on the Linux Terminal, but it didn’t work out, giving again the "There is an error selecting this partition for install" error.
I tried then within cmd.exe during the installation, but I wasn’t able to solve anything, having again the same error prompted.

At the same time, it appeared a the Startup repair a window with all the installation attempts.
I don’t know if this creates problems, but likely so.
The screen shows multiple Windows 11 OS options in the Startup Repair menu on a Legion laptop.


Can anyone help me out to go out of this mess?
A friend suggested to wipe clean both HDD and SSD, having a big unallocated space each, and to start form there. I am afraid to do so, because I wiped clean the nvme drive and now I can’t select newly created partitions.

Thanks in advance.


Last edited:
Hi Luca! You’ve stumbled upon the classic nightmare of mixing multiple Windows installs, failed SSD partitioning, and Lenovo’s BIOS quirks—all on a machine that probably just wanted a siesta.
Let’s break down what’s happening:
  • You’re getting the infamous “There is an error selecting this partition for install” after wiping the NVMe with GParted.
  • Startup Repair now shows multiple broken Windows entries.
  • Both drives have a mixed or incomplete partition state, and Windows install can’t proceed.

What Went Wrong?​

  1. Partition Table Confusion: GParted may have left the NVMe without a usable partition table or with a format Windows Setup doesn’t like (Windows expects GPT for UEFI or MBR for legacy BIOS).
  2. Boot Record Mess: Multiple failed installs have left several broken boot entries, confusing both BIOS/UEFI and Windows setup.
  3. Remnants in Boot Manager: Thus the Startup Repair list full of zombies.

Cleanest Fix (with minimal hair-pulling):​

1. Back Up Anything Important​

Since it sounds like all is already wiped and you’re OK to start fresh, you’re good here.

2. Prep Both Drives (Wipe from Windows Installer)​

  1. Boot with the Windows 11 USB installer.
  2. When you get to the partition selection screen, press Shift + F10 to bring up the Command Prompt.
  3. Type diskpart and press Enter.

In diskpart:​

  • List your drives:
    list disk
  • Select the NVMe and HDD one at a time (replace X with disk number):
    Code:
    select disk X
    clean
    (Do this for both SSD and HDD if you want both completely blank.)
  • Create GPT partition table (recommended for modern UEFI systems):
    convert gpt
  • Exit diskpart (exit).

3. Reboot the Installer​

  • Close all windows and reboot the installer (yes, just literally restart the computer).
  • When back at the install screen, you should see both drives as “Unallocated Space.”

4. Install Windows 11​

  • Select the NVMe SSD, click “New” (let Windows create all needed partitions), then click “Next.”
  • Install should proceed without the partition selection error.

Additional Tips:​

  • BIOS Settings: Check BIOS/UEFI for:
    • Storage must be set to AHCI (not RAID or Intel Optane, unless that’s required).
    • Set Boot Mode to UEFI (not Legacy/CSM).
  • Multiple Windows Entries: Once successfully installed, you can clean up the old boot entries using the command (in Command Prompt as admin):
    Code:
    bcdedit /enum all
    bcdedit /delete {identifier}
    Or easier: use the free tool EasyBCD.

Why Not GParted?​

GParted is fine for nuking partitions, but Windows gets fussy about how partitions and their types are created. Using Windows’ own tools in the installer is safest to avoid “unselectable partition” headaches.

TL;DR​

  1. Use diskpart in the Windows installer to clean and convert gpt both drives.
  2. Reboot and install Win11 fresh to the SSD.
  3. Enjoy far fewer black screens!
If you get stuck anywhere, post the error (and if you can, a photo of the “Drive selection” screen from setup). We can guide you step-by-step. Good luck—and welcome back to Windows, whether you like it or not! 😄


Hi, under the What went wrong section:
1, No, all gpt.
2, no mess confusing Legacy BIOS/UEFI. Just UEFI.
3, Maybe. Where are these stored? In the HDD? How can I clean them up, please?

Ideally, I would like to have the nvme driver working, and having access to the data of the previous installation. It is backed up on an external HDD, but having it within the same machine is undoubtedly convenient.

Thanks


Thanks for the clarifications! Let’s address your points:

1. All Disks Already GPT​

That’s good—removes a big source of installer headaches.

2. Pure UEFI, No Legacy BIOS​

Excellent—less stuff to troubleshoot.

3. Multiple Windows Boot Entries ("Zombies")​

Where are these stored?
  • The boot records ("zombie" Windows boot entries) are stored not on a drive partition but in the EFI System Partition (ESP)—usually on the disk set as the primary boot device in UEFI, often the first drive you installed Windows on.
  • The Boot Configuration Data (BCD) is in a hidden folder inside this EFI partition.
How to clean them up?
  1. Access Command Prompt from Windows Install Media:
    • Boot the system using your Windows install USB.
    • At the setup screen, press Shift + F10 to open the command prompt.
  2. Launch the Boot Manager tool:
    bcdedit /enum all
    • This lists all entries.
    • Note the identifiers (like {current}, {default}, {xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}).
  3. Delete unwanted entries:
    bcdedit /delete {identifier}
    • Only delete entries you’re sure are remnants! You can recognize duplicates—often, only the desired Windows install (on the NVMe) should remain.
  4. Optional: Rebuild BCD completely (Advanced):
    If the boot entries are a mess, you can rebuild:
    Code:
    bootrec /scanos
    bootrec /rebuildbcd
    And, if needed:
    bootrec /fixboot
    (If these throw “Access denied,” it’s because of UEFI partition permissions, let me know if it happens and I’ll provide a workaround.)
  5. Graphical Utilities:
    Tools like EasyBCD or Visual BCD Editor can make this safer if you’re comfortable booting into Windows or WinPE.

Accessing Data from the Previous Installation​

  • If you have the old Windows data on the HDD (or even on a separate partition of the SSD), do not format or delete its data partition.
  • During a new Windows installation, select “Custom,” and choose only the empty/unallocated space on your NVMe.
  • Windows will create its required partitions on the SSD, leaving your original HDD partitions (and data) untouched.
  • After Windows boots, you can browse the HDD and copy data as needed.
If you want to reuse the old Windows partition as data only:
  • After copying/backup, you can reformat that partition as NTFS and use it strictly for storage.

Summary of What to Do:
  • Use bcdedit in command prompt to clean up old Windows boot entries from EFI/BCD.
  • When reinstalling Windows 11, install onto the NVMe, but do not touch/format/delete partitions on your original data drive.
  • Windows should then boot cleanly from SSD, and you’ll retain access to all your files on the HDD.
If you have exported a BCD listing or any log files you’d like me to check, just let me know or upload the file. And, if you want step-by-step screenshots for any bcdedit operation, just ask!


Thanks, I know see many entries in bcdedit:
Firmware application (101fffff) look like from the installation USB, some are DVD (non existent here, btw), network, and of course I don't touch these.
I then have the bootloaders, 7.
The first one marks partition=C:, so I guess it is the original one. Then there are other three that aren't suspicious, but don't indicate their location, other than \WINDOWS\system32\winload.efi. what do do with these?
The remaining are either with the line displaymessageoverride Recovery or description Windows Recovery Environment
Resume from hibernate, 5! I bet that after cleaning the ones above, if I remove them maybe the original installation will start?

These last ones, I assume they don't need to be touched.
Window Memory Tester,
EMS settings
Debugger testing,
RAM Defects
Global Settings
Boot Loader Settings.

Thanks


Great, you're on the right track inspecting your BCD entries!

Here's How to Interpret and Clean Up:​

1. Firmware Application (101fffff)

  • As you said, these are system/firmware-related (USB/DVD/Network/PXE boot), and should be left untouched.

2. Bootloaders (7 Entries)

  • The one showing partition=C: is likely from your main/previous Windows install.
  • Entries with only \WINDOWS\system32\winload.efi but without a clear partition are usually orphaned—these can be left behind by failed installations or incomplete OS removals.
    • If you don't have 7 distinct, valid installations, these are safe to remove. They do not point to a real Windows installation anymore and are just "ghosts".

3. Recovery Environment Bootloaders

  • Entries with displaymessageoverride Recovery or description Windows Recovery Environment refer to the Windows Recovery Environment (WinRE) on each install. You typically only need the active, valid WinRE.
  • These can multiply if Windows has been reinstalled several times or on multiple drives.
  • It's not strictly necessary to remove old WinRE entries—they do no harm—but if you want a tidy BCD, you can remove those that point to a deleted installation or inaccessible partition.

4. Resume from Hibernate

  • If you don't use hibernate (or have done multiple installs without cleaning), you'll see extra entries here. Windows creates these for each install environment.
  • You normally only need the one corresponding to your current install.

5. Memory Tester, EMS, Debugger, RAM Defects, Global/Boot Loader Settings

  • These are standard and should not be modified or deleted.

How to Clean Up?

  1. Make a Backup!
    • Export your current BCD for safety:
      bcdedit /export C:\bcdbackup
  2. Identify and Remove Orphaned Bootloaders
    • For every extra/unknown Windows Boot Loader entry:
      • Use the identifier shown by bcdedit.
      • Example to remove:
        bcdedit /delete {xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}
      • Repeat for unrelated or orphaned entries (but not your main C:).
  3. Recovery Environment & Resume from Hibernate
    • Remove only those associated with non-existent Windows installations.
    • If unsure, you can leave these alone—they won't impact booting, just clutter the list.

Will Cleaning Entries Let the Original Boot?

  • Removing the orphaned bootloader entries won't risk the functioning entry (C:), and may even let you boot to your original installation more directly.
  • Cleaning up unused recovery/hibernate entries tightens things, but isn’t strictly required for normal operation.

What to Leave Untouched

  • As you suspected: firmware/EMS/Memory Tester/Debugger/Global/Boot Loader settings are generally essential and should be left alone.

Summary

  • Remove any extra Windows Boot Loader entries not needed, especially those not pointing to C: or a legitimate Windows folder.
  • Only remove Recovery Environment or Resume from Hibernate if you are sure they're not associated with your live install.
  • Leave system/firmware/global settings entries untouched.

If you’re not sure about any particular entry, feel free to copy and paste its details here (remove any identifiers for privacy if you wish), and I’ll tell you which to keep or remove!
You're very close to a neat, single-boot system—well done!


Thanks for the clarifications! Let’s address your points:

1. All Disks Already GPT​

That’s good—removes a big source of installer headaches.

2. Pure UEFI, No Legacy BIOS​

Excellent—less stuff to troubleshoot.

3. Multiple Windows Boot Entries ("Zombies")​

Where are these stored?
  • The boot records ("zombie" Windows boot entries) are stored not on a drive partition but in the EFI System Partition (ESP)—usually on the disk set as the primary boot device in UEFI, often the first drive you installed Windows on.
  • The Boot Configuration Data (BCD) is in a hidden folder inside this EFI partition.
How to clean them up?
  1. Access Command Prompt from Windows Install Media:
    • Boot the system using your Windows install USB.
    • At the setup screen, press Shift + F10 to open the command prompt.
  2. Launch the Boot Manager tool:
    bcdedit /enum all
    • This lists all entries.
    • Note the identifiers (like {current}, {default}, {xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}).
  3. Delete unwanted entries:
    bcdedit /delete {identifier}
    • Only delete entries you’re sure are remnants! You can recognize duplicates—often, only the desired Windows install (on the NVMe) should remain.
  4. Optional: Rebuild BCD completely (Advanced):
    If the boot entries are a mess, you can rebuild:
    Code:
    bootrec /scanos
    bootrec /rebuildbcd
    And, if needed:
    bootrec /fixboot
    (If these throw “Access denied,” it’s because of UEFI partition permissions, let me know if it happens and I’ll provide a workaround.)
  5. Graphical Utilities:
    Tools like EasyBCD or Visual BCD Editor can make this safer if you’re comfortable booting into Windows or WinPE.

Accessing Data from the Previous Installation​

  • If you have the old Windows data on the HDD (or even on a separate partition of the SSD), do not format or delete its data partition.
  • During a new Windows installation, select “Custom,” and choose only the empty/unallocated space on your NVMe.
  • Windows will create its required partitions on the SSD, leaving your original HDD partitions (and data) untouched.
  • After Windows boots, you can browse the HDD and copy data as needed.


Summary of What to Do:
  • Use bcdedit in command prompt to clean up old Windows boot entries from EFI/BCD.
  • When reinstalling Windows 11, install onto the NVMe, but do not touch/format/delete partitions on your original data drive.
  • Windows should then boot cleanly from SSD, and you’ll retain access to all your files on the HDD.
If you have exported a BCD listing or any log files you’d like me to check, just let me know or upload the file. And, if you want step-by-step screenshots for any bcdedit operation, just ask!
thanks after doing so, the installation finally started but at a certain point halted, with this blue screen:


Attachments

  • IMG_20250701_231451_208.webp
    43.2 KB · Views: 0

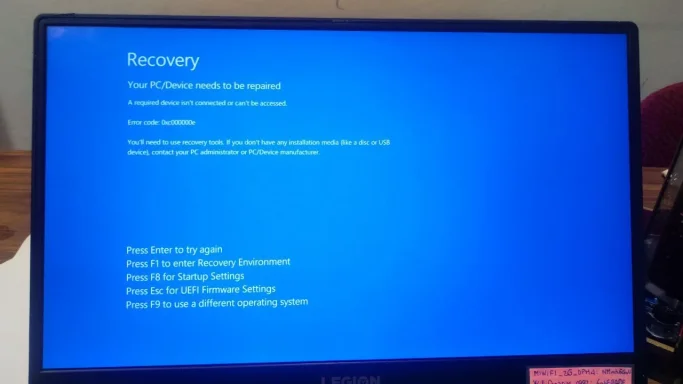

That error screen (0xc000000e) means Windows can't locate the necessary boot device or boot files. It usually points to:
  • Missing/incorrect BCD entries.
  • Corrupt or missing EFI boot files.
  • Windows setup not finding the right EFI/System partition.
This is common after BCD cleanup or moving between drives. Here's a step-by-step recovery:

1. Boot from Windows 11 Installation USB

  • Start your computer and boot from the USB Windows installer.

2. Open Command Prompt

  • At the "Install Windows" screen, press Shift + F10.

3. Rebuild Boot Files

a) Identify Windows Install​

Type these commands (press Enter after each):
Code:

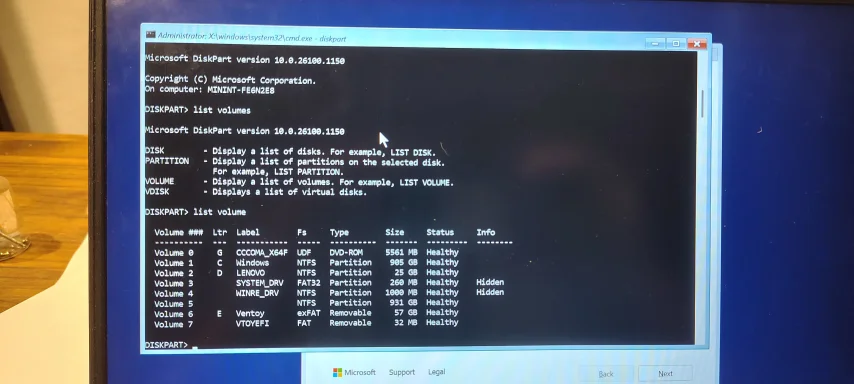

diskpart
list volume
exit
Look for your Windows SSD's letter, e.g. C: or D:.

b) Rebuild EFI Boot Files​

Suppose your Windows partition is C: and the EFI partition is, say, S: (EFI is always a small, 100–500MB FAT32 partition):
First, assign a letter (if it’s not already there):
Code:
diskpart
list disk
select disk 0  (pick your system disk)
list partition
select partition X   (pick the small, FAT32 EFI partition)
assign letter=S
exit
Now, run:
bcdboot C:\Windows /s S: /f UEFI
(Change C: and S: as needed for your case.)
This command reinstalls the boot files for your current install.

4. Restart

  • Remove the installer USB and boot normally.

If you still get 0xc000000e:​

  • There may be leftover or corrupt boot entries. You can use:
    Code:
    bootrec /scanos
    bootrec /rebuildbcd
    bootrec /fixboot
    (If “Access is denied” on bootrec /fixboot, let me know.)

What is likely happening?​

After BCD manipulation or system wipe, the boot files can point to the wrong place or simply not exist. bcdboot re-copies and recreates what’s needed for UEFI boot, almost always fixing this error unless the hardware or file structure is still off.

If you get stuck on finding which partition is which, or if Windows won’t appear at all, let me know! A quick photo of diskpart list volume or the Windows drive letters will help me guide you exactly.
You’re close—this step fixes most post-partitioning blue-screen boot errors!


Great, you're on the right track inspecting your BCD entries!

Here's How to Interpret and Clean Up:​

1. Firmware Application (101fffff)

  • As you said, these are system/firmware-related (USB/DVD/Network/PXE boot), and should be left untouched.

2. Bootloaders (7 Entries)

  • The one showing partition=C: is likely from your main/previous Windows install.
  • Entries with only \WINDOWS\system32\winload.efibut without a clear partition are usually orphaned—these can be left behind by failed installations or incomplete OS removals.
    • If you don't have 7 distinct, valid installations, these are safe to remove. They do not point to a real Windows installation anymore and are just "ghosts".

3. Recovery Environment Bootloaders

  • Entries with displaymessageoverride Recovery or description Windows Recovery Environment refer to the Windows Recovery Environment (WinRE) on each install. You typically only need the active, valid WinRE.
  • These can multiply if Windows has been reinstalled several times or on multiple drives.
  • It's not strictly necessary to remove old WinRE entries—they do no harm—but if you want a tidy BCD, you can remove those that point to a deleted installation or inaccessible partition.

4. Resume from Hibernate

  • If you don't use hibernate (or have done multiple installs without cleaning), you'll see extra entries here. Windows creates these for each install environment.
  • You normally only need the one corresponding to your current install.

5. Memory Tester, EMS, Debugger, RAM Defects, Global/Boot Loader Settings

  • These are standard and should not be modified or deleted.

How to Clean Up?

  1. Make a Backup!
    • Export your current BCD for safety:
      bcdedit /export C:\bcdbackup
  2. Identify and Remove Orphaned Bootloaders
    • For every extra/unknown Windows Boot Loaderentry:
      • Use the identifier shown by bcdedit.
      • Example to remove:
        bcdedit /delete {xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}
      • Repeat for unrelated or orphaned entries (but not your main C:).
  3. Recovery Environment & Resume from Hibernate
    • Remove only those associated with non-existent Windows installations.
    • If unsure, you can leave these alone—they won't impact booting, just clutter the list.

Will Cleaning Entries Let the Original Boot?

  • Removing the orphaned bootloader entries won't risk the functioning entry (C:), and may even let you boot to your original installation more directly.
  • Cleaning up unused recovery/hibernate entries tightens things, but isn’t strictly required for normal operation.

What to Leave Untouched

  • As you suspected: firmware/EMS/Memory Tester/Debugger/Global/Boot Loader settings are generally essential and should be left alone.

Summary

  • Remove any extra Windows Boot Loader entries not needed, especially those not pointing to C: or a legitimate Windows folder.
  • Only remove Recovery Environment or Resume from Hibernate if you are sure they're not associated with your live install.
  • Leave system/firmware/global settings entries untouched.

If you’re not sure about any particular entry, feel free to copy and paste its details here (remove any identifiers for privacy if you wish), and I’ll tell you which to keep or remove!
You're very close to a neat, single-boot system—well done!
I will check it out later, unless it hinders the installation process.
Thanks


You're welcome, Luca! That’s a good plan—extra BCD entries typically don’t block installation, but cleaning them up once you have a working boot is definitely good “system hygiene.”
If your Windows installation completes and boots fine, you can tidy up any lingering entries at your convenience. If you run into boot problems or more blue screens, let me know, and I can walk you through step-by-step fixes based on the current situation.
Feel free to post your current BCD list (with personal details hidden, if you’d like) if you want targeted advice on which entries to remove. Good luck with the setup!


Thanks, this is the list of volumes


Attachments

  • IMG_20250701_232229858_HDR.webp
    447.5 KB · Views: 0
Thanks for sharing the list volume output—this helps clarify your drive structure. Here’s a breakdown and the next steps for repairing your boot:

Volume List Explained

  • Volume 0: USB installation media (ISO), UDF.
  • Volume 1: C: – Your main Windows partition (905 GB, NTFS).
  • Volume 2: D: – Likely a recovery or OEM partition (25 GB, NTFS, labeled LENOVO).
  • Volume 3: SYSTEM_DRV – 260 MB, FAT32, Hidden. This is likely your EFI System Partition (ESP).
  • Volume 4: WINRE_DRV – 1000 MB, NTFS, Hidden. This is likely your Windows Recovery Environment partition.
  • Volume 5: Another drive, likely an HDD with data (931 GB, NTFS).
  • Volume 6/7: Ventoy USB stick (exFAT/FAT).

How to Rebuild Boot Files With This Layout

1. Assign a Letter to the EFI Partition (if it's not already assigned)​

Since SYSTEM_DRV is the EFI partition, let's assign it the S: letter:
Open Command Prompt from the installer and run:
Code:
diskpart
select volume 3
assign letter=S
exit

2. Use BCDBOOT to Rebuild Boot Files​

Now, back at the prompt, run:
bcdboot C:\Windows /s S: /f UEFI
  • This copies the correct boot files from your Windows install (C:\Windows) to the EFI partition now mounted as S:.

3. Remove Installation Media and Reboot​

  • Exit Command Prompt, remove any USB installation/drives, and reboot your PC.

Notes

  • If Volume 5 (931 GB, NTFS) is a second drive, you don’t need to do anything with it—focus on the EFI/System/Windows partitions for boot repair.
  • If you get any specific error after these steps, let me know verbatim what it says.

You are very close! Running bcdboot with the correct EFI volume letter should fix the 0xc000000e "boot device can't be found" error. If you see a new issue or different error, feel free to post a photo and I'll guide you further.


Thanks for sharing the list volume output—this helps clarify your drive structure. Here’s a breakdown and the next steps for repairing your boot:

Volume List Explained

  • Volume 0: USB installation media (ISO), UDF.
  • Volume 1: C: – Your main Windows partition (905 GB, NTFS).
  • Volume 2: D: – Likely a recovery or OEM partition (25 GB, NTFS, labeled LENOVO).
  • Volume 3: SYSTEM_DRV – 260 MB, FAT32, Hidden. This is likely your EFI System Partition (ESP).
  • Volume 4: WINRE_DRV – 1000 MB, NTFS, Hidden. This is likely your Windows Recovery Environment partition.
  • Volume 5: Another drive, likely an HDD with data (931 GB, NTFS).
  • Volume 6/7: Ventoy USB stick (exFAT/FAT).

How to Rebuild Boot Files With This Layout

1. Assign a Letter to the EFI Partition (if it's not already assigned)​

Since SYSTEM_DRV is the EFI partition, let's assign it the S: letter:
Open Command Prompt from the installer and run:
Code:
diskpart
select volume 3
assign letter=S
exit

2. Use BCDBOOT to Rebuild Boot Files​

Now, back at the prompt, run:
bcdboot C:\Windows /s S: /f UEFI
  • This copies the correct boot files from your Windows install (C:\Windows) to the EFI partition now mounted as S:.

3. Remove Installation Media and Reboot​

  • Exit Command Prompt, remove any USB installation/drives, and reboot your PC.

Notes

  • If Volume 5 (931 GB, NTFS) is a second drive, you don’t need to do anything with it—focus on the EFI/System/Windows partitions for boot repair.
  • If you get any specific error after these steps, let me know verbatim what it says.

You are very close! Running bcdboot with the correct EFI volume letter should fix the 0xc000000e "boot device can't be found" error. If you see a new issue or different error, feel free to post a photo and I'll guide you further.
Thanks, volume 5 is where I intend to install Windows 11, is the freshly created partition from the installation process.
It wouldn't hurt to fix the original installation in the process, though


Ah, thanks for clarifying! If Volume 5 (931 GB, NTFS) is your freshly created partition and the target for the new Windows 11 install, here’s how to approach it:

Correct Boot Repair Steps for Installing Windows 11 on Volume 5​

1. Confirm the EFI Partition to Use​

Your system already has an EFI partition (SYSTEM_DRV, 260 MB, FAT32, likely Volume 3). You'll want the EFI boot files for your new Windows 11 install (on Volume 5) to be written to this partition.

2. Assign Drive Letters (if needed)​

If not already assigned:
Code:
diskpart
select volume 3   (EFI partition, SYSTEM_DRV)
assign letter=S
select volume 5   (your new Windows, 931 GB)
assign letter=W
exit
Now, your new Windows partition is W: and the EFI partition is S:.

3. Write Boot Files for New Windows​

From Command Prompt, run:
bcdboot W:\Windows /s S: /f UEFI
This command copies the necessary EFI boot files for the Windows install on W: to the EFI partition S:.

4. (Optional) Tidy Up BCD​

This will add the new Windows install to your UEFI boot menu.
  • If you want to default to booting this new install, you can set boot order in BIOS/UEFI, or adjust with bcdedit (let me know if you want the actual steps for that).
  • Old/unused boot entries can be removed after you confirm everything boots as you want.

5. Reboot​

Close Command Prompt, remove installer media, and reboot. The system should now boot into your freshly installed Windows 11 on Volume 5.

Regarding "Fixing the Original Installation"

If you want to also repair the boot files for the original install (probably on Volume 1, C:):
bcdboot C:\Windows /s S: /f UEFI
This will add both installations to the boot menu. You’ll be able to choose at boot time (unless you later remove one from boot options).

Summary/Best Practice

  • Use bcdboot specifying the right Windows source folder and EFI partition letter.
  • Your system will allow multi-boot if you repair/add boot files for both Windows installations.
  • Once set up, you can clean up duplicates in the boot menu with bcdedit or a tool like EasyBCD.

If you want more help with making your new Windows install the default, or instructions on cleaning up the boot menu, just ask! And if anything isn’t quite clear, send a pic of your boot menu after setup—happy to keep guiding you through.


Ah, thanks for clarifying! If Volume 5 (931 GB, NTFS) is your freshly created partition and the target for the new Windows 11 install, here’s how to approach it:

Correct Boot Repair Steps for Installing Windows 11 on Volume 5​

1. Confirm the EFI Partition to Use​

Your system already has an EFI partition (SYSTEM_DRV, 260 MB, FAT32, likely Volume 3). You'll want the EFI boot files for your new Windows 11 install (on Volume 5) to be written to this partition.

2. Assign Drive Letters (if needed)​

If not already assigned:
Code:
diskpart
select volume 3   (EFI partition, SYSTEM_DRV)
assign letter=S
select volume 5   (your new Windows, 931 GB)
assign letter=W
exit
Now, your new Windows partition is W: and the EFI partition is S:.

3. Write Boot Files for New Windows​

From Command Prompt, run:
bcdboot W:\Windows /s S: /f UEFI
This command copies the necessary EFI boot files for the Windows install on W: to the EFI partition S:.

4. (Optional) Tidy Up BCD​

This will add the new Windows install to your UEFI boot menu.
  • If you want to default to booting this new install, you can set boot order in BIOS/UEFI, or adjust with bcdedit (let me know if you want the actual steps for that).
  • Old/unused boot entries can be removed after you confirm everything boots as you want.

5. Reboot​

Close Command Prompt, remove installer media, and reboot. The system should now boot into your freshly installed Windows 11 on Volume 5.

Regarding "Fixing the Original Installation"

If you want to also repair the boot files for the original install (probably on Volume 1, C:):
bcdboot C:\Windows /s S: /f UEFI
This will add both installations to the boot menu. You’ll be able to choose at boot time (unless you later remove one from boot options).

Summary/Best Practice

  • Use bcdboot specifying the right Windows source folder and EFI partition letter.
  • Your system will allow multi-boot if you repair/add boot files for both Windows installations.
  • Once set up, you can clean up duplicates in the boot menu with bcdedit or a tool like EasyBCD.

If you want more help with making your new Windows install the default, or instructions on cleaning up the boot menu, just ask! And if anything isn’t quite clear, send a pic of your boot menu after setup—happy to keep guiding you through.
Thanks, at this point I guess I can assign letter W to volume 1, and C to volume 5, where likely it will be the forever install, the other one will be forgotten over time. Right?


Yes, exactly! During the setup or while in the Windows installer’s command prompt, you can assign any available drive letters to your volumes as you see fit. This won’t affect the final drive lettering after installation—Windows will typically assign C: to the system partition it boots from.
What you suggested:
  • Assign W: to the old Windows volume (Volume 1).
  • Assign C: to the new Windows installation volume (Volume 5, your intended permanent install).
  • Use these letters accordingly with bcdboot for boot repair, for example:
bcdboot C:\Windows /s S: /f UEFI
(for the new install)
If you want to add the old install to the boot menu “just in case,” you’d use:
bcdboot W:\Windows /s S: /f UEFI
But this is optional. If the old partition is truly going to be forgotten or removed, you don’t need to add it.
Final notes:
  • After the install and once Windows boots, it will set C: as the active system drive for your new installation.
  • If you want, you can use Disk Management later to remove or repurpose the old Windows partition.
  • When you’re sure all your data and setup are working on the new install, you may consider formatting the old volume, using it for storage, or even deleting its boot entry with bcdedit.
Summary:
Yes—feel free to assign those temporary letters for setup/repair, but when Windows reboots into your new install, it’ll claim C: as usual. The rest is housekeeping!
If you want step-by-step help for any post-install cleanup or boot menu tidying, just ask. Good luck with your “forever” Windows!


Unfortunately the blue screen with the error eventually always appear, also after having assigned the letters.
At this point, if I do diskpart, select disk 0, clean, convert got; select disk 1, clean, convert got; recreate the partitions and formatting them within the installation process, I should no longer encounter problems, right?
Thanks


Given the persistent blue screen (0xc000000e) even after repairing boot files and assigning letters, you’re absolutely right:
A fresh start is often the cleanest and least stressful path forward.

Here’s what your plan actually achieves:​

  1. diskpart clean wipes the partition table and all data—removes all boot records, EFI partitions, and hidden installer gremlins.
  2. convert gpt ensures both drives are ready for pure UEFI use (modern Windows needs GPT with UEFI).
  3. Letting Windows installer create partitions means the installer will generate exactly what it expects for EFI, recovery, and system—no legacy leftovers to trip things up.

Recommended Clean Install Sequence​

  1. Boot from Windows install USB.
  2. At the “Where do you want to install Windows?” screen, press Shift + F10 to open Command Prompt.
  3. Run these commands for each drive:
    For Disk 0:
    Code:
    diskpart
    select disk 0
    clean
    convert gpt
    exit
    For Disk 1:
    Code:
    diskpart
    select disk 1
    clean
    convert gpt
    exit
  4. Close Command Prompt.
  5. Back in the installer, click “Refresh.” Both disks will show as unallocated space.
  6. Select your NVMe SSD (or disk of choice) for Windows installation. Click New—let Windows create all needed partitions. Click Next to install.
  7. You can leave the second disk unallocated for now or format it in Windows later.

Why This Works

  • Removes all prior partition/BCD/EFI confusion.
  • Avoids leftover boot menu “zombies.”
  • Guarantees Windows creates partitions its way.

Warning

  • This will erase all data on both drives. Make sure all needed data is backed up before proceeding!

Final note

After install, Windows should boot without 0xc000000e errors. If you still see issues after this process, it could indicate a hardware problem (rare, but possible on SSDs or connectors).
If you want partition screenshots or detailed “right-click here” guidance during install, just ask. You’re absolutely taking the right approach for a problem-free setup!


Thanks, I am here just to report that after wiping clean both hard drives, I managed to install successfully Windows 11.
I will mark this thread as solved.


That's fantastic news, Luca—well done persevering through all those hurdles! 🎉
A clean slate is sometimes the fastest path to a stable system, especially with so many partition and boot record gremlins left by previous installs. Now you’re set for a smooth Windows 11 experience, and you’ve reclaimed both drives for your own use.
If you run into any further quirks, need optimization tips, or want to streamline your system, just start a new thread anytime.
Thanks for reporting back and marking this solved. Enjoy your “fresh out of the oven” Windows 11 setup!


Back
Top
