Using Resource Monitor to Troubleshoot Windows Performance Bottlenecks
Difficulty: Intermediate | Time Required: 15 minutesResource Monitor is a powerful, built-in Windows tool that lets you see, in real time, exactly which apps and services are consuming CPU, memory, disk, and network resources. If your PC feels sluggish, bangs of fan noise, or apps stall momentarily, Resource Monitor helps you identify the culprits and verify fixes. This guide walks you through a practical, step-by-step approach you can follow in Windows 10 and Windows 11.
Prerequisites
- A Windows 10 or Windows 11 PC with internet access (for updates or online process lookups if needed).
- Basic familiarity with the Task Manager and Windows Settings.
- Administrative privileges are not required, but some actions (like ending a process) may require elevated rights.
Step-by-Step Instructions
1) Open Resource Monitor- Method A: Press Windows key, type “Resource Monitor,” and press Enter.
- Method B: Open Task Manager (Ctrl+Shift+Esc), switch to the Performance tab, and click “Open Resource Monitor.”

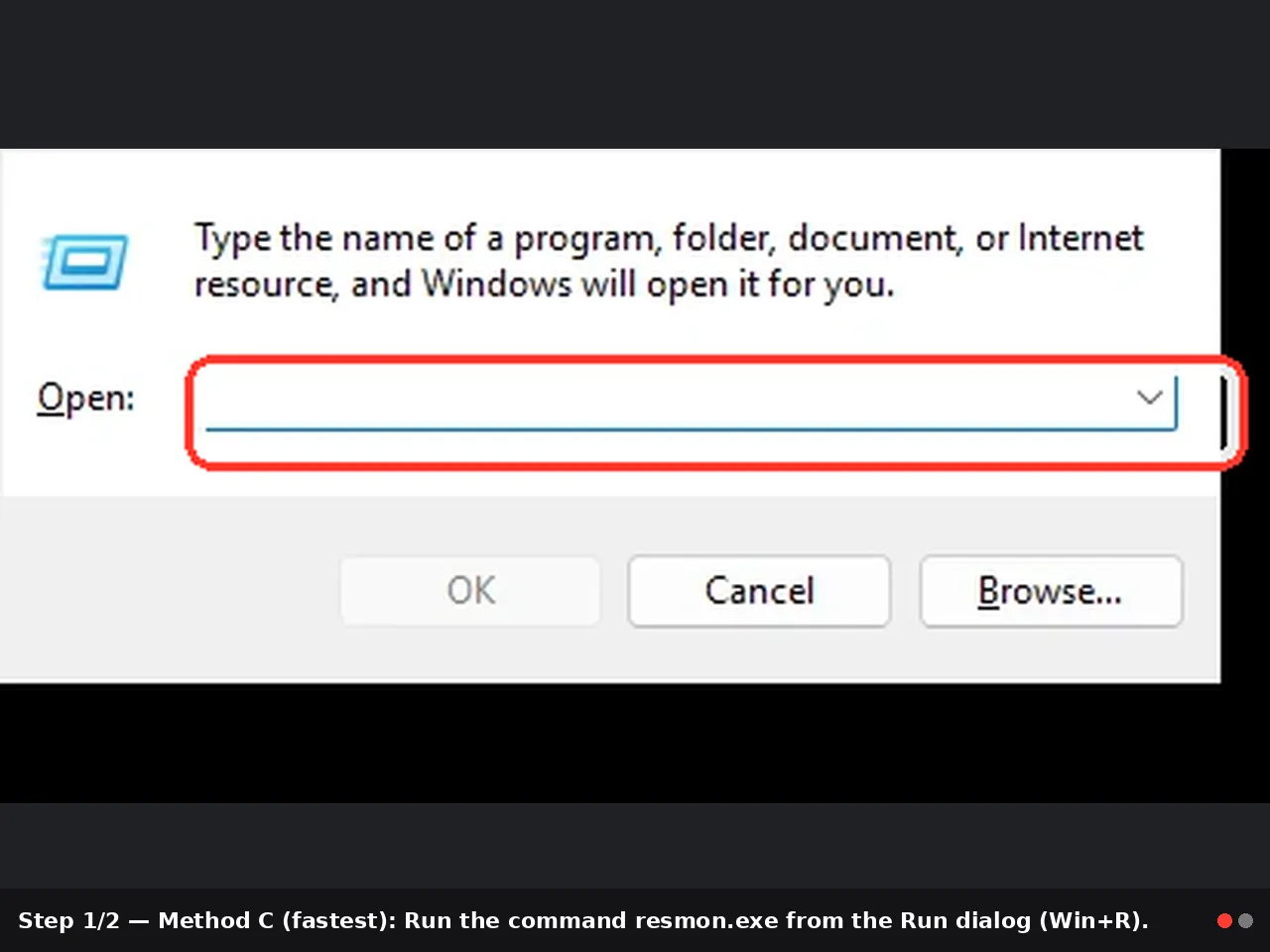

- Method C (fastest): Run the command resmon.exe from the Run dialog (Win+R).
- CPU: Per-process CPU usage and which processes are consuming the most cycles.
- Memory: How much RAM is in use, what’s committed, and which processes push memory the hardest.
- Disk: Per-process disk I/O (read/write rates) and active disk usage.
- Network: Per-process network activity (send/receive rates).
3) Check for CPU bottlenecks
- Click the CPU tab.
- Sort by the CPU column (click the header) so the highest-usage processes appear at the top.
- Look for processes consistently using a high percentage (20–50%+ on a typical multi-threaded app is notable). If you see System or svchost.exe leading the top spots, identify the services they host (the “Services” column can give hints).
- If a single application (for example, a web browser or IDE) dominates the CPU, consider closing or restarting it to see if performance improves.
- If a non-essential process is hogging CPU, end it (right-click → End Process) to test impact. Avoid ending critical system processes or processes you don’t recognize.
- If you rely on the heavy process, look for a settings tweak (disable an auto-update feature, change a video rendering setting, etc. or schedule intensive tasks for off-peak times.
- Click the Memory tab.
- Review the “Commit (KB)” column for processes. A few processes with very high commit sizes near or above your installed RAM can indicate memory pressure.
- Check “In Use” vs. “Standby” memory. If “In Use” plus “Standby” is approaching total physical RAM and the system has frequent hard faults/sec, you may be running short on physical memory.
- Look for processes with large “Working Set” values but relatively low activity on screen. Sometimes background services or memory leaks cause steady growth.
- If a particular app is consuming a lot of memory, consider closing it or configuring it to limit memory use (many browsers, IDEs, and design tools have such options).
- If memory pressure is high and you have multiple heavy applications, a RAM upgrade or balancing workloads (closing background apps) can help.
- Click the Disk tab.
- In the Disk Activity section, sort by the Read (KB/s) or Write (KB/s) columns to identify the most IO-heavy processes.
- Note processes with high Read/Write rates or with long “Active Time.” A consistently high Disk Queue Length or sustained high disk I/O often signals storage bottlenecks.
- If you see “System” or “svchost.exe” with large IO spikes, a background service or Windows activity (like indexing, antivirus scans, or Windows Update) may be the cause.
- Schedule or temporarily pause background tasks that write a lot to disk (for example, antivirus scans or Windows Defender scans, backup software, or disk indexing in Windows Search).
- If a single user-facing app is responsible (e.g., a database, large file transfer, or video program), consider finishing the task earlier or transferring data to an external drive to reduce contention.
- For persistent disk bottlenecks on an SSD, ensure you have sufficient free space and consider trimming background indexing or moving frequently accessed data to a faster drive.
- Switch to the Network tab.
- Sort by Send or Receive to identify processes with heavy network usage.
- If you notice a background app (cloud sync, updates, or backups) consuming most of the bandwidth, assess whether it can be paused or scheduled for another time.
- Pause or adjust syncing services (OneDrive, Google Drive, Dropbox) during heavy-work periods.
- If a browser or app is using a surprising amount of bandwidth, review its update or sync settings.
- After identifying a suspect process, you can test by temporarily ending it (right-click → End Process) or disabling a service (right-click → Stop; use with caution).
- Reopen Resource Monitor and reproduce the workload to confirm whether performance improves.
- If ending a process resolves the bottleneck, look for a longer-term solution (config tweak, scheduling, or replacing the app).
- Resource Monitor complements Task Manager and Windows Performance Monitor. For deeper trends (hourly or daily), you can start a Performance Monitor data log to chart CPU, memory, disk, and network usage over time.
- If you’re unsure whether something is a normal background task, a quick online search of the process name can help you decide if it’s safe to end or adjust.
- Avoid ending system-critical processes or services (often marked as “Windows” or “System”). Ending these can crash or destabilize Windows.
- Some processes are multiple-tenant hosts (svchost.exe) that run several services; ending a svchost instance may terminate several services unexpectedly.
- If you’re unsure about the impact, pause data-intensive tasks first (e.g., disable a cloud sync) before forcefully ending processes.
Tips and Troubleshooting Notes
- Battery and power plans matter: On laptops, running on battery often reduces performance. Plug in the device or switch to a High Performance plan to see if bottlenecks persist.
- Correlate with timing: If you notice a performance dip after a Windows Update or a scheduled antivirus scan, those activities likely explain a temporary spike in disk or CPU usage.
- Look for recurring patterns: A one-off spike is normal, but repeated, sustained spikes across CPU, memory, or disk indicate a bottleneck worth addressing (upgrade RAM, faster storage, or optimizing background tasks).
- Combine with Windows features: If you identify an app as the bottleneck, consider adjusting startup programs (Settings > Apps > Startup) to keep your system lean on startup.
- Privacy and safety: When testing, avoid revealing sensitive personal data in process names or online searches. Most process names are safe to inspect, but be cautious about ending processes you don’t recognize.
Conclusion
Resource Monitor provides a clear, at-a-glance view of which apps and services are squeezing your PC’s CPU, memory, disk, and network resources. By methodically checking each tab, sorting by the heaviest consumers, and testing changes, you can isolate bottlenecks, verify fixes, and make informed decisions about tweaks, upgrades, or scheduling. With a little practice, you’ll be able to reduce unnecessary slowdowns and keep your Windows machine running smoothly.Key Takeaways:
- Resource Monitor offers per-process visibility across CPU, memory, disk, and network usage.
- Start with CPU to spot top offenders, then review Memory, Disk, and Network for corroborating evidence.
- Test changes by temporarily ending processes or pausing background tasks, and re-check performance to confirm impact.
- Use in combination with Task Manager and Performance Monitor for a complete performance picture.
