Cropped or cut-off prints in Windows 10 and Windows 11 almost always occur because the application, the Windows print queue, and the physical printer tray disagree on paper size, printable margins, or page scaling. A common example is a document formatted for US Letter (8.5 x 11 inches) sent to a printer configured for A4 (8.27 x 11.69 inches), or a full-bleed PDF or photo printed at 100% scale on a printer that requires a 0.17-inch to 0.25-inch unprintable hardware margin around the edges. You can fix cut-off content across all supported builds of Windows 10 and Windows 11 by matching the paper size in the app’s print dialog to the paper loaded in the tray, enabling "Fit to printable area" or "Fit to page" scaling, and updating the default paper size in Windows Printing preferences and Printer properties so the mismatch does not return on future jobs.

A laptop and printer produce a correctly formatted document, illustrated by a before-and-after layout graphic. Prerequisites and Quick Physical Checks​

Before changing software defaults, confirm what is loaded in the printer and whether the cutoff happens in a single application or across the entire system.

  • Verify the physical paper size and tray guides: Pull out the paper cassette or inspect the rear feed tray. Standard US Letter paper is wider and shorter (8.5 x 11 inches) than ISO A4 paper (210 x 297 mm, or 8.27 x 11.69 inches). If A4 paper is loaded when Windows expects Letter, the right edge of the printout will be clipped; if Letter paper is loaded when Windows expects A4, the bottom of the page will be cut off or spill onto a second sheet. Snug the sliding plastic paper guides against the stack without bowing the sheets—loose guides let pages feed at an angle and clip one margin.
  • Check the printer's physical control panel: Many network, laser, and multifunction printers store a hardware tray size right on the device screen. If the printer's LCD panel is set to A4 or Legal, it may override or crop jobs even after you change settings on your PC.
  • Account permissions: Any standard Windows user can adjust per-job print settings and user-level Printing preferences. Changing system-wide Printing Defaults or switching the active printer driver inside Printer properties requires a local Administrator account.

Step 1: Print a Windows Test Page to Isolate the Problem​

Printing a built-in Windows test page tells you immediately whether the issue is inside a specific application (such as Microsoft Word, Excel, a PDF viewer, or a web browser) or inside the Windows printer driver configuration itself.

On Windows 11​

  • Press Windows key + I to open Settings.
  • In the left sidebar, select Bluetooth & devices, then click Printers & scanners.
  • Click the name of your printer in the list to open its management page.
  • Click Print test page near the top of the window (or click Printer properties and select Print Test Page at the bottom of the General tab).

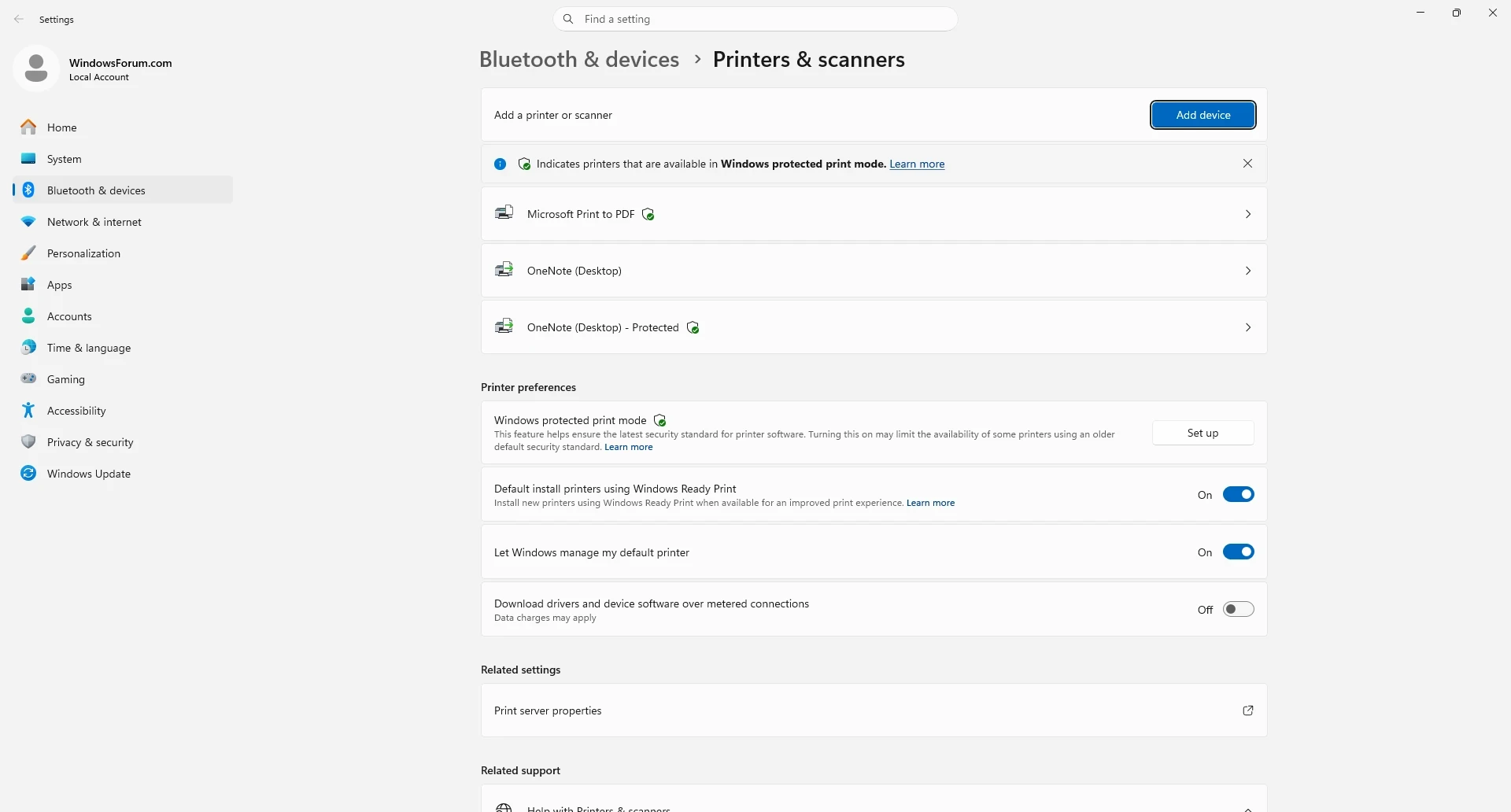

Settings shows the Printers & scanners page with the Add device button and the installed printer list for managing or removing printers.

On Windows 10​

  • Press Windows key + I to open Settings.
  • Select Devices, then select Printers & scanners in the left pane.
  • Click your printer in the list and select Manage.
  • Click Print a test page (or open Printer properties and click Print Test Page on the General tab).

How to Read the Test Page Result​

  • If the Windows test page prints completely with intact borders and text: Your Windows driver and tray settings are communicating properly. The cropping problem is confined to the specific application, document page setup, or browser print dialog you were using. Skip directly to Step 3 to fix application-level paper size and scaling.
  • If the Windows test page itself is cut off along the top, bottom, or sides: Windows is configured with the wrong default paper size, unprintable margin definition, or driver profile. Continue to Step 2.

Step 2: Set the Correct Default Paper Size and Scaling in Windows Printer Settings​

Windows maintains two separate configuration layers inside the driver: Printing preferences (which controls default settings for your user account) and Printer properties > Advanced > Printing Defaults (which sets the baseline defaults for all users and system services). If a printer was installed while your Windows regional format was set outside the United States or Canada, Windows frequently defaults the driver to A4 even if you load Letter paper.

Adjust User Printing Preferences (Windows 10 and Windows 11)​

  • Open your printer's management screen:
  • Windows 11: Go to Settings > Bluetooth & devices > Printers & scanners and click your printer.
  • Windows 10: Go to Settings > Devices > Printers & scanners, click your printer, and select Manage.
  • Click Printing preferences. A dialog window provided by your printer manufacturer (HP, Canon, Brother, Epson, Lexmark, or Microsoft IPP Class Driver) will open.
  • Locate the Paper/Quality, Main, Basic, or Page Setup tab (exact tab names depend on the printer driver vendor).
  • Check the Paper Size, Document Size, or Original Size drop-down menu and set it to the exact paper loaded in your tray (for example, Letter (8.5 x 11 in.) or A4 (210 x 297 mm)).
  • Look for a separate Output Size or Print On menu if your driver separates document size from physical paper size, and ensure both match.
  • Check the Scaling, Page Layout, or Resizing section on the same tab or on the Finishing / Effects / Layout tab:
  • Make sure scaling is set to 100%, Actual Size, or Fit to Page—not a manual zoom percentage above 100% and not Poster or Booklet mode.
  • Make sure Borderless Printing is turned Off for standard text documents. Borderless mode intentionally expands the image slightly past the physical edges of the paper (overspray) so no white slivers remain on photo paper, which cuts off text or borders near the edge of a page.
  • Click Apply, then click OK.

Synchronize Device Settings and System Printing Defaults​

If your printer has a hardwired tray sensor or extra paper trays, verify the hardware assignment inside Printer properties so Windows knows what paper is installed in each tray.

  • On the same printer management screen in Windows Settings, click Printer properties (do not confuse this with Hardware properties or Printing preferences).
  • On the General tab, inspect the Paper available box in the middle of the dialog. It lists the paper size Windows currently believes is loaded.
  • Select the Device Settings tab along the top of the Printer properties window.
  • Under Form To Tray Assignment (or Tray Assignment), check Tray 1, Tray 2, Manual Feed, and Auto Select. Change any mismatched tray from A4 or Legal to Letter (or your actual loaded paper size).
  • Select the Advanced tab at the top of the Printer properties window and click the Printing Defaults... button at the bottom left.
  • Verify that the paper size here also matches your loaded paper, click Apply, and click OK twice to close both dialogs.

Step 3: Fix Paper Size and Print Scaling Inside Your Application​

Most apps override Windows driver defaults with their own per-document page setup or print preview scaling. Because nearly every ink and laser printer has a mechanical margin (typically 0.17 to 0.25 inches) where the rollers grip the sheet and the printhead cannot deposit ink or toner, any document with content drawn all the way to the 0.0-inch edge will be clipped unless you scale it to fit the printable area.

Modern Windows Print Dialog (Edge, Chrome, Photos, and Windows 11 Modern Apps)​

When you press Ctrl + P in Microsoft Edge, Google Chrome, the Windows Photos app, or the modern Windows 11 print dialog:

  • Check the live print preview pane on the right side of the window. If the content is already clipped inside the preview box, the problem is in the dialog settings before the job ever reaches the printer.
  • Expand More settings at the bottom of the left pane.
  • Under Paper size, select the exact size loaded in your printer (Letter, A4, 4 x 6 in, etc.).
  • Under Scale (or Fit in the Photos app):
  • In Edge or Chrome, change Scale from Default or Custom to Fit to printable area or Fit to paper. If a webpage is still cutting off the right column, choose Custom and lower the scale percentage (for example, to 85% or 90%) until the right edge fits cleanly inside the preview page.
  • In the Windows Photos app, look at the Fit setting and change it from Fill page (which crops the edges of a 4:3 smartphone or camera aspect ratio to completely fill a 4x6 or 8.5x11 sheet) to Shrink to fit, which preserves the entire image on the page.
  • In Edge or Chrome, check the Margins drop-down under More settings. Setting Margins to None or Minimum can push text into the printer's unprintable hardware zone; switch Margins back to Default if the very top or bottom line of a webpage is clipped.

PDF Viewers (Adobe Acrobat Reader and Browser PDF Readers)​

PDF documents carry embedded page dimensions created by their author. If an overseas invoice or manual was created at A4 height (11.69 inches) and you print it at Actual size on US Letter paper (11.0 inches), the top and bottom 0.35 inches will be cut off.

  • Open the PDF and press Ctrl + P.
  • Under Page Sizing & Handling (in Adobe Acrobat/Reader):
  • Select Fit or Shrink oversized pages instead of Actual size or Custom Scale.
  • Check the preview graphic showing the document measurements versus the paper sheet measurements (for example, 8.5 x 11.0 in).
  • If the document still clips despite selecting Fit, click the Page Setup... button at the bottom left of the print dialog and confirm Size is set to your physical paper size.

Microsoft Word and Microsoft Excel​

Office applications store paper size and margin instructions inside each individual .docx or .xlsx file.

  • In Microsoft Word:
  • Select the Layout tab on the ribbon.
  • Click Size in the Page Setup group and verify it matches your paper (Letter vs. A4).
  • Click Margins and ensure the document margins are not smaller than your printer's physical minimum (usually at least 0.25" on all four sides; Normal is 1.0").
  • Press Ctrl + P to open File > Print. At the very bottom of the settings column, click the last drop-down menu (which normally says 1 Page Per Sheet), hover over Scale to Paper Size, and ensure No Scaling is selected if your document paper size matches your tray—or select Letter / A4 if you need Word to dynamically resize an A4 document onto Letter paper without changing the file layout.
  • In Microsoft Excel:
  • Wide spreadsheets routinely cut off columns on the right or spill onto extra pages.
  • Press Ctrl + P to open the Print screen.
  • Click the last setting box at the bottom of the left column (by default labeled No Scaling).
  • Change it to Fit All Columns on One Page (for long tables where rightmost columns are cut off) or Fit Sheet on One Page.

Verification: Confirm the Fix​

After matching the paper sizes and setting the scaling mode:

  • Press Ctrl + P in your application and inspect all four outer edges in the on-screen print preview. Verify that page numbers, headers, footers, and right-hand borders have a visible white margin around them.
  • Print a single page (under Pages, enter 1 rather than printing the entire document) to avoid wasting paper and ink.
  • Inspect the printed sheet. All four margins should be even, and no text or border lines should stop abruptly near the edge of the paper.

Troubleshooting and Driver Escalation​

If your prints remain cropped after matching paper sizes and enabling Fit to printable area, work through these specific failure modes.

1. The Printer Uses a Generic Class Driver with Missing Paper or Margin Controls​

When Windows 10 or Windows 11 automatically installs a network or USB printer, it often assigns the built-in Microsoft IPP Class Driver or Microsoft PCL6 Class Driver. While convenient, class drivers sometimes report inaccurate printable area margins for specific printer models or omit advanced scaling controls in Printing preferences.

How to check and replace the driver:

  • Open Settings > Bluetooth & devices > Printers & scanners (Windows 11) or Settings > Devices > Printers & scanners > Manage (Windows 10), select your printer, and click Printer properties.
  • Click the Advanced tab and inspect the Driver drop-down field.
  • If it reads Microsoft IPP Class Driver and your printer continues to clip margins at 100% scale, download the full-feature PCL6, PostScript (PS), or model-specific driver package directly from your printer manufacturer's support site (HP, Brother, Canon, Epson, etc.).
  • Run the vendor installer, or click New Driver... on the Advanced tab in Printer properties to bind the queue to the manufacturer's dedicated driver.

Rollback note: If a newly installed vendor driver causes spooler errors or formatting changes you do not want, return to Printer properties > Advanced, open the Driver drop-down menu, select the previous Microsoft IPP Class Driver, and click Apply to revert immediately.

2. Duplex (Two-Sided) Printing Cuts Off the Bottom Margin​

Many inkjet printers require a substantially larger bottom margin (often 0.5 inches to 0.65 inches) when automatic Two-Sided (Duplex) printing is enabled because the duplexer rollers must keep a firm mechanical grip on the bottom edge of the sheet to pull it back inside and flip it over.

  • Fix: Open Printing preferences or the app print dialog, turn Print on Both Sides (Duplex) to None / Off (One-Sided), and print a test sheet. If the bottom cutoff disappears, increase the bottom margin in your document to at least 0.6 inches whenever printing two-sided jobs, or enable Fit to printable area so the driver automatically shrinks the page slightly to clear the duplexer grip zone.

3. Windows Regional Format Keeps Resetting Apps to A4 or Letter​

Several Windows utilities and Office templates choose their default paper size for brand-new documents based on your Windows Regional format rather than your printer driver.

  • Fix: Open Settings > Time & language > Language & region. Check the Country or region and Regional format settings. If Regional format is set to English (United Kingdom) or another metric region while you use US Letter paper (or set to English (United States) while you use A4 paper), change it to match your local standard so new documents default to the paper size in your printer.
