The important distinction for Windows gamers is that this is primarily an experience upgrade, not a new processor generation. Xbox’s official comparison lists both machines with the Ryzen AI Z2 Extreme, 24GB of memory and a 1TB PCIe 4.0 SSD. The X20’s larger OLED display and revised controls are the clearer differentiators.
That makes the buying question more interesting than “How much faster is it?” A handheld spends its working life in your hands and inches from your face. Better buttons and a better screen can matter enormously—but they do not automatically fix the software underneath.
OLED is the headline, with an important brightness distinction
Xbox confirms that the X20 moves from the Xbox Ally X’s 7-inch, 1080p, 120Hz display to a 7.4-inch OLED panel, retaining 1080p and 120Hz while adding HDR.
Nasi Lemak Tech reviewer Kok Kee reports an especially strong visual improvement, including better-looking colors and reflection handling than the older handheld fitted with a matte screen protector.
The review’s measurements were taken in SDR mode only:
| Measurement | Nasi Lemak Tech’s reported result |
|---|---|
| Maximum brightness | Approximately 643 nits |
| Minimum brightness | 5.76 nits |
| sRGB coverage | 100% |
| DCI-P3 coverage | 91.10% |
| Adobe RGB coverage | 95.35% |
Those results should not be confused with ASUS’s advertised 1,400-nit HDR highlights. ASUS also specifies a 30–120Hz variable-refresh-rate range and DisplayHDR True Black 1400 certification. Its HDR claim and the review’s SDR measurement describe different operating conditions, rather than contradictory results.
That distinction matters when comparing specifications: the largest brightness number on a product page is not necessarily the brightness available across ordinary desktop use.
The review also praises color accuracy, but its text supplies no numerical Delta E results. Its enthusiasm is useful as a firsthand impression; it is not enough to establish suitability for color-critical professional work.
The takeaway: the evidence makes the display the strongest upgrade argument, without needing to turn an HDR marketing figure into an everyday brightness promise.
The controls are more than anniversary decoration

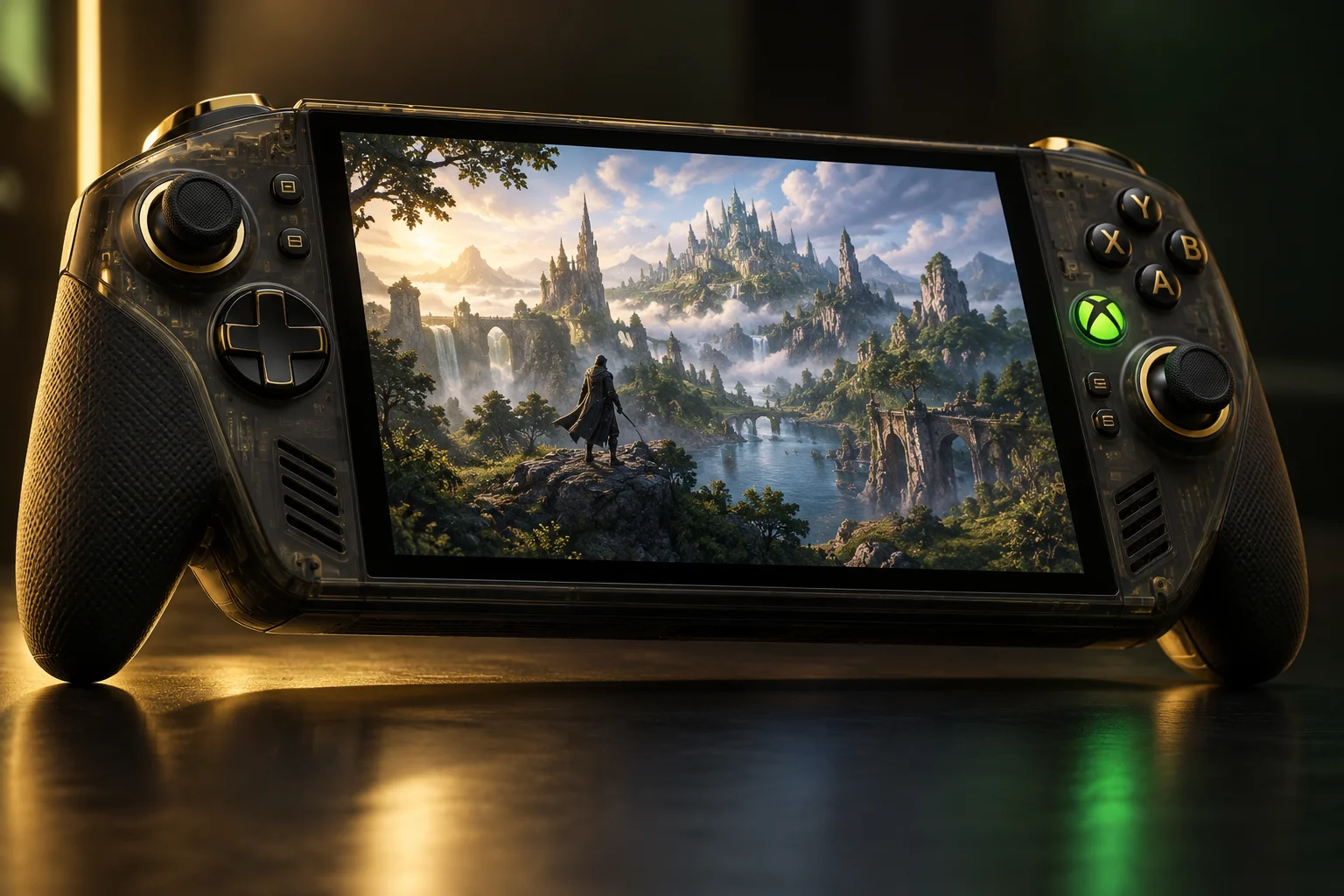

The translucent shell, gold detailing and illuminated green Xbox button mark ROG’s 20th anniversary. ASUS’s announcement also identifies rubberized grips, magnetic TMR sticks, revised face buttons and a transforming D-pad as substantive changes.
The D-pad is particularly unusual. ASUS explains that lifting it slightly and rotating it 90 degrees switches between four-way and eight-way configurations, without tools or replacement parts.
Kok Kee finds the mechanism somewhat difficult to grip but sees the eight-way configuration and rounder face buttons as a promising combination for fighting games. The reviewer describes slimmer buttons with a 90g actuation force and easier movement between adjacent inputs.
That is a plausible benefit, not a universal competitive advantage. Whether it helps depends on the games you play and your preferred input feel.
The review’s other control observations are similarly worth separating from long-term conclusions:
- TMR sticks: The reviewer reports factory-installed GuliKit collaboration sticks and revised stick shafts. That does not establish their eventual wear resistance.
- Rubberized grips: They reportedly improve security with sweaty hands, but durability remains unknown.
- Triggers: The reviewer still encounters squeaking.
- Rear buttons: The two additional rear controls reportedly remain familiar.
There is also a useful discrepancy: the reviewer perceives the shoulder buttons and triggers as largely unchanged, while ASUS explicitly describes reshaped bumpers and revised trigger travel. Manufacturer-described refinement is not necessarily a transformation every user will notice.
Performance gains need more evidence than a BIOS theory
Nasi Lemak Tech reports that quick performance tests consistently favored the X20 despite the matching headline hardware. The reviewer suspects BIOS tuning.
That explanation remains a hypothesis. The review text does not provide frame-rate results, matched power settings, driver versions or a sufficiently detailed test method to quantify an advantage or isolate its cause.
ASUS does independently describe revised cooling, including a new internal airflow channel and high-flow fans. That adds useful context beyond the reviewer’s speculation, but it still does not prove why a particular benchmark ran faster.
Kok Kee also reports approximately 1,000 fewer fan revolutions per minute, lower processor temperature and similar perceived noise. Without workload details, numerical temperature results or acoustic measurements, these are observations—not a demonstrated efficiency breakthrough.
For an existing Xbox Ally X owner, the sensible conclusion is straightforward: do not base an expensive upgrade on an unquantified performance uplift.
Windows friction remains part of the experience
The review’s strongest criticism concerns Xbox Full Screen Experience. Kok Kee reports slow overlay responses, unreliable button actions and an intermittently unresponsive interface.
There was also a temporary Onimusha launch failure with no error message. The game subsequently worked again after several days and updates, but the reviewer could not identify the cause.
That sequence deserves careful wording. It documents a frustrating experience on the review unit; it does not establish a permanent incompatibility, a specific defective update or a problem affecting every X20.
It also illustrates the limit of premium handheld hardware: an excellent display cannot make an unresponsive overlay feel polished.
SteamOS is not a proven escape route
Kok Kee had installed SteamOS on the earlier Xbox Ally X, but reports that the X20 produced no audio under SteamOS.
The reviewer suspects a driver issue or changed audio hardware and describes the X20’s speakers as louder and fuller under normal use. Neither the reported sound difference nor a QR code on a speaker component establishes a hardware revision.
No verified fix or supported installation procedure accompanies that finding. Readers considering an operating-system replacement should therefore treat working audio as something to establish for the exact X20 model, not assume from experience with its predecessor.
The practical lesson is model-specific compatibility, not “Windows bad, Linux good”—or the reverse.
Charging and accessories carry less glamorous caveats
Nasi Lemak Tech reports similar battery life between the two handhelds at 100-nit brightness, with both using 80Wh batteries. It supplies no runtime or workload detail, so that finding cannot support an all-day endurance claim.
Charging results are more specific:
- The reviewer reports a supplied 68W adapter, versus 65W with the older model.
- Charging from empty to full took slightly under 100 minutes with the 68W adapter.
- A 100W adapter reached 50% sooner but still took approximately 100 minutes overall.
- The reviewer attributes the later slowdown to battery thermal throttling.
The suggested benefit of switching the device on so its fans could assist charging was not tested. The demonstrated advantage of the higher-wattage adapter is therefore an earlier partial charge—not a substantially shorter full charge.
Accessory reuse is another potential cost. According to the review:
- Different display cables prevent a straightforward X20 OLED transplant into the Xbox Ally X.
- A tested generic hard-shell case and JSAUX zippered case did not fit the X20.
- An older screen protector nearly covered the visible display but left side areas exposed.
- A reader suggestion that Steam Deck protectors would fit was not verified.
These findings do not prove that every older case is incompatible. They do make “it looks almost the same” an inadequate compatibility check.
Who should consider the X20?
ASUS’s US product page lists the standalone X20 at $1,299.99. That is a premium purchase, not a casual screen upgrade.
For someone already satisfied with a ROG Xbox Ally X, the case rests mainly on the OLED display, grip and control changes. The review does not establish a sufficiently clear performance or battery-life improvement to make replacement an obvious choice.
For owners of an original ROG Ally or the earlier, non-Xbox-branded ROG Ally X, the comparison requires extra care: those are distinct products, not interchangeable names for the Xbox Ally X reviewed here. ASUS lists them separately in its product lineup.
The X20’s appeal is nevertheless clear. It changes the parts of a handheld you constantly see and touch, rather than merely dressing familiar hardware for an anniversary party. The caution is equally clear: buy it for the verified display and control improvements, not an assumed frame-rate leap or a guaranteed console-like software experience.
