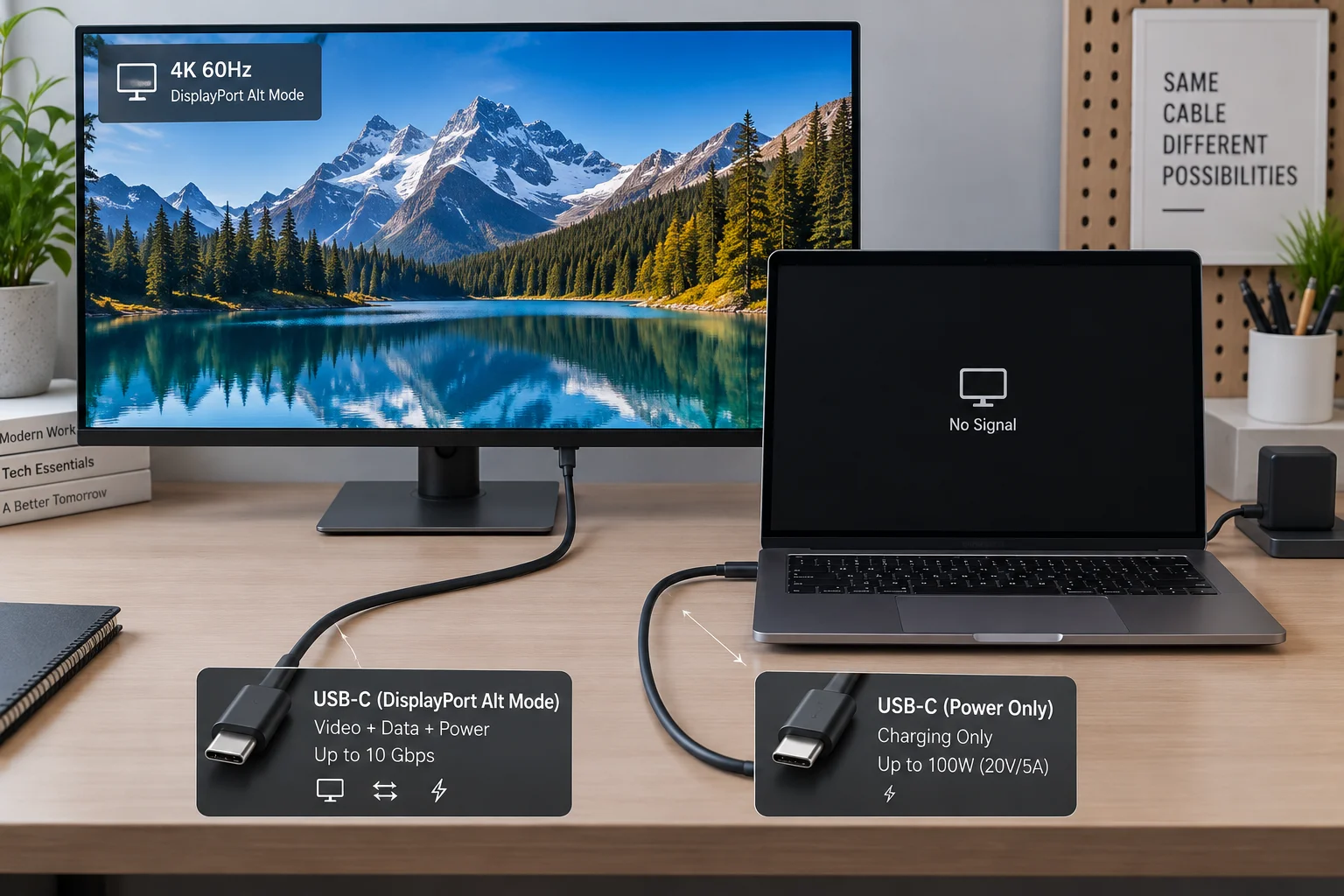

An infographic contrasts USB-C DisplayPort video output with a power-only cable that leaves the laptop screen showing “No Signal.”
A USB-C cable that charges your laptop is not necessarily a USB-C cable that can drive your monitor. Shekhar Vaidya of XDA Developers ran into this when he tested a pile of cables from his drawer. His report is anecdotal. The standards and vendor documentation behind it are solid, and they matter to anyone running a Windows laptop with a USB-C monitor or dock.

An infographic contrasts USB-C DisplayPort video output with a power-only cable that leaves the laptop screen showing “No Signal.” What the test found​

Vaidya bought a braided 1-meter Amazon Basics USB-C-to-USB-C cable with a built-in display. It was rated for 100W charging. He plugged it between a MacBook Pro M1 and the USB-C input on his Gigabyte M27Q monitor. The laptop chimed as if charging, but the monitor showed only a brief "No input" notice.

He then gathered six USB-C-to-USB-C cables, including the one that shipped with the MacBook, and tried each one with the monitor. Only one produced a picture. It was a shorter, thicker cable of roughly half a meter that he had bought before getting a KVM switch. A Galaxy S25 behaved the same way for Samsung DeX. Every cable charged the phone and the MacBook, so none were defective. They just weren't carrying video.

The working cable's order-history title listed 5A/100W, USB 3.2 Gen 2, 10Gbps and "4K video compatible." The cable that failed advertised only 100W PD charging and 350Mbps data. Vaidya notes that none of his cables had any marking that showed video support.

This is six cables, three devices and one monitor, so it doesn't tell us what share of all USB-C cables can carry video. What it does show is that charging is a poor test of video capability.

Why identical plugs behave differently​

The shape of the USB-C connector is a physical standard. It doesn't promise any particular protocol. Video over USB-C usually travels as DisplayPort Alternate Mode, USB4 or Thunderbolt. Dell's support documentation says the USB-C port must support DP Alt Mode, or a Thunderbolt port must be used. If the USB-C port only supports data or power delivery, no video is seen.

VESA describes DisplayPort Alt Mode as repurposing some or all of the four existing SuperSpeed USB lanes. A cable built only for USB 2.0 and charging doesn't carry those high-speed lanes. Plugable's knowledge base says the same: USB-C cables that support USB 2.0 only or "charging only" cables are not built to support video.

Apple's own documentation shows the split on a single product line:

  • The Thunderbolt 3 (USB-C) cable supports DisplayPort HBR3 video output in Apple's description, with data up to 40Gbps and charging up to 100W.
  • Apple's USB-C Charge Cable also charges. Apple says its data speed is limited to 480Mbps (USB 2.0) and it doesn't support video.

Both cables have the same connector and both can charge.

One of the article's inferences is too broad​

Vaidya reasons that a 350Mbps listing is below USB 2.0's 480Mbps ceiling, and that a video lane needs more than that. The conclusion is right for this cable, but the logic is shaky.

Video over Alt Mode isn't ordinary USB data transfer. VESA notes that even when all four lanes carry DisplayPort, USB 2.0 data can still be carried on separate dedicated pins. A USB 2.0 data rating therefore describes one set of wires. It doesn't settle what the cable's high-speed lanes can do.

In practice, a cable sold as USB 2.0-only, or as charge-only, is a poor bet for video. That is because it typically lacks the high-speed lanes, not because 350Mbps is too slow.

What to check before you buy​

Look for an explicit statement of video support. Vague wording such as "USB-C," "fast charging" or "100W" isn't enough.

  1. Look for named video support. Good signs are DisplayPort Alt Mode, USB4, Thunderbolt, or stated video output. One retailer guide says a vague icon of a monitor is weaker than a named technical claim.
  2. Read the data-rate label as a hint, not a guarantee. USB-IF's logo rules say USB-C-to-USB-C cables in its compliance program must carry a 60W or 240W power mark. Cables other than USB 2.0-only models must also carry a data-rate mark. Those marks help, but they don't guarantee that your laptop, cable and monitor will produce a picture together.
  3. Be wary of wattage-only listings. A 100W rating says nothing about video. Anker's guide lists fast charging, 60W and 100W among the terms that do not guarantee video support.
  4. Treat "full-featured" with care. Plugable cautions that "full function" does not always mean video support.

If a good cable still shows a black screen​

The cable is only one of three or four links. Work through these in order:

  1. Check the port on the computer. The port you chose must support video output. Dell notes that USB 2.0 and SuperSpeed USB ports on a computer do not support DP Alt Mode, and that an unmarked port means checking the manual. Anker's guide adds that some laptops restrict video output to only one specific side port.
  2. Confirm the monitor input. Make sure the monitor is set to its USB-C input. The submitted material says Gigabyte's M27Q manual documents USB-C as a selectable input and describes KVM settings that tie the Type-C connection to a display source. I couldn't open that manual to confirm the details. If you have a KVM-capable monitor like Vaidya's, check that the input isn't assigned elsewhere.
  3. Remove hubs. VESA's help page says USB hubs do not support DisplayPort connections between their ports. Connect directly, or use a dock that explicitly supports DisplayPort between its ports.
  4. Don't mix up cable types. Dell says only a USB-C-to-USB-C cable may be used for video over USB-C on its monitors. A USB-C-to-DisplayPort or USB-C-to-HDMI cable is a different path.
  5. Test with a known-good cable. Try the cable that shipped with the monitor, or one explicitly rated for video.

On a Windows PC, a successful test usually means the monitor appears in Display settings. A failed one often looks like the monitor charging the laptop and exposing USB ports without any display signal. One retailer guide describes a monitor that can charge the laptop and expose USB ports but never receive a display signal when DP Alt Mode is absent or the cable can't carry video.

The practical takeaway​

The practical rule is to keep the product listing or spec sheet for any cable you plan to use with a display. Then test the cable with the actual devices you'll connect, and label it once you know what it does. Vaidya reaches the same conclusion: he'll check listings before buying and write the labels himself.

One side note from the piece: the working cable cost about $10 in 2022, and Vaidya says it now lists for $45. That is a single observation, so I can't say whether it reflects broader cable pricing.

The lesson for a drawer full of cables is that most of them may be fine for charging. Don't assume any of them can handle video until a spec sheet or a test says so.
