Just installed matching RAM, several BSOD errors: c2, 0a, 3b, all "BugCheck"

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by ctrlaltdel121, Dec 9, 2011.

  1. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    Hello, I hope someone can help me.

    I recently purchased new RAM to go in my HTPC. It has worked flawlessly for over a year (custom built), with 2GB of installed ram. The motherboard has 2 slots, and I decided to buy another stick to match the one already installed. I went to google, typed in the model number, and bought it off newegg. I noticed when installing it that the RAM did not look exactly the same (different height), but I did not think much of it

    So, now ever since then i have been getting these BSOD errors, c2, 0a, and 3b, all appearing as BugCheck errors in event viewer. I assumed it must be a problem with the ram but I ran 2 passes of Memtest and they both came up without errors. I am wondering if this is something else, but I am not quite technically inclined enough to make sense of the logs.

    Please help! Attached are the files generated using SF Diag tools v4. My profile has some info about my setup. If you need any other specs please feel free to ask I will be happy to install whatever tools and gather whatever information would be helpful

    --Jeremy

    View attachment Seven Forums.zip

  2. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    OK that was missing the .dmp files, here they are included:


    Attached Files:

  3. Elmer

    Elmer Extraordinary Member

    Joined:
    Mar 5, 2010
    Messages:
    3,873
    Likes Received:
    284
    Hi ctrlaltdel121 and Welcome to The Forum.

    STOP 0x000000C2: BAD_POOL_CALLER
    Usual causes:
    Device driver, ?Memory.

    Your latest dump file lists SiWinAcc.sys as the probable cause. This is a Silicon Image driver.
    Old and incompatible drivers can and do cause issues with Windows 7, often giving false error codes. Random stop codes can often indicate hardware issues.

    Ram is always best matched Same Manufacturer, Type, Model, Size, Batch, Timings, Etc. Preferably bought as a matched set.

    As a Priority:

    Norton is known to be a cause of BSOD's on many Windows 7 systems. I suggest that you uninstall Norton using the Norton Removal Tool in Safe Mode. Download Blue Screen friendly Microsoft Security Essentials as its replacement. Make sure Windows firewall is enabled!

    Si3132r5.sys Wed Sep 17 01:51:09 2008
    SiRemFil.sys Wed Oct 18 23:20:39 2006
    SiWinAcc.sys Mon Nov 01 19:23:29 2004
    Silicon Image drivers. Update or uninstall this software (seems these may be part of your Mobo, not 100% sure :().

    hcw18bda.sys Thu Jan 28 15:30:14 2010 Huappage WinTV driver. Mentioned in one of your dmp files as the probable cause. Worth a look to see if updates are available.

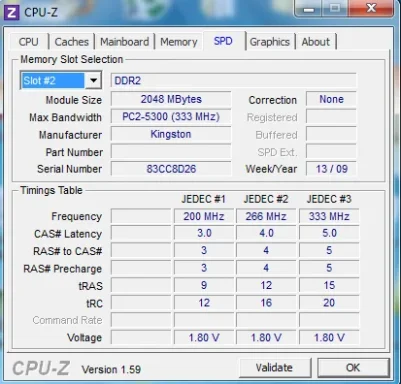

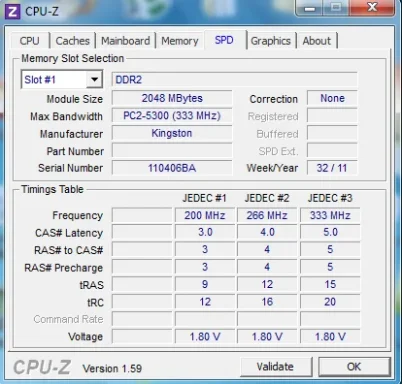

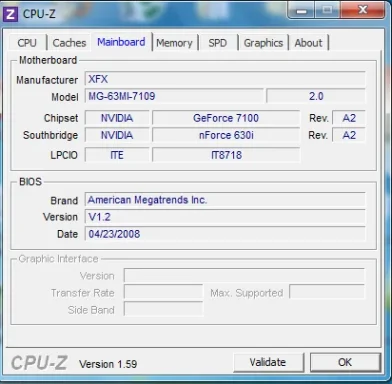

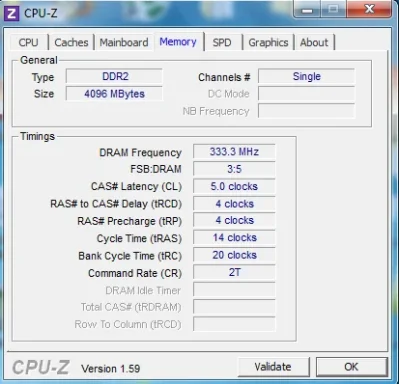

    Download and run CPU-Z. Take screenshots**/snips of the Mainboard tab, Memory tab and all the slot #'s under the SPD tab.
    Go to Post Reply, click on the Go Advanced button and attach the screenshots**/snips to your post for all the RAM experts to see by using the paper clip you will find on the top toolbar. Do not zip them up.
    **If screenshots, please crop.


    Drivers that pre-date Windows 7. Update:

    nvmfdx64.sys Sat Nov 17 23:47:57 2007
    nvsmu.sys Sat Oct 13 00:53:40 2007
    nVidia nForce chipset driver


    Drivers with Updates:

    jraid.sys Thu May 19 08:55:18 2011 JMicron Raid Driver June '11 (hardly worth mentioning but I saw it, so....).

    nvlddmkm.sys Fri Jul 09 22:15:58 2010 nVidia Graphics Drivers.


    Bugcheck Analysis:
    Code:
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck C2, {7, 109b, 0, fffffa800696ba40}

    Unable to load image \SystemRoot\system32\DRIVERS\SiWinAcc.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for SiWinAcc.sys
    *** ERROR: Module load completed but symbols could not be loaded for SiWinAcc.sys
    GetPointerFromAddress: unable to read from fffff80001eaf100
    GetUlongFromAddress: unable to read from fffff80001e1da18
    Probably caused by : SiWinAcc.sys ( SiWinAcc+1036 )

    Drivers:
    Code:
    fffff880`00f0f000 fffff880`00f66000   ACPI     ACPI.sys     Sat Nov 20 09:19:16 2010 (4CE79294)
    fffff880`02e4f000 fffff880`02ed8000   afd      afd.sys      Mon Apr 25 03:33:58 2011 (4DB4DD96)
    fffff880`03bbd000 fffff880`03bd3000   AgileVpn AgileVpn.sys Tue Jul 14 01:10:24 2009 (4A5BCCF0)
    fffff880`0118a000 fffff880`01195000   amdxata  amdxata.sys  Fri Mar 19 16:18:18 2010 (4BA3A3CA)
    fffff880`0f54c000 fffff880`0f557000   asyncmac asyncmac.sys Tue Jul 14 01:10:13 2009 (4A5BCCE5)
    fffff880`010f6000 fffff880`010ff000   atapi    atapi.sys    Tue Jul 14 00:19:47 2009 (4A5BC113)
    fffff880`010ff000 fffff880`01129000   ataport  ataport.SYS  Sat Nov 20 09:19:15 2010 (4CE79293)
    fffff960`00880000 fffff960`008e1000   ATMFD    ATMFD.DLL    Sat Feb 19 09:00:32 2011 (4D5F86B0)
    fffff880`00fd7000 fffff880`00fe3000   BATTC    BATTC.SYS    Tue Jul 14 00:31:01 2009 (4A5BC3B5)
    fffff880`0392d000 fffff880`03930e80   BdaSup   BdaSup.SYS   Tue Jul 14 01:06:40 2009 (4A5BCC10)
    fffff880`01bf2000 fffff880`01bf9000   Beep     Beep.SYS     Tue Jul 14 01:00:13 2009 (4A5BCA8D)
    fffff880`032a6000 fffff880`033c5000   BHDrvx64 BHDrvx64.sys Thu Nov 10 00:00:00 2011 (4EBB1400)
    fffff880`02c83000 fffff880`02c94000   blbdrive blbdrive.sys Tue Jul 14 00:35:59 2009 (4A5BC4DF)
    fffff880`0c947000 fffff880`0c965000   bowser   bowser.sys   Wed Feb 23 04:55:04 2011 (4D649328)
    fffff960`006e0000 fffff960`00707000   cdd      cdd.dll      Sat Nov 20 12:55:34 2010 (4CE7C546)
    fffff880`04b8a000 fffff880`04ba7000   cdfs     cdfs.sys     Tue Jul 14 00:19:46 2009 (4A5BC112)
    fffff880`01000000 fffff880`0102a000   cdrom    cdrom.sys    Sat Nov 20 09:19:20 2010 (4CE79298)
    fffff880`00cea000 fffff880`00daa000   CI       CI.dll       Sat Nov 20 13:12:36 2010 (4CE7C944)
    fffff880`0186b000 fffff880`0189b000   CLASSPNP CLASSPNP.SYS Sat Nov 20 09:19:23 2010 (4CE7929B)
    fffff880`00c8c000 fffff880`00cea000   CLFS     CLFS.SYS     Tue Jul 14 00:19:57 2009 (4A5BC11D)
    fffff880`03638000 fffff880`037fa000   cmudaxp  cmudaxp.sys  Fri Jul 23 10:55:38 2010 (4C49671A)
    fffff880`016f6000 fffff880`01768000   cng      cng.sys      Sat Nov 20 10:08:45 2010 (4CE79E2D)
    fffff880`00fce000 fffff880`00fd7000   compbatt compbatt.sys Tue Jul 14 00:31:02 2009 (4A5BC3B6)
    fffff880`03c09000 fffff880`03c19000   CompositeBus CompositeBus.sys Sat Nov 20 10:33:17 2010 (4CE7A3ED)
    fffff880`04ba7000 fffff880`04bb5000   crashdmp crashdmp.sys Tue Jul 14 01:01:01 2009 (4A5BCABD)
    fffff880`02c00000 fffff880`02c83000   csc      csc.sys      Sat Nov 20 09:27:12 2010 (4CE79470)
    fffff880`02dd3000 fffff880`02df1000   dfsc     dfsc.sys     Sat Nov 20 09:26:31 2010 (4CE79447)
    fffff880`02dc4000 fffff880`02dd3000   discache discache.sys Tue Jul 14 00:37:18 2009 (4A5BC52E)
    fffff880`01855000 fffff880`0186b000   disk     disk.sys     Tue Jul 14 00:19:57 2009 (4A5BC11D)
    fffff880`03600000 fffff880`03622000   drmk     drmk.sys     Tue Jul 14 02:01:25 2009 (4A5BD8E5)
    fffff880`04bc1000 fffff880`04bca000   dump_atapi dump_atapi.sys Tue Jul 14 00:19:47 2009 (4A5BC113)
    fffff880`04bb5000 fffff880`04bc1000   dump_dumpata dump_dumpata.sys Tue Jul 14 00:19:47 2009 (4A5BC113)
    fffff880`04bca000 fffff880`04bdd000   dump_dumpfve dump_dumpfve.sys Tue Jul 14 00:21:51 2009 (4A5BC18F)
    fffff880`04ae0000 fffff880`04aec000   Dxapi    Dxapi.sys    Tue Jul 14 00:38:28 2009 (4A5BC574)
    fffff880`048be000 fffff880`049b2000   dxgkrnl  dxgkrnl.sys  Sat Nov 20 09:50:50 2010 (4CE799FA)
    fffff880`049b2000 fffff880`049f8000   dxgmms1  dxgmms1.sys  Sat Nov 20 09:49:53 2010 (4CE799C1)
    fffff880`02d25000 fffff880`02d9e000   eeCtrl64 eeCtrl64.sys Sat Oct 22 02:18:28 2011 (4EA219E4)
    fffff880`0d790000 fffff880`0d7b0000   ENG64    ENG64.SYS    Fri Jul 29 14:17:51 2011 (4E32B2FF)
    fffff880`02d9e000 fffff880`02dc4000   EraserUtilRebootDrv EraserUtilRebootDrv.sys Sat Oct 22 02:18:29 2011 (4EA219E5)
    fffff880`01848000 fffff880`01855000   eubakup  eubakup.sys  Fri Apr 22 11:22:41 2011 (4DB156F1)
    fffff880`0183a000 fffff880`01848000   EUBKMON  EUBKMON.sys  Fri Apr 22 11:23:05 2011 (4DB15709)
    fffff880`03995000 fffff880`039c7000   eudisk   eudisk.sys   Fri Apr 22 11:23:00 2011 (4DB15704)
    fffff880`02d1c000 fffff880`02d25000   eudskacs eudskacs.sys Fri Apr 22 11:22:38 2011 (4DB156EE)
    fffff880`01779000 fffff880`01784000   eufs     eufs.sys     Fri Apr 22 11:22:42 2011 (4DB156F2)
    fffff880`0de04000 fffff880`0dffc000   EX64     EX64.SYS     Fri Jul 29 14:15:11 2011 (4E32B25F)
    fffff880`01362000 fffff880`01376000   fileinfo fileinfo.sys Tue Jul 14 00:34:25 2009 (4A5BC481)
    fffff880`01195000 fffff880`011e1000   fltmgr   fltmgr.sys   Sat Nov 20 09:19:24 2010 (4CE7929C)
    fffff880`01784000 fffff880`0178e000   Fs_Rec   Fs_Rec.sys   Tue Jul 14 00:19:45 2009 (4A5BC111)
    fffff880`01800000 fffff880`0183a000   fvevol   fvevol.sys   Sat Nov 20 09:24:06 2010 (4CE793B6)
    fffff880`01acb000 fffff880`01b15000   fwpkclnt fwpkclnt.sys Sat Nov 20 09:21:37 2010 (4CE79321)
    fffff800`021e9000 fffff800`02232000   hal      hal.dll      Sat Nov 20 13:00:25 2010 (4CE7C669)
    fffff880`03852000 fffff880`0392c580   hcw18bda hcw18bda.sys Thu Jan 28 15:30:14 2010 (4B61AD86)
    fffff880`031b5000 fffff880`031d9000   HDAudBus HDAudBus.sys Sat Nov 20 10:43:42 2010 (4CE7A65E)
    fffff880`04a84000 fffff880`04ae0000   HdAudio  HdAudio.sys  Sat Nov 20 10:44:23 2010 (4CE7A687)
    fffff880`04b7f000 fffff880`04b8a000   HidBatt  HidBatt.sys  Tue Jul 14 00:31:06 2009 (4A5BC3BA)
    fffff880`04b19000 fffff880`04b32000   HIDCLASS HIDCLASS.SYS Sat Nov 20 10:43:49 2010 (4CE7A665)
    fffff880`04b32000 fffff880`04b3a080   HIDPARSE HIDPARSE.SYS Tue Jul 14 01:06:17 2009 (4A5BCBF9)
    fffff880`04b0b000 fffff880`04b19000   hidusb   hidusb.sys   Sat Nov 20 10:43:49 2010 (4CE7A665)
    fffff880`0c87e000 fffff880`0c947000   HTTP     HTTP.sys     Sat Nov 20 09:24:30 2010 (4CE793CE)
    fffff880`01bcd000 fffff880`01bd6000   hwpolicy hwpolicy.sys Sat Nov 20 09:18:54 2010 (4CE7927E)
    fffff880`02c9f000 fffff880`02d1c000   IDSvia64 IDSvia64.sys Wed Jul 20 14:19:46 2011 (4E26D5F2)
    fffff880`03200000 fffff880`03216000   intelppm intelppm.sys Tue Jul 14 00:19:25 2009 (4A5BC0FD)
    fffff880`0310a000 fffff880`03137000   Ironx64  Ironx64.SYS  Fri Nov 12 23:06:50 2010 (4CDDC88A)
    fffff880`00dba000 fffff880`00ddb000   jraid    jraid.sys    Thu May 19 08:55:18 2011 (4DD4CCE6)
    fffff880`03977000 fffff880`03986000   kbdclass kbdclass.sys Tue Jul 14 00:19:50 2009 (4A5BC116)
    fffff880`04b3b000 fffff880`04b49000   kbdhid   kbdhid.sys   Sat Nov 20 10:33:25 2010 (4CE7A3F5)
    fffff800`01b36000 fffff800`01b40000   kdcom    kdcom.dll    Sat Feb 05 16:52:49 2011 (4D4D8061)
    fffff880`02fb5000 fffff880`02ff8000   ks       ks.sys       Sat Nov 20 10:33:23 2010 (4CE7A3F3)
    fffff880`015c0000 fffff880`015db000   ksecdd   ksecdd.sys   Sat Nov 20 09:21:15 2010 (4CE7930B)
    fffff880`013d4000 fffff880`013ff000   ksecpkg  ksecpkg.sys  Sat Nov 20 10:10:34 2010 (4CE79E9A)
    fffff880`03622000 fffff880`03627200   ksthunk  ksthunk.sys  Tue Jul 14 01:00:19 2009 (4A5BCA93)
    fffff880`04a00000 fffff880`04a15000   lltdio   lltdio.sys   Tue Jul 14 01:08:50 2009 (4A5BCC92)
    fffff880`04bdd000 fffff880`04c00000   luafv    luafv.sys    Tue Jul 14 00:26:13 2009 (4A5BC295)
    fffff880`00c29000 fffff880`00c78000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Sat Nov 20 13:03:51 2010 (4CE7C737)
    fffff880`04b71000 fffff880`04b7f000   monitor  monitor.sys  Tue Jul 14 00:38:52 2009 (4A5BC58C)
    fffff880`03986000 fffff880`03995000   mouclass mouclass.sys Tue Jul 14 00:19:50 2009 (4A5BC116)
    fffff880`04b49000 fffff880`04b56000   mouhid   mouhid.sys   Tue Jul 14 01:00:20 2009 (4A5BCA94)
    fffff880`0108c000 fffff880`010a6000   mountmgr mountmgr.sys Sat Nov 20 09:19:21 2010 (4CE79299)
    fffff880`0c965000 fffff880`0c97d000   mpsdrv   mpsdrv.sys   Tue Jul 14 01:08:25 2009 (4A5BCC79)
    fffff880`0c97d000 fffff880`0c9aa000   mrxsmb   mrxsmb.sys   Wed Apr 27 03:40:38 2011 (4DB78226)
    fffff880`0c9aa000 fffff880`0c9f8000   mrxsmb10 mrxsmb10.sys Sat Jul 09 03:46:28 2011 (4E17C104)
    fffff880`0c800000 fffff880`0c824000   mrxsmb20 mrxsmb20.sys Wed Apr 27 03:39:37 2011 (4DB781E9)
    fffff880`01129000 fffff880`01134000   msahci   msahci.sys   Sat Nov 20 10:33:58 2010 (4CE7A416)
    fffff880`01033000 fffff880`0103e000   Msfs     Msfs.SYS     Tue Jul 14 00:19:47 2009 (4A5BC113)
    fffff880`00f6f000 fffff880`00f79000   msisadrv msisadrv.sys Tue Jul 14 00:19:26 2009 (4A5BC0FE)
    fffff880`0d6ce000 fffff880`0d6cfa80   MSPQM    MSPQM.sys    Tue Jul 14 01:00:17 2009 (4A5BCA91)
    fffff880`01376000 fffff880`013d4000   msrpc    msrpc.sys    Sat Nov 20 09:21:56 2010 (4CE79334)
    fffff880`031aa000 fffff880`031b5000   mssmbios mssmbios.sys Tue Jul 14 00:31:10 2009 (4A5BC3BE)
    fffff880`01bbb000 fffff880`01bcd000   mup      mup.sys      Tue Jul 14 00:23:45 2009 (4A5BC201)
    fffff880`01600000 fffff880`016f3000   ndis     ndis.sys     Sat Nov 20 09:23:30 2010 (4CE79392)
    fffff880`03c19000 fffff880`03c25000   ndistapi ndistapi.sys Tue Jul 14 01:10:00 2009 (4A5BCCD8)
    fffff880`03a00000 fffff880`03a2f000   ndiswan  ndiswan.sys  Sat Nov 20 10:52:32 2010 (4CE7A870)
    fffff880`04a6f000 fffff880`04a84000   NDProxy  NDProxy.SYS  Sat Nov 20 10:52:20 2010 (4CE7A864)
    fffff880`02f5a000 fffff880`02f69000   netbios  netbios.sys  Tue Jul 14 01:09:26 2009 (4A5BCCB6)
    fffff880`02ed8000 fffff880`02f1d000   netbt    netbt.sys    Sat Nov 20 09:23:18 2010 (4CE79386)
    fffff880`0178e000 fffff880`017ee000   NETIO    NETIO.SYS    Sat Nov 20 09:23:13 2010 (4CE79381)
    fffff880`0103e000 fffff880`0104f000   Npfs     Npfs.SYS     Tue Jul 14 00:19:48 2009 (4A5BC114)
    fffff880`0319e000 fffff880`031aa000   nsiproxy nsiproxy.sys Tue Jul 14 00:21:02 2009 (4A5BC15E)
    fffff800`01c00000 fffff800`021e9000   nt       ntkrnlmp.exe Thu Jun 23 03:53:23 2011 (4E02AAA3)
    fffff880`0141d000 fffff880`015c0000   Ntfs     Ntfs.sys     Fri Mar 11 03:39:39 2011 (4D79997B)
    fffff880`01be9000 fffff880`01bf2000   Null     Null.SYS     Tue Jul 14 00:19:37 2009 (4A5BC109)
    fffff880`048bc000 fffff880`048bd180   nvBridge nvBridge.kmd Fri Jul 09 22:07:54 2010 (4C378FAA)
    fffff880`03c2a000 fffff880`048bbe00   nvlddmkm nvlddmkm.sys Fri Jul 09 22:15:58 2010 (4C37918E)
    fffff880`03a54000 fffff880`03bbcc80   nvmfdx64 nvmfdx64.sys Sat Nov 17 23:47:57 2007 (473F7DAD)
    fffff880`03222000 fffff880`0322c000   nvsmu    nvsmu.sys    Sat Oct 13 00:53:40 2007 (47100904)
    fffff880`02f26000 fffff880`02f4c000   pacer    pacer.sys    Sat Nov 20 10:52:18 2010 (4CE7A862)
    fffff880`00fb9000 fffff880`00fce000   partmgr  partmgr.sys  Sat Nov 20 09:20:00 2010 (4CE792C0)
    fffff880`0d0a2000 fffff880`0d0ab000   pbfilter pbfilter.sys Sun Nov 07 02:23:54 2010 (4CD60DBA)
    fffff880`00f79000 fffff880`00fac000   pci      pci.sys      Sat Nov 20 09:19:11 2010 (4CE7928F)
    fffff880`00ff8000 fffff880`00fff000   pciide   pciide.sys   Tue Jul 14 00:19:49 2009 (4A5BC115)
    fffff880`00daa000 fffff880`00dba000   PCIIDEX  PCIIDEX.SYS  Tue Jul 14 00:19:48 2009 (4A5BC114)
    fffff880`01768000 fffff880`01779000   pcw      pcw.sys      Tue Jul 14 00:19:27 2009 (4A5BC0FF)
    fffff880`0d0d3000 fffff880`0d179000   peauth   peauth.sys   Tue Jul 14 02:01:19 2009 (4A5BD8DF)
    fffff880`03000000 fffff880`0303d000   portcls  portcls.sys  Tue Jul 14 01:06:27 2009 (4A5BCC03)
    fffff880`00c78000 fffff880`00c8c000   PSHED    PSHED.dll    Tue Jul 14 02:32:23 2009 (4A5BE027)
    fffff880`0d179000 fffff880`0d189000   qwavedrv qwavedrv.sys Tue Jul 14 01:09:48 2009 (4A5BCCCC)
    fffff880`03bd3000 fffff880`03bf7000   rasl2tp  rasl2tp.sys  Sat Nov 20 10:52:34 2010 (4CE7A872)
    fffff880`03a2f000 fffff880`03a4a000   raspppoe raspppoe.sys Tue Jul 14 01:10:17 2009 (4A5BCCE9)
    fffff880`03931000 fffff880`03952000   raspptp  raspptp.sys  Sat Nov 20 10:52:31 2010 (4CE7A86F)
    fffff880`03952000 fffff880`0396c000   rassstp  rassstp.sys  Tue Jul 14 01:10:25 2009 (4A5BCCF1)
    fffff880`0314d000 fffff880`0319e000   rdbss    rdbss.sys    Sat Nov 20 09:27:51 2010 (4CE79497)
    fffff880`0396c000 fffff880`03977000   rdpbus   rdpbus.sys   Tue Jul 14 01:17:46 2009 (4A5BCEAA)
    fffff880`018be000 fffff880`018c7000   RDPCDD   RDPCDD.sys   Tue Jul 14 01:16:34 2009 (4A5BCE62)
    fffff880`0d7b0000 fffff880`0d7de000   rdpdr    rdpdr.sys    Sat Nov 20 11:06:41 2010 (4CE7ABC1)
    fffff880`01410000 fffff880`01419000   rdpencdd rdpencdd.sys Tue Jul 14 01:16:34 2009 (4A5BCE62)
    fffff880`0102a000 fffff880`01033000   rdprefmp rdprefmp.sys Tue Jul 14 01:16:35 2009 (4A5BCE63)
    fffff880`0d069000 fffff880`0d0a2000   RDPWD    RDPWD.SYS    Sat Nov 20 11:04:37 2010 (4CE7AB45)
    fffff880`01b79000 fffff880`01bb3000   rdyboost rdyboost.sys Sat Nov 20 09:43:10 2010 (4CE7982E)
    fffff880`03800000 fffff880`03818000   rspndr   rspndr.sys   Tue Jul 14 01:08:50 2009 (4A5BCC92)
    fffff880`0105d000 fffff880`0108c000   SCSIPORT SCSIPORT.SYS Sat Nov 20 10:34:01 2010 (4CE7A419)
    fffff880`0d189000 fffff880`0d194000   secdrv   secdrv.SYS   Wed Sep 13 14:18:38 2006 (4508052E)
    fffff880`03216000 fffff880`03222000   serenum  serenum.sys  Tue Jul 14 01:00:33 2009 (4A5BCAA1)
    fffff880`02f69000 fffff880`02f86000   serial   serial.sys   Tue Jul 14 01:00:40 2009 (4A5BCAA8)
    fffff880`01134000 fffff880`0118a000   Si3132r5 Si3132r5.sys Wed Sep 17 01:51:09 2008 (48D0547D)
    fffff880`01bb3000 fffff880`01bbb000   SiRemFil SiRemFil.sys Wed Oct 18 23:20:39 2006 (4536A8B7)
    fffff880`012e4000 fffff880`012ee000   SiWinAcc SiWinAcc.sys Mon Nov 01 19:23:29 2004 (41868D31)
    fffff880`01b71000 fffff880`01b79000   spldr    spldr.sys    Mon May 11 17:56:27 2009 (4A0858BB)
    fffff880`0d6d0000 fffff880`0d790000   SRTSP64  SRTSP64.SYS  Wed Mar 30 03:46:12 2011 (4D929974)
    fffff880`03137000 fffff880`0314d000   SRTSPX64 SRTSPX64.SYS Wed Mar 30 03:46:18 2011 (4D92997A)
    fffff880`0d636000 fffff880`0d6ce000   srv      srv.sys      Fri Apr 29 04:06:06 2011 (4DBA2B1E)
    fffff880`0d000000 fffff880`0d069000   srv2     srv2.sys     Fri Apr 29 04:05:46 2011 (4DBA2B0A)
    fffff880`0d194000 fffff880`0d1c5000   srvnet   srvnet.sys   Fri Apr 29 04:05:35 2011 (4DBA2AFF)
    fffff880`03c25000 fffff880`03c26480   swenum   swenum.sys   Tue Jul 14 01:00:18 2009 (4A5BCA92)
    fffff880`012f1000 fffff880`01362000   SYMDS64  SYMDS64.SYS  Wed Dec 08 00:16:58 2010 (4CFECE7A)
    fffff880`01200000 fffff880`012e4000   SYMEFA64 SYMEFA64.SYS Mon Mar 14 03:20:58 2011 (4D7D899A)
    fffff880`030d4000 fffff880`0310a000   SYMEVENT64x86 SYMEVENT64x86.SYS Thu Mar 24 23:02:36 2011 (4D8BCD8C)
    fffff880`02f4c000 fffff880`02f5a000   SymIMv   SymIMv.sys   Fri Mar 18 03:19:31 2011 (4D82CF43)
    fffff880`0306d000 fffff880`030d4000   SYMNETS  SYMNETS.SYS  Tue Apr 19 23:33:31 2011 (4DAE0DBB)
    fffff880`018c7000 fffff880`01acb000   tcpip    tcpip.sys    Thu Sep 29 04:43:04 2011 (4E83E948)
    fffff880`0d1c5000 fffff880`0d1d7000   tcpipreg tcpipreg.sys Sat Nov 20 10:51:48 2010 (4CE7A844)
    fffff880`0104f000 fffff880`0105c000   TDI      TDI.SYS      Sat Nov 20 09:22:06 2010 (4CE7933E)
    fffff880`0d7de000 fffff880`0d7e9000   tdtcp    tdtcp.sys    Tue Jul 14 01:16:32 2009 (4A5BCE60)
    fffff880`00ddb000 fffff880`00dfd000   tdx      tdx.sys      Sat Nov 20 09:21:54 2010 (4CE79332)
    fffff880`02fa1000 fffff880`02fb5000   termdd   termdd.sys   Sat Nov 20 11:03:40 2010 (4CE7AB0C)
    fffff960`004e0000 fffff960`004ea000   TSDDD    TSDDD.dll    unavailable (00000000)
    fffff880`0d7e9000 fffff880`0d7f8000   tssecsrv tssecsrv.sys Sat Nov 20 11:04:09 2010 (4CE7AB29)
    fffff880`033c5000 fffff880`033eb000   tunnel   tunnel.sys   Sat Nov 20 10:51:50 2010 (4CE7A846)
    fffff880`039c7000 fffff880`039d9000   umbus    umbus.sys    Sat Nov 20 10:44:37 2010 (4CE7A695)
    fffff880`04aec000 fffff880`04b09000   usbccgp  usbccgp.sys  Fri Mar 25 03:29:14 2011 (4D8C0C0A)
    fffff880`04b09000 fffff880`04b0af00   USBD     USBD.SYS     Fri Mar 25 03:28:59 2011 (4D8C0BFB)
    fffff880`0328d000 fffff880`0329e000   usbehci  usbehci.sys  Fri Mar 25 03:29:04 2011 (4D8C0C00)
    fffff880`04a15000 fffff880`04a6f000   usbhub   usbhub.sys   Fri Mar 25 03:29:25 2011 (4D8C0C15)
    fffff880`0322c000 fffff880`03237000   usbohci  usbohci.sys  Fri Mar 25 03:29:03 2011 (4D8C0BFF)
    fffff880`03237000 fffff880`0328d000   USBPORT  USBPORT.SYS  Fri Mar 25 03:29:12 2011 (4D8C0C08)
    fffff880`04b56000 fffff880`04b71000   USBSTOR  USBSTOR.SYS  Fri Mar 11 04:37:16 2011 (4D79A6FC)
    fffff880`00fac000 fffff880`00fb9000   vdrvroot vdrvroot.sys Tue Jul 14 01:01:31 2009 (4A5BCADB)
    fffff880`017ee000 fffff880`017fc000   vga      vga.sys      Tue Jul 14 00:38:47 2009 (4A5BC587)
    fffff880`015db000 fffff880`01600000   VIDEOPRT VIDEOPRT.SYS Tue Jul 14 00:38:51 2009 (4A5BC58B)
    fffff880`010a6000 fffff880`010e2000   vmbus    vmbus.sys    Sat Nov 20 09:57:29 2010 (4CE79B89)
    fffff880`01b15000 fffff880`01b25000   vmstorfl vmstorfl.sys Sat Nov 20 09:57:30 2010 (4CE79B8A)
    fffff880`00fe3000 fffff880`00ff8000   volmgr   volmgr.sys   Sat Nov 20 09:19:28 2010 (4CE792A0)
    fffff880`00e00000 fffff880`00e5c000   volmgrx  volmgrx.sys  Sat Nov 20 09:20:43 2010 (4CE792EB)
    fffff880`01b25000 fffff880`01b71000   volsnap  volsnap.sys  Sat Nov 20 09:20:08 2010 (4CE792C8)
    fffff880`02f86000 fffff880`02fa1000   wanarp   wanarp.sys   Sat Nov 20 10:52:36 2010 (4CE7A874)
    fffff880`01400000 fffff880`01410000   watchdog watchdog.sys Tue Jul 14 00:37:35 2009 (4A5BC53F)
    fffff880`00e5c000 fffff880`00f00000   Wdf01000 Wdf01000.sys Tue Jul 14 00:22:07 2009 (4A5BC19F)
    fffff880`00f00000 fffff880`00f0f000   WDFLDR   WDFLDR.SYS   Tue Jul 14 00:19:54 2009 (4A5BC11A)
    fffff880`02f1d000 fffff880`02f26000   wfplwf   wfplwf.sys   Tue Jul 14 01:09:26 2009 (4A5BCCB6)
    fffff960`00060000 fffff960`00374000   win32k   win32k.sys   Thu Sep 29 05:03:02 2011 (4E83EDF6)
    fffff880`010e2000 fffff880`010f6000   winhv    winhv.sys    Sat Nov 20 09:20:02 2010 (4CE792C2)
    fffff880`03c00000 fffff880`03c09000   wmiacpi  wmiacpi.sys  Tue Jul 14 00:31:02 2009 (4A5BC3B6)
    fffff880`00f66000 fffff880`00f6f000   WMILIB   WMILIB.SYS   Tue Jul 14 00:19:51 2009 (4A5BC117)
    fffff880`039d9000 fffff880`039fa000   WudfPf   WudfPf.sys   Sat Nov 20 10:42:44 2010 (4CE7A624)
    fffff880`0d600000 fffff880`0d631000   WUDFRd   WUDFRd.sys   Sat Nov 20 10:43:32 2010 (4CE7A654)

    Unloaded modules:
    fffff880`0f4db000 fffff880`0f54c000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`0189b000 fffff880`018a9000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`018a9000 fffff880`018b5000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`018b5000 fffff880`018be000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`01bd6000 fffff880`01be9000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    Let us know how it goes. If you get further problems with blue screens, attach your new dump files and details and we'll move on from there.


    HTH.

    #3 Elmer, Dec 10, 2011
    Last edited: Dec 10, 2011
    1 person likes this.
  4. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    Thanks for all your helpful suggestions!

    So I have done all the updates you have suggested, and I am waiting to see if the blue screen re-occurs. I am wondering why adding a stick of RAM causes all these problems with outdated drivers since it ran fine before the extra RAM was added.

    Attached are the CPU-Z screenshots. As you can see, the RAM is perfectly matched other than the manufacturing date.

    --Jeremy


    Attached Files:

  5. Elmer

    Elmer Extraordinary Member

    Joined:
    Mar 5, 2010
    Messages:
    3,873
    Likes Received:
    284
    You might want to check for an update to your 2008 bios. I can only give a link as far as the support page as you have to register to access their "tailored to your needs updates" (their words). Support

    I think your ram timings might need a tweak as well. Currently set at 5-4-4-14 where I think it should be set to 5-5-5-15.

  6. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    Yea I noticed the outdated BIOS, but that horrible support website won't let you get at the BIOS updates even after you register. They ask for the serial number which is, of course, on the bottom of the motherboard.

    I will search for the box it came in, that might have the number. Until then, I will fix the RAM timings and hope for no more blue screens.

    Thanks again!

  7. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    Well it did it again. Attached are the dump files and driver list. It seems to only be happening in windows media center, and only when i try to click something after it has been sitting for a few hours without being used. I keep this computer on all the time and just turn on my TV to use it to watch TV. When i click a recorded show, or try to exit it to do something else with the computer, that is where it SOMETIMES blue-screens.


    Attached Files:

  8. Elmer

    Elmer Extraordinary Member

    Joined:
    Mar 5, 2010
    Messages:
    3,873
    Likes Received:
    284
    STOP 0x0000003B: SYSTEM_SERVICE_EXCEPTION
    Usual causes:
    System service, Device driver, graphics driver, ?memory.

    Your latest dump file lists Memory_Corruption as the probable cause which usually indicates out of date Drivers, incorrectly configured Memory Timings, mismatched Memory or Bad Memory.

    Old and incompatible drivers can and do cause issues with Windows 7, often giving false error codes. Random stop codes can often indicate hardware issues.


    As a Priority:

    Norton is known to be a cause of BSOD's on many Windows 7 systems. I suggest that you uninstall Norton using the Norton Removal Tool in Safe Mode. Download Blue Screen friendly Microsoft Security Essentials as its replacement. Make sure Windows firewall is enabled!


    Drivers that pre-date Windows 7. Update:

    Si3132r5.sys Wed Sep 17 01:51:09 2008
    SiRemFil.sys Wed Oct 18 23:20:39 2006
    SiWinAcc.sys Mon Nov 01 19:23:29 2004
    Silicon Image drivers. Update or uninstall this software (seems these may be part of your Mobo, not 100% sure :().

    hcw18bda.sys Thu Jan 28 15:30:14 2010 Huappage WinTV driver. Mentioned in one of your dmp files as the probable cause. Worth a look to see if updates are available.

    Run Memtest86+ overnight, after your computer has been off for about an hour or two so it has a cold start. Ideally let it run for at least 7 passes / 6-8 hours. If errors appear before that you can stop that particular test.
    Note!! Any time Memtest86+ reports errors, it can be either bad RAM or a bad Mobo slot. Test RAM sticks individually. When you find a good one then test it in all slots. Post back with the results.
    Bugcheck Analysis:
    Code:
    Symbol search path is: SRV*C:\Windows\WinDbgSym*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (2 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17640.amd64fre.win7sp1_gdr.110622-1506
    Machine Name:
    Kernel base = 0xfffff800`01e08000 PsLoadedModuleList = 0xfffff800`0204d670
    Debug session time: Sun Dec 11 23:54:30.461 2011 (UTC + 0:00)
    System Uptime: 0 days 21:38:44.132
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ...........................................................
    Loading User Symbols
    Loading unloaded module list
    ..........
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 3B, {c0000005, fffff80001f85b37, fffff8800d30ffa0, 0}

    [COLOR=#ff0000][B]Probably caused by : memory_corruption[/B][/COLOR] ( nt!MiEmptyPageAccessLog+e7 )

    #8 Elmer, Dec 11, 2011
    Last edited: Dec 11, 2011
  9. ctrlaltdel121

    ctrlaltdel121 New Member

    Joined:
    Dec 9, 2011
    Messages:
    12
    Likes Received:
    0
    9 passes on memtest86+, no errors. Also, the hauppage drivers and silicon drivers I already installed the latest versions of. The silicon drivers are for a PCI-e to e-SATA expansion card. I will try uninstalling those because I know they were listed as the cause of some of the blue screens before. I just don't understand why this happened upon installing the extra memory and never before.


Share This Page

Loading...
