Set Up Windows Defender Credential Guard in Windows 10/11 to Protect Saved Credentials

Set Up Windows Defender Credential Guard in Windows 10/11 to Protect Saved Credentials​

Difficulty: Intermediate | Time Required: 20 minutes
Windows Defender Credential Guard is one of the most effective built-in protections in Windows 10 and Windows 11 for defending stored sign-in secrets against theft. It helps isolate credentials such as NTLM password hashes and Kerberos Ticket Granting Tickets using virtualization-based security, making it much harder for malware or attackers to extract them from memory.
If you use your PC for work, remote access, domain sign-ins, or just want stronger protection against credential theft, enabling Credential Guard is a smart security upgrade. In this guide, I’ll walk you through what you need, how to enable it, and how to confirm it’s working.

What Credential Guard Does​

Credential Guard uses virtualization-based security (VBS) to separate and protect sensitive authentication data from the rest of the operating system. This means even if malicious software gains elevated access, it has a much harder time reading saved credentials from the LSASS process.
This is especially useful against attacks such as:
Quick walkthrough

• Pass-the-Hash
• Pass-the-Ticket
• Credential dumping
• Some forms of lateral movement in business networks

Prerequisites​

Before you begin, make sure the following requirements are met:

• Windows 10 Enterprise, Education, or Pro
• Windows 11 Enterprise, Education, or Pro
• A 64-bit CPU with virtualization support
• UEFI firmware
• Secure Boot enabled
• Hardware virtualization enabled in BIOS/UEFI:
• Intel VT-x
• AMD-V
• Administrator access on the PC

Note: Credential Guard is best supported on modern hardware. Some older systems may support only partial virtualization-based security features.

Important: Windows Home editions generally do not provide the full policy management options used in this guide.

Before You Start​

It’s a good idea to check whether virtualization is already enabled.

Check virtualization status​

• Press Ctrl + Shift + Esc to open Task Manager.
• Click the Performance tab.
• Select CPU.
• Look for Virtualization in the lower-right area.

If it says Enabled, you can continue. If it says Disabled, you’ll need to enable virtualization in your BIOS/UEFI settings before Credential Guard can work.

Method 1: Enable Credential Guard Using Local Group Policy​

This is the easiest method for most Windows Pro, Enterprise, and Education users.

• Press Windows + R, type gpedit.msc, and press Enter.
• In Local Group Policy Editor, navigate to:
  Computer Configuration > Administrative Templates > System > Device Guard
• Double-click Turn On Virtualization Based Security.
• Set the policy to Enabled.
• Under Select Platform Security Level, choose:
• Secure Boot, or
• Secure Boot and DMA Protection if your hardware supports it
• Under Credential Guard Configuration, select:
• Enabled with UEFI lock for stronger protection, or
• Enabled without lock if you may want to disable it later without firmware-level changes
• If available, review the Virtualization Based Protection of Code Integrity options and leave them at default unless your organization specifically requires changes.
• Click Apply, then OK.
• Restart your PC.

Tip: Choose Enabled with UEFI lock for the strongest tamper resistance. However, removing it later may require additional configuration steps.

Method 2: Enable Credential Guard Using the Registry​

If Group Policy Editor is unavailable or you prefer a manual approach, you can enable Credential Guard through the Windows Registry.

Warning: Editing the registry incorrectly can cause system issues. Consider creating a restore point first.

Step 1: Open Registry Editor​

• Press Windows + R, type regedit, and press Enter.
• Approve the UAC prompt.

Step 2: Configure virtualization-based security​

Navigate to:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\DeviceGuard

• If needed, create or modify these DWORD (32-bit) values:
• EnableVirtualizationBasedSecurity = 1
• RequirePlatformSecurityFeatures = 1

For stronger hardware-backed protection, some systems may use:

• RequirePlatformSecurityFeatures = 3

Step 3: Configure Credential Guard​

Navigate to:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Lsa

• Create or modify this DWORD (32-bit) value:
• LsaCfgFlags =
• 1 for Enabled with UEFI lock
• 2 for Enabled without lock
• Close Registry Editor.
• Restart your PC.

Method 3: Enable Credential Guard with PowerShell​

Advanced users and administrators may prefer PowerShell, especially when configuring multiple systems.

• Open Windows PowerShell or Terminal as Administrator.
• Run the following commands:

reg add "HKLM\SYSTEM\CurrentControlSet\Control\DeviceGuard" /v EnableVirtualizationBasedSecurity /t REG_DWORD /d 1 /f
reg add "HKLM\SYSTEM\CurrentControlSet\Control\DeviceGuard" /v RequirePlatformSecurityFeatures /t REG_DWORD /d 1 /f
reg add "HKLM\SYSTEM\CurrentControlSet\Control\Lsa" /v LsaCfgFlags /t REG_DWORD /d 1 /f

• Restart your PC.

If you want Enabled without lock, use this instead for the last command:
reg add "HKLM\SYSTEM\CurrentControlSet\Control\Lsa" /v LsaCfgFlags /t REG_DWORD /d 2 /f

How to Verify Credential Guard Is Enabled​

After rebooting, confirm that Credential Guard is active.

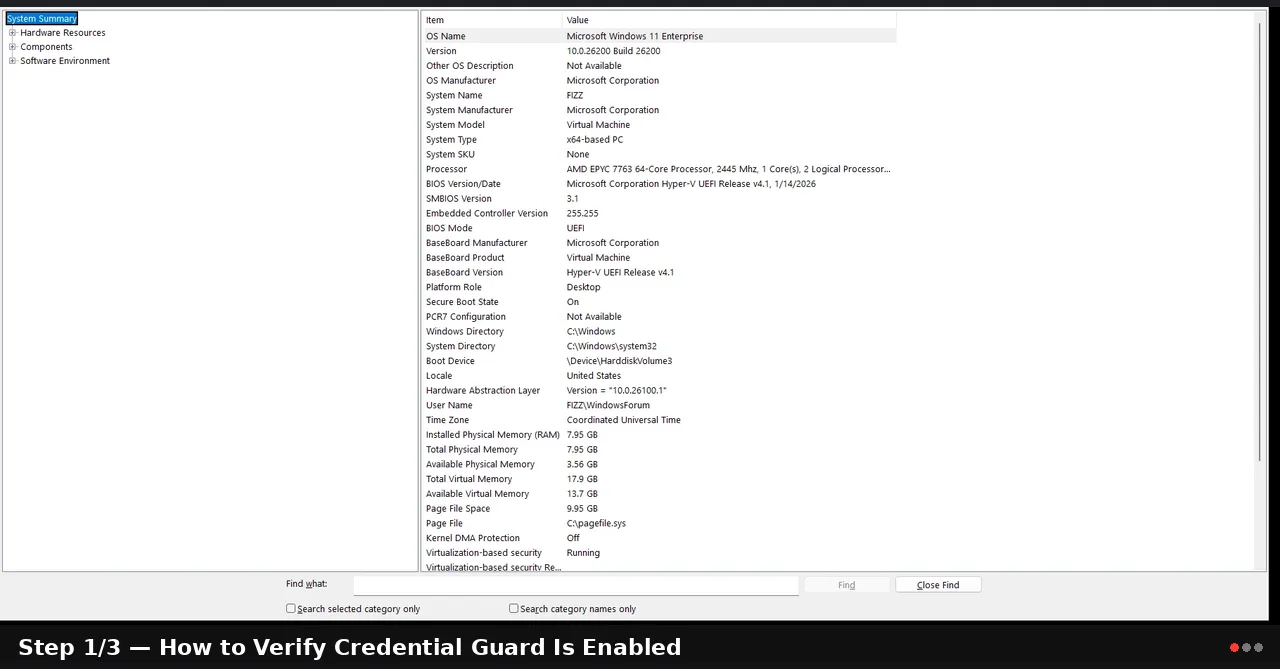

Option 1: System Information​

• Press Windows + R, type msinfo32, and press Enter.
• In System Summary, look for:
• Device Guard Security Services Running
• Virtualization-based security
• You should see entries indicating that Credential Guard is running.

Option 2: PowerShell​

Open PowerShell as Administrator and run:
Get-CimInstance -ClassName Win32_DeviceGuard -Namespace root\Microsoft\Windows\DeviceGuard
Look for values showing that virtualization-based security and security services are enabled.

Tip: On some systems, the output may be more technical than user-friendly. The msinfo32 method is usually easier for most users.

Windows 10 and Windows 11 Notes​

• On Windows 11, virtualization-based security features are more common on newer devices and may already be partially enabled.
• On Windows 10 version 2004 and later, Credential Guard support is generally improved on compatible hardware.
• On business-class laptops and desktops, Secure Boot and TPM are often already enabled, making setup easier.
• Some OEM systems may use BIOS labels like SVM Mode, Intel Virtualization Technology, or Virtualization Extensions.

Tips and Troubleshooting​

1. Group Policy setting is missing​

If you don’t see the Device Guard policy path, you may be using an unsupported edition of Windows or a device with limited policy tools.

2. Virtualization is disabled​

If Task Manager shows virtualization as disabled:

• Restart your PC.
• Enter BIOS/UEFI setup.
• Enable:
• Intel Virtualization Technology (VT-x) or
• AMD-V / SVM Mode
• Save changes and boot back into Windows.

3. Secure Boot is not enabled​

Credential Guard works best with Secure Boot.
To check:

• Press Windows + R
• Type msinfo32
• Look for Secure Boot State

If it says Off, enable it in UEFI firmware settings.

4. Incompatibility with older security tools​

Some older endpoint security, anti-cheat, debugging, or virtualization tools may conflict with VBS features.

Note: If you rely on older low-level software, test Credential Guard carefully before deploying it across multiple PCs.

5. Domain or enterprise environment considerations​

In business environments, Credential Guard may also be deployed through:

• Group Policy in Active Directory
• Microsoft Intune
• Mobile device management solutions

If your PC is managed by your employer or school, some settings may already be enforced.

6. How to disable Credential Guard​

If needed, reverse the Group Policy setting or change/remove the registry values you created. Then restart the PC.
If you enabled UEFI lock, disabling may require extra steps and possibly firmware-related changes. For that reason, home and small-business users may prefer Enabled without lock unless maximum tamper protection is required.

Conclusion​

Windows Defender Credential Guard is a valuable security feature that helps protect one of the most sensitive parts of your system: your stored authentication secrets. By isolating credentials using virtualization-based security, it reduces the risk of credential dumping and other common attack techniques.
If your PC supports it, enabling Credential Guard is a worthwhile step toward a more secure Windows setup, especially for users who handle work accounts, remote access, or sensitive data.
Key Takeaways:

• Credential Guard helps protect saved credentials from theft by isolating them from the main OS
• It uses virtualization-based security and works best with Secure Boot and UEFI
• The easiest setup method for most users is through Local Group Policy
• You can verify it’s running using msinfo32 or PowerShell
• It is especially useful on business systems or any PC where account security matters

---
