To fix Ethernet stuck at 100 Mbps on Windows 10 or Windows 11, first confirm the actual link speed, check that both connected ports support gigabit, and test a known-good cable. Then check the adapter’s Speed & Duplex setting: Auto Negotiation, not a forced 100 Mbps setting, is the recommended starting point for gigabit connections. A Windows setting cannot make a 100 Mbps port or faulty cable support gigabit. Intel documents this troubleshooting approach for its Ethernet adapters on both Windows versions.

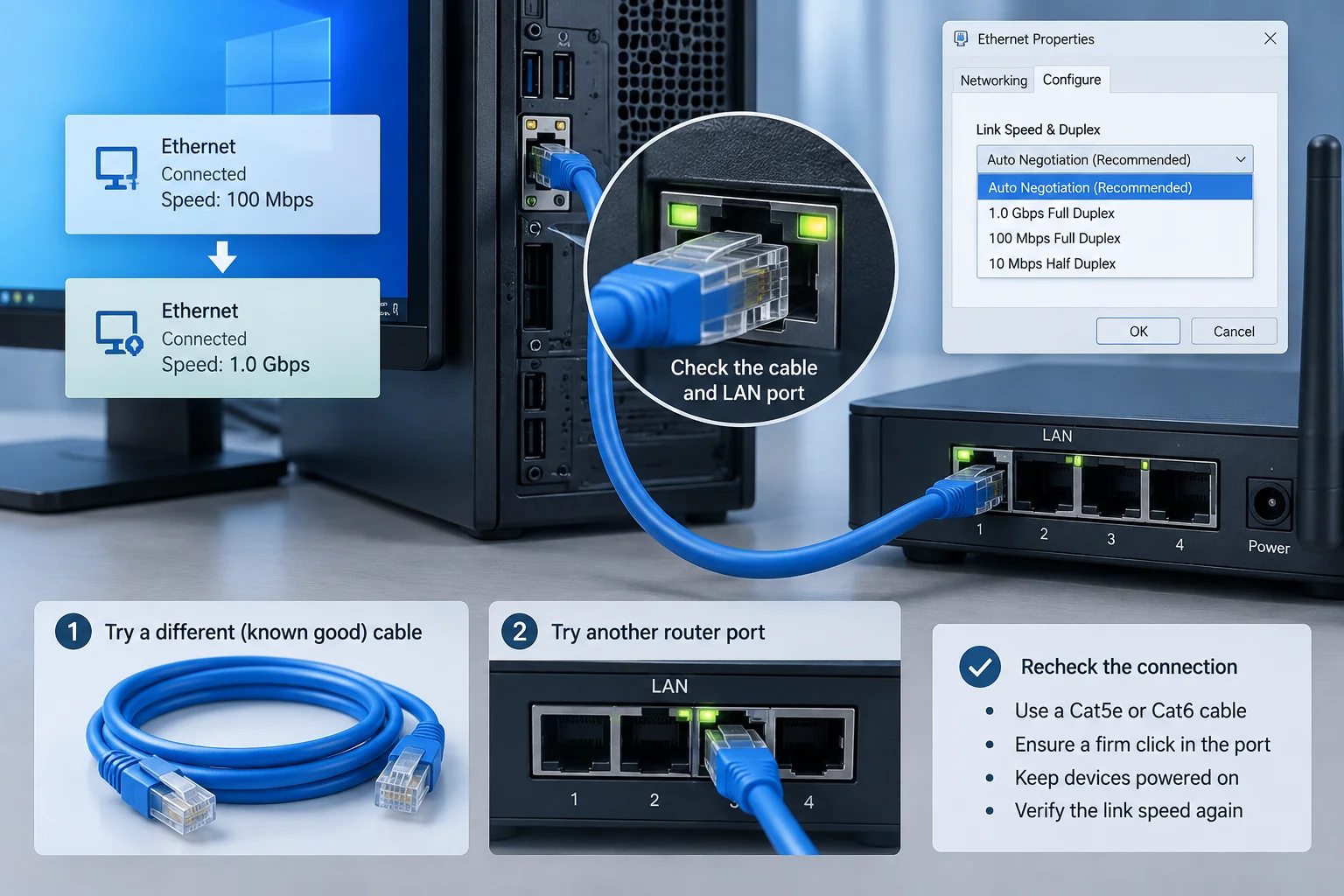

An infographic explains troubleshooting a slow Ethernet connection by checking the cable, router port, and link speed settings. Check whether the Ethernet link itself is limited​

Link speed and internet speed are different measurements. The link speed describes the connection between your PC’s Ethernet adapter and the router or switch port directly connected to it. An internet speed test measures a longer path and cannot, by itself, identify a 100 Mbps Ethernet link. Start with the Windows reading, not a download result.

Read the link speed in Windows 10 or Windows 11​

The following method works in both versions and avoids differences between their Settings layouts:

  • Connect the Ethernet cable between the PC and a LAN port on your router or switch.
  • Press Windows + R.
  • Type ncpa.cpl and press Enter.
  • In Network Connections, right-click the connected Ethernet adapter. Its name may instead be Local Area Connection or a name you assigned.
  • Select Status.
  • Read the Speed field and write down the result. This is the Ethernet link speed, not your broadband subscription speed.

Interpret that reading before changing anything:

  • 100 Mbps: Continue with the hardware and negotiation checks below.
  • 1.0 Gbps: The PC’s immediate Ethernet link is already operating at gigabit speed. A slower internet result requires investigation elsewhere.
  • Disconnected: First establish a connection by checking the plugs, cable, and connected device. There is no active link speed to diagnose yet.

If several adapters make identification difficult, open Windows PowerShell from Start and run this read-only command:

Get-NetAdapter -Physical

Match the physical Ethernet adapter’s name and interface description to the connection you are checking. Microsoft documents Get-NetAdapter as a way to retrieve basic adapter properties; the -Physical parameter filters the results to physical adapters. It does not change networking settings.

Confirm the adapter, port, and cable can support gigabit​

Before testing, have these available:

  • A spare Ethernet cable, preferably a short Cat 6 cable already proven to establish a gigabit link.
  • Access to another gigabit-capable LAN port.
  • The model numbers of your PC or Ethernet adapter and router or switch.
  • Administrator access if you need to change adapter properties.
  • Local access to the PC rather than relying solely on a remote session.

Allow about 15 minutes for the initial checks. Treat that as a testing window, not a promise that installed wiring or hardware faults can be repaired that quickly.

Identify the exact Ethernet adapter​

Device Manager showing the computer's hardware device categories in a tree.

  • Right-click Start and select Device Manager.
  • Expand Network adapters.
  • Identify the wired adapter. If the cable plugs into a USB adapter or docking station, check that device’s Ethernet specifications rather than assuming the laptop’s specifications apply.
  • Look up the exact model in its manufacturer’s specifications. Device Manager provides identification and driver information; Intel also recommends checking adapter compatibility and the capabilities of the connected equipment.

Check the actual LAN port specifications on the other end, too. A port described as 10/100 is limited to 100 Mbps; 10/100/1000 includes gigabit support. Do not infer the speed of every port from the router’s marketing name. Cisco, for example, documents switch models with 10/100 downlink ports separately from gigabit models.

For cabling, Cat 5e can support gigabit; replacing every working Cat 5e cable is not necessary. Gigabit copper Ethernet uses all four wire pairs, however, while 100BASE-TX uses two. That explains why a damaged or incompletely connected cable can still provide a working 100 Mbps connection. Cisco documents four-pair cabling for gigabit ports, and NETGEAR explains the pair-count difference.

Test the cable and LAN port before changing Windows​

Before disconnecting anything: finish calls and file transfers, and work locally. These tests deliberately interrupt the Ethernet connection. Photograph or label the original connections so you can restore them. On a managed workplace network, ask IT before moving to another switch port.

Change one thing at a time, then reopen Ethernet Status and record the speed:

  • Reseat the existing cable. Unplug and reconnect both ends firmly. Check that each connector stays securely seated.
  • Replace only the cable. Keep the same PC and LAN port, but use the known-good spare.
  • Replace only the LAN port. Keep the spare cable connected to the PC and move its other end to another verified gigabit LAN port.
  • Bypass intermediate connections. If practical, run a temporary cable directly from the PC to a gigabit LAN port on the router or switch, bypassing wall sockets, couplers, and intermediate equipment.
  • Test another gigabit-capable computer, if available, on the same cable and port.

Intel’s physical troubleshooting guidance specifically recommends reseating cables, substituting a proven cable, testing another port, and comparing results with another computer.

Use the results as evidence, rather than buying parts immediately:

Test resultWhat to investigate next
A replacement cable restores gigabit on the same portOriginal cable or its connectors
The same cable works at gigabit on another portOriginal port’s capability, configuration, or condition
A direct connection works, but the original route does notBypassed wiring, connectors, or intermediate equipment
Another computer gets gigabit on the same cable and portFirst PC’s adapter, driver, settings, or connector

These are isolation clues, not absolute proof of a failed component. They follow Intel’s recommended substitution tests. If a temporary route loses connectivity, restore the original cable and port before continuing.

Set Speed & Duplex to Auto Negotiation​

If the equipment supports gigabit but Windows still reports 100 Mbps, inspect the adapter’s negotiation setting.

Warning: applying an adapter property can interrupt networking. Record the existing value first, and do not make this change through your only remote connection. If IT deliberately configured the port or adapter, ask them to check both ends together.

  • Right-click Start and select Device Manager.
  • Expand Network adapters.
  • Right-click the wired Ethernet adapter and select Properties.
  • Open the Advanced tab.
  • Select Speed & Duplex in the property list.
  • Set Value to Auto Negotiation.
  • Select OK, allow the connection to return, then check Ethernet Status again.

Intel documents the adapter’s advanced properties and recommends automatic negotiation for gigabit. Property availability depends on the adapter and installed driver; if this setting is absent, do not substitute an unrelated option.

Do not treat “1.0 Gbps Full Duplex” as a required selection. Intel explicitly states that some of its drivers do not expose that choice. Its absence does not prove that the adapter is limited to 100 Mbps: automatic negotiation can still establish gigabit when the other equipment negotiates correctly.

For a managed switch, have the administrator verify the connected port’s negotiation settings as well. Intel recommends automatic negotiation on both ends. Avoid changing router or switch settings without the documentation for that exact model.

Verify that the fix survives normal use​

After a cable, port, or adapter-setting change:

  • Reopen ncpa.cpl, right-click the Ethernet adapter, and select Status.
  • Confirm that Speed now reports 1.0 Gbps when both endpoints support gigabit.
  • Record which single change produced that result.
  • Recheck after reconnecting the cable or the next normal restart.

The Status reading verifies the negotiated local link. It does not promise a 1 Gbps internet download. If the link is already gigabit, stop trying to “unlock” it with Speed & Duplex changes and investigate the remaining network path separately.

Troubleshoot a link that remains at 100 Mbps​

The setting is missing, or only slower forced speeds appear​

Check the manufacturer’s specifications first. For Intel adapters, a missing forced-gigabit option can be normal. Leave automatic negotiation selected where available. If the whole Advanced tab or expected property is unavailable, use the PC or adapter manufacturer’s driver guidance rather than adding registry settings. Intel recommends OEM drivers for OEM network adapters.

The problem began immediately after a driver update​

Before changing the driver: save your work and obtain the appropriate manufacturer driver installer through a working connection. Keep it available locally in case Ethernet stops working.

To return to a previous driver in either Windows 10 or Windows 11:

  • Open Device Manager > Network adapters.
  • Right-click the affected adapter and select Properties.
  • Select the Driver tab.
  • Select Roll Back Driver, if available.
  • Choose a reason and select Yes to confirm.
  • Restart if prompted, then check the link speed again.

Microsoft documents this rollback procedure and requires administrator permissions. If rollback is unavailable, use the computer manufacturer’s supported driver package rather than an unofficial driver-download site.

Connectivity disappeared after changing Speed & Duplex​

Return to Device Manager > Network adapters > your adapter > Properties > Advanced > Speed & Duplex and restore the recorded value. If the connection disappeared after you manually forced a speed, return to Auto Negotiation. Also restore the original cable and LAN port if you moved them during testing. Intel’s guidance identifies automatic negotiation as the correct starting point for its gigabit adapters.

You are considering Network reset​

Do not use Network reset as the first response to a stable 100 Mbps link. Microsoft describes it as a last troubleshooting step: it removes installed network adapters and their settings, then reinstalls adapters with defaults after restarting. VPN software or virtual switches may require reconfiguration afterward. Complete the narrower cable, port, and adapter checks first.

Proven gigabit equipment still links at 100 Mbps​

Prepare a short evidence record for IT or the hardware manufacturer:

  • Adapter model and driver version.
  • Original and replacement cable results.
  • Router or switch model and tested port numbers.
  • Speed & Duplex value.
  • Whether another computer reaches gigabit on the same cable and port.
  • Whether bypassing the installed wiring restores gigabit.

If only the original PC fails those comparison tests, ask its manufacturer to investigate the adapter or Ethernet connector. If the direct connection succeeds but installed wiring does not, give the results to whoever maintains that wiring. These escalation paths follow Intel’s cable, port, and computer isolation guidance and avoid replacing hardware solely on the basis of one slow speed test.
