BSOD - Newly formatted

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by MoXeeM, Jun 26, 2011.

  1. MoXeeM

    MoXeeM New Member

    Joined:
    Jun 26, 2011
    Messages:
    10
    Likes Received:
    0
    Hello!

    Here's the story. Newly formatted pc. Installed nForce drivers for 780i, Geforce drivers for the video card, and drivers for soundcard. I was updating via Windows update; Bam! BSOD.

    All the relevent info is in the attached zip, using the SF Diag tool.

    If there's anything more that I can provide, let me know. Oh, and also, CPU-Z Ram 'shots.

    Thank you in advance,

    Sincerely,

    Mox


    Attached Files:

  2. Saltgrass

    Saltgrass Excellent Member
    Microsoft Community Contributor

    Joined:
    Oct 16, 2009
    Messages:
    15,157
    Likes Received:
    393
    If you have two monitors attached, you might disconnect one.

    Can you start in Safe Mode?

  3. Trouble

    Trouble Noob Whisperer

    Joined:
    Nov 30, 2009
    Messages:
    13,845
    Likes Received:
    833
    Looks like it may be an issue with your memory settings:

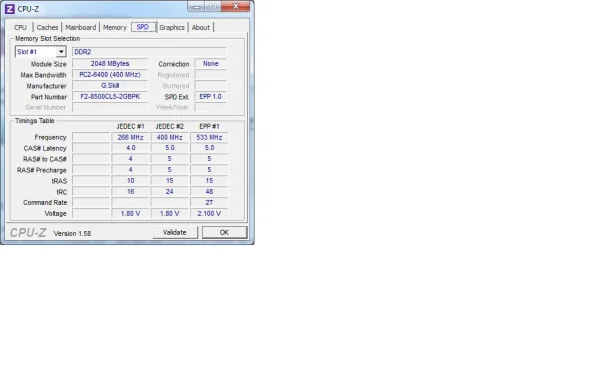

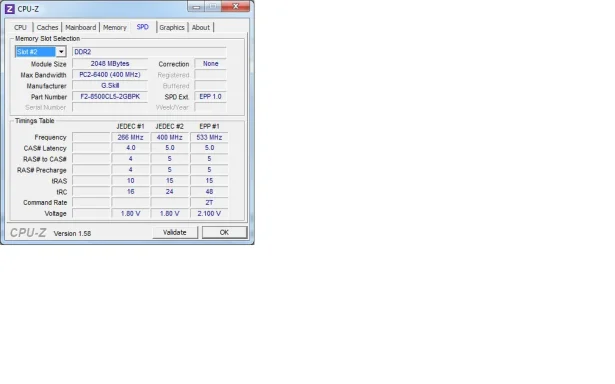

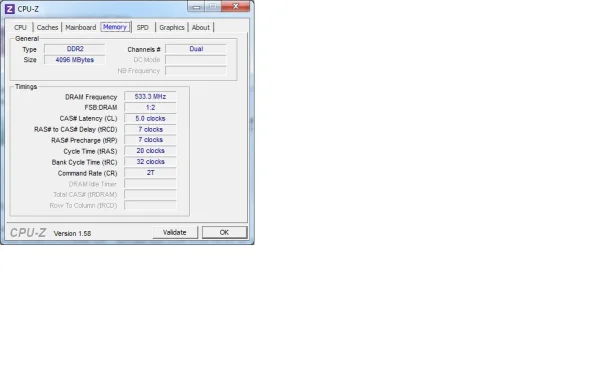

    According to the images you have posted
    your memory is currently running at 533MHz and timings of 5, 7, 7, 20 and perhaps even 2.1 volts (not sure of that one though)
    You may want to try toggling of EPP in the system BIOS and setting the memory as per manufacturer's specs manually which I think are 400 Mhz 5, 5, 5, 20 and 1.8 volts. Although you have only posted slot #! of the SPD tabs and it would appear that you have four gigs of memory which would indicate you have another slot poplulated so we should see that one as well and the zipped up copy of the exported HTML report for RAMMon.
    Also you may want to check and see if there is anything more current in the way of drivers for your sound card, looks like something from Creative.
    These in particular:
    Code:
    emupia2k.sys 6/16/2009 23:57
    ctsfm2k.sys 6/16/2009 23:57
    ctoss2k.sys 6/16/2009 23:57
    ha20x2k.sys 6/16/2009 23:58
    ctaud2k.sys 6/16/2009 23:59
    ctprxy2k.sys 6/16/2009 23:59
    CTEXFIFX.DLL 6/17/2009 0:00
    CT20XUT.DLL 6/17/2009 0:00

    DUMP: Not much help there
    Code:
    ---------
    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************
    CACHE_MANAGER (34)
        See the comment for FAT_FILE_SYSTEM (0x23)
    Arguments:
    Arg1: 0000000000001839
    Arg2: ffffffffc0000420
    Arg3: 0000000000000000
    Arg4: 0000000000000000
    Debugging Details:
    ------------------

    EXCEPTION_RECORD:  ffffffffc0000420 -- (.exr 0xffffffffc0000420)
    Cannot read Exception record @ ffffffffc0000420
    CUSTOMER_CRASH_COUNT:  1
    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT
    BUGCHECK_STR:  0x34
    PROCESS_NAME:  svchost.exe
    CURRENT_IRQL:  0
    LAST_CONTROL_TRANSFER:  from fffff80002828b6a to fffff80002890f00
    STACK_TEXT:
    fffff880`07d30348 fffff800`02828b6a : 00000000`00000034 00000000`00001839 ffffffff`c0000420 00000000`00000000 : nt!KeBugCheckEx
    fffff880`07d30350 fffff880`01314960 : fffffa80`08cbf180 00000000`04586ddb 00000000`00000000 00000000`000000a0 : nt! ?? ::FNODOBFM::`string'+0x2eb2
    fffff880`07d30390 fffff880`0130a4dc : fffffa80`0a12c530 fffffa80`08cbf180 fffff8a0`0dacaa98 fffffa80`0a0c5901 : Ntfs!NtfsReadMftRecord+0x4ec
    fffff880`07d30440 fffff880`0130b498 : fffff880`07d305e8 fffff8a0`0dacabc0 fffff880`0a375980 00000001`00000000 : Ntfs!NtfsLookupInFileRecord+0x6c
    fffff880`07d304d0 fffff880`012d1a24 : fffffa80`0a12c530 fffff8a0`0dacab00 00000000`00000000 00000000`00000001 : Ntfs!NtfsWriteFileSizes+0xa8
    fffff880`07d30630 fffff880`01322bbd : fffffa80`0a12c530 fffffa80`08cbf180 fffff800`02a1ed01 fffff880`02f63100 : Ntfs!NtfsFlushVolume+0x304
    fffff880`07d30760 fffff880`013235f0 : fffffa80`0a12c530 fffffa80`09e72bd0 fffffa80`0998d070 00000000`00000000 : Ntfs!NtfsCommonFlushBuffers+0x459
    fffff880`07d30840 fffff880`01283ecf : 00000000`00000000 fffffa80`09e72bd0 fffffa80`0a12c530 fffff880`07d30868 : Ntfs!NtfsFsdFlushBuffers+0x104
    fffff880`07d308b0 fffff880`0135939f : 00000000`00000000 fffffa80`09e72bd0 fffffa80`0998d070 fffff8a0`00eac6f0 : Ntfs!NtfsIoCallSelf+0x11f
    fffff880`07d30920 fffff880`01268aa9 : fffff880`0a375960 fffffa80`068aa060 fffff880`0a375690 fffffa80`068aa060 : Ntfs! ?? ::NNGAKEGL::`string'+0x1c8cc
    fffff880`07d30d30 fffff800`02888d87 : fffff880`0a375690 00000000`00000000 00000000`00000000 00000000`00000000 : Ntfs!NtfsCommonCleanupCallout+0x19
    fffff880`07d30d60 fffff800`02888d41 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KySwitchKernelStackCallout+0x27
    fffff880`0a375560 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSwitchKernelStackContinue

    STACK_COMMAND:  kb
    FOLLOWUP_IP:
    nt! ?? ::FNODOBFM::`string'+2eb2
    fffff800`02828b6a cc              int     3
    SYMBOL_STACK_INDEX:  1
    SYMBOL_NAME:  nt! ?? ::FNODOBFM::`string'+2eb2
    FOLLOWUP_NAME:  MachineOwner
    MODULE_NAME: nt
    IMAGE_NAME:  ntkrnlmp.exe
    DEBUG_FLR_IMAGE_TIMESTAMP:  4a5bc600
    FAILURE_BUCKET_ID:  X64_0x34_nt!_??_::FNODOBFM::_string_+2eb2
    BUCKET_ID:  X64_0x34_nt!_??_::FNODOBFM::_string_+2eb2
    Followup: MachineOwner

    DRIVERS:
    Code:
    fffff800`00baf000 fffff800`00bb9000   kdcom    kdcom.dll    Mon Jul 13 20:31:07 2009 (4A5BDFDB)
    fffff800`0281f000 fffff800`02dfc000   nt       ntkrnlmp.exe Mon Jul 13 18:40:48 2009 (4A5BC600)
    fffff800`02dfc000 fffff800`02e45000   hal      hal.dll      Mon Jul 13 20:27:36 2009 (4A5BDF08)
    fffff880`00c00000 fffff880`00c5c000   volmgrx  volmgrx.sys  Mon Jul 13 18:20:33 2009 (4A5BC141)
    fffff880`00c5c000 fffff880`00c6c000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 18:19:48 2009 (4A5BC114)
    fffff880`00c6c000 fffff880`00c86000   mountmgr mountmgr.sys Mon Jul 13 18:19:54 2009 (4A5BC11A)
    fffff880`00c86000 fffff880`00c8f000   atapi    atapi.sys    Mon Jul 13 18:19:47 2009 (4A5BC113)
    fffff880`00c8f000 fffff880`00cb9000   ataport  ataport.SYS  Mon Jul 13 18:19:52 2009 (4A5BC118)
    fffff880`00cbe000 fffff880`00d02000   mcupdate_GenuineIntel mcupdate_GenuineIntel.dll Mon Jul 13 20:29:10 2009 (4A5BDF66)
    fffff880`00d02000 fffff880`00d16000   PSHED    PSHED.dll    Mon Jul 13 20:32:23 2009 (4A5BE027)
    fffff880`00d16000 fffff880`00d74000   CLFS     CLFS.SYS     Mon Jul 13 18:19:57 2009 (4A5BC11D)
    fffff880`00d74000 fffff880`00dcb000   ACPI     ACPI.sys     Mon Jul 13 18:19:34 2009 (4A5BC106)
    fffff880`00dcb000 fffff880`00df6000   nvstor   nvstor.sys   Wed May 20 01:45:37 2009 (4A13A711)
    fffff880`00e00000 fffff880`00e0d000   vdrvroot vdrvroot.sys Mon Jul 13 19:01:31 2009 (4A5BCADB)
    fffff880`00e0d000 fffff880`00e22000   partmgr  partmgr.sys  Mon Jul 13 18:19:58 2009 (4A5BC11E)
    fffff880`00e22000 fffff880`00e37000   volmgr   volmgr.sys   Mon Jul 13 18:19:57 2009 (4A5BC11D)
    fffff880`00e37000 fffff880`00e3e000   pciide   pciide.sys   Mon Jul 13 18:19:49 2009 (4A5BC115)
    fffff880`00e40000 fffff880`00f00000   CI       CI.dll       Mon Jul 13 20:32:13 2009 (4A5BE01D)
    fffff880`00f00000 fffff880`00fa4000   Wdf01000 Wdf01000.sys Mon Jul 13 18:22:07 2009 (4A5BC19F)
    fffff880`00fa4000 fffff880`00fb3000   WDFLDR   WDFLDR.SYS   Mon Jul 13 18:19:54 2009 (4A5BC11A)
    fffff880`00fb3000 fffff880`00fbc000   WMILIB   WMILIB.SYS   Mon Jul 13 18:19:51 2009 (4A5BC117)
    fffff880`00fbc000 fffff880`00fc6000   msisadrv msisadrv.sys Mon Jul 13 18:19:26 2009 (4A5BC0FE)
    fffff880`00fc6000 fffff880`00ff9000   pci      pci.sys      Mon Jul 13 18:19:51 2009 (4A5BC117)
    fffff880`01000000 fffff880`01073000   cng      cng.sys      Mon Jul 13 18:49:40 2009 (4A5BC814)
    fffff880`01078000 fffff880`010da000   storport storport.sys Mon Jul 13 19:01:18 2009 (4A5BCACE)
    fffff880`010da000 fffff880`01119000   nvstor64 nvstor64.sys Fri Apr 09 04:22:41 2010 (4BBEF1E1)
    fffff880`01119000 fffff880`01124000   amdxata  amdxata.sys  Tue May 19 12:56:59 2009 (4A12F2EB)
    fffff880`01124000 fffff880`01170000   fltmgr   fltmgr.sys   Mon Jul 13 18:19:59 2009 (4A5BC11F)
    fffff880`01170000 fffff880`01184000   fileinfo fileinfo.sys Mon Jul 13 18:34:25 2009 (4A5BC481)
    fffff880`01184000 fffff880`011e2000   msrpc    msrpc.sys    Mon Jul 13 18:21:32 2009 (4A5BC17C)
    fffff880`01200000 fffff880`0121a000   ksecdd   ksecdd.sys   Mon Jul 13 18:20:54 2009 (4A5BC156)
    fffff880`0121a000 fffff880`0122b000   pcw      pcw.sys      Mon Jul 13 18:19:27 2009 (4A5BC0FF)
    fffff880`0122b000 fffff880`01235000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 18:19:45 2009 (4A5BC111)
    fffff880`01257000 fffff880`013fa000   Ntfs     Ntfs.sys     Mon Jul 13 18:20:47 2009 (4A5BC14F)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Mon Jul 13 18:21:46 2009 (4A5BC18A)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Mon Jul 13 18:50:34 2009 (4A5BC84A)
    fffff880`0148b000 fffff880`014d5000   fwpkclnt fwpkclnt.sys Mon Jul 13 18:21:08 2009 (4A5BC164)
    fffff880`014d5000 fffff880`014e5000   vmstorfl vmstorfl.sys Mon Jul 13 18:42:54 2009 (4A5BC67E)
    fffff880`014fb000 fffff880`015ed000   ndis     ndis.sys     Mon Jul 13 18:21:40 2009 (4A5BC184)
    fffff880`01603000 fffff880`01800000   tcpip    tcpip.sys    Mon Jul 13 18:25:34 2009 (4A5BC26E)
    fffff880`01800000 fffff880`0182a000   cdrom    cdrom.sys    Mon Jul 13 18:19:54 2009 (4A5BC11A)
    fffff880`0182a000 fffff880`01833000   Null     Null.SYS     Mon Jul 13 18:19:37 2009 (4A5BC109)
    fffff880`01833000 fffff880`0183a000   Beep     Beep.SYS     Mon Jul 13 19:00:13 2009 (4A5BCA8D)
    fffff880`01845000 fffff880`01891000   volsnap  volsnap.sys  Mon Jul 13 18:20:08 2009 (4A5BC128)
    fffff880`01891000 fffff880`01899000   spldr    spldr.sys    Mon May 11 11:56:27 2009 (4A0858BB)
    fffff880`01899000 fffff880`018d3000   rdyboost rdyboost.sys Mon Jul 13 18:34:34 2009 (4A5BC48A)
    fffff880`018d3000 fffff880`018e5000   mup      mup.sys      Mon Jul 13 18:23:45 2009 (4A5BC201)
    fffff880`018e5000 fffff880`018ee000   hwpolicy hwpolicy.sys Mon Jul 13 18:19:22 2009 (4A5BC0FA)
    fffff880`018ee000 fffff880`01928000   fvevol   fvevol.sys   Mon Jul 13 18:22:15 2009 (4A5BC1A7)
    fffff880`01928000 fffff880`0193e000   disk     disk.sys     Mon Jul 13 18:19:57 2009 (4A5BC11D)
    fffff880`0193e000 fffff880`0196e000   CLASSPNP CLASSPNP.SYS Mon Jul 13 18:19:58 2009 (4A5BC11E)
    fffff880`0196e000 fffff880`0199a000   rfcomm   rfcomm.sys   Mon Jul 13 19:06:56 2009 (4A5BCC20)
    fffff880`0199a000 fffff880`019ba000   bthpan   bthpan.sys   Mon Jul 13 19:07:00 2009 (4A5BCC24)
    fffff880`019d8000 fffff880`019e6000   vga      vga.sys      Mon Jul 13 18:38:47 2009 (4A5BC587)
    fffff880`04000000 fffff880`0401b000   wanarp   wanarp.sys   Mon Jul 13 19:10:21 2009 (4A5BCCED)
    fffff880`0401b000 fffff880`0402f000   termdd   termdd.sys   Mon Jul 13 19:16:36 2009 (4A5BCE64)
    fffff880`04042000 fffff880`04067000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 18:38:51 2009 (4A5BC58B)
    fffff880`04067000 fffff880`04077000   watchdog watchdog.sys Mon Jul 13 18:37:35 2009 (4A5BC53F)
    fffff880`04077000 fffff880`04080000   RDPCDD   RDPCDD.sys   Mon Jul 13 19:16:34 2009 (4A5BCE62)
    fffff880`04080000 fffff880`04089000   rdpencdd rdpencdd.sys Mon Jul 13 19:16:34 2009 (4A5BCE62)
    fffff880`04089000 fffff880`04092000   rdprefmp rdprefmp.sys Mon Jul 13 19:16:35 2009 (4A5BCE63)
    fffff880`04092000 fffff880`0409d000   Msfs     Msfs.SYS     Mon Jul 13 18:19:47 2009 (4A5BC113)
    fffff880`0409d000 fffff880`040ae000   Npfs     Npfs.SYS     Mon Jul 13 18:19:48 2009 (4A5BC114)
    fffff880`040ae000 fffff880`040cc000   tdx      tdx.sys      Mon Jul 13 18:21:15 2009 (4A5BC16B)
    fffff880`040cc000 fffff880`040d9000   TDI      TDI.SYS      Mon Jul 13 18:21:18 2009 (4A5BC16E)
    fffff880`040d9000 fffff880`04163000   afd      afd.sys      Mon Jul 13 18:21:40 2009 (4A5BC184)
    fffff880`04163000 fffff880`041a8000   netbt    netbt.sys    Mon Jul 13 18:21:28 2009 (4A5BC178)
    fffff880`041a8000 fffff880`041b1000   wfplwf   wfplwf.sys   Mon Jul 13 19:09:26 2009 (4A5BCCB6)
    fffff880`041b1000 fffff880`041d7000   pacer    pacer.sys    Mon Jul 13 19:09:41 2009 (4A5BCCC5)
    fffff880`041d7000 fffff880`041e6000   netbios  netbios.sys  Mon Jul 13 19:09:26 2009 (4A5BCCB6)
    fffff880`041e6000 fffff880`041ff000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:06:21 2009 (4A5BCBFD)
    fffff880`04200000 fffff880`04256000   USBPORT  USBPORT.SYS  Mon Jul 13 19:06:31 2009 (4A5BCC07)
    fffff880`04256000 fffff880`04267000   usbehci  usbehci.sys  Mon Jul 13 19:06:30 2009 (4A5BCC06)
    fffff880`0427b000 fffff880`042cc000   rdbss    rdbss.sys    Mon Jul 13 18:24:09 2009 (4A5BC219)
    fffff880`042cc000 fffff880`042d8000   nsiproxy nsiproxy.sys Mon Jul 13 18:21:02 2009 (4A5BC15E)
    fffff880`042d8000 fffff880`042e3000   mssmbios mssmbios.sys Mon Jul 13 18:31:10 2009 (4A5BC3BE)
    fffff880`042e3000 fffff880`042f2000   discache discache.sys Mon Jul 13 18:37:18 2009 (4A5BC52E)
    fffff880`042f2000 fffff880`04375000   csc      csc.sys      Mon Jul 13 18:24:26 2009 (4A5BC22A)
    fffff880`04375000 fffff880`04393000   dfsc     dfsc.sys     Mon Jul 13 18:23:44 2009 (4A5BC200)
    fffff880`04393000 fffff880`043a4000   blbdrive blbdrive.sys Mon Jul 13 18:35:59 2009 (4A5BC4DF)
    fffff880`043a4000 fffff880`043ca000   tunnel   tunnel.sys   Mon Jul 13 19:09:37 2009 (4A5BCCC1)
    fffff880`043ca000 fffff880`043e0000   intelppm intelppm.sys Mon Jul 13 18:19:25 2009 (4A5BC0FD)
    fffff880`043e0000 fffff880`043eb000   usbohci  usbohci.sys  Mon Jul 13 19:06:30 2009 (4A5BCC06)
    fffff880`04800000 fffff880`04805200   ksthunk  ksthunk.sys  Mon Jul 13 19:00:19 2009 (4A5BCA93)
    fffff880`04806000 fffff880`0482a000   HDAudBus HDAudBus.sys Mon Jul 13 19:06:13 2009 (4A5BCBF5)
    fffff880`0483e000 fffff880`0487c000   1394ohci 1394ohci.sys Mon Jul 13 19:07:12 2009 (4A5BCC30)
    fffff880`0487c000 fffff880`04922580   ctaud2k  ctaud2k.sys  Tue Jun 16 23:59:35 2009 (4A387837)
    fffff880`04923000 fffff880`04960000   portcls  portcls.sys  Mon Jul 13 19:06:27 2009 (4A5BCC03)
    fffff880`04960000 fffff880`04982000   drmk     drmk.sys     Mon Jul 13 20:01:25 2009 (4A5BD8E5)
    fffff880`04982000 fffff880`049c5000   ks       ks.sys       Mon Jul 13 19:00:31 2009 (4A5BCA9F)
    fffff880`049c5000 fffff880`049f6000   ctoss2k  ctoss2k.sys  Tue Jun 16 23:57:34 2009 (4A3877BE)
    fffff880`049f6000 fffff880`049fe000   ctprxy2k ctprxy2k.sys Tue Jun 16 23:59:38 2009 (4A38783A)
    fffff880`04c00000 fffff880`04c15000   NDProxy  NDProxy.SYS  Mon Jul 13 19:10:05 2009 (4A5BCCDD)
    fffff880`04c15000 fffff880`04c23000   hidusb   hidusb.sys   Mon Jul 13 19:06:22 2009 (4A5BCBFE)
    fffff880`04c28000 fffff880`04c7b600   nvmf6264 nvmf6264.sys Wed Nov 11 17:16:48 2009 (4AFB45E0)
    fffff880`04c7c000 fffff880`04c8c000   CompositeBus CompositeBus.sys Mon Jul 13 19:00:33 2009 (4A5BCAA1)
    fffff880`04c8c000 fffff880`04ca2000   AgileVpn AgileVpn.sys Mon Jul 13 19:10:24 2009 (4A5BCCF0)
    fffff880`04ca2000 fffff880`04cc6000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:10:11 2009 (4A5BCCE3)
    fffff880`04cc6000 fffff880`04cd2000   ndistapi ndistapi.sys Mon Jul 13 19:10:00 2009 (4A5BCCD8)
    fffff880`04cd2000 fffff880`04d01000   ndiswan  ndiswan.sys  Mon Jul 13 19:10:11 2009 (4A5BCCE3)
    fffff880`04d01000 fffff880`04d1c000   raspppoe raspppoe.sys Mon Jul 13 19:10:17 2009 (4A5BCCE9)
    fffff880`04d1c000 fffff880`04d3d000   raspptp  raspptp.sys  Mon Jul 13 19:10:18 2009 (4A5BCCEA)
    fffff880`04d3d000 fffff880`04d57000   rassstp  rassstp.sys  Mon Jul 13 19:10:25 2009 (4A5BCCF1)
    fffff880`04d57000 fffff880`04d62000   rdpbus   rdpbus.sys   Mon Jul 13 19:17:46 2009 (4A5BCEAA)
    fffff880`04d62000 fffff880`04d71000   kbdclass kbdclass.sys Mon Jul 13 18:19:50 2009 (4A5BC116)
    fffff880`04d71000 fffff880`04d80000   mouclass mouclass.sys Mon Jul 13 18:19:50 2009 (4A5BC116)
    fffff880`04d80000 fffff880`04d81480   swenum   swenum.sys   Mon Jul 13 19:00:18 2009 (4A5BCA92)
    fffff880`04d82000 fffff880`04d94000   umbus    umbus.sys    Mon Jul 13 19:06:56 2009 (4A5BCC20)
    fffff880`04d94000 fffff880`04dee000   usbhub   usbhub.sys   Mon Jul 13 19:07:09 2009 (4A5BCC2D)
    fffff880`04dee000 fffff880`04dfc000   kbdhid   kbdhid.sys   Mon Jul 13 19:00:20 2009 (4A5BCA94)
    fffff880`05600000 fffff880`0564a000   emupia2k emupia2k.sys Tue Jun 16 23:57:13 2009 (4A3877A9)
    fffff880`0564a000 fffff880`0565a000   BthEnum  BthEnum.sys  Mon Jul 13 19:06:52 2009 (4A5BCC1C)
    fffff880`05662000 fffff880`057e3000   ha20x2k  ha20x2k.sys  Tue Jun 16 23:58:58 2009 (4A387812)
    fffff880`057e3000 fffff880`05800000   usbccgp  usbccgp.sys  Mon Jul 13 19:06:45 2009 (4A5BCC15)
    fffff880`05800000 fffff880`05835000   CT20XUT  CT20XUT.DLL  Wed Jun 17 00:00:53 2009 (4A387885)
    fffff880`05835000 fffff880`05889000   udfs     udfs.sys     Mon Jul 13 18:23:37 2009 (4A5BC1F9)
    fffff880`05889000 fffff880`058c8000   dump_nvstor64 dump_nvstor64.sys Fri Apr 09 04:22:41 2010 (4BBEF1E1)
    fffff880`058d6000 fffff880`058f1000   USBSTOR  USBSTOR.SYS  Mon Jul 13 19:06:34 2009 (4A5BCC0A)
    fffff880`058f2000 fffff880`0592a000   ctsfm2k  ctsfm2k.sys  Tue Jun 16 23:57:21 2009 (4A3877B1)
    fffff880`0592a000 fffff880`05942000   BTHUSB   BTHUSB.sys   Mon Jul 13 19:06:52 2009 (4A5BCC1C)
    fffff880`05942000 fffff880`059ce000   bthport  bthport.sys  Mon Jul 13 19:06:56 2009 (4A5BCC20)
    fffff880`059ce000 fffff880`059d6080   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:06:17 2009 (4A5BCBF9)
    fffff880`059f3000 fffff880`05a00000   mouhid   mouhid.sys   Mon Jul 13 19:00:20 2009 (4A5BCA94)
    fffff880`05a07000 fffff880`05b64000   CTEXFIFX CTEXFIFX.DLL Wed Jun 17 00:00:48 2009 (4A387880)
    fffff880`05b64000 fffff880`05bc0000   HdAudio  HdAudio.sys  Mon Jul 13 19:06:59 2009 (4A5BCC23)
    fffff880`05bc0000 fffff880`05bcc000   Dxapi    Dxapi.sys    Mon Jul 13 18:38:28 2009 (4A5BC574)
    fffff880`05bcc000 fffff880`05bda000   crashdmp crashdmp.sys Mon Jul 13 19:01:01 2009 (4A5BCABD)
    fffff880`05bda000 fffff880`05be4000   dump_diskdump dump_diskdump.sys Mon Jul 13 19:01:00 2009 (4A5BCABC)
    fffff880`05be4000 fffff880`05bf7000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 18:21:51 2009 (4A5BC18F)
    fffff880`05bf7000 fffff880`05bf8f00   USBD     USBD.SYS     Mon Jul 13 19:06:23 2009 (4A5BCBFF)
    fffff880`06c00000 fffff880`06c4d000   mrxsmb10 mrxsmb10.sys Mon Jul 13 18:24:08 2009 (4A5BC218)
    fffff880`06c50000 fffff880`06c73000   luafv    luafv.sys    Mon Jul 13 18:26:13 2009 (4A5BC295)
    fffff880`06c73000 fffff880`06c88000   lltdio   lltdio.sys   Mon Jul 13 19:08:50 2009 (4A5BCC92)
    fffff880`06c88000 fffff880`06ca0000   rspndr   rspndr.sys   Mon Jul 13 19:08:50 2009 (4A5BCC92)
    fffff880`06ca0000 fffff880`06d68000   HTTP     HTTP.sys     Mon Jul 13 18:22:16 2009 (4A5BC1A8)
    fffff880`06d68000 fffff880`06d86000   bowser   bowser.sys   Mon Jul 13 18:23:50 2009 (4A5BC206)
    fffff880`06d86000 fffff880`06d9e000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:08:25 2009 (4A5BCC79)
    fffff880`06d9e000 fffff880`06dca000   mrxsmb   mrxsmb.sys   Mon Jul 13 18:23:59 2009 (4A5BC20F)
    fffff880`06dca000 fffff880`06ded000   mrxsmb20 mrxsmb20.sys Mon Jul 13 18:24:05 2009 (4A5BC215)
    fffff880`07800000 fffff880`07869000   srv2     srv2.sys     Mon Jul 13 18:25:02 2009 (4A5BC24E)
    fffff880`078a8000 fffff880`0794e000   peauth   peauth.sys   Mon Jul 13 20:01:19 2009 (4A5BD8DF)
    fffff880`0794e000 fffff880`07959000   secdrv   secdrv.SYS   Wed Sep 13 08:18:38 2006 (4508052E)
    fffff880`07959000 fffff880`07986000   srvnet   srvnet.sys   Mon Jul 13 18:24:58 2009 (4A5BC24A)
    fffff880`07986000 fffff880`07998000   tcpipreg tcpipreg.sys Mon Jul 13 19:09:49 2009 (4A5BCCCD)
    fffff880`07a5f000 fffff880`07a6d000   monitor  monitor.sys  Mon Jul 13 18:38:52 2009 (4A5BC58C)
    fffff880`07ac0000 fffff880`07b58000   srv      srv.sys      Mon Jul 13 18:25:11 2009 (4A5BC257)
    fffff880`07bc9000 fffff880`07bd4000   asyncmac asyncmac.sys Mon Jul 13 19:10:13 2009 (4A5BCCE5)
    fffff880`0fe00000 fffff880`0fe46000   dxgmms1  dxgmms1.sys  Mon Jul 13 18:38:32 2009 (4A5BC578)
    fffff880`0fe46000 fffff880`0fe53000   fdc      fdc.sys      Mon Jul 13 19:00:54 2009 (4A5BCAB6)
    fffff880`0fe58000 fffff880`10b06000   nvlddmkm nvlddmkm.sys Fri May 20 23:07:04 2011 (4DD73A68)
    fffff880`10b06000 fffff880`10b0b000   nvBridge nvBridge.kmd Fri May 20 22:58:23 2011 (4DD7385F)
    fffff880`10b0b000 fffff880`10bff000   dxgkrnl  dxgkrnl.sys  Mon Jul 13 18:38:56 2009 (4A5BC590)
    fffff960`00020000 fffff960`0032f000   win32k   win32k.sys   Mon Jul 13 18:40:16 2009 (4A5BC5E0)
    fffff960`00520000 fffff960`0052a000   TSDDD    TSDDD.dll    Mon Jul 13 19:16:34 2009 (4A5BCE62)
    fffff960`00770000 fffff960`00797000   cdd      cdd.dll      unavailable (00000000)
    Unloaded modules:
    fffff880`07a51000 fffff880`07a5f000   monitor.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`058c8000 fffff880`058d6000   monitor.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`07b58000 fffff880`07bc9000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`07a36000 fffff880`07a51000   CTHWIUT.DLL
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0001B000
    fffff880`07a1b000 fffff880`07a36000   CTHWIUT.DLL
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0001B000
    fffff880`07a00000 fffff880`07a1b000   CTHWIUT.DLL
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0001B000
    fffff880`07bd4000 fffff880`07bef000   CTHWIUT.DLL
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0001B000
    fffff880`059d8000 fffff880`059f3000   CTHWIUT.DLL
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0001B000
    fffff880`0196e000 fffff880`0197c000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0197c000 fffff880`01986000   dump_storpor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000A000
    fffff880`01986000 fffff880`019c5000   dump_nvstor6
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0003F000
    fffff880`019c5000 fffff880`019d8000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000
    fffff880`0592a000 fffff880`059d8000   ctac32k.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  000AE000


  4. MoXeeM

    MoXeeM New Member

    Joined:
    Jun 26, 2011
    Messages:
    10
    Likes Received:
    0
    Hello!

    Thanks for the quick replies.

    UPDATE: I got another BSOD. SF Diag is crashing with an exception on MSInfo32, and now I can't get any of the other "relevant" information, so I manually pasted the new minidump file in for the new BSOD.



    @SaltGrass: I have 3 monitors in total and I usually use them for work.
    I can try disconnecting them, but could it really be a monitor causing the problem?
    The computer boots correctly, so I can boot in either safe mode and normal mode.
    The BSODs seem to come up randomly.

    @Trouble: The ram I currently have is G.SKILL-ProductsI think PC8500 is suppose to be 1066Mhz, is that right? That's also what I see them rated as on the site.
    I find it odd that CPU-Z says max bandwidth 400mhz, but they're probably going by JEDEC standards, right?
    Because then we get SPD Ext. EPP1.0. , meaning it can go up to 533? Ok sorry for the questions. I'll try toggling EPP and lowering everything down.
    I definitely forgot to post that second tab, which will be in the present post .
    Sadly, I own an Auzentech Prelude 7.1, and they seem to have made their latest drivers in December 2010. I had found a modified driver at one point, but I was still getting BSODs so I ditched it.
    Finally, Rammon does not seem to open. It opens up as a processor but then shuts down. Not really sure why.

    EDIT: I noticed upon fixing my memory speed that EPP was in fact NOT turned on (they list it as SLI-Ready Memory)? This setting was set to disable, and yet they were running at 1066Mhz. Now I enabled it, with CPUOC 0%. Still running at 1066 Mhz. Should I redisable it and lower everything down to 800Mhz?

    Thanks again for the help.

    Very appreciated.

    Sincerely,

    Mox


    Attached Files:

    #4 MoXeeM, Jun 27, 2011
    Last edited: Jun 27, 2011
  5. Saltgrass

    Saltgrass Excellent Member
    Microsoft Community Contributor

    Joined:
    Oct 16, 2009
    Messages:
    15,157
    Likes Received:
    393
    In your update log, it looks like you got updates for a Samsung and HP monitor. Anytime I see device driver updates, I become suspicious. Since the blue screens do not occur on boot, perhaps they are not involved, but there are two unloaded monitor.sys drivers.

    If you don't find an answer in the memory settings, perhaps it would be a good time to set up drive verifier.

  6. MoXeeM

    MoXeeM New Member

    Joined:
    Jun 26, 2011
    Messages:
    10
    Likes Received:
    0
    @Saltgrass

    Hello again and thanks for the quick reply. Ah, I see :). Yes, these two drivers were installed by windows update; I have 2 HP monitors and a samsung monitor. They were working fine before the update too; it's Windows Update who suggested the driver. Should I remove them?

    I will also start up driver verifier right now I think (or will this make it harder to find the culprit?).

    Thank you!

    Cheers.

  7. Saltgrass

    Saltgrass Excellent Member
    Microsoft Community Contributor

    Joined:
    Oct 16, 2009
    Messages:
    15,157
    Likes Received:
    393
    Trouble knows a lot about the memory situation, so you might be able to get it corrected that way.

    I would keep the drivers in mind if you can't find anything else.

    Make sure you know how to turn off Verifier, so you can stop the boot BSODs if they start occurring (Verifier /reset).

    I don't have much experience reading Dump files, but yours if the first time I have seen a reference to the Fat file system. Do you have any devices plugged in using that, like flash drives?

  8. MoXeeM

    MoXeeM New Member

    Joined:
    Jun 26, 2011
    Messages:
    10
    Likes Received:
    0
    @Saltgrass:

    Okay, thanks!

    Mmm, I only have an external harddrive, Seagate FreeAgent Drive, but it's formatted in NTFS. I also have a bluetooth dongle, and a few ipod cables and the cradle for the shuffle, but they're not plugged in so cables shouldn't show up as Fat.

    No BSOD so far this morning.

    Turning on driver verifier.

    Thanks,

    Cheers.

  9. Elmer

    Elmer Extraordinary Member

    Joined:
    Mar 5, 2010
    Messages:
    3,873
    Likes Received:
    284
    Just as a slight aside. It's always best to get your hardware/software driver updates from the manufacturers or your Mobo/PC manufacturers website. Windows Updates (or the Device Manager) is known to install "older" drivers, often, as you've found, causing more issues than you would care to shake a stick at.

    By all means use Windows Updates (or the Device Manager) but consider it as your last port of call.

  10. MoXeeM

    MoXeeM New Member

    Joined:
    Jun 26, 2011
    Messages:
    10
    Likes Received:
    0
    @Elmer

    Hello! Thank you for the note. I fully agree with you. The thing is, I was not going to install "drivers" for the monitors; hence when it suggested it, I was like: "Oh, I ... guess?"

    You're right though. I should note however, that the other drivers, so my Soundcard, my nForce 780i mobo, as well as the gforce drivers were all directly downloaded from the manufacturer's website.
    Display "drivers" were they only ones added from Windows.

    Thanks.

    Cheers!


Share This Page

Loading...
