New Build Ocassional BSOD RAM Problems?

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by Terror Tabby, Jan 3, 2011.

  1. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I have been experiencing infrequent BSOD since I built my computer about a month ago. I'm pretty sure my drivers are up to date since I used driver verifier to check. I'm suspecting my RAM might be a problem since the last three BSOD were caused by ntoskrnl and my RAM fails a memory test. I didn't know enough to test my RAM when I first built my computer. Hopefully, it's not bad RAM and it's something else. I attached the most recent BSOD. Unfortunately, I don't have the other two that happen earlier. Their minidump files disappeared somehow??

    Config:
    Mother Board: Gigabyte GA-870A-UD3
    CPU: AMD Phenom II X4 955
    RAM: G. Skill 2 x 2GB DDR3 1600 F3-128000CL9D-4GBRL
    Graphics Card: XFX HD-577A-ZNFC Radeon HD 5770 1GB 128bit GDDR5


    Attached Files:

  2. kemical

    kemical Windows Forum Admin
    Staff Member Premium Supporter Microsoft MVP

    Joined:
    Aug 28, 2007
    Messages:
    31,800
    Likes Received:
    1,563
    Hi Tabby,
    thanks for posting the info, please update your drivers and bios if needed. The drivers are a little out of date but still could do with updating, please ask if your unsure where to look for the latest versions (our update section has many links).

    I'd also check your RAM using this free app: Memtest86+ - Advanced Memory Diagnostic Tool Check each stick individually so you know which ones error out.

    Your motherboard can be found here although make sure you have the correct revision (usually printed on the board itself)

    http://www.gigabyte.com/products/product-page.aspx?pid=3423#bios

    #2 kemical, Jan 4, 2011
    Last edited: Jan 4, 2011
  3. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    You didn't attach the MEMORY tab:

    http://windows7forums.com/blue-screen-death-bsod/54459-important-every-thread-starter-please-see.html

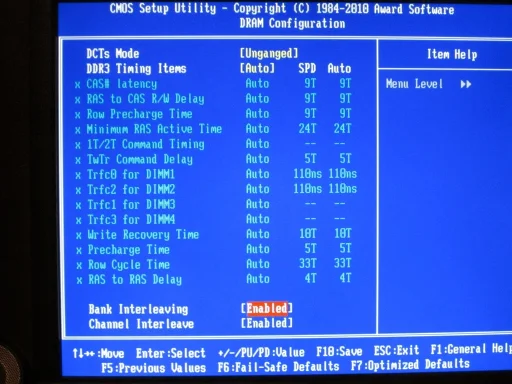

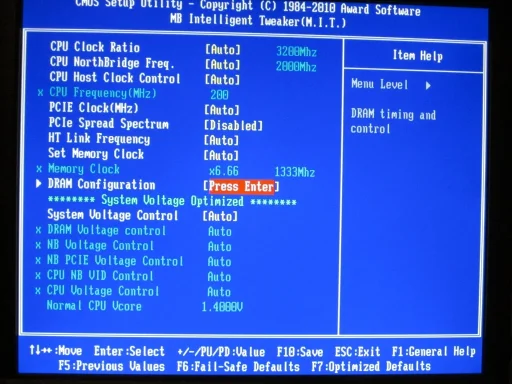

    The settings for your RAM should be 9-9-9-24 1.5v <-- Bios 'optimized defaults' will set it right for you.




    Go to your motherboard support to update USB 3.0 Hub driver:

    Code:
    nusb3xhc.sys Fri Nov 20 05:15:18 2009
    GIGABYTE - Support & Downloads


    Update to the latest your Realtek sound and LAN:

    RtHDMIV.sys Tue Jan 26 22:04:40 2010
    Rt86win7.sys Mon Mar 22 05:56:53 2010

    Realtek



    Update Brother USB as a fair chance it may be bugging you out:

    BrSerIf.sys Sun Dec 10 05:26:01 2006
    BrUsbSer.sys Sat Sep 02 20:53:37 2006




    Crash Dumps:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\123010-16536-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x86 compatible
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.x86fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0x82e02000 PsLoadedModuleList = 0x82f4a810
    Debug session time: Thu Dec 30 15:32:57.466 2010 (UTC - 5:00)
    System Uptime: 0 days 21:42:01.136
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ........................
    Loading User Symbols
    Loading unloaded module list
    ............
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 1000000A, {22c, 2, 1, 82e917b1}

    Probably caused by : ntkrpamp.exe ( nt!CcFlushCache+a6 )

    Followup: MachineOwner
    ---------

    1: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    IRQL_NOT_LESS_OR_EQUAL (a)
    An attempt was made to access a pageable (or completely invalid) address at an
    interrupt request level (IRQL) that is too high.  This is usually
    caused by drivers using improper addresses.
    If a kernel debugger is available get the stack backtrace.
    Arguments:
    Arg1: 0000022c, memory referenced
    Arg2: 00000002, IRQL
    Arg3: 00000001, bitfield :
    	bit 0 : value 0 = read operation, 1 = write operation
    	bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
    Arg4: 82e917b1, address which referenced memory

    Debugging Details:
    ------------------


    WRITE_ADDRESS: GetPointerFromAddress: unable to read from 82f6a718
    Unable to read MiSystemVaType memory at 82f4a160
     0000022c

    CURRENT_IRQL:  2

    FAULTING_IP:
    nt!CcFlushCache+a6
    82e917b1 ff8654010000    inc     dword ptr [esi+154h]

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0xA

    PROCESS_NAME:  VSSVC.exe

    LAST_CONTROL_TRANSFER:  from 8bc7ff62 to 82e917b1

    STACK_TEXT:
    99797a2c 8bc7ff62 87ee4758 00000000 00000000 nt!CcFlushCache+0xa6
    99797a80 8bc7272c 01015520 81f7f988 00000000 Ntfs!NtfsFlushUserStream+0x93
    99797b20 8bc80fab 86015520 864a50d8 00000001 Ntfs!NtfsFlushVolume+0x281
    99797ba4 8bc8176b 86015520 85ddd1a0 12ba86e7 Ntfs!NtfsCommonFlushBuffers+0x1a9
    99797c0c 82e3e4bc 864a5020 85ddd1a0 85ddd1a0 Ntfs!NtfsFsdFlushBuffers+0xf7
    99797c24 8bb8420c 8642b530 85ddd1a0 00000000 nt!IofCallDriver+0x63
    99797c48 8bb843cb 99797c68 8642b530 00000000 fltmgr!FltpLegacyProcessingAfterPreCallbacksCompleted+0x2aa
    99797c80 82e3e4bc 8642b530 85ddd1a0 85ddd1a0 fltmgr!FltpDispatch+0xc5
    99797c98 8303ff6e 85ddd1a0 882dd320 00000000 nt!IofCallDriver+0x63
    99797cb8 83020eba 8642b530 882dd320 00000000 nt!IopSynchronousServiceTail+0x1f8
    99797d24 82e4544a 857ec630 02b3f810 02b3f818 nt!NtFlushBuffersFile+0x1d7
    99797d24 774b64f4 857ec630 02b3f810 02b3f818 nt!KiFastCallEntry+0x12a
    WARNING: Frame IP not in any known module. Following frames may be wrong.
    02b3f818 00000000 00000000 00000000 00000000 0x774b64f4


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!CcFlushCache+a6
    82e917b1 ff8654010000    inc     dword ptr [esi+154h]

    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nt!CcFlushCache+a6

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrpamp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c1c3fac

    FAILURE_BUCKET_ID:  0xA_nt!CcFlushCache+a6

    BUCKET_ID:  0xA_nt!CcFlushCache+a6

    Followup: MachineOwner
    ---------




    Drivers:

    Code:
    start    end        module name
    90e91000 90ebd000   1394ohci 1394ohci.sys Mon Jul 13 19:51:59 2009 (4A5BC89F)
    8ba24000 8ba6c000   ACPI     ACPI.sys     Mon Jul 13 19:11:11 2009 (4A5BBF0F)
    8fc04000 8fc5e000   afd      afd.sys      Mon Jul 13 19:12:34 2009 (4A5BBF62)
    90f1b000 90f2d000   AgileVpn AgileVpn.sys Mon Jul 13 19:55:00 2009 (4A5BC954)
    8b821000 8b832000   amdppm   amdppm.sys   Mon Jul 13 19:11:03 2009 (4A5BBF07)
    8bb75000 8bb7e000   amdxata  amdxata.sys  Tue May 19 13:57:35 2009 (4A12F30F)
    8fdec000 8fdf3000   AppleCharger AppleCharger.sys Mon Apr 26 23:54:05 2010 (4BD65FDD)
    a05aa000 a05b3000   asyncmac asyncmac.sys Mon Jul 13 19:54:46 2009 (4A5BC946)
    8bb49000 8bb52000   atapi    atapi.sys    Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8bb52000 8bb75000   ataport  ataport.SYS  Mon Jul 13 19:11:18 2009 (4A5BBF16)
    91200000 91893000   atikmdag atikmdag.sys Tue Oct 26 22:26:21 2010 (4CC78DCD)
    90e09000 90e46000   atikmpag atikmpag.sys Tue Oct 26 22:14:03 2010 (4CC78AEB)
    8be07000 8be0e000   Beep     Beep.SYS     Mon Jul 13 19:45:00 2009 (4A5BC6FC)
    8fdde000 8fdec000   blbdrive blbdrive.sys Mon Jul 13 19:23:04 2009 (4A5BC1D8)
    8b85a000 8b862000   BOOTVID  BOOTVID.dll  Mon Jul 13 21:04:34 2009 (4A5BD9A2)
    902ce000 902e7000   bowser   bowser.sys   Mon Jul 13 19:14:21 2009 (4A5BBFCD)
    8b9f3000 8b9ffc00   BrSerIf  BrSerIf.sys  Sun Dec 10 05:26:01 2006 (457BE0B9)
    90e00000 90e02e80   BrUsbSer BrUsbSer.sys Sat Sep 02 20:53:37 2006 (44FA2791)
    97f40000 97f5e000   cdd      cdd.dll      Mon Jul 13 21:04:18 2009 (4A5BD992)
    8bfdc000 8bffb000   cdrom    cdrom.sys    Mon Jul 13 19:11:24 2009 (4A5BBF1C)
    8b8a4000 8b94f000   CI       CI.dll       Mon Jul 13 21:09:28 2009 (4A5BDAC8)
    8bf90000 8bfb5000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:11:20 2009 (4A5BBF18)
    8b862000 8b8a4000   CLFS     CLFS.SYS     Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    8bd6e000 8bdcb000   cng      cng.sys      Mon Jul 13 19:32:55 2009 (4A5BC427)
    919ef000 919fc000   CompositeBus CompositeBus.sys Mon Jul 13 19:45:26 2009 (4A5BC716)
    a05d8000 a05e5000   crashdmp crashdmp.sys Mon Jul 13 19:45:50 2009 (4A5BC72E)
    8fd62000 8fdc6000   csc      csc.sys      Mon Jul 13 19:15:08 2009 (4A5BBFFC)
    8fdc6000 8fdde000   dfsc     dfsc.sys     Mon Jul 13 19:14:16 2009 (4A5BBFC8)
    8fd56000 8fd62000   discache discache.sys Mon Jul 13 19:24:04 2009 (4A5BC214)
    8c000000 8c011000   disk     disk.sys     Mon Jul 13 19:11:28 2009 (4A5BBF20)
    91d38000 91d51000   drmk     drmk.sys     Mon Jul 13 20:36:05 2009 (4A5BD2F5)
    a05f0000 a05f9000   dump_atapi dump_atapi.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    a05e5000 a05f0000   dump_ataport dump_ataport.sys Mon Jul 13 19:11:16 2009 (4A5BBF14)
    a0400000 a0411000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:12:47 2009 (4A5BBF6F)
    91da1000 91dab000   Dxapi    Dxapi.sys    Mon Jul 13 19:25:25 2009 (4A5BC265)
    91893000 9194a000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 20:48:33 2009 (4AC54DE1)
    9194a000 91983000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:25:25 2009 (4A5BC265)
    8bbb2000 8bbc3000   fileinfo fileinfo.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    8bb7e000 8bbb2000   fltmgr   fltmgr.sys   Mon Jul 13 19:11:13 2009 (4A5BBF11)
    8bdd9000 8bde2000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:11:14 2009 (4A5BBF12)
    8bf5e000 8bf90000   fvevol   fvevol.sys   Fri Sep 25 22:24:21 2009 (4ABD7B55)
    8c165000 8c196000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:12:03 2009 (4A5BBF43)
    919c6000 919cb280   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:16:53 2009 (4A1151B5)
    83212000 83249000   hal      halmacpi.dll Mon Jul 13 19:11:03 2009 (4A5BBF07)
    91983000 919a2000   HDAudBus HDAudBus.sys Mon Jul 13 19:50:55 2009 (4A5BC85F)
    91d51000 91da1000   HdAudio  HdAudio.sys  Mon Jul 13 19:51:46 2009 (4A5BC892)
    8bfb5000 8bfc8000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:51:01 2009 (4A5BC865)
    91c2e000 91c34480   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:50:59 2009 (4A5BC863)
    90fe9000 90ff4000   hidusb   hidusb.sys   Mon Jul 13 19:51:04 2009 (4A5BC868)
    90249000 902ce000   HTTP     HTTP.sys     Mon Jul 13 19:12:53 2009 (4A5BBF75)
    8c1f6000 8c1fe000   hwpolicy hwpolicy.sys Mon Jul 13 19:11:01 2009 (4A5BBF05)
    90fc2000 90fcf000   kbdclass kbdclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8b832000 8b83e000   kbdhid   kbdhid.sys   Mon Jul 13 19:45:09 2009 (4A5BC705)
    80ba2000 80baa000   kdcom    kdcom.dll    Mon Jul 13 21:08:58 2009 (4A5BDAAA)
    91c37000 91c6b000   ks       ks.sys       Wed Mar 03 22:57:52 2010 (4B8F2FC0)
    8bd5b000 8bd6e000   ksecdd   ksecdd.sys   Mon Jul 13 19:11:56 2009 (4A5BBF3C)
    8bf0c000 8bf31000   ksecpkg  ksecpkg.sys  Thu Dec 10 23:04:22 2009 (4B21C4C6)
    90226000 90236000   lltdio   lltdio.sys   Mon Jul 13 19:53:18 2009 (4A5BC8EE)
    9020b000 90226000   luafv    luafv.sys    Mon Jul 13 19:15:44 2009 (4A5BC020)
    8b83e000 8b849000   mcupdate mcupdate.dll Mon Jul 13 19:13:13 2009 (4A5BBF89)
    91deb000 91df6000   monitor  monitor.sys  Mon Jul 13 19:25:58 2009 (4A5BC286)
    90fcf000 90fdc000   mouclass mouclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8ba19000 8ba24000   mouhid   mouhid.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8bb33000 8bb49000   mountmgr mountmgr.sys Mon Jul 13 19:11:27 2009 (4A5BBF1F)
    902e7000 902f9000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:52:52 2009 (4A5BC8D4)
    902f9000 9031c000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:32:02 2010 (4B88CA72)
    9031c000 90357000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:32:21 2010 (4B88CA85)
    90357000 90372000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:32:11 2010 (4B88CA7B)
    8bbf4000 8bbff000   Msfs     Msfs.SYS     Mon Jul 13 19:11:26 2009 (4A5BBF1E)
    8ba75000 8ba7d000   msisadrv msisadrv.sys Mon Jul 13 19:11:09 2009 (4A5BBF0D)
    8bd30000 8bd5b000   msrpc    msrpc.sys    Mon Jul 13 19:11:59 2009 (4A5BBF3F)
    8fd4c000 8fd56000   mssmbios mssmbios.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    8c1e6000 8c1f6000   mup      mup.sys      Mon Jul 13 19:14:14 2009 (4A5BBFC6)
    8be17000 8bece000   ndis     ndis.sys     Mon Jul 13 19:12:24 2009 (4A5BBF58)
    90f45000 90f50000   ndistapi ndistapi.sys Mon Jul 13 19:54:24 2009 (4A5BC930)
    90f50000 90f72000   ndiswan  ndiswan.sys  Mon Jul 13 19:54:34 2009 (4A5BC93A)
    91ccc000 91cdd000   NDProxy  NDProxy.SYS  Mon Jul 13 19:54:27 2009 (4A5BC933)
    8fcb6000 8fcc4000   netbios  netbios.sys  Mon Jul 13 19:53:54 2009 (4A5BC912)
    8fc5e000 8fc90000   netbt    netbt.sys    Mon Jul 13 19:12:18 2009 (4A5BBF52)
    8bece000 8bf0c000   NETIO    NETIO.SYS    Mon Jul 13 19:12:35 2009 (4A5BBF63)
    8ba00000 8ba0e000   Npfs     Npfs.SYS     Mon Jul 13 19:11:31 2009 (4A5BBF23)
    8fd42000 8fd4c000   nsiproxy nsiproxy.sys Mon Jul 13 19:12:08 2009 (4A5BBF48)
    82e02000 83212000   nt       ntkrpamp.exe Fri Jun 18 23:55:24 2010 (4C1C3FAC)
    8bc01000 8bd30000   Ntfs     Ntfs.sys     Mon Jul 13 19:12:05 2009 (4A5BBF45)
    8be00000 8be07000   Null     Null.SYS     Mon Jul 13 19:11:12 2009 (4A5BBF10)
    91c79000 91c87600   nusb3hub nusb3hub.sys Fri Nov 20 05:15:14 2009 (4B066C32)
    919a2000 919c3a00   nusb3xhc nusb3xhc.sys Fri Nov 20 05:15:18 2009 (4B066C36)
    8fc97000 8fcb6000   pacer    pacer.sys    Mon Jul 13 19:53:58 2009 (4A5BC916)
    90f03000 90f1b000   parport  parport.sys  Mon Jul 13 19:45:34 2009 (4A5BC71E)
    8bab2000 8bac3000   partmgr  partmgr.sys  Mon Jul 13 19:11:35 2009 (4A5BBF27)
    90372000 90379000   parvdm   parvdm.sys   Mon Jul 13 19:45:29 2009 (4A5BC719)
    8ba7d000 8baa7000   pci      pci.sys      Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8bb1e000 8bb25000   pciide   pciide.sys   Mon Jul 13 19:11:19 2009 (4A5BBF17)
    8bb25000 8bb33000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8bdcb000 8bdd9000   pcw      pcw.sys      Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    a043b000 a04d2000   peauth   peauth.sys   Mon Jul 13 20:35:44 2009 (4A5BD2E0)
    91d09000 91d38000   portcls  portcls.sys  Mon Jul 13 19:51:00 2009 (4A5BC864)
    8b849000 8b85a000   PSHED    PSHED.dll    Mon Jul 13 21:09:36 2009 (4A5BDAD0)
    90f2d000 90f45000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:54:33 2009 (4A5BC939)
    90f72000 90f8a000   raspppoe raspppoe.sys Mon Jul 13 19:54:53 2009 (4A5BC94D)
    90f8a000 90fa1000   raspptp  raspptp.sys  Mon Jul 13 19:54:47 2009 (4A5BC947)
    90fa1000 90fb8000   rassstp  rassstp.sys  Mon Jul 13 19:54:57 2009 (4A5BC951)
    8fd01000 8fd42000   rdbss    rdbss.sys    Mon Jul 13 19:14:26 2009 (4A5BBFD2)
    90fb8000 90fc2000   rdpbus   rdpbus.sys   Mon Jul 13 20:02:40 2009 (4A5BCB20)
    8be0e000 8be16000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    8bbe4000 8bbec000   rdpencdd rdpencdd.sys Mon Jul 13 20:01:39 2009 (4A5BCAE3)
    8bbec000 8bbf4000   rdprefmp rdprefmp.sys Mon Jul 13 20:01:41 2009 (4A5BCAE5)
    8bf31000 8bf5e000   rdyboost rdyboost.sys Mon Jul 13 19:22:02 2009 (4A5BC19A)
    90236000 90249000   rspndr   rspndr.sys   Mon Jul 13 19:53:20 2009 (4A5BC8F0)
    90ebd000 90f03000   Rt86win7 Rt86win7.sys Mon Mar 22 05:56:53 2010 (4BA73EE5)
    91cdd000 91d08300   RtHDMIV  RtHDMIV.sys  Tue Jan 26 22:04:40 2010 (4B5FAD48)
    a04d2000 a04dc000   secdrv   secdrv.SYS   Wed Sep 13 09:18:32 2006 (45080528)
    919e5000 919ef000   serenum  serenum.sys  Mon Jul 13 19:45:27 2009 (4A5BC717)
    8fcc4000 8fcde000   serial   serial.sys   Mon Jul 13 19:45:33 2009 (4A5BC71D)
    8c1de000 8c1e6000   spldr    spldr.sys    Mon May 11 12:13:47 2009 (4A084EBB)
    a0559000 a05aa000   srv      srv.sys      Thu Aug 26 23:31:26 2010 (4C77318E)
    a050a000 a0559000   srv2     srv2.sys     Thu Aug 26 23:30:45 2010 (4C773165)
    a04dc000 a04fd000   srvnet   srvnet.sys   Thu Aug 26 23:30:39 2010 (4C77315F)
    919fc000 919fd380   swenum   swenum.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8c01c000 8c165000   tcpip    tcpip.sys    Sun Jun 13 23:36:59 2010 (4C15A3DB)
    a04fd000 a050a000   tcpipreg tcpipreg.sys Mon Jul 13 19:54:14 2009 (4A5BC926)
    8ba0e000 8ba19000   TDI      TDI.SYS      Mon Jul 13 19:12:12 2009 (4A5BBF4C)
    8b9ce000 8b9e5000   tdx      tdx.sys      Mon Jul 13 19:12:10 2009 (4A5BBF4A)
    8fcf1000 8fd01000   termdd   termdd.sys   Mon Jul 13 20:01:35 2009 (4A5BCADF)
    97f10000 97f19000   TSDDD    TSDDD.dll    Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    8b800000 8b821000   tunnel   tunnel.sys   Mon Jul 13 19:54:03 2009 (4A5BC91B)
    91dab000 91deb000   udfs     udfs.sys     Mon Jul 13 19:14:09 2009 (4A5BBFC1)
    91c6b000 91c79000   umbus    umbus.sys    Mon Jul 13 19:51:38 2009 (4A5BC88A)
    91c00000 91c17000   usbccgp  usbccgp.sys  Mon Jul 13 19:51:31 2009 (4A5BC883)
    919c4000 919c5700   USBD     USBD.SYS     Mon Jul 13 19:51:05 2009 (4A5BC869)
    919d6000 919e5000   usbehci  usbehci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    91c88000 91ccc000   usbhub   usbhub.sys   Mon Jul 13 19:52:06 2009 (4A5BC8A6)
    919cc000 919d6000   usbohci  usbohci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    90e46000 90e91000   USBPORT  USBPORT.SYS  Mon Jul 13 19:51:13 2009 (4A5BC871)
    8c011000 8c01c000   usbprint usbprint.sys Mon Jul 13 20:17:06 2009 (4A5BCE82)
    8b9e5000 8b9f3000   usbscan  usbscan.sys  Mon Jul 13 20:14:44 2009 (4A5BCDF4)
    91c17000 91c2e000   USBSTOR  USBSTOR.SYS  Mon Jul 13 19:51:19 2009 (4A5BC877)
    8baa7000 8bab2000   vdrvroot vdrvroot.sys Mon Jul 13 19:46:19 2009 (4A5BC74B)
    8bde2000 8bdee000   vga      vga.sys      Mon Jul 13 19:25:50 2009 (4A5BC27E)
    8bbc3000 8bbe4000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:25:49 2009 (4A5BC27D)
    8c196000 8c19e380   vmstorfl vmstorfl.sys Mon Jul 13 19:28:44 2009 (4A5BC32C)
    8bac3000 8bad3000   volmgr   volmgr.sys   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8bad3000 8bb1e000   volmgrx  volmgrx.sys  Mon Jul 13 19:11:41 2009 (4A5BBF2D)
    8c19f000 8c1de000   volsnap  volsnap.sys  Mon Jul 13 19:11:34 2009 (4A5BBF26)
    8fcde000 8fcf1000   wanarp   wanarp.sys   Mon Jul 13 19:55:02 2009 (4A5BC956)
    8bdee000 8bdfb000   watchdog watchdog.sys Mon Jul 13 19:24:10 2009 (4A5BC21A)
    8b94f000 8b9c0000   Wdf01000 Wdf01000.sys Mon Jul 13 19:11:36 2009 (4A5BBF28)
    8b9c0000 8b9ce000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8fc90000 8fc97000   wfplwf   wfplwf.sys   Mon Jul 13 19:53:51 2009 (4A5BC90F)
    97cb0000 97efb000   win32k   win32k.sys   Tue Oct 19 23:00:01 2010 (4CBE5B31)
    8fdf3000 8fdfc000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:19:16 2009 (4A5BC0F4)
    8ba6c000 8ba75000   WMILIB   WMILIB.SYS   Mon Jul 13 19:11:22 2009 (4A5BBF1A)

    Unloaded modules:
    90fdc000 90fe9000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000D000
    90ff4000 90fff000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    91df6000 91dff000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    8bfc8000 8bfd9000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000
    a05b3000 a05be000   hiber_atapor
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    a05be000 a05c7000   hiber_atapi.
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    a05c7000 a05d8000   hiber_dumpfv
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000
    90379000 903e3000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0006A000
    8bfb5000 8bfc2000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000D000
    8c011000 8c01c000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    8bfc2000 8bfcb000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    8bfcb000 8bfdc000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000



  4. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I updated the driver for USB 3.0 Hub, LAN, Realtek audio, and the Brother printer. I guess I took a screenshot of the wrong tab, sorry about that. I included a screenshot of the memory tab. I also ran memtest86 and no errors were found. I ran it for 6 passes. I checked in my BIOS the RAM is running at 1.5V and timing is 9-9-9-24. I noticed in that the High definition audio driver is updated but HDMI audio driver for ATI was not updated. Should I update that too? There was only one download for audio drivers on Gigabytes website for my motherboard. Do I need to go to Realtek's site to update HDMI audio driver for ATI?

    Also I had a BSOD while I was updating my drivers.


    Attached Files:

  5. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Looks like you only have Realtek HDMI:

    Code:
    RtHDMIV.sys  Tue Jan 26 22:04:40 2010
    There are two Realtek drivers - 1) High Definition Audio and 2) Realtek ATI HDMI. Try to update them both.

    While at Realtek's, update the PCI/PCI-E LAN too:

    Code:
    Rt86win7.sys Mon Mar 22 05:56:53 2010
    ~~~~~~~~~~

    Brother usb printer drivers are still 2006,

    Code:
    BrSerIf.sys  Sun Dec 10 05:26:01 2006
    BrUsbSer BrUsbSer.sys Sat Sep 02 20:53:37 2006
    To test the system without them, disable the printer in windows device manager and for a while do not turn it on.


    ~~~~~~~~~

    010511-23337-01.dmp
    KERNEL_MODE_EXCEPTION_NOT_HANDLED_M (1000008e)
    PROCESS_NAME: svchost.exe
    Probably caused by : ntkrpamp.exe ( nt!ObpWaitForMultipleObjects+14e )
    The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.


    If disabling the printer drivers and updating the Realtek lan and audio does not fix it, I'd suspect some defect or incompatibility in the RAM.

    1. Run memtest 10 passes overnight Memtest86+ - Advanced Memory Diagnostic Tool
    2. Give link to your motherboard
    3. Give link to your RAM


    Crash Dumps:

    Code:
    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\010511-23337-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7600 MP (4 procs) Free x86 compatible
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7600.16617.x86fre.win7_gdr.100618-1621
    Machine Name:
    Kernel base = 0x82e04000 PsLoadedModuleList = 0x82f4c810
    Debug session time: Wed Jan  5 21:24:51.584 2011 (UTC - 5:00)
    System Uptime: 0 days 0:00:26.254
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ........................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 1000008E, {c0000005, 83036591, 8d6c58f0, 0}

    Probably caused by : ntkrpamp.exe ( nt!ObpWaitForMultipleObjects+14e )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    KERNEL_MODE_EXCEPTION_NOT_HANDLED_M (1000008e)
    This is a very common bugcheck.  Usually the exception address pinpoints
    the driver/function that caused the problem.  Always note this address
    as well as the link date of the driver/image that contains this address.
    Some common problems are exception code 0x80000003.  This means a hard
    coded breakpoint or assertion was hit, but this system was booted
    /NODEBUG.  This is not supposed to happen as developers should never have
    hardcoded breakpoints in retail code, but ...
    If this happens, make sure a debugger gets connected, and the
    system is booted /DEBUG.  This will let us see why this breakpoint is
    happening.
    Arguments:
    Arg1: c0000005, The exception code that was not handled
    Arg2: 83036591, The address that the exception occurred at
    Arg3: 8d6c58f0, Trap Frame
    Arg4: 00000000

    Debugging Details:
    ------------------


    EXCEPTION_CODE: (NTSTATUS) 0xc0000005 - The instruction at 0x%08lx referenced memory at 0x%08lx. The memory could not be %s.

    FAULTING_IP:
    nt!ObpWaitForMultipleObjects+14e
    83036591 8b4110          mov     eax,dword ptr [ecx+10h]

    TRAP_FRAME:  8d6c58f0 -- (.trap 0xffffffff8d6c58f0)
    ErrCode = 00000000
    eax=00000000 ebx=87f0d960 ecx=00000000 edx=87fa6e88 esi=87fa6e88 edi=980f7650
    eip=83036591 esp=8d6c5964 ebp=8d6c5bc8 iopl=0         nv up ei pl nz na pe nc
    cs=0008  ss=0010  ds=0023  es=0023  fs=0030  gs=0000             efl=00010206
    nt!ObpWaitForMultipleObjects+0x14e:
    83036591 8b4110          mov     eax,dword ptr [ecx+10h] ds:0023:00000010=????????
    Resetting default scope

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x8E

    PROCESS_NAME:  svchost.exe

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from 83036412 to 83036591

    STACK_TEXT:
    8d6c5bc8 83036412 00000024 8d6c5c18 00000001 nt!ObpWaitForMultipleObjects+0x14e
    8d6c5d18 82e4744a 00000024 00280e80 00000001 nt!NtWaitForMultipleObjects+0xcd
    8d6c5d18 76e264f4 00000024 00280e80 00000001 nt!KiFastCallEntry+0x12a
    WARNING: Frame IP not in any known module. Following frames may be wrong.
    0087f9c0 00000000 00000000 00000000 00000000 0x76e264f4


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt!ObpWaitForMultipleObjects+14e
    83036591 8b4110          mov     eax,dword ptr [ecx+10h]

    SYMBOL_STACK_INDEX:  0

    SYMBOL_NAME:  nt!ObpWaitForMultipleObjects+14e

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrpamp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4c1c3fac

    FAILURE_BUCKET_ID:  0x8E_nt!ObpWaitForMultipleObjects+14e

    BUCKET_ID:  0x8E_nt!ObpWaitForMultipleObjects+14e

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start    end        module name
    914ac000 914d8000   1394ohci 1394ohci.sys Mon Jul 13 19:51:59 2009 (4A5BC89F)
    8b9b5000 8b9fd000   ACPI     ACPI.sys     Mon Jul 13 19:11:11 2009 (4A5BBF0F)
    91225000 9127f000   afd      afd.sys      Mon Jul 13 19:12:34 2009 (4A5BBF62)
    9154d000 9155f000   AgileVpn AgileVpn.sys Mon Jul 13 19:55:00 2009 (4A5BC954)
    82067000 82077000   amdiox86 amdiox86.sys Thu Feb 18 10:17:49 2010 (4B7D5A1D)
    8bbd5000 8bbe6000   amdppm   amdppm.sys   Mon Jul 13 19:11:03 2009 (4A5BBF07)
    8bb02000 8bb0b000   amdxata  amdxata.sys  Tue May 19 13:57:35 2009 (4A12F30F)
    9120e000 91215000   AppleCharger AppleCharger.sys Mon Apr 26 23:54:05 2010 (4BD65FDD)
    8bad6000 8badf000   atapi    atapi.sys    Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8badf000 8bb02000   ataport  ataport.SYS  Mon Jul 13 19:11:18 2009 (4A5BBF16)
    9161f000 91cc5000   atikmdag atikmdag.sys Thu Nov 25 21:43:13 2010 (4CEF1EC1)
    91424000 91461000   atikmpag atikmpag.sys Thu Nov 25 21:16:27 2010 (4CEF187B)
    8be07000 8be0e000   Beep     Beep.SYS     Mon Jul 13 19:45:00 2009 (4A5BC6FC)
    91200000 9120e000   blbdrive blbdrive.sys Mon Jul 13 19:23:04 2009 (4A5BC1D8)
    8b841000 8b849000   BOOTVID  BOOTVID.dll  Mon Jul 13 21:04:34 2009 (4A5BD9A2)
    972c8000 972e1000   bowser   bowser.sys   Mon Jul 13 19:14:21 2009 (4A5BBFCD)
    8bbe6000 8bbf2c00   BrSerIf  BrSerIf.sys  Sun Dec 10 05:26:01 2006 (457BE0B9)
    821fc000 821fee80   BrUsbSer BrUsbSer.sys Sat Sep 02 20:53:37 2006 (44FA2791)
    98220000 9823e000   cdd      cdd.dll      Mon Jul 13 21:04:18 2009 (4A5BD992)
    8bfe0000 8bfff000   cdrom    cdrom.sys    Mon Jul 13 19:11:24 2009 (4A5BBF1C)
    8b88b000 8b936000   CI       CI.dll       Mon Jul 13 21:09:28 2009 (4A5BDAC8)
    8bf94000 8bfb9000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:11:20 2009 (4A5BBF18)
    8b849000 8b88b000   CLFS     CLFS.SYS     Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    8bd84000 8bde1000   cng      cng.sys      Mon Jul 13 19:32:55 2009 (4A5BC427)
    91540000 9154d000   CompositeBus CompositeBus.sys Mon Jul 13 19:45:26 2009 (4A5BC716)
    97373000 9737c000   cpuz135_x32 cpuz135_x32.sys Tue Nov 09 08:32:57 2010 (4CD94D89)
    8201a000 82027000   crashdmp crashdmp.sys Mon Jul 13 19:45:50 2009 (4A5BC72E)
    91383000 913e7000   csc      csc.sys      Mon Jul 13 19:15:08 2009 (4A5BBFFC)
    913e7000 913ff000   dfsc     dfsc.sys     Mon Jul 13 19:14:16 2009 (4A5BBFC8)
    91377000 91383000   discache discache.sys Mon Jul 13 19:24:04 2009 (4A5BC214)
    8c1ed000 8c1fe000   disk     disk.sys     Mon Jul 13 19:11:28 2009 (4A5BBF20)
    82145000 8215e000   drmk     drmk.sys     Mon Jul 13 20:36:05 2009 (4A5BD2F5)
    9141a000 91423000   dump_atapi dump_atapi.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    82027000 82032000   dump_ataport dump_ataport.sys Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8bfb9000 8bfca000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:12:47 2009 (4A5BBF6F)
    821ae000 821b8000   Dxapi    Dxapi.sys    Mon Jul 13 19:25:25 2009 (4A5BC265)
    91cc5000 91d7c000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 20:48:33 2009 (4AC54DE1)
    91d7c000 91db5000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:25:25 2009 (4A5BC265)
    8bb3f000 8bb50000   fileinfo fileinfo.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    8bb0b000 8bb3f000   fltmgr   fltmgr.sys   Mon Jul 13 19:11:13 2009 (4A5BBF11)
    8bdef000 8bdf8000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:11:14 2009 (4A5BBF12)
    8bf62000 8bf94000   fvevol   fvevol.sys   Fri Sep 25 22:24:21 2009 (4ABD7B55)
    8c154000 8c185000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:12:03 2009 (4A5BBF43)
    91df9000 91dfe280   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:16:53 2009 (4A1151B5)
    83214000 8324b000   hal      halmacpi.dll Mon Jul 13 19:11:03 2009 (4A5BBF07)
    91db5000 91dd4000   HDAudBus HDAudBus.sys Mon Jul 13 19:50:55 2009 (4A5BC85F)
    8215e000 821ae000   HdAudio  HdAudio.sys  Mon Jul 13 19:51:46 2009 (4A5BC892)
    82000000 82013000   HIDCLASS HIDCLASS.SYS Mon Jul 13 19:51:01 2009 (4A5BC865)
    82013000 82019480   HIDPARSE HIDPARSE.SYS Mon Jul 13 19:50:59 2009 (4A5BC863)
    821f1000 821fc000   hidusb   hidusb.sys   Mon Jul 13 19:51:04 2009 (4A5BC868)
    97243000 972c8000   HTTP     HTTP.sys     Mon Jul 13 19:12:53 2009 (4A5BBF75)
    8c1e5000 8c1ed000   hwpolicy hwpolicy.sys Mon Jul 13 19:11:01 2009 (4A5BBF05)
    91400000 9140d000   kbdclass kbdclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8bbf3000 8bbff000   kbdhid   kbdhid.sys   Mon Jul 13 19:45:09 2009 (4A5BC705)
    80ba9000 80bb1000   kdcom    kdcom.dll    Mon Jul 13 21:08:58 2009 (4A5BDAAA)
    82033000 82067000   ks       ks.sys       Wed Mar 03 22:57:52 2010 (4B8F2FC0)
    8bd71000 8bd84000   ksecdd   ksecdd.sys   Mon Jul 13 19:11:56 2009 (4A5BBF3C)
    8bf10000 8bf35000   ksecpkg  ksecpkg.sys  Thu Dec 10 23:04:22 2009 (4B21C4C6)
    97220000 97230000   lltdio   lltdio.sys   Mon Jul 13 19:53:18 2009 (4A5BC8EE)
    97205000 97220000   luafv    luafv.sys    Mon Jul 13 19:15:44 2009 (4A5BC020)
    8b825000 8b830000   mcupdate mcupdate.dll Mon Jul 13 19:13:13 2009 (4A5BBF89)
    821b8000 821c3000   monitor  monitor.sys  Mon Jul 13 19:25:58 2009 (4A5BC286)
    9140d000 9141a000   mouclass mouclass.sys Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8c000000 8c00b000   mouhid   mouhid.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8bac0000 8bad6000   mountmgr mountmgr.sys Mon Jul 13 19:11:27 2009 (4A5BBF1F)
    972e1000 972f3000   mpsdrv   mpsdrv.sys   Mon Jul 13 19:52:52 2009 (4A5BC8D4)
    972f3000 97316000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:32:02 2010 (4B88CA72)
    97316000 97351000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:32:21 2010 (4B88CA85)
    97351000 9736c000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:32:11 2010 (4B88CA7B)
    8bb79000 8bb84000   Msfs     Msfs.SYS     Mon Jul 13 19:11:26 2009 (4A5BBF1E)
    8b809000 8b811000   msisadrv msisadrv.sys Mon Jul 13 19:11:09 2009 (4A5BBF0D)
    8bd46000 8bd71000   msrpc    msrpc.sys    Mon Jul 13 19:11:59 2009 (4A5BBF3F)
    9136d000 91377000   mssmbios mssmbios.sys Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    8c1d5000 8c1e5000   mup      mup.sys      Mon Jul 13 19:14:14 2009 (4A5BBFC6)
    8be1b000 8bed2000   ndis     ndis.sys     Mon Jul 13 19:12:24 2009 (4A5BBF58)
    91577000 91582000   ndistapi ndistapi.sys Mon Jul 13 19:54:24 2009 (4A5BC930)
    91582000 915a4000   ndiswan  ndiswan.sys  Mon Jul 13 19:54:34 2009 (4A5BC93A)
    820d9000 820ea000   NDProxy  NDProxy.SYS  Mon Jul 13 19:54:27 2009 (4A5BC933)
    912d7000 912e5000   netbios  netbios.sys  Mon Jul 13 19:53:54 2009 (4A5BC912)
    9127f000 912b1000   netbt    netbt.sys    Mon Jul 13 19:12:18 2009 (4A5BBF52)
    8bed2000 8bf10000   NETIO    NETIO.SYS    Mon Jul 13 19:12:35 2009 (4A5BBF63)
    8bb84000 8bb92000   Npfs     Npfs.SYS     Mon Jul 13 19:11:31 2009 (4A5BBF23)
    91363000 9136d000   nsiproxy nsiproxy.sys Mon Jul 13 19:12:08 2009 (4A5BBF48)
    82e04000 83214000   nt       ntkrpamp.exe Fri Jun 18 23:55:24 2010 (4C1C3FAC)
    8bc17000 8bd46000   Ntfs     Ntfs.sys     Mon Jul 13 19:12:05 2009 (4A5BBF45)
    8be00000 8be07000   Null     Null.SYS     Mon Jul 13 19:11:12 2009 (4A5BBF10)
    82085000 82094300   nusb3hub nusb3hub.sys Thu Nov 18 20:34:11 2010 (4CE5D413)
    91dd4000 91df6900   nusb3xhc nusb3xhc.sys Thu Nov 18 20:34:12 2010 (4CE5D414)
    912b8000 912d7000   pacer    pacer.sys    Mon Jul 13 19:53:58 2009 (4A5BC916)
    91528000 91540000   parport  parport.sys  Mon Jul 13 19:45:34 2009 (4A5BC71E)
    8ba3f000 8ba50000   partmgr  partmgr.sys  Mon Jul 13 19:11:35 2009 (4A5BBF27)
    9736c000 97373000   parvdm   parvdm.sys   Mon Jul 13 19:45:29 2009 (4A5BC719)
    8ba0a000 8ba34000   pci      pci.sys      Mon Jul 13 19:11:16 2009 (4A5BBF14)
    8baab000 8bab2000   pciide   pciide.sys   Mon Jul 13 19:11:19 2009 (4A5BBF17)
    8bab2000 8bac0000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:11:15 2009 (4A5BBF13)
    8bde1000 8bdef000   pcw      pcw.sys      Mon Jul 13 19:11:10 2009 (4A5BBF0E)
    a1036000 a10cd000   peauth   peauth.sys   Mon Jul 13 20:35:44 2009 (4A5BD2E0)
    82116000 82145000   portcls  portcls.sys  Mon Jul 13 19:51:00 2009 (4A5BC864)
    8b830000 8b841000   PSHED    PSHED.dll    Mon Jul 13 21:09:36 2009 (4A5BDAD0)
    9155f000 91577000   rasl2tp  rasl2tp.sys  Mon Jul 13 19:54:33 2009 (4A5BC939)
    915a4000 915bc000   raspppoe raspppoe.sys Mon Jul 13 19:54:53 2009 (4A5BC94D)
    915bc000 915d3000   raspptp  raspptp.sys  Mon Jul 13 19:54:47 2009 (4A5BC947)
    915d3000 915ea000   rassstp  rassstp.sys  Mon Jul 13 19:54:57 2009 (4A5BC951)
    91322000 91363000   rdbss    rdbss.sys    Mon Jul 13 19:14:26 2009 (4A5BBFD2)
    915ea000 915f4000   rdpbus   rdpbus.sys   Mon Jul 13 20:02:40 2009 (4A5BCB20)
    8bc0d000 8bc15000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    8bdf8000 8be00000   rdpencdd rdpencdd.sys Mon Jul 13 20:01:39 2009 (4A5BCAE3)
    8bb71000 8bb79000   rdprefmp rdprefmp.sys Mon Jul 13 20:01:41 2009 (4A5BCAE5)
    8bf35000 8bf62000   rdyboost rdyboost.sys Mon Jul 13 19:22:02 2009 (4A5BC19A)
    97230000 97243000   rspndr   rspndr.sys   Mon Jul 13 19:53:20 2009 (4A5BC8F0)
    914d8000 9151e000   Rt86win7 Rt86win7.sys Mon Mar 22 05:56:53 2010 (4BA73EE5)
    820ea000 82115300   RtHDMIV  RtHDMIV.sys  Tue Jan 26 22:04:40 2010 (4B5FAD48)
    a10cd000 a10d7000   secdrv   secdrv.SYS   Wed Sep 13 09:18:32 2006 (45080528)
    9151e000 91528000   serenum  serenum.sys  Mon Jul 13 19:45:27 2009 (4A5BC717)
    912e5000 912ff000   serial   serial.sys   Mon Jul 13 19:45:33 2009 (4A5BC71D)
    8c1cd000 8c1d5000   spldr    spldr.sys    Mon May 11 12:13:47 2009 (4A084EBB)
    a1154000 a11a5000   srv      srv.sys      Thu Aug 26 23:31:26 2010 (4C77318E)
    a1105000 a1154000   srv2     srv2.sys     Thu Aug 26 23:30:45 2010 (4C773165)
    a10d7000 a10f8000   srvnet   srvnet.sys   Thu Aug 26 23:30:39 2010 (4C77315F)
    91619000 9161a380   swenum   swenum.sys   Mon Jul 13 19:45:08 2009 (4A5BC704)
    8c00b000 8c154000   tcpip    tcpip.sys    Sun Jun 13 23:36:59 2010 (4C15A3DB)
    a10f8000 a1105000   tcpipreg tcpipreg.sys Mon Jul 13 19:54:14 2009 (4A5BC926)
    8bba9000 8bbb4000   TDI      TDI.SYS      Mon Jul 13 19:12:12 2009 (4A5BBF4C)
    8bb92000 8bba9000   tdx      tdx.sys      Mon Jul 13 19:12:10 2009 (4A5BBF4A)
    91312000 91322000   termdd   termdd.sys   Mon Jul 13 20:01:35 2009 (4A5BCADF)
    985e0000 985e9000   TSDDD    TSDDD.dll    Mon Jul 13 20:01:40 2009 (4A5BCAE4)
    8bbb4000 8bbd5000   tunnel   tunnel.sys   Mon Jul 13 19:54:03 2009 (4A5BC91B)
    82077000 82085000   umbus    umbus.sys    Mon Jul 13 19:51:38 2009 (4A5BC88A)
    821c3000 821da000   usbccgp  usbccgp.sys  Mon Jul 13 19:51:31 2009 (4A5BC883)
    91df7000 91df8700   USBD     USBD.SYS     Mon Jul 13 19:51:05 2009 (4A5BC869)
    9160a000 91619000   usbehci  usbehci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    82095000 820d9000   usbhub   usbhub.sys   Mon Jul 13 19:52:06 2009 (4A5BC8A6)
    91600000 9160a000   usbohci  usbohci.sys  Mon Jul 13 19:51:14 2009 (4A5BC872)
    91461000 914ac000   USBPORT  USBPORT.SYS  Mon Jul 13 19:51:13 2009 (4A5BC871)
    915f4000 915ff000   usbprint usbprint.sys Mon Jul 13 20:17:06 2009 (4A5BCE82)
    8bfca000 8bfd8000   usbscan  usbscan.sys  Mon Jul 13 20:14:44 2009 (4A5BCDF4)
    821da000 821f1000   USBSTOR  USBSTOR.SYS  Mon Jul 13 19:51:19 2009 (4A5BC877)
    8ba34000 8ba3f000   vdrvroot vdrvroot.sys Mon Jul 13 19:46:19 2009 (4A5BC74B)
    8be0e000 8be1a000   vga      vga.sys      Mon Jul 13 19:25:50 2009 (4A5BC27E)
    8bb50000 8bb71000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:25:49 2009 (4A5BC27D)
    8c185000 8c18d380   vmstorfl vmstorfl.sys Mon Jul 13 19:28:44 2009 (4A5BC32C)
    8ba50000 8ba60000   volmgr   volmgr.sys   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    8ba60000 8baab000   volmgrx  volmgrx.sys  Mon Jul 13 19:11:41 2009 (4A5BBF2D)
    8c18e000 8c1cd000   volsnap  volsnap.sys  Mon Jul 13 19:11:34 2009 (4A5BBF26)
    912ff000 91312000   wanarp   wanarp.sys   Mon Jul 13 19:55:02 2009 (4A5BC956)
    8bc00000 8bc0d000   watchdog watchdog.sys Mon Jul 13 19:24:10 2009 (4A5BC21A)
    8b936000 8b9a7000   Wdf01000 Wdf01000.sys Mon Jul 13 19:11:36 2009 (4A5BBF28)
    8b9a7000 8b9b5000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:11:25 2009 (4A5BBF1D)
    912b1000 912b8000   wfplwf   wfplwf.sys   Mon Jul 13 19:53:51 2009 (4A5BC90F)
    98380000 985cb000   win32k   win32k.sys   Tue Oct 19 23:00:01 2010 (4CBE5B31)
    91215000 9121e000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:19:16 2009 (4A5BC0F4)
    8b800000 8b809000   WMILIB   WMILIB.SYS   Mon Jul 13 19:11:22 2009 (4A5BBF1A)

    Unloaded modules:
    8bfb9000 8bfc6000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000D000
    8c000000 8c00b000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000B000
    8bfc6000 8bfcf000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    8bfcf000 8bfe0000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00011000



  6. kemical

    kemical Windows Forum Admin
    Staff Member Premium Supporter Microsoft MVP

    Joined:
    Aug 28, 2007
    Messages:
    31,800
    Likes Received:
    1,563
    I did actually mention the RAM in my initial post especially when you say the RAM failed a memory test. If you know the settings were correct then use the link I provided and test your RAM.

  7. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    If the memtest reports at least 1 error this means RAM is faulty. If it detects no errors in 10 passes, then it may be due to RAM being incompattible with the motherboard. In this case I ask you to give link to a web page or a .pdf file with specs for :

    1) you memory sticks
    2) your motherboard model

    So we can verify that the RAM is compatible with the motherboard.

  8. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Ok, thank you for the links. Your motherboard has support for DDR3 1866(OC)/1333/1066 MHz memory modules. If 1866(OC) implies 1600 Mhz is supported as well then yes, your RAM is compatible. However, your motherboard (GA870A) is not on the qualified motherboards list, as the RAM link states.


    The RAM is meant to be set this way:

    DDR3-1600 (PC3 12800)
    9-9-9-24
    1.5 Volts


    Enter bios setup and see what DRAM frequency options you got there.

  10. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I updated High Definition Audio from Realteks website. I didn't update PCI/PCI-E LAN because I didn't know which one to install for PCI or PCI-express. Memtest86 ran for 14 passes and did not detect any errors. My RAM is running at 1333Mhz, 1.5 V, and 9-9-9-24 timing.

    While I was typing this response I had another BSOD : (


    Attached Files:

  11. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I had a thought after my post. I was looking at my mother board manual and I noticed that to enable dual channel memory, the ram must be in sockets 1 and 3. My ram is in sockets 1 and 2. Could this be the problem?

  12. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Set the memory clock to "AUTO".

  13. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    Memory clock is already set to auto.

  14. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Ok, I'll explain: you say the RAM clock is 1333 Mhz. The link you gave me says it's a 1600 Mhz RAM, not 1333 Mhz as your current.



  15. kemical

    kemical Windows Forum Admin
    Staff Member Premium Supporter Microsoft MVP

    Joined:
    Aug 28, 2007
    Messages:
    31,800
    Likes Received:
    1,563
    No this shouldn't cause blue screens but for better performance I would move the sticks over anyway. As Cybercore states make sure your RAM is on the list recommended for your board. If it isn't then that could be your problem.

  16. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    So my only option to fix my problem is to buy new RAM that is on the compatibility list?

  17. kemical

    kemical Windows Forum Admin
    Staff Member Premium Supporter Microsoft MVP

    Joined:
    Aug 28, 2007
    Messages:
    31,800
    Likes Received:
    1,563
    Just reading through the thread again I notice that you don't say if you tested the sticks of RAM individually or not.. This can make a huge difference and RAM must be tested individually.

  18. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I did not test the RAM individually. I will test each stick individually now.

  19. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    A good thing to do, let us know the result.



    ~~~~~~

    Even if both sticks are good, mind they may be simply incompattible with the motherboard.

    Your motherboard has support for DDR3 1866(OC)/1333/1066 MHz memory modules. If 1866(OC) implies 1600 Mhz is supported as well then yes, your RAM is compatible. However, your motherboard (GA870A) is not on the qualified motherboards list, as the RAM link states.


    The RAM is meant to be set this way:

    DDR3-1600 (PC3 12800)
    9-9-9-24
    1.5 Volts


    Enter bios setup and see what DRAM frequency options you got there.

  20. Terror Tabby

    Terror Tabby New Member

    Joined:
    Jan 3, 2011
    Messages:
    22
    Likes Received:
    0
    I tested each stick individually and after 10+ passes for each stick no errors were detected. A friend of mine offered to lend me a stick of his RAM that runs at 1333 MHz to try but its not on Gigabytes compatibility list. I guess I just have to suck it up and buy some new RAM that is compatible. Thanks for all your help!


Share This Page

Loading...
