Random BSOD

Discussion in 'Windows 7 Blue Screen of Death (BSOD)' started by Loozzer, Mar 5, 2011.

  1. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Hello, I'm getting BSOD mostly while playing online games. I have checked memory w/memtest passed. Drivers for video card are up to date. The error messages are all ways different. my machine is just 1yr old and after removing Norton a few months back BSOD went away with it. Unfortunately there back. Thanks for any help in advance.


    Attached Files:

  2. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321

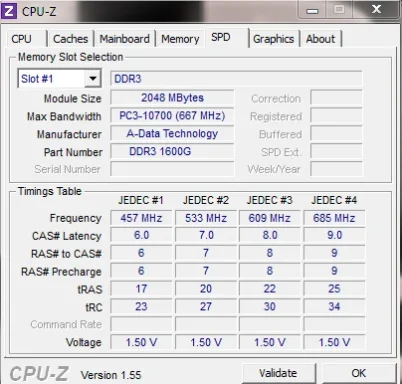

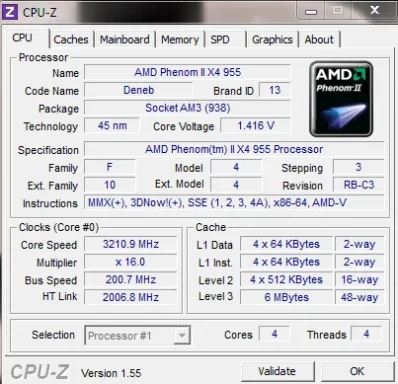

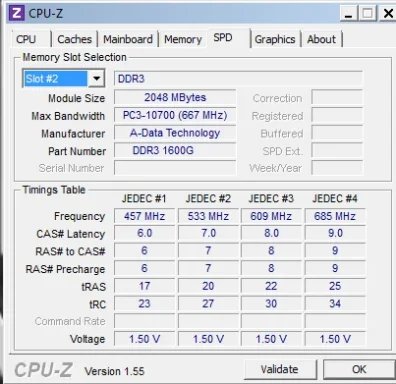

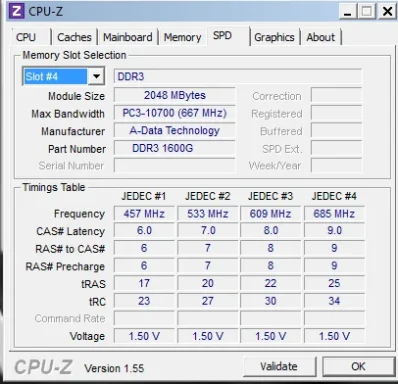

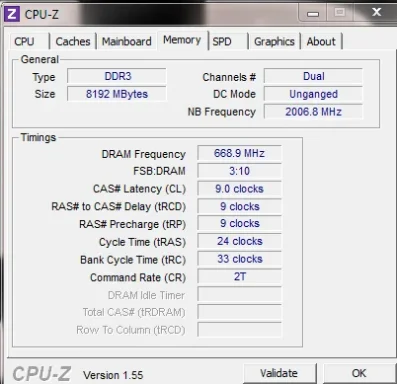

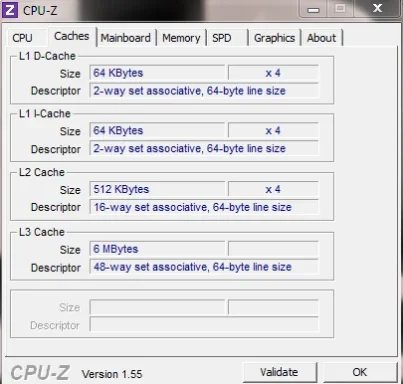

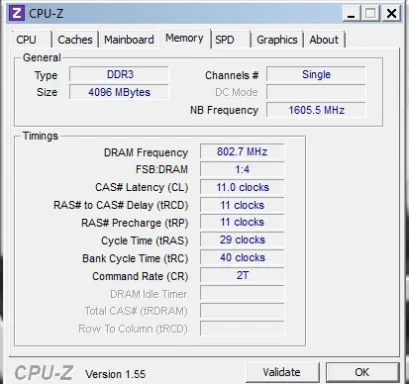

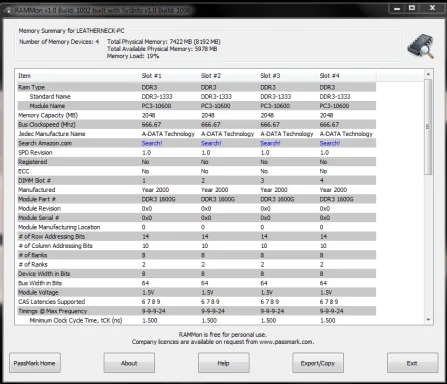

    1. Attach CPU-Z memory tab + RamMon txt, as in the sticky thread of this forum section.



    2. Update or disable ADMtek AN983/AN985 based ethernet adapter
    AN983X64.sys Thu May 19 04:14:27 2005




    3. Update Ideazon ZBoard/Ideazon Fang MM USB HID
    Alpham164.sys Mon Jul 23 03:57:03 2007
    Alpham264.sys Tue Mar 20 05:51:03 2007




    4. Update Atheros AR8121/AR8113/AR8114 PCI-E Ethernet Controller
    L1E62x64.sys Sun Aug 23 01:08:09 2009
    Atheros Communications








    Crash Dumps:

    Code:



    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\030511-25724-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
    Machine Name:
    Kernel base = 0xfffff800`02c4f000 PsLoadedModuleList = 0xfffff800`02e94e90
    Debug session time: Sat Mar  5 01:21:18.632 2011 (UTC - 5:00)
    System Uptime: 0 days 0:24:43.146
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .....................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck C4, {91, 2, fffffa800885e4d0, 0}

    Probably caused by : ntkrnlmp.exe ( nt! ?? ::FNODOBFM::`string'+4874 )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    DRIVER_VERIFIER_DETECTED_VIOLATION (c4)
    A device driver attempting to corrupt the system has been caught.  This is
    because the driver was specified in the registry as being suspect (by the
    administrator) and the kernel has enabled substantial checking of this driver.
    If the driver attempts to corrupt the system, bugchecks 0xC4, 0xC1 and 0xA will
    be among the most commonly seen crashes.
    Arguments:
    Arg1: 0000000000000091, A driver switched stacks using a method that is not supported by
    	the operating system. The only supported way to extend a kernel
    	mode stack is by using KeExpandKernelStackAndCallout.
    Arg2: 0000000000000002
    Arg3: fffffa800885e4d0
    Arg4: 0000000000000000

    Debugging Details:
    ------------------


    BUGCHECK_STR:  0xc4_91

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  svchost.exe

    CURRENT_IRQL:  2

    EXCEPTION_RECORD:  fffff88003c1bd88 -- (.exr 0xfffff88003c1bd88)
    ExceptionAddress: fffff80002cd22e2 (nt!SwapContext_PatchXRstor)
       ExceptionCode: c0000005 (Access violation)
      ExceptionFlags: 00000000
    NumberParameters: 2
       Parameter[0]: 0000000000000000
       Parameter[1]: ffffffffffffffff
    Attempt to read from address ffffffffffffffff

    TRAP_FRAME:  fffff88003c1be30 -- (.trap 0xfffff88003c1be30)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000001 rbx=0000000000000000 rcx=fffff88003c1ce08
    rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002cd22e2 rsp=fffff88003c1bfc0 rbp=fffff88003c1cdb8
     r8=fffffa80088560e8  r9=0000000000000000 r10=fffffffffffffffe
    r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na pe nc
    nt!SwapContext_PatchXRstor:
    fffff800`02cd22e2 0fae09          fxrstor [rcx]    ds:1f80:fffff880`03c1ce08=00
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002d2653a to fffff80002ccf640

    STACK_TEXT:
    fffff880`03c1ae88 fffff800`02d2653a : 00000000`000000c4 00000000`00000091 00000000`00000002 fffffa80`0885e4d0 : nt!KeBugCheckEx
    fffff880`03c1ae90 fffff800`02cf9963 : 00000000`00000000 00000000`00000000 00000000`00000003 00000000`00000000 : nt! ?? ::FNODOBFM::`string'+0x4874
    fffff880`03c1aed0 fffff800`02d0adc1 : fffff880`03c1bd88 fffff880`03c1bae0 fffff880`03c1be30 fffff800`02e4fcc0 : nt!RtlDispatchException+0x33
    fffff880`03c1b5b0 fffff800`02ccecc2 : fffff880`03c1bd88 fffff800`02e41e80 fffff880`03c1be30 fffffa80`0885e4d0 : nt!KiDispatchException+0x135
    fffff880`03c1bc50 fffff800`02ccd5ca : 00000000`00000001 00000000`00000000 00000000`00000000 fffff880`03c1bea0 : nt!KiExceptionDispatch+0xc2
    fffff880`03c1be30 fffff800`02cd22e2 : 00000000`00000000 fffff800`00000000 00000000`00000000 00000000`00000000 : nt!KiGeneralProtectionFault+0x10a
    fffff880`03c1bfc0 fffff800`02cd1eda : fffff880`02f64180 fffff800`02cdb9b8 fffffa80`09212801 fffff880`03c1c9d8 : nt!SwapContext_PatchXRstor
    fffff880`03c1c000 fffff800`02cd4992 : fffffa80`0885e4d0 fffffa80`0885e4d0 fffff880`00000000 fffff800`00000008 : nt!KiSwapContext+0x7a
    fffff880`03c1c140 fffff800`02cd3eaa : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiCommitThreadWait+0x1d2
    fffff880`03c1c1d0 fffff800`02fc5ccf : fffff880`0000002a fffff880`03c1c520 00000000`00000001 00000000`00000006 : nt!KeWaitForMultipleObjects+0x272
    fffff880`03c1c490 fffff800`02fc603e : fffffa80`0822d301 fffff800`02cd22a4 fffff8a0`00000001 fffff800`00000001 : nt!ObpWaitForMultipleObjects+0x294
    fffff880`03c1c960 fffff800`02cce8d3 : fffffa80`0885e4d0 00000000`00c9f708 fffff880`03c1cbc8 fffff880`03c1cc00 : nt!NtWaitForMultipleObjects+0xe5
    fffff880`03c1cbb0 00000000`76fb18ca : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`00c9f6e8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x76fb18ca


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt! ?? ::FNODOBFM::`string'+4874
    fffff800`02d2653a cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  nt! ?? ::FNODOBFM::`string'+4874

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4ce7951a

    FAILURE_BUCKET_ID:  X64_0xc4_91_nt!_??_::FNODOBFM::_string_+4874

    BUCKET_ID:  X64_0xc4_91_nt!_??_::FNODOBFM::_string_+4874

    Followup: MachineOwner
    ---------




















    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\030511-27175-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
    Machine Name:
    Kernel base = 0xfffff800`02c0f000 PsLoadedModuleList = 0xfffff800`02e54e90
    Debug session time: Sat Mar  5 00:55:50.700 2011 (UTC - 5:00)
    System Uptime: 0 days 0:58:17.214
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .....................................
    Loading User Symbols
    Loading unloaded module list
    ......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 19, {20, fffffa80062cc4c0, fffffa80062cc740, d28b100}

    Unable to load image atikmpag.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for atikmpag.sys
    *** ERROR: Module load completed but symbols could not be loaded for atikmpag.sys
    Probably caused by : atikmpag.sys ( atikmpag+5eaf )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    BAD_POOL_HEADER (19)
    The pool is already corrupt at the time of the current request.
    This may or may not be due to the caller.
    The internal pool links must be walked to figure out a possible cause of
    the problem, and then special pool applied to the suspect tags or the driver
    verifier to a suspect driver.
    Arguments:
    Arg1: 0000000000000020, a pool block header size is corrupt.
    Arg2: fffffa80062cc4c0, The pool entry we were looking for within the page.
    Arg3: fffffa80062cc740, The next pool entry.
    Arg4: 000000000d28b100, (reserved)

    Debugging Details:
    ------------------


    BUGCHECK_STR:  0x19_20

    POOL_ADDRESS: GetPointerFromAddress: unable to read from fffff80002ec00e8
     fffffa80062cc4c0

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  BlackOpsMP.exe

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from fffff80002db9cae to fffff80002c8f640

    STACK_TEXT:
    fffff880`09033408 fffff800`02db9cae : 00000000`00000019 00000000`00000020 fffffa80`062cc4c0 fffffa80`062cc740 : nt!KeBugCheckEx
    fffff880`09033410 fffff880`03e05eaf : fffff8a0`0903f330 fffff880`0400a0d1 00000000`7ffff8a0 fffffa80`080b4000 : nt!ExDeferredFreePool+0x12da
    fffff880`090334c0 fffff8a0`0903f330 : fffff880`0400a0d1 00000000`7ffff8a0 fffffa80`080b4000 fffff8a0`00000001 : atikmpag+0x5eaf
    fffff880`090334c8 fffff880`0400a0d1 : 00000000`7ffff8a0 fffffa80`080b4000 fffff8a0`00000001 fffff8a0`0903f330 : 0xfffff8a0`0903f330
    fffff880`090334d0 fffff880`0403d204 : fffffa80`080b4000 00000000`00000000 fffff880`09033570 00000000`00000000 : dxgkrnl!DXGADAPTER::AcquireDdiSync+0xc9
    fffff880`09033510 fffff880`040412c1 : fffff8a0`0903f330 00000000`00000000 00000000`00000000 fffff8a0`0136f000 : dxgkrnl!DXGADAPTER::DdiDestroyAllocation+0x50
    fffff880`09033540 fffff880`04053784 : 00000000`00000001 00000000`00000000 00000000`00000000 fffff8a0`00000799 : dxgkrnl!DXGDEVICE::DestroyAllocations+0x83d
    fffff880`09033630 fffff880`04038815 : 00000000`fffffeda fffff8a0`092de3c0 fffff8a0`0136f000 fffffa80`080b4000 : dxgkrnl!DXGDEVICE::~DXGDEVICE+0x19c
    fffff880`090336a0 fffff880`04076e4a : 00000000`00000001 fffffa80`080b4000 fffff8a0`092de3c0 fffff8a0`092de440 : dxgkrnl!DXGADAPTER::DestroyDevice+0x1c9
    fffff880`090336d0 fffff880`040767e0 : fffff900`c374d300 00000000`00000000 00000000`00000001 fffff900`c374d300 : dxgkrnl!DXGPROCESS::Destroy+0xba
    fffff880`09033780 fffff960`00144e7c : 00000000`00000870 fffff900`c374d300 00000000`00000000 fffff900`c374d300 : dxgkrnl!DxgkProcessCallout+0x268
    fffff880`09033810 fffff960`0014457f : 00000000`00000000 fffff880`09033c20 fffffa80`06373660 00000000`00000000 : win32k!GdiProcessCallout+0x244
    fffff880`09033890 fffff800`02f65001 : 00000000`00000000 00000000`00000000 00000000`00000000 fffffa80`06373600 : win32k!W32pProcessCallout+0x6b
    fffff880`090338c0 fffff800`02f4a37d : 00000000`cfffffff fffff960`00154201 00000000`78457300 fffffa80`093027f0 : nt!PspExitThread+0x4d1
    fffff880`090339c0 fffff800`02c82dfa : fffff900`c06c3010 fffff960`00149fa0 fffff900`c06c3010 00000000`00000000 : nt!PsExitSpecialApc+0x1d
    fffff880`090339f0 fffff800`02c83140 : 00000000`00000246 fffff880`09033a70 fffff800`02f4a2f0 00000000`00000001 : nt!KiDeliverApc+0x2ca
    fffff880`09033a70 fffff800`02c8e977 : fffff880`09033ca0 fffff800`02c9935a 00000000`0000002a 00000000`73ba2450 : nt!KiInitiateUserApc+0x70
    fffff880`09033bb0 00000000`73ba2e09 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceExit+0x9c
    00000000`349af0f8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x73ba2e09


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    atikmpag+5eaf
    fffff880`03e05eaf ??              ???

    SYMBOL_STACK_INDEX:  2

    SYMBOL_NAME:  atikmpag+5eaf

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: atikmpag

    IMAGE_NAME:  atikmpag.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4d409c8d

    FAILURE_BUCKET_ID:  X64_0x19_20_atikmpag+5eaf

    BUCKET_ID:  X64_0x19_20_atikmpag+5eaf

    Followup: MachineOwner
    ---------






    Drivers:

    Code:
    start             end                 module name
    fffff880`04036000 fffff880`04074000   1394ohci 1394ohci.sys Sat Nov 20 05:44:56 2010 (4CE7A6A8)
    fffff880`00e0a000 fffff880`00e61000   ACPI     ACPI.sys     Sat Nov 20 04:19:16 2010 (4CE79294)
    fffff880`02c7a000 fffff880`02d03000   afd      afd.sys      Sat Nov 20 04:23:27 2010 (4CE7938F)
    fffff880`04824000 fffff880`0483a000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`05fdb000 fffff880`05fe7f00   Alpham164 Alpham164.sys Mon Jul 23 03:57:03 2007 (46A45F4F)
    fffff880`05fe8000 fffff880`05fed500   Alpham264 Alpham264.sys Tue Mar 20 05:51:03 2007 (45FFAE87)
    fffff880`03e7d000 fffff880`03e91000   amdiox64 amdiox64.sys Thu Feb 18 10:17:53 2010 (4B7D5A21)
    fffff880`03f70000 fffff880`03f85000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00fee000 fffff880`00ff9000   amdxata  amdxata.sys  Fri Mar 19 12:18:18 2010 (4BA3A3CA)
    fffff880`041ee000 fffff880`041ff000   AN983X64 AN983X64.sys Thu May 19 04:14:27 2005 (428C4AE3)
    fffff880`04090000 fffff880`04098000   ASACPI   ASACPI.sys   Wed Jul 15 23:31:29 2009 (4A5E9F11)
    fffff880`03f44000 fffff880`03f4a000   AsIO     AsIO.sys     Thu Apr 22 07:18:03 2010 (4BD0306B)
    fffff880`08e00000 fffff880`08e0b000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00fbb000 fffff880`00fc4000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fc4000 fffff880`00fee000   ataport  ataport.SYS  Sat Nov 20 04:19:15 2010 (4CE79293)
    fffff880`05e5f000 fffff880`05e7f000   AtihdW76 AtihdW76.sys Wed Nov 17 07:02:04 2010 (4CE3C43C)
    fffff880`048a8000 fffff880`051a4000   atikmdag atikmdag.sys Wed Jan 26 17:48:28 2011 (4D40A4BC)
    fffff880`03f85000 fffff880`03fd3000   atikmpag atikmpag.sys Wed Jan 26 17:13:33 2011 (4D409C8D)
    fffff880`0166f000 fffff880`01676000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03f33000 fffff880`03f44000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`06f2d000 fffff880`06f4b000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`006a0000 fffff960`006c7000   cdd      cdd.dll      Sat Nov 20 07:55:34 2010 (4CE7C546)
    fffff880`0148b000 fffff880`014b5000   cdrom    cdrom.sys    Sat Nov 20 04:19:20 2010 (4CE79298)
    fffff880`00c99000 fffff880`00d59000   CI       CI.dll       Sat Nov 20 08:12:36 2010 (4CE7C944)
    fffff880`01600000 fffff880`01630000   CLASSPNP CLASSPNP.SYS Sat Nov 20 04:19:23 2010 (4CE7929B)
    fffff880`00c3b000 fffff880`00c99000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0111a000 fffff880`0118c000   cng      cng.sys      Sat Nov 20 05:08:45 2010 (4CE79E2D)
    fffff880`04809000 fffff880`04819000   CompositeBus CompositeBus.sys Sat Nov 20 05:33:17 2010 (4CE7A3ED)
    fffff880`06e24000 fffff880`06e2d000   cpuz133_x64 cpuz133_x64.sys Tue May 11 05:58:57 2010 (4BE92A61)
    fffff880`06e2d000 fffff880`06e36000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
    fffff880`05f4c000 fffff880`05f5a000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03e92000 fffff880`03f15000   csc      csc.sys      Sat Nov 20 04:27:12 2010 (4CE79470)
    fffff880`05f82000 fffff880`05f84f00   dadder   dadder.sys   Mon Apr 19 05:04:42 2010 (4BCC1CAA)
    fffff880`03f15000 fffff880`03f33000   dfsc     dfsc.sys     Sat Nov 20 04:26:31 2010 (4CE79447)
    fffff880`02c68000 fffff880`02c77000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`019c6000 fffff880`019dc000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`05ebc000 fffff880`05ede000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`05f66000 fffff880`05f6f000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05f5a000 fffff880`05f66000   dump_ataport dump_ataport.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05f6f000 fffff880`05f82000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`05f40000 fffff880`05f4c000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`040b4000 fffff880`041a8000   dxgkrnl  dxgkrnl.sys  Sat Nov 20 04:50:50 2010 (4CE799FA)
    fffff880`041a8000 fffff880`041ee000   dxgmms1  dxgmms1.sys  Sat Nov 20 04:49:53 2010 (4CE799C1)
    fffff880`060af000 fffff880`06186000   eamonm   eamonm.sys   Wed Jul 14 04:13:43 2010 (4C3D71B7)
    fffff880`015c3000 fffff880`015e8000   ehdrv    ehdrv.sys    Wed Jul 14 04:14:21 2010 (4C3D71DD)
    fffff880`061a7000 fffff880`061d4000   epfw     epfw.sys     Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`04819000 fffff880`04824000   Epfwndis Epfwndis.sys Wed Jul 14 04:10:31 2010 (4C3D70F7)
    fffff880`06e36000 fffff880`06e47000   epfwwfp  epfwwfp.sys  Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`06018000 fffff880`0604e000   fastfat  fastfat.SYS  Mon Jul 13 19:23:28 2009 (4A5BC1F0)
    fffff880`040a4000 fffff880`040b1000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`010a8000 fffff880`010bc000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`02dd2000 fffff880`02ddd000   flpydisk flpydisk.sys Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`0105c000 fffff880`010a8000   fltmgr   fltmgr.sys   Sat Nov 20 04:19:24 2010 (4CE7929C)
    fffff880`013f4000 fffff880`013fe000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`01983000 fffff880`019bd000   fvevol   fvevol.sys   Sat Nov 20 04:24:06 2010 (4CE793B6)
    fffff880`01889000 fffff880`018d3000   fwpkclnt fwpkclnt.sys Sat Nov 20 04:21:37 2010 (4CE79321)
    fffff800`02c06000 fffff800`02c4f000   hal      hal.dll      Sat Nov 20 08:00:25 2010 (4CE7C669)
    fffff880`04000000 fffff880`04024000   HDAudBus HDAudBus.sys Sat Nov 20 05:43:42 2010 (4CE7A65E)
    fffff880`05ee4000 fffff880`05f40000   HdAudio  HdAudio.sys  Sat Nov 20 05:44:23 2010 (4CE7A687)
    fffff880`03e3b000 fffff880`03e54000   HIDCLASS HIDCLASS.SYS Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`04899000 fffff880`048a1080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`05f85000 fffff880`05f93000   hidusb   hidusb.sys   Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`06e64000 fffff880`06f2d000   HTTP     HTTP.sys     Sat Nov 20 04:24:30 2010 (4CE793CE)
    fffff880`019bd000 fffff880`019c6000   hwpolicy hwpolicy.sys Sat Nov 20 04:18:54 2010 (4CE7927E)
    fffff880`03e5f000 fffff880`03e6e000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05e51000 fffff880`05e5f000   kbdhid   kbdhid.sys   Sat Nov 20 05:33:25 2010 (4CE7A3F5)
    fffff800`00bcf000 fffff800`00bd9000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`011bb000 fffff880`011fe000   ks       ks.sys       Sat Nov 20 05:33:23 2010 (4CE7A3F3)
    fffff880`013c8000 fffff880`013e3000   ksecdd   ksecdd.sys   Sat Nov 20 04:21:15 2010 (4CE7930B)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Sat Nov 20 05:10:34 2010 (4CE79E9A)
    fffff880`05ede000 fffff880`05ee3200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`04024000 fffff880`04036000   L1E62x64 L1E62x64.sys Sun Aug 23 01:08:09 2009 (4A90CEB9)
    fffff880`061d4000 fffff880`061e9000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05e00000 fffff880`05e23000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c1a000 fffff880`00c27000   mcupdate mcupdate.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`05fb0000 fffff880`05fbe000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`03e6e000 fffff880`03e7d000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`02df2000 fffff880`02dff000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00f51000 fffff880`00f6b000   mountmgr mountmgr.sys Sat Nov 20 04:19:21 2010 (4CE79299)
    fffff880`06f4b000 fffff880`06f63000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06f63000 fffff880`06f90000   mrxsmb   mrxsmb.sys   Sat Nov 20 04:27:41 2010 (4CE7948D)
    fffff880`06f90000 fffff880`06fdd000   mrxsmb10 mrxsmb10.sys Sat Nov 20 04:26:53 2010 (4CE7945D)
    fffff880`06e00000 fffff880`06e24000   mrxsmb20 mrxsmb20.sys Sat Nov 20 04:26:47 2010 (4CE79457)
    fffff880`015f1000 fffff880`015fc000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e6a000 fffff880`00e74000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010bc000 fffff880`0111a000   msrpc    msrpc.sys    Sat Nov 20 04:21:56 2010 (4CE79334)
    fffff880`02c5d000 fffff880`02c68000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`01971000 fffff880`01983000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014d0000 fffff880`015c3000   ndis     ndis.sys     Sat Nov 20 04:23:30 2010 (4CE79392)
    fffff880`0485e000 fffff880`0486a000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`08e5e000 fffff880`08e71000   ndisuio  ndisuio.sys  Sat Nov 20 05:50:08 2010 (4CE7A7E0)
    fffff880`0486a000 fffff880`04899000   ndiswan  ndiswan.sys  Sat Nov 20 05:52:32 2010 (4CE7A870)
    fffff880`02ddd000 fffff880`02df2000   NDProxy  NDProxy.SYS  Sat Nov 20 05:52:20 2010 (4CE7A864)
    fffff880`02d77000 fffff880`02d86000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d03000 fffff880`02d48000   netbt    netbt.sys    Sat Nov 20 04:23:18 2010 (4CE79386)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Sat Nov 20 04:23:13 2010 (4CE79381)
    fffff880`014b5000 fffff880`014c6000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02c51000 fffff880`02c5d000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02c4f000 fffff800`03239000   nt       ntkrnlmp.exe Sat Nov 20 04:30:02 2010 (4CE7951A)
    fffff880`01225000 fffff880`013c8000   Ntfs     Ntfs.sys     Sat Nov 20 04:20:57 2010 (4CE792F9)
    fffff880`01666000 fffff880`0166f000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`08e0b000 fffff880`08e5e000   nwifi    nwifi.sys    Mon Jul 13 20:07:23 2009 (4A5BCC3B)
    fffff880`02d51000 fffff880`02d77000   pacer    pacer.sys    Sat Nov 20 05:52:18 2010 (4CE7A862)
    fffff880`00eb4000 fffff880`00ec9000   partmgr  partmgr.sys  Sat Nov 20 04:20:00 2010 (4CE792C0)
    fffff880`00e74000 fffff880`00ea7000   pci      pci.sys      Sat Nov 20 04:19:11 2010 (4CE7928F)
    fffff880`00f3a000 fffff880`00f41000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00f41000 fffff880`00f51000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013e3000 fffff880`013f4000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`08a46000 fffff880`08aec000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`05e7f000 fffff880`05ebc000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c27000 fffff880`00c3b000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`0483a000 fffff880`0485e000   rasl2tp  rasl2tp.sys  Sat Nov 20 05:52:34 2010 (4CE7A872)
    fffff880`03fd3000 fffff880`03fee000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`03e00000 fffff880`03e21000   raspptp  raspptp.sys  Sat Nov 20 05:52:31 2010 (4CE7A86F)
    fffff880`03e21000 fffff880`03e3b000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02c00000 fffff880`02c51000   rdbss    rdbss.sys    Sat Nov 20 04:27:51 2010 (4CE79497)
    fffff880`03e54000 fffff880`03e5f000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
    fffff880`019ec000 fffff880`019f5000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`019f5000 fffff880`019fe000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`015e8000 fffff880`015f1000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01937000 fffff880`01971000   rdyboost rdyboost.sys Sat Nov 20 04:43:10 2010 (4CE7982E)
    fffff880`06000000 fffff880`06018000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`08aec000 fffff880`08af7000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04098000 fffff880`040a4000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02d86000 fffff880`02da3000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`0192f000 fffff880`01937000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08ef5000 fffff880`08f8e000   srv      srv.sys      Sat Nov 20 04:28:05 2010 (4CE794A5)
    fffff880`08b3a000 fffff880`08ba5000   srv2     srv2.sys     Sat Nov 20 04:27:43 2010 (4CE7948F)
    fffff880`08af7000 fffff880`08b28000   srvnet   srvnet.sys   Sat Nov 20 04:27:20 2010 (4CE79478)
    fffff880`048a2000 fffff880`048a3480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01685000 fffff880`01889000   tcpip    tcpip.sys    Sat Nov 20 04:25:52 2010 (4CE79420)
    fffff880`08b28000 fffff880`08b3a000   tcpipreg tcpipreg.sys Sat Nov 20 05:51:48 2010 (4CE7A844)
    fffff880`011ae000 fffff880`011bb000   TDI      TDI.SYS      Sat Nov 20 04:22:06 2010 (4CE7933E)
    fffff880`0118c000 fffff880`011ae000   tdx      tdx.sys      Sat Nov 20 04:21:54 2010 (4CE79332)
    fffff880`02dbe000 fffff880`02dd2000   termdd   termdd.sys   Sat Nov 20 06:03:40 2010 (4CE7AB0C)
    fffff960`005c0000 fffff960`005ca000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`03f4a000 fffff880`03f70000   tunnel   tunnel.sys   Sat Nov 20 05:51:50 2010 (4CE7A846)
    fffff880`03fee000 fffff880`04000000   umbus    umbus.sys    Sat Nov 20 05:44:37 2010 (4CE7A695)
    fffff880`05fbe000 fffff880`05fdb000   usbccgp  usbccgp.sys  Sat Nov 20 05:44:03 2010 (4CE7A673)
    fffff880`05f93000 fffff880`05f94f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0407f000 fffff880`04090000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`01000000 fffff880`0105a000   usbhub   usbhub.sys   Sat Nov 20 05:44:30 2010 (4CE7A68E)
    fffff880`04074000 fffff880`0407f000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`051a4000 fffff880`051fa000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`05f95000 fffff880`05fb0000   USBSTOR  USBSTOR.SYS  Sat Nov 20 05:44:05 2010 (4CE7A675)
    fffff880`00ea7000 fffff880`00eb4000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`01676000 fffff880`01684000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`040b1000 fffff880`040b2d80   vHidDev  vHidDev.sys  Mon Dec 21 08:49:58 2009 (4B2F7D06)
    fffff880`01200000 fffff880`01225000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f6b000 fffff880`00fa7000   vmbus    vmbus.sys    Sat Nov 20 04:57:29 2010 (4CE79B89)
    fffff880`018d3000 fffff880`018e3000   vmstorfl vmstorfl.sys Sat Nov 20 04:57:30 2010 (4CE79B8A)
    fffff880`00ec9000 fffff880`00ede000   volmgr   volmgr.sys   Sat Nov 20 04:19:28 2010 (4CE792A0)
    fffff880`00ede000 fffff880`00f3a000   volmgrx  volmgrx.sys  Sat Nov 20 04:20:43 2010 (4CE792EB)
    fffff880`018e3000 fffff880`0192f000   volsnap  volsnap.sys  Sat Nov 20 04:20:08 2010 (4CE792C8)
    fffff880`02da3000 fffff880`02dbe000   wanarp   wanarp.sys   Sat Nov 20 05:52:36 2010 (4CE7A874)
    fffff880`019dc000 fffff880`019ec000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00d59000 fffff880`00dfd000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00c00000 fffff880`00c0f000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02d48000 fffff880`02d51000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00020000 fffff960`00331000   win32k   win32k.sys   Wed Jan 05 01:55:38 2011 (4D2415EA)
    fffff880`00fa7000 fffff880`00fbb000   winhv    winhv.sys    Sat Nov 20 04:20:02 2010 (4CE792C2)
    fffff880`04800000 fffff880`04809000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00e61000 fffff880`00e6a000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`06186000 fffff880`061a7000   WudfPf   WudfPf.sys   Sat Nov 20 05:42:44 2010 (4CE7A624)
    fffff880`08e71000 fffff880`08ea2000   WUDFRd   WUDFRd.sys   Sat Nov 20 05:43:32 2010 (4CE7A654)

    Unloaded modules:
    fffff880`08f8e000 fffff880`08fff000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`01630000 fffff880`0163e000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0163e000 fffff880`0164a000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`0164a000 fffff880`01653000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`01653000 fffff880`01666000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  3. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Thanks for the reply. Here are the files,I'll update per ur request.


    Attached Files:

    • ram1.PNG
      File size:
      81.4 KB
      Views:
      208
    • 4.PNG
      File size:
      39.1 KB
      Views:
      191
  4. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    The memory settings look right, and the RAM sticks are matching, thank you for the screenshots.

  5. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Removed admtek, updated z board, could not find newer driver for nic card. Will try test run.Any troubles pointing to vid card? Thanks for ur help.

  6. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    BAD_POOL_HEADER (19) caused by ATI driver which you have the latest Jan 26.
    (May wanna reinstall it with the use of the driver sweeper. But first I would update the other drivers I listed.)

  7. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Thanks was able to update nic card (duh) Thanks again . Test run will let u know.

  8. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Did not last with in 10 min BSOD here are the files.:mad:


    Attached Files:

    • Q.zip
      File size:
      56.3 KB
      Views:
      172
    • d.zip
      File size:
      33.2 KB
      Views:
      154
    #8 Loozzer, Mar 5, 2011
    Last edited: Mar 5, 2011
  9. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    1. Disable Driver Verifier!


    2. Old drivers,

    AN983X64.sys Thu May 19 04:14:27 2005
    Alpham164.sys Mon Jul 23 03:57:03 2007






    Crash Dumps:

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\030511-27175-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
    Machine Name:
    Kernel base = 0xfffff800`02c0f000 PsLoadedModuleList = 0xfffff800`02e54e90
    Debug session time: Sat Mar  5 00:55:50.700 2011 (UTC - 5:00)
    System Uptime: 0 days 0:58:17.214
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .....................................
    Loading User Symbols
    Loading unloaded module list
    ......
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 19, {20, fffffa80062cc4c0, fffffa80062cc740, d28b100}

    Unable to load image atikmpag.sys, Win32 error 0n2
    *** WARNING: Unable to verify timestamp for atikmpag.sys
    *** ERROR: Module load completed but symbols could not be loaded for atikmpag.sys
    Probably caused by : atikmpag.sys ( atikmpag+5eaf )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    BAD_POOL_HEADER (19)
    The pool is already corrupt at the time of the current request.
    This may or may not be due to the caller.
    The internal pool links must be walked to figure out a possible cause of
    the problem, and then special pool applied to the suspect tags or the driver
    verifier to a suspect driver.
    Arguments:
    Arg1: 0000000000000020, a pool block header size is corrupt.
    Arg2: fffffa80062cc4c0, The pool entry we were looking for within the page.
    Arg3: fffffa80062cc740, The next pool entry.
    Arg4: 000000000d28b100, (reserved)

    Debugging Details:
    ------------------


    BUGCHECK_STR:  0x19_20

    POOL_ADDRESS: GetPointerFromAddress: unable to read from fffff80002ec00e8
     fffffa80062cc4c0

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  BlackOpsMP.exe

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from fffff80002db9cae to fffff80002c8f640

    STACK_TEXT:
    fffff880`09033408 fffff800`02db9cae : 00000000`00000019 00000000`00000020 fffffa80`062cc4c0 fffffa80`062cc740 : nt!KeBugCheckEx
    fffff880`09033410 fffff880`03e05eaf : fffff8a0`0903f330 fffff880`0400a0d1 00000000`7ffff8a0 fffffa80`080b4000 : nt!ExDeferredFreePool+0x12da
    fffff880`090334c0 fffff8a0`0903f330 : fffff880`0400a0d1 00000000`7ffff8a0 fffffa80`080b4000 fffff8a0`00000001 : atikmpag+0x5eaf
    fffff880`090334c8 fffff880`0400a0d1 : 00000000`7ffff8a0 fffffa80`080b4000 fffff8a0`00000001 fffff8a0`0903f330 : 0xfffff8a0`0903f330
    fffff880`090334d0 fffff880`0403d204 : fffffa80`080b4000 00000000`00000000 fffff880`09033570 00000000`00000000 : dxgkrnl!DXGADAPTER::AcquireDdiSync+0xc9
    fffff880`09033510 fffff880`040412c1 : fffff8a0`0903f330 00000000`00000000 00000000`00000000 fffff8a0`0136f000 : dxgkrnl!DXGADAPTER::DdiDestroyAllocation+0x50
    fffff880`09033540 fffff880`04053784 : 00000000`00000001 00000000`00000000 00000000`00000000 fffff8a0`00000799 : dxgkrnl!DXGDEVICE::DestroyAllocations+0x83d
    fffff880`09033630 fffff880`04038815 : 00000000`fffffeda fffff8a0`092de3c0 fffff8a0`0136f000 fffffa80`080b4000 : dxgkrnl!DXGDEVICE::~DXGDEVICE+0x19c
    fffff880`090336a0 fffff880`04076e4a : 00000000`00000001 fffffa80`080b4000 fffff8a0`092de3c0 fffff8a0`092de440 : dxgkrnl!DXGADAPTER::DestroyDevice+0x1c9
    fffff880`090336d0 fffff880`040767e0 : fffff900`c374d300 00000000`00000000 00000000`00000001 fffff900`c374d300 : dxgkrnl!DXGPROCESS::Destroy+0xba
    fffff880`09033780 fffff960`00144e7c : 00000000`00000870 fffff900`c374d300 00000000`00000000 fffff900`c374d300 : dxgkrnl!DxgkProcessCallout+0x268
    fffff880`09033810 fffff960`0014457f : 00000000`00000000 fffff880`09033c20 fffffa80`06373660 00000000`00000000 : win32k!GdiProcessCallout+0x244
    fffff880`09033890 fffff800`02f65001 : 00000000`00000000 00000000`00000000 00000000`00000000 fffffa80`06373600 : win32k!W32pProcessCallout+0x6b
    fffff880`090338c0 fffff800`02f4a37d : 00000000`cfffffff fffff960`00154201 00000000`78457300 fffffa80`093027f0 : nt!PspExitThread+0x4d1
    fffff880`090339c0 fffff800`02c82dfa : fffff900`c06c3010 fffff960`00149fa0 fffff900`c06c3010 00000000`00000000 : nt!PsExitSpecialApc+0x1d
    fffff880`090339f0 fffff800`02c83140 : 00000000`00000246 fffff880`09033a70 fffff800`02f4a2f0 00000000`00000001 : nt!KiDeliverApc+0x2ca
    fffff880`09033a70 fffff800`02c8e977 : fffff880`09033ca0 fffff800`02c9935a 00000000`0000002a 00000000`73ba2450 : nt!KiInitiateUserApc+0x70
    fffff880`09033bb0 00000000`73ba2e09 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceExit+0x9c
    00000000`349af0f8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x73ba2e09


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    atikmpag+5eaf
    fffff880`03e05eaf ??              ???

    SYMBOL_STACK_INDEX:  2

    SYMBOL_NAME:  atikmpag+5eaf

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: atikmpag

    IMAGE_NAME:  atikmpag.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4d409c8d

    FAILURE_BUCKET_ID:  X64_0x19_20_atikmpag+5eaf

    BUCKET_ID:  X64_0x19_20_atikmpag+5eaf

    Followup: MachineOwner
    ---------























    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\030511-25724-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
    Machine Name:
    Kernel base = 0xfffff800`02c4f000 PsLoadedModuleList = 0xfffff800`02e94e90
    Debug session time: Sat Mar  5 01:21:18.632 2011 (UTC - 5:00)
    System Uptime: 0 days 0:24:43.146
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    .....................................
    Loading User Symbols
    Loading unloaded module list
    .....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck C4, {91, 2, fffffa800885e4d0, 0}

    Probably caused by : ntkrnlmp.exe ( nt! ?? ::FNODOBFM::`string'+4874 )

    Followup: MachineOwner
    ---------

    0: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    DRIVER_VERIFIER_DETECTED_VIOLATION (c4)
    A device driver attempting to corrupt the system has been caught.  This is
    because the driver was specified in the registry as being suspect (by the
    administrator) and the kernel has enabled substantial checking of this driver.
    If the driver attempts to corrupt the system, bugchecks 0xC4, 0xC1 and 0xA will
    be among the most commonly seen crashes.
    Arguments:
    Arg1: 0000000000000091, A driver switched stacks using a method that is not supported by
    	the operating system. The only supported way to extend a kernel
    	mode stack is by using KeExpandKernelStackAndCallout.
    Arg2: 0000000000000002
    Arg3: fffffa800885e4d0
    Arg4: 0000000000000000

    Debugging Details:
    ------------------


    BUGCHECK_STR:  0xc4_91

    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    PROCESS_NAME:  svchost.exe

    CURRENT_IRQL:  2

    EXCEPTION_RECORD:  fffff88003c1bd88 -- (.exr 0xfffff88003c1bd88)
    ExceptionAddress: fffff80002cd22e2 (nt!SwapContext_PatchXRstor)
       ExceptionCode: c0000005 (Access violation)
      ExceptionFlags: 00000000
    NumberParameters: 2
       Parameter[0]: 0000000000000000
       Parameter[1]: ffffffffffffffff
    Attempt to read from address ffffffffffffffff

    TRAP_FRAME:  fffff88003c1be30 -- (.trap 0xfffff88003c1be30)
    NOTE: The trap frame does not contain all registers.
    Some register values may be zeroed or incorrect.
    rax=0000000000000001 rbx=0000000000000000 rcx=fffff88003c1ce08
    rdx=0000000000000000 rsi=0000000000000000 rdi=0000000000000000
    rip=fffff80002cd22e2 rsp=fffff88003c1bfc0 rbp=fffff88003c1cdb8
     r8=fffffa80088560e8  r9=0000000000000000 r10=fffffffffffffffe
    r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
    r14=0000000000000000 r15=0000000000000000
    iopl=0         nv up ei pl nz na pe nc
    nt!SwapContext_PatchXRstor:
    fffff800`02cd22e2 0fae09          fxrstor [rcx]    ds:1f80:fffff880`03c1ce08=00
    Resetting default scope

    LAST_CONTROL_TRANSFER:  from fffff80002d2653a to fffff80002ccf640

    STACK_TEXT:
    fffff880`03c1ae88 fffff800`02d2653a : 00000000`000000c4 00000000`00000091 00000000`00000002 fffffa80`0885e4d0 : nt!KeBugCheckEx
    fffff880`03c1ae90 fffff800`02cf9963 : 00000000`00000000 00000000`00000000 00000000`00000003 00000000`00000000 : nt! ?? ::FNODOBFM::`string'+0x4874
    fffff880`03c1aed0 fffff800`02d0adc1 : fffff880`03c1bd88 fffff880`03c1bae0 fffff880`03c1be30 fffff800`02e4fcc0 : nt!RtlDispatchException+0x33
    fffff880`03c1b5b0 fffff800`02ccecc2 : fffff880`03c1bd88 fffff800`02e41e80 fffff880`03c1be30 fffffa80`0885e4d0 : nt!KiDispatchException+0x135
    fffff880`03c1bc50 fffff800`02ccd5ca : 00000000`00000001 00000000`00000000 00000000`00000000 fffff880`03c1bea0 : nt!KiExceptionDispatch+0xc2
    fffff880`03c1be30 fffff800`02cd22e2 : 00000000`00000000 fffff800`00000000 00000000`00000000 00000000`00000000 : nt!KiGeneralProtectionFault+0x10a
    fffff880`03c1bfc0 fffff800`02cd1eda : fffff880`02f64180 fffff800`02cdb9b8 fffffa80`09212801 fffff880`03c1c9d8 : nt!SwapContext_PatchXRstor
    fffff880`03c1c000 fffff800`02cd4992 : fffffa80`0885e4d0 fffffa80`0885e4d0 fffff880`00000000 fffff800`00000008 : nt!KiSwapContext+0x7a
    fffff880`03c1c140 fffff800`02cd3eaa : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiCommitThreadWait+0x1d2
    fffff880`03c1c1d0 fffff800`02fc5ccf : fffff880`0000002a fffff880`03c1c520 00000000`00000001 00000000`00000006 : nt!KeWaitForMultipleObjects+0x272
    fffff880`03c1c490 fffff800`02fc603e : fffffa80`0822d301 fffff800`02cd22a4 fffff8a0`00000001 fffff800`00000001 : nt!ObpWaitForMultipleObjects+0x294
    fffff880`03c1c960 fffff800`02cce8d3 : fffffa80`0885e4d0 00000000`00c9f708 fffff880`03c1cbc8 fffff880`03c1cc00 : nt!NtWaitForMultipleObjects+0xe5
    fffff880`03c1cbb0 00000000`76fb18ca : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
    00000000`00c9f6e8 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x76fb18ca


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    nt! ?? ::FNODOBFM::`string'+4874
    fffff800`02d2653a cc              int     3

    SYMBOL_STACK_INDEX:  1

    SYMBOL_NAME:  nt! ?? ::FNODOBFM::`string'+4874

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: nt

    IMAGE_NAME:  ntkrnlmp.exe

    DEBUG_FLR_IMAGE_TIMESTAMP:  4ce7951a

    FAILURE_BUCKET_ID:  X64_0xc4_91_nt!_??_::FNODOBFM::_string_+4874

    BUCKET_ID:  X64_0xc4_91_nt!_??_::FNODOBFM::_string_+4874

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start             end                 module name
    fffff880`04036000 fffff880`04074000   1394ohci 1394ohci.sys Sat Nov 20 05:44:56 2010 (4CE7A6A8)
    fffff880`00e0a000 fffff880`00e61000   ACPI     ACPI.sys     Sat Nov 20 04:19:16 2010 (4CE79294)
    fffff880`02c7a000 fffff880`02d03000   afd      afd.sys      Sat Nov 20 04:23:27 2010 (4CE7938F)
    fffff880`04824000 fffff880`0483a000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`05fdb000 fffff880`05fe7f00   Alpham164 Alpham164.sys Mon Jul 23 03:57:03 2007 (46A45F4F)
    fffff880`05fe8000 fffff880`05fed500   Alpham264 Alpham264.sys Tue Mar 20 05:51:03 2007 (45FFAE87)
    fffff880`03e7d000 fffff880`03e91000   amdiox64 amdiox64.sys Thu Feb 18 10:17:53 2010 (4B7D5A21)
    fffff880`03f70000 fffff880`03f85000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00fee000 fffff880`00ff9000   amdxata  amdxata.sys  Fri Mar 19 12:18:18 2010 (4BA3A3CA)
    fffff880`041ee000 fffff880`041ff000   AN983X64 AN983X64.sys Thu May 19 04:14:27 2005 (428C4AE3)
    fffff880`04090000 fffff880`04098000   ASACPI   ASACPI.sys   Wed Jul 15 23:31:29 2009 (4A5E9F11)
    fffff880`03f44000 fffff880`03f4a000   AsIO     AsIO.sys     Thu Apr 22 07:18:03 2010 (4BD0306B)
    fffff880`08e00000 fffff880`08e0b000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00fbb000 fffff880`00fc4000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fc4000 fffff880`00fee000   ataport  ataport.SYS  Sat Nov 20 04:19:15 2010 (4CE79293)
    fffff880`05e5f000 fffff880`05e7f000   AtihdW76 AtihdW76.sys Wed Nov 17 07:02:04 2010 (4CE3C43C)
    fffff880`048a8000 fffff880`051a4000   atikmdag atikmdag.sys Wed Jan 26 17:48:28 2011 (4D40A4BC)
    fffff880`03f85000 fffff880`03fd3000   atikmpag atikmpag.sys Wed Jan 26 17:13:33 2011 (4D409C8D)
    fffff880`0166f000 fffff880`01676000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03f33000 fffff880`03f44000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`06f2d000 fffff880`06f4b000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`006a0000 fffff960`006c7000   cdd      cdd.dll      Sat Nov 20 07:55:34 2010 (4CE7C546)
    fffff880`0148b000 fffff880`014b5000   cdrom    cdrom.sys    Sat Nov 20 04:19:20 2010 (4CE79298)
    fffff880`00c99000 fffff880`00d59000   CI       CI.dll       Sat Nov 20 08:12:36 2010 (4CE7C944)
    fffff880`01600000 fffff880`01630000   CLASSPNP CLASSPNP.SYS Sat Nov 20 04:19:23 2010 (4CE7929B)
    fffff880`00c3b000 fffff880`00c99000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0111a000 fffff880`0118c000   cng      cng.sys      Sat Nov 20 05:08:45 2010 (4CE79E2D)
    fffff880`04809000 fffff880`04819000   CompositeBus CompositeBus.sys Sat Nov 20 05:33:17 2010 (4CE7A3ED)
    fffff880`06e24000 fffff880`06e2d000   cpuz133_x64 cpuz133_x64.sys Tue May 11 05:58:57 2010 (4BE92A61)
    fffff880`06e2d000 fffff880`06e36000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
    fffff880`05f4c000 fffff880`05f5a000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03e92000 fffff880`03f15000   csc      csc.sys      Sat Nov 20 04:27:12 2010 (4CE79470)
    fffff880`05f82000 fffff880`05f84f00   dadder   dadder.sys   Mon Apr 19 05:04:42 2010 (4BCC1CAA)
    fffff880`03f15000 fffff880`03f33000   dfsc     dfsc.sys     Sat Nov 20 04:26:31 2010 (4CE79447)
    fffff880`02c68000 fffff880`02c77000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`019c6000 fffff880`019dc000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`05ebc000 fffff880`05ede000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`05f66000 fffff880`05f6f000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05f5a000 fffff880`05f66000   dump_ataport dump_ataport.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`05f6f000 fffff880`05f82000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`05f40000 fffff880`05f4c000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`040b4000 fffff880`041a8000   dxgkrnl  dxgkrnl.sys  Sat Nov 20 04:50:50 2010 (4CE799FA)
    fffff880`041a8000 fffff880`041ee000   dxgmms1  dxgmms1.sys  Sat Nov 20 04:49:53 2010 (4CE799C1)
    fffff880`060af000 fffff880`06186000   eamonm   eamonm.sys   Wed Jul 14 04:13:43 2010 (4C3D71B7)
    fffff880`015c3000 fffff880`015e8000   ehdrv    ehdrv.sys    Wed Jul 14 04:14:21 2010 (4C3D71DD)
    fffff880`061a7000 fffff880`061d4000   epfw     epfw.sys     Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`04819000 fffff880`04824000   Epfwndis Epfwndis.sys Wed Jul 14 04:10:31 2010 (4C3D70F7)
    fffff880`06e36000 fffff880`06e47000   epfwwfp  epfwwfp.sys  Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`06018000 fffff880`0604e000   fastfat  fastfat.SYS  Mon Jul 13 19:23:28 2009 (4A5BC1F0)
    fffff880`040a4000 fffff880`040b1000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`010a8000 fffff880`010bc000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`02dd2000 fffff880`02ddd000   flpydisk flpydisk.sys Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`0105c000 fffff880`010a8000   fltmgr   fltmgr.sys   Sat Nov 20 04:19:24 2010 (4CE7929C)
    fffff880`013f4000 fffff880`013fe000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`01983000 fffff880`019bd000   fvevol   fvevol.sys   Sat Nov 20 04:24:06 2010 (4CE793B6)
    fffff880`01889000 fffff880`018d3000   fwpkclnt fwpkclnt.sys Sat Nov 20 04:21:37 2010 (4CE79321)
    fffff800`02c06000 fffff800`02c4f000   hal      hal.dll      Sat Nov 20 08:00:25 2010 (4CE7C669)
    fffff880`04000000 fffff880`04024000   HDAudBus HDAudBus.sys Sat Nov 20 05:43:42 2010 (4CE7A65E)
    fffff880`05ee4000 fffff880`05f40000   HdAudio  HdAudio.sys  Sat Nov 20 05:44:23 2010 (4CE7A687)
    fffff880`03e3b000 fffff880`03e54000   HIDCLASS HIDCLASS.SYS Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`04899000 fffff880`048a1080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`05f85000 fffff880`05f93000   hidusb   hidusb.sys   Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`06e64000 fffff880`06f2d000   HTTP     HTTP.sys     Sat Nov 20 04:24:30 2010 (4CE793CE)
    fffff880`019bd000 fffff880`019c6000   hwpolicy hwpolicy.sys Sat Nov 20 04:18:54 2010 (4CE7927E)
    fffff880`03e5f000 fffff880`03e6e000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05e51000 fffff880`05e5f000   kbdhid   kbdhid.sys   Sat Nov 20 05:33:25 2010 (4CE7A3F5)
    fffff800`00bcf000 fffff800`00bd9000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`011bb000 fffff880`011fe000   ks       ks.sys       Sat Nov 20 05:33:23 2010 (4CE7A3F3)
    fffff880`013c8000 fffff880`013e3000   ksecdd   ksecdd.sys   Sat Nov 20 04:21:15 2010 (4CE7930B)
    fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Sat Nov 20 05:10:34 2010 (4CE79E9A)
    fffff880`05ede000 fffff880`05ee3200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`04024000 fffff880`04036000   L1E62x64 L1E62x64.sys Sun Aug 23 01:08:09 2009 (4A90CEB9)
    fffff880`061d4000 fffff880`061e9000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`05e00000 fffff880`05e23000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c1a000 fffff880`00c27000   mcupdate mcupdate.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`05fb0000 fffff880`05fbe000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`03e6e000 fffff880`03e7d000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`02df2000 fffff880`02dff000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00f51000 fffff880`00f6b000   mountmgr mountmgr.sys Sat Nov 20 04:19:21 2010 (4CE79299)
    fffff880`06f4b000 fffff880`06f63000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`06f63000 fffff880`06f90000   mrxsmb   mrxsmb.sys   Sat Nov 20 04:27:41 2010 (4CE7948D)
    fffff880`06f90000 fffff880`06fdd000   mrxsmb10 mrxsmb10.sys Sat Nov 20 04:26:53 2010 (4CE7945D)
    fffff880`06e00000 fffff880`06e24000   mrxsmb20 mrxsmb20.sys Sat Nov 20 04:26:47 2010 (4CE79457)
    fffff880`015f1000 fffff880`015fc000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e6a000 fffff880`00e74000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010bc000 fffff880`0111a000   msrpc    msrpc.sys    Sat Nov 20 04:21:56 2010 (4CE79334)
    fffff880`02c5d000 fffff880`02c68000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`01971000 fffff880`01983000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`014d0000 fffff880`015c3000   ndis     ndis.sys     Sat Nov 20 04:23:30 2010 (4CE79392)
    fffff880`0485e000 fffff880`0486a000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`08e5e000 fffff880`08e71000   ndisuio  ndisuio.sys  Sat Nov 20 05:50:08 2010 (4CE7A7E0)
    fffff880`0486a000 fffff880`04899000   ndiswan  ndiswan.sys  Sat Nov 20 05:52:32 2010 (4CE7A870)
    fffff880`02ddd000 fffff880`02df2000   NDProxy  NDProxy.SYS  Sat Nov 20 05:52:20 2010 (4CE7A864)
    fffff880`02d77000 fffff880`02d86000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d03000 fffff880`02d48000   netbt    netbt.sys    Sat Nov 20 04:23:18 2010 (4CE79386)
    fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Sat Nov 20 04:23:13 2010 (4CE79381)
    fffff880`014b5000 fffff880`014c6000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02c51000 fffff880`02c5d000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02c4f000 fffff800`03239000   nt       ntkrnlmp.exe Sat Nov 20 04:30:02 2010 (4CE7951A)
    fffff880`01225000 fffff880`013c8000   Ntfs     Ntfs.sys     Sat Nov 20 04:20:57 2010 (4CE792F9)
    fffff880`01666000 fffff880`0166f000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`08e0b000 fffff880`08e5e000   nwifi    nwifi.sys    Mon Jul 13 20:07:23 2009 (4A5BCC3B)
    fffff880`02d51000 fffff880`02d77000   pacer    pacer.sys    Sat Nov 20 05:52:18 2010 (4CE7A862)
    fffff880`00eb4000 fffff880`00ec9000   partmgr  partmgr.sys  Sat Nov 20 04:20:00 2010 (4CE792C0)
    fffff880`00e74000 fffff880`00ea7000   pci      pci.sys      Sat Nov 20 04:19:11 2010 (4CE7928F)
    fffff880`00f3a000 fffff880`00f41000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00f41000 fffff880`00f51000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013e3000 fffff880`013f4000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`08a46000 fffff880`08aec000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`05e7f000 fffff880`05ebc000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c27000 fffff880`00c3b000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`0483a000 fffff880`0485e000   rasl2tp  rasl2tp.sys  Sat Nov 20 05:52:34 2010 (4CE7A872)
    fffff880`03fd3000 fffff880`03fee000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`03e00000 fffff880`03e21000   raspptp  raspptp.sys  Sat Nov 20 05:52:31 2010 (4CE7A86F)
    fffff880`03e21000 fffff880`03e3b000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02c00000 fffff880`02c51000   rdbss    rdbss.sys    Sat Nov 20 04:27:51 2010 (4CE79497)
    fffff880`03e54000 fffff880`03e5f000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
    fffff880`019ec000 fffff880`019f5000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`019f5000 fffff880`019fe000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`015e8000 fffff880`015f1000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`01937000 fffff880`01971000   rdyboost rdyboost.sys Sat Nov 20 04:43:10 2010 (4CE7982E)
    fffff880`06000000 fffff880`06018000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`08aec000 fffff880`08af7000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`04098000 fffff880`040a4000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02d86000 fffff880`02da3000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`0192f000 fffff880`01937000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08ef5000 fffff880`08f8e000   srv      srv.sys      Sat Nov 20 04:28:05 2010 (4CE794A5)
    fffff880`08b3a000 fffff880`08ba5000   srv2     srv2.sys     Sat Nov 20 04:27:43 2010 (4CE7948F)
    fffff880`08af7000 fffff880`08b28000   srvnet   srvnet.sys   Sat Nov 20 04:27:20 2010 (4CE79478)
    fffff880`048a2000 fffff880`048a3480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01685000 fffff880`01889000   tcpip    tcpip.sys    Sat Nov 20 04:25:52 2010 (4CE79420)
    fffff880`08b28000 fffff880`08b3a000   tcpipreg tcpipreg.sys Sat Nov 20 05:51:48 2010 (4CE7A844)
    fffff880`011ae000 fffff880`011bb000   TDI      TDI.SYS      Sat Nov 20 04:22:06 2010 (4CE7933E)
    fffff880`0118c000 fffff880`011ae000   tdx      tdx.sys      Sat Nov 20 04:21:54 2010 (4CE79332)
    fffff880`02dbe000 fffff880`02dd2000   termdd   termdd.sys   Sat Nov 20 06:03:40 2010 (4CE7AB0C)
    fffff960`005c0000 fffff960`005ca000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`03f4a000 fffff880`03f70000   tunnel   tunnel.sys   Sat Nov 20 05:51:50 2010 (4CE7A846)
    fffff880`03fee000 fffff880`04000000   umbus    umbus.sys    Sat Nov 20 05:44:37 2010 (4CE7A695)
    fffff880`05fbe000 fffff880`05fdb000   usbccgp  usbccgp.sys  Sat Nov 20 05:44:03 2010 (4CE7A673)
    fffff880`05f93000 fffff880`05f94f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`0407f000 fffff880`04090000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`01000000 fffff880`0105a000   usbhub   usbhub.sys   Sat Nov 20 05:44:30 2010 (4CE7A68E)
    fffff880`04074000 fffff880`0407f000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`051a4000 fffff880`051fa000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`05f95000 fffff880`05fb0000   USBSTOR  USBSTOR.SYS  Sat Nov 20 05:44:05 2010 (4CE7A675)
    fffff880`00ea7000 fffff880`00eb4000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`01676000 fffff880`01684000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`040b1000 fffff880`040b2d80   vHidDev  vHidDev.sys  Mon Dec 21 08:49:58 2009 (4B2F7D06)
    fffff880`01200000 fffff880`01225000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f6b000 fffff880`00fa7000   vmbus    vmbus.sys    Sat Nov 20 04:57:29 2010 (4CE79B89)
    fffff880`018d3000 fffff880`018e3000   vmstorfl vmstorfl.sys Sat Nov 20 04:57:30 2010 (4CE79B8A)
    fffff880`00ec9000 fffff880`00ede000   volmgr   volmgr.sys   Sat Nov 20 04:19:28 2010 (4CE792A0)
    fffff880`00ede000 fffff880`00f3a000   volmgrx  volmgrx.sys  Sat Nov 20 04:20:43 2010 (4CE792EB)
    fffff880`018e3000 fffff880`0192f000   volsnap  volsnap.sys  Sat Nov 20 04:20:08 2010 (4CE792C8)
    fffff880`02da3000 fffff880`02dbe000   wanarp   wanarp.sys   Sat Nov 20 05:52:36 2010 (4CE7A874)
    fffff880`019dc000 fffff880`019ec000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00d59000 fffff880`00dfd000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00c00000 fffff880`00c0f000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02d48000 fffff880`02d51000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00020000 fffff960`00331000   win32k   win32k.sys   Wed Jan 05 01:55:38 2011 (4D2415EA)
    fffff880`00fa7000 fffff880`00fbb000   winhv    winhv.sys    Sat Nov 20 04:20:02 2010 (4CE792C2)
    fffff880`04800000 fffff880`04809000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00e61000 fffff880`00e6a000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`06186000 fffff880`061a7000   WudfPf   WudfPf.sys   Sat Nov 20 05:42:44 2010 (4CE7A624)
    fffff880`08e71000 fffff880`08ea2000   WUDFRd   WUDFRd.sys   Sat Nov 20 05:43:32 2010 (4CE7A654)

    Unloaded modules:
    fffff880`08f8e000 fffff880`08fff000   spsys.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00071000
    fffff880`01630000 fffff880`0163e000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`0163e000 fffff880`0164a000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`0164a000 fffff880`01653000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`01653000 fffff880`01666000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  10. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Disabled. recheck this file plz. Updated z board cannot find ADMtek AN983/AN985 based ethernet adapter in add/remove progm no longer on comp.


    Attached Files:

    #10 Loozzer, Mar 5, 2011
    Last edited: Mar 5, 2011
  11. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Played for awhile on BC2 then switched to COD Blk Ops and bam BSOD :tongue:


    Attached Files:

  12. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Welcome to windows7forums,



    1. Update Ideazon ZBoard Keyboard
    Alpham164.sys Mon Jul 23 03:57:03 2007
    Alpham264.sys Tue Mar 20 05:51:03 2007



    2. If crashes persist, attach your CPU-Z memory tab + Rammon txt report:
    http://windows7forums.com/blue-screen-death-bsod/54459-important-every-thread-starter-please-see.html





    Crash Dumps:

    Code:

    Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.


    Loading Dump File [F:\a\Minidump\D M P\DMP\030511-27783-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available

    Symbol search path is: SRV*c:\websymbols*http://msdl.microsoft.com/download/symbols
    Executable search path is:
    Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS
    Built by: 7601.17514.amd64fre.win7sp1_rtm.101119-1850
    Machine Name:
    Kernel base = 0xfffff800`02c61000 PsLoadedModuleList = 0xfffff800`02ea6e90
    Debug session time: Sat Mar  5 15:18:21.889 2011 (UTC - 5:00)
    System Uptime: 0 days 0:04:04.403
    Loading Kernel Symbols
    ...............................................................
    ................................................................
    ....................................
    Loading User Symbols
    Loading unloaded module list
    ....
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    Use !analyze -v to get detailed debugging information.

    BugCheck 113, {4, fffffa8008d4a0d0, 0, 0}

    Probably caused by : dxgmms1.sys ( dxgmms1!DXGFASTMUTEX::Release+50 )

    Followup: MachineOwner
    ---------

    2: kd> !analyze -v
    *******************************************************************************
    *                                                                             *
    *                        Bugcheck Analysis                                    *
    *                                                                             *
    *******************************************************************************

    VIDEO_DXGKRNL_FATAL_ERROR (113)
    The dxgkrnl has detected that a violation has occurred. This resulted
    in a condition that dxgkrnl can no longer progress.  By crashing, dxgkrnl
    is attempting to get enough information into the minidump such that somebody
    can pinpoint the crash cause. Any other values after parameter 1 must be
    individually examined according to the subtype.
    Arguments:
    Arg1: 0000000000000004, The subtype of the bugcheck:
    Arg2: fffffa8008d4a0d0
    Arg3: 0000000000000000
    Arg4: 0000000000000000

    Debugging Details:
    ------------------


    CUSTOMER_CRASH_COUNT:  1

    DEFAULT_BUCKET_ID:  VISTA_DRIVER_FAULT

    BUGCHECK_STR:  0x113

    PROCESS_NAME:  System

    CURRENT_IRQL:  0

    LAST_CONTROL_TRANSFER:  from fffff880015d922f to fffff80002ce1640

    STACK_TEXT:
    fffff880`0593ba58 fffff880`015d922f : 00000000`00000113 00000000`00000004 fffffa80`08d4a0d0 00000000`00000000 : nt!KeBugCheckEx
    fffff880`0593ba60 fffff880`04005e50 : fffff880`00000001 fffffa80`08d4a0d0 00000000`00000000 fffff8a0`079f8c48 : watchdog!WdLogEvent5+0x11b
    fffff880`0593bab0 fffff880`0402daad : fffff8a0`00000090 00000000`00000000 00000000`00000000 fffff8a0`079f8c48 : dxgmms1!DXGFASTMUTEX::Release+0x50
    fffff880`0593bae0 fffff880`0402025d : fffff8a0`079f8b40 fffffa80`08359000 fffffa80`08793410 fffffa80`08359000 : dxgmms1!VIDMM_APERTURE_SEGMENT::EvictResource+0x31d
    fffff880`0593bb30 fffff880`0401b358 : fffffa80`08a6a2c0 00000000`00000000 00000000`00000000 fffff880`0593bca0 : dxgmms1!VIDMM_GLOBAL::ProcessDeferredCommand+0x96d
    fffff880`0593bc50 fffff880`0403916d : fffffa80`00000000 fffffa80`0833c010 00000000`0000000f fffff880`0403af09 : dxgmms1!VidMmiProcessTerminationCommand+0x4c
    fffff880`0593bca0 fffff880`040383f8 : fffff800`00b96080 fffffa80`0924b530 00000000`00000000 fffffa80`0833c010 : dxgmms1!VidSchiSubmitDeviceCommand+0x39
    fffff880`0593bcd0 fffff880`04037e96 : 00000000`00000000 fffffa80`0924b530 00000000`00000080 fffffa80`0833c010 : dxgmms1!VidSchiSubmitQueueCommand+0xb0
    fffff880`0593bd00 fffff800`02f7ecce : 00000000`105f2b10 fffffa80`08358620 fffffa80`0611b040 fffffa80`08358620 : dxgmms1!VidSchiWorkerThread+0xd6
    fffff880`0593bd40 fffff800`02cd2fe6 : fffff800`02e53e80 fffffa80`08358620 fffff800`02e61cc0 fffff880`01228384 : nt!PspSystemThreadStartup+0x5a
    fffff880`0593bd80 00000000`00000000 : fffff880`0593c000 fffff880`05936000 fffff880`0593b470 00000000`00000000 : nt!KxStartSystemThread+0x16


    STACK_COMMAND:  kb

    FOLLOWUP_IP:
    dxgmms1!DXGFASTMUTEX::Release+50
    fffff880`04005e50 c74424306fffffff mov     dword ptr [rsp+30h],0FFFFFF6Fh

    SYMBOL_STACK_INDEX:  2

    SYMBOL_NAME:  dxgmms1!DXGFASTMUTEX::Release+50

    FOLLOWUP_NAME:  MachineOwner

    MODULE_NAME: dxgmms1

    IMAGE_NAME:  dxgmms1.sys

    DEBUG_FLR_IMAGE_TIMESTAMP:  4ce799c1

    FAILURE_BUCKET_ID:  X64_0x113_dxgmms1!DXGFASTMUTEX::Release+50

    BUCKET_ID:  X64_0x113_dxgmms1!DXGFASTMUTEX::Release+50

    Followup: MachineOwner
    ---------







    Drivers:

    Code:
    start             end                 module name
    fffff880`0407c000 fffff880`040ba000   1394ohci 1394ohci.sys Sat Nov 20 05:44:56 2010 (4CE7A6A8)
    fffff880`00e06000 fffff880`00e5d000   ACPI     ACPI.sys     Sat Nov 20 04:19:16 2010 (4CE79294)
    fffff880`02cdd000 fffff880`02d66000   afd      afd.sys      Sat Nov 20 04:23:27 2010 (4CE7938F)
    fffff880`05180000 fffff880`05196000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
    fffff880`0520e000 fffff880`0521af00   Alpham164 Alpham164.sys Mon Jul 23 03:57:03 2007 (46A45F4F)
    fffff880`0480b000 fffff880`04810500   Alpham264 Alpham264.sys Tue Mar 20 05:51:03 2007 (45FFAE87)
    fffff880`03fea000 fffff880`03ffe000   amdiox64 amdiox64.sys Thu Feb 18 10:17:53 2010 (4B7D5A21)
    fffff880`03efa000 fffff880`03f0f000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
    fffff880`00fea000 fffff880`00ff5000   amdxata  amdxata.sys  Fri Mar 19 12:18:18 2010 (4BA3A3CA)
    fffff880`041cf000 fffff880`041d7000   ASACPI   ASACPI.sys   Wed Jul 15 23:31:29 2009 (4A5E9F11)
    fffff880`03ece000 fffff880`03ed4000   AsIO     AsIO.sys     Thu Apr 22 07:18:03 2010 (4BD0306B)
    fffff880`08871000 fffff880`0887c000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
    fffff880`00fb7000 fffff880`00fc0000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00fc0000 fffff880`00fea000   ataport  ataport.SYS  Sat Nov 20 04:19:15 2010 (4CE79293)
    fffff880`052b0000 fffff880`052d0000   AtihdW76 AtihdW76.sys Wed Nov 17 07:02:04 2010 (4CE3C43C)
    fffff880`04813000 fffff880`0510f000   atikmdag atikmdag.sys Wed Jan 26 17:48:28 2011 (4D40A4BC)
    fffff880`03f0f000 fffff880`03f5d000   atikmpag atikmpag.sys Wed Jan 26 17:13:33 2011 (4D409C8D)
    fffff880`019f6000 fffff880`019fd000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
    fffff880`03ebd000 fffff880`03ece000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
    fffff880`03b16000 fffff880`03b34000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
    fffff960`007b0000 fffff960`007d7000   cdd      cdd.dll      Sat Nov 20 07:55:34 2010 (4CE7C546)
    fffff880`01600000 fffff880`0162a000   cdrom    cdrom.sys    Sat Nov 20 04:19:20 2010 (4CE79298)
    fffff880`00c9a000 fffff880`00d5a000   CI       CI.dll       Sat Nov 20 08:12:36 2010 (4CE7C944)
    fffff880`01987000 fffff880`019b7000   CLASSPNP CLASSPNP.SYS Sat Nov 20 04:19:23 2010 (4CE7929B)
    fffff880`00c3c000 fffff880`00c9a000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`01122000 fffff880`01194000   cng      cng.sys      Sat Nov 20 05:08:45 2010 (4CE79E2D)
    fffff880`05165000 fffff880`05175000   CompositeBus CompositeBus.sys Sat Nov 20 05:33:17 2010 (4CE7A3ED)
    fffff880`03bea000 fffff880`03bf3000   cpuz133_x64 cpuz133_x64.sys Tue May 11 05:58:57 2010 (4BE92A61)
    fffff880`03bf3000 fffff880`03bfc000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
    fffff880`0539d000 fffff880`053ab000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
    fffff880`03e1c000 fffff880`03e9f000   csc      csc.sys      Sat Nov 20 04:27:12 2010 (4CE79470)
    fffff880`03e9f000 fffff880`03ebd000   dfsc     dfsc.sys     Sat Nov 20 04:26:31 2010 (4CE79447)
    fffff880`02cb4000 fffff880`02cc3000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
    fffff880`01971000 fffff880`01987000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
    fffff880`0530d000 fffff880`0532f000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
    fffff880`053b7000 fffff880`053c0000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`053ab000 fffff880`053b7000   dump_ataport dump_ataport.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`053c0000 fffff880`053d3000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
    fffff880`05391000 fffff880`0539d000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
    fffff880`040ca000 fffff880`041be000   dxgkrnl  dxgkrnl.sys  Sat Nov 20 04:50:50 2010 (4CE799FA)
    fffff880`04000000 fffff880`04046000   dxgmms1  dxgmms1.sys  Sat Nov 20 04:49:53 2010 (4CE799C1)
    fffff880`02a59000 fffff880`02b30000   eamonm   eamonm.sys   Wed Jul 14 04:13:43 2010 (4C3D71B7)
    fffff880`01580000 fffff880`015a5000   ehdrv    ehdrv.sys    Wed Jul 14 04:14:21 2010 (4C3D71DD)
    fffff880`02b51000 fffff880`02b7e000   epfw     epfw.sys     Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`05175000 fffff880`05180000   Epfwndis Epfwndis.sys Wed Jul 14 04:10:31 2010 (4C3D70F7)
    fffff880`03a00000 fffff880`03a11000   epfwwfp  epfwwfp.sys  Wed Jul 14 04:10:34 2010 (4C3D70FA)
    fffff880`03a11000 fffff880`03a47000   fastfat  fastfat.SYS  Mon Jul 13 19:23:28 2009 (4A5BC1F0)
    fffff880`041e3000 fffff880`041f0000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`010b0000 fffff880`010c4000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
    fffff880`05275000 fffff880`05280000   flpydisk flpydisk.sys Mon Jul 13 20:00:54 2009 (4A5BCAB6)
    fffff880`01064000 fffff880`010b0000   fltmgr   fltmgr.sys   Sat Nov 20 04:19:24 2010 (4CE7929C)
    fffff880`013e4000 fffff880`013ee000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
    fffff880`0192e000 fffff880`01968000   fvevol   fvevol.sys   Sat Nov 20 04:24:06 2010 (4CE793B6)
    fffff880`01834000 fffff880`0187e000   fwpkclnt fwpkclnt.sys Sat Nov 20 04:21:37 2010 (4CE79321)
    fffff800`02c18000 fffff800`02c61000   hal      hal.dll      Sat Nov 20 08:00:25 2010 (4CE7C669)
    fffff880`04046000 fffff880`0406a000   HDAudBus HDAudBus.sys Sat Nov 20 05:43:42 2010 (4CE7A65E)
    fffff880`05335000 fffff880`05391000   HdAudio  HdAudio.sys  Sat Nov 20 05:44:23 2010 (4CE7A687)
    fffff880`03fb3000 fffff880`03fcc000   HIDCLASS HIDCLASS.SYS Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`051f5000 fffff880`051fd080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
    fffff880`053d3000 fffff880`053e1000   hidusb   hidusb.sys   Sat Nov 20 05:43:49 2010 (4CE7A665)
    fffff880`03a4d000 fffff880`03b16000   HTTP     HTTP.sys     Sat Nov 20 04:24:30 2010 (4CE793CE)
    fffff880`01968000 fffff880`01971000   hwpolicy hwpolicy.sys Sat Nov 20 04:18:54 2010 (4CE7927E)
    fffff880`03fcc000 fffff880`03fdb000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`052a2000 fffff880`052b0000   kbdhid   kbdhid.sys   Sat Nov 20 05:33:25 2010 (4CE7A3F5)
    fffff800`00bb4000 fffff800`00bbe000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
    fffff880`01000000 fffff880`01043000   ks       ks.sys       Sat Nov 20 05:33:23 2010 (4CE7A3F3)
    fffff880`013b8000 fffff880`013d3000   ksecdd   ksecdd.sys   Sat Nov 20 04:21:15 2010 (4CE7930B)
    fffff880`01555000 fffff880`01580000   ksecpkg  ksecpkg.sys  Sat Nov 20 05:10:34 2010 (4CE79E9A)
    fffff880`0532f000 fffff880`05334200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
    fffff880`0406a000 fffff880`0407c000   L1E62x64 L1E62x64.sys Sun Mar 28 22:08:44 2010 (4BB00BAC)
    fffff880`02b7e000 fffff880`02b93000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`011d4000 fffff880`011f7000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
    fffff880`00c1b000 fffff880`00c28000   mcupdate mcupdate.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
    fffff880`05200000 fffff880`0520e000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
    fffff880`03fdb000 fffff880`03fea000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
    fffff880`05295000 fffff880`052a2000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
    fffff880`00f4d000 fffff880`00f67000   mountmgr mountmgr.sys Sat Nov 20 04:19:21 2010 (4CE79299)
    fffff880`03b34000 fffff880`03b4c000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
    fffff880`03b4c000 fffff880`03b79000   mrxsmb   mrxsmb.sys   Sat Nov 20 04:27:41 2010 (4CE7948D)
    fffff880`03b79000 fffff880`03bc6000   mrxsmb10 mrxsmb10.sys Sat Nov 20 04:26:53 2010 (4CE7945D)
    fffff880`03bc6000 fffff880`03bea000   mrxsmb20 mrxsmb20.sys Sat Nov 20 04:26:47 2010 (4CE79457)
    fffff880`01200000 fffff880`0120b000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
    fffff880`00e66000 fffff880`00e70000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
    fffff880`010c4000 fffff880`01122000   msrpc    msrpc.sys    Sat Nov 20 04:21:56 2010 (4CE79334)
    fffff880`02ca9000 fffff880`02cb4000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
    fffff880`0191c000 fffff880`0192e000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
    fffff880`01402000 fffff880`014f5000   ndis     ndis.sys     Sat Nov 20 04:23:30 2010 (4CE79392)
    fffff880`051ba000 fffff880`051c6000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
    fffff880`089dd000 fffff880`089f0000   ndisuio  ndisuio.sys  Sat Nov 20 05:50:08 2010 (4CE7A7E0)
    fffff880`051c6000 fffff880`051f5000   ndiswan  ndiswan.sys  Sat Nov 20 05:52:32 2010 (4CE7A870)
    fffff880`05280000 fffff880`05295000   NDProxy  NDProxy.SYS  Sat Nov 20 05:52:20 2010 (4CE7A864)
    fffff880`02dda000 fffff880`02de9000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff880`02d66000 fffff880`02dab000   netbt    netbt.sys    Sat Nov 20 04:23:18 2010 (4CE79386)
    fffff880`014f5000 fffff880`01555000   NETIO    NETIO.SYS    Sat Nov 20 04:23:13 2010 (4CE79381)
    fffff880`01194000 fffff880`011a5000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`02c9d000 fffff880`02ca9000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
    fffff800`02c61000 fffff800`0324b000   nt       ntkrnlmp.exe Sat Nov 20 04:30:02 2010 (4CE7951A)
    fffff880`01215000 fffff880`013b8000   Ntfs     Ntfs.sys     Sat Nov 20 04:20:57 2010 (4CE792F9)
    fffff880`019ed000 fffff880`019f6000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
    fffff880`0898a000 fffff880`089dd000   nwifi    nwifi.sys    Mon Jul 13 20:07:23 2009 (4A5BCC3B)
    fffff880`02db4000 fffff880`02dda000   pacer    pacer.sys    Sat Nov 20 05:52:18 2010 (4CE7A862)
    fffff880`00eb0000 fffff880`00ec5000   partmgr  partmgr.sys  Sat Nov 20 04:20:00 2010 (4CE792C0)
    fffff880`00e70000 fffff880`00ea3000   pci      pci.sys      Sat Nov 20 04:19:11 2010 (4CE7928F)
    fffff880`00f36000 fffff880`00f3d000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
    fffff880`00f3d000 fffff880`00f4d000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
    fffff880`013d3000 fffff880`013e4000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
    fffff880`07cec000 fffff880`07d92000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
    fffff880`052d0000 fffff880`0530d000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
    fffff880`00c28000 fffff880`00c3c000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
    fffff880`05196000 fffff880`051ba000   rasl2tp  rasl2tp.sys  Sat Nov 20 05:52:34 2010 (4CE7A872)
    fffff880`03f5d000 fffff880`03f78000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
    fffff880`03f78000 fffff880`03f99000   raspptp  raspptp.sys  Sat Nov 20 05:52:31 2010 (4CE7A86F)
    fffff880`03f99000 fffff880`03fb3000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
    fffff880`02c4c000 fffff880`02c9d000   rdbss    rdbss.sys    Sat Nov 20 04:27:51 2010 (4CE79497)
    fffff880`04800000 fffff880`0480b000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
    fffff880`015e8000 fffff880`015f1000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`015f1000 fffff880`015fa000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`013ee000 fffff880`013f7000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
    fffff880`018e2000 fffff880`0191c000   rdyboost rdyboost.sys Sat Nov 20 04:43:10 2010 (4CE7982E)
    fffff880`02b93000 fffff880`02bab000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
    fffff880`07d92000 fffff880`07d9d000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
    fffff880`041d7000 fffff880`041e3000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
    fffff880`02c00000 fffff880`02c1d000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
    fffff880`018da000 fffff880`018e2000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
    fffff880`08800000 fffff880`08871000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
    fffff880`088f1000 fffff880`0898a000   srv      srv.sys      Sat Nov 20 04:28:05 2010 (4CE794A5)
    fffff880`07c00000 fffff880`07c6b000   srv2     srv2.sys     Sat Nov 20 04:27:43 2010 (4CE7948F)
    fffff880`07d9d000 fffff880`07dce000   srvnet   srvnet.sys   Sat Nov 20 04:27:20 2010 (4CE79478)
    fffff880`041fb000 fffff880`041fc480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
    fffff880`01630000 fffff880`01834000   tcpip    tcpip.sys    Sat Nov 20 04:25:52 2010 (4CE79420)
    fffff880`07dce000 fffff880`07de0000   tcpipreg tcpipreg.sys Sat Nov 20 05:51:48 2010 (4CE7A844)
    fffff880`011c7000 fffff880`011d4000   TDI      TDI.SYS      Sat Nov 20 04:22:06 2010 (4CE7933E)
    fffff880`011a5000 fffff880`011c7000   tdx      tdx.sys      Sat Nov 20 04:21:54 2010 (4CE79332)
    fffff880`02c38000 fffff880`02c4c000   termdd   termdd.sys   Sat Nov 20 06:03:40 2010 (4CE7AB0C)
    fffff960`00520000 fffff960`0052a000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
    fffff880`03ed4000 fffff880`03efa000   tunnel   tunnel.sys   Sat Nov 20 05:51:50 2010 (4CE7A846)
    fffff880`03e00000 fffff880`03e12000   umbus    umbus.sys    Sat Nov 20 05:44:37 2010 (4CE7A695)
    fffff880`019b7000 fffff880`019d4000   usbccgp  usbccgp.sys  Sat Nov 20 05:44:03 2010 (4CE7A673)
    fffff880`053e1000 fffff880`053e2f00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
    fffff880`041be000 fffff880`041cf000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`0521b000 fffff880`05275000   usbhub   usbhub.sys   Sat Nov 20 05:44:30 2010 (4CE7A68E)
    fffff880`040ba000 fffff880`040c5000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
    fffff880`0510f000 fffff880`05165000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
    fffff880`053e3000 fffff880`053fe000   USBSTOR  USBSTOR.SYS  Sat Nov 20 05:44:05 2010 (4CE7A675)
    fffff880`00ea3000 fffff880`00eb0000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
    fffff880`015a5000 fffff880`015b3000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
    fffff880`041f9000 fffff880`041fad80   vHidDev  vHidDev.sys  Mon Dec 21 08:49:58 2009 (4B2F7D06)
    fffff880`015b3000 fffff880`015d8000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
    fffff880`00f67000 fffff880`00fa3000   vmbus    vmbus.sys    Sat Nov 20 04:57:29 2010 (4CE79B89)
    fffff880`0187e000 fffff880`0188e000   vmstorfl vmstorfl.sys Sat Nov 20 04:57:30 2010 (4CE79B8A)
    fffff880`00ec5000 fffff880`00eda000   volmgr   volmgr.sys   Sat Nov 20 04:19:28 2010 (4CE792A0)
    fffff880`00eda000 fffff880`00f36000   volmgrx  volmgrx.sys  Sat Nov 20 04:20:43 2010 (4CE792EB)
    fffff880`0188e000 fffff880`018da000   volsnap  volsnap.sys  Sat Nov 20 04:20:08 2010 (4CE792C8)
    fffff880`02c1d000 fffff880`02c38000   wanarp   wanarp.sys   Sat Nov 20 05:52:36 2010 (4CE7A874)
    fffff880`015d8000 fffff880`015e8000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
    fffff880`00d5a000 fffff880`00dfe000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
    fffff880`00c00000 fffff880`00c0f000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
    fffff880`02dab000 fffff880`02db4000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
    fffff960`00040000 fffff960`00351000   win32k   win32k.sys   Wed Jan 05 01:55:38 2011 (4D2415EA)
    fffff880`00fa3000 fffff880`00fb7000   winhv    winhv.sys    Sat Nov 20 04:20:02 2010 (4CE792C2)
    fffff880`041f0000 fffff880`041f9000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
    fffff880`00e5d000 fffff880`00e66000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
    fffff880`02b30000 fffff880`02b51000   WudfPf   WudfPf.sys   Sat Nov 20 05:42:44 2010 (4CE7A624)
    fffff880`0887c000 fffff880`088ad000   WUDFRd   WUDFRd.sys   Sat Nov 20 05:43:32 2010 (4CE7A654)

    Unloaded modules:
    fffff880`019b7000 fffff880`019c5000   crashdmp.sys
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000E000
    fffff880`019c5000 fffff880`019d1000   dump_ataport
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  0000C000
    fffff880`019d1000 fffff880`019da000   dump_atapi.s
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00009000
    fffff880`019da000 fffff880`019ed000   dump_dumpfve
        Timestamp: unavailable (00000000)
        Checksum:  00000000
        ImageSize:  00013000



  13. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    The machine will now only boot into safe mode. It is hanging on widows start up screen . Looking for some suggestions, maybe pull ram sticks one @ a time??? The one time it let me in slow slow slow unusable.

  14. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    In the windows command prompt, type sfc /scannow.
    If new bsod's, try setup defaults in the bios.

  15. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    here is the file still only to boot in safe mode


    Attached Files:

  16. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Update machine is stable w/ only 2 sticks of ram in bslots only add a 3rd stick and bsod. ADATA GSeries DDR3 1600G CL99924 1.55v~1.75

  17. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
  18. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0
    Here r the snaps, all sticks are the same, bios is set to auto no OC


    Attached Files:

    #18 Loozzer, Mar 17, 2011
    Last edited: Mar 17, 2011
  19. cybercore

    cybercore New Member

    Joined:
    Jul 7, 2009
    Messages:
    15,823
    Likes Received:
    321
    Memory timings are set wrong: 1600Mhz 11-11-11-29.
    Provide a link to the RAM maker's description page.
    Set memory according to the manufacturer's rated specs.

  20. Loozzer

    Loozzer Well-Known Member

    Joined:
    Mar 5, 2011
    Messages:
    26
    Likes Received:
    0

Share This Page

Loading...
