Constant BSOD after Windows updates


New Member
Hi everyone, looking for some help with my BSOD problems. About a month ago I built a new PC and loaded it with Windows 7 Professional 64-bit. The copy I had was about a year old so of course since then I've been installing Windows updates to get caught up. A couple of weeks ago one set of updates appeared to cause BSOD upon restarts. When I roll back a set of updates the problems go away. Now there are a pile of updates so I haven't gone through them one by one, but I think there is probably a conflict with drivers, or possibly a memory problem.

With the updates installed, I can get the computer to start fine with only one stick of 2GB RAM installed, but with 2x 2GB RAM installed it crashes. I've attached the dump files of the latest crash here, which was with both memory sticks installed and all updates performed. I've also run MemTest on the sticks which didn't seem to indicate any errors.

If someone could take a look at the dump files and help me out it would be greatly appreciated. I tried looking at them with BlueScreenView but that mainly pointed to ntoskrnl.exe which I understand is flagged when the other problems can't be pinpointed.


Link Removed - Invalid URL


Hi and welcome. If you post new crashes in the future, please use the paperclip here above where you type, instead.

1) Google for the Norton/Symantec removal tool and download it. Then boot to safe mode and use it to remove. Boot to normal mode and install MSE.

2) Visit and download/install the latest keyboard driver:

HPKBx64 HPKBx64.sys Tue Nov 07 08:05:06 2006

3) Update Realtek lan driver:

Rt64win7 Rt64win7.sys Thu Feb 26 04:04:13 2009



New Member
Thanks for the advice! I removed Norton and installed MSE. Haven't had any problems with it in the past so I'd never been concerned about using Norton.

I couldn't find that specific HP driver on their website but found the most recent driver for smart card keyboards/Win7 x64.

Lastly, I couldn't get the Realtek driver from their site as the links on that page weren't working for me. However, last night the computer restarted just fine a few times; this morning I got another BSOD. Searched some more and found the Realtek driver from XDrivers, and installed. Lets see if this fixes things.


New Member
I couldn't find that specific HP driver on their website but found the most recent driver for smart card keyboards/Win7 x64.
That's what it is, PC-SC Driver for HP USB Smartcard Keyboard. : )

2. Realtek - if you have difficulty finding it on Realtek site, then HP support should have one.


Extraordinary Member
On the Realtek link either will do you:

Win7 and WinServer 2008 R2 Driver 7.031 2010/11/22
Win7 and WinServer 2008 R2 Auto Installation Program (SID:1432824) 7.031 2010/11/22

But the Auto installer may be your easiest option


New Member
Well, as mentioned I got the latest LAN driver installed and things seemed to be stable. However I just had another BSOD on startup. After a couple of restarts things are ok again but I don't know what's still causing it. The latest minidump file is attached. Any suggestions?

View attachment 120610-15584-01.rar


Memory is faulty or set unwell in the bios. Post a screen shot of CPU-Z spd and memory tabs. We'll see if bios is set wrong.


New Member

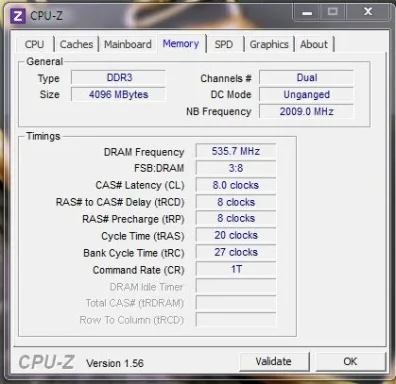

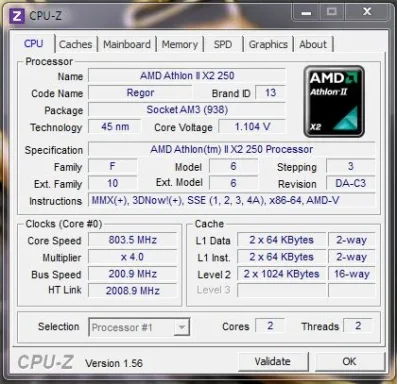

Here are the CPU-Z screenshots:

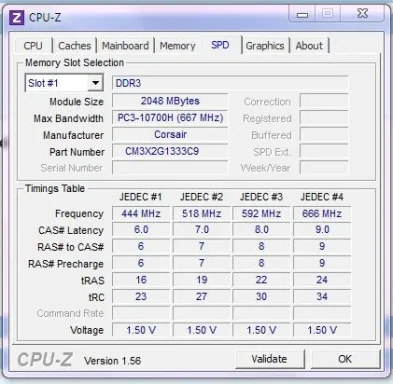

Looks like set wrong, but I can't tell yet. You didn't post the spd tab like I asked for.


New Member
Sorry, I suck at teh multi-tasking.



Bios needs to be set at 667 MHz with 9-9-9-24 timings for the RAM.

Right now, it's a 535 MHz with 8-8-8-20.


New Member
THANK YOU! That probably would have taken me 3 days to figure out on my own. Hope that fixes things for good!


Extraordinary Member
Sorry, I suck at teh multi-tasking.
=)) Nice one!! =))


lol Elmer....

Aitch....goin' good still?


New Member
Things were ok until I came home tonight and turned on. Got a blank screen after loading up Firefox; restarted and got a BSOD. Started in safe mode, then restarted normally and I'm online ok now. Also checked the memory settings but they are still fine. The latest dump file is attached.

View attachment 121010-21184-01.rar


Must update this driver:

HPKBx64 HPKBx64.sys Tue Nov 07 08:05:06 2006


New Member
Ok I'm feeling kinda useless at this. I've installed the newest HP smartcard keyboard drivers, but the "HID Keyboard Device" and "USB Composite Device" in the device manager still seem to have old 2006 drivers. When I look at the details though they are provided by Microsoft, not HP. They use "usbccgp.sys", "kbdclass.sys" and "kbdhid.sys".

I uninstalled all the devices associated with the keyboard, and then deleted the HPKBx64.sys file as well. Then reinstalled the keyboard using only the 2009 HP driver installer. It still put the HPKBx64.sys file back in the Windows driver folder. I don't know what device is using this driver or how to get around it.


New Member
Do the best you can to update HP Keyboard, if you say you've tried and it's the latest then check if your notebook is officialy compatible with Windows 7. 2006 does look quite outdated.

HPKBx64.sys Tue Nov 07 08:05:06 2006
HP USB Smartcard Keyboard

Update or I would even suggest to remove for now this Privacy Box:

scfilter.sys Mon Jul 13 19:50:17 2009
Mebius Privacy Box by SHARP Corporation


Microsoft (R) Windows Debugger Version 6.12.0002.633 AMD64
Copyright (c) Microsoft Corporation. All rights reserved.

Loading Dump File [F:\a\Minidump\D M P\121010-21184-01.dmp]
Mini Kernel Dump File: Only registers and stack trace are available

Symbol search path is: SRV*c:\websymbols*
Executable search path is:
Windows 7 Kernel Version 7600 MP (2 procs) Free x64
Product: WinNt, suite: TerminalServer SingleUserTS
Built by: 7600.16617.amd64fre.win7_gdr.100618-1621
Machine Name:
Kernel base = 0xfffff800`02a14000 PsLoadedModuleList = 0xfffff800`02c51e50
Debug session time: Fri Dec 10 18:50:09.526 2010 (UTC - 5:00)
System Uptime: 0 days 0:04:36.915
Loading Kernel Symbols
Loading User Symbols
Loading unloaded module list
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *

Use !analyze -v to get detailed debugging information.

BugCheck 50, {fffff683fd7e60e8, 0, fffff80002ab49fa, 2}

Could not read faulting driver name
Probably caused by : memory_corruption ( nt!MiSwapWslEntries+6a )

Followup: MachineOwner

0: kd> !analyze -v
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *

Invalid system memory was referenced.  This cannot be protected by try-except,
it must be protected by a Probe.  Typically the address is just plain bad or it
is pointing at freed memory.
Arg1: fffff683fd7e60e8, memory referenced.
Arg2: 0000000000000000, value 0 = read operation, 1 = write operation.
Arg3: fffff80002ab49fa, If non-zero, the instruction address which referenced the bad memory
Arg4: 0000000000000002, (reserved)

Debugging Details:

Could not read faulting driver name

READ_ADDRESS: GetPointerFromAddress: unable to read from fffff80002cbc0e0

fffff800`02ab49fa 498b00          mov     rax,qword ptr [r8]





PROCESS_NAME:  svchost.exe


TRAP_FRAME:  fffff880081c3630 -- (.trap 0xfffff880081c3630)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000098000000000 rbx=0000000000000000 rcx=0000000fffffffff
rdx=00000000000005bf rsi=0000000000000000 rdi=0000000000000000
rip=fffff80002ab49fa rsp=fffff880081c37c0 rbp=fffffa8005adac18
 r8=fffff683fd7e60e8  r9=000007fafcc1d049 r10=fffff70001080488
r11=000000000000076e r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei ng nz na po cy
fffff800`02ab49fa 498b00          mov     rax,qword ptr [r8] ds:fffff683`fd7e60e8=????????????????
Resetting default scope

LAST_CONTROL_TRANSFER:  from fffff80002b038f2 to fffff80002a84740

fffff880`081c34c8 fffff800`02b038f2 : 00000000`00000050 fffff683`fd7e60e8 00000000`00000000 fffff880`081c3630 : nt!KeBugCheckEx
fffff880`081c34d0 fffff800`02a8282e : 00000000`00000000 fffffa80`00000028 fffffa80`05d8ef00 fffffa80`05d8ec10 : nt! ?? ::FNODOBFM::`string'+0x40ec0
fffff880`081c3630 fffff800`02ab49fa : fffff700`01080000 fffffa80`030f92a0 fffff683`ff7d5650 fffffa80`05adac18 : nt!KiPageFault+0x16e
fffff880`081c37c0 fffff800`02aa01d2 : 00000000`00000000 000007fe`faaea001 fffff700`01080000 00000000`00000000 : nt!MiSwapWslEntries+0x6a
fffff880`081c3820 fffff800`02aab1fd : 00000000`000005bf 00000000`00000000 00000000`00000000 0000000f`ffffffff : nt!MiUpdateWsle+0xd2
fffff880`081c3880 fffff800`02aaab83 : dbf00001`051cc025 80000001`051cc121 fffff880`081c3a10 fffffa80`05adac18 : nt!MiCompleteProtoPteFault+0x2cd
fffff880`081c3910 fffff800`02aa05be : 00000000`00000000 000007fe`faaea000 fffff683`ff7d5750 fffffa80`05adac18 : nt!MiResolveProtoPteFault+0x1d3
fffff880`081c39b0 fffff800`02a9e743 : 00000000`00000000 000007fe`faaea000 00000000`00000000 00000000`00000000 : nt!MiDispatchFault+0x1de
fffff880`081c3ac0 fffff800`02a8282e : 00000000`00000000 00000000`77440000 00000000`77573501 fffffa80`c0000034 : nt!MmAccessFault+0x343
fffff880`081c3c20 00000000`77496d1c : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiPageFault+0x16e
00000000`01b7dff0 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x77496d1c


fffff800`02ab49fa 498b00          mov     rax,qword ptr [r8]


SYMBOL_NAME:  nt!MiSwapWslEntries+6a

FOLLOWUP_NAME:  MachineOwner



IMAGE_NAME:  memory_corruption

FAILURE_BUCKET_ID:  X64_0x50_nt!MiSwapWslEntries+6a

BUCKET_ID:  X64_0x50_nt!MiSwapWslEntries+6a

Followup: MachineOwner


start             end                 module name
fffff880`00e9f000 fffff880`00ef6000   ACPI     ACPI.sys     Mon Jul 13 19:19:34 2009 (4A5BC106)
fffff880`052f8000 fffff880`05310000   adfs     adfs.SYS     Thu Jun 26 16:52:37 2008 (48640195)
fffff880`02b42000 fffff880`02bcc000   afd      afd.sys      Mon Jul 13 19:21:40 2009 (4A5BC184)
fffff880`03b93000 fffff880`03ba9000   AgileVpn AgileVpn.sys Mon Jul 13 20:10:24 2009 (4A5BCCF0)
fffff880`02a00000 fffff880`02a15000   amdppm   amdppm.sys   Mon Jul 13 19:19:25 2009 (4A5BC0FD)
fffff880`00e33000 fffff880`00e3e000   amdxata  amdxata.sys  Tue May 19 13:56:59 2009 (4A12F2EB)
fffff880`065ca000 fffff880`065d5000   asyncmac asyncmac.sys Mon Jul 13 20:10:13 2009 (4A5BCCE5)
fffff880`00e00000 fffff880`00e09000   atapi    atapi.sys    Mon Jul 13 19:19:47 2009 (4A5BC113)
fffff880`00e09000 fffff880`00e33000   ataport  ataport.SYS  Mon Jul 13 19:19:52 2009 (4A5BC118)
fffff880`03c09000 fffff880`043fe000   atikmdag atikmdag.sys Tue Oct 26 22:29:53 2010 (4CC78EA1)
fffff880`03ad6000 fffff880`03b21000   atikmpag atikmpag.sys Tue Oct 26 22:14:23 2010 (4CC78AFF)
fffff960`008e0000 fffff960`00941000   ATMFD    ATMFD.DLL    Thu May 27 00:11:31 2010 (4BFDF0F3)
fffff880`02a96000 fffff880`02a9d000   Beep     Beep.SYS     Mon Jul 13 20:00:13 2009 (4A5BCA8D)
fffff880`03883000 fffff880`03894000   blbdrive blbdrive.sys Mon Jul 13 19:35:59 2009 (4A5BC4DF)
fffff880`02955000 fffff880`02973000   bowser   bowser.sys   Mon Jul 13 19:23:50 2009 (4A5BC206)
fffff960`006b0000 fffff960`006d7000   cdd      cdd.dll      unavailable (00000000)
fffff880`02a36000 fffff880`02a60000   cdrom    cdrom.sys    Mon Jul 13 19:19:54 2009 (4A5BC11A)
fffff880`00c00000 fffff880`00cc0000   CI       CI.dll       Mon Jul 13 21:32:13 2009 (4A5BE01D)
fffff880`011ad000 fffff880`011dd000   CLASSPNP CLASSPNP.SYS Mon Jul 13 19:19:58 2009 (4A5BC11E)
fffff880`00cf5000 fffff880`00d53000   CLFS     CLFS.SYS     Mon Jul 13 19:19:57 2009 (4A5BC11D)
fffff880`012ab000 fffff880`0131e000   cng      cng.sys      Mon Jul 13 19:49:40 2009 (4A5BC814)
fffff880`03b83000 fffff880`03b93000   CompositeBus CompositeBus.sys Mon Jul 13 20:00:33 2009 (4A5BCAA1)
fffff880`05310000 fffff880`05319000   cpuz134_x64 cpuz134_x64.sys Fri Jul 09 07:16:58 2010 (4C37052A)
fffff880`049b0000 fffff880`049be000   crashdmp crashdmp.sys Mon Jul 13 20:01:01 2009 (4A5BCABD)
fffff880`03800000 fffff880`03883000   csc      csc.sys      Mon Jul 13 19:24:26 2009 (4A5BC22A)
fffff880`039da000 fffff880`039f8000   dfsc     dfsc.sys     Mon Jul 13 19:23:44 2009 (4A5BC200)
fffff880`039cb000 fffff880`039da000   discache discache.sys Mon Jul 13 19:37:18 2009 (4A5BC52E)
fffff880`01200000 fffff880`01216000   disk     disk.sys     Mon Jul 13 19:19:57 2009 (4A5BC11D)
fffff880`04988000 fffff880`049aa000   drmk     drmk.sys     Mon Jul 13 21:01:25 2009 (4A5BD8E5)
fffff880`049ca000 fffff880`049d3000   dump_atapi dump_atapi.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
fffff880`049be000 fffff880`049ca000   dump_dumpata dump_dumpata.sys Mon Jul 13 19:19:47 2009 (4A5BC113)
fffff880`049d3000 fffff880`049e6000   dump_dumpfve dump_dumpfve.sys Mon Jul 13 19:21:51 2009 (4A5BC18F)
fffff880`049e6000 fffff880`049f2000   Dxapi    Dxapi.sys    Mon Jul 13 19:38:28 2009 (4A5BC574)
fffff880`0460d000 fffff880`04701000   dxgkrnl  dxgkrnl.sys  Thu Oct 01 21:00:14 2009 (4AC5509E)
fffff880`04701000 fffff880`04747000   dxgmms1  dxgmms1.sys  Mon Jul 13 19:38:32 2009 (4A5BC578)
fffff880`04600000 fffff880`0460d000   fdc      fdc.sys      Mon Jul 13 20:00:54 2009 (4A5BCAB6)
fffff880`00e8a000 fffff880`00e9e000   fileinfo fileinfo.sys Mon Jul 13 19:34:25 2009 (4A5BC481)
fffff880`048cf000 fffff880`048da000   flpydisk flpydisk.sys Mon Jul 13 20:00:54 2009 (4A5BCAB6)
fffff880`00e3e000 fffff880`00e8a000   fltmgr   fltmgr.sys   Mon Jul 13 19:19:59 2009 (4A5BC11F)
fffff880`0132f000 fffff880`01339000   Fs_Rec   Fs_Rec.sys   Mon Jul 13 19:19:45 2009 (4A5BC111)
fffff880`013bf000 fffff880`013f9000   fvevol   fvevol.sys   Fri Sep 25 22:34:26 2009 (4ABD7DB2)
fffff880`0148b000 fffff880`014d5000   fwpkclnt fwpkclnt.sys Mon Jul 13 19:21:08 2009 (4A5BC164)
fffff880`047d0000 fffff880`047dd000   GEARAspiWDM GEARAspiWDM.sys Mon May 18 08:17:04 2009 (4A1151C0)
fffff800`02ff0000 fffff800`03039000   hal      hal.dll      Mon Jul 13 21:27:36 2009 (4A5BDF08)
fffff880`04747000 fffff880`0476b000   HDAudBus HDAudBus.sys Mon Jul 13 20:06:13 2009 (4A5BCBF5)
fffff880`048ef000 fffff880`0494b000   HdAudio  HdAudio.sys  Mon Jul 13 20:06:59 2009 (4A5BCC23)
fffff880`03aae000 fffff880`03ac7000   HIDCLASS HIDCLASS.SYS Mon Jul 13 20:06:21 2009 (4A5BCBFD)
fffff880`049f2000 fffff880`049fa080   HIDPARSE HIDPARSE.SYS Mon Jul 13 20:06:17 2009 (4A5BCBF9)
fffff880`04810000 fffff880`0481e000   hidusb   hidusb.sys   Mon Jul 13 20:06:22 2009 (4A5BCBFE)
fffff880`011dd000 fffff880`011eef80   HPKBx64  HPKBx64.sys  Tue Nov 07 08:05:06 2006 (45508482)
fffff880`0288d000 fffff880`02955000   HTTP     HTTP.sys     Mon Jul 13 19:22:16 2009 (4A5BC1A8)
fffff880`015f4000 fffff880`015fd000   hwpolicy hwpolicy.sys Mon Jul 13 19:19:22 2009 (4A5BC0FA)
fffff880`03a90000 fffff880`03a9f000   kbdclass kbdclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
fffff880`0280e000 fffff880`0281c000   kbdhid   kbdhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
fffff800`00bb2000 fffff800`00bbc000   kdcom    kdcom.dll    Mon Jul 13 21:31:07 2009 (4A5BDFDB)
fffff880`04820000 fffff880`04863000   ks       ks.sys       Wed Mar 03 23:32:25 2010 (4B8F37D9)
fffff880`01291000 fffff880`012ab000   ksecdd   ksecdd.sys   Mon Jul 13 19:20:54 2009 (4A5BC156)
fffff880`01460000 fffff880`0148b000   ksecpkg  ksecpkg.sys  Fri Dec 11 01:03:32 2009 (4B21E0B4)
fffff880`049aa000 fffff880`049af200   ksthunk  ksthunk.sys  Mon Jul 13 20:00:19 2009 (4A5BCA93)
fffff880`03bd9000 fffff880`03bee000   LHidFilt LHidFilt.Sys Thu Mar 18 04:51:17 2010 (4BA1E985)
fffff880`02860000 fffff880`02875000   lltdio   lltdio.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
fffff880`02a1e000 fffff880`02a32000   LMouFilt LMouFilt.Sys Thu Mar 18 04:51:24 2010 (4BA1E98C)
fffff880`0281c000 fffff880`0283f000   luafv    luafv.sys    Mon Jul 13 19:26:13 2009 (4A5BC295)
fffff880`04800000 fffff880`04810000   LUsbFilt LUsbFilt.Sys Thu Mar 18 04:51:28 2010 (4BA1E990)
fffff880`00cd4000 fffff880`00ce1000   mcupdate_AuthenticAMD mcupdate_AuthenticAMD.dll Mon Jul 13 21:29:09 2009 (4A5BDF65)
fffff880`03ac7000 fffff880`03ad5000   monitor  monitor.sys  Mon Jul 13 19:38:52 2009 (4A5BC58C)
fffff880`03a9f000 fffff880`03aae000   mouclass mouclass.sys Mon Jul 13 19:19:50 2009 (4A5BC116)
fffff880`03bee000 fffff880`03bfb000   mouhid   mouhid.sys   Mon Jul 13 20:00:20 2009 (4A5BCA94)
fffff880`00fe6000 fffff880`01000000   mountmgr mountmgr.sys Mon Jul 13 19:19:54 2009 (4A5BC11A)
fffff880`02a60000 fffff880`02a8d000   MpFilter MpFilter.sys Sat Mar 20 01:58:08 2010 (4BA463F0)
fffff880`064b3000 fffff880`064c3000   MpNWMon  MpNWMon.sys  Sat Mar 20 01:58:00 2010 (4BA463E8)
fffff880`02973000 fffff880`0298b000   mpsdrv   mpsdrv.sys   Mon Jul 13 20:08:25 2009 (4A5BCC79)
fffff880`0298b000 fffff880`029b8000   mrxsmb   mrxsmb.sys   Sat Feb 27 02:52:19 2010 (4B88CF33)
fffff880`05287000 fffff880`052d5000   mrxsmb10 mrxsmb10.sys Sat Feb 27 02:52:28 2010 (4B88CF3C)
fffff880`052d5000 fffff880`052f8000   mrxsmb20 mrxsmb20.sys Sat Feb 27 02:52:26 2010 (4B88CF3A)
fffff880`02afb000 fffff880`02b06000   Msfs     Msfs.SYS     Mon Jul 13 19:19:47 2009 (4A5BC113)
fffff880`00eff000 fffff880`00f09000   msisadrv msisadrv.sys Mon Jul 13 19:19:26 2009 (4A5BC0FE)
fffff880`01233000 fffff880`01291000   msrpc    msrpc.sys    Mon Jul 13 19:21:32 2009 (4A5BC17C)
fffff880`039c0000 fffff880`039cb000   mssmbios mssmbios.sys Mon Jul 13 19:31:10 2009 (4A5BC3BE)
fffff880`015e2000 fffff880`015f4000   mup      mup.sys      Mon Jul 13 19:23:45 2009 (4A5BC201)
fffff880`014e8000 fffff880`015da000   ndis     ndis.sys     Mon Jul 13 19:21:40 2009 (4A5BC184)
fffff880`03bcd000 fffff880`03bd9000   ndistapi ndistapi.sys Mon Jul 13 20:10:00 2009 (4A5BCCD8)
fffff880`03a00000 fffff880`03a2f000   ndiswan  ndiswan.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
fffff880`048da000 fffff880`048ef000   NDProxy  NDProxy.SYS  Mon Jul 13 20:10:05 2009 (4A5BCCDD)
fffff880`03908000 fffff880`03917000   netbios  netbios.sys  Mon Jul 13 20:09:26 2009 (4A5BCCB6)
fffff880`03894000 fffff880`038d9000   netbt    netbt.sys    Mon Jul 13 19:21:28 2009 (4A5BC178)
fffff880`01400000 fffff880`01460000   NETIO    NETIO.SYS    Mon Jul 13 19:21:46 2009 (4A5BC18A)
fffff880`02b06000 fffff880`02b17000   Npfs     Npfs.SYS     Mon Jul 13 19:19:48 2009 (4A5BC114)
fffff880`039b4000 fffff880`039c0000   nsiproxy nsiproxy.sys Mon Jul 13 19:21:02 2009 (4A5BC15E)
fffff800`02a14000 fffff800`02ff0000   nt       ntkrnlmp.exe Sat Jun 19 00:16:41 2010 (4C1C44A9)
fffff880`0100a000 fffff880`011ad000   Ntfs     Ntfs.sys     Mon Jul 13 19:20:47 2009 (4A5BC14F)
fffff880`02a8d000 fffff880`02a96000   Null     Null.SYS     Mon Jul 13 19:19:37 2009 (4A5BC109)
fffff880`038e2000 fffff880`03908000   pacer    pacer.sys    Mon Jul 13 20:09:41 2009 (4A5BCCC5)
fffff880`00f49000 fffff880`00f5e000   partmgr  partmgr.sys  Mon Jul 13 19:19:58 2009 (4A5BC11E)
fffff880`00f09000 fffff880`00f3c000   pci      pci.sys      Mon Jul 13 19:19:51 2009 (4A5BC117)
fffff880`00fcf000 fffff880`00fd6000   pciide   pciide.sys   Mon Jul 13 19:19:49 2009 (4A5BC115)
fffff880`00fd6000 fffff880`00fe6000   PCIIDEX  PCIIDEX.SYS  Mon Jul 13 19:19:48 2009 (4A5BC114)
fffff880`0131e000 fffff880`0132f000   pcw      pcw.sys      Mon Jul 13 19:19:27 2009 (4A5BC0FF)
fffff880`05319000 fffff880`053bf000   peauth   peauth.sys   Mon Jul 13 21:01:19 2009 (4A5BD8DF)
fffff880`0494b000 fffff880`04988000   portcls  portcls.sys  Mon Jul 13 20:06:27 2009 (4A5BCC03)
fffff880`00ce1000 fffff880`00cf5000   PSHED    PSHED.dll    Mon Jul 13 21:32:23 2009 (4A5BE027)
fffff880`03ba9000 fffff880`03bcd000   rasl2tp  rasl2tp.sys  Mon Jul 13 20:10:11 2009 (4A5BCCE3)
fffff880`03a2f000 fffff880`03a4a000   raspppoe raspppoe.sys Mon Jul 13 20:10:17 2009 (4A5BCCE9)
fffff880`03a4a000 fffff880`03a6b000   raspptp  raspptp.sys  Mon Jul 13 20:10:18 2009 (4A5BCCEA)
fffff880`03a6b000 fffff880`03a85000   rassstp  rassstp.sys  Mon Jul 13 20:10:25 2009 (4A5BCCF1)
fffff880`03963000 fffff880`039b4000   rdbss    rdbss.sys    Mon Jul 13 19:24:09 2009 (4A5BC219)
fffff880`03a85000 fffff880`03a90000   rdpbus   rdpbus.sys   Mon Jul 13 20:17:46 2009 (4A5BCEAA)
fffff880`02ae0000 fffff880`02ae9000   RDPCDD   RDPCDD.sys   Mon Jul 13 20:16:34 2009 (4A5BCE62)
fffff880`02ae9000 fffff880`02af2000   rdpencdd rdpencdd.sys Mon Jul 13 20:16:34 2009 (4A5BCE62)
fffff880`02af2000 fffff880`02afb000   rdprefmp rdprefmp.sys Mon Jul 13 20:16:35 2009 (4A5BCE63)
fffff880`01385000 fffff880`013bf000   rdyboost rdyboost.sys Mon Jul 13 19:34:34 2009 (4A5BC48A)
fffff880`02875000 fffff880`0288d000   rspndr   rspndr.sys   Mon Jul 13 20:08:50 2009 (4A5BCC92)
fffff880`0476b000 fffff880`047d0000   Rt64win7 Rt64win7.sys Mon Oct 25 05:33:07 2010 (4CC54ED3)
fffff880`011ef000 fffff880`011fd000   scfilter scfilter.sys Mon Jul 13 19:50:17 2009 (4A5BC839)
fffff880`053bf000 fffff880`053ca000   secdrv   secdrv.SYS   Wed Sep 13 09:18:38 2006 (4508052E)
fffff880`03b77000 fffff880`03b83000   serenum  serenum.sys  Mon Jul 13 20:00:33 2009 (4A5BCAA1)
fffff880`03917000 fffff880`03934000   serial   serial.sys   Mon Jul 13 20:00:40 2009 (4A5BCAA8)
fffff880`02bf2000 fffff880`02bfe000   SMCLIB   SMCLIB.SYS   Mon Jul 13 20:00:35 2009 (4A5BCAA3)
fffff880`015da000 fffff880`015e2000   spldr    spldr.sys    Mon May 11 12:56:27 2009 (4A0858BB)
fffff880`06559000 fffff880`065ca000   spsys    spsys.sys    Mon May 11 13:20:58 2009 (4A085E7A)
fffff880`064c3000 fffff880`06559000   srv      srv.sys      Thu Aug 26 23:38:00 2010 (4C773318)
fffff880`05212000 fffff880`05279000   srv2     srv2.sys     Thu Aug 26 23:37:46 2010 (4C77330A)
fffff880`053ca000 fffff880`053f7000   srvnet   srvnet.sys   Thu Aug 26 23:37:24 2010 (4C7732F4)
fffff880`047f9000 fffff880`047fa480   swenum   swenum.sys   Mon Jul 13 20:00:18 2009 (4A5BCA92)
fffff880`01600000 fffff880`017fd000   tcpip    tcpip.sys    Sun Jun 13 23:39:04 2010 (4C15A458)
fffff880`05200000 fffff880`05212000   tcpipreg tcpipreg.sys Mon Jul 13 20:09:49 2009 (4A5BCCCD)
fffff880`02b35000 fffff880`02b42000   TDI      TDI.SYS      Mon Jul 13 19:21:18 2009 (4A5BC16E)
fffff880`02b17000 fffff880`02b35000   tdx      tdx.sys      Mon Jul 13 19:21:15 2009 (4A5BC16B)
fffff880`0394f000 fffff880`03963000   termdd   termdd.sys   Mon Jul 13 20:16:36 2009 (4A5BCE64)
fffff960`004e0000 fffff960`004ea000   TSDDD    TSDDD.dll    Mon Jul 13 20:16:34 2009 (4A5BCE62)
fffff880`02bcc000 fffff880`02bf2000   tunnel   tunnel.sys   Mon Jul 13 20:09:37 2009 (4A5BCCC1)
fffff880`04863000 fffff880`04875000   umbus    umbus.sys    Mon Jul 13 20:06:56 2009 (4A5BCC20)
fffff880`01216000 fffff880`01233000   usbccgp  usbccgp.sys  Mon Jul 13 20:06:45 2009 (4A5BCC15)
fffff880`049fb000 fffff880`049fcf00   USBD     USBD.SYS     Mon Jul 13 20:06:23 2009 (4A5BCBFF)
fffff880`047e8000 fffff880`047f9000   usbehci  usbehci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
fffff880`04875000 fffff880`048cf000   usbhub   usbhub.sys   Mon Jul 13 20:07:09 2009 (4A5BCC2D)
fffff880`047dd000 fffff880`047e8000   usbohci  usbohci.sys  Mon Jul 13 20:06:30 2009 (4A5BCC06)
fffff880`03b21000 fffff880`03b77000   USBPORT  USBPORT.SYS  Mon Jul 13 20:06:31 2009 (4A5BCC07)
fffff880`00f3c000 fffff880`00f49000   vdrvroot vdrvroot.sys Mon Jul 13 20:01:31 2009 (4A5BCADB)
fffff880`02a9d000 fffff880`02aab000   vga      vga.sys      Mon Jul 13 19:38:47 2009 (4A5BC587)
fffff880`02aab000 fffff880`02ad0000   VIDEOPRT VIDEOPRT.SYS Mon Jul 13 19:38:51 2009 (4A5BC58B)
fffff880`014d5000 fffff880`014e5000   vmstorfl vmstorfl.sys Mon Jul 13 19:42:54 2009 (4A5BC67E)
fffff880`00f5e000 fffff880`00f73000   volmgr   volmgr.sys   Mon Jul 13 19:19:57 2009 (4A5BC11D)
fffff880`00f73000 fffff880`00fcf000   volmgrx  volmgrx.sys  Mon Jul 13 19:20:33 2009 (4A5BC141)
fffff880`01339000 fffff880`01385000   volsnap  volsnap.sys  Mon Jul 13 19:20:08 2009 (4A5BC128)
fffff880`03934000 fffff880`0394f000   wanarp   wanarp.sys   Mon Jul 13 20:10:21 2009 (4A5BCCED)
fffff880`02ad0000 fffff880`02ae0000   watchdog watchdog.sys Mon Jul 13 19:37:35 2009 (4A5BC53F)
fffff880`00d53000 fffff880`00df7000   Wdf01000 Wdf01000.sys Mon Jul 13 19:22:07 2009 (4A5BC19F)
fffff880`00cc0000 fffff880`00ccf000   WDFLDR   WDFLDR.SYS   Mon Jul 13 19:19:54 2009 (4A5BC11A)
fffff880`038d9000 fffff880`038e2000   wfplwf   wfplwf.sys   Mon Jul 13 20:09:26 2009 (4A5BCCB6)
fffff960`000b0000 fffff960`003bf000   win32k   win32k.sys   Tue Aug 31 22:58:04 2010 (4C7DC13C)
fffff880`02a15000 fffff880`02a1e000   wmiacpi  wmiacpi.sys  Mon Jul 13 19:31:02 2009 (4A5BC3B6)
fffff880`00ef6000 fffff880`00eff000   WMILIB   WMILIB.SYS   Mon Jul 13 19:19:51 2009 (4A5BC117)
fffff880`0283f000 fffff880`02860000   WudfPf   WudfPf.sys   Mon Jul 13 20:05:37 2009 (4A5BCBD1)

Unloaded modules:
fffff880`0641d000 fffff880`064b3000   srv.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00096000
fffff880`01216000 fffff880`01224000   crashdmp.sys
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000E000
fffff880`01224000 fffff880`01230000   dump_ataport
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  0000C000
fffff880`011dd000 fffff880`011e6000   dump_atapi.s
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00009000
fffff880`011e6000 fffff880`011f9000   dump_dumpfve
    Timestamp: unavailable (00000000)
    Checksum:  00000000
    ImageSize:  00013000


New Member
What is the SHARP Mebius Privacy Box? I'm not aware of any program by SHARP on my computer or anything making use of that. When I google I also find references to scfilter.sys being a Windows smart-card reader driver (although other people say it causes problems with smart-cards not installing properly).


New Member
What I mean is this,



2) Link Removed - Invalid URL

Its timestamp implies though a good chance it's an MS file so don't worry about it, leave as is. If you're getting any new .dmp's please attach them.

This website is not affiliated, owned, or endorsed by Microsoft Corporation. It is a member of the Microsoft Partner Program.
