Network Routing Tables

Discussion in 'Windows 10 Networking' started by Ruthlez, Jun 10, 2016.

  1. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    Hi everyone!

    I recently started using a VPN. However some websites block VPN ips so I can't visit them.
    To solve this problem I would like to add the blocked website's IP to my route table.
    It works fine on my other laptops but on my PC it doesn't seem to function. I ran the following command as an administrator in my cmd. Got the OK! feedback message but I still get blocked from visiting the website when on a VPN.

    Code:
    Route add [website IP] [Default Gateway]
    At the bottom of this screenshot :
    route.


    you can see that the IP is indeed added to the list but sadly it doesn't function. I have been suggested to reinstall my Windows 10 but was wondering if there aren't any other solutions to this problem.

    Thanks in advance!

  2. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Lower the metric the specific IP entries to at least 19

  3. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Well actually if your VPN enables the proxy settings for web browsing you can probably go into Internet Options >Connections tab > lan settings > advanced and add the IP addresses into the exceptions box because otherwise while the proxy is enabled the routing table will see everything going to the routes with a mask of 128.0.0.0 and those have the lowest metric

    Ruthlez likes this.
  4. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    Thanks for the responds!

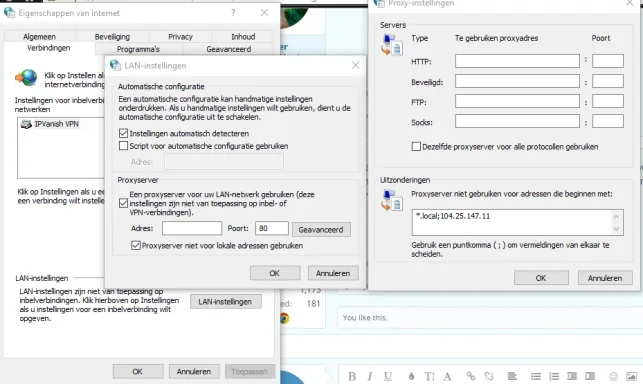

    I tried following your steps,
    is this right? still doesn't let me connect.


    Attached Files:

  5. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Which VPN client are you using?

  6. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    IPvanish

  7. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Hmm not sure how there client works and they don't really have any documentation. I would look at your Proxy settings and route tables while the VPN is active and see how it's configured then.

  8. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0

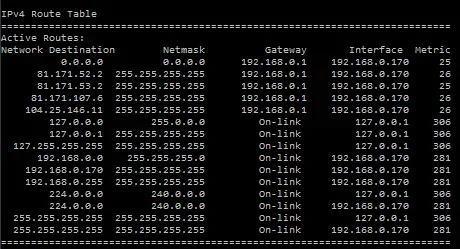

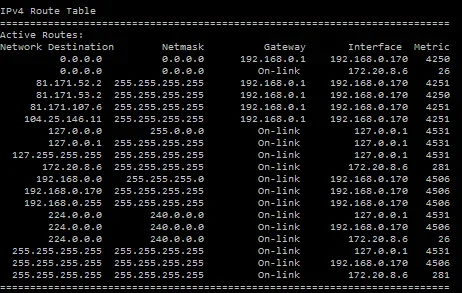

    Here are the two route tables with VPN enabled & disabled (104.25.147.11 is the IP i'm trying to bypass)

    Don't see any changes in the proxy settings.

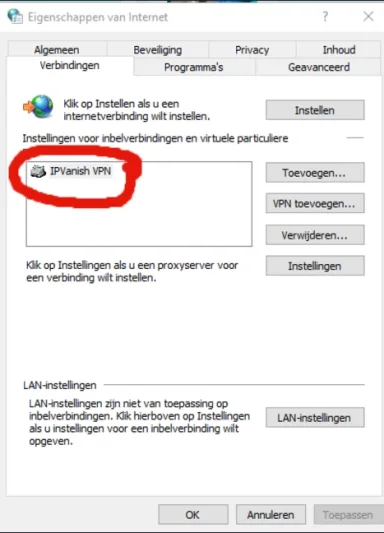

    There's a seperate option for the vpn however, maybe I need to change something in there?


    Attached Files:

  9. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    So add a route for that address. Route add 104.25.147.11 mask 255.255.255.255 198.168.0.1 metric 15

  10. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0

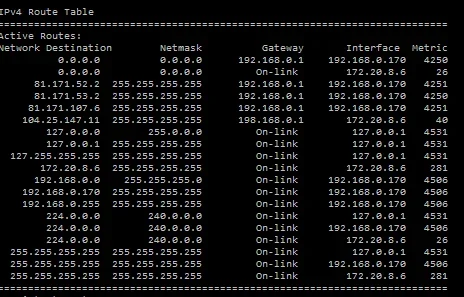

    This would be while then VPN is enabled right?

    I added the route with metric 15 however when printing out it show metric 40 and still blocks website.


    Attached Files:

  11. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Because its still hitting the vpn route

  12. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    Mhmm.. well my Subscription for IPvanish is expiring in a couple days. U have any suggestions for VPNs for which you know how to fix this issue?

  13. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    I'm curious why do you need a VPN anyways? Most of the time people use them to access corporate resources remotely and I guess if you really want the privacy. You could always just use TOR if that's all you are concerned about.

  14. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    Primary issue when you have a somewhat important role in a gaming community of some sort. You get targeted by children ranging from age 12 to 17 who think it's funny or cool to ddos your home internet for 4 hours a day or social engineer your ISP to get your information and post it online. It goes as far as sending a SWAT team to someones house over getting killed in a video game. I don't want to take anymore risks, better safe then sorry.

  15. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    Tor would work fine for that purpose and it's free.

  16. Ruthlez

    Ruthlez New Member

    Joined:
    Jun 10, 2016
    Messages:
    8
    Likes Received:
    0
    People can get your IP over things like Teamspeak, Skype, Ingame clients, databases, Ip grabbers etc.. Tor doesn't protect you from that.

  17. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    If you're willing to spend about 50 bucks you can buy a raspberry pi and create a onion pi, it's basically an access point that you connect to as you would your regular router, but the pi is configured for TOR traffic. Overview | Onion Pi | Adafruit Learning System

  18. Neemobeer

    Neemobeer Windows Forum Team
    Staff Member

    Joined:
    Jul 4, 2015
    Messages:
    2,395
    Likes Received:
    360
    It actually does, but you need to configure all your applications to use the socks proxy with TOR, or the onion pi automatically proxies all traffic.
